PARTS MAP FOR
PB12– DCS
©2005 Lindhaus USA All Rights Reserved.
Visit us on-line at www.lindhaus.com
Page 2
Page 3
LINDHAUS USA
Spare Parts List

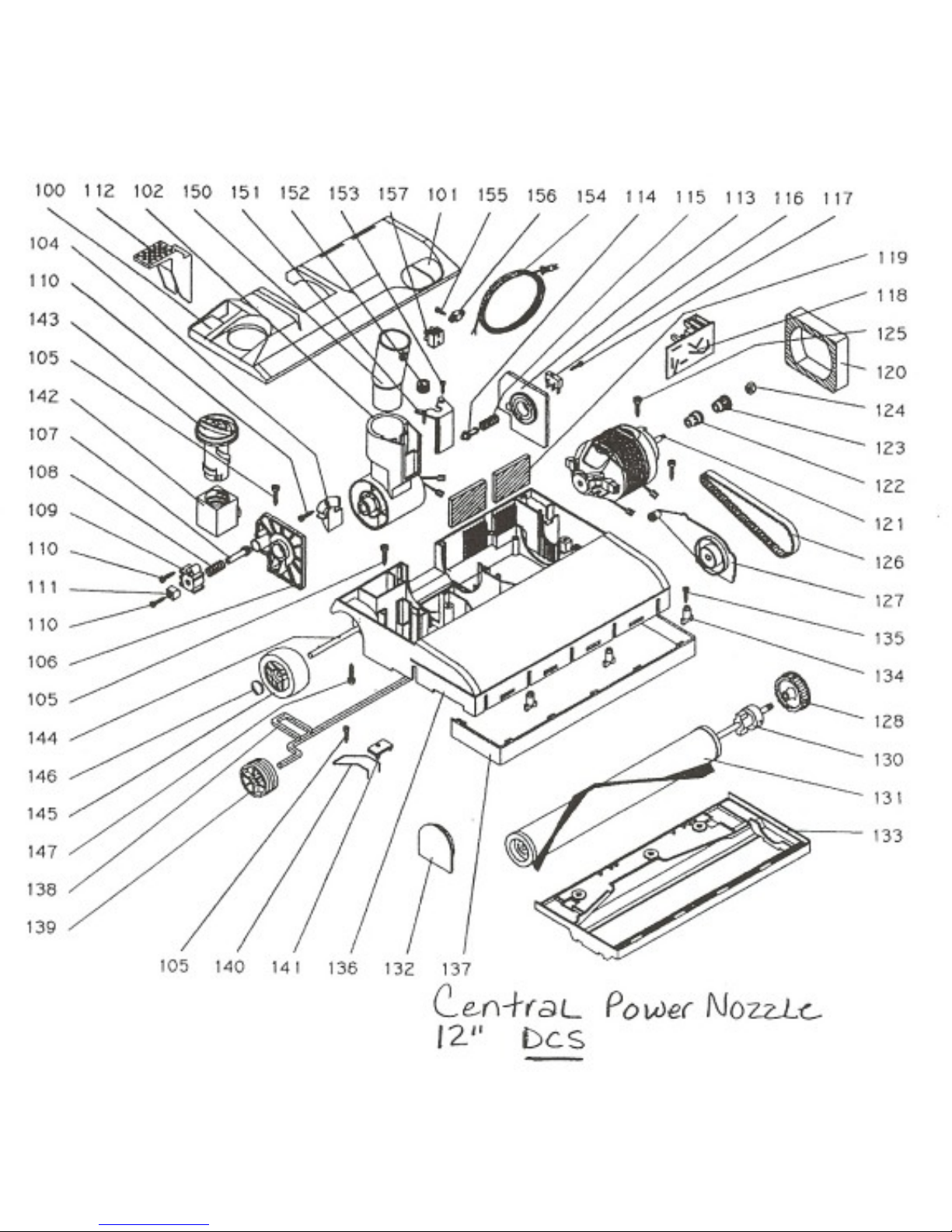

Central PB12 DCS
MAP NO.
PART NO.
DESCRIPTION
097582280 POWER NOZZLE PB12" CNTRL ELECT w/DCS
PB 99 085150081 THROAT COVER, SPRING LOADED w/ FELT STRIP
PB 99A 011000017 THROAT COVER FELT STRIP ONLY
PB 100 083960281 MOTOR COVER LIGHT GREY
PB 101 083950081 LENS SET RED AND GREEN
PB 102 082680380 JOINT COMPLETE 1.1/4 45”
PB 104 002280305 JOINT PIN SLIDE
PB 105 085590009 SCREW 3.9 X 13 PACK OF 20
PB 106 080430381 RIGHT CONNECTOR SUPPORT
PB 107 000840036 PLUNGER
PB 108 010390009 SPRING, DETENTE
PB 109 000650036 BUSHING
PB 110 085610009 SCREW 2.9 X 16 PACK OF 20
PB 111 000970305 SLIDE
PB 112 001920105 FOOT PEDAL DARK GREY
PB 113 080440381 LEFT CONNECTOR SUPPORT
PB 114 000670036 SWITCH ACTIVATOR PIN
PB 115 010480009 SPRING SWITCH ACTIVATOR PIN
PB 116 020640000 MICROSWITCH
PB 117 086950009 SCREW 2.2 X 16 PACK OF 20
PB 118 020610000 CIRCUIT BOARD 12”
PB 119 010720316 EXHAUST FILTER
PB 120 010580016 FILTER BRUSH MOTOR
PB 121 050030080 BRUSH MOTOR R73/25V 120V 180W
PB 122 002890029 METAL SPACER
PB 123 002880029 METAL PULLEY
PB 124 010490009 NUT, PINION
PB 125 085560009 SCREW 3.9 X 16 PACK OF 20
PB 126 010400300 TIMING BELT 6mm
PB 127 080360011 TRANSMISSION LEFT SUPPORT WITH BEARING
PB 128 086160381 BRUSH PULLEY WITH METAL INSERT
PB 130 080880081 BRUSH SHAFT 12”
PB 131 081730301 BRUSH 12”
PB 132 080370011 RIGHT BRUSH SUPPORT WITH BEARING
PB 133 005860333 BRUSH SHOE PLATE
PB 134 087491381 ROLLER COVER CLIP PACK OF 20
PB 135 085540009 SCREW 3.5 X 9.5 TG PACK OF 20
PB 136 087560281 BASE HOUSING 12” LIGHT GREY - WITH CLIPS
PB 137 000600112 BUMPER 12” DARK GREY
PB 138 011320029 FRONT AXLE
PB 139 002260000 FRONT WHEEL RUBBER
PB 140 010430009 SPRING
PB 141 000680036 SPRING STOP PLATE
PB 142 000990305 BRUSH HEIGHT ADJUSTER
PB 143 003750104 ADJUSTING KNOB DARK GREY
PB 144 011380009 REAR AXLE
PB 145 002270000 REAR WHEEL RUBBER
PB 146 012840009 WHEEL RETAINER CAP
PB 147 086440009 SCREW 3.5 X 19 PACK OF 20
PB 150 002790305 SWIVEL CONNECTOR 1.1/4 INCH.
PB 151 001080305 STOPCORD BRACKET
PB 152 011620307 STRAIN RELIEF
PB 153 085610009 SCREW 2.9 X 16 PACK OF 20
PB 154 021190320 CORD 45”
PB 155 087420009 SCREW 2.9 X 9.5 PACK OF 20
PB 156 001100305 CORD CLAMP
PB 157 021000400 TERMINAL BLOCK 2 POLES
021260000
CARBON BRUSH, BRUSH MOTOR, SET OF TWO
