PARTS MAP FOR

Model HF6

With PB12 and PB14 Nozzle

Visit us on-line at www.lindhaus.com

Page 2

Page 3

LINDHAUS USA

Spare Parts List

www.lindhaus.com

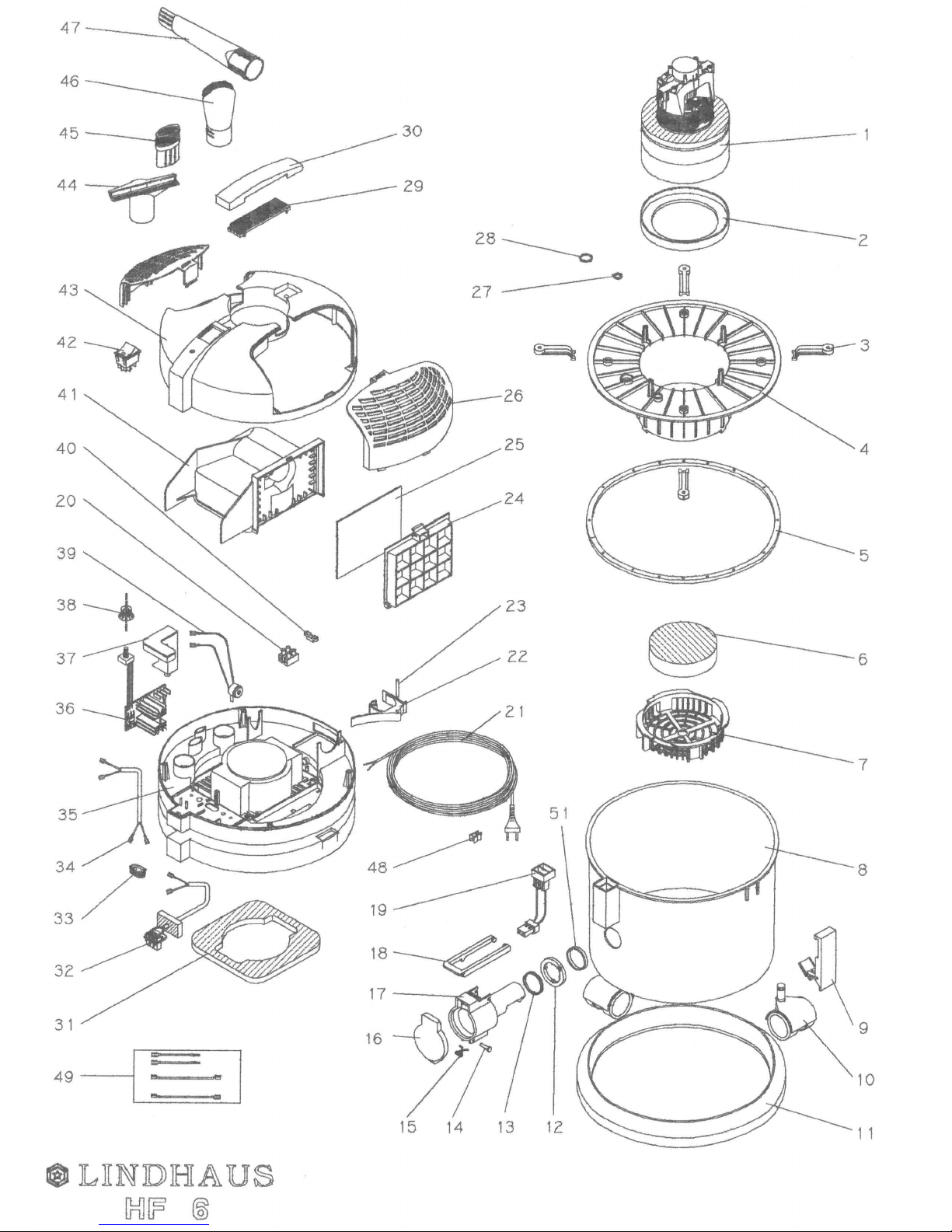

Suction Body

HF6 Canister Vacuum V.120/60

MAP NO.

PART NO.

DESCRIPTION

HF 093654680 CANISTER HF6, BLUE

HF 06

HF 07

HF 14

HF 16

HF 21

HF 083760000 HOSE, 10', HF6 POWER KIT HF 084450081 HOSE, NON-ELECTRIC, CRUSHPROOF HF 01 050480080 VACUUM MOTOR R26 APSS V. 120/60 W. 750 HF 011780315 GASKET (TOP OF MOTOR) HF 02 011900307 VACUUM MOTOR GASKET HF 03 003520325 MOTOR CLAMP HF 04 003280325 MOTOR SUPPORT HF 05 011730315 GASKET

012240016 FILTER

004020101 FILTER HOUSING HF 08 003270201 BAG HOUSING GREY HF 08 003272501 BAG HOUSING RED HF 08 003272601 BAG HOUSING BLUE HF 09 083570181 SIDE LATCH HF 10 030690000 WHEEL SET OF 4 HF 11 003650100 GASKET BUMPER HF 12 003660105 CLUTCH RING HF 13 011810307 O-RING

003810105 PIN HF 15 011750009 SPRING

084820105 COLLAR COVER HF 17 003470101 CLUTCH HF 18 003670105 COLLAR BLOCKING BRIDGE HF 19 083590080 LOWER CONNECTION KIT HF 20 021680400 TERMINAL BLOCK 16A

021950320 CORD 2x17 THIN, 2 PRONG, 2 WIRE HF 22 003590104 WAND CLIP HF 23 011890009 CLIP PIN HF 24 003360100 EXHAUST GRILL HF 25 085350081 MICROFILTER 12 PACK HF 26 003580201 COVER GRILL GREY HF 26 003582501 COVER GRILL RED HF 26 003582601 COVER GRILL BLUE HF 27 010260307 O-RING HF 28 011910307 O-RING HF 29 003570000 LOWER HANDLE HF 30 003560201 HANDLE GREY HF 30 003562501 HANDLE RED HF 30 003562601 HANDLE BLUE HF 31 011690016 GASKET FILTER HF 32 083600080 UPPER CONNECTION KIT WITH GASKET HF 33 003600000 STRAIN RELIEF HF 34 021790320 VACUUM MOTOR CORD HF 35 003430233 INNER HOUSING LIGHT GREY HF 36 021660000 CIRCUIT BOARD HF 37 083610300 AERATOR HF 38 003490101 ADJUSTING KNOB HF 39 021840000 VACUUM SENSOR HF 40 000070305 CORD CLAMP HF 41 083560281 CONVEYOR HF 42 021670000 MAIN SWITCH HF 43 003540201 COVER GREY HF 43 003542501 COVER RED HF 43 003542601 COVER BLUE

Page 4

LINDHAUS USA

Spare Parts List

www.lindhaus.com

Suction Body

HF6 Canister Vacuum V.120/60

MAP NO.

PART NO.

DESCRIPTION

HF 44 030820300 UPHOLSTERY TOOL WITH CENTER STRIP HF 45 030660100 RADIATOR BRUSH, SMALL HF 46 031460310 DUST BRUSH WITH SWIVEL, NATURAL BRISTLE HF 47 003420304 TELESCOPIC CREVICE TOOL HF 49 083580080 WIRE KIT HF 51 003700100 RING

012940013 TELESCOPIC METAL TUBE GREY

011850013 TUBE WITH AIR CONTROL

001090304 CORD CLIP (CORD TO WAND)

022300000 CARBON BRUSH, BRUSH MOTOR, SET OF TWO

030670019 HF6 BAGS (6 BAGS + 2 MICROFILTERS)

030720100 HEPA FILTER

030650000 CARBON ACTIVE FILTER

083540100 BLOWER PORT

Page 5

Page 6

LINDHAUS USA

Spare Parts List

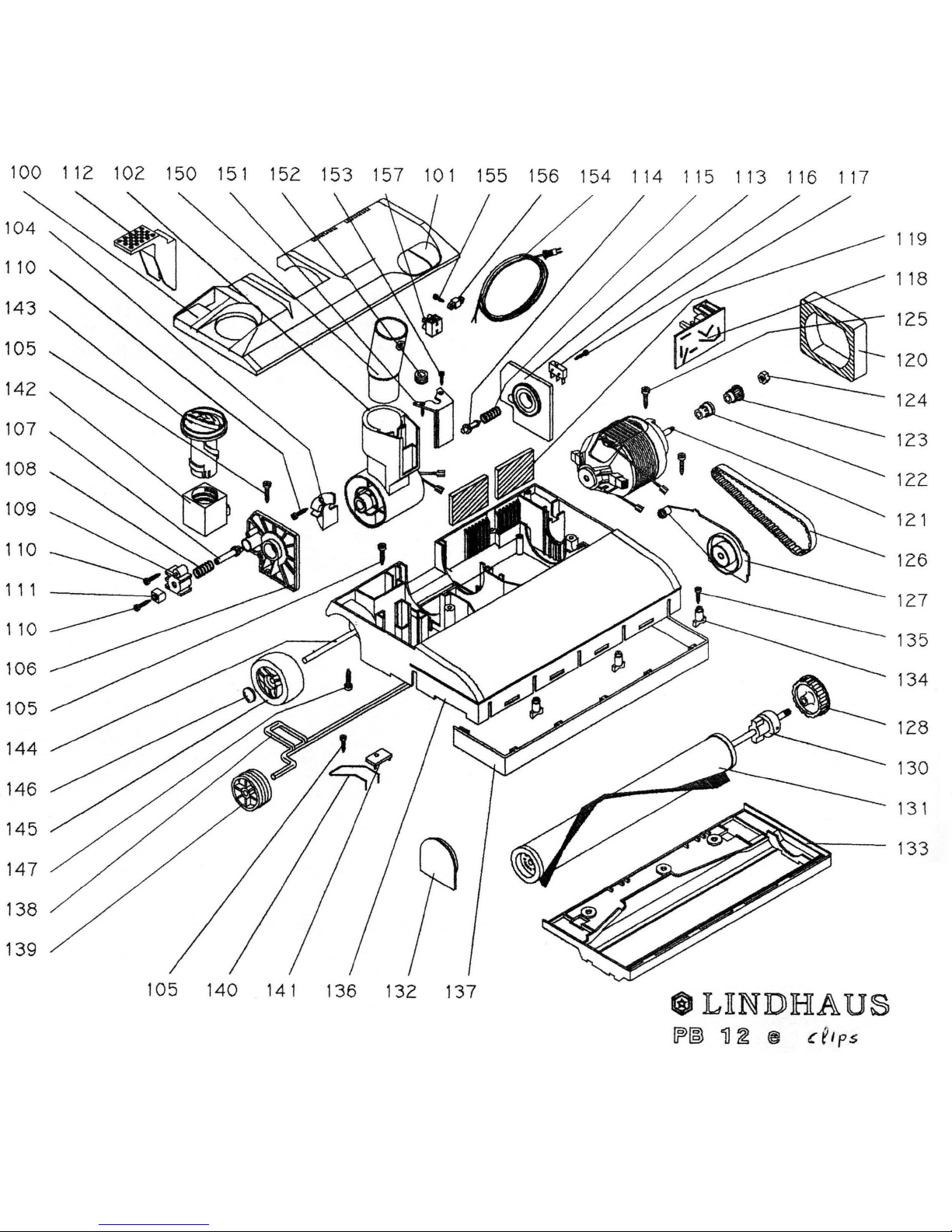

HF6 Power Nozzle 12 & 14"

HF6 Eco Spreader - 14"

MAP NO.

PART NO.

DESCRIPTION

PB 99 085150081 THROAT COVER, SPRING LOADED w/ FELT STRIP PB 99A 011000017 THROAT COVER FELT STRIP ONLY PB 100 083960281 MOTOR COVER LIGHT GREY PB 100 083960181 MOTOR COVER DARK GREY PB 101 083950081 LENS SET RED AND GREEN PB 102 083530380 JOINT COMPLETE HF6 PB 104 002280305 JOINT PIN SLIDE PB 105 085590009 SCREW 3.9 X 13 PACK OF 20 PB 106 080430381 RIGHT CONNECTOR SUPPORT PB 107 000840036 PLUNGER PB 108 010390009 SPRING, DETENTE PB 109 000650036 BUSHING PB 110 085610009 SCREW 2.9 X 16 PACK OF 20 PB 111 000970305 SLIDE PB 112 001920105 FOOT PEDAL DARK GREY PB 112 001920305 FOOT PEDAL BLACK PB 113 080440381 LEFT CONNECTOR SUPPORT PB 114 000670036 SWITCH ACTIVATOR PIN PB 115 010480009 SPRING SWITCH ACTIVATOR PIN PB 116 020640000 MICROSWITCH PB 117 086950009 SCREW 2.2 X 16 PACK OF 20 PB 118 020610000 CIRCUIT BOARD - 12" ONLY PB 118 020370000 CIRCUIT BOARD - 14" ONLY PB 119 010720316 EXHAUST FILTER PB 120 010580016 FILTER BRUSH MOTOR PB 121 050030080 BRUSH MOTOR R73/25V 120V 180W PB 122 002890029 METAL SPACER PB 123 002880029 METAL PULLEY PB 124 010490009 NUT, PINION PB 125 085560009 SCREW 3.9 X 16 PACK OF 20 PB 126 010400300 TIMING BELT 6mm PB 127 080360011

TRANSMISSION LEFT SUPPORT WITH BEARING PB 128 086160381 BRUSH PULLEY WITH METAL INSERT PB 130 080880081 BRUSH SHAFT 12" PB 130 080890081 BRUSH SHAFT 14" PB 131

081730301 BRUSH 12” PB 131 080620301 BRUSH 14" PB 132 080370011

RIGHT BRUSH SUPPORT WITH BEARING PB 133 000570325 BRUSH SHOE PLATE 12" PB 133 000560325 BRUSH SHOE PLATE 14" PB 134 010360009 SCREW M6X9 PB 134A 010670014 BRASS GROMMET PB 135 011640009 STAR WASHER PB 136 080470181 BASE HOUSING 12” DARK GREY PB 136 080450181 BASE HOUSING 14” DARK GREY PB 137 000600112 BUMPER 12” DARK GREY PB 137 000600312 BUMPER 12” BLACK PB 137 000590112 BUMPER 14” GREY PB 137 000590312 BUMPER 14” BLACK PB 138 011320029 FRONT AXLE PB 139 002260000 FRONT WHEEL RUBBER PB 140 010430009 SPRING PB 141 000680036 SPRING STOP PLATE PB 142 000990305 BRUSH HEIGHT ADJUSTER PB 143 003750104 ADJUSTING KNOB DARK GREY

Page 7

LINDHAUS USA

Spare Parts List

HF6 Power Nozzle 12 & 14"

HF6 Eco Spreader - 14"

MAP NO.

PART NO.

DESCRIPTION

PB 143 003750204 ADJUSTING KNOB LIGHT GREY PB 144 011380009 REAR AXLE PB 145 002270000 REAR WHEEL RUBBER PB 146 012840009 WHEEL RETAINER CAP PB 147 086440009 SCREW 3.5 X 19 PACK OF 20 PB 150 003710305 SWIVEL CONNECTOR 1 1/2" HF6 WITH BUTTON PB 151 001080305 STOPCORD BRACKET PB 152 011620307 STRAIN RELIEF PB 153 085610009 SCREW 2.9 X 16 PACK OF 20 PB 154 021180320 CORD 2x18, 38” PB 155 087420009 SCREW 2.9 X 9.5 PACK OF 20 PB 156 001100305 CORD CLAMP PB 157 021000400 TERMINAL BLOCK 2 POLES

021260000 CARBON BRUSH, BRUSH MOTOR, SET OF TWO
