Lincoln TOWN CAR 2000 Owner Manual

Contents
Before driving Introduction 2
Instrumentation 6 Controls and features 23 Seating and safety restraints 84 Starting and driving
Starting 114 Driving 118 Roadside emergencies 132 Servicing
Maintenance and care 150 Capacities and specifications 195 Customer assistance 202 Reporting safety defects 213
Index 214
All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.
Copyright © 1999 Ford Motor Company
1

Introduction

The following warning may be required by California law:
CALIFORNIA Proposition 65 Warning
Engine exhaust, some if its constituents, and certain vehicle components contain or emit chemicals known to the State of
California to cause cancer, or birth defects or other reproductive harm.
ICONS
Indicates a safety alert. Read the following section on Warnings.
Indicates vehicle information related to recycling and other environmental concerns will follow.
Correct vehicle usage and the authorized disposal of waste cleaning and lubrication materials are significant steps towards protecting the environment.
Indicates a message regarding child safety restraints. Refer to Seating and safety restraints for more information.
Indicates that this Owner Guide contains information on this subject. Please refer to the Index to locate the appropriate section which will provide you more information.
2
Introduction
WARNINGS
Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment.
BREAKING-IN YOUR VEHICLE
There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is necessary to give the moving parts a chance to break in.
INFORMATION ABOUT THIS GUIDE
The information found in this guide was in effect at the time of printing. Ford may change the contents without notice and without incurring obligation.
3
Introduction
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
Fasten Safety Belt Air Bag-Front
Air Bag-Side Child Seat
Child Seat Installation Warning
Brake System Anti-Lock Brake System
Brake Fluid ­Non-Petroleum Based
Master Lighting Switch Hazard Warning Flasher
Fog Lamps-Front Fuse Compartment
Fuel Pump Reset Windshield Wash/Wipe
See Owner’s Guide
Child Seat Tether Anchorage
Traction Control
Windshield Defrost/Demist
Power Windows Front/Rear
4
Rear Window Defrost/Demist
Power Window Lockout
Vehicle Symbol Glossary
MAX
MIN
Introduction
Child Safety Door Lock/Unlock
Interior Luggage Compartment Release Symbol
Panic Alarm Engine Oil
Engine Coolant
Engine Coolant Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames, or Sparks
Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid
Maintain Correct Fluid Level
Emission System Engine Air Filter
Passenger Compartment Air Filter
Jack
5

Instrumentation

Panel dimmer
switch
(pg. 23)
Headlamp control
(pg. 23)
OFF
P
PANEL
DIM
Instrument cluster
(pg. 8)
CHECK
TRAC
40
30
40
20
20
10
H F
SERVICE ENGINE
SOON
LO F
S
OFF
MIST
60
50
100
80
60
MPH km/h
Gearshift lever
(pg. 123)
70
80
120
90
140
100
160
110
180
FILL ON
<
LEFT
120
1
2
E
VOL PUSH ON
AM
Turn signal and
wiper/washer control
(pg. 56)
6
RESUME
SET ACCEL
COAST
OFF
ON

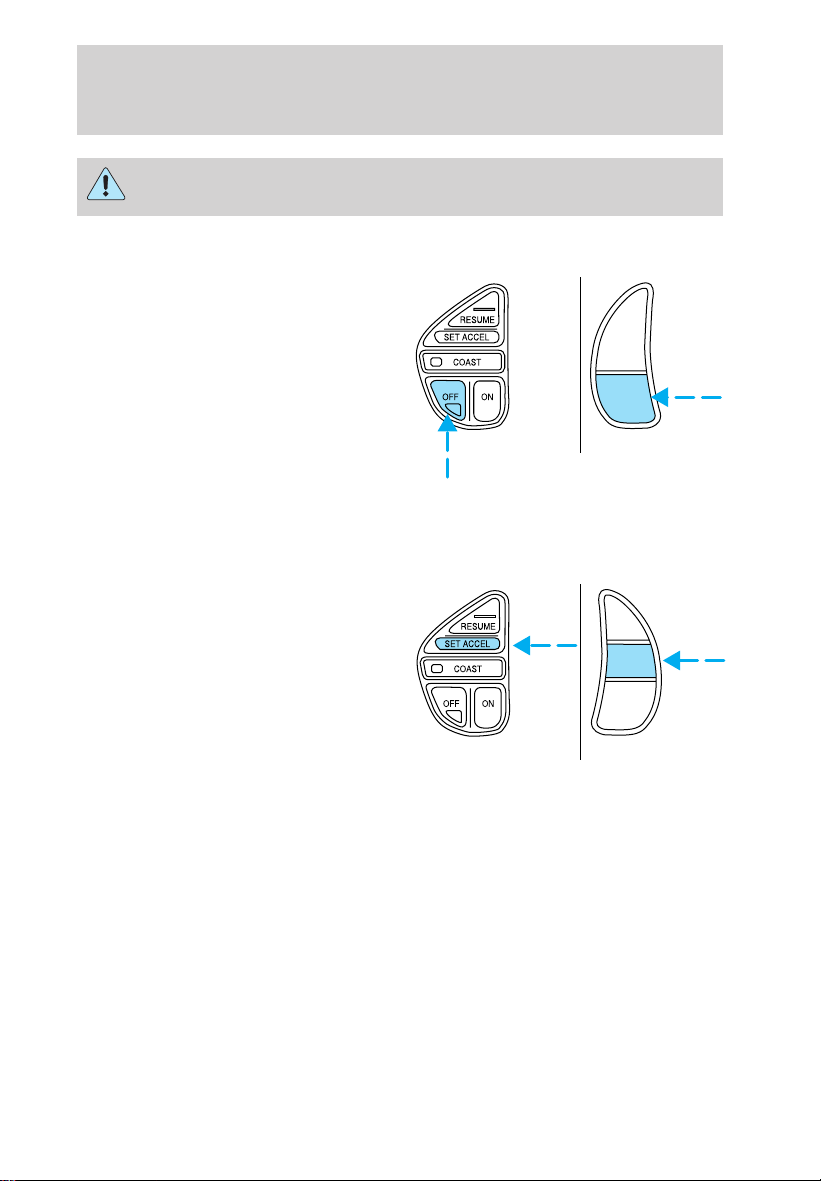

Speed control
(pg. 56)
Driver air bag
(pg. 98)
NEXT
Climate controls
(pg. 60)
VOL
MODE
TEMP FAN
Electronic sound system controls*
(pg. 60)
EXT
Instrumentation
TAPE
SEEK
12
REW
SELECT
MAX
AUTO
A/C
Electronic sound system
(pg. 30)
Clock*
(pg. 53)
Passenger side
air bag
(pg. 99)
BAL
BASS
SEL
TREB
FADE
EJ
RDS
SCAN AUTO
TUNE
3
4
56
SIDE 1 2
FF
COMP
SHUFF
RESET
FRONT
REAR
Climate control system
(pg. 24)
Traction control switch*
(pg. 121)
* if equipped
7
Instrumentation
WARNING LIGHTS AND CHIMES
CHECK
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
SERVICE
ENGINE
SOON
km
H F
CIRCLE SLOWLY
TRAC
30
20
10
Service engine soon
Your vehicle is equipped with a computer that monitors the engine’s emission control system. This system is commonly known as the On Board Diagnostics System (OBD II). The OBD II system protects the environment by ensuring that your vehicle continues to meet government emission standards. The OBD II system also assists the service technician in properly servicing your vehicle.
The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning. The light may illuminate without a driveability concern being noted. The vehicle will usually be drivable and will not require towing.
What you should do if the Service Engine Soon light illuminates
Light turns on solid:
This means that the OBD II system has detected a malfunction. Temporary malfunctions may cause your Service Engine Soon light to
illuminate. Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run poorly.)
60
50
40
100
80
60
40
20
MPH km/h
P R N D 2 1
70
80
120
90
140
100
160
110
180
120
WASHER LTR/100km
km MILES/GAL
FILL ON
<
LEFT
AIR
BAG
FUEL ECON
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
1
2
E
BRAKE
SERVICE
ENGINE
SOON
8
Instrumentation
2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been properly installed and securely tightened.
These temporary malfunctions can be corrected by filling the fuel tank with good quality fuel and/or properly installing and securely tightening the gas cap. After three driving cycles without these or any other temporary malfunctions present, the Service Engine Soon light should turn off. (A driving cycle consists of a cold engine startup followed by mixed city/highway driving.) No additional vehicle service is required.
If the Service Engine Soon light remains on, have your vehicle serviced at the first available opportunity.
Light is blinking:
Engine misfire is occurring which could damage your catalytic converter. You should drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced at the first available opportunity.
Under engine misfire conditions, excessive exhaust temperatures could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Air bag readiness
Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately.
AIR
BAG
Safety belt
Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts. For more information, refer to the Seating and safety restraints chapter.
9
Instrumentation
Brake system warning
Momentarily illuminates when the ignition is turned to the START position. Also illuminates if the parking brake is engaged. If the brake warning lamp does not illuminate at these times, seek service immediately. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately.
Anti-lock brake system (ABS)
Momentarily illuminates when the ignition is turned to the ON position. If the light remains on, continues to flash or fails to illuminate, have the system serviced immediately. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the brake warning light also remains illuminated with the parking brake released.
Turn signal
Illuminates when the left or right turn signal or the hazard lights are turned on. If one or both of the indicators stay on continuously or flash faster, check for a burned-out turn signal bulb. Refer to Exterior bulbs in the Maintenance and care chapter.
BRAKE
!
ABS
High beams
Illuminates when the high beam headlamps are turned on.
10
Instrumentation
Charging system
Illuminates when the ignition is turned to the ON position and the engine is off. The light also illuminates when the battery is not charging properly, requiring electrical system service.
Engine oil pressure
Momentarily illuminates when the ignition is turned to the ON position and the engine is off. Illuminates when the oil pressure falls below the normal range. Stop the vehicle as soon as safely possible and switch off the engine immediately. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and care chapter.
Engine coolant temperature
Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as safely possible, switch off the engine and let it cool.
Never remove the coolant recovery cap while the
engine is running or hot.
Refer to Engine coolant in the Maintenance and care chapter. If light stays on or continues to turn on after the vehicle warms up, have your vehicle serviced.
This light also illuminates briefly when the ignition key is turned to ON.
Check Trac
Momentarily illuminates when the ignition is turned on and the engine is off. If the light stays on, the Traction Controly system needs to be serviced.
CHECK
TRAC
11
Instrumentation
Trunk ajar
If the trunk is not completely closed, this light comes on when you turn the ignition to ON. With the ignition ON, this light will flash five times and sound a tone for one second, then remain on.
Door ajar
Illuminates when one of the doors is not completely shut and the ignition is turned to ON. With the ignition ON, this light will remain on until all doors are closed.
Trac off
Illuminates when the Traction Controlt system has been disabled (by the driver or as a result of a system failure). For more information, refer to the Driving chapter.
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
km
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
km
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
km
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
CIRCLE SLOWLY
CIRCLE SLOWLY
CIRCLE SLOWLY
Air suspension
Briefly illuminates when the ignition is turned ON. This light will remain on to indicate that the air suspension switch is OFF, the load limit is exceeded or to indicate a possible system fault. For more information on the air suspension system, refer to the Driving chapter.
12
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
km
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
CIRCLE SLOWLY
Instrumentation
O/D off
Illuminates when the Transmission Control Switch (TCS), refer to
Overdrive control in the Controls and Features chapter, has been
pushed turning the transmission overdrive function OFF. When the light is on, the transmission does not operate in the overdrive mode, refer to the Driving chapter for transmission function and operation.
The light may also flash steadily if a transmission malfunction is detected. If the light does not come on when the Transmission Control Switch is depressed or if the light flashes steadily, have your vehicle serviced as soon as possible, damage to the transmission could occur.
Trac active
Illuminates when the Traction Controlt system begins applying and releasing the brakes and adjusting the engine characteristics to limit a wheelspin condition. For more information on the traction control system, refer to the Driving chapter.
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
km
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
km
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
CIRCLE SLOWLY
CIRCLE SLOWLY
Speed control
This light comes on when either the SET/ACCEL or RESUME controls are pressed. It turns off when the speed control OFF control is pressed, the brake is applied or the ignition is turned to the OFF position.
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
km
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
CIRCLE SLOWLY
13
Instrumentation
Washer
Illuminates when the windshield washer fluid is low.
Safety belt warning chime
Sounds to remind you to fasten your safety belts. For information on the safety belt warning chime, refer to the Seating
and safety restraints chapter.
Supplemental restraint system (SRS) warning chime
For information on the SRS warning chime, refer to the Seating and safety restraints chapter.
Key-in-ignition warning chime
Sounds when the key is left in the ignition in the OFF/LOCK or ACC position and the driver’s door is opened.
Headlamps on warning chime
Sounds when the headlamps or parking lamps are on, the ignition is off (and the key is not in the ignition) and the driver’s door is opened.
WASHER LTR/100km
km MILES/GAL
FUEL ECON
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
Turn signal chime (if equipped)
Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 0.8 km (1/2 mile).
14
GAUGES
CHECK
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
SERVICE
ENGINE
SOON
km
H F
CIRCLE SLOWLY
TRAC
30
20
10
Odometer
Registers the total kilometers (miles) of the vehicle.
60
50
40
100
80
60
40
20
MPH km/h
P R N D 2 1
Instrumentation
70
80
120
90
140
100
160
110
180
120
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
WASHER LTR/100km
km MILES/GAL
FILL ON
<
LEFT
AIR
BAG
km
FUEL ECON
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
1
2
E
BRAKE
CIRCLE SLOWLY
Fuel gauge
Displays approximately how much fuel is in the fuel tank (when the key is in the ON position). The fuel gauge may vary slightly when the
FILL ON
<
LEFT
F
1
2
vehicle is in motion. The ignition should be in the OFF position while the vehicle is being refueled. When
E
the gauge first indicates empty, there is a small amount of reserve fuel in the tank. When refueling the vehicle from an empty indication, the amount of fuel that can be added will be less than the advertised capacity due to the reserve fuel.
15
Instrumentation
Speedometer
Indicates the current vehicle speed.
40
30
20
20
10
Engine coolant temperature gauge
Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating. Stop the vehicle as soon as safely possible, switch off the engine immediately and let the engine cool. Refer to Engine coolant in the Maintenance and care chapter.
Never remove the coolant reservoir cap while the engine is running or hot.
60
50
100
80
60
40
MPH km/h
120
H
70
140
160
180
80
90
100
110
120
This gauge indicates the temperature of the engine coolant, not the coolant level. If the coolant is not at its proper level the gauge indication will not be accurate. If the gauge enters the red section, the oil pressure/engine coolant and Check Engine/Service Engine Soon indicators illuminate, refer to What you should know about fail-safe cooling in the Maintenance and care chapter.
ELECTRONIC MESSAGE CENTER
The electronic message center only works when the ignition is in the ON position.
16
The message center allows you to:
see problems such as door ajar and trunk ajar.
see the compass direction.
check the on/off status of air
suspension and speed control systems.
Instrumentation
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
km
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
CIRCLE SLOWLY
see how many kilometers/miles you can drive before running out of fuel.
see how many liters/gallons of fuel remain in the fuel tank.
monitor the average fuel economy.
WASHER LTR/100km
km MILES/GAL
FUEL ECON
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
monitor the average speed.
check the distance traveled during a trip on either Trip A or Trip B.
You can select different features for the message center to display by using the message center controls located in the center of the instrument panel.
Selectable features Select
Each press of the SELECT control will select a different feature as follows:
FUEL ECON
DIST TO EMPTY
AVG SPEED
WASHER LTR/100km
km MILES/GAL
FUEL ECON
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
TRIP A/TRIP B
E/M
For descriptions of the SELECT features, refer to “Message center functions” later in this chapter.
17
Instrumentation
Reset
Press this control to reset the selected message center function to zero. (The only functions which can be reset are FUEL ECON and TRIP AorB.)
Compass display (if equipped)
The compass reading may be affected when you drive near large buildings, bridges, power lines and powerful broadcast antenna. Magnetic or metallic objects placed in, on or near the vehicle may also affect compass accuracy.
Usually, when something affects the compass readings, the compass will correct itself after a few days of operating your vehicle in normal conditions. If the compass still appears to be inaccurate, a manual calibration may be necessary. Refer to Compass calibration
adjustment.
Most geographic areas (zones) have a magnetic north compass point that varies slightly from the northerly direction on maps. This variation is four degrees between adjacent zones and will become noticeable as the vehicle crosses multiple zones. A correct zone setting will eliminate this error. Refer to Compass zone adjustment.
SELECT
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
RESET
CIRCLE SLOWLY
km
18
Instrumentation
Compass zone adjustment
1. Determine which magnetic zone
you are in for your geographic location by referring to the zone map.
2. Locate the compass module and
the calibration button mounted on the center rear view mirror post.
3. Turn ignition to the ON position.
4. Press and hold the CALIBRATION
BUTTON switch located on top of the compass module until the message center display changes to show the current zone setting.
5. Release the CALIBRATION
BUTTON, then slowly press down again. Press the CALIBRATION BUTTON repeatedly until the correct zone setting for your geographic location is displayed on the message center.
6. To exit the zone setting mode, release pressure from the switch for
greater than ten seconds.
Compass calibration adjustment
Perform this adjustment in an open area free from steel structures and high voltage lines.
For optimum calibration, turn off all electrical accessories (heater/air conditioning, wipers, etc.) and make sure all vehicle doors are shut.
1. Start the vehicle.
2. Locate the compass module and the CALIBRATION BUTTON mounted
on the center rear view mirror post.
3. Press and hold the CALIBRATION
BUTTON for 2 to 4 seconds until CIRCLE SLOWLY is displayed on the
TRUNK AJAR DOOR AJAR TRAC OFF AIR SUSPENSION
message center.
4. Release pressure from the button.
5. Slowly drive the vehicle in a
circle (less than 5 km/h [3 mph])
O/D OFF TRAC ACTIVE SPEED CONTROL COMPASS
1
9
10
15
14
13
12
11
CIRCLE SLOWLY
2
3
4
5
6
78
km
19
Instrumentation
until the CIRCLE SLOWLY indicator turns off. This will take up to five circles to complete calibration.
6. The compass is now calibrated.
Message center functions FUEL ECON (Average fuel economy)
Select this function to display your average fuel economy in liters/ 100 km or miles/gallon.
If you calculate your average fuel economy by dividing liters of fuel used by 100 kilometers traveled (miles traveled by gallons used), your figure may be different than displayed for the following reasons:
your vehicle was not perfectly level during fill-up
differences in the automatic shut-off points on the fuel pumps at
service stations
variations in top-off procedure from one fill-up to another
rounding of the displayed values to the nearest 0.1 liter (gallon)
Checking your highway fuel economy using the electronic message center display
The following procedure will allow you to accurately monitor your actual highway fuel economy. Since this procedure requires the vehicle speed control system to be set to highway speeds, it must be run only on suitable roadways where long distance speed control can be safely maintained.
You may notice gradual improvement in fuel economy over the course of your vehicle’s break-in period (approximately 1 600 kilometers [1 000 miles]).
1. Set the speed control. Refer to Speed control in the Controls and
features chapter.
FUEL ECON
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
20
Instrumentation
2. Select FUEL ECON
3. Press the RESET control to clear
the system memory.
Actual highway fuel economy is now displayed. This current
average measure will change as the speed control system changes the engine speed to maintain a constant vehicle speed. This is most noticeable in hilly environments.
4. Drive the vehicle at least 8 km (5 miles) with the speed control
system engaged to display a stabilized average.
5. Record the highway fuel economy for future reference.
It is important to press the RESET control after setting the speed control to get accurate highway fuel economy readings.
FUEL ECON
SELECT
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
RESET
DIST TO EMPTY (DTE)
This function estimates approximately how far you can drive with the fuel remaining in your tank under normal driving conditions. Remember to turn the ignition OFF when refueling your vehicle. Otherwise, the display will not show the addition of fuel for a few kilometers (miles).
At least 9.5 liters (2.5 gallons) of fuel must be added for DTE to immediately show new distance.
The DTE function will flash for 5 seconds and sound a tone for 1 second when you have approximately:
80 km (50 miles) left before you run out of fuel
40 km (25 miles)
16 km (10 miles)
FUEL ECON
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
21
Instrumentation
If “CO” or “CS” is displayed, there is a problem with the fuel indication system and you should contact your dealer for service as soon as possible.
AVG SPEED
To use this function, select AVG SPEED and press the RESET control. Your average speed from that point will be displayed until RESET is pressed again.
TRIP A B
These two functions allow you to see how far you have traveled since you last reset. Trip A and Trip B are completely independent and must be reset individually.
FUEL ECON
FUEL ECON
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
To reset either trip feature to zero, press the RESET control while the appropriate trip distance feature (A or B) is displayed.
E/M
When this function is displayed, press the RESET control to change the message center display from metric to English units or from English to metric units.
22
SELECT
FUEL ECON
DIST TO EMPTY
AVG SPEED
TRIP A B
E/M
RESET

Controls and features

PANEL DIMMER CONTROL
Use to adjust the brightness of the instrument panel during headlight and parklamp operation.
Push up to brighten.
Push down to dim.
AUTOLAMP CONTROL
The autolamp system provides light sensitive automatic on-off control of the exterior lights normally controlled by the headlamp control.
The autolamp system also keeps the lights on for a preselected period of time after the ignition switch is turned to OFF.
To turn autolamps on, rotate the control counterclockwise. The preselected time lapse is adjustable up to approximately three minutes by continuing to rotate the control counterclockwise.
To turn autolamps off, rotate the control clockwise to OFF.
HEADLAMP CONTROL
Rotate the headlamp control to the first position to turn on the parking lamps. Rotate to the second position to also turn on the headlamps.
PANEL
DIM
OFF
P
AUTO LAMP
OFF
P
Daytime running lamps (DRL) (if equipped)
The daytime running light system turns the headlamps on, with a reduced light output, when:
the ignition is in RUN,
the transmission is not in P (Park), and
23
Controls and features
the headlamp system is not turned on by another feature such as using the headlamp control or Autolamp.
The Daytime Running Light (DRL) system will automatically illuminate the tail lamps and parking lamps at dusk (when the headlamp control is in the OFF position). Since the instrument panel will not be illuminated, turn on the headlamps using the headlamp control.
High beams
Push forward to activate. Pull toward you to deactivate.
HI LO
F
S
OFF
Flash to pass
Pull toward you to activate and release to deactivate.
HI LO
F
S
OFF
CLIMATE CONTROL SYSTEM Electronic Automatic Temperature Control (EATC) system
The EATC system will maintain a selected temperature and automatically control airflow. You can override automatic operation with any of the override controls,
EXT OFF AUTO
MAX A/C
the fan speed control or steering wheel controls.
24
FRONT
REAR
Turning the EATC on
Press AUTO, any of the override controls or the fan speed control. The EATC will only operate when the vehicle is running.
Turning the EATC off
Press OFF. The Outside Temperature (EXT) function will continue to operate until the ignition is turned off.
Controls and features
FRONT
REAR
EXT OFF AUTO
AUTO
MAX A/C
F
˚
EXT OFF AUTO
MAX
A/C
Automatic operation
Press AUTO and select the desired temperature. The selected temperature and the word AUTO will appear in the display window. The EATC system will either heat or cool to achieve the selected temperature. The system will automatically determine fan speed, airflow location and if outside air or recirculated air is required. Fan speed remains automatic unless the fan speed control is pressed or the steering wheel fan speed control is pressed.
When in AUTO and weather conditions require heat, air will be sent to the floor. However, if the engine is not warm enough to provide heat, the fan will be at a low speed and the air will be directed to the windshield.
1
⁄2minutes or less, the fan speed will start to increase and the airflow
In 3 location will change to the floor area.
If unusual conditions exist (i.e.-window fogging, etc.), the manual override controls allow you to select airflow locations and the fan control allows you to adjust fan speed as necessary.
25
Controls and features
Temperature selection
The display window indicates the selected temperature, function (AUTO or one of the override controls) and manual control of fan speed (
) if automatic fan speed
AUTO
is not desired. To control the temperature, select
any temperature between 18°C (65°F) and 29°C (85°F) by pressing the temperature control.
For continuous maximum cooling, push the temperature control until 16°C (60°F) is shown in the display window. The EATC will continue maximum cooling (disregarding the displayed temperature) until a warmer temperature is selected by pressing the temperature control.
For continuous maximum heating, push the temperature control until 32°C (90°F) is shown in the display window. The EATC will continue maximum heating (disregarding the displayed temperature) until a cooler temperature is selected by pressing the temperature control.
Temperature conversion
Press MAX A/C and FRONT at the same time (for one second) to switch between Fahrenheit and Celsius.
EXT OFF AUTO
MAX A/C
EXT
C
˚
˚
FRONT
REAR
F
FRONT
REAR
If your vehicle has an English/Metric (E/M) control to change your electronic instrument cluster (if equipped) and the message center (if equipped) from English to Metric, this control will also change the temperature display. Refer to Electronic Message Center in the Instrumentation chapter.
26
Controls and features
Fan speed ( )
When AUTO is pressed, fan speed is adjusted automatically for existing conditions. You can override fan speed at any time. To control fan speed manually, press the fan control to cancel automatic fan speed operation or use the steering wheel fan speed control. Press the
EXT OFF AUTO
control up for higher fan speed or down for lower fan speed.
The display will show
and a bar graph to indicate manual fan operation and relative speed.
AUTO
To return to automatic fan operation, press AUTO.
Manual override controls
The override controls allow you to determine where airflow is directed. To return to full automatic control, press AUTO.
EXT OFF AUTO
AUTO
MAX
A/C
F
˚
F
˚
MAX A/C
FRONT
REAR
The air conditioning compressor will operate in all modes except and . It will also operate only when required when AUTO has been selected. However, the air conditioning will only function if the outside temperature is about 10°C (50°F) or higher.
Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.
27
Controls and features
Under normal conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct.
MAX A/C-Uses recirculated air to cool the vehicle. The temperature
display will remain unchanged and air will be cooled based on the selected temperature. To exit, press AUTO or any other override controls. MAX A/C is noisier than normal A/C but more economical and will cool the inside of the vehicle faster. Airflow is from the instrument panel registers. This mode can also be used to prevent undesirable odors from entering the vehicle.
FRONT
OFF-Outside air is shut out and the fan will not operate. For short
-Distributes outside air through the instrument panel registers. However, the air cannot be cooled below the outside temperature because the air conditioning does not operate in this mode.
-Distributes outside air through the instrument panel registers and the floor ducts. Heating and air conditioning capabilities are provided in this mode. The air will be heated or cooled based on the temperature selection. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the instrument panel registers.
-Allows for maximum heating by distributing outside air through the floor ducts. However, the air cannot be cooled below the outside temperature because the air conditioning does not operate in this mode.
-Distributes outside air through the windshield defroster ducts and the floor ducts. Heating and air conditioning capabilities are provided in this mode. The air will be heated or cooled based on the temperature selection. For added customer comfort, the air distributed through the floor ducts will be slightly warmer than the air sent to the windshield defroster ducts. If the temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.
-Distributes outside air through the windshield defroster ducts. It can be used to clear ice or fog from the windshield. If the outside air temperature is about 10°C (50°F) or higher, the air conditioner will automatically dehumidify the air to reduce fogging.
periods of time only, use this mode to reduce undesirable odors from entering the vehicle.
28
Displaying outside temperature
Press EXT to display the outside air temperature. It will be displayed until EXT is pressed again.
Controls and features
EXT OFF AUTO
MAX
A/C
If the selected temperature is changed while the outside temperature is displayed, the new temperature will be displayed for four seconds after it is changed, then the outside temperature will return to the window.
If a manual override function is selected while the outside temperature is displayed, the new function will be displayed for four seconds after it is changed, then the outside temperature will return to the window along with the override selection.
The outside temperature reading is most accurate when the vehicle is moving. Higher readings may be obtained when the vehicle is not moving. The readings that you get may not agree with temperatures given on the radio due to differences in vehicle and station locations.
Operating tips
In humid weather, select FRONT before driving. This will reduce fogging on your windshield. After a few minutes, select any desired position.
To prevent humidity buildup inside the vehicle, don’t drive with the climate control system in the OFF position.
Remove any snow, ice or leaves from the air intake area (at the bottom of the windshield).
29
Controls and features
If your vehicle has been parked with the windows closed during hot weather, the air conditioner will do a much faster job of cooling if you drive for two or three minutes with the windows open. This will force most of the hot, stale air out of the vehicle. Then operate the air conditioner as you would normally.
Do not place objects over the defroster outlets. These objects can block airflow and reduce your ability to see through your windshield. Also, avoid placing small objects on top of your instrument panel. These objects can fall down into the defroster outlets and block airflow and possibly damage your climate control system.
Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop.

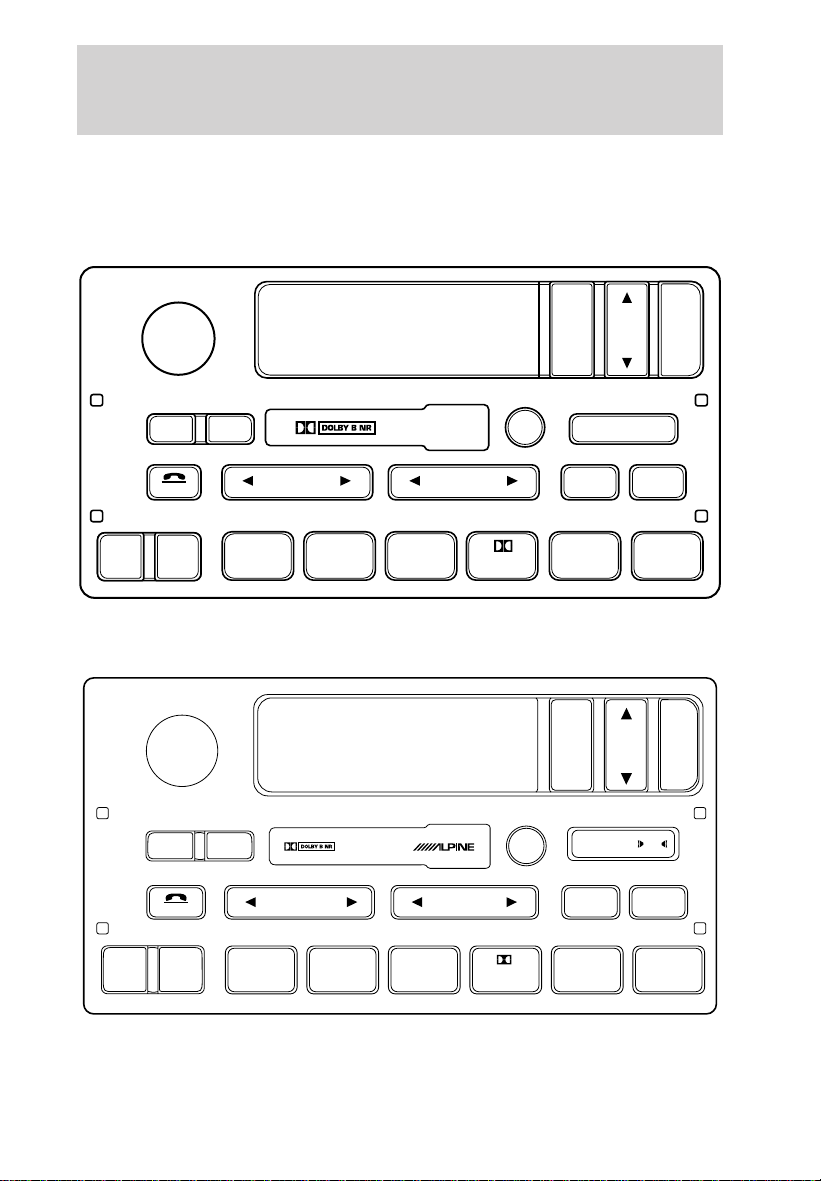

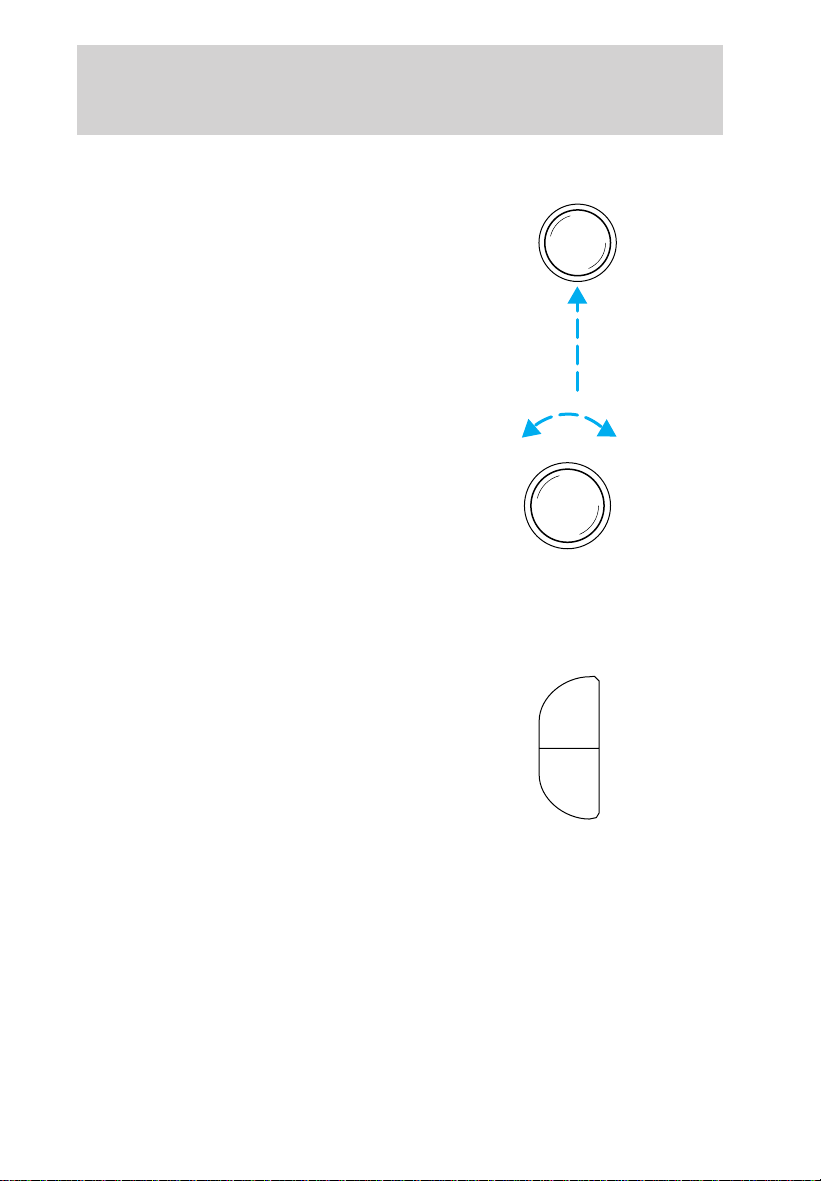

USING YOUR AUDIO SYSTEM AM/FM stereo cassette
VOL - PUSH ON
AM
BASS TREB BAL FADE
FM
FM1
ST
CLK
TAPE
AMS
SEEK TUNE
SCAN
EJ
SIDE REW FF
1 - 2
123456
Your vehicle is equipped with a delayed accessory feature. This feature enables the audio playing media to continue playing up to 10 minutes after the ignition has been turned off, or until a door is opened.
30
Loading...
+ 194 hidden pages
