DL8IC, DL9IC, DL10IC and DL11IC system
User manual
1
Contents
Preface ........................................................................................................................................ 3
Important information .................................................................................................................. 4
Safety instructions ......................................................................................................................... 4
Safety issues .................................................................................................................................. 6
Before installation, reinstallation or troubleshooting.................................................................... 7
Before start-up .............................................................................................................................. 7
During operation ........................................................................................................................... 7
Misc ........................................................................................................................................... 7
Only for EU markets ....................................................................................................................... 7
Only for Non EU markets ............................................................................................................... 8
Misuse .......................................................................................................................................... 8
Informations importantes ............................................................................................................. 9
Consignes de sécurité .................................................................................................................... 9
Seulement pour les marchés au sein de l´UE .............................................................................. 10
Seulement pour les marchés hors UE .......................................................................................... 10
Utilisation abusive ......................................................................................................................... 10
Repairs .......................................................................................................................................... 10
Declaration of incorporation of partly completed machinery ..................................................... 11
Misc. on the DESKLINE® DL8IC/DL9IC/DL10IC/DL11IC system ...................................................... 12
Warranty ....................................................................................................................................... 12
Maintenance ................................................................................................................................. 12
ETL-marking ................................................................................................................................... 12
Description of the DESKLINE® system ........................................................................................... 13

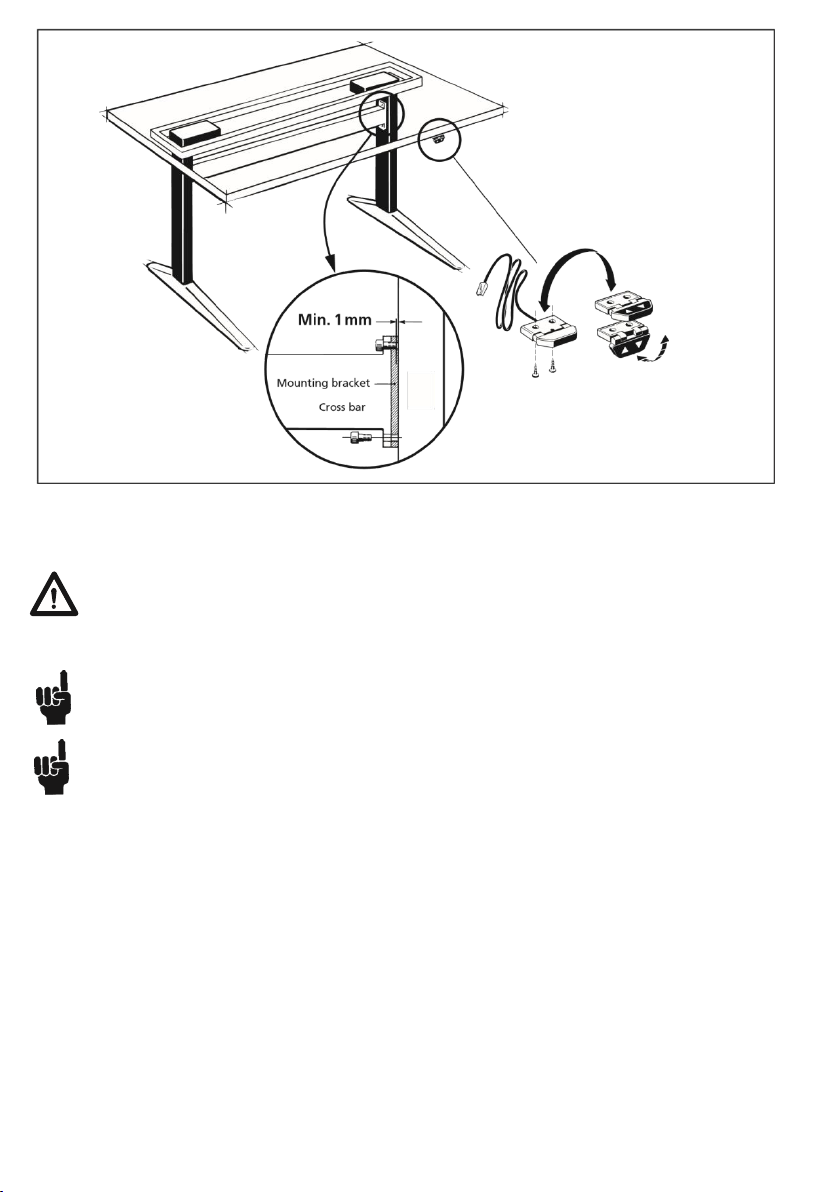

Mounting guidelines for the DL8IC/DL9IC/DL10IC/DL11IC (motor housing) ................................ 14
Mounting guidelines for the DL8IC/DL9IC (foot part) ................................................................... 14
Mounting guidelines for the DL10IC (foot part)............................................................................. 14
Mounting guidelines for the DL11IC (foot part)............................................................................. 15
PIEZOTM : description of the feature ............................................................................................. 19
Desk Control Apps ……………………………………….…………………………………………………………………………… 20
Accessories and repair .................................................................................................................. 20
Disposal of LINAK products .......................................................................................................... 21
Labels ......................................................................................................................................... 22

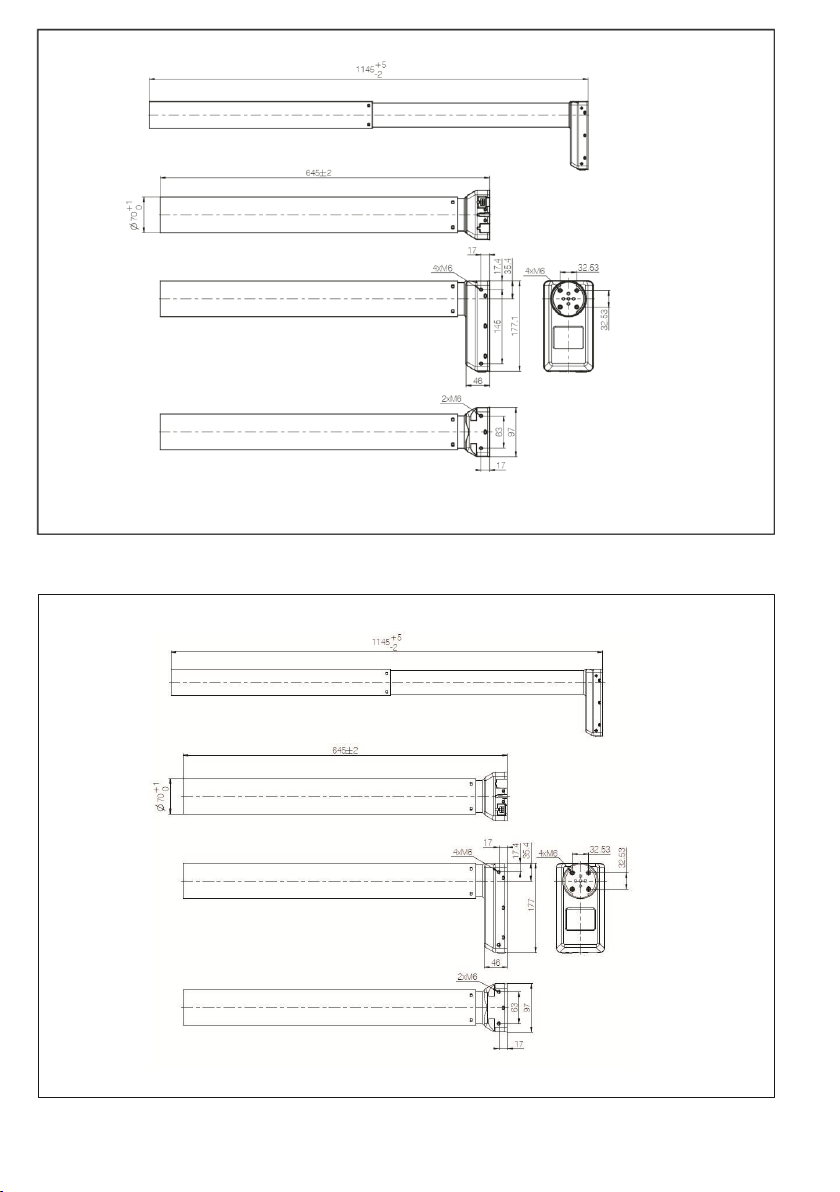

Drawing appendix ......................................................................................................................... 20
Declaration of conformity ............................................................................................................. 29
LINAK application policy .............................................................................................................. 30
Addresses ...................................................................................................................................... 31
2
Preface
Dear User,
We are delighted that you have chosen a product from LINAK®.
LINAK systems are high-tech products based on many years of experience in the manufacture and
development of actuators, electric control boxes, controls and chargers.
This User Manual does not address the end-user. It is intended as a source of information for the
manufacturer of the equipment or system only, and it will tell you how to install, use and maintain
your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a
User Manual where relevant safety information from this manual is passed on to the end-user.
We are sure that your LINAK product/system will give you many years of problem-free operation.
Before our products leave the factory they undergo full function and quality testing. Should you
nevertheless experience problems with your LINAK product/system, you are always welcome to
contact your local dealer.
LINAK subsidiaries and some distributors situated all over the world have authorised service centres,
which are always ready to help you.
LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in
accordance with the specifications, maintenance being done correctly and any repairs being carried
out at a service centre, which is authorised to repair LINAK products.
Changes in installation and use of LINAK products/systems can affect their operation and durability.
The products are not to be opened by unauthorised personnel.
The User Manual has been written based on our present technical knowledge. We are constantly
working on updating the information and we therefore reserve the right to carry out technical
modifications.
LINAK A/S
3
Important information
Failing to follow these instructions can result in the product being damaged
or being destroyed.
Safety instruction
Important information on LINAK® products can be found under the following
headings:
Warning!
Failure to comply with these instructions may result in accidents
involving serious personal injury.
General
Safe use of the system is possible only when the operating instructions are
read completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may
result in serious damage to the system or one of its components.
It is important for everyone who is to connect, install, or use the
systems to have the necessary information and access to this User
Manual. Follow the instructions for mounting – risk of injury if these
instructions are not followed.
The appliance is not intended for use by young children or infirm
persons without supervision.
If there is visible damage on the product it must not be installed.
Note that during construction of applications, in which the actuator
is to be fitted, there must be no possibility of personal injury, for
example the squeezing of fingers or arms.
Only the power supply type SMPS001, SMPS002 or SMPS006, shall be
used with the system.
The power supply shall not be covered while operating to allow sufficient
cooling of this appliance.
4
...to be continued
Furthermore take care about the connecting wires from the power
supply to the DL8IC/DL9IC/DL10IC/DL11IC system, don’t damage this by
overrun.
Assure free space for movement of application in both directions to
avoid blockade.
The appliance is only to be used with the power supply unit provided
with the appliance.
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including
interference that may cause
undesired operation
• Statement – for all intentional and unintentional radiators:
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
• Statement for digital devices for Class B:
NOTE: This equipment has been tested and found to comply with the limits for a
Class B diwgital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
5
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions
it may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
Safety issues
The builder of the equipment shall ensure that the use of the
component complies with relevant standards – like the Machine
Directive. Care must be taken to avoid squeezing of cables as it can cause
movement of the system! The SMPS001/SMPS002/SMPS006 must not be
packed in heat insulating material, but must be placed so that it can emit
waste heat to the surroundings. There are no ventilation holes to
consider, the SMPS emits heat through its surface.
Only the power supply type SMPS001, SMPS002 or SMPS006, shall be
used with the system.
6
Before installation, re-installation, or troubleshooting:
• Stop the DL.
• Switch off the power supply and pull out the mains plug.
• Relieve the DL of any loads, which may be released during the work.
Before start-up:
• Make sure that the system has been installed as instructed in this User
Manual.
• Make sure that the voltage of the control box is correct before the system
is connected to the mains.
• System connection. The individual parts must be connected before the
control box is connected to the mains. See the User Manual for LINAK
actuators, if necessary.
During operation
• If the column makes unusual noise or smells, switch off the mains voltage
immediately.
• Take care that the cables are not damaged.
• Unplug the mains cable on mobile equipment before it is moved.
• The products must only be used in an environment, that corresponds to
their IP protection.
Misc.
The actuator system has a sound level below 55dB(A) in typical applications.
Updated manuals and declarations can always be found here:
www.linak.com/deskline
Only for EU markets
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
7
Only for Non EU markets
Persons who do not have the necessary experience or knowledge of
the product/products must not use the product/products. Besides,
persons with reduced physical, sensory or mental abilities must not use the
product/ products, unless they are under surveillance or they have been
thoroughly instructed in the use of the apparatus by a person who is
responsible for the safety of these persons.
Moreover, children must be under surveillance to ensure that they do
not play with the product.
It is the operator’s responsibility to ensure that there is free space for
the application to move without risk for the operator or bystanders
before operating the application.
Misuse
Do not overload the actuators – this can cause danger of personal
injury and damage to the system.
Do not use the actuator system for lifting persons. Do not sit or stand
on a table while operating – risk of personal injury.
Do not use the system in environments other than the intended
indoor use.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes :
(1) l’appareil nedoit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d’en compromettre le fonctionnement.
8
Labeling Requirements:
Consignes de sécurité
Attention!
Le non respect de ces instructions peut entraîner des accidents impliquant des
blessures graves.
Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du
produit.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Informations importantes
Les informations importantes sur les produits LINAK® peuvent être trouvées dans les
rubriques suivantes:
Géneral
Le non respect de ces instructions peut entraîner des accidents impliquant des
blessures graves.
Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du
produit. L´utilisation en toute sécurité du système n´est possible que si l´intégralité
des instructions ont été lues et ont été strictement suivies.
Le non respect de se conformer aux instructions marquées du symbole
“note” peut entraîner de graves dommages au système ou à un de ses
composants.
Il est important pour tout individu qui connecte, installe, ou utilise le système
d´avoir les informations nécessaires et l´accès à ce mannuel d´utilisation.
Suivez les instructions pour le montage – risque de blessure si ces instructions
ne sont pas suivies.
L´appareil n´est pas destiné à être utilisé par des enfants ou des personnes
handicapées sans surveillance.
S´il y a des dommages visibles sur le produit, l´installation ne doit pas être
effectuée.
Prendre en compte lors de la construction du matériel, dans lequel
l´actionneur est incorporé, qu´il ne doit y avoir aucune possibilité de
blessures corporelles, telles que la compression des doigts ou des bras.
9
Assurez un espace libre autours du materiel pour éviter tout blocage.
Seulement pour les marchés au sein de l´UE:
Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi
que les personnes dont les capacités physiques, sensorielles ou mentales
sont réduites ou ayant un manque d´expérience et de connaissance si elles ont
bénéficié d´une surveillance ou d´instructions concernant l´utilisation de l´appareil
en toute sécurité et compris les risques encourus.
Les enfants ne doivent pas jouer avec l´appareil. Le nettoyage et l´entretien
ne doivent pas être rèalisés par des enfants sans surveillance.
Seulement pour les marchés hors UE.
Les personnes qui n´ont pas l´expérience ou les connaissances nécessaires
sur le ou les produit(s) ne doivent pas le ou les utiliser. Par ailleurs, les
personnes ayant des capacités physiques, sensorielles ou mentales réduites ne
doivent pas utiliser le ou les produit(s), sauf si elles sont sous surveillance ou ont
suivi une formation approfondie de l´utilisation de l´appareil par l´individu
responsable de la securité de ces personnes.
De plus, les enfants doivent-être sous surveillance afin de s´assurer qu´ils
ne jouent pas avec le produit.
Utilisation abusive:
Ne surchargez pas les actionneurs – cela peut engendrer un risque de
blessures corporelles et endommager le système.
Ne pas utiliser les actionneurs pour soulever des personnes. Ne pas
s´asseoir ou se tenir debout sur une table en fonctionnement – risque de
blessures.
Ne pas utiliser le système dans dans des environnements autres que
l´utilisation intérieure prévue.
Repairs
In order to avoid the risk of malfunction, all DESKLINE® repairs must only be carried out by authorised LINAK
workshops or repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty
must also be returned to authorised LINAK workshops.
10
Loading...
