USER MANUAL

Desk Control

To learn more about LINAK, please visit:

www.linak.com

Page 1 of 44

Contents

Preface..................................................................................................................................................4

Important information ...................................................................................................................... 5

Safety instructions ............................................................................................................................. 5

Only for EU markets ........................................................................................................................... 8

Only for Non EU markets .................................................................................................................. 8

Misuse ................................................................................................................................................. 8

Informations importantes ................................................................................................................. 9

Consignes de sécurité ........................................................................................................................ 9

Seulement pour les marchés au sein de l´UE ................................................................................ 10

Seulement pour les marchés hors UE ............................................................................................ 10

Utilisation abusive ........................................................................................................................... 10

Repairs ............................................................................................................................................. 11

Manufacturer’s declaration............................................................................................................. 11

Misc. on the DESKLINE

system ..................................................................................................... 12

Warranty....................................................................................................................................... 12

Maintenance................................................................................................................................. 12

ETL-marking ...................................................................................................................................... 12

System requirements with USB2LIN06 cable ............................................................................... 13

System requirements with Bluetooth

Adapter ........................................................................... 13

The Program .................................................................................................................................... 13

The standard view, calorie view ..................................................................................................... 13

The standard view, time mode view ............................................................................................... 13

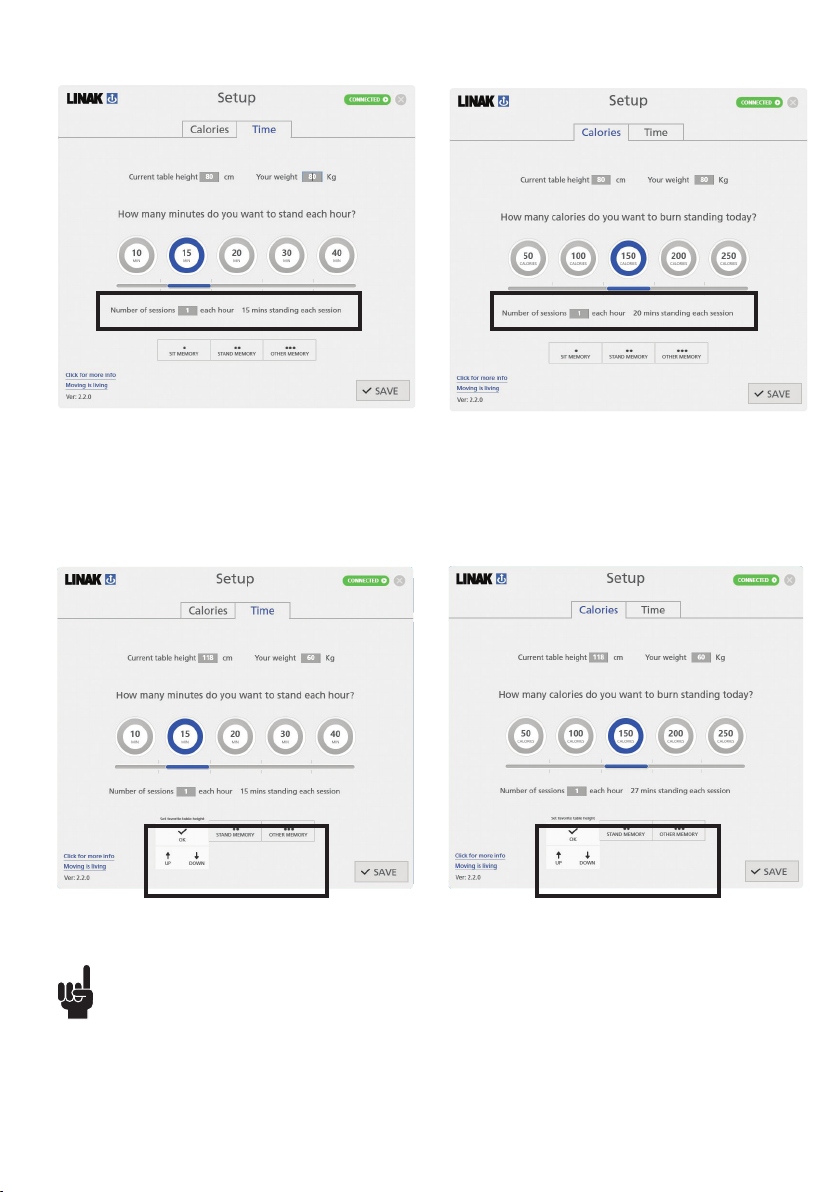

Settings view .................................................................................................................................... 15

Calories chosen ............................................................................................................................ 15

Time chosen.................................................................................................................................. 15

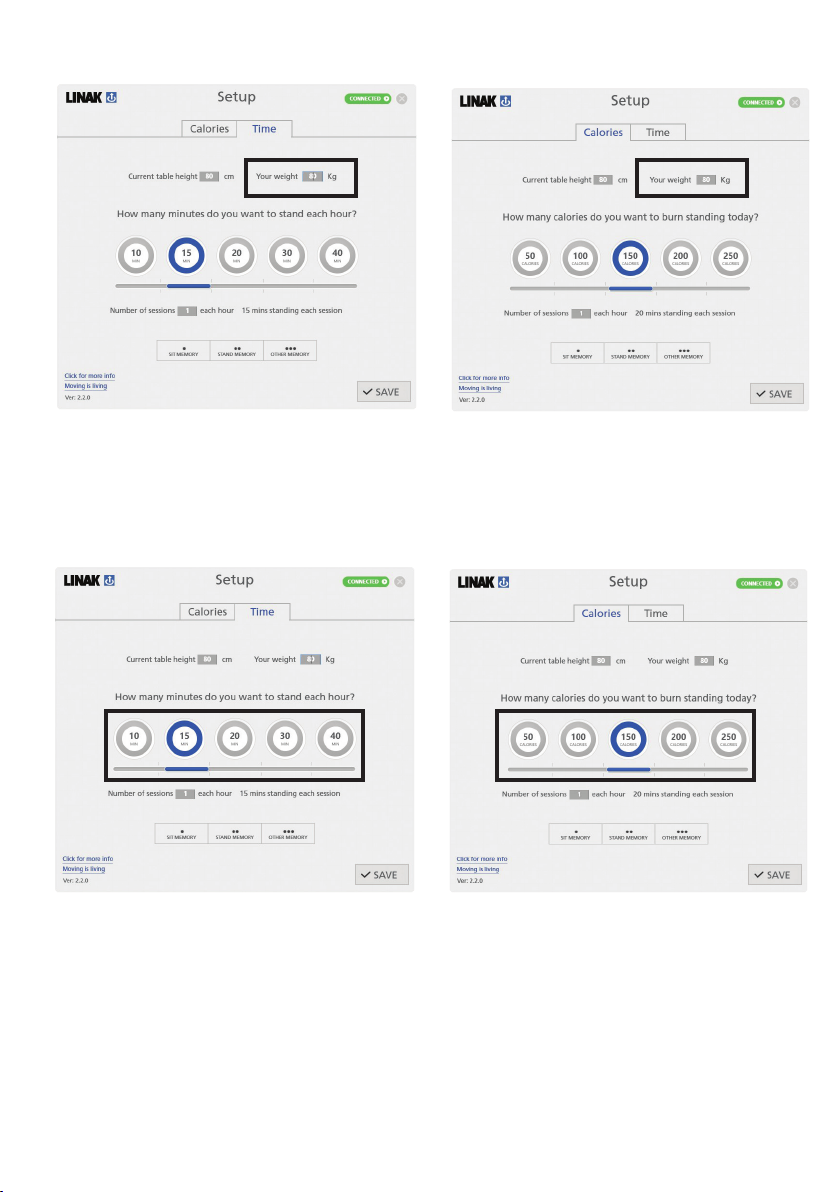

Common functions for both Calories and Time in the Settings view ........................................ 16

History view ...................................................................................................................................... 17

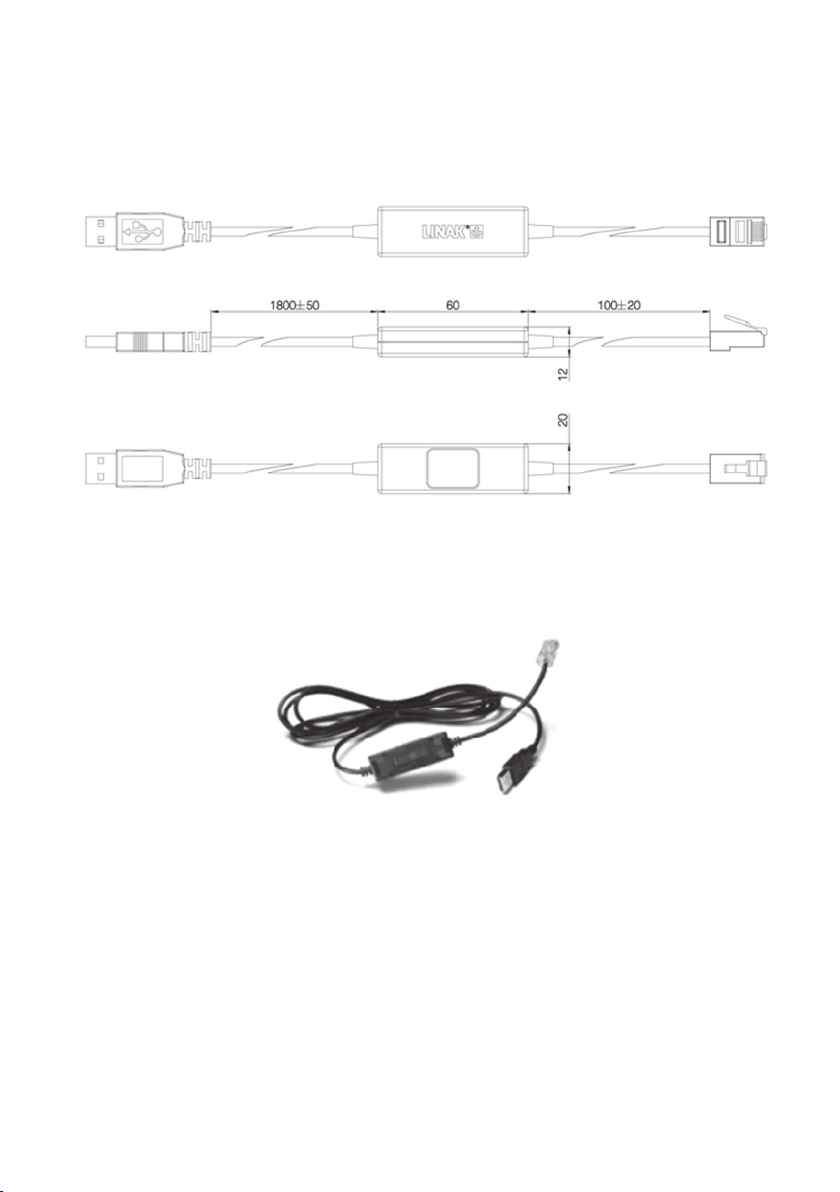

USB2LIN06 cable .............................................................................................................................. 18

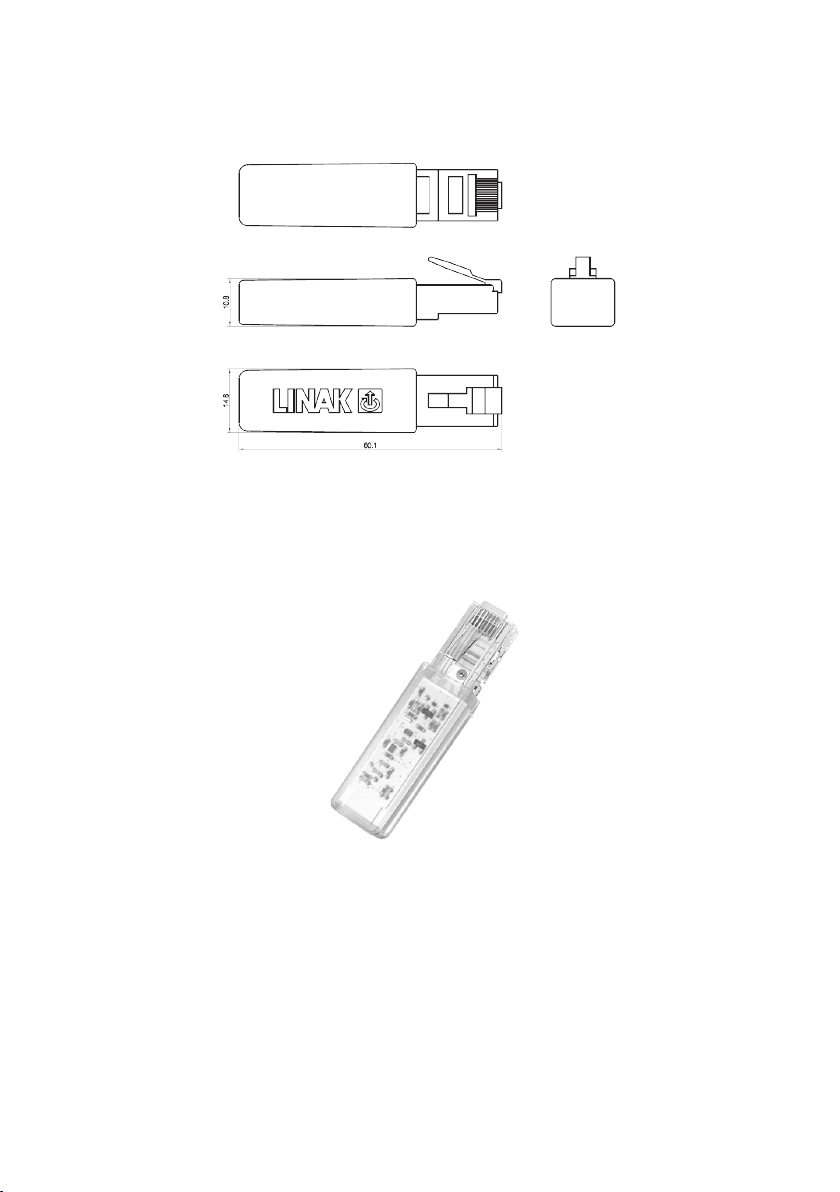

BLE2LIN001, Bluetooth

Adapter ................................................................................................... 19

How to install the Desk Control software on PC ......................................................................... 20

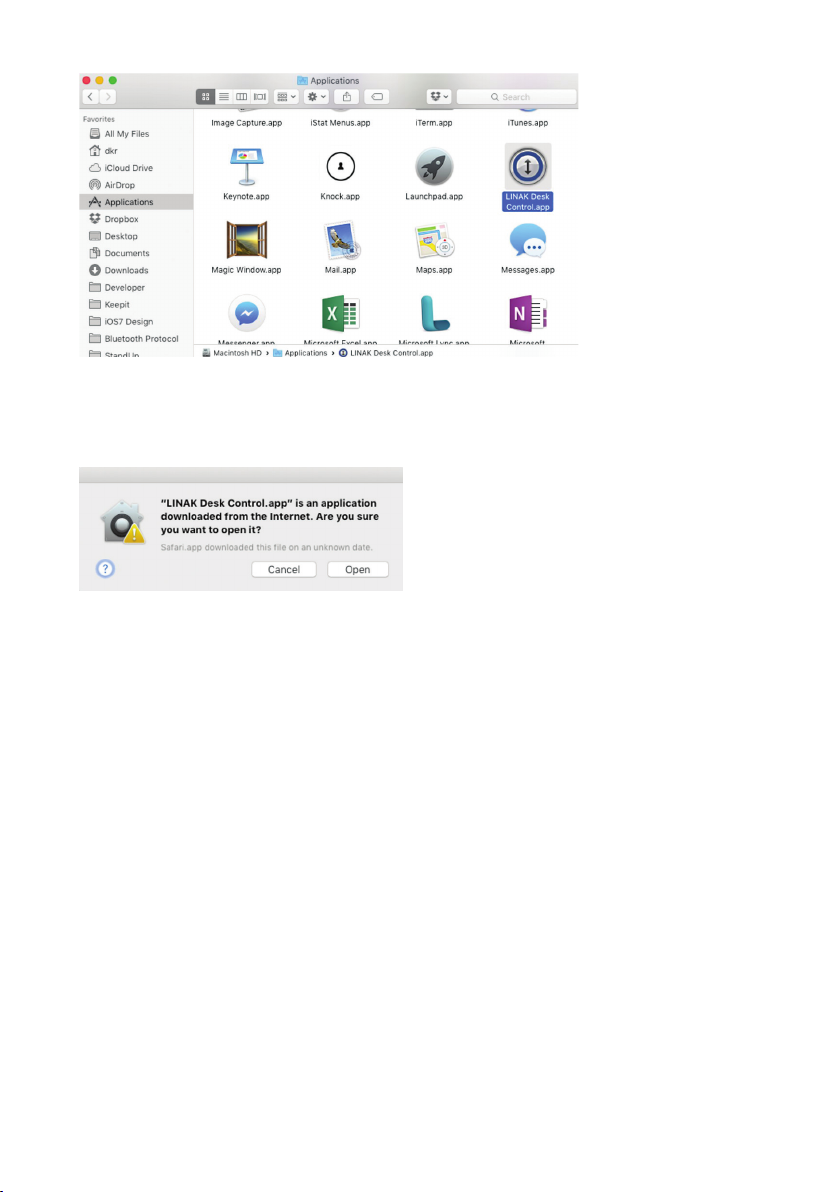

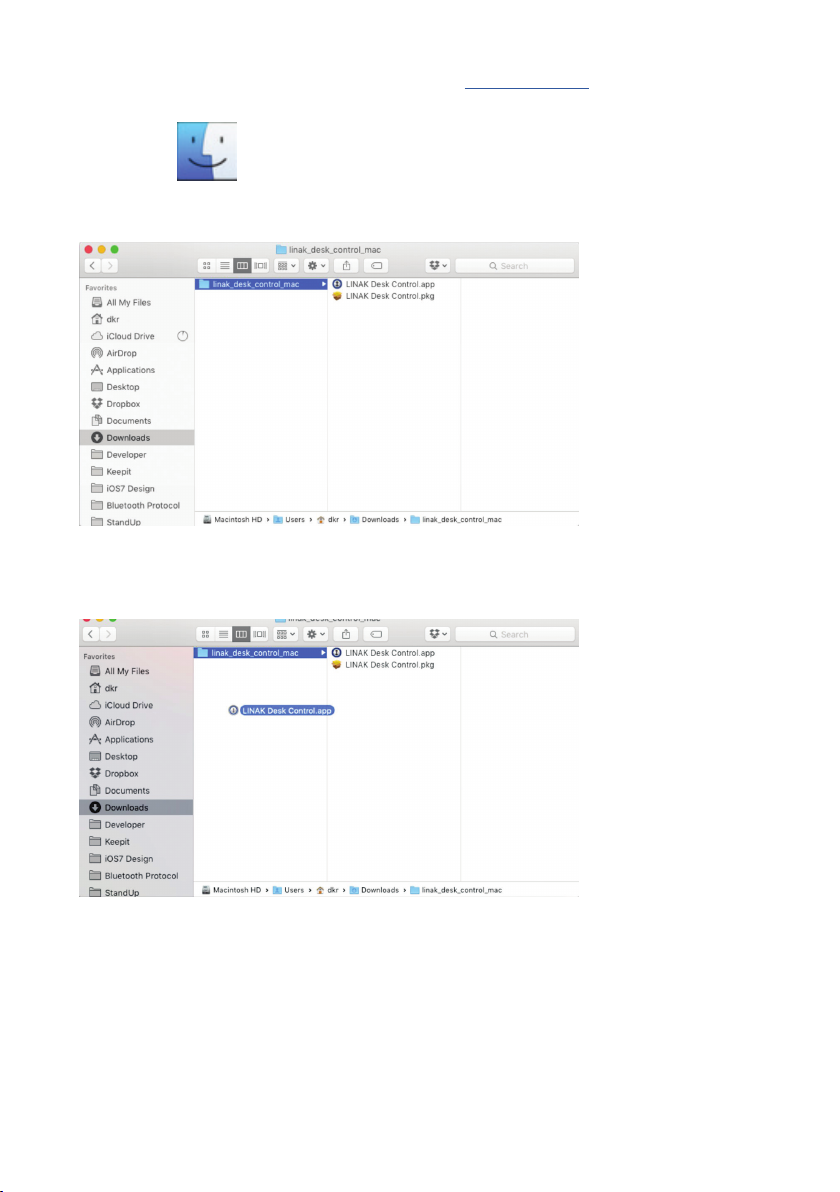

How to install the Desk Control software on MAC ..................................................................... 21

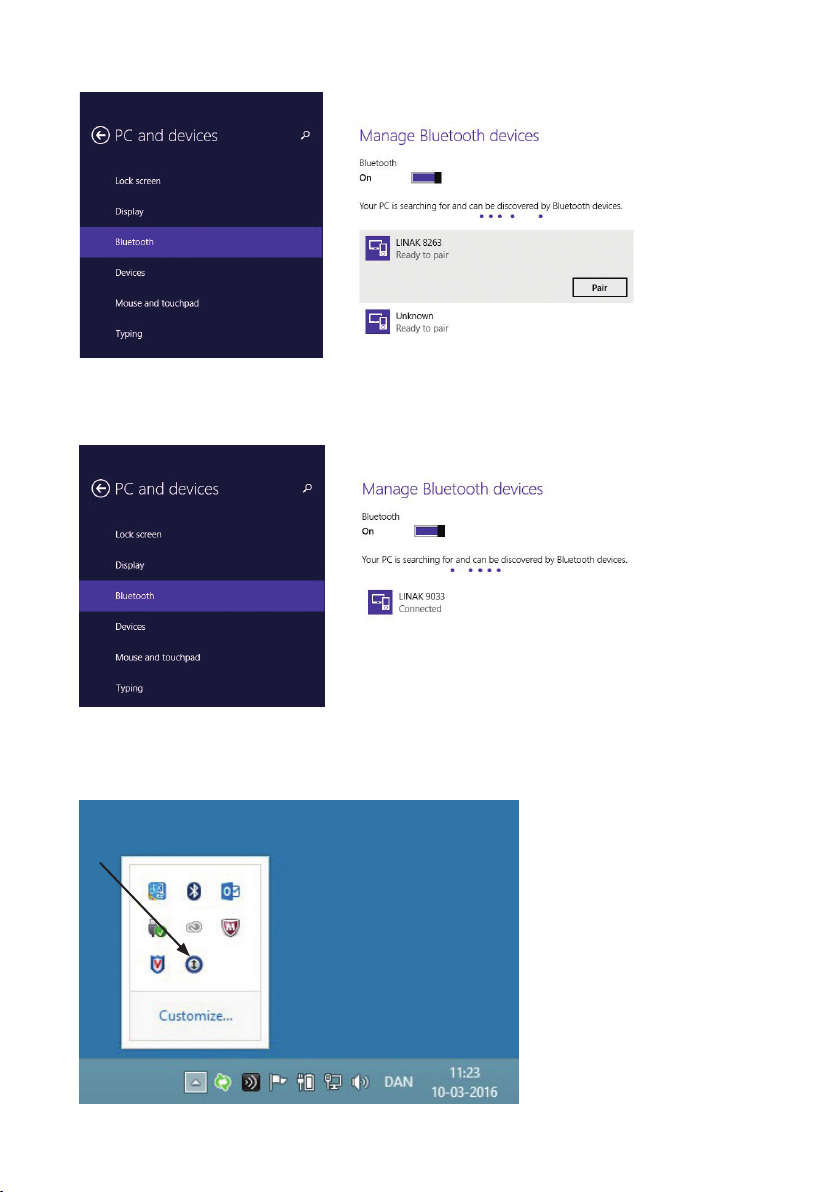

How to pair the wireless connection between desk and Desk Control .................................... 23

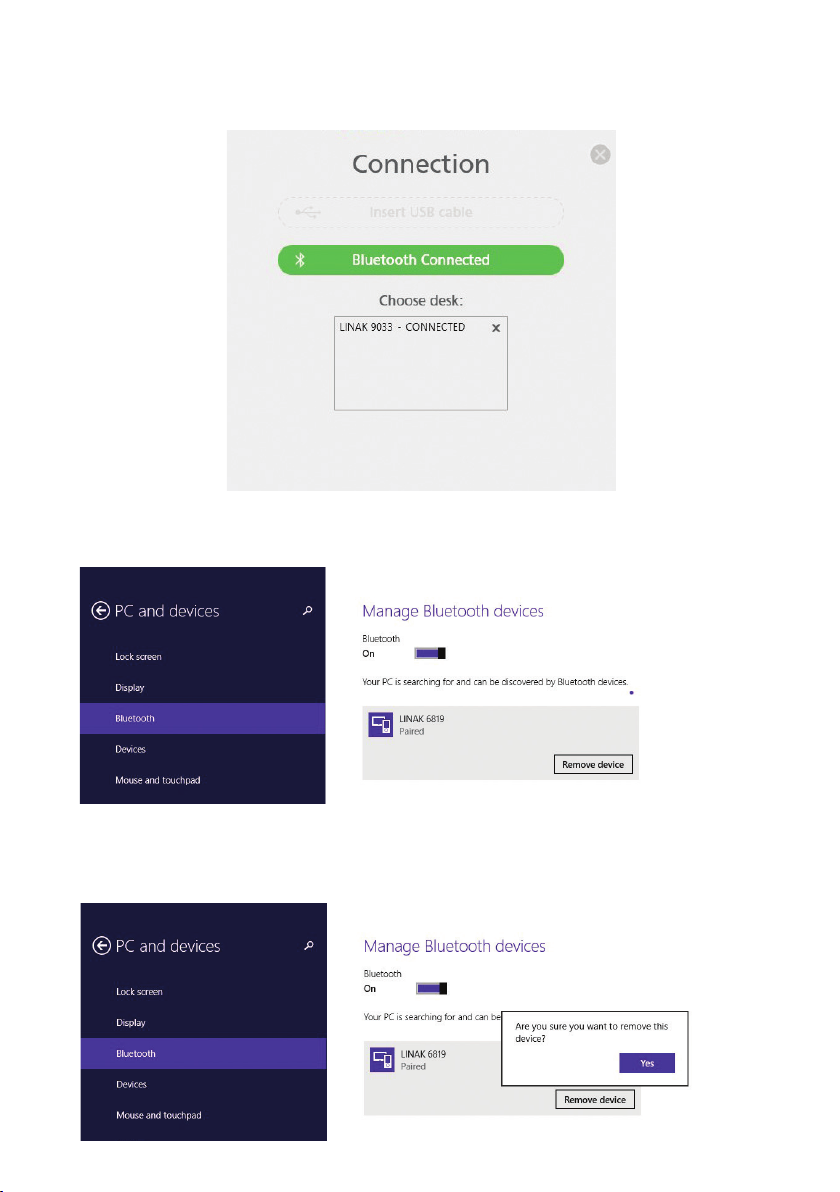

How to remove Bluetooth devices from connected list.............................................................. 27

How to establish the cabled connection between desk and Desk Control .............................. 28

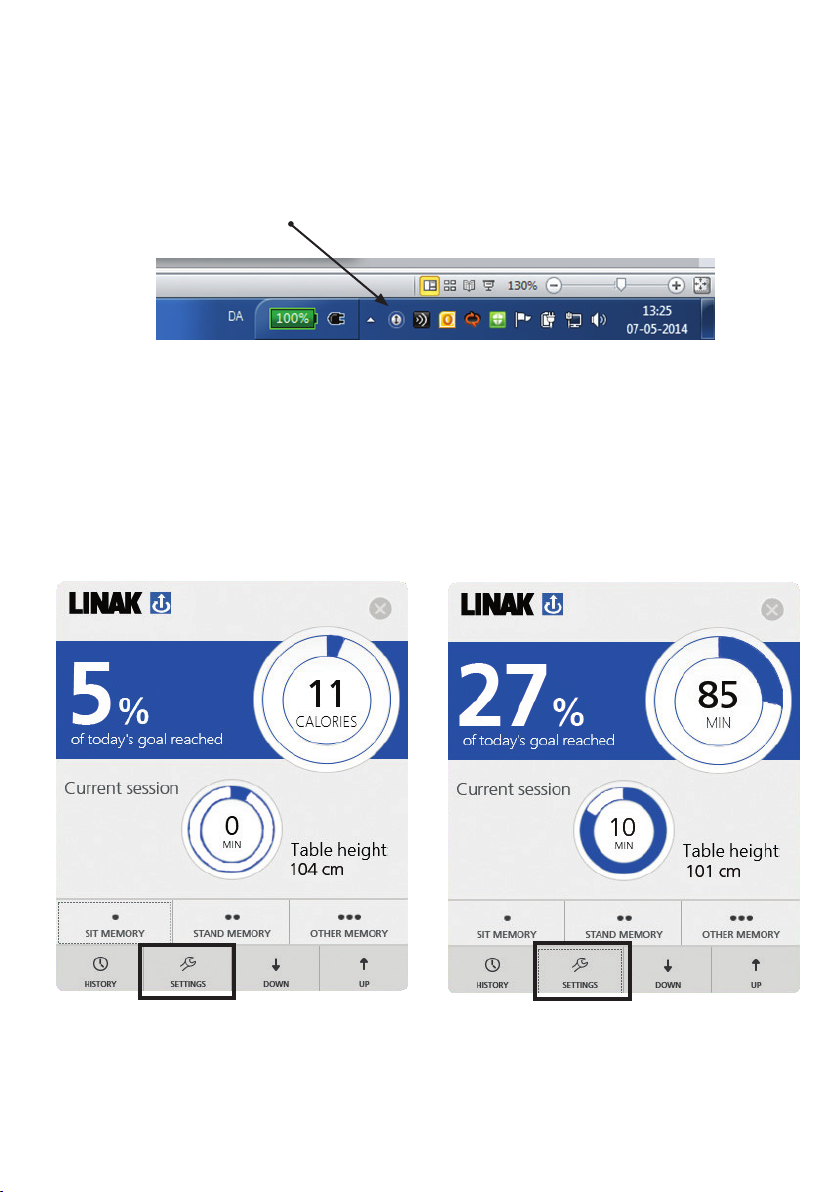

How to get started with Desk Control .......................................................................................... 29

Calorie view .................................................................................................................................. 29

Time mode view ............................................................................................................................ 29

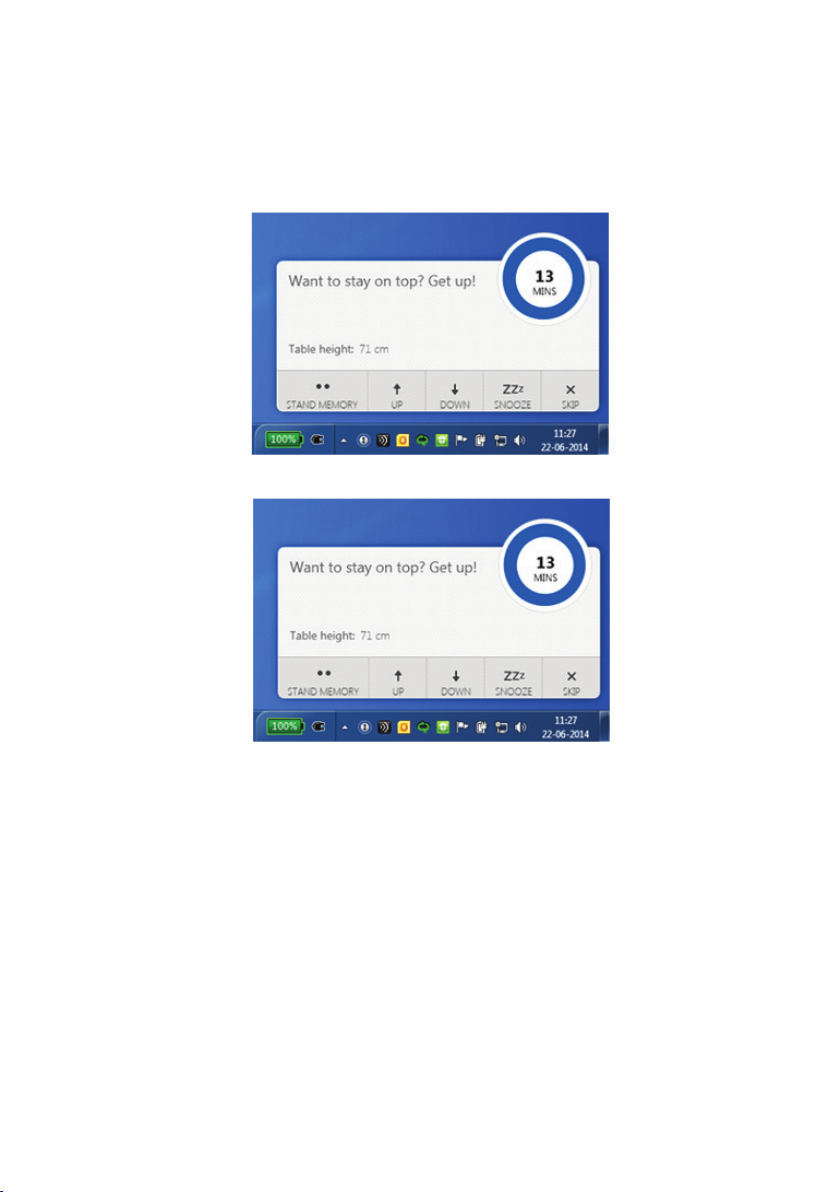

Reminders ......................................................................................................................................... 33

Recommendations on how to use Desk Control .......................................................................... 34

How to uninstall the Desk Control software on PC ..................................................................... 35

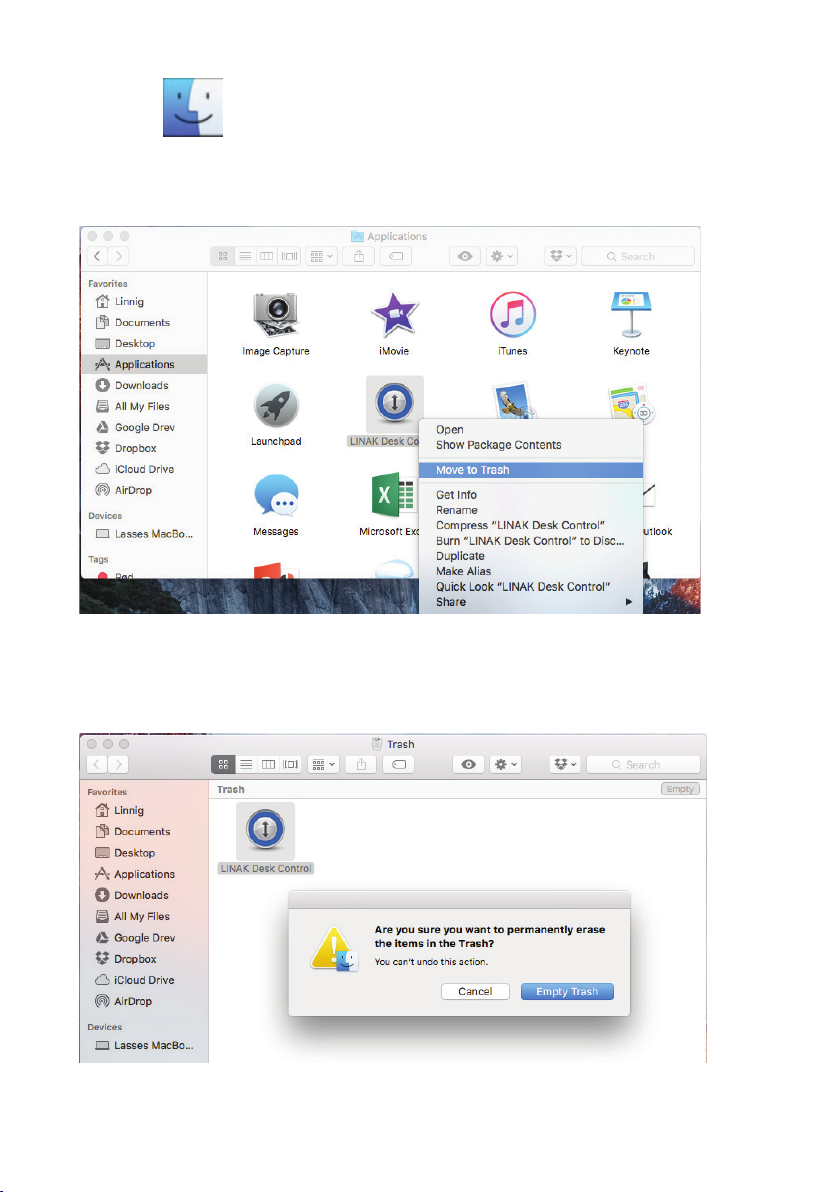

How to uninstall the Desk Control software on MAC ................................................................. 36

Disposal of LINAK’s products ........................................................................................................ 38

Disposal of batteries ....................................................................................................................... 38

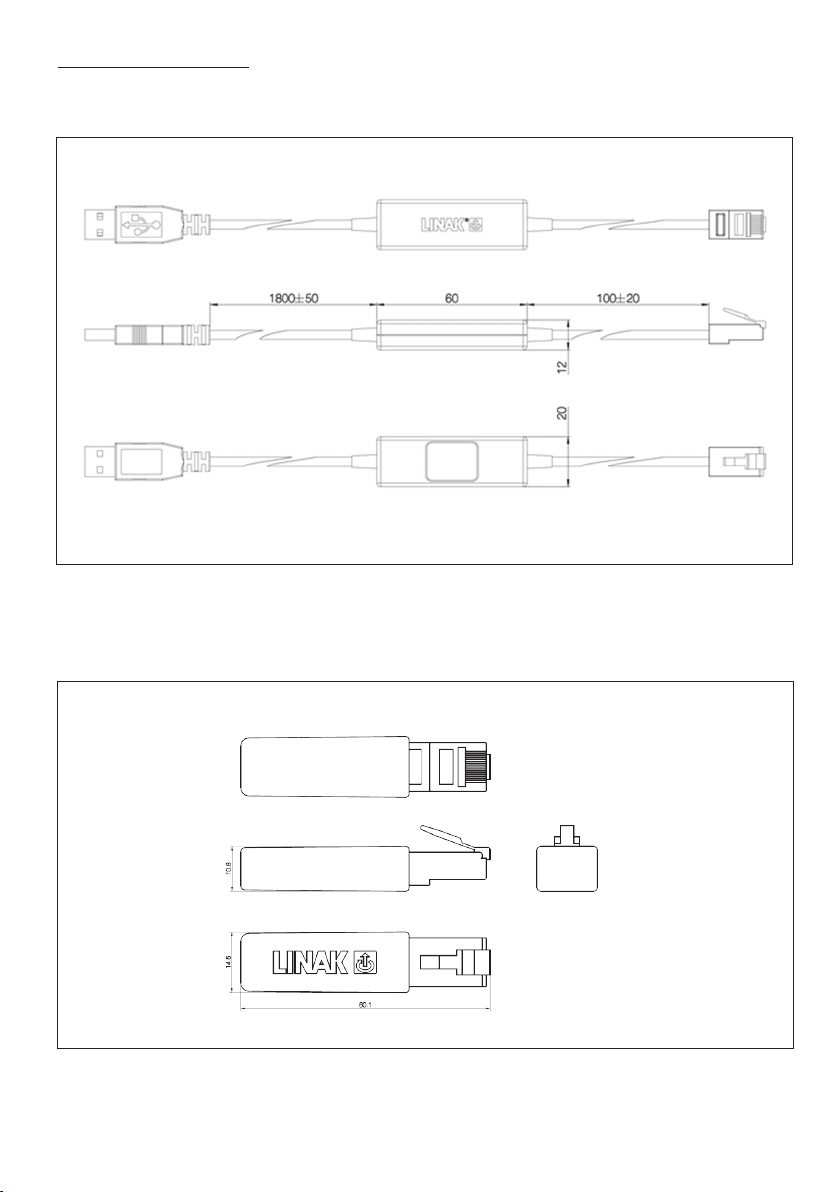

Drawing appendix ............................................................................................................................ 39

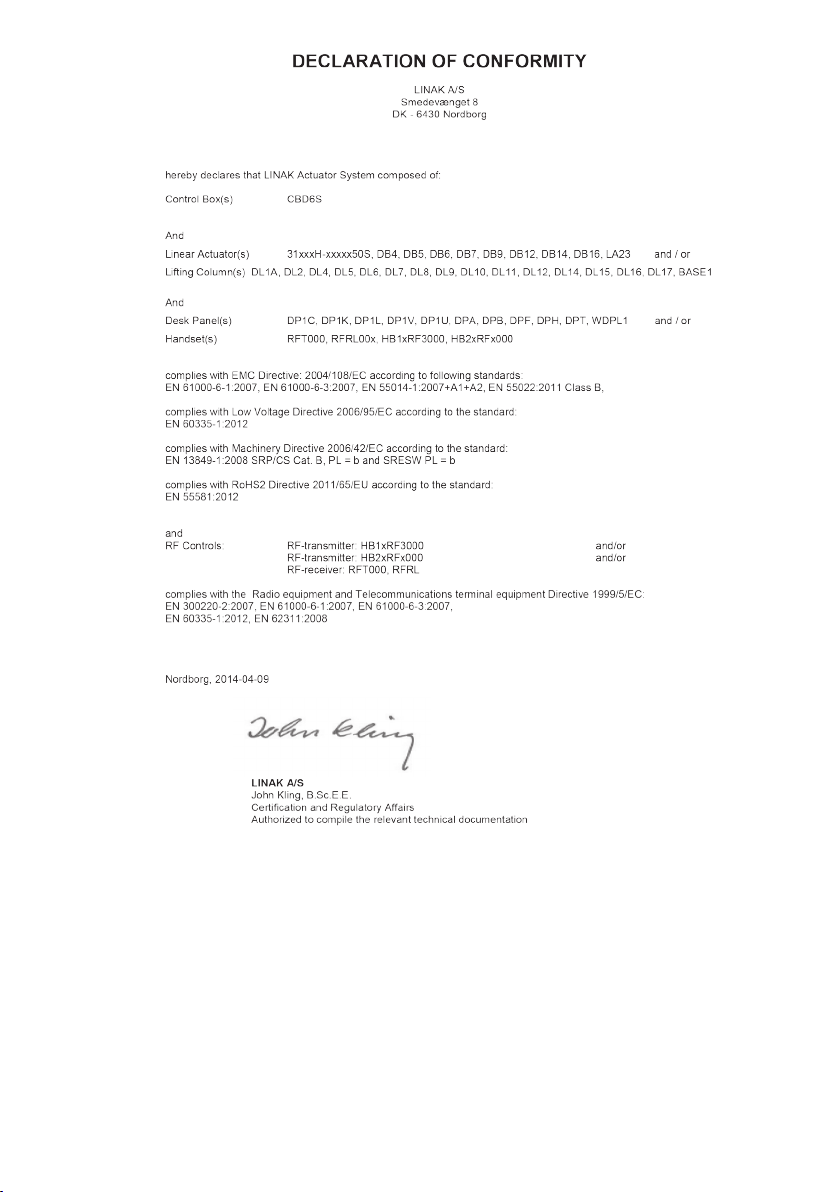

Declaration of Conformity .............................................................................................................. 40

Addresses .......................................................................................................................................... 44

Page 3 of 44

Preface

Dear User,

We are delighted that you have chosen a product from LINAK

. LINAK systems are high-tech products based on many years of experience in the manufacture and development of actuators, electric control boxes, controls and chargers.

This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user.

We are sure that your LINAK product will give you many years of problem-free operation. Before our products leave the factory they undergo full function and quality testing. Should you nevertheless experience problems with your systems, you are always welcome to contact your local dealer. LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are always ready to help you.

LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance with the speciﬁcations, maintenance being done correctly and any repairs being carried out at a service centre, which is authorised to repair LINAK products. Changes in installation and use of LINAK systems can affect their operation and durability. The products are not to be opened by unauthorised personnel.

The User Manual has been written based on of our present technical knowledge. We are constantly working on updating the information and we therefore reserve the right to carry out technical modiﬁcations.

LINAK A/S

Page 4 of 44

Important information

Important information on LINAK

products can be found under the following

headings:

Warning!

Failure to comply with these instructions may result in accidents involving serious personal injury.

Failing to follow these instructions can result in the product being damaged or being destroyed.

Safety instruction

General

Safe use of the system is possible only when the operating instructions are read completely and the instructions contained are strictly observed.

Failure to comply with instructions marked with the ”NOTE” symbol may result in serious damage to the system or one of its components.

It is important for everyone who is to connect, install, or use the systems to have the necessary information and access to this User Manual. Follow the instructions for mounting – risk of injury if these instructions are not followed.

The appliance is not intended for use by young children or inﬁrm persons without supervision.

If there is visible damage on the product it must not be installed.

Note that during construction of applications, in which the actuator is to be fitted, there must be no possibility of personal injury, for example the squeezing of fingers or arms.

Assure free space for movement of application in both directions to avoid blockade.

Page 5 of 44

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation

• Statement – for all intentional and unintentional radiators: Changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• Statement for digital devices for Class B: NOTE: This equipment has been tested and found to comply with the limits for a Class B diwgital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Page 6 of 44

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

(1) l’appareil nedoit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même

si le brouillage est susceptible d’en compromettre le fonctionnement.

Labeling Requirements:

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Page 7 of 44

Only for EU markets

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Only for Non EU markets

Persons who do not have the necessary experience or knowledge of the product/products must not use the product/products. Besides, persons with reduced physical, sensory or mental abilities must not use the product/ products, unless they are under surveillance or they have been thoroughly instructed in the use of the apparatus by a person who is responsible for the safety of these persons.

Moreover, children must be under surveillance to ensure that they do not play with the product.

Misuse

Do not overload the actuators – this can cause danger of personal injury and damage to the system.

Do not use the actuator system for lifting persons. Do not sit or stand on a table while operating – risk of personal injury.

Do not use the system in environments other than the intended indoor use

Page 8 of 44

Informations importantes

Les informations importantes sur les produits LINAK

peuvent être trouvées dans

les rubriques suivantes:

Attention!

Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves.

Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit.

Consignes de sécurité

Géneral

Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves.

Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit.

L´utilisation en toute sécurité du système n´est possible que si l´intégralité des instructions ont été lues et ont été strictement suivies.

Le non respect de se conformer aux instructions marquées du symbole “note” peut entraîner de graves dommages au système ou à un de ses composants.

Il est important pour tout individu qui connecte, installe, ou utilise le système d´avoir les informations nécessaires et l´accès à ce mannuel d´utilisation.

Suivez les instructions pour le montage – risque de blessure si ces instructions ne sont pas suivies.

L´appareil n´est pas destiné à être utilisé par des enfants ou des personnes handicapées sans surveillance.

S´il y a des dommages visibles sur le produit, l´installation ne doit pas être effectuée.

Prendre en compte lors de la construction du matériel, dans lequel l´actionneur est incorporé, qu´il ne doit y avoir aucune possibilité de blessures corporelles, telles que la compression des doigts ou des bras.

Assurez un espace libre autours du materiel pour éviter tout blocage.

Page 9 of 44

Seulement pour les marchés au sein de l´UE:

Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéﬁcié d´une surveillance ou d´instructions concernant l´utilisation de l´appareil en toute sécurité et compris les risques encourus.

Les enfants ne doivent pas jouer avec l´appareil. Le nettoyage et l´entretien ne doivent pas être rèalisés par des enfants sans surveillance.

Seulement pour les marchés hors UE.

Les personnes qui n´ont pas l´expérience ou les connaissances nécessaires sur le ou les produit(s) ne doivent pas le ou les utiliser. Par ailleurs, les personnes ayant des capacités physiques, sensorielles ou mentales réduites ne doivent pas utiliser le ou les produit(s), sauf si elles sont sous surveillance ou ont suivi une formation approfondie de l´utilisation de l´appareil par l´individu responsable de la securité de ces personnes.

De plus, les enfants doivent-être sous surveillance afin de s´assurer qu´ils ne jouent pas avec le produit.

Utilisation abusive:

Ne surchargez pas les actionneurs – cela peut engendrer un risque de blessures corporelles et endommager le système.

Ne pas utiliser les actionneurs pour soulever des personnes. Ne pas s´asseoir ou se tenir debout sur une table en fonctionnement – risque de blessures.

Ne pas utiliser le système dans dans des environnements autres que l´utilisation intérieure prévue.

Page 10 of 44

Repairs

In order to avoid the risk of malfunction, all DESKLINE® repairs must only be carried out by authorised LINAK® workshops or repairers, as special tools must be used and special gaskets must be ﬁtted. Lifting units under warranty must also be returned to authorised LINAK workshops.

Warning!

If any of the DESKLINE® products are opened, there will be a risk of subsequent malfunction.

Warning!

The DESKLINE® systems are not resistant to cutting oil.

DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY

LINAK A/S

Smedevænget 8

DK - 6430 Nordborg

Herewith declares that LINAK DESKLINE

Control Boxes CBD4, CBD6S

And

Linear Actuators LA31, DB4, DB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23

Lifting Columns DL1A, DL2, DL4, DL5, DL6, DL7, DL8, DL9, DL10, DL11, DL12, DL14, DL15,

DL16, DL17, LP2, LP3, BASE1

And

Desk Panels DP, DPA, DPB, DPH, DPF, DPT, DP1C, DP1K, DP1L, DP1V, DP1U, WDPL1

RF Controls HB10, HB20, RFR and RFT

And

Accessories SLS

products as characterized by the following models and types:

comply with the following parts of the Machinery Directive 2006/42/EC, ANNEX I, Essential health and safety requirements relating to the design and construction of machinery:

1.5.1 Electricity supply

The relevant technical documentation is compiled in accordance with part B of Annex VII and that this documentation or part hereof will be transmitted by post or electronically to a reasoned request by the national authorities.

This partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the provisions of the Machinery Directive 2006/42/EC where appropriate.

Nordborg, 2014-04-10

LINAK A/S

John Kling, B.Sc.E.E. Certification and Regulatory Affairs Authorized to compile the relevant technical documentation

Page 11 of 44

Misc. on the DESKLINE® system

Warranty

There is a 60 months’ warranty on the DESKLINE products Controls / Hand controls when used in DESKLINE applications against manufacturing faults from the production date of the individual products. LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In the event of this, the warranty will be ineffective/invalid. For further details, please see LINAK A/S’ ordinary conditions of sale.

Maintenance

Clean dust and dirt on the outside of the system at appropriate intervals and inspect for damage and breaks. Inspect the connections, cables, and plugs and check for correct functioning as well as ﬁxing points.

The cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8).

ETL-marking

Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here.

C/N 120690

Conforms to ANSI/AAMI Std. ES60601-1 Cert. to CSA Std. C22.2 No. 60601-1
