Linak HB70 User Manual
PRODUCT DATA SHEET
re
actuators
rk
grey (RAL 7016
le
trol box
es
1, EN 60335-1
actuator

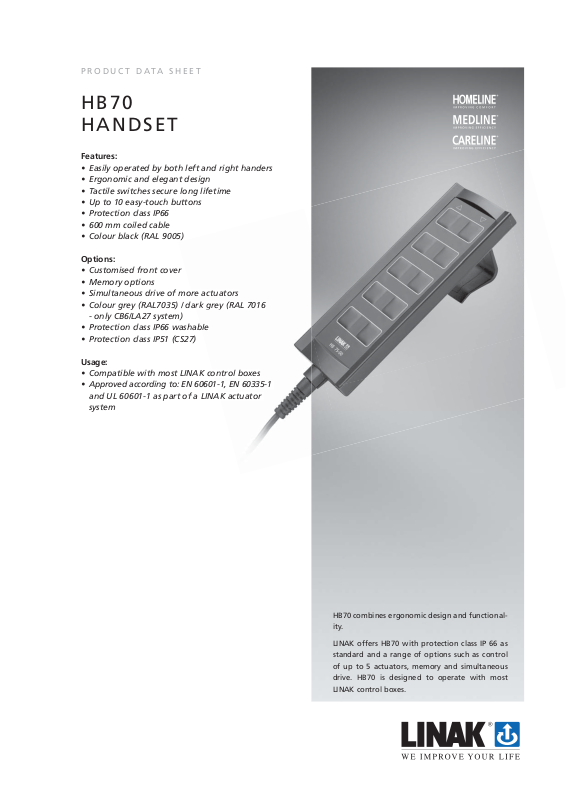

HB70
HANDSET
Features:
• Easily operated by both left and right handers
• Ergonomic and elegant design
• Tactile switches secure long lifetime
• Up to 10 easy-touch buttons
• Protection class IP66
• 600 mm coiled cable
• Colour black (RAL 9005)
Options:
• Customised front cover
• Memory options
• Simultaneous drive of more actuators
• Colour grey (RAL7035) / dark grey (RAL 7016
- only CB6/LA27 system)
• Protection class IP66 washable
• Protection class IP51 (CS27)
Usage:
• Compatible with most LINAK control boxes
• Approved according to: EN 60601-1, EN 60335-1
and UL 60601-1 as part of a LINAK actuator
system
HB70 combines ergonomic design and functionality.
LINAK offers HB70 with protection class IP 66 as
standard and a range of options such as control
of up to 5 actuators, memory and simultaneous
drive. HB70 is designed to operate with most
LINAK control boxes.
Dimensions (mm):
Precautions:
• It is not possible to combine the HB7x with the binary based CB9..PM/PN.
• The IP66 Washable version has a special adhesive for the front covers.
• The HB75xEx used together with the CB140 will give trend and anti-trend on channel 1 and 2 of the control
box when using the last button row.
• All front covers use the codes W0 (not Washable) and WW (Washable)
Memory:
• The memory and parallel functions require the control box to have a microprocessor.
• When storing the memory position on the CB20, CB14, CB18MKII and newer versions the actuators must be
run to the desired position and the “store” button (S) must be pushed.
Then the desired memory position button (1, 2 or 3) must be activated within 2 seconds.
HB70
Ordering example:
HB7 160
0
1
0
2420
+
4
Cable length
Plug +
Cable-type
Coiled
D
Coiled
I
Straight
N
-
Straight
p
Coiled/
l
Straight
u
Coiled/
g
Straight
Coiled
MP
Coiled
MP
Straight
MF
Straight
UF
MP = Modular Plug (8 pins) for CB7/CBD
MP = Modular Plug (10 pins) for CB6
MF = Mini-Fit for CB27 (functionality 00)
UF = Micro-Fit for CS18 (functionality 0X, Hx)
Standard lengths
7-core
5-wire
Grey
Black
0500
2420
0600
Grey
0500
2420
Black
0600
8-core 9-core
Grey
Black
0600
2420
0600/
1700
0600/
500
Grey
0600
2420
0600/
1700
0600/
500
0600
2475
3/5 or 5/7 core
Dark grey
2000
Cable type
Straight Mini Fit for CB27 (3/5 cores or 5/7 cores)
0
1
Coiled 9-core. DIN
2
Coiled 7-core. DIN (max. Ch.3)
3
Coiled 8-core. Modular Plug (CB7/CBD/CBR)
4
Straight 7-core. DIN. (max. Ch. 3)
5
Straight 9-core. DIN
6
Coiled 9-core Modular Plug (CB6, TDC)
8
Coiled 9-core. Extra long straight end 1,7 m DIN
9
Coiled 9-core. Extra long straight end. 0,5 m DIN
A
Straight 12-pin micro-fit for CS18. 9 + 2 cores
B
Coiled 5 wire Modular Plug (e.g. CB20, CBJH)
Black Grey (dark-light)
0277015- or 0277016-
0015621 0015622
0015623 0015624
0567005
0015651 0015650
0015653 0015652
0277010-600
0015628 0015627
0015626 0015625
00914450
0964004
Box Colour
+
= Grey - RAL 7035 (not for CB6)
= Black (not for CB6)
=
= Dark grey - RAL 7016 (Only for CB6 and CS27)

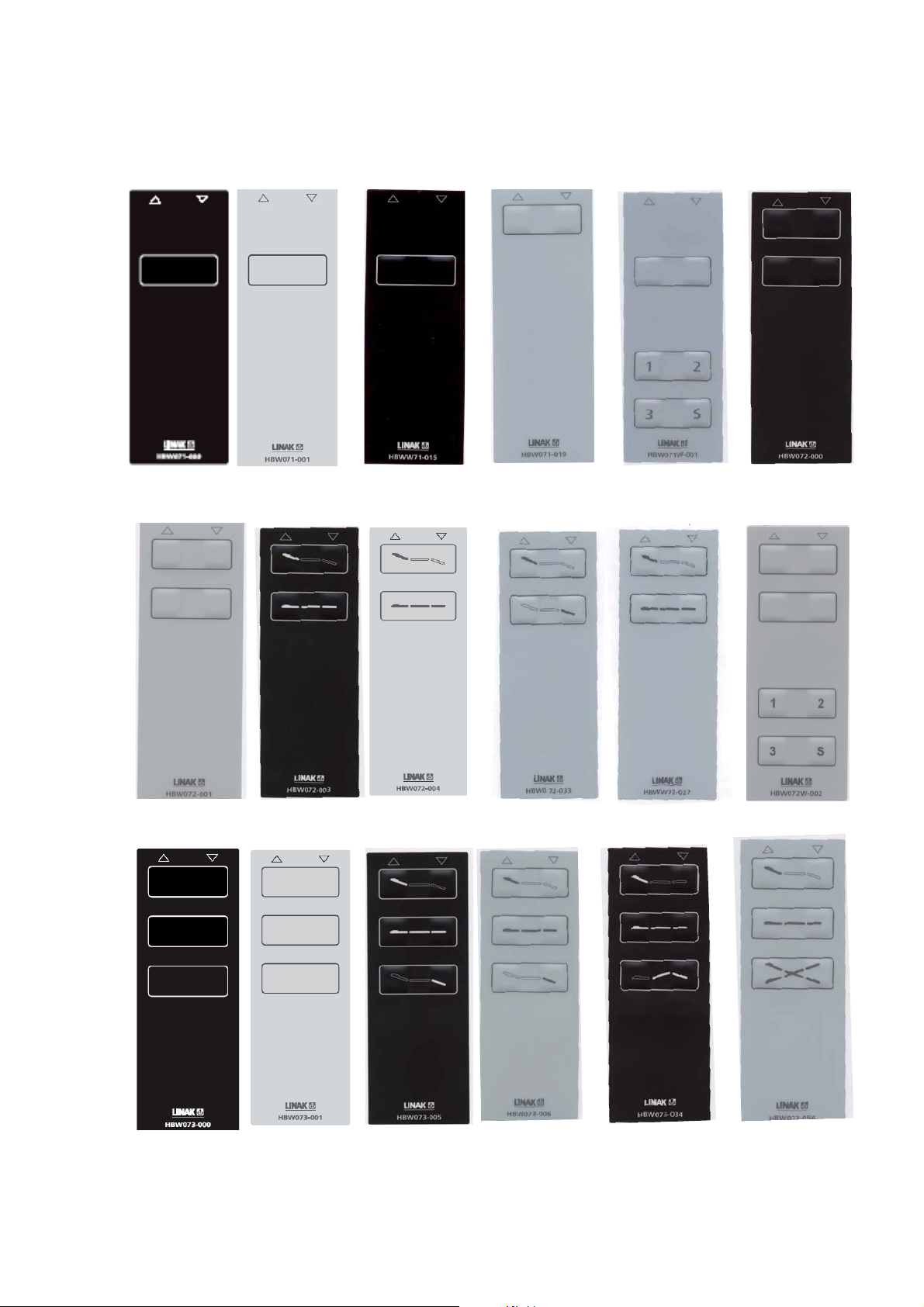

Front cover = XX (see page "HB70 Standard front covers")
Functionality = XX (see next page)
IP Degree
1
IP51 (if cable type 0 (Only CS27))
6
IP66
9
IP66 washable ("WW" means washable, as part of the front cover code)
Number of ROWS (exclusive rows for memory)
Max. 5 rows
Max. 3 rows for memory types (not including memory rows)
HB-Type
For customised front covers, please contact the sales department at LINAK A/S.
Functionality overview for the HB7X :
0x (HB40 like) for: CB6 (CB6 with 3 ch. = ch.1,3 and 4), CB7, CB8, CB18 (max. 3
channels),TDC, CBJH, sometimes CB9..AX and CB12 - see also Hx
Ex (Matrix) for: CB9..Px (not CB9..PM/..PN) and CB14
EF (Matrix) for: CB140
Hx (HB40 like, common gnd) for simultaneous drive on both CB9 and CB12
EW (Memory / Matrix) for: CB9..Px (not CB9..PM/..PN) and CB14
LO (Binary) for: CB18MKII and newer versions
Vx (OPENBUS™ functionality)
Functionality explanation:
The digits above the functionality drawings are to be used as part of the product item number.
• On page 3, in the ordering example, there is a space reserved for 2 “functionality”
digits (between the IP degree and the last 2 digits of the front cover number).
• I.e. if you need a HB72 you can e.g. choose between “02” and “H2” functionalities.
• “02” functionality is compatible with CB6, CB7, CB8,…… ;
• “H2” functionality for simultaneous drive on both CB9 and CB12
