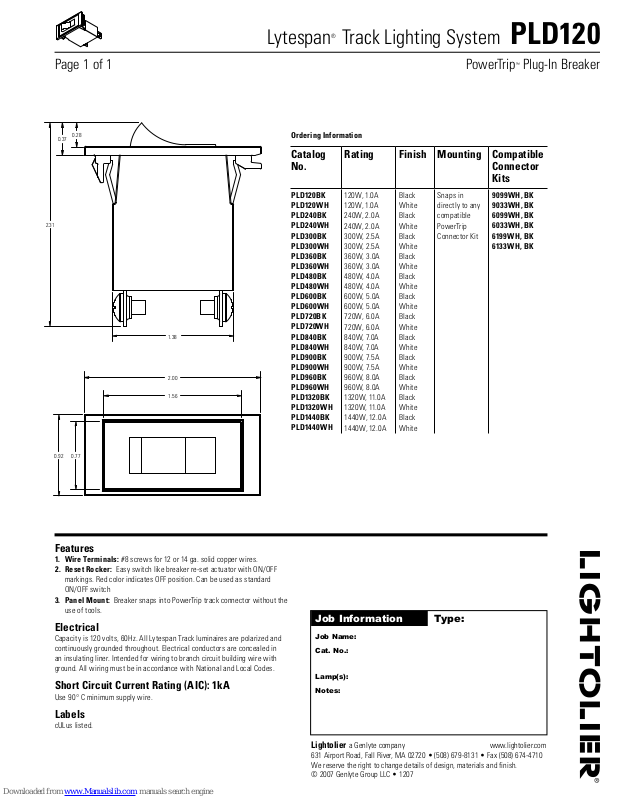

Lytespan
0.28
0.37
2.31
®
Track Lighting System PLD120
Page 1 of 1 PowerTrip™ Plug-In Breaker
2.31
0.37
0.28
1.38
2.00
1.56
Ordering Information
Catalog
Rating Finish Mounting Compatible
No.
PLD120BK
PLD120WH
PLD240BK
PLD240WH
PLD300BK
PLD300WH
PLD360BK
PLD360WH
PLD480BK
PLD480WH
PLD600BK
PLD600WH
PLD720BK
PLD720WH
PLD840BK
PLD840WH
PLD900BK
PLD900WH
PLD960BK
PLD960WH
PLD1320BK
PLD1320WH
PLD1440BK
PLD1440WH
120W, 1.0A
120W, 1.0A
240W, 2.0A
240W, 2.0A
300W, 2.5A
300W, 2.5A
360W, 3.0A
360W, 3.0A
480W, 4.0A
480W, 4.0A
600W, 5.0A
600W, 5.0A
720W, 6.0A
720W, 6.0A
840W, 7.0A
840W, 7.0A
900W, 7.5A
900W, 7.5A
960W, 8.0A
960W, 8.0A
1320W, 11.0A
1320W, 11.0A
1440W, 12.0A
1440W, 12.0A
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Black
White
Snaps in
directly to any
compatible
Po we rTrip
Connector Kit
Connector
Kits
9099WH, BK
9033WH, BK
6099WH, BK
6033WH, BK
6199WH, BK
6133WH, BK
0.92
0.77
Features
1. Wire Terminals: #8 screws for 12 or 14 ga. solid copper wires.
2. Reset Rocker: Easy switch like breaker re-set actuator with ON/OFF
markings. Red color indicates OFF position. Can be used as standard
ON/OFF switch
3. Panel Mount: Breaker snaps into PowerTrip track connector without the
use of tools.
Electrical
Capacity is 120 volts, 60Hz. All Lytespan Track luminaires are polarized and
continuously grounded throughout. Electrical conductors are concealed in
an insulating liner. Intended for wiring to branch circuit building wire with
ground. All wiring must be in accordance with National and Local Codes.
Short Circuit Current Rating (AIC): 1kA
Use 90° C minimum supply wire.
Labels
cULus listed.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • 1207
