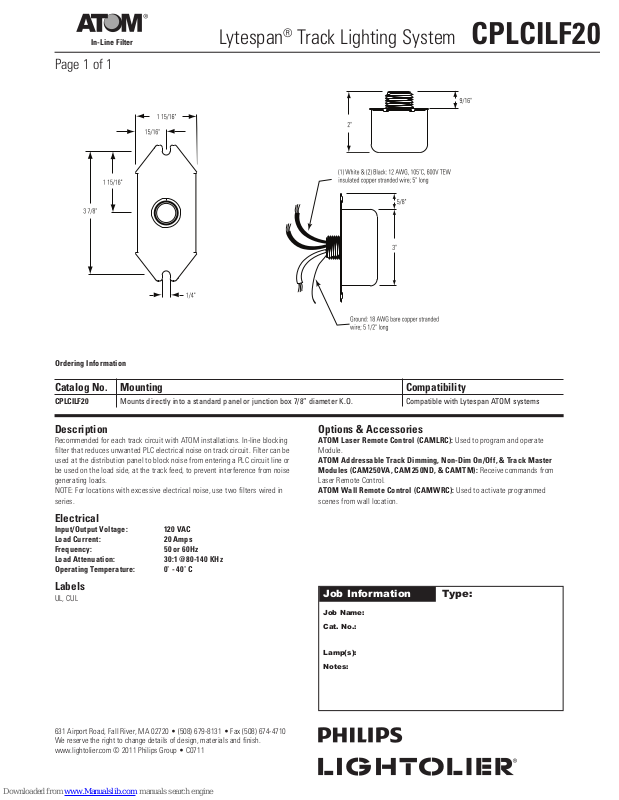

In-Line Filter
Page 1 of 1
Lytespan
®
Track Lighting System CPLCILF20
Ordering Information
Catalog No. Mounting Compatibility
CPLCILF20 Mounts directly into a standard panel or junction box 7/8” diameter K.O. Compatible with Lytespan ATOM systems
Description
Recommended for each track circuit with ATOM installations. In-line blocking
filter that reduces unwanted PLC electrical noise on track circuit. Filter can be
used at the distribution panel to block noise from entering a PLC circuit line or
be used on the load side, at the track feed, to prevent interference from noise
generating loads.
NOTE: For locations with excessive electrical noise, use two filters wired in
series.
Options & Accessories
ATOM Laser Remote Control (CAMLRC): Used to program and operate
Module.
ATOM Addressable Track Dimming, Non-Dim On/Off, & Track Master
Modules (CAM250VA, CAM250ND, & CAMTM): Receive commands from
Laser Remote Control.
ATOM Wall Remote Control (CAMWRC): Used to activate programmed
scenes from wall location.
Electrical
Input/Output Voltage: 120 VAC
Load Current: 20 Amps
Frequency: 5 0 or 60Hz
Load Attenuation: 30:1 @80-140 KHz
Operating Temperature: 0˚ - 40˚ C
Labels
UL, CUL
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • C0711
