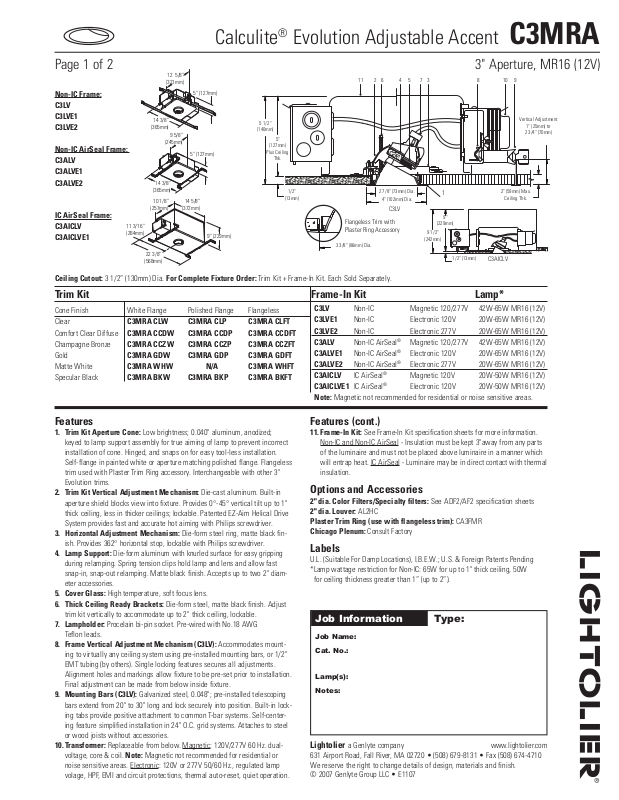

Lightolier C3MRA User Manual
Calculite
C3MRA
Spec. Sheet
5" (127mm)
12 5/8"
(321mm)
14 3/8"
(365mm)
9 5/8"
(245mm)
5" (127mm)
14 3/8"
(365mm)
10 1/8"
(257mm)
9" (229mm)
11 3/16"
(284mm)
22 3/8"
(568mm)
14 5/8"
(372mm)
5 1/2"
(140mm)
5"
(127mm)
Plus Ceiling
Thk.
1/2"
(13mm)
2" (59mm) Max.
Ceiling Thk.
2 7/8" (73mm) Dia.
4" (102mm) Dia.
Vertical Adjustment
1" (25mm) to
2 3/4" (70mm)
3 3/8" (86mm) Dia.
Flangeless Trim with
Plaster Ring Accessory
C3LV
9 1/2"
(242mm)
9"
(229mm)
1/2" (13mm)
C3AICLV
11 2 614 7 3 85 10 9
®
Evolution Adjustable Accent C3MRA
Page 1 of 2 3" Aperture, MR16 (12V)
Non-IC Frame:
C3LV
C3LVE1
C3LVE2
Non-IC AirSeal Frame:
C3ALV
C3ALVE1
C3ALVE2
IC AirSeal Frame:
C3AICLV
C3AICLVE1
Ceiling Cutout: 3 1/2” (130mm) Dia. For Complete Fixture Order: Trim Kit + Frame-In Kit. Each Sold Separately.
Trim Kit Frame-In Kit Lamp*
Cone Finish
White Flange Polished Flange Flangeless
Clear C3MRA CLW C3MRA CLP C3MRA CLFT
Comfort Clear Diffuse C3MRA CCDW C3MRA CCDP C3MRA CCDFT
Champagne Bronze C3MRA CCZW C3MRA CCZP C3MRA CCZFT
Gold C3MRA GDW C3MRA GDP C3MRA GDFT
Matte White C3MRA WHW N/A C3MRA WHFT
Specular Black C3MRA BKW C3MRA BKP C3MRA BKFT
C3LV Non-IC Magnetic 120/277V 42W-65W MR16 (12V)
C3LVE1 Non-IC Electronic 120V 20W-65W MR16 (12V)
C3LVE2 Non-IC Electronic 277V 20W-65W MR16 (12V)
C3ALV Non-IC AirSeal® Magnetic 120/277V 42W-65W MR16 (12V)
C3ALVE1 Non-IC AirSeal® Electronic 120V 20W-65W MR16 (12V)
C3ALVE2 Non-IC AirSeal® Electronic 277V 20W-65W MR16 (12V)
C3AICLV IC AirSeal® Magnetic 120V 20W-50W MR16 (12V)
C3AICLVE1 IC AirSeal® Electronic 120V 20W-50W MR16 (12V)
Note: Magnetic not recommended for residential or noise sensitive areas.
Features
1. Trim Kit Aperture Cone: Low brightness; 0.040" aluminum, anodized;
keyed to lamp support assembly for true aiming of lamp to prevent incorrect
installation of cone. Hinged, and snaps on for easy tool-less installation.
Self-flange in painted white or aperture matching polished flange. Flangeless
trim used with Plaster Trim Ring accessory. Interchangeable with other 3"
Evolution trims.
2. Trim Kit Vertical Adjustment Mechanism: Die-cast aluminum. Built-in
aperture shield blocks view into fixture. Provides 0°-45° vertical tilt up to 1"
thick ceiling, less in thicker ceilings; lockable. Patented EZ-Aim Helical Drive
System provides fast and accurate hot aiming with Philips screwdriver.
3. Horizontal Adjustment Mechanism: Die-form steel ring, matte black fin-
ish. Provides 362° horizontal stop, lockable with Philips screwdriver.
4. Lamp Support: Die-form aluminum with knurled surface for easy gripping
during relamping. Spring tension clips hold lamp and lens and allow fast
snap-in, snap-out relamping. Matte black finish. Accepts up to two 2" diameter accessories.
5. Cover Glass: High temperature, soft focus lens.
6. Thick Ceiling Ready Brackets: Die-form steel, matte black finish. Adjust
trim kit vertically to accommodate up to 2" thick ceiling, lockable.
7. Lampholder: Procelain bi-pin socket. Pre-wired with No.18 AWG
Teflon leads.
8. Frame Vertical Adjustment Mechanism (C3LV): Accommodates mount-
ing to virtually any ceiling system using pre-installed mounting bars, or 1/2"
EMT tubing (by others). Single locking features secures all adjustments.
Alignment holes and markings allow fixture to be pre-set prior to installation.
Final adjustment can be made from below inside fixture.
9. Mounting Bars (C3LV): Galvanized steel, 0.048"; pre-installed telescoping
bars extend from 20" to 30" long and lock securely into position. Built-in locking tabs provide positive attachment to common T-bar systems. Self-centering feature simplified installation in 24" O.C. grid systems. Attaches to steel
or wood joists without accessories.
10. Transformer: Replaceable from below. Magnetic: 120V/277V 60 Hz. dualvoltage, core & coil. Note: Magnetic not recommended for residential or
noise sensitive areas. Electronic: 120V or 277V 50/60 Hz., regulated lamp
volage, HPF, EMI and circuit protections, thermal auto-reset, quiet operation.
Features (cont.)
11. Frame-In Kit: See Frame-In Kit specification sheets for more information.
Non-IC and Non-IC AirSeal - Insulation must be kept 3"away from any parts
of the luminaire and must not be placed above luminaire in a manner which
will entrap heat. IC AirSeal - Luminaire may be in direct contact with thermal
insulation.
Options and Accessories
2" dia. Color Filters/Specialty filters: See ADF2/AF2 specification sheets
2" dia. Louver: AL2HC
Plaster Trim Ring (use with flangeless trim): CA3FMR
Chicago Plenum: Consult Factory
Labels
U.L. (Suitable For Damp Locations), I.B.E.W.; U.S. & Foreign Patents Pending
* Lamp wattage restriction for Non-IC: 65W for up to 1" thick ceiling, 50W
for ceiling thickness greater than 1” (up to 2”).
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • E1107
