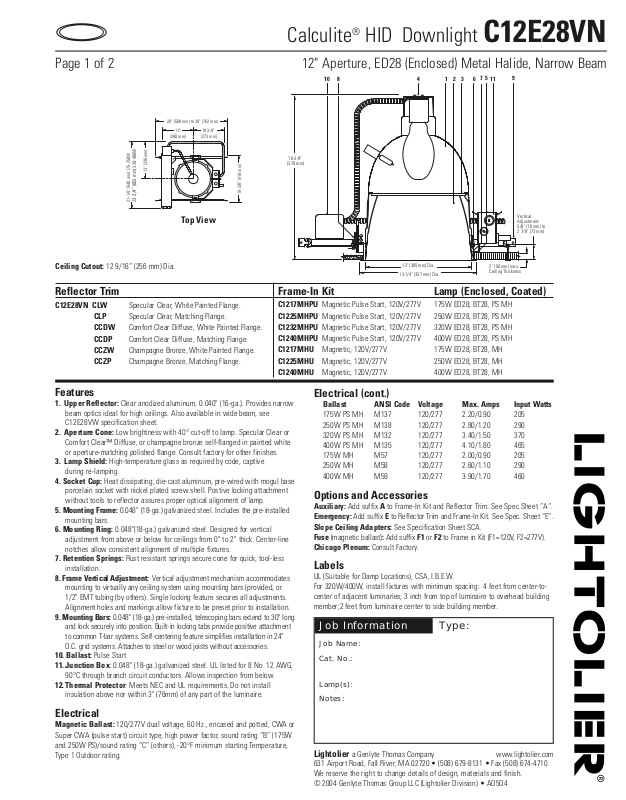

Lightolier C12E28VN User Manual
Calculite
2" (50 mm) max.
Ceiling Thickness
Vertical
Adjustment:
5/8" (16 mm) to
2 7/8" (73 mm)
31
10
6
5
9
8 4
2
11
7
12" (305 mm) Dia.
18-3/4"
(376 mm)
13-1/4" (337 mm) Dia.
11"
(280 mm)
Top View
21-1/4" (540 mm) 175-250W
23-3/4" (603 mm) 320-400W
20" (508 mm) to 30" (762 mm)
16-3/8" (416 mm)
10-3/4"
(273 mm)
13" (330 mm)
®
HID Downlight C12E28VN
Page 1 of 2 12" Aperture, ED28 (Enclosed) Metal Halide, Narrow Beam
Ceiling Cutout: 12 9/16” (256 mm) Dia.
Reflector Trim Frame-In Kit Lamp (Enclosed, Coated)
C12E28VN CLW Specular Clear, White Painted Flange.
CLP Specular Clear, Matching Flange.
CCDW Comfort Clear Diffuse, White Painted Flange.
CCDP Comfort Clear Diffuse, Matching Flange.
CCZW Champagne Bronze, White Painted Flange.
CCZP Champagne Bronze, Matching Flange.
C1217MHPU Magnetic Pulse Start, 120V/277V 175W ED28, BT28, PS MH
C1225MHPU Magnetic Pulse Start, 120V/277V 250W ED28, BT28, PS MH
C1232MHPU Magnetic Pulse Start, 120V/277V 320W ED28, BT28, PS MH
C1240MHPU Magnetic Pulse Start, 120V/277V 400W ED28, BT28, PS MH
C1217MHU Magnetic, 120V/277V 175W ED28, BT28, MH
C1225MHU Magnetic, 120V/277V 250W ED28, BT28, MH
C1240MHU Magnetic, 120V/277V 400W ED28, BT28, MH
Features
1. Upper Reflector: Clear anodized aluminum, 0.040" (16-ga.). Provides narrow
beam optics ideal for high ceilings. Also available in wide beam, see
C12E28VW specification sheet.
2. Aperture Cone: Low brightness with 40° cut-off to lamp. Specular Clear or
Comfort Clear™ Diffuse, or champagne bronze self-flanged in painted white
or aperture-matching polished flange. Consult factory for other finishes.
3. Lamp Shield: High-temperature glass as required by code, captive
during re-lamping.
4. Socket Cup: Heat dissipating, die-cast aluminum, pre-wired with mogul base
porcelain socket with nickel plated screw shell. Postive locking attachment
without tools to reflector assures proper optical alignment of lamp.
5. Mounting Frame: 0.048" (18-ga.) galvanized steel. Includes the pre-installed
mounting bars.
6. Mounting Ring: 0.048"(18-ga.) galvanized steel. Designed for vertical
adjustment from above or below for ceilings from 0" to 2" thick. Center-line
notches allow consistent alignment of multiple fixtures.
7. Retention Springs: Rust resistant springs secure cone for quick, tool-less
installation.
8. Frame Vertical Adjustment: Vertical adjustment mechanism accommodates
mounting to virtually any ceiling system using mounting bars (provided, or
1/2" EMT tubing (by others). Single locking feature secures all adjustments.
Alignment holes and markings allow fixture to be preset prior to installation.
9. Mounting Bars: 0.048" (18-ga.) pre-installed, telescoping bars extend to 30" long
and lock securely into position. Built-in locking tabs provide positive attachment
to common T-bar systems. Self-centering feature simplifies installation in 24"
O.C. grid systems. Attaches to steel or wood joists without accessories.
10. Ballast: Pulse Start
11. Junction Box: 0.048" (18-ga.) galvanized steel. UL listed for 8 No. 12 AWG,
90°C through branch circuit conductors. Allows inspection from below.
12. Thermal Protector: Meets NEC and UL requirements. Do not install
insulation above nor within 3" (76mm) of any part of the luminaire.
Electrical
Magnetic Ballast: 120/277V dual voltage, 60 Hz., encased and potted, CWA or
Super CWA (pulse start) circuit type, high power factor, sound rating “B” (175W
and 250W PS)/sound rating “C” (others), -20°F minimum starting Temperature,
Type 1 Outdoor rating.
Electrical (cont.)
Ballast ANSI Code Voltage Max. Amps Input Watts
175W PS MH M137 120/277 2.20/0.90 205
250W PS MH M138 120/277 2.80/1.20 290
320W PS MH M132 120/277 3.40/1.50 370
400W PS MH M135 120/277 4.10/1.80 465
175W MH M57 120/277 2.00/0.90 205
250W MH M58 120/277 2.60/1.10 290
400W MH M59 120/277 3.90/1.70 460
Options and Accessories
Auxiliary: Add suffix A to Frame-In Kit and Reflector Trim. See Spec.Sheet ”A“.
Emergency: Add suffix E to Reflector Trim and Frame-In Kit. See Spec. Sheet “E”.
Slope Ceiling Adapters: See Specification Sheet SCA.
Fuse (magnetic ballast): Add suffix F1 or F2 to Frame in Kit (F1=120V, F2=277V).
Chicago Plenum: Consult Factory.
Labels
UL (Suitable for Damp Locations), CSA, I.B.E.W.
For 320W/400W, install fixtures with minimum spacing: 4 feet from center-tocenter of adjacent luminaries; 3 inch from top of luminaire to overhead building
member;2 feet from luminaire center to side building member.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • AO5O4
Calculite
®
HID Downlight C12E28VN
Page 2 of 2 12" Aperture, ED28 (Enclosed) Metal Halide, Narrow Beam
175W ED28 G.E. MH COATED LAMP, LUMEN RATING = 12900 LMS, ADVANCE MAGNETIC BALLAST, CL FINISH TRIM
3,750
7,500
11,250
15,000
** EFFICIENCY = 59.0% ** CERTIFIED TEST REPORT NO. 2506FR, DATE: MAR 14, 2004
SC = .5 COMPUTED BY LSI PROGRAM **TEST-LITE**
250W ED28 PHILIPS MH COATED LAMP, LUMEN RATING = 19475 LMS, UNIVERSAL MAGNETIC BALLAST, CL FINISH TRIM
5,000
10,000
15,000
20,000
** EFFICIENCY = 59.5% ** CERTIFIED TEST REPORT NO. 2507FR, DATE: MAR 14, 2004
SC = .6 COMPUTED BY LSI PROGRAM **TEST-LITE**
ANGLE MEAN CP LUMENS
0 14426
5 11935 1128
10 8964
15 7250 2054
60°
20 5519
25 4199 1985
30 3234
35 2478 1550
40 1679
45 1022 797
50 394
55 24 99
60 0
65 0 0
70 0
75 0 0
80 0
30°
85 0 0
90 0
ANGLE MEAN CP LUMENS
0 18579
5 16967 1591
10 14138
15 11451 3226
60°
20 8486
25 6337 3011
30 4864
35 3775 2358
40 2602
45 1589 1239
50 619
55 48 160
60 0
65 0 0
70 0
75 0 0
80 0
85 0 0
30°
90 0
LUMINANCE SUMMARY - CD. / SQ. M.
ANGLE MEAN CD/SQ M
45 35340
55 1009
65 0
75 0
85 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 5166 40.05 67.87
0-40 6716 52.06 88.23
0-60 7612 59.01 100
0-90 7612 59.01 100
40-90 895 6.94 11.77
60-90 0 0 0
90-180 0 0 0
0-180 7612 59.01 100
LUMINANCE SUMMARY - CD. / SQ. M.
ANGLE MEAN CD/SQ M
45 54956
55 2036
65 0
75 0
85 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 7828 40.2 67.57
0-40 10186 52.3 87.92
0-60 11585 59.49 100
0-90 11585 59.49 100
40-90 1398 7.18 12.08
60-90 0 0 0
90-180 0 0 0
0-180 11585 59.49 100
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
0 .70 .70 .70 .70 .69 .69 .66 .66 .63 .63 .59
1 .67 .66 .65 .64 .65 .63 .62 .61 .60 .59 .56
2 .65 .62 .60 .59 .61 .58 .59 .57 .58 .56 .53
3 .62 .59 .56 .54 .58 .54 .57 .53 .55 .52 .51
4 .60 .56 .53 .51 .55 .51 .54 .50 .53 .50 .48
5 .57 .53 .50 .48 .52 .48 .51 .47 .50 .47 .46
6 .55 .50 .47 .45 .50 .45 .49 .45 .48 .44 .43
7 .52 .47 .44 .42 .47 .42 .46 .42 .46 .42 .41
8 .50 .45 .42 .40 .44 .40 .44 .40 .43 .39 .38
9 .48 .43 .40 .37 .42 .37 .42 .37 .41 .37 .36
10 .45 .40 .37 .35 .40 .35 .40 .35 .39 .35 .34
LUMINAIRE INPUT WATTS = 205.0
Coefficients of Utilization
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
0 .71 .71 .71 .71 .69 .69 .66 .66 .63 .63 .59
1 .68 .67 .65 .64 .65 .63 .63 .61 .61 .59 .57
2 .65 .63 .61 .59 .62 .58 .60 .57 .58 .56 .54
3 .62 .59 .57 .55 .58 .54 .57 .54 .56 .53 .51
4 .60 .56 .53 .51 .56 .51 .54 .50 .53 .50 .48
5 .57 .53 .50 .48 .53 .48 .52 .47 .51 .47 .46
6 .55 .51 .47 .45 .50 .45 .49 .45 .48 .44 .43
7 .52 .48 .45 .42 .47 .42 .47 .42 .46 .42 .41
8 .50 .45 .42 .40 .45 .40 .44 .40 .44 .39 .39
9 .48 .43 .40 .37 .42 .37 .42 .37 .41 .37 .36
Coefficients of Utilization
10 .46 .40 .37 .35 .40 .35 .40 .35 .39 .35 .34
LUMINAIRE INPUT WATTS = 290.0
320W ED28 PHILIPS MH COATED LAMP, LUMEN RATING = 30100 LMS, ADVANCE BALLAST PULSE START MAGNETIC, CL FINISH TRIM
ANGLE MEAN CP LUMENS
0 26533
5 24377 2279
10 20213
7,500
15,000
22,500
30,000
** EFFICIENCY = 57.9% ** CERTIFIED TEST REPORT NO. 2364FR, DATE: FEB 10, 2004
SC = .6 COMPUTED BY LSI PROGRAM **TEST-LITE**
15 16572 4662
60°
20 12433
25 9545 4521
30 7548
35 5923 3697
40 4147
45 2568 1994
50 1016
55 102 274
60 2
65 0 1
70 0
75 0 0
80 0
85 0 0
30°
90 0
LUMINANCE SUMMARY - CD. / SQ. M.
ANGLE MEAN CD/SQ M
45 49970
55 2444
65 0
75 0
85 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 11462 38.08 65.77
0-40 15159 50.36 86.98
0-60 17427 57.9 100
0-90 17428 57.9 100
40-90 2268 7.54 13.02
60-90 0 0 0
90-180 0 0 0
0-180 17428 57.9 100
CEILING 80% 70% 50% 30%
Coefficients of Utilization
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
0 .69 .69 .69 .69 .67 .67 .64 .64 .62 .62 .58
1 .66 .65 .63 .62 .64 .61 .61 .59 .59 .58 .55
2 .63 .61 .59 .57 .60 .57 .58 .55 .56 .54 .52
3 .61 .57 .55 .53 .57 .53 .55 .52 .54 .51 .49
4 .58 .54 .52 .50 .54 .49 .53 .49 .51 .48 .47
5 .56 .51 .48 .46 .51 .46 .50 .46 .49 .45 .44
6 .53 .49 .46 .44 .48 .43 .47 .43 .47 .43 .42
7 .51 .46 .43 .41 .46 .40 .45 .40 .44 .40 .39
8 .48 .43 .40 .38 .43 .38 .42 .38 .42 .38 .37
9 .46 .41 .38 .36 .41 .36 .40 .35 .40 .35 .34
10 .44 .39 .36 .33 .38 .33 .38 .33 .38 .33 .32
LUMINAIRE INPUT WATTS = 370.0
400W ED28 G.E. MH COATED LAMP, LUMEN RATING = 35000 LMS, ADVANCE MAGNETIC BALLAST, CL FINISH TRIM
ANGLE MEAN CP LUMENS
0 32201
5 30567 2866
10 26772
8,250
16,500
24,750
33,000
** EFFICIENCY = 61.4% ** CERTIFIED TEST REPORT NO. 2522FR, DATE: MAR 14, 2004
SC = .6 COMPUTED BY LSI PROGRAM **TEST-LITE**
15 21592 6084
60°
20 15893
25 11829 5625
30 9060
35 7031 4394
40 4857
45 2908 2264
50 1021
55 23 239
60 0
65 0 0
70 0
75 0 0
80 0
85 0 0
30°
90 0
LUMINANCE SUMMARY - CD. / SQ. M.
ANGLE MEAN CD/SQ M
45 100565
55 982
65 0
75 0
85 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 14575 41.64 67.88
0-40 18969 54.2 88.34
0-60 21472 61.35 100
0-90 21472 61.35 100
40-90 2503 7.15 11.66
60-90 0 0 0
90-180 0 0 0
0-180 21472 61.35 100
Coefficients of Utilization
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
RCR
0 .73 .73 .73 .73 .71 .71 .68 .68 .65 .65 .61
1 .70 .69 .67 .66 .67 .65 .65 .63 .63 .61 .58
2 .67 .65 .63 .61 .64 .60 .62 .59 .60 .58 .56
3 .64 .61 .59 .57 .60 .56 .59 .55 .57 .54 .53
4 .62 .58 .55 .53 .57 .53 .56 .52 .55 .52 .50
5 .59 .55 .52 .50 .54 .49 .53 .49 .52 .48 .47
6 .57 .52 .49 .47 .52 .47 .51 .46 .50 .46 .45
7 .54 .49 .46 .44 .49 .44 .48 .44 .47 .43 .42
8 .52 .47 .43 .41 .46 .41 .46 .41 .45 .41 .40
9 .49 .44 .41 .39 .44 .39 .43 .38 .43 .38 .37
10 .47 .42 .39 .36 .42 .36 .41 .36 .41 .36 .35
LUMINAIRE INPUT WATTS = 460.0
Job Information Type:
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • AO5O4
