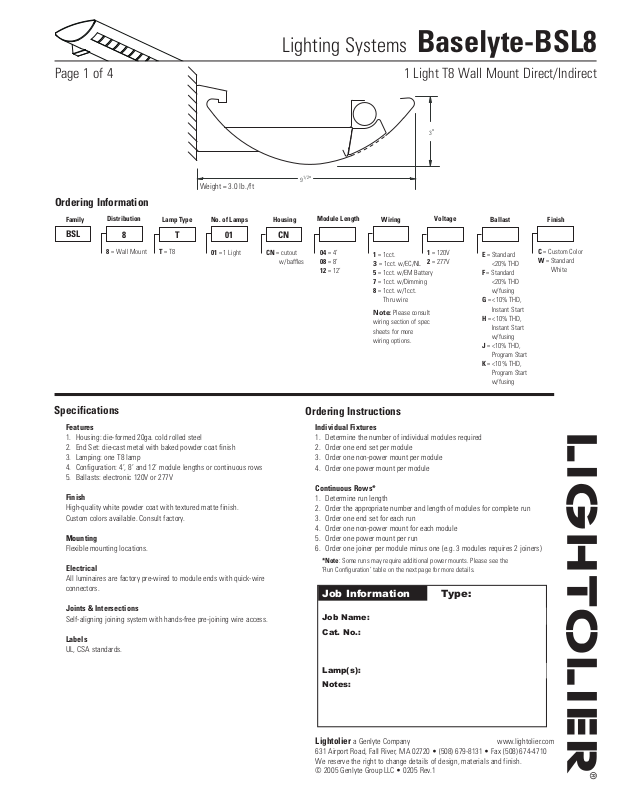

Lighting Systems Baselyte-BSL8
Page 1 of 4 1 Light T8 Wall Mount Direct/Indirect
Weight = 3.0 lb./ft
Ordering Information
Family
BSL
Distribution
8
8 = Wall Mount
Lamp Type
T
T = T8
No. of Lamps
01
01 = 1 Light
Housing
CN
CN = cutout
w/baffles
Module Length
04 = 4’
08 = 8’
12 = 12’
Wiring
1 = 1cct.
3 = 1cct. w/EC/NL
5 = 1cct. w/EM Battery
7 = 1cct. w/Dimming
8 = 1cct. w/1cct.
Thru wire
Note: Please consult
wiring section of spec
sheets for more
wiring options.
Voltage
1 = 120V
2 = 277V
Ballast Finish
E = Standard
<20% THD
F = Standard
<20% THD
w/fusing
G = <10% THD,
Instant Start
H = <10% THD,
Instant Start
w/fusing
J = <10% THD,
Program Start
K = <10% THD,
Program Start
w/fusing
C = Custom Color
W = Standard
White
Specifications
Features
1. Housing: die-formed 20ga. cold rolled steel
2. End Set: die-cast metal with baked powder coat finish
3. Lamping: one T8 lamp
4. Configuration: 4’, 8’ and 12’ module lengths or continuous rows
5. Ballasts: electronic 120V or 277V
Finish
High-quality white powder coat with textured matte finish.
Custom colors available. Consult factory.
Mounting
Flexible mounting locations.
Electrical
All luminaires are factory pre-wired to module ends with quick-wire
connectors.
Joints & Intersections
Self-aligning joining system with hands-free pre-joining wire access.
Labels
UL, CSA standards.
Ordering Instructions
Individual Fixtures
1. Determine the number of individual modules required
2. Order one end set per module
3. Order one non-power mount per module
4. Order one power mount per module
Continuous Rows*
1. Determine run length
2. Order the appropriate number and length of modules for complete run
3. Order one end set for each run
4. Order one non-power mount for each module
5. Order one power mount per run
6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)
*Note: Some runs may require additional power mounts. Please see the
‘Run Configuration’ table on the next page for more details.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Type:
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Lighting Systems Baselyte-BSL8
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
600
450
300
150
190
200
340
350
CANDLEPOWER SUMMARY
ZONE CANDLEPOWER
DEG. 0 45 90 135 180
180 252 252 252 252 252
175 265 260 251 243 240
165 289 273 242 221 214
155 317 280 226 196 179
145 368 291 202 154 127
135 404 313 173 110 88
125 404 315 139 73 63
115 312 284 102 46 41
105 210 189 58 26 26
95 112 98 16 10 12
90 44 38 1 2 2
85 54 45 7 1 0
75 89 81 25 1 0
65 144 150 52 2 1
55 233 236 114 17 4
45 331 330 187 22 19
35 423 418 264 36 18
25 500 462 331 123 47
15 501 475 386 238 174
5 462 452 418 360 334
0 423 423 423 423 423
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10
0 63 63 63 58 58 58 48 48 48
1 55 53 51 50 48 47 42 40 39
2 48 45 42 44 41 39 37 35 33
3 43 38 35 39 35 32 33 30 28
4 38 33 30 35 31 28 29 26 24
5 34 29 26 31 27 24 26 23 21
6 30 26 22 28 24 21 24 20 18
7 27 23 19 25 21 18 21 18 16
8 25 20 17 23 19 16 20 16 14
9 23 18 15 21 17 15 18 15 13
10 21 17 14 19 16 13 17 14 11
-ODULE,ENGTH
-OUNTING$ISTANCE
-ODULE,ENGTH-OUNTING$ISTANCE
-ODULE,ENGTH-OUNTING$ISTANCE
@
@
@
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
80 70 50
% WALL REFLECTANCE
ZONAL LUMEN SUMMARY
ZONE LUMENS % BARE LAMP %LUMINAIRE
0-90
90-180
0-180
1761
973.5
787.5 44.7
55.3
100.0
26.7
33.0
59.7
Page 2 of 4 1 Light T8 Wall Mount Direct/Indirect
Performance
Candlepower Curve Candlepower Summary Coefficients of Utilization
Report No: 2101677
Lamps: F32T8
Lumens per Lamp: 2950
Efficiency: 59.7%
Up: 55.3% Down: 44.7%
Module Lengths & Mounting Distances
Note: Shaded area indicates locations of emergency sections (emergency wiring
controls all lamps or optional battery pack controls one or two lamps).
System Components & Accessories
End Set
BSLEWW = wall mount standard white
Dust Cover
BSLDCW = 4’ wall mount dust cover
Joiner
BSLJW = wall mount joiner
Zonal Lumen Summary
ZONE LUMENS %BARE LAMP %LUMINAIRE
Run Configuration
Run
Length
4’ run 1 1 1 1
8’ run 1 1 1 1
12’ run
16’ run
20’ run 1 1 1 1 2 1
24’ run 2 1 1 2 1
28’ run 2 1 2 1 3 1
32’ run 1 2 2 1 3 1
*Note: Additional power mounts may be required for some runs with T5 HO
lamping options, longer runs, and runs with wiring options that are more complex.
Please consult factory for assistance.
4’
Module8’Module
12’
Joiner End Set Mount
Module
1 1 1 1
2 1 1 2 1
Non-Power Wall Mount Power Wall Mount
BSLWN = non-power wall mount
BSLWP1 = 1-power mount
BSLWP2 = 2-power mount
Job Information Type:
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Power
Mount*
Lighting Systems Baselyte-BSL8
%#.,
%-
�
�
%#.,%-
Page 3 of 4 1 Light T8 Wall Mount Direct/Indirect

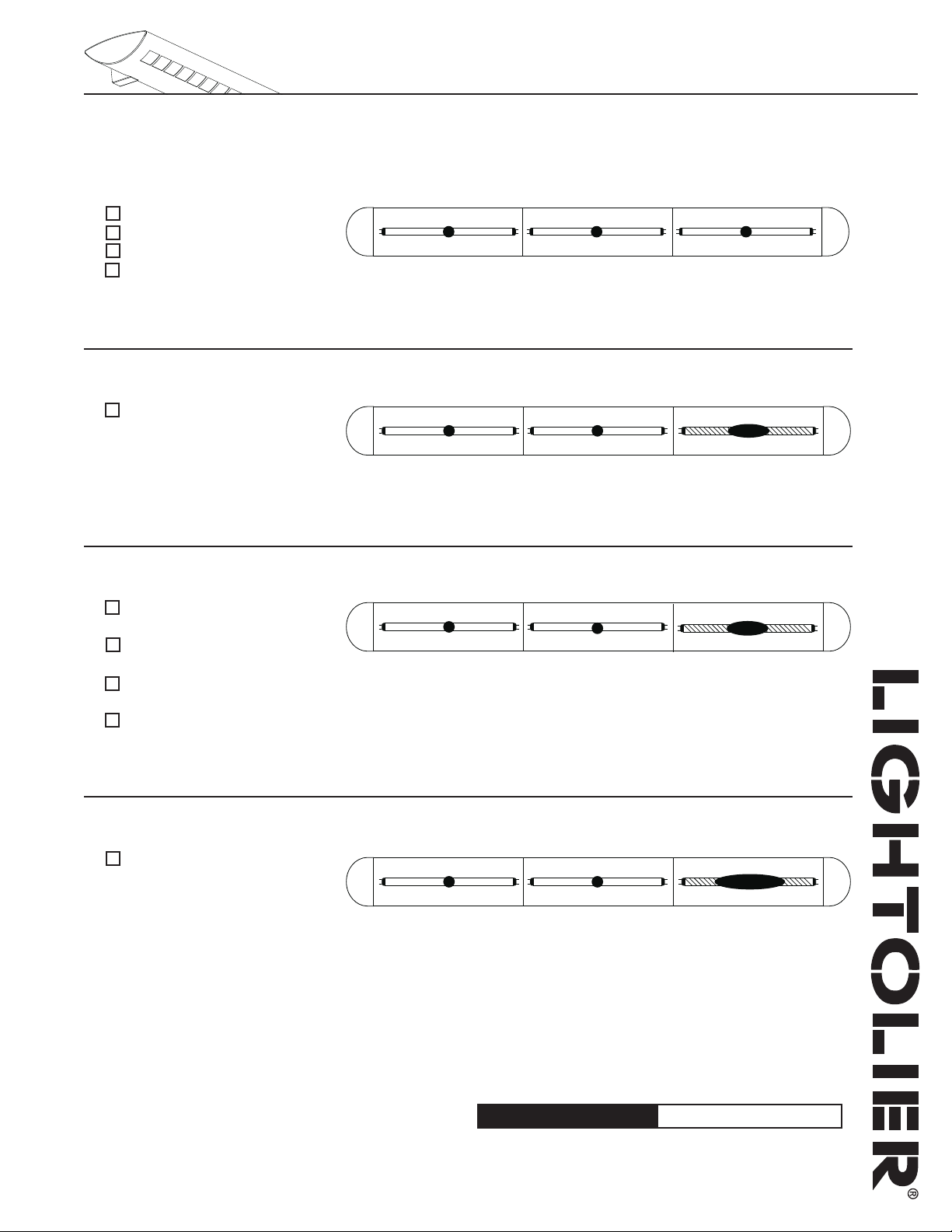

Wiring Options: 1 Circuit
1 Circuit
Type 1: 1cct.
Type 8: 1cct. w/1cct. thru wire
Type H: 1cct. w/2cct. thru wire
Type 7: 1cct. w/dimming
1 Circuit with Emergency Circuit/Night Light (EC/NL)
Type 3: 1cct. w/EC/NL
All lamps wired on one circuit.
One 4’ section in a one circuit fixture to be wired on a separate thru circuit. Leads for both normal
circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to be wired together.
1 Circuit with Emergency Battery Pack (EM)
Type 5: Chloride standard
C700A
Type M: Bodine standard
B70A
Type E: Chloride high performance
C1400
Type P: Bodine high performance
B50
1 Circuit with Emergency Circuit/Night Light and Emergency Battery Pack
Type J: Chloride standard
C700A
All lamps wired on one circuit, plus a battery pack is wired to one lamp. A hot lead is connected
to the battery pack and would function as a ‘trigger’ wire when connected to a constant hot by
installer. Leads for both normal circuit and battery pack are wired to fixture ends.
One 4’ section in a one circuit fixture to be wired on a separate thru circuit, in addition, a battery
pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if controlled together
or wire separately if controlled independently. Leads for normal circuit, EC/NL circuit and EM wired
to fixture ends. All lamps in EC/NL section to be wired together.
Job Information Type:
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
Lighting Systems Baselyte-BSL8
%-
%#.,%-
%#.,
Page 4 of 4 1 Light T8 Wall Mount Direct/Indirect

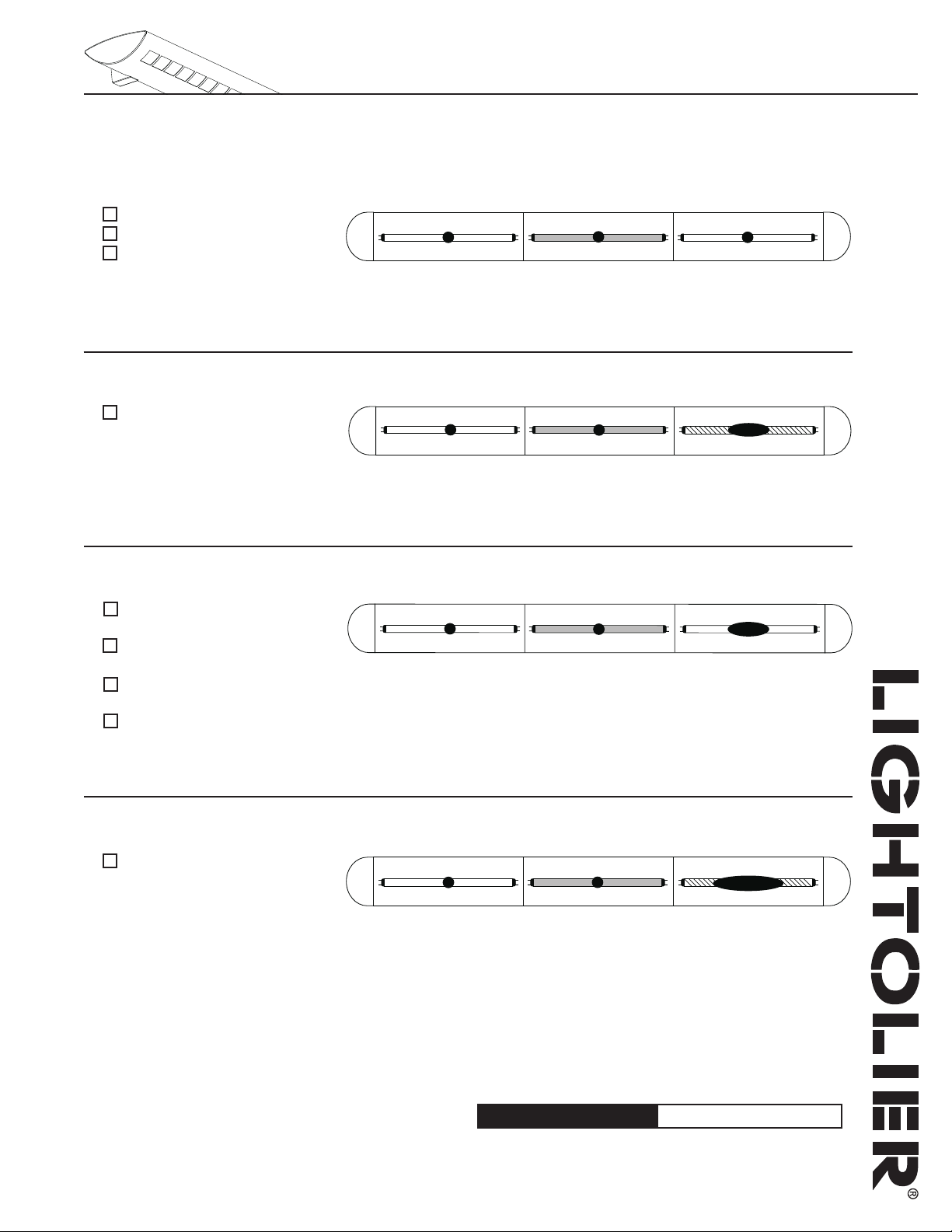

Wiring Options: 2 Circuit A/B Switching (alternate 4’ sections)
2 Circuit A/B Switching (alternate 4’ sections)
Type B: 2cct.
Type A: 2cct. w/1cct. thru wire
Type S: 2cct. w/2cct. thru wire
Fixture wired for two circuit. Lamps wired for A/B switching in alternate 4’ sections.
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light (EC/NL)
Type C: 2cct. w/EC/NL
One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit. Leads
for both normal circuit and EC/NL circuit wired to fixture ends.
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Battery Pack (EM)
Type D: Chloride standard
C700A
Type O: Bodine standard
B70A
Type G: Chloride high performance
C1400
Type R: Bodine high performance
B50
2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light and Emergency Battery Pack
Type L: Chloride standard
C700A
Fixture wired for two circuits (A/B switching), plus a battery pack is wired to one lamp. A hot lead
is connected to the battery pack and would act as a ‘trigger’ wire when connected to a constant hot
by installer. Leads for both normal circuit and battery pack are wired to fixture ends.
One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit, in
addition, a battery pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if
controlled together or wired separately if controlled independently. Leads for normal circuit, EC/NL
circuit and battery pack are wired to fixture ends. All lamps in EC/NL module to be wired together.
Job Information Type:
Lightolier a Genlyte Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • 0205 Rev.1
