Lightolier BSL21 User Manual

Lighting Systems Baselyte-BSL21





Page 1 of 7 1 Light T8 Indirect

angled lamp

Weight = 3.0 lb./ft

Ordering Information

Family

BSL

Distribution

3 = Indirect

Lamp Type

T = T8

No. of Lamps

01 = 1 Light

Housing

EN = Solid 04 = 4’

Module Length

08 = 8’ 12 = 12’

Wiring

1 = 1cct.

3 = 1cct. w/EC/NL

5 = 1cct. w/EM Battery 7 = 1cct. w/Dimming 8 = 1cct. w/1cct.

Thru wire

Note: Please consult wiring section of spec sheets for more wiring options.

Voltage

1 = 120V 2 = 277V

Ballast Finish

E = Standard

<20% THD

F = Standard

<20% THD w/fusing

G = <10% THD,

Instant Start

H = <10% THD,

Instant Start w/fusing

J = <10% THD,

Program Start

K = <10% THD,

Program Start w/fusing

C = Custom Color W = Standard

White

Specifications

Features

1. Housing: die-formed 20ga. cold rolled steel

2. End Set: die-cast metal with baked powder coat finish

3. Lamping: one T8 lamp

4. Configuration: 4’, 8’ and 12’ module lengths or continuous rows

5. Ballasts: electronic 120V or 277V

Finish

High-quality white powder coat with textured matte finish. Custom colors available. Consult factory.

Mounting

Aircraft cable gripper is tamper-resistant and provides infinite vertical adjustment capability. Aircraft cable, crimp and cable gripper independently tested to meet stringent safety requirements.

Electrical

All luminaires are factory pre-wired to module ends with quick-wire connectors.

Joints & Intersections

Self-aligning joining system with hands-free pre-joining wire access.

Labels

UL, CSA standards.

Ordering Instructions

Individual Fixtures

1. Determine the number of individual modules required

2. Order one end set per module

3. Order one non-power mount per module

4. Order one power mount per module

Continuous Rows*

1. Determine run length

2. Order the appropriate number and length of modules for complete run

3. Order one end set for each run

4. Order one non-power mount for each module

5. Order one power mount per run

6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)

*Note: Some runs may require additional power mounts. Please see the ‘Run Configuration’ table on next page for more details.

Job Information

Job Name:

Cat. No.:

Lamp(s):

Notes:

Type:

Lightolier a Genlyte Company www.lightolier.com

Lighting Systems Baselyte-BSL21

-ODULE,ENGTH

-OUNTING$ISTANCE

-ODULE,ENGTH-OUNTING$ISTANCE

@

@

@















































CANDLEPOWER SUMMARY

ZONE CANDLEPOWER

DEG. 0 22.5 45 67.5 90

180 639 639 639 639 639 175 636 637 640 641 641 165 613 619 632 641 645 155 571 584 614 639 649 145 507 533 588 633 650 135 427 471 555 622 647 125 331 402 520 605 636 115 225 333 480 560 592 105 114 266 374 388 419

95 25 83 121 102 122 90 1 1 8 1 9 85 0 0 0 0 0 75 0 0 0 0 0 65 0 0 0 0 0 55 0 0 0 0 0 45 0 0 0 0 0 35 0 0 0 0 0 25 0 0 0 0 0 15 0 0 0 0 0

5 0 0 0 0 0 0 0 0 0 0 0

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10 0 85 85 85 73 73 73 49 49 49 1 74 71 68 63 60 58 43 41 40 2 64 59 55 55 51 47 37 35 33 3 56 50 46 48 43 39 33 30 27 4 49 43 38 42 37 33 29 26 23 5 44 37 32 37 32 28 26 22 20 6 39 32 27 33 28 24 23 19 17 7 35 28 24 30 24 21 20 17 14 8 31 25 20 27 21 18 18 15 12 9 28 22 18 24 19 16 17 13 11

10 26 20 16 22 17 14 15 12 10

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARE LAMP %LUMINAIRE

0-90 90-180 0-180

2645

0 0

100.0

89.7

Page 2 of 7 1 Light T8 Indirect

Performance

Candlepower Curve Candlepower Summary Coefficients of Utilization

Report No: 2101588 Lamps: F32T8 Lumens per Lamp: 2950 Efficiency: 89.6% Up: 100.0% Down: 0.0%

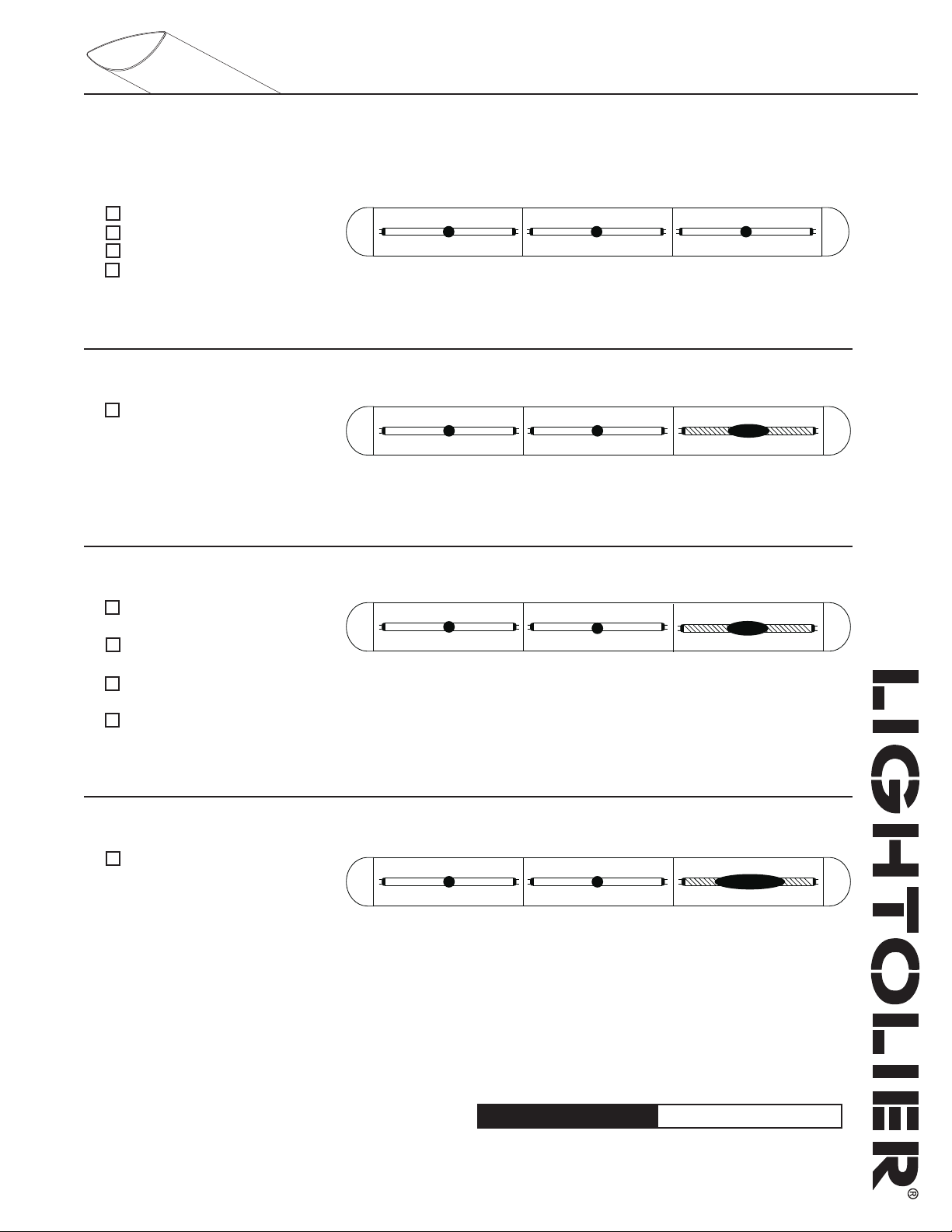

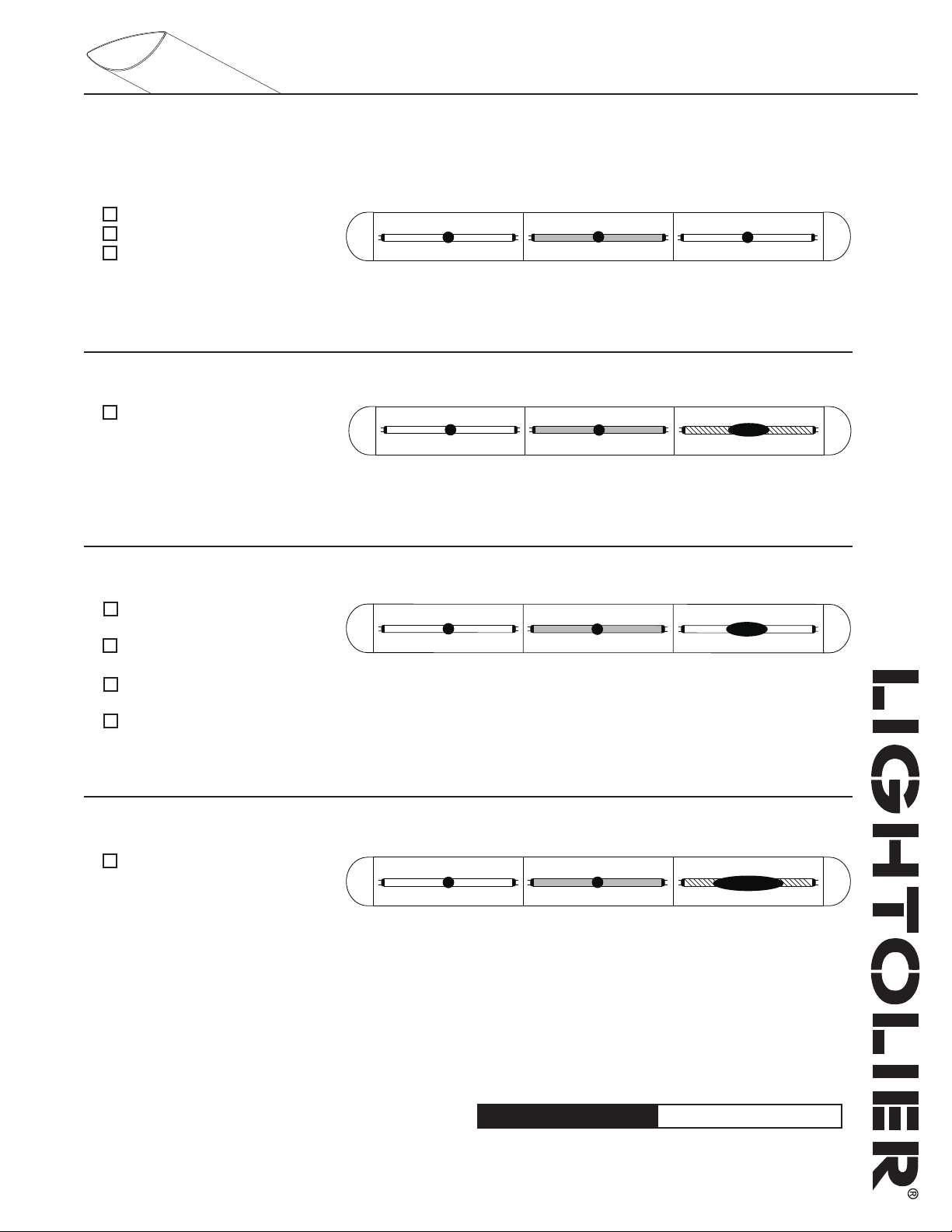

Module Lengths & Mounting Distances

Note: Shaded area indicates locations of emergency sections (emergency wiring

controls all lamps or optional battery pack controls one or two lamps).

System Components & Accessories

BSLESW = suspended standard white

Joiner

BSLJS = suspended joiner

Job Information Type:

Lightolier a Genlyte Company www.lightolier.com

Zonal Lumen Summary

ZONE LUMENS %BARE LAMP %LUMINAIRE

Run Configuration

Run

Length

4’ run 1 1 1 1

8’ run 1 1 1 1

12’ run

16’ run

20’ run 1 1 1 1 2 1

24’ run 2 1 1 2 1

28’ run 2 1 2 1 3 1

32’ run 1 2 2 1 3 1

*Note: Additional power mounts may be required for some runs with T5 HO lamping options, longer runs, and runs with wiring options that are more complex. Please consult factory for assistance.

4’

Module8’Module

12’

Joiner End Set Mount

Module

1 1 1 1

2 1 1 2 1

Dust CoverEnd Set

BSLDCS = 4’ suspended dust cover

Power

Mount*

Lighting Systems Baselyte-BSL21

Page 3 of 7 1 Light T8 Indirect

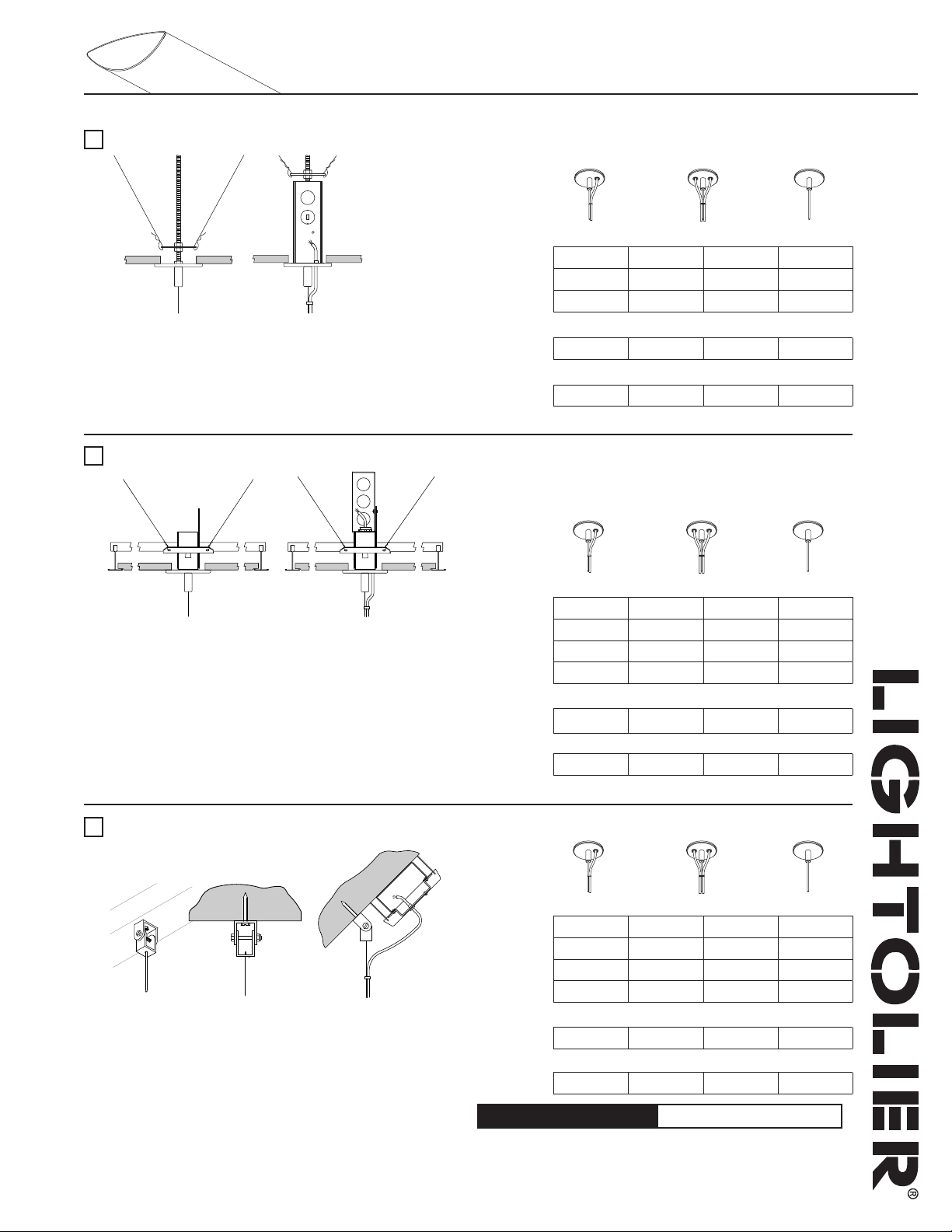

Mounting Options

Mount Type: T-Bar 15/16” (On-Grid)*

Non-Power Mount1-Power Mount

Supension Length

2’ 4’ 8’ 12’

BSLM6102P13 BSLM6104P13 BSLM6108P13 BSLM6112P13

BSLM6102P14 BSLM6104P14 BSLM6108P14 BSLM6112P14

BSLM6102P17 BSLM6104P17 BSLM6108P17 BSLM6112P17

BSLM6102N BSLM6104N BSLM6108N BSLM6112N

• 65 lbs maximum load

• Canopy: Diameter of 3 3/4“x 7/32”

• Cable: 7x7 stranded aircraft cable

• Supported by T-bar and secured to structure

• J-Box: 4” square (supplied by others)

• Fully adjustable vertically at ﬁxture

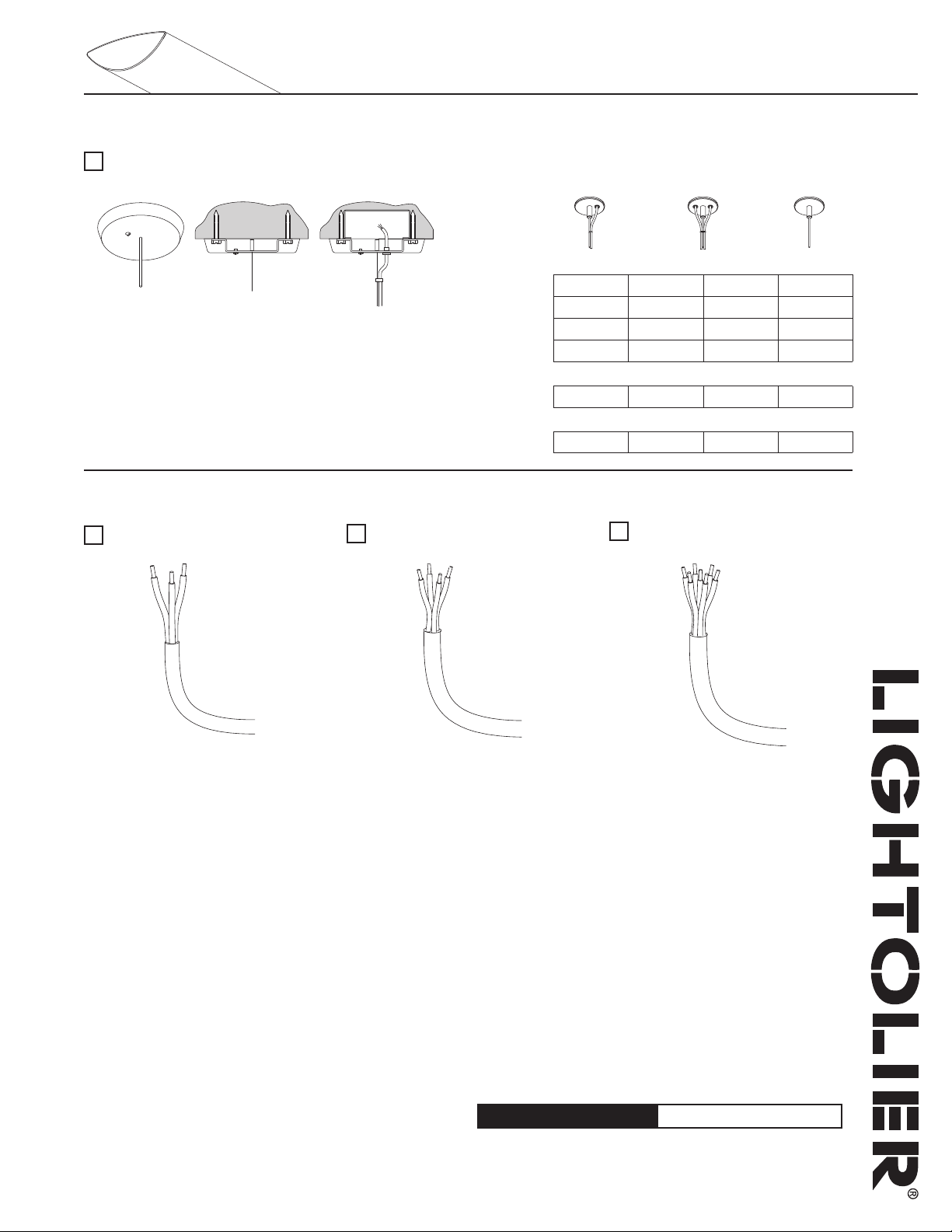

Mount Type: T-Bar 9/16” (On-Grid)*

1-Power Mount

3 Conductor

4 Conductor

7 Conductor

Non-Power Mount

• 65 lbs maximum load

• Canopy: Diameter of 3 3/4“x 7/32”

• Cable: 7x7 stranded aircraft cable

• Supported by T-bar and secured to structure

• J-Box: 4” square (supplied by others)

• Fully adjustable vertically at ﬁxture

Mount Type: T-Bar 9/16” by 5/16” Slot Grid (On-Grid)*

• 65 lbs maximum load

• Canopy: Diameter of 3 3/4“x 7/32”

• Cable: 7x7 stranded aircraft cable

• Supported by T-bar and secured to structure

• J-Box: 4” square (supplied by others)

• Fully adjustable vertically at ﬁxture

*Note: Standard T-bar mounts are currently not available for tegular tile ceilings,

however slot-grid mount. For more information, please consult factory.

certain tegular tile / T-bar combinations may be supported by the use of the

Non-Power Mount1-Power Mount

Supension Length

1-Power Mount

3 Conductor

4 Conductor

7 Conductor

Non-Power Mount

2’ 4’ 8’ 12’

BSLM6202P13 BSLM6204P13 BSLM6208P13 BSLM6212P13

BSLM6202P14 BSLM6204P14 BSLM6208P14 BSLM6212P14

BSLM6202P17 BSLM6204P17 BSLM6208P17 BSLM6212P17

BSLM6202N BSLM6204N BSLM6208N BSLM6212N

Non-Power Mount1-Power Mount

Supension Length

1-Power Mount

3 Conductor

4 Conductor

7 Conductor

Non-Power Mount

2’ 4’ 8’ 12’

BSLM6302P13 BSLM6304P13 BSLM6308P13 BSLM6312P13

BSLM6302P14 BSLM6304P14 BSLM6308P14 BSLM6312P14

BSLM6302P17 BSLM6304P17 BSLM6308P17 BSLM6312P17

BSLM6302N BSLM6304N BSLM6308N BSLM6312N

Job Information Type:

Lightolier a Genlyte Company www.lightolier.com
