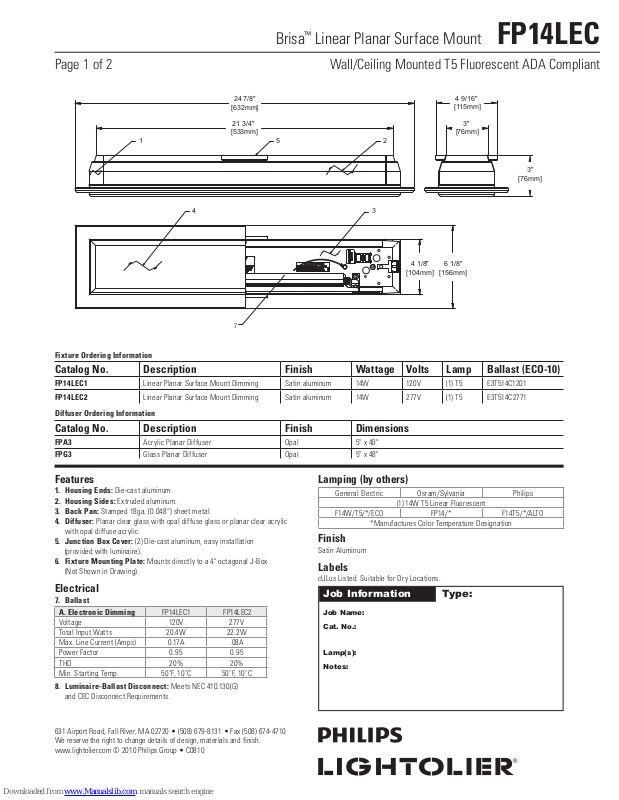

Lightolier Brisa FP14LEC Specification
™
Brisa
Linear Planar Surface Mount FP14LEC
Page 1 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
4 9/16"
[115mm]
3"
[76mm]
3"
[76mm]
6 1/8"
[156mm]
1
Fixture Ordering Information
24 7/8"
[632mm]
21 3/4"
[533mm]
5
4 3
7
2
4 1/8"
[104mm]
Catalog No. Descriptio n Finish Wattage Volts Lamp Ballast (EC O-10)
FP14LEC1
FP14LEC2
Diffuser Ordering Information
Linear Planar Sur face Mount Dimming Satin aluminum 14W 120V (1) T5 E3T514C1201
Linear Planar Sur face Mount Dimming Satin aluminum 14W 277V (1) T5 E3T514C2771
Catalog No. Descriptio n Finish Dimensions
FPA3
FPG3
Acrylic Planar Diffuser Opal 5" x 48"
Glass Planar Diffuser Opal 5" x 48"
Features
1. Housing Ends: Die-cast aluminum.
2. Housing Sides: Extruded aluminum.
3. Back Pan: Stamped 18ga. (0.048”) sheet metal.
4. Diffuser: Planar clear glass with opal dif fuse glass or planar clear acrylic
with opal dif fuse acrylic.
5. Junction Box Cover: (2) Die-cast aluminum, easy installation
(provided with luminaire).
6. Fixture Mounting Plate: Mounts directly to a 4" octagonal J-Box
(Not Shown in Drawing).
Electrical
7. Ballast
A. Electronic Dimming
Voltage 120V 277V
Total Input Watts 20.4W 22.2W
Max. Line Current (Amps) 0.17A .08A
Power Factor 0.95 0.95
THD 20% 20%
Min. Starting Temp 50˚F, 10˚C 50˚F, 10˚C
8. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)
and CEC Disconnect Requirements.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0810
FP14LEC1 FP14LEC2
Lamping (by others)
General Electric Osram/Sylvania Philips
(1) 14W T5 Linear Fluorescent
F14W/T5/*/ECO FP14/* F14T5/*/ALTO
*Manufactures Color Temperature Designation
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Dry Locations.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
™
Brisa
Linear Planar Surface Mount FP14LEC
Page 2 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant
FP14U-FPA1
50
100
150
200
DECOR ATIV E LUMINAIRE C AT. # FP14U- FPA1C
14W PHILIP S T-5 LAMPS. LU MEN RATING = 1200 LM S.
BALL AST/ ADVANCE ICN-2S 28
Candl epower Sum mary
Angle Along 22.5. 45 6 7.5 Across .
90°
0 179 179 179 179 179
5 179 179 179 179 179 9
15 173 173 174 175 176 25
25 161 163 165 167 169 38
35 145 147 150 154 156 47
45 124 127 132 139 143 51
55 100 105 114 121 123 51
65 72 78 88 93 9 8 43
60°
75 42 48 56 62 6 6 29
85 12 17 26 31 3 4 14
90 5 9 16 19 21
95 6 9 13 15 15 7
105 7 10 17 20 22 8
115 8 9 15 21 24 7
125 7 10 12 17 19 6
135 7 8 12 16 19 5
145 5 6 10 12 15 3
155 4 5 7 9 11 2
165 3 3 4 5 7 1
175 4 3 3 3 3 0
0°
30°
180 3 3 3 3 3
Outpu t
Lumens
Ceiling 80% 70% 50% 30% 10%
Wall 70 5 0 30 10 70 50 30 10 5 0 30 10 50 3 0 10 50 30 10 0
RCR Zonal C avity Met hod - Effec tive Floor Re flectan ce = 20%
0 .65 .65 .65 . 65 .63 .63 .63 .63 .59 .59 .59 .55 .55 .55 . 51 .51 .51 .50
1 .59 .57 .54 . 52 .57 .55 .53 . 50 . 51 .49 .48 .48 .47 .45 .45 .4 4 .43 .41
2 .5 4 .49 .45 .42 . 52 .48 .44 .41 .45 . 42 .39 .42 .40 .37 .39 .37 .36 .34
3 .49 .43 .39 . 35 .47 .42 .38 .34 .39 .36 .33 .37 . 34 .32 .35 . 32 .30 .29
4 .45 .38 .33 .30 .43 .37 .3 3 .29 .35 .31 .28 .33 .30 .27 . 31 .28 .26 .24
5 .41 .34 .28 .25 .39 .33 .2 8 .24 .31 .27 .24 .29 .25 .23 . 27 .24 .22 .20
6 .37 .30 .25 .21 .36 .29 . 24 .21 . 27 .23 . 20 .26 .22 .20 .24 . 21 .19 .18
7 .34 .27 .22 .19 .33 .26 .21 .18 .25 .20 .18 .23 . 20 .17 .22 .19 .16 .15
Room C avity Rati o
8 .32 .24 .19 .16 .30 .23 .19 .16 .22 .18 .15 .21 .17 .15 . 20 .17 .14 .13
9 .29 .22 .17 .14 .28 .21 .17 .13 .20 .16 .13 .19 .15 .13 .18 .15 .12 .11
10 .27 .20 .15 .12 .26 .19 .15 .12 .18 .14 .11 .17 .14 .11 .16 .13 .11 .10
Deter mined In Acc ordance Wi th Current I ES Published Pr ocedures
Zonal L ume ns and P ercentag es
Zone Lumen s % Lamp %Lumin aire
141 11.83 21.14
0-3 0
235 19.61 35 .05
0-4 0
435 36.2 8 64.8 5
0-6 0
595 4 9.60 88.6 6
0-9 0
359 29.9 9 53.61
40- 90
159 13.32 23.81
60- 90
76 6 .35 11.34
90-180
671 55.9 4 100.0 0
0-180
** Effic iency = 55.9%**
TESTED A CCORDING TO IE S PROCEDURE S. TEST DISTANCE E XCEEDS FIVE
TIMES T HE GREATEST LUM INOUS OPENIN G OF LUMINAIR E.
Coef fici ent s of Ut iliza tion
Luminai re Input Wat ts = 32.0
Cert ified Test Repo rt no. 3622F R
Compu ted by LSI Pr ogram **TEST-L ITE**
SC= 1.3
Prep ared For:
Light olier
Fall River, MA
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0810
