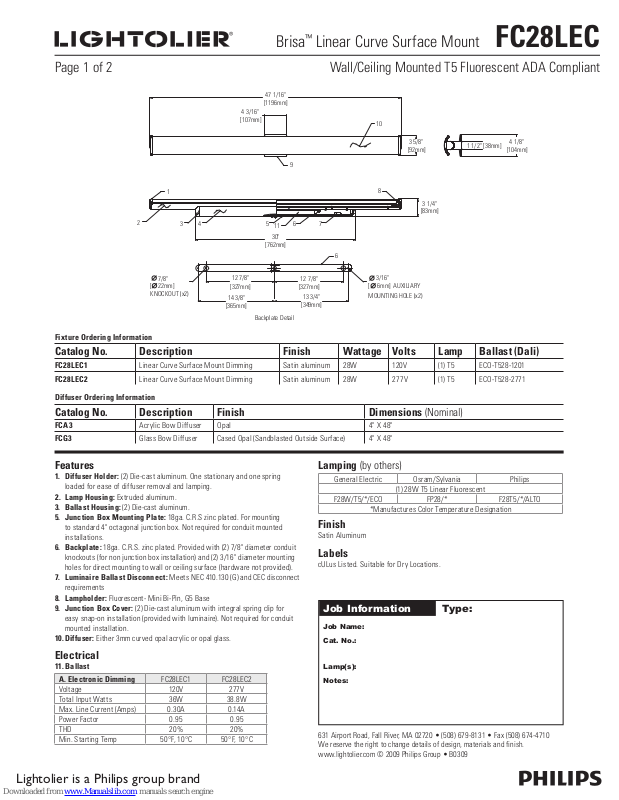

Lightolier Brisa FC28LEC Specification

™

Brisa

Linear Curve Surface Mount FC28LEC

Page 1 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

47 1/16"

[1196mm]

4 3/16"

[107mm]

10

2

7/8"
[ 22mm]
KNOCKOUT (x2)

3 5/8"

[92mm]

9

1

4

3

12 7/8"

[327mm]

14 3/8"

[365mm]

5

11

30"

[762mm]

Backplate Detail

6

[327mm]

7

6

12 7/8"

13 3/4"

[349mm]

8

3/16"
[ 6mm] AUXILIARY

MOUNTING HOLE (x2)

3 1/4"

[83mm]

1 1/2" [38mm]

4 1/8"

[104mm]

Fixture Ordering Information

Catalog No. Description Finish Wattage Volts Lamp Ballast (Dali)

FC2 8L EC1

FC2 8L EC2

Diffuser Ordering Information

Catalog No. Description Finish

FCA3

FCG3

Linear Curve Surface Mount Dimming Satin aluminum 28W 120V (1) T5 ECO-T528-1201

Linear Curve Surface Mount Dimming Satin aluminum 28W 277V (1) T5 ECO-T528-2771

Dimensions (Nominal)

Acrylic Bow Diffuser Opal 4" X 48"

Glass Bow Diffuser Cased Opal (Sandblasted Outside Surface) 4" X 48"

Features

1. Diffuser Holder: (2) Die-cast aluminum. One stationary and one spring

loaded for ease of diffuser removal and lamping.

2. Lamp Housing: Extruded aluminum.

3. Ballast Housing: (2) Die-cast aluminum.

5. Junction Box Mounting Plate: 18ga. C.R.S zinc plated. For mounting

to standard 4" octagonal junction box. Not required for conduit mounted

installations.

6. Backplate: 18ga. C.R.S. zinc plated. Provided with (2) 7/8" diameter conduit

knockouts (for non junction box installation) and (2) 3/16" diameter mounting
holes for direct mounting to wall or ceiling surface (hardware not provided).

7. Luminaire Ballast Disconnect: Meets NEC 410.130 (G) and CEC disconnect

requirements

8. Lampholder: Fluorescent- Mini Bi-Pin, G5 Base

9. Junction Box Cover: (2) Die-cast aluminum with integral spring clip for

easy snap-on installation (provided with luminaire). Not required for conduit
mounted installation.

10. Diffuser: Either 3mm curved opal acrylic or opal glass.

Electrical

11. Ballast

A. Electronic Dimming

Voltage 120V 277V

Total Input Watts 36W 38.8W
Max. Line Current (Amps) 0.30A 0.14A
Power Factor 0.95 0.95
THD 20% 20%
Min. Starting Temp 50°F, 10°C 50°F, 10°C

FC28LEC1 FC28LEC2

Lamping (by others)

General Electric Osram/Sylvania Philips

(1) 28W T5 Linear Fluorescent

F28W/T5/*/ECO FP28/* F28T5/*/ALTO

*Manufactures Color Temperature Designation

Finish

Satin Aluminum

Labels

cULus Listed. Suitable for Dry Locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):
Notes:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2009 Philips Group • B0309

Lightolier is a Philips group brand

™

Brisa

Linear Curve Surface Mount FC28LEC

Page 2 of 2 Wall/Ceiling Mounted T5 Fluorescent ADA Compliant

FC28U/FCA3

200

300

400

100

DECOR ATIV E LUMINAIRE C AT. # FC28U/ FCA3 28W
SYLVANIA T-5 L AMPS. LUMEN R ATING = 2610 LMS.
BALL AST/ ADVANCE ICN-2S 28

Candl epower Sum mary

Angle Along 22.5. 45 67.5 Across.

90°

0 340 340 340 340 34 0
5 341 340 338 338 336 32
15 330 329 327 328 326 93
25 309 308 308 308 3 05 142
35 277 277 276 2 77 27 5 173
45 236 236 236 2 38 23 6 183
55 186 186 189 193 193 169
65 129 130 138 146 148 137

60°

75 69 74 8 9 103 10 8 96
85 18 35 73 110 126 80
90 7 28 8 0 123 142
95 21 26 74 116 133 77
105 45 30 46 66 7 6 5 6
115 60 45 5 7 6 4 68 57
125 61 59 67 75 78 61
135 69 67 76 82 85 58
145 78 69 8 0 8 7 88 50
155 70 65 6 9 8 6 89 35
165 76 71 6 4 7 2 89 21
175 104 9 9 9 0 6 6 54 8

0°

30°

180 84 84 8 4 8 4 84

Outpu t

Lumens

Ceiling 80% 70% 50% 30% 10%
Wall 70 50 30 10 70 5 0 30 10 50 30 10 5 0 30 10 50 30 10 0

RCR Zonal C avity Met hod - Effec tive Floor Re flectan ce = 20%

0 .66 . 6 6 .66 .66 .62 .62 . 62 .62 .56 .56 .56 .50 .50 .50 .45 .45 .45 .42
1 .59 .57 .54 .5 2 .5 6 . 54 .51 .49 .4 8 .46 .4 5 .4 3 .42 .4 0 .39 .37 .37 . 34
2 .54 .49 .45 .4 2 .51 .47 .43 .40 .42 .39 .37 .38 .35 .33 .34 .3 2 .30 .28
3 .49 .43 .39 .3 5 .46 .41 .37 . 34 .3 7 .34 . 31 .33 . 31 .28 .30 . 28 .26 .24
4 .45 .38 .33 .2 9 .43 . 36 .32 . 28 .3 3 .29 . 26 .3 0 .27 . 24 .27 .24 .2 2 .20
5 .41 .34 .29 .2 5 .39 . 32 .27 .24 .2 9 .25 . 22 .2 6 .23 .21 .24 . 21 .19 .17
6 .38 .30 .25 . 21 .36 .29 .24 .21 .26 .22 .19 .24 .2 0 .18 .21 .18 .16 .15
7 .35 .27 .22 .19 .33 . 26 .21 .18 .23 .19 .17 .21 .18 .15 .19 .16 .14 .13
8 .32 .24 .19 .16 .30 .23 .19 .15 .21 .17 .14 .19 .16 .13 .17 .14 .12 .11

Room C avity Rati o

9 .30 .22 .17 .14 .28 .21 .16 .13 .19 .15 .12 .17 .14 .12 .16 .13 .11 .09
10 .27 .20 .15 .12 .26 .19 .15 .12 .17 .14 .11 .16 . 12 .10 .14 .11 .09 . 08

Deter mined In Acc ordance Wi th Current I ES Published Pr ocedures

Zonal L umens and P ercenta ges

Zone Lumen s % La mp %Lumin aire

267 10.24 17.50

0-3 0

440 16.88 28.8 6

0-4 0

792 30.37 51.9 2

0-6 0

1105 42.3 4 72.3 8

0-9 0

664 25.46 43 .52

40- 90

312 11.97 20. 46

60- 90

421 16.16 2 7.62

90-180

152 7 58.51 100 .00

0-180

** Efc iency = 58.5%**

TESTED A CCORDING TO IE S PROCEDURE S. TEST DISTANCE E XCEEDS FIVE
TIMES T HE GREATEST LUM INOUS OPENIN G OF LUMINAIR E.

Coef ficient s of Utiliz ation

Luminai re Input Wat ts = 34.0

Cert ied Test Repo rt no. 3649 FR
Compu ted by LSI Pr ogram **TEST-L ITE**
SC= 1.3

Prep ared For:

Light olier
Fall River, MA

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2009 Philips Group • B0309
