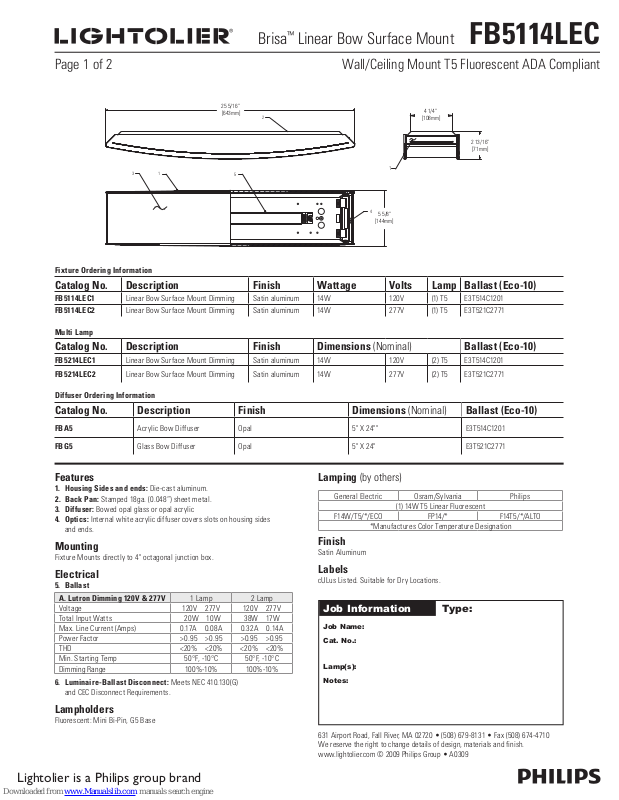

Lightolier Brisa FB5114LEC Specification
™
Brisa
Linear Bow Surface Mount FB5114LEC
Page 1 of 2 Wall/Ceiling Mount T5 Fluorescent ADA Compliant
3
Fixture Ordering Information
25 5/16"
[643mm]
1
2
4
[144mm]
1
5 5/8"
5
4 1/4"
[108mm]
2 13/16"
[71mm]
Catalog No. Description Finish Wattage Volts Lamp Ballast (Eco-10)
FB5114LEC1
FB5114LEC2
Multi Lamp
Catalog No. Description Finish
FB5 214LEC1
FB5 214LEC2
Diffuser Ordering Information
Catalog No. Description Finish
FBA5
Linear Bow Sur face Mount Dimming Satin aluminum 14W 120V (1) T5 E3T514C1201
Linear Bow Sur face Mount Dimming Satin aluminum 14W 277V (1) T5 E3T521C2771
Dimensions (Nominal)
Linear Bow Sur face Mount Dimming Satin aluminum 14W 120V (2) T5 E3T514C1201
Linear Bow Sur face Mount Dimming Satin aluminum 14W 277V (2) T5 E3T521C2771
Dimensions (Nominal)
Acrylic Bow Diffuser Opal 5" X 24"" E3T514C1201
Ballast (Eco-10)
Ballast (Eco-10)
FBG5
Glass Bow Diffuser Opal 5" X 24" E3T521C2771
Features
1. Housing Sides and ends: Die-cast aluminum.
2. Back Pan: Stamped 18ga. (0.048”) sheet metal.
3. Diffuser: Bowed opal glass or opal acr ylic
4. Optics: Internal white acrylic diffuser covers slots on housing sides
and ends.
Mounting
Fixture Mounts directly to 4" octagonal junction box.
Electrical
5. Ballast
A. Lutron Dimming 120V & 277V
Voltage 120V 277V 120V 277V
Total Input Watts 20W 10W 38W 17W
Max. Line Current (Amps) 0.17A 0.08A 0.32A 0.14A
Power Factor >0.95 >0.95 >0.95 >0.95
THD <20% <20% <20% <20%
Min. Starting Temp 50°F, -10°C 50°F, -10°C
Dimming Range 100%-10% 100%-10%
6. Luminaire-Ballast Disconnect: Meets NEC 410.130(G)
and CEC Disconnect Requirements.
1 Lamp 2 Lamp
Lampholders
Fluorescent: Mini Bi-Pin, G5 Base
Lamping (by others)
General Electric Osram/Sylvania Philips
(1) 14W T5 Linear Fluorescent
F14W/T5/*/ECO FP14/* F14T5/*/ALTO
*Manufactures Color Temperature Designation
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Dry Locations.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0309
Lightolier is a Philips group brand
™
Brisa
Linear Bow Surface Mount FB5114LEC
Page 2 of 2 Wall/Ceiling Mount T5 Fluorescent ADA Compliant
FB5214U-FBG5
100
150
200
DECOR ATIV E LUMINAIRE C AT. # FB5214U -FBG5 2-14W PHILIP S
T-5 LAM PS. LUMEN RATING = 120 0 LMS.
BALL AST/ ADVANCE ICN-2S 28
Candl epower Sum mary
Angle Along 22.5 . 45 67.5 Acro ss.
90°
0 220 220 220 220 220
5 218 219 219 218 219 21
15 210 211 210 210 210 60
25 196 197 196 19 5 195 90
50
0°
30°
35 175 175 174 173 173 109
45 148 148 147 146 146 114
55 117 117 116 115 115 104
65 84 84 83 8 2 81 8 2
60°
75 50 50 49 4 9 4 8 52
85 20 20 19 17 16 21
90 10 10 9 7 6
95 4 4 4 4 4 5
105 2 2 2 3 3 2
115 2 1 2 2 2 2
125 1 1 1 2 2 1
135 1 1 1 1 1 1
145 1 1 1 1 1 1
155 1 1 1 1 1 1
165 1 1 1 1 1 0
175 1 1 1 1 1 0
180 1 1 1 1 1
Outpu t
Lumens
Ceiling 8 0% 70% 50% 30% 10%
Wall 70 50 3 0 10 70 50 30 10 5 0 30 10 50 30 10 5 0 30 10 0
RCR Zonal C avity Met hod - Effec tive Floor Re flectan ce = 20%
0 .33 .33 .33 .33 .32 .3 2 . 32 .32 .31 .31 .31 .29 .29 .29 .28 .28 .2 8 .27
1 .30 .29 .28 . 27 .2 9 .28 .27 .26 . 27 .26 . 25 .2 6 .25 . 24 .25 .24 . 24 .23
2 .27 .25 .23 . 22 .2 7 .25 .23 .22 . 24 .22 . 21 .2 3 .21 .2 0 .22 . 21 .20 .19
3 .25 .22 .2 0 .18 .24 .2 2 . 20 .18 .21 .19 .18 .20 .19 .17 .19 .18 .17 .16
4 .23 .20 .17 .16 .22 .19 .17 .15 .19 .17 .15 .18 .16 .15 .17 .16 .15 .14
5 .21 .17 .15 .13 .20 .17 .15 .13 .16 .14 .13 .16 .14 .13 .15 .14 .12 .12
6 .19 .16 .13 .11 .19 .15 .13 .11 .15 .13 .11 .14 .12 .11 .14 .12 .11 .10
7 .18 .14 .12 .10 .17 .14 .11 .10 .13 .11 .10 .13 .11 .10 .12 .11 .09 . 09
Room C avity Rati o
8 .16 .13 .10 .0 9 .16 .12 .10 .08 .12 .10 .08 .12 .10 .08 .11 .09 .08 . 08
9 .15 .11 .09 . 07 .15 .11 .09 .07 .11 .09 .07 .10 .09 .07 .10 .08 .07 .0 7
10 .14 .10 .08 . 07 .14 .10 .08 .06 .10 .08 .06 .09 . 08 .06 .09 .08 . 06 .06
Deter mined In Acc ordance Wi th Current I ES Published Pr ocedures
Zonal L umens and P ercenta ges
Zone Lumen s % Lamp %Lu minaire
170 7.12 25.6 0
0-3 0
279 11.66 41.9 5
0-4 0
497 20.73 74.56
0-6 0
653 27.23 97.93
0-9 0
373 15.57 55. 98
40- 90
155 6.50 23.3 7
60- 90
13 .58 2.07
90-180
667 27.80 10 0.00
0-180
** Efc iency = 27.8%**
TESTED A CCORDING TO IE S PROCEDURE S. TEST DISTANCE E XCEEDS FIVE
TIMES T HE GREATEST LUM INOUS OPENIN G OF LUMINAIR E.
Coef ficient s of Utiliz ation
Luminai re Input Wat ts = 33.0
Cert ied Test Repo rt no. 3577FR
Compu ted by LSI Pr ogram **TEST-L ITE**
SC= 1.3
Prep ared For:
Light olier
Fall River, MA
Lightolier is a Philips group brand
Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0309
