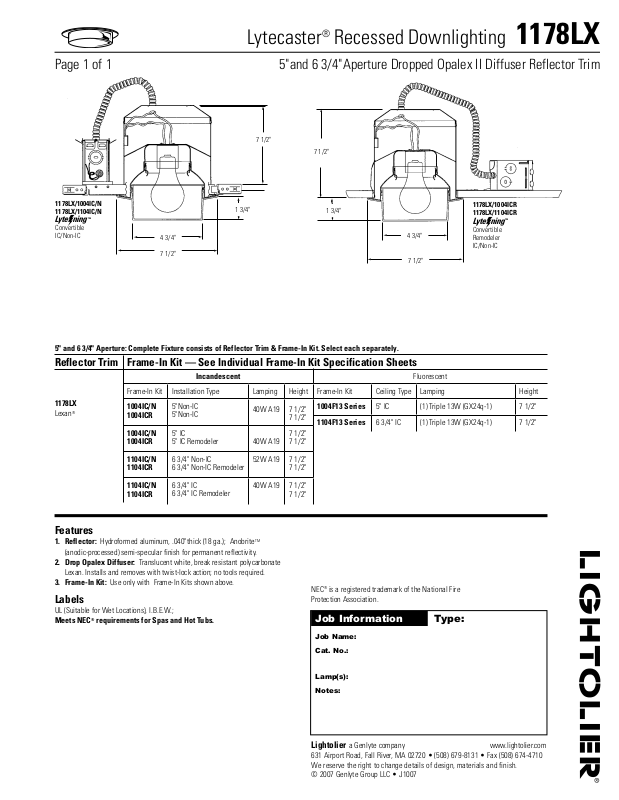

Lightolier 1178LX User Manual
Lytecaster
®
Recessed Downlighting 1178LX
Page 1 of 1 5"and 6 3/4"Aperture Dropped Opalex II Diffuser Reflector Trim
7 1/2"
7 1/2"
1178LX/1004IC/N
1178LX/1104IC/N
0
Convertible
IC/Non-IC
5" and 6 3/4" Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
™
4 3/4"
7 1/2"
1 3/4"
1 3/4"
4 3/4"
7 1/2"
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Incandescent
1178LX
Lexan
Frame-In Kit Installation Type Lamping Height
®
1004IC/N
1004ICR
1004IC/N
1004ICR
1104IC/N
1104ICR
1104IC/N
1104ICR
5"Non-IC
5"Non-IC
5" IC
5" IC Remodeler
6 3/4" Non-IC
6 3/4" Non-IC Remodeler
6 3/4" IC
6 3/4" IC Remodeler
40W A19 7 1/2"
40W A19
52W A19 7 1/2"
40W A19 7 1/2"
Frame-In Kit Ceiling Type Lamping Height
7 1/2"
7 1/2"
7 1/2"
7 1/2"
7 1/2"
1004F13 Series
1104F13 Series
5" IC (1) Triple 13W (GX24q-1) 7 1/2"
6 3/4" IC (1) Triple 13W (GX24q-1) 7 1/2"
Fluorescent
1178LX/1004ICR
1178LX/1104ICR
0
Convertible
Remodeler
IC/Non-IC
™
Features
1. Reflector: Hydroformed aluminum, .040"thick (18 ga.); AnobriteTM
(anodic-processed) semi-specular finish for permanent reflectivity.
2. Drop Opalex Diffuser: Translucent white, break resistant polycarbonate
Lexan. Installs and removes with twist-lock action; no tools required.
3. Frame-In Kit: Use only with Frame-In Kits shown above.
Labels
UL (Suitable for Wet Locations), I.B.E.W.;
Meets NEC® requirements for Spas and Hot Tubs.
®
NEC
is a registered trademark of the National Fire
Protection Association.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • J1007
