Lightolier 1171 User Manual
Lytecaster
®
Recessed Downlighting 1171

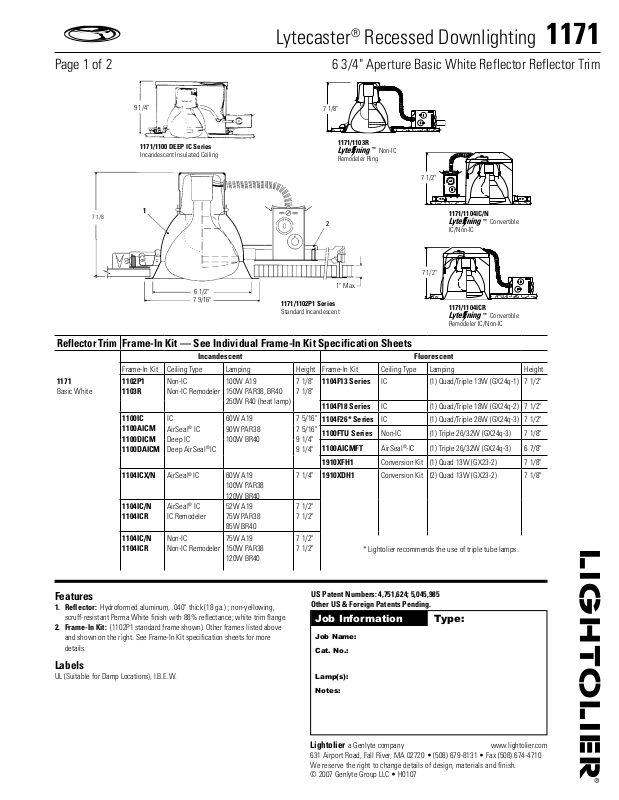

Page 1 of 2 6 3/4" Aperture Basic White Reflector Reflector Trim
7 1/8
Reflector Trim
1171
Basic White
9 1/4"
1171/1100 DEEP IC Series
Incandescent Insulated Ceiling
1
6 1/2"
7 9/16"
1171/1102P1 Series
Standard Incandescent
7 1/8"
1171/1103R
0
Remodeler Ring
2
1" Max.
™
Non-IC
7 1/2"
7 1/2"
1171/1104IC/N
0
IC/Non-IC
1171/1104ICR
0
Remodeler IC/Non-IC
™
Convertible
™
Convertible
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Incandescent Fluorescent
Frame-In Kit Ceiling Type Lamping Height Frame-In Kit Ceiling Type Lamping Height
1102P1
1103R
1100IC
1100AICM
1100DICM
1100DAICM
1104ICX/N
1104IC/N
1104ICR
1104IC/N
1104ICR
Non-IC
Non-IC Remodeler
IC
AirSeal® IC
Deep IC
Deep AirSeal® IC
AirSeal® IC 60W A19
AirSeal® IC
IC Remodeler
Non-IC
Non-IC Remodeler
100W A19
150W PAR38, BR40
250W R40 (heat lamp)
60W A19
90W PAR38
100W BR40
100W PAR38
120W BR40
52W A19
75W PAR38
85W BR40
75W A19
150W PAR38
120W BR40
7 1/8"
7 1/8"
7 5/16"
7 5/16"
9 1/4"
9 1/4"
7 1/4"
7 1/2"
7 1/2"
7 1/2"
7 1/2"
1104F13 Series
1104F18 Series
1104F26* Series
1100FTU Series
1100AICMFT
1910XFH1
1910XDH1
* Lightolier recommends the use of triple tube lamps.
IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"
IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"
IC (1) Quad/Triple 26W (GX24q-3) 7 1/2"
Non-IC (1) Triple 26/32W (GX24q-3) 7 1/8"
AirSeal®-IC (1) Triple 26/32W (GX24q-3) 6 7/8"
Conversion Kit (1) Quad 13W (GX23-2) 7 1/8"
Conversion Kit (2) Quad 13W (GX23-2) 7 1/8"
Features
1. Reflector: Hydroformed aluminum, .040" thick (18 ga.) ; non-yellowing,
scruff-resistant Perma White finish with 88% reflectance; white trim flange.
2. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Labels
UL (Suitable for Damp Locations), I.B.E.W.
US Patent Numbers: 4,751,624; 5,045,985
Other US & Foreign Patents Pending.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2007 Genlyte Group LLC • H0107
Lytecaster
®
Recessed Downlighting 1171
Page 2 of 2 6 3/4" Aperture Basic White Reflector Reflector Trim
Conversion Factor: 150W BR40 FL: C.U. x 1.0.
To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle (or candlepower) values by the ratio of the lumens of the two lamps.
The coefficients of utilization remain the same.
