Lytecaster
4
5
1
3
2
6 7/8"
13 1/8"
Overall Length
Frame-In Kit
Top View
®

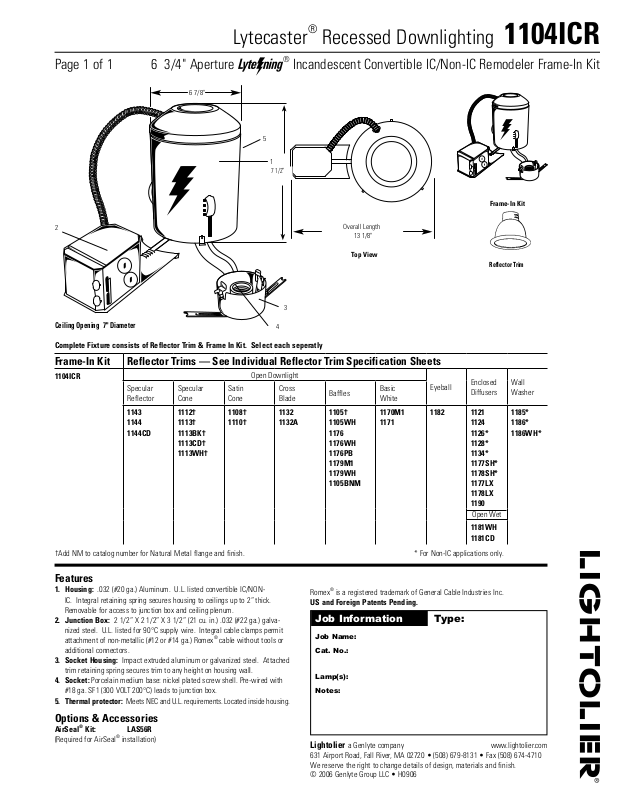

Recessed Downlighting 1104ICR
Page 1 of 1 6 3/4" Aperture
Ceiling Opening 7" Diameter
Complete Fixture consists of Reflector Trim & Frame In Kit. Select each seperatly
0
®
Incandescent Convertible IC/Non-IC Remodeler Frame-In Kit
7 1/2”
Reflector Trim
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Satin
Cone
1108†
1110†
Open Downlight
Cross
Blade
1132
1132A
Baffles
1105†
1105WH
1176
1176WH
1176PB
1179M1
1179WH
1105BNM
Basic
White
1170M1
1171
Eyeball
1182 1121
* For Non-IC applications only.†Add NM to catalog number for Natural Metal flange and finish.
Enclosed
Diffusers
1124
1126*
1128*
1134*
1177SH*
1178SH*
1177LX
1178LX
1190
Open Wet
1181WH
1181CD
Wall
Washer
1185*
1186*
1186WH*
1104ICR
Specular
Reflector
1143
1144
1144CD
Specular
Cone
1112†
1113†
1113BK†
1113CD†
1113WH†
Features
1. Housing: .032 (#20 ga.) Aluminum. U.L. listed convertible IC/NON-
IC. Integral retaining spring secures housing to ceilings up to 2” thick.
Removable for access to junction box and ceiling plenum.
2. Junction Box: 2 1/2” X 2 1/2” X 3 1/2” (21 cu. in.) .032 (#22 ga.) galvanized steel. U.L. listed for 90°C supply wire. Integral cable clamps permit
attachment of non-metallic (#12 or #14 ga.) Romex® cable without tools or
additional connectors.
3. Socket Housing: Impact extruded aluminum or galvanized steel. Attached
trim retaining spring secures trim to any height on housing wall.
4. Socket: Porcelain medium base: nickel plated screw shell. Pre-wired with
#18 ga. SF1 (300 VOLT 200°C) leads to junction box.
5. Thermal protector: Meets NEC and U.L. requirements. Located inside housing.
Options & Accessories
AirSeal® Kit: LAS56R
(Required for AirSeal® installation)
Romex® is a registered trademark of General Cable Industries Inc.
US and Foreign Patents Pending.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
