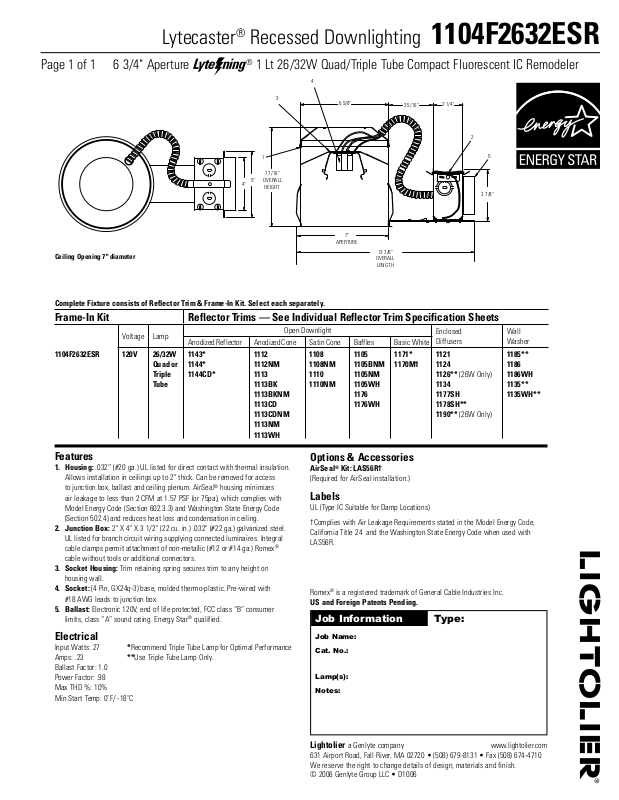

Lightolier 1104F2632ESR User Manual
Lytecaster
5"
4"
2 1/4"
3 7/8"
6 5/8"
7"
APERTURE
7 7/16"
OVERALL
HEIGHT
3 5/16"
13 3/8"
OVERALL
LENGTH
1
2
3
4
5
®
Recessed Downlighting 1104F2632ESR
Page 1 of 1 6 3/4" Aperture 0
Ceiling Opening 7" diameter
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
®
1 Lt 26/32W Quad/Triple Tube Compact Fluorescent IC Remodeler
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
Voltage Lamp
1104F2632ESR 120V 26/32W
Quad or
Triple
Tube
Open Downlight
Anodized Reflector Anodized Cone Satin Cone Baffles Basic White
1143*
1144*
1144CD*
1112
1112NM
1113
1113BK
1113BKNM
1113CD
1113CDNM
1113NM
1113WH
1108
1108NM
1110
1110NM
1105
1105BNM
1105NM
1105WH
1176
1176WH
1171*
1170M1
Enclosed
Diffusers
1121
1124
1126** (26W Only)
1134
1177SH
1178SH**
1190** (26W Only)
Wall
Washer
1185**
1186
1186WH
1135**
1135WH**
Features
1. Housing: .032” (#20 ga.) UL listed for direct contact with thermal insulation.
Allows installation in ceilings up to 2" thick. Can be removed for access
to junction box, ballast and ceiling plenum. AirSeal® housing minimizes
air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with
Model Energy Code (Section 602.3.3) and Washington State Energy Code
(Section 502.4) and reduces heat loss and condensation in ceiling.
2. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel.
UL listed for branch circuit wiring supplying connected luminaires. Integral
cable clamps permit attachment of non-metallic (#12 or #14 ga.) Romex®
cable without tools or additional connectors.
3. Socket Housing: Trim retaining spring secures trim to any height on
housing wall.
4. Socket: (4 Pin, GX24q-3) base, molded thermo-plastic. Pre-wired with
#18 AWG leads to junction box.
5. Ballast: Electronic 120V, end of life protected, FCC class “B” consumer
limits, class “A” sound rating. Energy Star® qualified.
Electrical
Input Watts: 27 *Recommend Triple Tube Lamp for Optimal Performance
Amps: .23 **Use Triple Tube Lamp Only.
Ballast Factor: 1.0
Power Factor: .98
Max THD %: 10%
Min Start Temp: 0˚F/ -18˚C
Options & Accessories
AirSeal® Kit: LAS56R†
(Required for AirSeal installation.)
Labels
UL (Type IC Suitable for Damp Locations)
†Complies with Air Leakage Requirements stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code when used with
LAS56R.
Romex® is a registered trademark of General Cable Industries Inc.
US and Foreign Patents Pending.
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2006 Genlyte Group LLC • D1006
