LiftMaster LA400 User Manual

LA400 & LA400-S

MEDIUM DUTY SWING GATE OPERATOR

O W N E R ' S M A N U A L

Large

Metal Control

Box (XLM)

Optional

The Chamberlain Group, Inc.

845 Larch Avenue

Elmhurst, Illinois 60126-1196

www.liftmaster.com

The LA400 is intended for use with vehicular swing gates.

The operator can be used in Class I, Class II and Class III applications.

Serial # Primary Arm Serial # Secondary Arm Serial # Control Box Installation Date

Radio Receiver

Built on Board

315 MHz

Overview of Typical Installation 9-10 Check Your Gate 11 Mounting Options 11 Manual Release 12 Determine Position of the Pull-to-Open Bracket 12 Determine Position of the "Optional" Push-to-Open Bracket 12 Assemble Gate Post Bracket (Pull-to-Open) 13 Attach Brackets to Gate Operator 13 Determine Mounting Location 14 Measuring and Marking for the Gate Bracket 14 Position Gate Operator on Gate 15 Test Gate Travel 16 Secure Post Bracket to Gate Post 16 Secure Gate Bracket to Gate 17 Warning Sign Placement 17 Standard Control Box 18-19 Large Metal Control Box (XLM) 20-21

WIRING 22-28

Connect the Gate Operator (Gate 1) to the Control Box 22 Set the Bipart Delay (Model LA400-S Only) 23 Connect the Gate Operator (Gate 2) to the Control Box (Model LA400-S Only) 24 Junction Box (Model LA400-S Only) 25-26 Connect Transformer to Control Board 27 Earth Ground Rod Installation (Optional) 28 Connect Batteries 28

ADJUSTMENT 29-33

Set DIP Switch 29 Limits 30-32 Force Adjustment 33 Timer-to-Close 33

PROGRAMMING 34

Remote Controls 34 Keyless Entry 34 Erase All Codes 34 Test 34

ADDITIONAL FEATURES 35-38

DIP Switch Settings 35 Control Inputs 36 Loop Inputs 37 Photo/Edge Inputs (P6-7-8 and 9) 37 Safety Accessories for Secondary Entrapment Protection 38

OPERATION AND MAINTENANCE 39-40

Reset Button 39 Remote Control 39 Manual Release 39 Maintenance 40

TROUBLESHOOTING 41-43

Basic Control Board Layout 41 Wiring Diagram 42 Diagnostic Codes 42 Troubleshooting Chart 43

REPAIR PARTS 44-45

Control Box 44 Gate Operator Arm 44 How to Order Repair Parts 45

WARRANTY POLICY 45 ACCESSORIES 46 TEMPLATE BACK COVER

SAFETY » SAFETY SYMBOL AND SIGNAL WORD REVIEW

When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of Serious Injury or Death if you do not comply with the warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your gate and/or the gate operator if you do not comply with the cautionary statements that accompany it. Read them carefully.

IMPORTANT

• BEFORE attempting to install, operate or maintain the operator, you must read

and fully understand this manual and follow all safety instructions.

• DO NOT attempt repair or service of your gate operator unless you are an Authorized Service Technician.

NOTE

MECHANICAL

ELECTRICAL

1

SAFETY » UL325 MODEL CLASSIFICATIONS

CLASS I – RESIDENTIAL VEHICULAR GATE OPERATOR

A vehicular gate operator (or system) intended for use in a home of one to four single family dwellings, or a garage or parking area associated therewith.

CLASS II – COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR

A vehicular gate operator (or system) intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units) hotel, garage, retail store or other building servicing the general public.

CLASS III – COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR

A vehicular gate operator (or system) intended for use in a industrial location or building such as a factory or loading dock area or other locations not intended to service the general public.

SAFETY ACCESSORY SELECTION

All UL325 compliant LiftMaster gate operators will accept external entrapment protection devices to protect people from motorized gate systems. UL325 requires that the type of entrapment protection correctly matches each gate application. Below are the four types of entrapment protection systems recognized by UL325 for use on this operator.

ENTRAPMENT PROTECTION TYPES Type A: Inherent obstruction sensing system, self-contained within the operator.

This system must sense and initiate the reverse of the gate within two seconds of contact with a solid object.

Type B1: Connections provided for a non-contact device, such as a photoelectric

eye can be used as a secondary protection.

Type B2: Connections provided for a contact sensor. A contact device such as a

gate edge can be used for secondary protection.

Type E: Built-in audio alarm. Examples include sirens, horns or buzzers.

I

II

III

UL325 ENTRAPMENT PROTECTION REQUIREMENTS

GATE OPERATOR ENTRAPMENT PROTECTION

UL325

Installation

CLASS

CLASS I CLASS II

CLASS III

Swing & Gate Barrier (Arm) Operator

Primary Type

A

A, B1 or B2

Secondary Type

A, B1 or B2

A, B1, B2 or E

The chart above illustrates the entrapment protection requirements for each of the three UL325 classes.

In order to complete a proper installation you must satisfy the entrapment protection chart shown above. That means that the installation must have one primary means of entrapment protection and one independent secondary means of entrapment protection. Both primary and secondary entrapment protection methods must be designed, arranged or configured to protect against entrapments in both the open and close directions of gate travel.

For Example: For a slide gate system that is installed on a single-family residence (UL325 Class I) you must provide the following: As your primary type of entrapment protection you must provide Type A inherent (built into the operator) entrapment sensing and at least one of the following as your secondary entrapment protection: Type B1- Non-contact sensors such as photoelectric eyes, Type B2- Contact sensors such as gate edges.

NOTE:

UL requires that all installations must have warning signs placed in plain view on both sides of the gate to warn pedestrians of the dangers of motorized gate systems.

2

SAFETY » SAFETY INSTALLATION INFORMATION

1. Vehicular gate systems provide convenience and security. Gate systems are

comprised of many component parts. The gate operator is only one component. Each gate system is specifically designed for an individual application.

2. Gate operating system designers, installers and users must take into account

the possible hazards associated with each individual application. Improperly designed, installed or maintained systems can create risks for the user as well as the bystander. Gate systems design and installation must reduce public exposure to potential hazards.

3. A gate operator can create high levels of force in its function as a component

part of a gate system. Therefore, safety features must be incorporated into every design. Specific safety features include:

• Gate Edges • Guards for Exposed Rollers • Photoelectric Sensors

• Screen Mesh • Vertical Posts • Instructional and Precautionary Signage

4. Install the gate operator only when: a. The operator is appropriate for the construction and the usage class of the

gate.

b. All openings of a horizontal slide gate are guarded or screened from the

bottom of the gate to a minimum of 4 feet (1.2 m) above the ground to prevent a 2-1/4 inch (6 cm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position.

c. All exposed pinch points are eliminated or guarded, and guarding is

supplied for exposed rollers.

5. The operator is intended for installation only on gates used for vehicles.

Pedestrians must be supplied with a separate access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.

6. The gate must be installed in a location so that enough clearance is supplied

between the gate and adjacent structures when opening and closing to reduce the risk of entrapment. Swinging gates shall not open into public access areas.

7. The gate must be properly installed and work freely in both directions prior to

the installation of the gate operator.

8. Controls intended for user activation must be located at least 6 feet (1.83 m)

away from any moving part of the gate and where the user is prevented from reaching over, under, around or through the gate to operate the controls. Outdoor or easily accessible controls shall have a security feature to prevent unauthorized use.

9. The Stop and/or Reset (if provided separately) must be located in the lineof-sight of the gate. Activation of the reset control shall not cause the operator to start.

10. A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.

11. For a gate operator utilizing a non-contact sensor:

a. Reference owner’s manual regarding placement of non-contact sensor for

each type of application.

b. Care shall be exercised to reduce the risk of nuisance tripping, such as

when a vehicle trips the sensor while the gate is still moving.

c. One or more non-contact sensors shall be located where the risk of

entrapment or obstruction exists, such as the perimeter reachable by a moving gate or barrier.

12. For a gate operator utilizing a contact sensor such as an edge sensor:

a. One or more contact sensors shall be located where the risk of entrapment

or obstruction exists, such as at the leading edge, trailing edge and post mounted both inside and outside of a vehicular horizontal slide gate.

b. One or more contact sensors shall be located at the bottom edge of a

vehicular vertical lift gate.

c. A hard wired contact sensor shall be located and its wiring arranged so the

communication between the sensor and the gate operator is not subject to mechanical damage.

d. A wireless contact sensor such as the one that transmits radio frequency

(RF) signals to the gate operator for entrapment protection functions shall be located where the transmission of the signals are not obstructed or impeded by building structures, natural landscaping or similar obstruction. A wireless contact sensor shall function under the intended end-use conditions.

e. One or more contact sensors shall be located on the inside and outside

leading edge of a swing gate. Additionally, if the bottom edge of a swing gate is greater than 6 inches (152 mm) above the ground at any point in its arc of travel, one or more contact sensors shall be located on the bottom edge.

f. One or more contact sensors shall be located at the bottom edge of a

vertical barrier (arm).

3

SAFETY » GATE CONSTRUCTION INFORMATION

Vehicular gates should be installed in accordance with ASTM F2200: Standard Specification for Automated Vehicular Gate Construction. For a copy, contact ASTM directly at 610-832-9585 or www.astm.org.

1. GENERAL REQUIREMENTS

1.1 Gates shall be constructed in accordance with the provisions given for the appropriate gate type listed, refer to ASTM F2200 for additional gate types.

1.2 Gates shall be designed, constructed and installed to not fall over more than 45 degrees from the vertical plane, when a gate is detached from the supporting hardware.

1.3 Gates shall have smooth bottom edges, with vertical bottom edged protrusions not exceeding 0.50 inches (12.7 mm) when other than the exceptions listed in ASTM F2200.

1.4 The minimum height for barbed tape shall not be less than 8 feet (2.44 m) above grade and for barbed wire shall not be less than 6 feet (1.83 m) above grade.

3.1.3 A gap, measured in the horizontal plane parallel to the roadway, between a fixed stationary object nearest the roadway, (such as a gate support post) and the gate frame when the gate is in either the fully open position or the fully closed position, shall not exceed 2-1/4 inches (57 mm), refer to ASTM F2200 for Exception.

3.1.4 Positive stops shall be required to limit travel to the designed fully open and fully closed positions. These stops shall be installed at either the top of the gate, or at the bottom of the gate where such stops shall horizontally or vertically project no more than is required to perform their intended function.

3.1.5 All gates shall be designed with sufficient lateral stability to assure that the gate will enter a receiver guide, refer to ASTM F2200 for panel types.

1.5 An existing gate latch shall be disabled when a manually operated gate is retrofitted with a powered gate operator.

1.6 A gate latch shall not be installed on an automatically operated gate.

1.7 Protrusions shall not be permitted on any gate, refer to ASTM F2200 for Exceptions.

1.8 Gates shall be designed, constructed and installed such that their movement shall not be initiated by gravity when an automatic operator is disconnected.

1.9 A pedestrian gate shall not be incorporated into a vehicular gate panel or that portion of the adjacent fence that the gate covers in the open position.

2. SPECIFIC APPLICATIONS

2.1 Any non-automated gate that is to be automated shall be upgraded to conform to the provisions of this specification.

2.2 This specification shall not apply to gates generally used for pedestrian access and to vehicular gates not to be automated.

2.3 Any existing automated gate, when the operator requires replacement, shall be upgraded to conform to the provisions of this specification in effect at that time.

3. VEHICULAR HORIZONTAL SLIDE GATES

3.1 The following provisions shall apply to Class I, Class II and Class III vehicular horizontal slide gates:

3.1.1 All weight bearing exposed rollers 8 feet (2.44 m), or less, above grade shall be guarded or covered.

3.2 The following provisions shall apply to Class IV vehicular horizontal slide gates:

3.2.1 All weight bearing exposed rollers 8 feet (2.44 m), or less, above grade shall be guarded or covered.

3.2.2 Positive stops shall be required to limit travel to the designed fully open and fully closed positions. These stops shall be installed at either the top of the gate, or at the bottom of the gate where such stops shall horizontally or vertically project no more than is required to perform their intended function.

4. VEHICULAR HORIZONTAL SWING GATES

4.1 The following provisions shall apply to Class 1, Class II and Class III vehicular horizontal swing gates:

4.1.1 Gates shall be designed, constructed and installed so as not to create an entrapment area between the gate and the supporting structure or other fixed object when the gate moves toward the fully open position, subject to the provisions in the 4.1.1.1 and 4.1.1.2.

4.1.1.1 The width of an object (such as a wall, pillar or column) covered by a swing gate when in the open position shall not exceed 4 inches (102 mm), measured from the centerline of the pivot point of the gate, refer to ASTM F2200 for exception.

3.1.2 All openings located between 48 inches (1.22 m) and 72 inches (1.83 m) above grade shall be designed, guarded or screened to prevent a 4 inch (102 mm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence that covers in the open position.

4.1.1.2 Except for the zone specified in Section 4.1.1.1, the distance between a fixed object such as a wall, pillar or column, and a swing gate when in the open position shall not be less than 16 inches (406 mm), refer to ASTM F2200 for exception.

4.2 Class IV vehicular horizontal swing gates shall be designed, constructed and installed in accordance with security related parameters specific to the application in question.

4

SAFETY » IMPORTANT SAFETY INFORMATION

INSTALLATION

To prevent SERIOUS INJURY or DEATH; one or more non-contact sensors shall be located where the risk of entrapment or obstruction exists.

To prevent SERIOUS INJURY or DEATH from a moving gate:

• Entrapment protection devices MUST be installed to protect anyone who may come near a moving gate.

• Locate entrapment protection devices to protect in BOTH the open and close gate cycles.

• Locate entrapment protection devices to protect between moving gate and RIGID objects, such as posts.

• A swinging gate shall NOT open into public access ways.

WIRING

To reduce the risk of SEVERE INJURY or DEATH:

• ANY maintenance to the operator or in the area near the operator MUST NOT be performed until disconnecting the electrical power and locking-out the power via the operator power switch. Upon completion of maintenance the area MUST be cleared and secured, at that time the unit may be returned to service.

• Disconnect power at the fuse box BEFORE proceeding. Operator MUST be properly grounded and connected in accordance with local electrical codes. NOTE: The operator should be on a separate fused line of adequate capacity.

• ALL electrical connections MUST be made by a qualified individual.

To prevent SERIOUS INJURY or DEATH from a moving gate:

• Install warning signs on the front and back of the gate in PLAIN VIEW.

• Permanently secure each warning sign in a suitable manner using fastening holes.

ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

• DO NOT use flooded lead acid battery.

• Flooded lead acid batteries will produce gases when discharging and recharging which can explode.

• DO NOT dispose of battery in fire. Battery may explode. Check with local codes for disposal instructions.

• DO NOT install ANY wiring or attempt to run the operator without consulting the wiring diagram. We recommend that you install an optional reversing edge BEFORE proceeding with the control station installation.

• ALL power wiring should be on a dedicated circuit and well protected. The location of the power disconnect should be visible and clearly labeled.

• ALL power and control wiring MUST be run in separate conduit.

• BEFORE installing power wiring or control stations be sure to follow ALL specifications and warnings described below. Failure to do so may result in SEVERE INJURY to persons and/or damage to operator.

To AVOID damaging plug-in transformer, it MUST be enclosed in a suitable weatherproof enclosure and provided with proper weatherproof fixtures.

To AVOID damaging gas, power or other underground utility lines, contact underground utility locating companies BEFORE digging.

ADJUSTMENT

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing gate.

• Too much force on gate will interfere with proper operation of safety reversal system.

• NEVER increase force beyond minimum amount required to close gate.

• NEVER use force adjustments to compensate for a binding or sticking gate.

To reduce the risk of FIRE or INJURY to persons use only LiftMaster part #K74-30762 for replacement batteries.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Gate MUST reverse on contact with a rigid object.

5

SAFETY » IMPORTANT SAFETY INFORMATION

OPERATION AND MAINTENANCE

• READ AND FOLLOW ALL INSTRUCTIONS.

• NEVER let children operate or play with gate controls. Keep the remote control away from children.

• ALWAYS keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.

• Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or stop when an object activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of INJURY or DEATH.

To reduce the risk of FIRE or INJURY to persons use only LiftMaster part #K74-30762 for replacement batteries.

TROUBLESHOOTING

To protect against fire and electrocution:

• Disconnect power and battery BEFORE installing or servicing operator.

• Use the emergency release ONLY when the gate is not moving.

• KEEP GATES PROPERLY MAINTAINED. Read the ownerʼs manual. Have a qualified service person make repairs to gate hardware.

• The entrance is for vehicles ONLY. Pedestrians MUST use separate entrance.

• Disconnect ALL power before performing ANY maintenance.

• ALL maintenance MUST be performed by a LiftMaster professional.

• SAVE THESE INSTRUCTIONS.

To avoid SERIOUS personal INJURY or DEATH from electrocution, DISCONNECT electrical power to operator BEFORE proceeding.

For continued protection against fire:

• Replace ONLY with fuse of same type and rating.

6

INTRODUCTION » OPERATOR SPECIFICATIONS + CARTON INVENTORY

OPERATOR SPECIFICATIONS

Operating Cycles: 100 per day Main Supply (Motor): 24 Vdc Current Consumption: 2A Power Consumption: 48 Watts Battery Charger Supply: 26 Vac, 29VA or 36 Vdc, 40VA Maximum Gate Width: 16 feet (4.9 m) Maximum Gate Weight: 550 lbs. (249.5 kg) Protection Class: NEMA 3R Travel Speed: 14-18 seconds for a 90° opening Rated Operating Time: 4 Minutes Temperature: -20° C to + 50° C

-4° F to + 122° F

Main Supply (Control) Dedicated Circuit: 120V~/60Hz

Absorbed Power: 0.75 Watts Protection Fuse Battery: ATC 20A

Weight: 13.2 lbs. (6 kg.)

(10.2 cm)

4.5"

(11.2 cm)

4"

.25"

(0.635 cm)

14" (35.6 cm)

10" (25.4 cm)

36.3"

(92.1 cm)

.475" DIA.

(1.2 cm DIA.)

37.4"

(95 cm)

RESET

6" (15.2 cm)

53.5"

(136 cm)

CARTON INVENTORY

Carton inventory is based on a Single Operator. For Primary (Gate 1) and Secondary (Gate 2) installation the carton inventory is doubled except for control box.

• Standard Control Box (1)

• Hardware Bag (1)

• Gate Operator Arm

• Motor Cable - Six Conductor, 9 feet (2.7 m)

• Warning Sign (2)

• Battery (2)

• Plug-in Transformer (1) LA400-S (SECOND GATE OPERATOR ARM)

• Motor Cable - Six Conductor, 40 feet (12.2 m)

• Junction Box - IP56 (1)

• Phillips Head Mounting Screws (4)

• Anchors (4)

• Terminal Block - Twelve Connectors (1)

HARDWARE INVENTORY

• Post Bracket (1)

• Pull-to-Open Bracket (1)

• Hex Bolt 5/16"-18 X 1-1/2" (5)

• Square Neck Carriage Bolt 3/8"-16 X 6" (2)

• Hex Nut 3/8"-16 (2)

• Hex Nut 5/16"-18 (5)

• Flat Washer 5/16" (5)

• Flat Washer 3/8" (5)

• Lock Washer 5/16" (5)

• Lock Washer 3/8" (5)

• Gate Mounting Bracket (1)

• Hairpin Clip (2)

• Pin (2)

• Hex Bolt 3/8"-16 X 1-1/2" (1)

• Bolt 2-3/4" (2)

• Keylock Cap (1)

• Keys (2)

7

INTRODUCTION » ADDITIONAL ITEMS NEEDED FOR INSTALLATION + TOOLS NEEDED

ADDITIONAL ITEMS NEEDED FOR INSTALLATION

PERMANENT FASTENERS FOR WARNING SIGN

EARTH GROUND ROD (OPTIONAL)

POWER WIRE:

120 VAC POWER WIRE (STRANDED COPPER WIRE)

Wire Gauge 16 100 feet (30 m)

Wire Gauge 10 1000 feet (305 m)

OR

24 VAC TRANSFORMER (STRANDED COPPER WIRE)

Wire Gauge 14 500 feet (152 m)

Wire Gauge 12 1000 feet (305 m)

TOOLS NEEDED

During assembly, installation and adjustment of the operator, instructions will call for tools as illustrated below.

Deep Well Sockets and Wrench 1/2", 5/8", 7/16", 9/16" and 1/4"

Carpenter's Level

Screwdriver

Drill

Adjustable End Wrench

Hammer

Drill Bits 1/2", 3/16", 5/16" and 5/32"

Phillips Head Screwdriver

2

1

Tape Measure

Clamps

Welder (Optional)

Pencil

Wire Cutters (Optional)Wire Strippers (Optional)

8

INSTALLATION » OVERVIEW OF TYPICAL INSTALLATION

Mov

ing Gate Can Cause Inj

ury or Death

KEEP

CL

EAR!

Gate may move at an

y

time

wi

thout

prior war

n

in

g.

Do

no

t let ch

ildren op

er

ate t

h

e gate or

play i

n

th

e gate

area.

This e

nt

r

ance is for

vehicl

es o

nly

Pede

strians mu

st use sep

arate entra

nce

LEFT-HAND GATE

Warning Sign

Antenna

Control Box with Batteries

PVC Conduit (not provided) to protect the low voltage wire from lawn mowers and string trimmers.

Hinge

Post Bracket

Gate Bracket

Operator

Operator Cable

Earth Ground Installation (Optional)

RIGHT-HAND GATE

12 Gauge Wire

8 feet

(2.4 m)

NOTE:

Photoelectric Sensors

One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists at either the opening or closing direction. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving.

Warning Sign

Hinge

Post

Gate

Bracket

Operator

Operator Cable

Antenna

Control Box with Batteries

Photoelectric Sensors

PVC Conduit (not provided) to protect the low voltage wire from lawn mowers and

12 Gauge Wire

string trimmers.

8 feet

(2.4 m)

Earth Ground Installation (Optional)

9

INSTALLATION » OVERVIEW OF TYPICAL INSTALLATION

DUAL GATE

Warning Sign

Hinge

Antenna

Post Bracket

Gate Bracket

Gate 1

Gate 2

Junction Box

Extension Cable

Photoelectric Sensors

Control Box with Batteries

PVC Conduit (not provided) to protect the low voltage wire from lawn mowers and string trimmers.

12 Gauge Wire

8 feet

(2.4 m)

Operator Cable

Earth Ground Installation (Optional)

Photoelectric Sensors

NOTE:

One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists at either the opening or closing direction. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving.

10

INSTALLATION » CHECK YOUR GATE + MOUNTING OPTIONS

CHECK YOUR GATE

A

Gate MUST be level. Gate and gate post MUST be plumb.

A

Remove ANY/ALL wheels from the bottom of gate.

B

Gate MUST NOT hit or drag across ground.

C

Gate MUST swing freely and be supported entirely by its hinges.

D

C

B

D

MOUNTING OPTIONS

Mounting locations vary depending on type and style of your gate. Minimum distance from the ground should not be less than 4 inches (10.2 cm) from the bottom of the gate operator arm.

RECOMMENDED:

= Gate post bracket mounting locations

= Gate bracket mount locations

OPTIONAL:

= Gate post bracket mounting locations = Gate bracket mount locations

11

INSTALLATION » MANUAL RELEASE + DETERMINE POSITION OF THE PULL-TO-OPEN BRACKET

+ DETERMINE POSITION OF THE "OPTIONAL" PUSH-TO-OPEN BRACKET

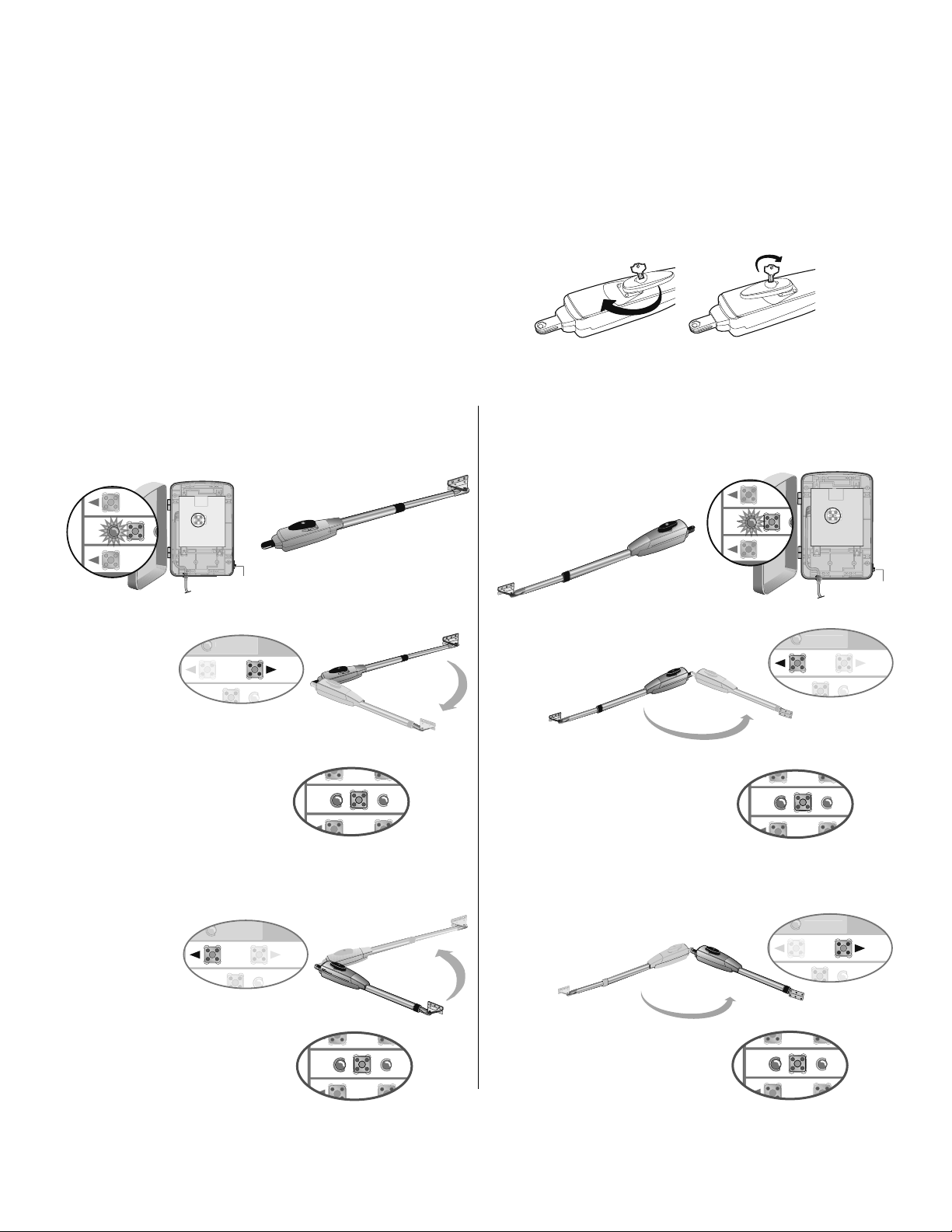

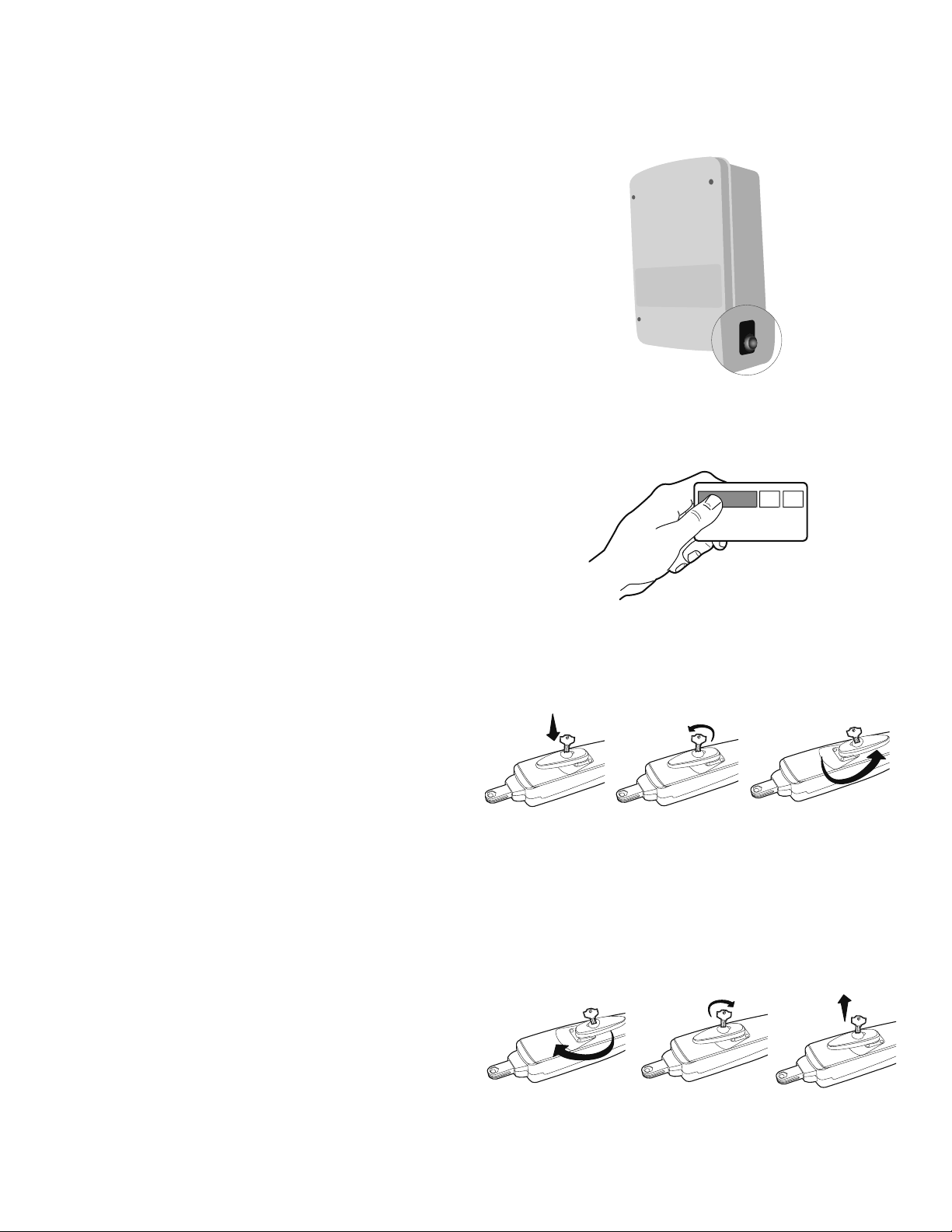

MANUAL RELEASE

Insert the key into the lock and turn it 180° counterclockwise.

1

Turn the release lever 180° counterclockwise.

2

The operator is now in manual mode.

DETERMINE POSITION OF THE PULL-TO-OPEN BRACKET

The Pull-to-Open bracket can be assembled to work on a Left-Hand or a Right-Hand gate.

Review the gate types and select the type of installation you will require.

1

NOTE:

If the Pull-to-Open bracket is not assembled correctly you will

damage the operator.

1

LEFT-HAND GATE

RIGHT-HAND GATE

Key

Release Lever

2

OR

DETERMINE POSITION OF THE "OPTIONAL" PUSH-TO-OPEN BRACKET

(NOT PROVIDED. SEE ACCESSORIES)

The Push-to-Open bracket can be assembled to work on a Left-Hand or a Right-Hand gate.

Review the gate types and select the type of installation you will require.

1

LEFT-HAND GATE

1

RIGHT-HAND GATE

12

INSTALLATION » ASSEMBLE GATE POST BRACKET (PULL-TO-OPEN) + ATTACH BRACKETS TO GATE OPERATOR

All the illustrations on the following pages display a typical Left-Hand Gate installation. For Push-to-Open installations refer to instructions with Push-to-Open kit 50-19503.

ASSEMBLE GATE POST BRACKET (PULL-TO-OPEN)

Hex Bolt 3/8"

Assemble gate post bracket by placing Pull-to-Open bracket on top of post

1

bracket.

Extension Bracket

Pull-to-Open Bracket

Insert the bolt through both brackets and secure with washer, lock washer

2

and nut.

ATTACH BRACKETS TO GATE OPERATOR

Attach post bracket assembly to operator using pins and hairpin clips.

1

Attach gate bracket to operator using pins and hairpin clips.

2

1

Post Bracket Assembly

1

2

Post Bracket

Washer

Lock Washer

Nut

13

Hairpin Clip

2

Gate Bracket

INSTALLATION » DETERMINE MOUNTING LOCATION + MEASURING AND MARKING FOR THE GATE BRACKET

DETERMINE MOUNTING LOCATION

The gate post bracket assembly can be mounted several places on the gate post. Refer to the illustrations on page 11 for the ideal mounting location.

Refer to the illustrations to determine the appropriate dimensions for the Pull-to-Open bracket.

NOTE:

It may be necessary to add shims (angle iron, sheets of metal or wood) to

the gate post to achieve the required dimensions.

MEASURING AND MARKING FOR THE GATE BRACKET

Before proceeding, begin with the gate in the fully closed position. There are two methods for determining the proper location of the post brackets:

• Paper template (Located on the back page of this manual. Must be cut out.)

• Tape measure. Either method will work depending on preference.

TEMPLATE METHOD

Gate Post

Gate Hinge Point

Operator Hinge Point

7" (18 cm)

Gate Hinge Point

Operator Hinge Point

7" (18 cm)

Gate Post

TOP VIEW

Gate Hinge Point

Operator Hinge Point

7" (18 cm)

Gate Hinge Point

Operator Hinge Point

7" (18 cm)

Gate Hinge Point

Gate Post

Gate Hinge Point

Operator Hinge Point

7" (18 cm)

Gate Hinge Point

Operator Hinge Point

7" (18 cm)

1

7" (18 cm)

Close the gate.

1

Place the template (provided on the back page of this manual) under the center of the gate hinge point.

2

Use a screwdriver or dowel rod to temporarily mark the location in front of the

3

gate post.

TAPE MEASURE METHOD

Close the gate.

1

Place the measuring tape under the center of the gate hinge point and measure out 7 inches (18 cm).

2

Use a screwdriver or dowel rod to temporarily mark the location of the first

3

measurement.

Measure 7 inches (18 cm) from the previous mark.

4

Use the screwdriver or dowel rod to mark the location of the second

5

measurement.

5

3

Gate Post

TOP VIEW

Gate Post

4

7" (18 cm)

2

Gate Hinge Point

2

Gate

1

Gate

7" (18 cm)

3

14

INSTALLATION

POSITION GATE OPERATOR ON GATE

NOTE:

The post bracket assembly can be mounted several places on the gate post.

Refer to page 11 for mounting options.

Open the gate to desired open position (no greater than 100°) and hold

1

operator against gate.

Place the operator arm against gate post at the desired position. Temporarily

2

secure gate post bracket with clamp. The gate operator (arm) must be level.

Mark mounting holes on gate for reference. Temporarily secure the gate

3

bracket using a clamp.

Align the Pull-to-Open bracket to a position as CLOSE AS POSSIBLE above

4

the screwdriver or dowel rod.

» POSITION GATE OPERATOR ON GATE

1

2

Insert hex bolt through Pull-to-Open bracket and post bracket and secure with

5

washer, lock washer and nut.

3

4

7" (18 cm)

Hex Bolt 3/8"

5

15

Washer

Lock Washer

Nut

INSTALLATION » TEST GATE TRAVEL + SECURE POST BRACKET TO GATE POST

TEST GATE TRAVEL

NOTE: If gate does not open and close completely adjust the position of the

gate bracket and mark new mounting holes.

Manually open and close the gate.

1

Ensure that the operator does not bind against the Pull-to-Open bracket.

2

Ensure that the piston does not bottom out.

3

2

3

1

1/2" (1.3 cm)

Do not allow piston to fully extend or fully retract.

SECURE POST BRACKET TO GATE POST

The gate operator (arm) must be level.

Mark holes for the post bracket. Remove the clamp and the operator, set aside.

1

Drill adequate holes in the gate post.

2

Secure the post bracket to the gate post using hardware.

3

1/2" (1.3 cm)

2

1

Flat Washers

3

Hex Nuts

Lock Washers

16

Carriage Bolts

Welder (Optional)

INSTALLATION

» SECURE GATE BRACKET TO GATE + WARNING SIGN PLACEMENT

SECURE GATE BRACKET TO GATE

The gate operator (arm) must be level. Some installations may require additional reinforcement be installed on the gate.

Drill holes in gate (or reinforcement, if necessary) that are large enough for the

1

gate bracket mounting hardware.

Secure the gate operator to the gate using hardware (not provided).

2

Manually move the gate to verify that it opens and closes fully.

3

1

Reinforcement Area

2

Operator

Hex Bolt

OR

Gate Bracket

Angle Iron

Wood

Flat Bar

Welder (Optional)

Hex Nut

Lock Washer

Flat Washer

WARNING SIGN PLACEMENT

Warning signs MUST be installed on both sides of the gate and in plain view.

Fasten warning signs to the gate with cable ties.

1

Fence

Gate Post

3

1

Gate

Gate Travel Path

Inside Property

Moving Gate Can Cause

Injury or Death

KEEP CLEAR! Gate may move at any time without prior warning.

Do not let children operate the gate or play in the gate area.

This entrance is for vehicles only Pedestrians must use separate entrance

If installing a 2nd operator, repeat the previous installation steps for the second gate before proceeding to the next page.

17

INSTALLATION

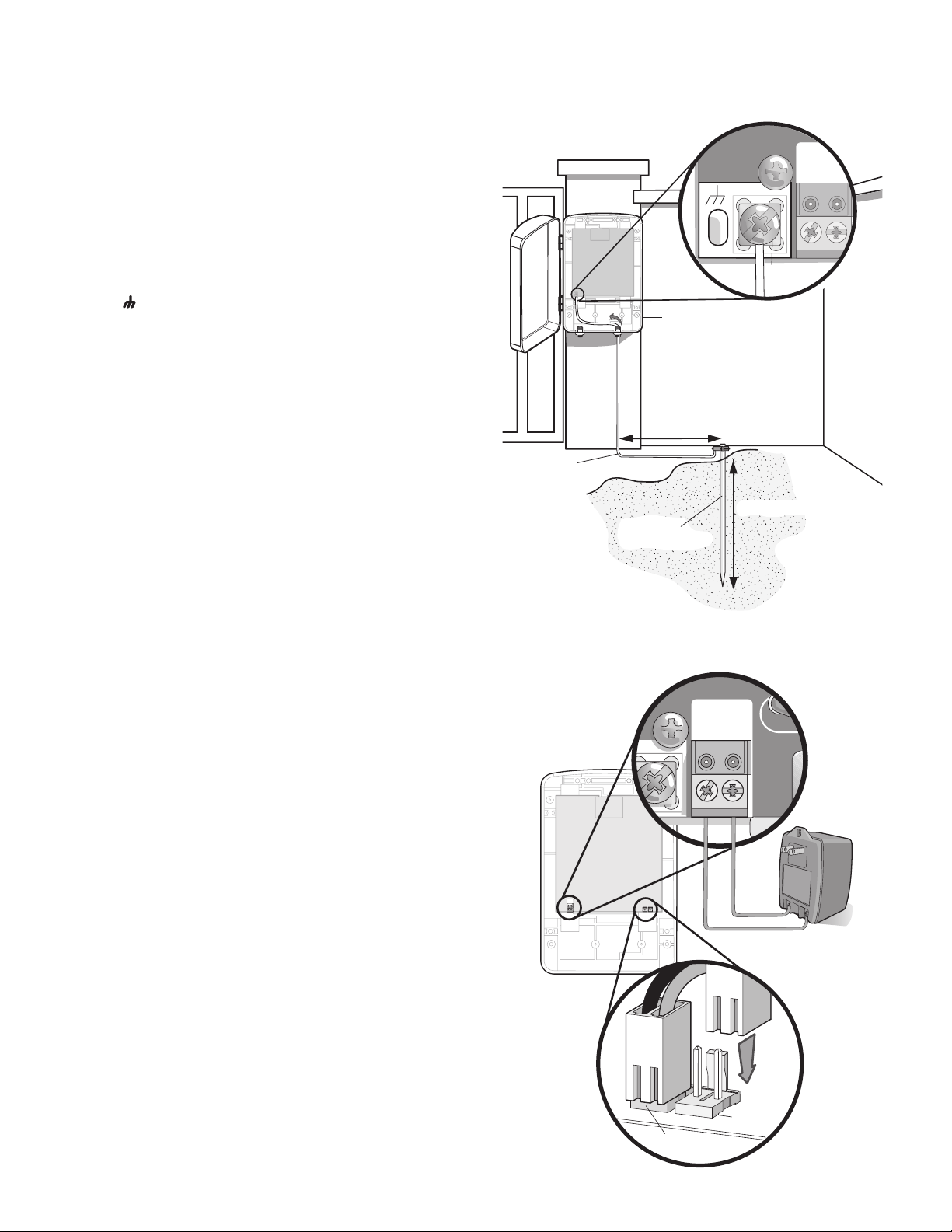

MOUNT THE CONTROL BOX

The control box MUST be mounted within 5 feet (1.5 m) of the gate operator. Mount the control box as high as possible for best radio reception.

Remove screws and open the control box.

1

Disconnect the reset button, alarm, and coaxial connector.

2

Loosen screws to remove the control board and mounting bracket.

3

Remove the control board.

4

» STANDARD CONTROL BOX

1

5

Coaxial Connector

2

4

Remove batteries and set aside.

5

Select mounting holes and knock out using a screwdriver and hammer.

6

Secure the control box to mounting surface using the appropriate hardware

7

(not provided).

A. Post B. Wall C. Column

6

2

Alarm

Knock Outs

3

Reset Button Connections

2

Knock Outs

18

Knock Outs

7

A.

B.

C.

INSTALLATION » STANDARD CONTROL BOX

INSTALL THE CONTROL BOARD

NOTE:

Make sure the battery leads are on the left side of the control box and not

pinched.

Attach the antenna.

1

Reinstall the batteries, control board, alarm and reset button.

2

1

Coaxial Connector

2

Reset Button Connections

Alarm

19

INSTALLATION » LARGE METAL CONTROL BOX (XLM)

CLOSE PHOTO

FORCE

TIMER TO CLOSE

OFFMAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

GATE 2

ACCESSORY POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET OPEN LIMIT

SET CLOSE LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

ON OFF

PWR

OFFMAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN LOW BATT

OPEN EDGE/ PHOTO

OPEN PHOTO

AC PWR /SOLAR

CONTROL INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

CLOSE PHOTO

FORCE

TIMER TO

CLOSE

OFFMAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

GATE 2

ACCESSORY

POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET OPEN LIMIT

SET

CLOSE

LIMIT

LEARN

LIMITS

GATE 1

LEARN XMITTER

LOCK /

ON OFF

PWR

OFFMAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN

LOW BATT

OPEN EDGE/


OPEN PHOTO

AC PWR /SOLAR

CONTROL INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

CLOSE PHOTO

FORCE

TIMER TO CLOSE

OFF MAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

GATE 2

ACCESSORY POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET

OPEN

LIMIT

SET CLOSE LIMIT

LEARN

LIMITS

GATE 1

LEARN

XMITTER

LOCK /

ON OFF

PWR

OFF MAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN

LOW BATT

OPEN EDGE/ PHOTO

OPEN PHOTO

AC PWR /SOLAR

CONTROL INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

CLOSE PHOTO

FORCE

TIMER TO CLOSE

OFFMAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

GATE 2

ACCESSORY POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET

OPEN LIMIT

SET CLOSE LIMIT

LEARN LIMITS

GATE 1

LEARN

XMITTER

LOCK /

ON OFF

PWR

OFFMAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN LOW BATT

OPEN EDGE/ PHOTO

OPEN PHOTO

AC PWR /SOLAR

CONTROL INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

CLOSE PHOTO

FORCE

TIMER TO CLOSE

OFF MAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

GATE 2

ACCESSORY POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET OPEN LIMIT

SET CLOSE LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

ON OFF

PWR

OFF MAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN LOW BATT

OPEN EDGE/ PHOTO

OPEN PHOTO

AC PWR /SOLAR

CONTROL INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

CLOSE PHOTO

FORCE

TIMER TO CLOSE

OFF MAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

GATE 2

ACCESSORY

POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET OPEN LIMIT

SET CLOSE LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

ON OFF

PWR

OFF MAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN LOW BATT

OPEN EDGE/ PHOTO

OPEN PHOTO

AC PWR /SOLAR

CONTROL INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

CLOSE PHOTO

FORCE

TIMER TO

CLOSE

OFFMAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP

INPUTS

GATE 2

ACCESSORY POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET OPEN LIMIT

SET CLOSE LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

ON OFF

PWR

OFFMAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN LOW BATT

OPEN EDGE/ PHOTO

OPEN PHOTO

AC PWR /SOLAR

CONTROL INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

CLOSE PHOTO

FORCE

TIMER TO CLOSE

OFF MAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

GATE 2

ACCESSORY POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET OPEN LIMIT

SET CLOSE LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

ON OFF

PWR

OFF MAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN LOW BATT

OPEN EDGE/ PHOTO

OPEN PHOTO

AC PWR /SOLAR

CONTROL INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

CLOSE PHOTO

FORCE

TIMER TOTO

CLOSE

OFF

MAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

TE 2

ACCESSORYRY POWER

ALARM

TE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

TE 2

SET OPEN LIMIT

SET CLOSE LIMIT

LEARN LIMITS

TE 1

LEARN XMITTER

LOCK /

OFF

PWR

OFF

MAX

SINGLE BUTTONON

RT

DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTO

OPEN

LOW BATT

OPEN EDGE/


OPEN PHOTO

AC PWR /SOLAR

CONTROL INPUTS

OPEN

SINGLE BUTTONON

RESET

OP

CTRL L PWPWR

CTRL

PWR

CLOSE PHOTO

FORCE

TIMER TO CLOSE

OFF MAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

GATE 2

ACCESSORY

POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET OPEN LIMIT

SET CLOSE LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

ON OFF

PWR

OFF MAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN LOW BATT

OPEN EDGE/


OPEN PHOTO

AC PWR /SOLAR

CONTROL

INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

CLOSE PHOTO

FORCE

TIMER TO CLOSE

OFF MAX

SHADOW

INTERRUPT

CHGR OVLD

CTRL

LOOP INPUTS

GATE 2

ACCESSORY POWER

ALARM

GATE 1

MAGR

SOL

GR

WH

YL

BL

RD

BR

GR

WH

YL

BL

RD

BR

12 V

GATE 2

SET OPEN LIMIT

SET CLOSE LIMIT

LEARN LIMITS

GATE 1

LEARN XMITTER

LOCK /

ON OFF

PWR

OFF MAX

SINGLE BUTTON

BIPART DELAY

LOCK

GND

CLOSE EDGE

OFF

ON

AUTOOPEN LOW BATT

OPEN EDGE/


OPEN PHOTO

AC PWR /SOLAR

CONTROL

INPUTS

OPEN

SINGLE BUTTON

RESET

STOP

CTRL PWR

MOUNT THE CONTROL BOX (XLM)

The control box MUST be mounted within 5 feet (1.5 m) of the gate operator. Mount the control box as high as possible for best radio reception.

Open the control box. The control box door may be removed by opening the

1

door 90°. Lift the door from the hinges and set aside until the installation is complete.

The control box can be mounted to a post with 'U' bolts. See chart below. The

2

knock out will accommodate a 3/8" diameter 'U' bolt.

Type and Size 'U' Bolt Opening

Standard 3" Round Pipe 3-1/2"

Standard 4" Square Post 4"

Standard 6" Square Post 6"

Select center mounting holes (top and bottom) knock out using a screwdriver

3

and hammer. Use knock outs located at the 4 corners of the control box for wall or column mounting.

EARTH GROUND ROD INSTALLATION (REQUIRED)

It is important to install the ground rod when using a metal control box to prevent serious injury to persons or damage to the operator.

Install earth ground rod within 3 feet (0.9 m) of the operator.

1

Connect ground rod with #12 copper wire to one of the two green ground

2

screws inside the control box.

NOTE:

The additional standoffs are specifically designed to mount up to

3 Chamberlain loop detectors model LO7LP (not provided).

3

1

2

Ground Screw

90°

Standoffs

CLOSE

SOL

GND

MAGR

LOCK

LEARN XMITTE

GAGATE

BR

GR

WH

YL

BL

RD

SET OPEN LIMIT

ACCESSO

POWER

12

BR

GR

WH

YL

BL

RD

GAGATE

ALARM

EDGE

OPEN EDGE

PHOT

ONONOF

LOCK

OPEN

BIBIPAPART

DELA

PHOT

CLOSE PHOT

GAGATE

SET

LEAR

CLOSE

LIMITS

LIMI

GAGATE

SINGLE BUTT

ON

OFF

TIMER

CONTRO

FORCE

CLOSE

INPUTS

OPEN

AUTO

OPEN

LOW BATT

SINGLE BUTT

RESET

OFF

MAX

STSTOP

OFF

MAX

CTR

CTRL

PW

LOOP INPUTS

SHADOW

INTERRUP

CHG

PW

CTR

OVLD

AC PW /SOLAR

20

INSTALLATION » LARGE METAL CONTROL BOX (XLM)

WIRING

Select the knock out in the bottom of the control box based on the application requirements.

1

Depending on the voltage and application the 120 Vac access panel may be

2

removed to access the wiring.

Connect two 7AH batteries, purchased separately. See Accessories page.

3

IMPORTANT NOTE: There are two receptacles located inside the control box. One of the receptacles is for the control board power supply. The second receptacle can be used to power up additional gate operator accessories.

CLOSE

ALARM

SOL

GND

MAGR

LOCK

GATE 1

BR

GR

WH

YL

BL

RD

ACCESSORY POWER

12 V

BR

GR

WH

YL

BL

RD

GATE 2

EDGE

OPEN EDGE/


ON OFF

LEARN

LOCK /

XMITTER

OPEN

BIPART DELAY


CLOSE PHOTO

GATE 1

SET

LEARN

OPEN

CLOSE

LIMITS

LIMIT

GATE 2

SINGLE BUTTON

ON

OFF

TIMER TO

CONTROL

FORCE

CLOSE

INPUTS

OPEN

AUTOOPEN LOW BATT

SINGLE BUTTON

RESET

OFF MAX

STOP

OFF MAX

CTRL PWR

LOOP INPUTS

SHADOW

INTERRUPT

CHGR

PWR

CTRL

OVLD

AC PWR /SOLAR

1

The XLM control box wires the same as the standard control box. Follow all instructions for the standard control box. The illustrations show the standard control box, not the XLM control box.

2

120 Vac ONLY

21

Z1

10A 32V

D1Ø

Z12

ACCESSORY

POWER

GATE 1

NC

GRN

WHT

YEL

BLU

RED

BRN

WIRING

» CONNECT THE GATE OPERATOR (GATE 1) TO THE CONTROL BOX

CONNECT THE GATE OPERATOR (GATE 1) TO THE CONTROL BOX

Select hole in bottom of the control box to be used for the operator cable.

1

Insert the watertight connector into the bottom of the control box and tighten

2

with nut.

Insert the operator cable through the watertight connector mounted in the

3

bottom of the control box.

Extend the operator cable and wires to the Gate 1 connector and connect as

4

shown.

Tighten watertight connector nut.

5

4

Terminal blocks can be removed to simplify wiring.

U4

MAX

C13

C4

F6

F2

FUSE OPEN

Operator Cable

GATE 1

BRN

GRN

WHT

YEL

BLU

RED

Watertight Connector Nut

1

5

3

Nut

Watertight

2

Connector

Moving Gate C

KEEP CLEAR! Gate may move at any time witho

Do n play in th This entrance is for Pedestrians must use separate en

an Cause

Injury or Death

or warning.

erate the gate or

ut pri

ly ren op ld

trance

ot let chi

vehicles on gate area. e

If installing one operator, proceed to page 27. If installing two operators, continue to the next page.

Operator Cable

22

WIRING

SET THE BIPART DELAY (MODEL LA400-S ONLY)

» SET THE BIPART DELAY (MODEL LA400-S ONLY)

In some dual gate installations, one gate will need to open first and close second. This would happen if there was an ornamental overhang on one gate or if using a solenoid lock, for example. This gate is called the Primary gate and needs to be connected to Gate 1 connections on the control board. Thus, it is preferred that the control box be installed on the same side as this gate. If there is no appropriate location on that side for the control box, then mount the control box on the opposite side, but connect the operator closest to the control box to the Gate 2 connector and the operator on the opposite side to the Gate 1 connector.

NOTE:

The gate with the longer travel span (opening) must be set as the primary

gate (GATE 1).

Set the Bipart Delay to desired setting. The range is 0 to 8 seconds, 0 seconds is

1

OFF.

1

BIPART DELAY

BI-PART

DELAY

The following illustration shows a dual gate configuration with a decorative overlapping piece on the outside of the gate.

If a solenoid lock is being used on a gate, the gate with the lock attached to it is the primary gate.

Z9

Z8

OFF MAX

OUTSIDE PROPERTY

Primary Gate - Connect to Gate 1 Connector on Control Board.

Primary Gate

OUTSIDE PROPERTY

23

D15

C2R4

R9

Ø

R196

24 VAC/ SOLAR

GATE 2

ACCESSORY

POWER

GRN

WHT

YEL

BLU

RED

BRN

10A 32V

24V

WIRING » CONNECT THE GATE OPERATOR (GATE 2) TO THE CONTROL BOX (MODEL LA400-S ONLY)

CONNECT THE GATE OPERATOR (GATE 2) TO THE CONTROL BOX (MODEL LA400-S ONLY)

Before digging, contact local underground utility locating companies.

Trench across driveway to bury the extension cable. Use PVC conduit to prevent

1

damage to cables.

Select hole in bottom of the control box to be used for the extension cable.

2

Insert extension cable through watertight connector nut and through an available watertight connector mounted in the control box.

Extend cable and wires to Gate 2 connector and connect as shown.

3

Secure extension cable to control box using watertight connector nut.

4

Junction Box

Extension Cable

PVC conduit at least 18" (45.7 cm) below ground level (grade)

Gate Operator (Gate 2)

e Can Cause

r

jury or Death

g.

n

Moving Gat

i

ate o

ate may move at any

In

G

arn

e g

h r w o

ri

ce

KEEP CLEAR!

rea.

children operate t

time without p

e a

t let

vehicles only

arate entran or

Do no

ce is f

play in the gat

an

ians must use sep This entr Pedestr

Terminal blocks can be removed to simplify wiring.

Control Box

Gate Operator (Gate 1)

3

1

P1

U4

MAX

C13

C4

F6

F2

Operator Cable

GATE 1

BRN

GRN

WHT

YEL

BLU

RED

BRN

GRN

WHT

YEL

BLU

RED

GATE 2

2

4

Extension Cable

PVC Conduit

24

WIRING » JUNCTION BOX (MODEL LA400-S ONLY)

Knock Out

JUNCTION BOX

The following items are required to complete the junction box installation:

• 4 x 4 Junction Box with 3/4" NPT threaded port holes

• Screws

• PVC Conduit

Open the junction box by removing screws (4) and set aside.

1

Select holes to be used for mounting and knock out using a screwdriver and

2

hammer. Drill two holes in the bottom of the junction box large enough for the watertight connectors.

Mount the junction box within 5 feet (1.5 m) of second operator.

3

Route operator cable and extension cable through watertight connector nut and

4

watertight connector.

Insert cables and watertight connectors into the holes in the bottom of the

5

junction box (not provided).

Secure with connector nut.

6

1

2

Knock Out

3

Screws (4)

Junction Box Cover

Within

5’ (1.5 m)

Knock Out

Junction Box

Extension Cable

Gate Operator (Gate 2)

Connector Nut

5

Watertight

Wiretight

Connector

6

Junction Box

Extension Cable

Watertight

Wiretight

Connector

Connector Nut

Operator Cable

4

25

WIRING » JUNCTION BOX (MODEL LA400-S ONLY)

Insert wires from extension cable and operator cable into terminal block connector.

7

Special

Terminal Block

Connector

7

Brown

Green

White

Operator Cable

White

Yellow

Blue

Red

Red Red

Brown

Green

White

Yellow

Blue

Red

Extension CableOperator Cable

Extension Cable

Put wires inside of junction box.

8

Secure operator and extension cables with watertight connector nut.

9

Reinstall cover.

10

Extension Cable

10

Terminal Block

Operator Cable

Watertight Connector Nut

Screws (4)

8

Watertight Connector Nut

9

26

WIRING » CONNECT TRANSFORMER TO CONTROL BOARD

CONNECT TRANSFORMER TO CONTROL BOARD

NOTE:

All power wiring should be on a dedicated circuit, calculated using NEC guidelines. Local codes and conditions must be reviewed for suitability of wire installation.

EXTERNAL RECEPTACLE

The transformer can be plugged into a receptacle external to the control box.

1

Run low voltage wire between the transformer and control box.

2

NOTE:

The transformer must be located in a dry location that is protected

from weather conditions, such as inside the house or garage.

This will create more space in the standard control box for accessories.

se u

a C n a C

e

ny

at

a

t

G

a

Death

e

r g

ov

n

m y

vi

a .

ury o

m

j

e or

e

Mo

t

n

at

a

I

ning r

G

g

a w

AR!

ior

ate the

pr

r

out

EP CLE

e

h

E

n ope

t

y

e

K

anc

wi

dr

r

t

hil

n

rea.

ime

e

les onl

c

t

c

a e

Control Box

t let t o ga n he t

Do

s for v

e in

e i y

us

a

t

l

nc a

p

r t n

mus ns

s e i a i

h

r

T

t s de

e P

te a ehi par e s

Operator

2

OR

INTERNAL RECEPTACLE

Connect 120 Vac directly to the control box and plug the transformer into the

1

receptacle inside the control box.

Control Box

1

Transformer

1

Dedicated Outlet

Circuit Panel

Transformer

Refer.

Bus 1, 2, 3

Conference

Rm 2, 3

Conference

Room 1

Conference

Room 2

Comp.

Serve 2

Air (2)

Conditioner

Comp.

Serve 1

Off

Air (1)

Conditioner

Main Room

LA400

On

Off

On

Off

On

Off

Bathroon.

Eug. Dept.

Manu. 1 Rm

Main Dept.

Off

Manu. 2 Rm

27

FUSE OPEN

Z1

FUSE OPEN

R4

GATE 2

ACCESSORY POWER

MAGLOCK

ALARM

GATE 1

J4

D15

C2

MOV2

C2R4

24 VAC/

SOLAR

INPUT

J4

WIRING » EARTH GROUND ROD INSTALLATION (OPTIONAL) + CONNECT BATTERIES

BAT T 1

MOV2

24 VAC/

INPUT

J4

EARTH GROUND ROD INSTALLATION (OPTIONAL)

NOTE:

For proper operation, do not connect the earth ground rod to the green

screw on the outlet plate.

Install earth ground rod within 3 feet (0.9 m) of the operator.

1

Disconnect and remove the green/yellow ground wire connected to the screw

2

terminal of the control board.

Attach earth ground rod wire to the screw terminal of the control board

3

marked

. Ensure the power wiring ground connection remains securely

connected to the green screw on the outlet plate.

CONNECT BATTERIES

The batteries are the main source of power for the operator. The operator is a battery run system. Both batteries are charged in circuit using the transformer (provided). The 24 Vac input can accept a charging transformer (26 Vac, 29 VA or 36 Vdc, 40 VA).

Connect the plugs from the batteries to the connectors on the control board.

1

Ground Screw

Control Box

3' (0.9 m)

12 Gauge Wire

8' (2.4 m)

Earth Ground Installation (Optional)

POWER

C2

C64

U2

BATT 1BATT 2

USE DEDICATED CIRCUIT

1

BATT 2 Connector

28

BATT 1 Connector

ADJUSTMENT » SET DIP SWITCH

S1

SAVE

MAGLOCK MODE EDGE PHOTO

OFF

SINGLE

NO NO

ON

ON DUAL NC NC

1 2 3 4 5

O

N

SET DIP SWITCH

The Save switch must be in the OFF position prior to adjusting the switches. After the adjustments are made the Save switch must be in the ON position in order for the changes to be saved.

Set the Save switch to the OFF position.

1

Set switch to Single for single gate installation. For Dual (Gate 1 and 2)

2

installation set switch on Dual Mode.

Set the Save switch to the ON position.

3

2

SINGLE

1

OFF OFF

NO NO

OFF OFF

NO NO

O

N

1 2 3 4 5

ON ON DUAL MODE NC NC

O

N

1 2 3 4 5

O N

1 2 3 4 5

OFF

ON

SAVE

OFF

ON

MAGLOCK

SINGLE

DUAL

MODE

NO

NC

EDGE

NO

NC


S1

ON ON DUAL MODE NC NC

GATE 1

GATE 1 AND GATE 2

3

SINGLE

OFF OFF

NO NO

N

O

1 2 3 4 5

ON SAVE ON DUAL MODE NC NC

29

ADJUSTMENT » LIMITS

SET OPEN LIMIT

SET

CLOSE

DIAGNOSTIC

GATE 1

SET

CLOSE

DIAGNOSTIC

GATE 1

CLOSE

DIAGNOSTIC

GATE 1

SET

CLOSE

DIAGNOSTIC

GATE 1

SET

OPEN LIMIT

SET

CLOSE

LIMIT

SET

OPEN LIMIT

SET

CLOSE

LIMIT

SET

OPEN LIMIT

SET

CLOSE

LIMIT

SET

OPEN LIMIT

SET

CLOSE

LIMIT

LIMITS

The limits are internal settings that indicate when the gates are in the fully open position and the fully closed position. For proper functionality, the limits must be programmed during the installation process. The programming uses a combination of buttons on the control board.

The specific buttons used for programming depends on which side of the gate the control box is mounted and how many operators the installation includes. Refer to pages 11 and 12 to determine if the gate is Left-handed or Right-handed.

If a mistake is made during programming press the RESET button on the outside of the control box to start over. The programming times-out automatically after 60 seconds of inactivity.

Close the gate.

1

Engage the operator by turning the release lever clockwise 180°, then turning

2

the key clockwise 180°.

SINGLE ARM LEFT-HAND SIDE

PROGRAM OPEN

Press the LEARN LIMITS button (SET OPEN LIMIT LED will blink).

3

LEARN LIMITS button

R2

K2

U4

D4

D2

RESET

BUTTON

Press the Gate 1

4

right button to move gate to the desired OPEN position.

When gate is in the desired position, press the LEARN LIMITS button again. Control

5

board will beep.

OR

PROGRAM OPEN

3

4

5

SINGLE ARM RIGHT-HAND SIDE

Press the LEARN LIMITS button (SET OPEN LIMIT LED will blink).

LEARN LIMITS button

OFF

D9

Z3

Z4

U3

D4

D1

D2

D6

Press the Gate 1 left button to move gate to the desired OPEN position.

When gate is in the desired position, press the LEARN LIMITS button again. Control board will beep.

R2

R1

F3

K2

RESET

BUTTON

SET

PROGRAM CLOSE

Press the Gate

6

1 left button to

PROGRAM CLOSE

When the SET CLOSE LIMIT LED blinks, press the Gate 1 right button.

6

move gate to the desired CLOSED position.

When gate is in the desired closed position,

7

press the LEARN LIMITS button again.

When gate is in the desired closed position,

7

press the LEARN LIMITS button.

The control board beeps and the SET OPEN LIMIT and SET CLOSE LIMIT LEDs stop blinking, programming is now complete. (If the SET OPEN LIMIT LED continues to blink, repeat programming. If the problem continues, see Troubleshooting section.)

Test the limits by pressing the SBC to open and close the gate.

30

FORCE

GATE 2

SET

CLOSE

LIMITS

FORCE

GATE 2

SET

CLOSE

LIMIT

SET

CLOSE

DIAGNOSTIC

GATE 1

ADJUSTMENT » LIMITS

SET OPEN LIMIT

SET

OPEN LIMIT

SET

CLOSE

LIMIT

SET

OPEN LIMIT

SET

CLOSE

LIMIT

SET

CLOSE

DIAGNOSTIC

GATE 1

LIMITS

NOTES:

gate with the longer travel span (opening) must be set as the primary gate (GATE 1).

• The

• If

one gate is overlapping the other, the gate that is overlapping must be connected to GATE 1 so it will start moving before the other gate; GATE 2 may need to be closed

first if there is overlap or a gate lock is being used.

• The

programming can be exited at any time by pressing the RESET button. Programming times-out automatically after 60 seconds of inactivity.

DUAL GATE (LEFT-SIDE PRIMARY OPERATOR)

Close the gate.

1

Engage the operator by turning the release lever clockwise 180°, then turning

2

the key clockwise 180°.

PROGRAM OPEN

LEARN LIMITS button

Press the LEARN LIMITS button

3

(SET OPEN LIMIT LED will blink).

R2

K2

U4

Press the GATE 1

4

right button to open the left operator.

PROGRAM CLOSE

When the SET CLOSE LIMITS LED blinks,

7

press the GATE 2 left button to close the right operator.

Press the GATE 2

right button to move

5

the right operator into the OPEN position.

Press the GATE 1 left

8

button to close the left

operator.

D4

D2

RESET

BUTTON

Press the LEARN LIMITS

button. Control board

6

will beep.

Press the LEARN LIMITS button.

9

The control board beeps and the SET OPEN LIMIT and SET CLOSE LIMIT LEDs stop blinking, programming is now complete. (If the SET OPEN LIMIT LED continues to blink, repeat programming. If the problem continues, see Troubleshooting section.)

Test the limits by pressing the SBC to open and close the gate.

31

SET

CLOSE

DIAGNOSTIC

GATE 1

FORCE

GATE 2

SET

CLOSE

LIMITS

SET

CLOSE

DIAGNOSTIC

GATE 1

FORCE

GATE 2

SET

CLOSE

LIMIT

ADJUSTMENT » LIMITS

SET OPEN LIMIT

SET

OPEN LIMIT

SET

CLOSE

LIMIT

SET

OPEN LIMIT

SET

CLOSE

LIMIT

LIMITS

NOTES:

• The

gate with the longer travel span (opening) must be set as the primary gate (GATE 1).

• If

one gate is overlapping the other, the gate that is overlapping must be connected to GATE 1 so it will start moving before the other gate; GATE 2 may need to be closed

first if there is overlap or a gate lock is being used.

• The

programming can be exited at any time by pressing the RESET button. Programming times-out automatically after 60 seconds of inactivity.

DUAL GATE (RIGHT-SIDE PRIMARY OPERATOR)

Close the gate.

1

Engage the operator by turning the release lever clockwise 180°, then turning

2

the key clockwise 180°.

PROGRAM OPEN

LEARN LIMITS button

Press the LEARN LIMITS button

3

(SET OPEN LIMIT LED will blink).

R2

K2

U4

Press the GATE 1

4

left button to open the right operator.

PROGRAM CLOSE

When the SET CLOSE LIMITS

7

LED blinks, press the GATE 2 right button to close the left operator.

D4

D2

RESET

BUTTON

Press the GATE 2 left

56

button to move the left

LIMIT

operator into the OPEN position.

LIMIT

Press the GATE 1

8

right button to close the right operator.

Press the LEARN LIMITS button. Control board will beep.

Press the

9

LEARN LIMITS button.

The control board beeps and the SET OPEN LIMIT and SET CLOSE LIMIT LEDs stop blinking, programming is now complete. (If the SET OPEN LIMIT LED continues to blink, repeat programming. If the problem continues, see Troubleshooting section.)

Test the limits by pressing the SBC to open and close the gate.

32

ADJUSTMENT » FORCE ADJUSTMENT + TIMER-TO-CLOSE (TTC)

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing gate.

• Too much force on gate will interfere with proper operation of safety reversal system.

• NEVER increase force beyond minimum amount required to close gate.

• NEVER use force adjustments to compensate for a binding or sticking gate.

FORCE ADJUSTMENT

The operator is equipped a with an obstruction current sensing feature. If the gate encounters an obstruction the operator will automatically reverse direction and stop. Based on the length and weight of the gate it may be necessary to make force adjustments. The force adjustment should be high enough that small objects such as branches or wind will not cause nuisance interruptions but low enough to prevent serious injury to a person or a vehicle.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Gate MUST reverse on contact with a rigid object.

1

TO ADJUST THE FORCE

Using the 3-button remote or the Single Button Control (SBC) button on the

1

control board, open and then close the gate.

If the gate stops or reverses before reaching the fully open or closed position

2

increase the force by turning the force control slightly.

Run operator through a complete cycle.

3

Test the force by making sure the gate will stop and reverse on contact with an

4

obstruction.

NOTE:

Weather conditions can affect the gate movement, so seasonal adjustment

may be required. The force control is factory set to the mid position.

TIMER-TO-CLOSE (TTC)

The Timer-to-Close feature can be set to automatically close the gate after a specified time period. The TTC is factory set to OFF.

If the TTC is set to the OFF position, then the gate will remain open until the operator receives another command from a remote control or SBC. The gate must be fully open for the timer feature to activate and close the gate.

TO SET THE TIMER-TO-CLOSE

Rotate the Timer-to-Close dial to the desired setting. The range is 0 to

1

180 seconds, 0 seconds is OFF. The "TIMER RUNNING LED" will flash once for every second of adjusted time.

NOTE:

Any radio command, SBC or CLOSE command on the control board prior to the TTC expiring will close the gate. The TTC is reset by any signals from the loops, close edges and close photoelectric sensors (IR’s).

FORCE

2

OFF

D4

D2

MAX

3

TIMER TO

CLOSE

TIMER TO CLOSE

1

OFF

D4

D2

MAX

33

PROGRAMMING » REMOTE CONTROLS + KEYLESS ENTRY + ERASE ALL CODES + TEST

A combined total of 50 remote controls and keyless entry PIN can be programmed to the operator. For highest level of security, we recommend the Security✚ products. Refer to Accessories.

TO ADD OR REPROGRAM A REMOTE CONTROL (NOT PROVIDED)

Press LEARN XMITTER button and release (LED will light up).

1

Press the remote control button. The LED will flash and the alarm output will

2

activate twice.

To program additional remote controls, repeat steps until all remote controls are programmed.

TO ADD A WIRELESS KEYLESS ENTRY (NOT PROVIDED)

Press LEARN XMITTER button and release (LED will light up).

1

Enter a 4-digit personal identification number (PIN) of your choice on the

2

keypad.

®

line of

1

Remote Control LEARN XMITTER Button

LEARN

XMITTER

R1

Remote Control LEARN XMITTER Button

LEARN

XMITTER

R1

LEARN XMITTER

K5

2

LEARN

XMITTER

K5

? ? ? ?

2

PIN Number

Press the ENTER button on the keypad. The LED will flash and the alarm output

3

will activate twice.

TO ERASE ALL CODES

Press and hold the LEARN XMITTER button on control board until the learn

1

indicator light goes out (approximately 6 seconds). All previous codes are now erased.

NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

TEST

After any adjustments are made, test the operator:

Use the Single Button Control (SBC) button to open and close the gate.

1

Remote Control LEARN XMITTER Button

LEARN

XMITTER

R1

LEARN

XMITTER

K5

Test the limits by making sure the gate is stopping at the OPEN and CLOSE

2

limits.

Test the force by making sure the gate will stop and reverse on contact with an

3

obstruction.

34

ADDITIONAL FEATURES » DIP SWITCH SETTINGS

S1

SAVE

MAGLOCK MODE EDGE PHOTO

OFF

SINGLE

NO NO

ON

ON DUAL NC NC

1 2 3 4 5

O

N

DIP SWITCH SETTINGS

The Save switch must be in the OFF position prior to adjusting the switches. After the adjustments are made the Save switch must be in the ON position in order for the changes to be saved.

SAVE SWITCH S1-1

A

This switch (S1-1) is used to save the settings for switches 2 through 5.

MAG DELAY ENABLE

B

This switch (S1-2) enables the Maglock feature. On an open command there will be a 1/2 second delay before the motor starts, to allow the Maglock to release.

MODE DUAL/SINGLE

C

This switch (S1-3) sets the mode as Dual or Single (Refer to page 29).

SAFETY INPUTS

DA

Swing gates allow four safety inputs. A DIP switch is required for determining between N/O and N/C edges and N/O and N/C eyes.

O

N

1 2 3 4 5

OFF

ON

SAVE

OFF

ON

MAGLOCK

SINGLE

DUAL

MODE

NO

NC

EDGE

NO

NC


S1

SAVE OFF

O

N

1 2 3 4 5

O

N

1 2 3 4 5

SAVE ON

EDGE INPUT Set switch (S1-4) to the following settings: N/O Edge (Active Close) = N/O dry contact edge or monitored edge

NOTE:

Monitored Edges should be set in the N/O position, as the activation

condition is shorting the terminals.

EYE INPUT This switch (S1-5) differentiates between N/O and N/C dry contact

photoelectric eye inputs.

NOTE:

Pulsing Chamberlain (CPS-L) photoelectric eyes will automatically

learn in N/O mode (See Accessories).

MAGLOCK

B

C

NO

D

NO

OFF

OFF OFF

SINGLE

NO NO

OFF OFF

EDGE

OFF OFF


N

O

N

O

N

1 2 3 4

O

N

O

1 2 3 4 5

1 2 3 5

ON

O

N

1 2 3 4 5

MAGLOCK ON

O

N

1 2 3 4 5

ON ON

DUAL

NC NC

O

N

1 2 3 4

ON

EDGE NC

O

N

1 2 3 5

ON

PHOTO NC

35

COM

M

CONTROL

INPUTS

OPEN

SINGLE BUT T O N

RESET

S T O P

POWER

ADDITIONAL FEATURES » CONTROL INPUTS

COM

M

CONTROL

INPUTS

OPEN

SINGLE BUT T O N

RESET

S T O P

POWER

CONTROL INPUTS

WIRE STOP BUTTON (OPTIONAL) A jumper wire is factory installed between the stop and common input. Stop (N/C) - Stop only (does not reset alarm).

NOTE:

Stop jumper is required for normal operation (the Stop LED will be lit except when the control board goes into Sleep Mode). Remove only if remotely mounted Stop button is added.

OPEN Opens only or reverses a closing gate.

SINGLE BUTTON

CONTROL INPUTS

OPEN

RESET

STOP

COM

SBC (SINGLE BUTTON CONTROL) INPUT This input will command the gate to OPEN / STOP / CLOSE / STOP in sequence.

RESET CONTROL INPUT The control box has a factory installed internal reset button. These terminals are

intended for use with a single reset button that is installed within line of sight of the gate. This input functions to reset the alarms. This input will NOT stop the gate.

NOTE:

All Control Inputs must be Normally Open (N.O.) dry contact type.

C2

OPEN

COMMON

AND/OR

SINGLE BUTTON

COMMON

AND/OR

CONTROL

INPUTS

OPEN

RESET

STOP

COM

COMMON

RESET

36

SHADOW

INTERRUPT

COM

LOOP

INPUTS

BATT 1BATT 2

ADDITIONAL FEATURES » LOOP INPUTS + PHOTO/EDGE INPUTS (P6-7-8 AND 9)

LOOP INPUTS

OPEN INPUT AND EXIT LOOP These terminals are intended for use as a general open control. Accessories such as

telephone entry systems, radio receivers (open only applications), exit loop detectors, keypads and 7-day timers may be wired to this input.

SHADOW LOOP INPUT TERMINAL AND COMMON This input protects cars by preventing the gate from moving off of the open or close

limit when the shadow loop input is active.

NOTE:

Shadow loop is disabled when gate is moving.

INTERRUPT LOOP INPUT TERMINAL AND COMMON This input functions to reverse a closing gate to the open limit. Latching this input

will reset the timer to close.

S8

LOOP

C2

INPUTS

NORMALLY OPEN SHADOW LOOP

NORMALLY OPEN INTERRUPT LOOP

COMMON LOOP

PRESENCE

RELAY 2

SENS

FREQ

MADE IN USA

EXIT LOOP

PHOTO/EDGE INPUTS (P6-7-8 AND 9)

TERMINAL P6 – CLOSE SAFETY EDGE This input will reverse a closing gate. It will disable the Timer-to-Close if that feature

has been enabled. Activating this input while the gate is opening will have no effect. Order part number LA400-BOX to enclose safety electronics.

TERMINAL P8 – OPEN SAFETY EDGE/PHOTOELECTRIC SENSOR (ENTRAPMENT) If an Open Edge device or a Retro-Reflective Photoelectric Sensor has been

connected to Terminal P8, then this input will reverse an opening gate for 2 seconds then stop. Activating this input with an Open Edge device or a Retro-Reflective Photoelectric Sensor connected to Terminal P8 while the gate is closing will have no effect.

If a Chamberlain Pulsing Photoelectric Sensor (See Accessories) has been connected to Terminal P8, then this input will pause an opening gate until the obstruction has been removed. Upon removing the obstruction, the gate will continue to open. Activating this input with a Chamberlain Pulsing Photoelectric Sensor (See Accessories) connected to Terminal P8 while the gate is closing will have no effect.

NOTE:

Additional enclosure required. Refer to loop detector manufacturer instructions for connections.

CLOSE EDGE

OPEN EDGE/ PHOTO

OPEN PHOTO

CLOSE PHOTO

OPEN EDGE


C2

OPEN


blue

brown

blue

brown brown

blue

brown

TERMINAL P7 – OPEN SAFETY PHOTOELECTRIC SENSOR (ENTRAPMENT) This input will pause an opening gate until the obstruction has been removed. Upon

removing the obstruction, the gate will continue to open. Activating this input while the gate is closing will have no effect.

TERMINAL P9 – CLOSE SAFETY PHOTOELECTRIC SENSOR This input will reverse a closing gate to the open limit. Activating this input while the

gate is opening will have no effect. The Timer-to-Close will reactivate at the open limit.

37

CLOSE PHOTO

brown

blue

ADDITIONAL FEATURES » SAFETY ACCESSORIES FOR SECONDARY ENTRAPMENT PROTECTION

SAFETY ACCESSORIES FOR SECONDARY ENTRAPMENT PROTECTION

The following devices are acceptable for Safety Accessories for secondary entrapment protection. These devices have been tested with the LA400 to meet the requirements of UL325 and UL991.

PHOTOELECTRIC CONTROLS

MODEL

CPS-LN4

CPS-RN4

Emitter, receiver and mounting brackets - 30 feet (9 m) Ranges

Emitter with reflector and mounting brackets

DESCRIPTION

SENSING EDGES

VOLTAGE +24 Vdc +24 Vdc

MODEL G65MG0204 G65MG0205

G65MGR205 G65MGS205

Solenoid Lock

(optional)

Maglock

(optional)

MAGLOCK

ACCESSORY

POWER

MAGLOCK

(not provided)

NO

C

NC

NO

C

NC

Miller MG020 2-wire electric edge for gates. Sensitized on three sides. (Requires mounting channel. PIN:G65ME120C5) Miller MG020 2-wire electric edge for gates. Sensitized on three sides. (Requires mounting channel. PIN:G65ME120C5) Miller MGR20 2-wire electric edge in 5 feet (1.5 m) lengths for 2 inch (5 cm) round post. Miller MGR20 2-wire electric edge in 5 feet (1.5 m) lengths for 2 inch (5 cm) square post.

24V

MAX CURRENT DRAW:

• 115 Vac power to control box - 500 mA

accessory power, 150 mA switched accessory power.

• 24 V power to control box depending on

wire gauge and distance - 300 mA accessory power, 75 mA switched accessory power.

Flashing Strobe (optional)

Siren (optional)

Fault Alarm

Provides 24 Vdc. Do not exceed 500mA

with 115 Vac power supply or 300mA with 24 Vac power supply.

DESCRIPTION

MAGLOCK

When enabled, the Maglock output is activated (energized) while the gate is in motion.

P2

ALARM

MAGLOCK

GATE 1

ACCESSORY

POWER

GATE 2

J4

J19

D15

SOLAR INPUT

10A 32V

R9

R196

K6

J1

K5

L1

S8

1

R2

LEARN

SINGLE

XMITTER

R1

2

F3

Ø

D1

K2

DIAGNOSTIC

SET

K1

Q9

OPEN

LIMIT

Ø

1

R1

ØØ

F4

ACCESSORY

10A 32V

MOV2

OVLD

K4

F5

D21

K3

D8

D22

Q22

MOV1

JMPR2

DB1

NO

C

NO

C

NC

Z1

BRN

GRN

WHT

YEL

BLU

RED

Z12

24V

BRN

GRN

WHT

YEL

BLU

RED

C2 R4

24 VAC/

Ø

14GPØ89ØE

Ø

14LGØ89ØE

Ø

14SKØ89ØE

O

N

1 2 3 4 5

OFF

ON

C64

FORCE

C12

U2

SAVE

ON

MAGLOCK

DUAL

MODE EDGE

NC


NC

S1

GATE 1

SET

LEARN

CLOSE

LIMITS

LIMIT

TIMER

GATE 2

RUNNING

BIPART

DELAY

R35

D9

D27

Z3

Z4

U3

R9

D1

JMPR1

D6

OFF

NO NO

MIN MAX OFF MAX OFF MAX

C11

AUXILIARY OUTPUT POWER FOR OPTIONAL DEVICES

(2) +24 Vdc Outputs have been provided for optional devices

D4

TIMER TO

D2

P1

CLOSE

F7

C13

R223

R2

Ø

7

Ø

Z2

R227

J18

R224

Z22

U4

R92

R91

R94

R93

SINGLE

BUTTON

SINGLE BUTTON

POWER

C4

SHADOW

INTERRUPT

CHGR OVLD

F6

F2

F1 20A 32V

FUSE OPEN

COM OVLD

OPEN

RESET

STOP

OVLD

BATT 1 BATT 2

CLOSE EDGE

OPEN EDGE/

PHO T O

Z9

OPEN PHO T O

Z8

CLOSE PHO T O

SWITCHED

ACCESSORY

POWER

CONTROL

INPUTS

LOOP

INPUTS

Accessory

Power

24V

COM

Make sure the rubber seal around the cover is intact and close the cover. Secure the control box cover with screws (4). Installation is complete.

38

RESET

OPERATION AND MAINTENANCE » RESET BUTTON + REMOTE CONTROL + MANUAL RELEASE

RESET BUTTON

The reset button is located on the outside of the control box and serves several functions.

PROGRAMMING LIMITS RESET

If a mistake is made while programming the limits press the reset button to

start over.

OPERATOR ALARM

The operator alarm will sound under the following condition: If gate encounters

two consecutive obstructions, before reaching the open or close limit, the operator will stop, the alarm will sound (up to 5 minutes) and the control board will require resetting. No commands will operate the gate during this time. Reset the control board by pressing the reset button. After the operator is reset, normal functions will resume.

PARTY MODE (TIMER DEFEAT - HOLD OPEN)

When the Timer-to-Close feature is activated for normal daily operation and

you wish to leave the gate(s) in the open position for any extended period of time you can activate the Party Mode.

To set Party Mode: open the gate fully, then press the reset button. The next

command given by remote control or SBC on the control board will close the gate and return the operator to normal operation.

REMOTE CONTROL

Once the remote control has been programmed operator will operate as follows: When gate is in the closed position, activation of the remote control button will open

the gate. During the open cycle another activation of the remote control will stop the gate and the next activation of the remote control will close the gate.

When the gate is in the open position, activation of the remote control button will close the gate.

Reset Button

SET

RE

MANUAL RELEASE

In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function.

RELEASE

Insert the key into the lock.

1

Turn the key counter-clockwise 180°.

2

Turn the release lever counter-clockwise 180°.

3

Operator is in manual mode and the gate can be opened and closed manually.

ENGAGE

Turn the release lever clockwise 180°. This engages the motor.

1

Turn the key clockwise 180°. This locks the release lever.

2

Remove the key and store in a safe place.

3

The operator is now engaged.

1

2

3

39

OPERATION AND MAINTENANCE » MAINTENANCE

MAINTENANCE

Disconnect power before servicing.

CHECK AT LEAST ONCE EVERY DESCRIPTION TASK MONTH 6 MONTHS 3 YEARS

External Entrapment Protection System Check and test for proper operation X Manual Release Check and test for proper operation X Gate Inspect for wear or damage X Accessories Check all for proper operation X Electrical Inspect all wire connections X Mounting Hardware Check for tightness X Batteries Replace X Operator Inspect for wear or damage X Warning Signs Make sure they are present X

NOTES:

•

Severe or high cycle usage will require more frequent maintenance checks.

•

Inspection and service should always be performed anytime a malfunction is observed or suspected.

•

When servicing, please do some “house cleaning” of the operator and the area around the operator. Pick up any debris in the area. Clean the operator as needed.

•

It is suggested that while at the site voltage readings be taken at the operator. Using a Digital Voltmeter, verify that the incoming voltage to the operator it is within ten percent of the operator’s rating.

•

See page 33 for instructions on how to adjust the gate force.

40

26

TROUBLESHOOTING » BASIC CONTROL BOARD LAYOUT

BASIC CONTROL BOARD LAYOUT

14

13

18

12

11*

10

21

ALARM

MAGLOCK

GATE 1

ACCESSORY

POWER

GATE 2

J4

Ø

14GPØ89ØE

Ø

14LGØ89ØE

Ø

14SKØ89ØE

1 2 3 4 5

ON ON DUAL NC NC

GATE 1

LEARN

LIMITS

GATE 2

D27

R9

JMPR1

SAVE MAGLOCK MODE EDGE PHOTO

BIPART

DELAY

R35

D9

Z3

Z4

TIMER

RUNNING

U3

D1

D6

P2

D4

D2

P1

TIMER TO

CLOSE

F7

C13

1

R223

CLOSE

OVLD

BATT 1BATT 2

EDGE

2

OPEN EDGE/


3

Z9

OPEN PHOTO

4

Z8

CLOSE PHOTO

5

24V

SWITCHED

ACCESSORY

POWER

CONTROL

INPUTS

6*

22

7

COM

LOOP

INPUTS

COM

8

Ø

7

R2

Z2

Ø

R227

J18

R224

BUTTON

C4

SINGLE

FUSE OPEN

Z22 R92

R91

R94

R93

SINGLE BUTTON

POWER

SHADOW

INTERRUPT

CHGR OVLD

0

A 32V

F1 2

COM

OVLD

OPEN

RESET

STOP

U4

F6

F2

20

K6

NO

C

NO

C

NC

Z1

10A 32V

BRN

GRN

WHT

YEL

BLU

RED

Z12

R9

Ø

24V

BRN

GRN

WHT

YEL

BLU

RED

D15

R196

C2 R4

24 VAC/

INPUT

F3

D1

Ø

K1

10A 32V

MOV2

19

17

J19

J1

K5

L1

O

S8

1

R2

LEARN

XMITTER

R1

2

K2

DIAGNOSTIC

SET

Q9

OPEN LIMIT

Ø

1

R1

ØØ

F4

ACCESSORY

OVLD

K4

F5

D21

K3

D8

D22

Q22

MOV1

JMPR2

DB1

N

OFF OFF

SINGLE

NO NO

S1

SET

CLOSE

LIMIT

FORCE

MIN MAX OFF MAX OFF MAX

C12

C11

C64

U2

9 23 24 25 15

ITEM DESCRIPTION FUNCTION 1 Connector P1 Antenna Input

2 Connector P6 Close Edge 3 Connector P8 Open Edge/Photo 4 Connector P7 Open Photo 5 Connector P9 Close Photo 6 Connector P12 Switched Accessory Power* 7 Connector P10 Control Inputs 8 Connector P11 Loop Inputs 9 Connector P5 24 Vac Input 10 Connector P16 Gate 2 11 Connector P13 Accessory Power* 12 Connector P17 Gate 1 13 Connector P14 Maglock/Solenoid

*See page 38 for max current draw

16

ITEM DESCRIPTION FUNCTION 14 Connector P15 Alarm

15 Connector Battery 1 16 Connector Battery 2 17 DIP Switch S1 18 Pushbutton Learn Xmitter - Program Remote 19 Pushbuttons Gate 1 - Jog Learn Limit 20 Pushbutton Learn Limits 21 Pushbuttons Gate 2 - Jog Learn Limit 22 Pushbutton Single Button 23 Potentiometer Force 24 Potentiometer Bipart Delay 25 Potentiometer Timer-to-Close 26 Connector Receiver

41

TROUBLESHOOTING » WIRING DIAGRAM + DIAGNOSTIC CODES

22. SBC (SINGLE BUTTON CONTROL)

To protect against fire and electrocution:

• DISCONNECT power and battery BEFORE installing or servicing operator.

WIRING DIAGRAM

(not provided)

NO

C

NO

C

NC

Z1

BRN

GRN

WHT

YEL

BLU

RED

Z12

24V

BRN

GRN

WHT

YEL

BLU

RED

D15

C2 R4

24 V AC /

INPUT

J4

9

BLUE

10 A 32 V

R196

YELLOW

MAGLOCK

D1

R9

ÿ

NO

C

NC

K6

K5

1

R2

LEARN

XMITTER

R1

2

F3

ÿ

K2

SET

K1

Q9

OPEN

LIMIT

R1

ÿ

1

R1

ÿÿ

F4

10 A 32 V

K4

K3

Q22

MOV2

MAGLOCK

Solenoid Lock

(optional)

(not provided)

Flashing Strobe (optional)

Siren (optional)

Fault Alarm

GATE 1

GATE 2

(OR OPTIONAL EARTH GROUND WIRE)

NOTE: Yellow/green wire must be disconnected when earth ground rod is installed.

NO

C

NC

GROUND

Maglock

(optional)

13

B R N

G R N

W H T

YE L

B L U

R E D

12

11

B R N

G R N

W H T

YE L B L U

R E D

10

YELLOW/GREEN

14

ALARM

MAGLOCK

GATE 1

ACCESSORY

POWER

G A TE 2

For continued protection against fire:

• Replace ONLY with fuse of same type and rating.

1. ANTENNA INPUT

2. CLOSE EDGE

3. OPEN EDGE/PHOTO EYE

4. OPEN PHOTO EYE

5. CLOSE PHOTO EYE

6. 24VDC ACCESSORY OUTPUT

7. CONTROL INPUTS/EXIT LOOP

8. LOOP INPUTS, SAFETY/SHADOW

9. TRANSFORMER INPUT

10. SECOND - OPERATOR ARM CONNECTION

11. 24VDC ACCESSORY OUTPUT

12. MASTER OPERATOR ARM CONNECTION

J19

J1

17

L1

S8

23

ACCESSO R Y

OVLD

F5

D21

D8

D22

MOV1

JMPR2

DB1

O

N

1 2 3 4 5

OFF

ON

OFF

SINGLE

18

DIAGNOSTIC

21

ON DUAL

NO

NC

NO

NC

S1

19

G A TE 1

SET

LEARN

CLOSE

LIMITS

LIMIT

G A TE 2

BI P A R T

24

DEL A Y

FORCE

MIN MAX OFF MAX OFF MAX

R35

D9

C12

D27

Z3

Z4

C 1 1

R9

C64

JMPR1

U2

S A V E MAGLOCK MODE EDGE PHO T O

20

U3

D1

D6

P2

TIMER

RUNNING

D4

1

TIMER T O

CLOSE

F7

D2

ANTENNA

CONNECTION

P1

R2

J18

R224

U4

22

SINGLE

BUT T O N

C13

C4

F6

F2

FUSE OPEN

16

BLACK

ÿ

7

ÿ

Z2 R227

SINGLE BUT T O N

25

CHGR OVLD

F1 20 A 32 V

RED

R223

Z22

R92

R91

R94

R93

COM

OVLD

OPEN

RESET

S T O P

POWER

SHADOW

INTERRUPT

13. MAGLOCK/SOLENOID OUTPUT

14. FAULT ALARM OUTPUT

15. BATTERY INPUT #1

16. BATTERY INPUT #2

17. DIP SWITCH, S1

18. LEARN XMITTER

19. MASTER GATE JOG

20. LIMIT SET

21. SECOND GATE JOG

23. FORCE SET

24. BIPART DELAY SET

25. TIMER TO CLOSE SET

2

CLOSE EDGE

OPEN EDGE/

PHO T O

Z9

OPEN PHO T O

Z8

CLOSE PHO T O

24V

SWITCHED ACCESSO R Y

OVLD

POWER

CONTROL

INPUTS

COM

LOOP

INPUTS

COM

OR

EDGE EDGE

3

OR OR

EDGE

4

PHO T O

5

PHO T O

6

IN LOW POWER MODE

EDGE

OR OR

PHO T O

OR OR

PHO T O

24VDC OUTPUT SWITCHED OFF

OPEN (EXI T LOOP )

SINGLE BUT T O N

RESET S T O P

COMMON (+24VDC) COMMON (+24VDC)

7

SHADOW LOOP

INTERRUP T LOO P

COMMON (+24VDC)

CPS-LN4

8

B A T T 1 B A T T 2

15

RED

BLACK

NOTE: Batteries must be connected to operate.

# OF BLINKS MEANING 1 No Stop Switch Connected 2 Gate 1 Arm Disengaged 3 Gate 2 Arm Disengaged 4 Both Gate Arms Disengaged 5 RPM Reversal

DIAGNOSTIC CODES

# OF BLINKS MEANING 6 Force Reversal 7 Processor Reset 8 ROM Check Failed 9 RAM Check Failed 10 EEPROM Check Failed - Reset Limits

42

TROUBLESHOOTING » TROUBLESHOOTING CHART

FAULT POSSIBLE CAUSE FIX

OPERATOR IS DEAD No LED lights are on.

OPERATOR DOES NOT RUN Operator does not respond to any commands.

MOTOR DOES NOT RUN Relays “click” when radio or SBC signal is given, but the operator does not move.

GATE STOPS AND REVERSES (Force Reversal)

RPM REVERSAL

1) No voltage to board. Battery must be >23 V, AC or needs to be connected.

2) Bad control board. Replace control board.

1) Low/disconnected battery. Voltage must be >23 V at battery connection.

2) Remote not programmed. See Programming Remote instructions.

3) STOP connection loose/disconnected. Check STOP connections.

4) Constant Open Command (Check LED’s). Clear all Open/Safety devices from obstruction.

5) Limits not programmed correctly. See Programming Limits instructions.

6) Bad control board. Replace control board.

1) Low Battery. Voltage must be >23 V at battery connection.

2) Cable wiring between control box and Check wiring on control board to arm, replace wire if needed. operator arm disconnected or loose.

3) Batteries not connected. Connect batteries.

4) Bad motor. Replace motor.

5) Bad control board. Replace control board.

1) Gate met an obstruction. Clear gate from obstruction.

2) Force set too low. See Force Adjustment section.

3) Bad gate hardware. Service/replace gate hardware.

4) Incorrect Arm installation. See Installation section of operator arm.

1) Obstructed Arm (bottoms out). Check for obstruction on arm, verify arm is not bottomed out.

2) Bad RPM Sensor. Replace arm.

3) Too much mA pulled off board. Move accessories to separate power source. Use reference chart on next page to

determine max mA draw for circuit board.

GATE STOPS Gate starts to run, then

stops and does not reverse.

GATE OPENS BUT DOES NOT CLOSE

Audible beeps (3 times) when command is given.

GATE’S DO NOT OPEN/ CLOSE IN SYNC

GATE DOES NOT AUTOMATICALLY CLOSE

Auto Close Timer not closing gate.

ACCESSORY DEVICE NOT WORKING PROPERLY

1) Low battery. Voltage must be >23 V at battery connection.

2) Gate met an obstruction. Clear gate from obstruction.

1) Constant Open Command (Check LED’s). Clear all Open/Safety devices from obstruction.

2) Timer-to-Close not set. See Timer-to-Close section for adjustment instructions.

3) Accessory device wired to Open Only Rewire desired accessory device to Single Button Input. command.

1) Battery Low >23.5 V Operator will resume normal operation once battery voltage reaches 24 V.

1) Bipart Delay not set. See Bipart Delay section for adjustment instructions.

2) Limits not programmed correctly. See Programming Limits section for instructions.

3) Incorrect Arm Installation See Installation section for instructions.

1) Timer-to-Close not turned on. See Timer-to-Close section for instructions.

2) Gate has opened on Obstruction Reversal. Check DIAG code, clear obstruction.

3) Operator in “Party Mode”. Use remote control/SBC to resume normal operation.

4) Constant Open Command (Check LED’s). Clear all Open/Safety devices from obstruction.

1) Not installed properly. Check for proper installation of accessory.

2) Enabling Switch not turned on. Turn applicable switches on.

3) Loose/disconnected wires. Check proper installation of wires.

4) Bad accessory device Replace accessory device.

43

REPAIR PARTS » CONTROL BOX + GATE OPERATOR ARM

CONTROL BOX

Refer to the parts lists below for replacement parts available for your operator. If optional modifications and/or accessories are included with your operator, certain components may be added or removed from these lists.

8

2

3

7

ITEM PART # DESCRIPTION QTY

1 K001A6039 Control Board 1 2 K75-15480 Control Box & Cover

with Gasket 1 3 K75-30764 Control Board Bracket 1

6

4

6

1

4

4 K23-19380 Reset Switch 1 5 K74-19499 Antenna 1 6 K74-30762 Battery 2

5

7 K74-30763 Transformer 1 8 K76-19446 Alarm 1

Not Shown

K74-30941 ATC Fuse Kit Includes

20 Amp (1), 15 Amp (2) K001A5747-2 Receiver Module - 390 MHz K001A5747 Receiver Module - 315 MHz K76-35600 Reset Switch (XLM Control Box) K76-35364 Alarm (XLM Control Box)

GATE OPERATOR ARM

3

2

ITEM PART # DESCRIPTION QTY

1 41ASWG-442SA Release Lever 1 2 41ASWG-438SA Motor with Limit 1

1

Switch Harness 3 41ASWG-0014SA Rear Connector 1 4 41ASWG-489 Cable 24 V with Connector 1 Not Shown 41ASWG-0119 Release Key 1 K77-19130 Hardware Bag

Complete with: Gate bracket, post bracket, Pull-to-Open bracket and hardware

4

44

REPAIR PARTS » HOW TO ORDER REPAIR PARTS

HOW TO ORDER REPAIR PARTS

OUR LARGE SERVICE ORGANIZATION

FOR INSTALLATION AND SERVICE INFORMATION,

CALL OUR TOLL FREE NUMBER

1-800-528-2806

www.liftmaster.com

WHEN ORDERING REPAIR PARTS

PLEASE SUPPLY THE FOLLOWING INFORMATION: PART NUMBER DESCRIPTION MODEL NUMBER

ADDRESS ORDER TO:

THE CHAMBERLAIN GROUP, INC.

Technical Support Group

6050 S. Country Club Road

SPANS AMERICA

Tucson, AZ 85706

WARRANTY POLICY

LIFTMASTER TWO YEAR LIMITED WARRANTY

The Chamberlain Group, Inc. warrants to the first purchaser of this product, for the structure in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of two years from the date of purchase. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety.

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-2806, toll free, before dismantling this product. Then send this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions when you call. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Sellerʼs sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Sellerʼs sole option.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE TWO YEAR LIMITED WARRANTY PERIOD SET FORTH ABOVE, AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, OR REPLACEMENT OF BATTERIES.

THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE CALL THAT DETERMINES THE PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE TO YOU.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

45

ACCESSORIES

50-19503

02101

370LM

373LM

OPEN

Push-to-Open Bracket

Used to allow the gate operator to push the gate open.

1-Button Station:

Steel enclosure wired station will allow for a Open, Close, Stop command of the gate.

3-Button Mini-Remote Control with SECURITY✚

With key ring and fastening strip.

3-Button SECURITY✚® Remote Control :

Includes visor clip.

®

:

LM202 Vehicle Exit Sensor:

One piece outdoor buried vehicle motion detector with sensing probe is housed in a small relay type housing so it is easy to integrate with gate, providing for free exit only.

GC824-12

MG1300

Gate Solenoid Lock:

Heavy all steel construction. Fail safe operation keeps gate locked if power is lost. Can be welded onto gate or post. 12 Vdc operation, solenoid-activated release. Can be released in case of an emergency. Requires separate power supply (Model ARMP5).

Magnetic Gate Lock:

Outdoor magnetic lock, transformer, junction box, mounting plate and hardware.

86LM

377LM

Remote Antenna Mounting Kit:

Kit contains antenna bracket and 15 feet (4.6 m) of cable. Recommended for increasing the effective range of remote controls.

SECURITY✚® Keyless Entry :

Enables homeowner to operate gate by entering a password on a specially designed keypad.

29-NP712

CPS-LN4 Commercial Protector System®

7 AH/12 Vdc Gate Access System Battery:

The gate access system battery is a replacement battery for the operator. The model LA400 requires two batteries.

(Direct Connect):

Maximum range is 45 feet (13.7 m) 24 V. Includes mounting hardware.

To order visit www.liftmaster.com

46

TEMPLATE FOR POST BRACKET MOUNTING

7 6 5 4 3 2 1

1 2 3 4 5 6 7

LiftMaster LA400 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

O W N E R ' S M A N U A L

TABLE OF CONTENTS

Safety Symbol and Signal Word Review 1 UL325 Model Classifications 2 Safety Installation Information 3 Gate Construction Information 4 Important Safety Information 5-6

SAFETY » SAFETY SYMBOL AND SIGNAL WORD REVIEW

INSTALLATION

WIRING

ADJUSTMENT

OPERATION AND MAINTENANCE

TROUBLESHOOTING

INTRODUCTION » OPERATOR SPECIFICATIONS + CARTON INVENTORY

OPERATOR SPECIFICATIONS

CARTON INVENTORY

ADDITIONAL ITEMS NEEDED FOR INSTALLATION

TOOLS NEEDED

INSTALLATION » OVERVIEW OF TYPICAL INSTALLATION

LEFT-HAND GATE

RIGHT-HAND GATE

DUAL GATE

CHECK YOUR GATE

MOUNTING OPTIONS

MANUAL RELEASE

DETERMINE POSITION OF THE PULL-TO-OPEN BRACKET

DETERMINE POSITION OF THE "OPTIONAL" PUSH-TO-OPEN BRACKET

ASSEMBLE GATE POST BRACKET (PULL-TO-OPEN)

ATTACH BRACKETS TO GATE OPERATOR

DETERMINE MOUNTING LOCATION

MEASURING AND MARKING FOR THE GATE BRACKET

POSITION GATE OPERATOR ON GATE

TEST GATE TRAVEL

SECURE POST BRACKET TO GATE POST

SECURE GATE BRACKET TO GATE

WARNING SIGN PLACEMENT

MOUNT THE CONTROL BOX

INSTALL THE CONTROL BOARD

MOUNT THE CONTROL BOX (XLM)

EARTH GROUND ROD INSTALLATION (REQUIRED)

WIRING

CONNECT THE GATE OPERATOR (GATE 1) TO THE CONTROL BOX

SET THE BIPART DELAY (MODEL LA400-S ONLY)

CONNECT THE GATE OPERATOR (GATE 2) TO THE CONTROL BOX (MODEL LA400-S ONLY)

CONNECT TRANSFORMER TO CONTROL BOARD

EXTERNAL RECEPTACLE

INTERNAL RECEPTACLE

EARTH GROUND ROD INSTALLATION (OPTIONAL)

CONNECT BATTERIES

ADJUSTMENT » SET DIP SWITCH

SET DIP SWITCH

LIMITS

SINGLE ARM LEFT-HAND SIDE

SINGLE ARM RIGHT-HAND SIDE

DUAL GATE (LEFT-SIDE PRIMARY OPERATOR)

DUAL GATE (RIGHT-SIDE PRIMARY OPERATOR)

FORCE ADJUSTMENT

TIMER-TO-CLOSE (TTC)

PROGRAMMING » REMOTE CONTROLS + KEYLESS ENTRY + ERASE ALL CODES + TEST

TO ADD OR REPROGRAM A REMOTE CONTROL (NOT PROVIDED)

TO ADD A WIRELESS KEYLESS ENTRY (NOT PROVIDED)

TO ERASE ALL CODES

TEST

ADDITIONAL FEATURES » DIP SWITCH SETTINGS

DIP SWITCH SETTINGS

CONTROL INPUTS

LOOP INPUTS

PHOTO/EDGE INPUTS (P6-7-8 AND 9)

SAFETY ACCESSORIES FOR SECONDARY ENTRAPMENT PROTECTION

RESET BUTTON

PROGRAMMING LIMITS RESET

OPERATOR ALARM

PARTY MODE (TIMER DEFEAT - HOLD OPEN)

REMOTE CONTROL

MANUAL RELEASE

MAINTENANCE

TROUBLESHOOTING » BASIC CONTROL BOARD LAYOUT

BASIC CONTROL BOARD LAYOUT

WIRING DIAGRAM

DIAGNOSTIC CODES
