Lift-Master ICON 26 User Manual

ICON26 SERIES

OWNERS MANUAL

Telephone entry system with twenty six line large liquid crystal display

www.chamberlain.com

VISIT US ON THE WEB

with

surge suppression

BUILT-IN

1

Icon Page

TABLE OF CONTENTS

JULY 2005

Icon26 manual

version 3.0

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Resident Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Icon26 Features (Inside) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Icon26 Features (Outside) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Icon26 Features (Processor) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Mounting Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Description of Surge Suppression Terminal Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Grounding the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Earth Ground Rod Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Basic Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Power-Up Icon26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Postal Lock Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

RS485 Wiring Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

RS485 Daisy Chain Connection Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

RS485 Star Connection Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Memory Card Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Warning and Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Programming the Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Selecting Program Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Resident Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Transmitter/Card Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Utility Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Clock/Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-32

Strike Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Talk Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Greeting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Back-Up Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Display Controller Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Large Display Battery Back-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Auxiliary Input/Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Optional Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Parts List and Part Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

To be installed by Qualified Dealers ONLY!

2

Icon Page

PRODUCT OVERVIEW

3

Icon Page

• Twenty Six line Large LC Directory.
– Names listed on Directory in alphabetical order.
– 10” LCD screen Sunlight readable and backlit for low light
applications.

• Memory capacity: 250, 500, 1000 names.

• User-friendly programmability via built-in alpha-numeric

keyboard eliminates the need for user's manual.

• Four character alpha-numeric password required to enter

programming mode.

• Programmable Utility key codes for keyless entry.
– 60 Utility key codes available per system.
– Time zones associated with Utility key codes.

• Programmable real-time clock with leap year & daylight savings

compensation.

• 2 programmable 7-day timers for door and gate control.

• Programmable talk time.

• Touch-tones through microphone are ignored by system.

• System mutes tones in speaker during dialing.

• Postal lock capability with programmable strike time.

• Surge protection;

– 6000V, 3000A
– Power input port
– Telephone line port
– RS485 ports
– Relay ports
– Input port
– Immune to 25,000V electrostatic discharge.

• Two output relays with independent strike times.

• Relay output for VCR time lapse recorder to record 5 seconds

per transaction.

• (Optional) camera for security monitoring (High resolution color)

• 32-Device zone control:
– 32 programmable “Groups”.
– 32 programmable 7-day timer “Templates”.

• Standard I/O board with 3 auxiliary inputs controlling 3 corre-

sponding relays.

• Power failure backups:
– Battery backup for complete function for 3 hours.
– Battery enables dial out, program, & display.
– Non-Volatile removable SRAM memory has unlimited

write cycles (unlike EEPROM).

– Non-Volatile Real Time Clock/Calendar.

• High quality voice communication system with background
noise filtering.

• Voice messages (digital) to help & guide user.

• Programmable volume level via modem.

• Non-Volatile PCMCIA memory card

• Two (2) slots for PCMCIA memory cards. Second slot used for
file backup and/or (Optional) “Remote Access Communicator
Card”.

• Double box with built-in full keyboard for data processing.

• By pressing '9' for gate or '5' for door, communication is not lost.
Talk time is extended to avoid unpleasant cutoff between visitor
and resident.

• Both DTMF tone and rotary dial detection.

• (Optional) modem.

• Remote programming via modem using “Elite Pro” windows
based software.

• FCC part 68 ,15 & Canadian DOC approval.

• ETL approved UL 294, UL 1950

• Construction: Front and Back Panel: 16 gauge stainless steel.
Processor Containment Box: Gold/zinc plated, powder
coated aluminum (weather resistant finish)

• Entire system is rain resistant.

• Power Input: 12 Vac, 50VA UL listed transformer.

• Operating Environment:

–Temperature: Icon26: -4 F to +135 F

Icon26-HT: -4 F to +165 F

(Heater kit available at additional cost.)

–Relative Humidity: 5% - 95% non-condensing.

• Dimensions: 16" W X 20 1/2" H X 4 3/4" D

• Shipping Weight: Approximately 40 lbs.

• Display protected by heavy duty,anti-reflection scratch resistant glass.

Factory to Dealer

3 Year Warranty

STANDARD FEATURES

SPECIFICATIONS

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

12V
AC/DC

AUX

AUX

OUTPUT RELAYS

INPUT

POWER IN

(+)

(+)

(-)

(-)

COMNCNO

COMNCNO

GND

GND

RS-485 (3)

RS-485 (4)

ERASE

Q

SHIFT

SPACE BA

VIDEO

RS-485 (1)

OUT

(+)

(+)

GATE

DOOR

TEL LINE IN

(-)

(-)

RELAY

RELAY

GND

GND

IN

GND

V-C

V-NO

RS-485 (2)

CHASSIS
GROUND

CAMERA

DOOR

GATE

AUX 1

AUX 2

KBRD

POWER

RELAY

RELAY

RELAY

RELAY

FAN

LIGHT

ENTER

PROGRAM

EXIT

E

W

D

S

A

X

Z

R

3

2

6

1

5

9

4

8

7

HELP

Y

T

R

G

F

V

C

P

0

O

I

L

K

C

A

U

B

E

K

C

A

P

S

J

’

H

M

N

B

RESIDENT USE

4

Icon Page

(fig a.)

(fig b.)

(fig c.)

The Icon26 System will start and default back to the
“Welcome To” screen (fig a.).

Use the keys to access the residence list

in the Icon26’s electronic directory as shown in (fig c.).

The names are listed in alphabetical order by last name.

Use the button for assistance. (fig b.).

5

Icon Page

RESIDENT USE CONTINUED

STATUS

STATUS

After connecting, the screen will display the “Talk Time”

screen as shown in (fig e.) If the resident wants to allow

access to the visitor, they simply press (or dial) “9” for

vehicular gate entrances, or “5” for door or pedestrian

gate .

The “Access Granted” screen will appear (fig f.). If the res-

ident wants to deny access, they simply hang up the phone.

(fig e.)

(fig f.)

(fig d.)

When the desired name is found, enter the corresponding

3-digit code. The system will dial the number assigned to

the resident code entered. (fig d.)

STATUS

RESIDENT USE CONTINUED

6

Icon Page

Residents are assigned a 6-digit, personalized key code for

accessing the facility. To use the key code assigned, the

resident must first push the key once and enter

their key code. The screen will display “Access Granted”

(fig a.) and access will be allowed. If an incorrect key code

is entered (con’t. next page)

USING KEY CODES AND UTILITY CODES

(ACTIVE ENTRY ONLY)

(fig a.)

RESIDENT 6-DIGIT KEY CODES

STATUS

By pressing or dialing the number “9” on their digital

or rotary phone,

The resident will open the door or pedestrian gate.The resident will open the vehicular entrance gate.

OR

Entry 1 – Vehicular Gate Entry 2 – Door or Pedestrian Gate

By pressing or dialing the number “5”on their digital

or rotary phone,

OR

7

Icon Page

TABLE OF CONTENTS

(fig c.)

All systems, no matter what the memory capacity, are

equipped with 60 different Utility codes. To access the

facility within the time zone set, the Utility Company must

first press the key TWICE and then enter their 4-

digit code. If it is within the programmed time zone for

entry, the screen will display “Access Granted” (fig a.)

and access will be allowed. If, however, it is not within the

time zone for entry, the display will inform the user and

access will not be allowed (fig c.)

INDIVIDUAL UTILITY CODES

EXAMPLE - UTILITY CODE 8716 =

STATUS

RESIDENT USE CONTINUED

If an incorrect key code is entered, the system will

inform the user of the invalid entry (fig b.) The resident

can then re-enter their key code.

(fig b.)

EXAMPLE - KEY CODE 002543 =

0025

4

3

8 7

1

6

STATUS

8

Icon Page

Icon26 FEATURES (INSIDE)

Memory Card

All components and specifications are subject to change without notice.

Release Buttons

Memory Card

Memory Card
Slot

LC Display

Processor
Unit

Dialing
Keys

Processor Key
Release / Lock

Large Display Power Switch

Power

Mounting
Holes (4)

2-NO

2-NC

2-COM

1-NO

AUX

OUTPUT RELAYS

(+)
(-)
GND

RS-485 (3)

(+)
(-)
GND

RS-485 (4)

It is MANDATORY that this unit is properly

It is MANDATORY that this unit is properly

grounded. The provided "chassis ground"

grounded. The provided "chassis ground"
wire must be connected to the ground rod.

wire must be connected to the ground rod.

If unit is not grounded, lightning damage

If unit is not grounded, lightning damage

will occur. Please refer to the owners

will occur. Please refer to the owners

manual for proper grounding instructions.

manual for proper grounding instructions.

Processor
Power
Switch

1-NC

1-COM

GND

2-IN

1-IN

AUX
INPUT

POWER IN
(+)
(-)
GND

RS-485 (1)

(+)
(-)
GND

IN

RS-485 (2)

POSTAL

EXIT

/

SWITCH

INPUT

Backup
Unit

Knock-Out

12V
AC/DC

COMNCNO

COMNCNO

VIDEO

OUT

GATE

DOOR

TEL LINE IN

RELAY

RELAY

GND

V-C

V-NO

CHASSIS
GROUND

CAMERA

VCR

RELAY

MADE IN USAeliteentryphone.com

MADE IN USAeliteentryphone.com

Microphone

Cooling
Fan

Large Display
Contrast Adjustment

Camera
(Optional)

Key
Lock

Programming
Keys

KBRD

RELAY

FAN

LIGHT

POWER

RELAY

RELAY

RELAY

Surge Suppressor
Terminal Board

Postal Lock
Setup

DOOR

GATE

AUX 1

AUX 2

External
Keypad

Stainless
Steel Door

External
Speaker

Icon26 FEATURES (OUTSIDE)

9

Icon Page

EXTERNAL MICROPHONE

KEY LOCK - Opens the Processor Con-

tainment Box to access the Processor.

HELP KEY - With digital voice messages
to help guide the user.

EXTERNAL SPEAKER

DISPLAY WINDOW - Heavy-duty, protec-

tive lens.

KEYPAD LIGHTING - Lights up
dialing keys for easy visibility.

PHONE DIALING KEYS - Used to dial res­idents / key codes

SCROLL KEYS - Scrolls through names in
alphabetical order on screen.

UNLOCK KEY - Residents and utility per­sonnel use this key with their key code to
open gate.

HANG-UP KEY - Pressed when user
wants to hang up.

ACCESS FOR POSTAL LOCK

16 GAUGE STAINLESS STEEL DOOR -

Heavy-duty and weather resistant.

CAMERA (OPTIONAL) - For security mon­itoring.

1

2

3

4

5

6

7

8

9

10

11

12

All components and specifications are subject to change without notice.

13

13

5

1

2

6

7

8

3

9

10

4

11

12

10

Icon Page

Icon26 FEATURES (PROCESSOR)

MEMORY CARD - Stores all programmed information.
(Different memory sizes available)

COMMUNICATOR CARD - Card for RS485 devices.

POWER ON/OFF SWITCH

CARD RELEASE BUTTONS - Eject Cards when pressed.

MAIN MEMORY CARD SLOT - Holds Main Memory

Card.

RS485 MEMORY CARD SLOT - Holds RF Communica­tor Card or Backup Memory.

TWO LINE, LARGE LIQUID CRYSTAL DISPLAY -

Displays information and instructions, two lines at a
time.

DIRECTION KEYS - Move cursor to desired position
within screens.

PROGRAM KEY - Sets Processor to the program mode.

EXIT KEY - Press this key to go back to the previous

screen / menu.

ERASE KEY - Erases information screens no longer
needed.

ENTER KEY - Registers information into memory after
it is typed.

HELP KEY - Helps user while in programming or user
modes.

SCROLL KEYS - Scrolls through screens / menus.

KEYBOARD - Works like standard keyboard to type in

information and names.

PHONE JACK (RJ11) - Connects to surge suppressor
terminal board.

INPUT/OUTPUT CONNECTOR - Connects to surge sup­pressor terminal board.

COMMUNICATION PORT - Connects to surge suppres­sor terminal board.

PARALLEL PORT - To communicate with Large Display
Controller Board.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

All components and specifications are subject to change without notice.

1000

500

250

Remote Access RS485

COMMUNICATOR CARD

capacity

1

4

5
6

Main Memory Car

RS485 Memory Car

d Slot

d Slot

2

7

3

10
11
12
13

8
9

EXIT

Q W

A

PROGRAM

ENTER

HELP

E

R

T Y U I

S

D F

Z

X

C

G H J

V

ERASE

SHIFT

SPACE BAR

2

1

4

7

B

5 6

8

0

N

3

M

9

O

K L

14

P

BACK

SPACE

’

15

171819

16

MOUNTING INSTALLATION

(+)
(-)
GND

(+)
(-)
GND

(+)
(-)

GND

IN

GND

V-C

V-NO

(+)
(-)

GND

COMNCNO

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

COMNCNO

RS-485 (4)

RS-485 (3)

AUX

OUTPUT RELAYS

AUX
INPUT

12V
AC/DC

RS-485 (2)

FAN

KBRD

LIGHT

AUX 1
RELAY

AUX 2
RELAY

GATE
RELAY

DOOR
RELAY

POWER

POWER IN

TEL LINE IN

POSTAL
SWITCH

EXIT

INPUT

VCR
RELAY

/

RS-485 (1)

GATE
RELAY

DOOR
RELAY

CHASSIS
GROUND

CAMERA

VIDEO
OUT

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

Front View Side View

Wall

Installation on Wall

NOTE: Be sure to install the unit at normal eye level

Be sure to read and follow all Chamberlain Elite instructions before installating and operating any Chamberlain Elite
products. Chamberlain Elite is not responsible for improper installations or failure to comply with local building codes.

All components and specifications are subject to change without notice.

9 "

1

/

2

20 "

16"

1

/

2

4 "

3

/

4

5 "

13"

1

/

2

8 "

3

/

8

3 "

1

/

4

3 "

7

/

8

3

/

4

"

2 "

1

/

8

Mounting Holes (4)

Wire
Knock
Out

Wire
Knock
Out

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

11

Icon Page

12

Icon Page

DESCRIPTION OF SURGE SUPPRESSION TERMINAL BOARD

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

IN

GND

V-C

V-NO

(+)
(-)

GND

COMNCNO

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

COMNCNO

RS-485 (4)

RS-485 (3)

AUX

OUTPUT RELAYS

AUX

INPUT

12V

AC/DC

RS-485 (2)

FAN

KBRD
LIGHT

AUX 1
RELAY

AUX 2

RELAY

GATE

RELAY

DOOR

RELAY

POWER

POWER IN

TEL LINE IN

POSTAL
SWITCH

EXIT

INPUT

VCR

RELAY

/

RS-485 (1)

GATE

RELAY

DOOR

RELAY

CHASSIS
GROUND

CAMERA

VIDEO

OUT

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USA

AUX OUTPUT RELAYS/AUX INPUT: Inputs can be used for

Postal Lock and/or Exit switch operations.

Auxiliary Input 1-IN activates auxiliary Relay 1
Auxiliary Input 2-IN activates auxiliary Relay 2

POWER IN: 12 Vac to the Entry Phone.

TELEPHONE LINE: Tip and Ring Connection.

GATE RELAY: For use with gate operator to control access

through main vehicular gate.

DOOR RELAY: For allowing access through pedestrian gate
or door.

VIDEO OUT: Camera video output standard BNC cable
connection for use with time lapse VCR. Each time access
is gran

ted, the VCR relay is activated for 5 seconds,

allowing recording of all access to facility.

RS485: Connect to corresponding RS485 terminals (-, +,
GND) of remote security devices.

CHASSIS GROUND: Entry Phone MUST be properly
grounded. Refer to “Grounding the Unit” and
“ Earth Ground Rod Installation” sections.

POSTAL SWITCH/EXIT SWITCH : Connection of a postal
lock or exit switch.

VCR RELAY: For

use with time lapse VCR. Each time

access is granted, the VCR relay is activated for 5 seconds,
allowing recording of all access to facility.

CAMERA PORT: For optional camera video input.

FAN LED: Indicates fan is activated.

KEYBOARD LIGHT LED: Indicates keyboard lights have

power.

AUX 1 RELAY LED: Indicates auxiliary 1 relay is activated.

AUX 2 RELAY LED: Indicates auxiliary 2 relay is activated.

GATE RELAY LED: I

ndicates gate relay is activated.

DOOR RELAY LED: Indicates door relay is activated.

POWER LED: Indicates Phone system has 12 Vac power

present.

1

7

2

8

11

12 13 14 15 16 17 18

3

4 5

6

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

109

Removable Screw Terminal Connectors for Easy Wiring.

Knockout for

Incoming Wires

POWER IN

12V

AC/DC

13

Icon Page

TABLE OF CONTENTS

GROUNDING THE UNIT

Chassis Ground

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

12V

AC/DC

AUX

AUX

OUTPUT RELAYS

INPUT

POWER IN

(+)

(+)

(-)

(-)

COMNCNO

RS-485 (3)

RS-485 (4)

GND

GND

RS-485 (1)

(+)

(+)

(-)

(-)

GND

GND

IN

RS-485 (2)

COMNCNO

VIDEO

OUT

GATE

DOOR

TEL LINE IN

RELAY

RELAY

GND

V-C

V-NO

CHASSIS
GROUND

CAMERA

Ground Rod

KBRD

RELAY

FAN

LIGHT

POWER

RELAY

RELAY

RELAY

DOOR

GATE

AUX 1

AUX 2

Refer to the next page for ground rod installation.

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground" wire
must be connected to the ground rod. If unit is not
grounded, lightning damage will occur.

TABLE OF CONTENTS

EARTH GROUND ROD INSTALLATION

14

Icon Page

The earth ground rod must be located within
3 feet from the Telephone Entry System.

The ground wire must be a single, whole piece of
wire. Never splice two wires for the ground wire.
If you should cut the ground wire too short,
break it, or destroy its integrity, replace it with a
single wire length.

Not responsible for improper installation
or failure to comply with all necessary
local building codes.

to the “Chassis Ground” of Telephone Entry System

For the correct wire gauge,
consult the local code

For the correct depth
consult the local code

For the correct diameter, consult the local code

Proper grounding gives an electrical charge, such as from an electrical static discharge or a near lightning strike, a path from
which to dissipate its energy safely into the earth.

Without this path, the intense energy generated by lightning could be directed towards the Telephone Entry

System. Although
nothing can absorb the tremendous power of a direct lightning strike, proper grounding can protect the Telephone Entry
System in most cases.

The type and length of earth ground rods vary by region. Contact the building inspector’s office in the m

unicipality where you

plan to install the unit for correct grounding materials and installation procedures.

Before digging, contact local underground utility locating companies.

Avoid damaging gas, power, or other underground utility lines.

15

Icon Page

BASIC WIRING DIAGRAM

Connect two wires to the main vehicular gate operator or
door. The gate relay will be activated by either pressing 9 on
the resident's phone, entering a utility or resident keycode,
Gate 7-day timer or ElitePro remote programming software.

Connect two wires to the secondary gate or door. The door
relay will be activated by either pr

essing 5 on the resident's
phone, Door 7-day timer or ElitePro remote programming
software.

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

IN

GND

V-C

V-NO

(+)
(-)

GND

COMNCNO

TIP

RING

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

COMNCNO

RS-485 (4)

RS-485 (3)

AUX

OUTPUT RELAYS

AUX

INPUT

12V

AC/DC

RS-485 (2)

FAN

KBRD
LIGHT

AUX 1
RELAY

AUX 2

RELAY

GATE

RELAY

DOOR

RELAY

POWER

POWER IN

TEL LINE IN

POSTAL
SWITCH

EXIT

INPUT

VCR

RELAY

/

RS-485 (1)

GATE

RELAY

DOOR

RELAY

CHASSIS
GROUND

CAMERA

VIDEO

OUT

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphon e.com

Pedestrian Gate

Vehicular Gate

Entry Door

Conduit

Conduit

Maglock

MaglockSolenoid

Access Door

Entry 2

Door Relay Terminal Connection

Entry 1

Gate Relay Terminal Connection

Dial

Dial

OROR

Master Gate Operator
(Strike Open Input)

Transformer

12 Vac (50VA)
(Provided)

Use 18 AWG wire
where possible

24 AWG

22 AWG

20 AWG

18 AWG

16 AWG

30 Ft

45 Ft

75 Ft

125 Ft

185 Ft

50 Ft

85 Ft

135 Ft

220 Ft

345 Ft

12 Vac
(50 VA)

Maximum

Distance

(Provided)

16.5 Vac
(50 VA)

Maximum

Distance

(Optional)

Wire

Gauge

Telephone Line:

MUST be a dedicated
line for the Telephone
Entry System unit ONLY!

RING

TIP

Normally Open Normally Closed

Removable Screw Terminal
Connectors for Easy Wiring.

POWER IN

12V

AC/DC

Polarity does not matter

POWER-UP Icon26

16

Icon Page

(+)

(-)

GND

(+)

(-)

GND

(+)
(-)
GND

IN

GND

V-C

V-NO

(+)
(-)
GND

COMNCNO

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

COMNCNO

RS-485 (4)

RS-485 (3)

AUX

OUTPUT RELAYS

AUX

INPUT

12V

AC/DC

RS-485 (2)

FAN

KBRD
LIGHT

AUX 1
RELAY

AUX 2
RELAY

GATE

RELAY

DOOR

RELAY

POWER

POWER IN

TEL LINE IN

RS-485 (1)

GATE

RELAY

DOOR
RELAY

CHASSIS
GROUND

CAMERA

VIDEO
OUT

Processor

Power Switch

Large Display

Power Switch

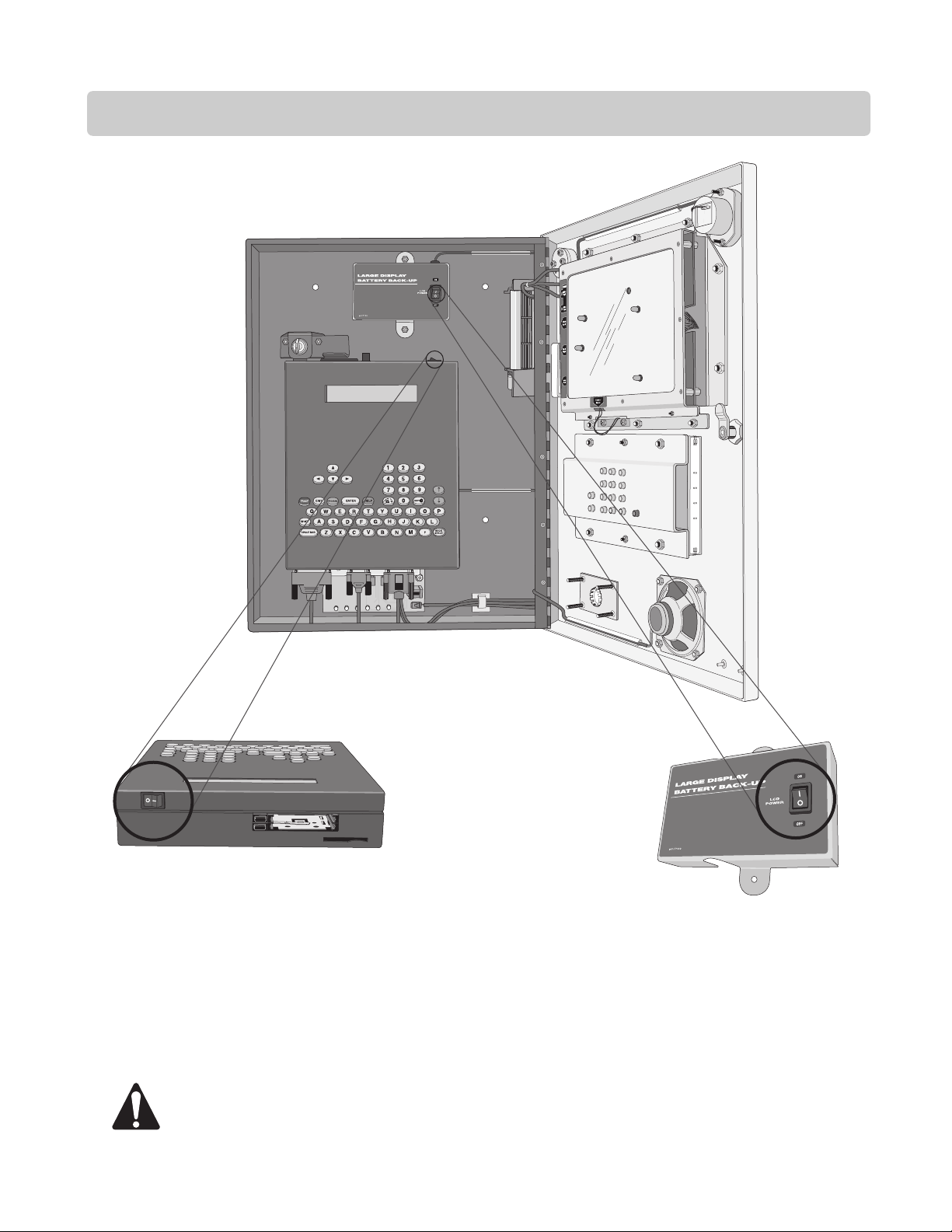

1. Turn on large display using the “LCD power” switch on the battery back-up module.

2. Turn on processor using the power switch on the top right.

3. To turn unit off, turn off both processor and large display battery back-up module.

Be sure to read and follow all Chamberlain Elite instructions before installing and operating any Chamber­lain Elite products. Chamberlain Elite is not responsible for improper installations or failure to comply with
local building codes.

POSTAL LOCK INSTALLATION

17

Icon Page

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

IN

GND

V-C

V-NO

(+)
(-)

GND

COMNCNO

TIP

RING

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

COMNCNO

RS-485 (4)

RS-485 (3)

AUX

OUTPUT RELAYS

AUX

INPUT

12V

AC/DC

RS-485 (2)

POWER IN

TEL LINE IN

POSTAL
SWITCH

EXIT

INPUT

VCR

RELAY

/

RS-485 (1)

GATE

RELAY

DOOR

RELAY

CHASSIS
GROUND

CAMERA

VIDEO

OUT

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners

Installation:

These parts are used only when postal access to your facility is required. The postal lock mechanism must be obtained by application
to your local post office.

Open the front panel of the Telephone Entry System and remove the hole plug.

(Retain nuts and washers) Install the postal lock with the sliding bolt oriented
away from the speaker.

Install the enclosed plate end switch assembly over the sliding bolt so that
when the bolt is extended it will activate the switch as shown in the diagram.

Fasten by using the enclosed flat washer, lock washer, and nut on each of the
four studs. Adjust the plate and switch location as the nuts are tightened to
ensure switch activation when the bolt is extended.

Connect the two wires from the postal lock switch to the postal/exit connector
on the surge suppressor terminal board. Note that polarity or color coding is
not required. When the postal lock is engaged, the system’s gate relay is
activated for a duration according to the programmed “Gate Strike Time”.

Test operation by activating the lock. Ensure that full extension of the sliding
bolt will not bend or break the switch.

(+)
(-)
GND

(+)
(-)
GND

(+)

(-)

GND

IN

GND

V-C

V-NO

(+)

(-)

GND

COMNCNO

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

COMNCNO

RS-485 (4)

RS-485 (3)

AUX

OUTPUT RELAYS

AUX
INPUT

12V

AC/DC

RS-485 (2)

FAN

KBRD

LIGHT

AUX 1
RELAY

AUX 2
RELAY

GATE
RELAY

DOOR
RELAY

POWER

POWER IN

TEL LINE IN

POSTAL
SWITCH

EXIT

INPUT

VCR
RELAY

/

RS-485 (1)

GATE
RELAY

DOOR
RELAY

CHASSIS
GROUND

CAMERA

VIDEO
OUT

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

1

2

3

4

5

6

Postal Lock
Switch Assembly

Stainless Steel

Front Panel of
Entry Phone

Switch Assembly
Mounting Holes
(Mount with Postal
Lock on Entry Phone
Front Panel)

Postal Lock

Side View

Postal Lock

Switch Wires (2)

Postal Lock
Switch Assembly

Front View

Switch Assembly
Mounting Holes

18

Icon Page

RS485 WIRING CONFIGURATIONS

• Up to 31 RS485 devices supported

• Maximum distance from the last RS485 device to the Telephone Entry System is 4000 Ft.

• Turn “ON” the terminator switch ONLY for the last device installed in the RS485 line.

• Use 22 AWG twisted pair shielded wire

Each RS485 device must have a unique “Device ID Number” set by using the rotary switches on the device. (Refer to specific RS485 Instruction sheets).

Each RS485 device must have a unique “Device ID Number” set by using the rotary switches on the device. (Refer to specific RS485 Instruction sheets).

Turn Terminator Switch “ON”
for Last Device on Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

Turn Terminator Switch “ON”
for Last Device on Wire Run

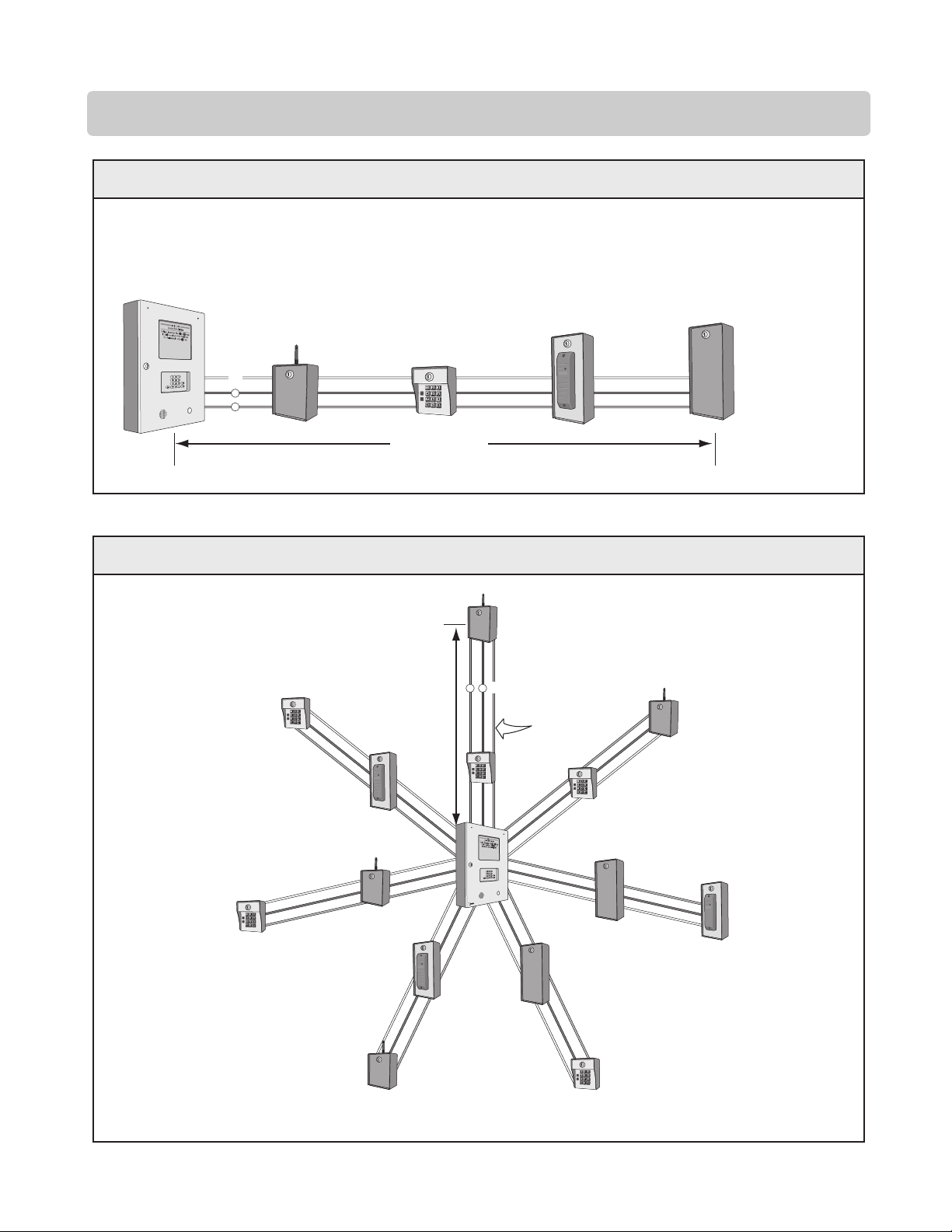

“Daisy Chain” wiring configuration

(Recommended method for superior data transmission)

“Star” wiring configuration

• Maximum number of wire runs allowed is 7

• Maximum distance from the last RS485 device
(per wire run) to the Telephone Entry Syetem is
4000 Ft.

• Maximum number of RS485
devices present on ALL wire runs
is 31.

• Use 22 AWG twisted pair shielded wire

Wire Run

Configuration #1

Configuration #2

4000 Ft Max.

4000 Ft Max.

+

–

Gnd

+

–

Gnd

RS485 DAISY CHAIN CONNECTION EXAMPLE

19

Icon Page

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

IN

GND

V-C

V-NO

(+)
(-)

GND

COMNCNO

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

COMNCNO

RS485 (4)

RS485 (3)

AUX

OUTPUT RELAYS

AUX

INPUT

12V

AC/DC

RS485 (2)

FAN

KBRD
LIGHT

AUX 1
RELAY

AUX 2
RELAY

GATE

RELAY

DOOR
RELAY

POWER

POWER IN

TEL LINE IN

POSTAL
SWITCH

EXIT

INPUT

VCR

RELAY

/

RS485 (1)

GATE

RELAY

DOOR
RELAY

CHASSIS
GROUND

CAMERA

VIDEO

OUT

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

+

Gnd

–

+

Gnd

–

+

Gnd

–

+

Gnd

–

Card Reader

RS485 Remote

Device 3

Stand-Alone Receiver

RS485 Remote

Device 2

Universal Interface Board

RS485 Remote

Last Device

Keypad

RS485 Remote

Device 1

RS485 Card Release Button

Main Memory Card Slot

RS485 Memo

ry Card Slot

NOTE: To support RS485 devices you must insert the RF

communicator card in the RS485 memory car d slot
BEFORE turning on the processor.

COMMUNICATOR CARD

Remote Access RS485

capacity

Use 22 AWG Twisted Pair Shielded Wire

20

Icon Page

RS485 STAR CONNECTION EXAMPLE

Remote Access RS485

COMMUNICATOR CARD

capacity

M

ain M

em

ory Ca

rd

RS485 M

NOTE: To support RS485 devices you must insert

the RF communicator card in the RS485 memory
card slot BEFORE turning on the processor.

Slot

em

ory Ca

rd Slo

t

RS485 Card Release Button

Gnd

–

+

Gnd

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

12V

GND

GND

(+)
(-)

(+)
(-)

POWER IN

IN

GND

EXIT

/

INPUT

AC/DC

TEL LINE IN

V-C

VCR

RELAY

V-NO

COMNCNO

GATE

RELAY

DOOR

RELAY

CHASSIS
GROUND

CAMERA

COMNCNO

VIDEO

OUT

OUTPUT RELAYS

RS485 (3)

RS485 (4)

AUX

AUX

INPUT

(+)
(-)

GND

RS485 (1)

(+)
(-)

GND

RS485 (2)

POSTAL
SWITCH

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

–

+

DOOR

AUX 2
RELAY

GATE

RELAY

Gnd

RELAY

–

POWER

+

AUX 1

KBRD

LIGHT

Gnd

RELAY

FAN

–

+

Keypad

RS485 Remote

Device 3

Stand-Alone Receiver

RS485 Remote

Use 22 AWG Twisted Pair Shielded Wire

Device 4

Card Reader

RS485 Remote

Device 2

Universal Interface Board

RS485 Remote

Device 1

21

Icon Page

MEMORY CARD INSTALLATION

VIEWING THE SOFTWARE VERSION

Turn power on and insert Memory Card into Main Mem­ory Card Slot (Main Memory Card in back slot, Backup
Memory Card in front slot.) (fig a.) Push it all the way in
until card “snaps” into place and the release button pops
up. The screen should display the “Welcome Screen”
(fig b.)

To view the memory capacity of the system or to view
the software version currently running on the system in
operation an information screen is accessible on all
Dial Code systems for easy reference. Turn power off
and insert Memory Card in Main Memory Slot. Turn
power on and the information screen should display as
seen in (fig e.)

If the screen continues to display the “Insert Memory
Card” screen (fig c.) then eject memory card by press-
ing the corresponding release button down and reinsert
Memory Card into main slot (fig d.). Otherwise contin­ue with programming.

WELCOME

Insert Memory Card

IN MAIN SLOT

Memory Capacity

Software Version Number

(fig a.)

(fig b.)

(fig c.)

DIAL CODE LC-250

REV. 1.00_

(fig e.)

(fig d.)

Push Button

Main Memo

ry Ca

r

d Slo

ry Ca

t

r

d Slot

Main Memory Card Release Button

RS485 Memo

Card Pops Out

22

Icon Page

WARNINGS AND PRECAUTIONS

The Telephone Entry System is only water resistant when the Stain­less Steel Door is closed and locked. Do not expose the Processor
Unit or the open Processor Containment Box to rain, snow, or harsh
weather conditions. Do not drop the Processor or expose it to
impact.

Do not touch the terminals on the RAM Cards.
Do not bend, drop or expose to impact.

500

3

2

1

P

L

E

H

R

E

T

N

E

M

A

R

G

O

R

P

IT

X

E

E

S

A

R

E

W

Q

S

A

T

IF

H

S

Z

R

A

B

E

C

A

P

S

T

R

E

F

D

V

C

X

6

5

4

7

G

9

8

0

U

Y

J

H

N

B

P

O

I

L

BACK

K

SPACE

’

M

23

Icon Page

PROGRAMMING THE PROCESSOR

ENTERING THE PROGRAM MODE

When the Processor unit is turned on and the button is pressed, the screen will display:

If you enter the wrong password, the screen will prompt you to try again:

Press to retry entering your password. Press to quit the programming menu.

TO ENTER PROG MODE,
Type Password >____

Type in the factory present password (7777). Press . The Program Selection Screen
will display:

SELECT PROG MODE:
(N)Names (U)Utility

INVALID PASSWORD

(R)Retry (EXIT)Quit

R

Pressing the button will provide users with a help message.

SELECTING PROGRAM MODE

24

Icon Page

SELECT PROG MODE:

(N)Names (U)Utility

SELECT PROG MODE:

(P)Password

SELECT PROG MODE:

(C)Clock/Timer

SELECT PROG MODE:

(S)Strike Time

SELECT PROG MODE:

(T)Talk Time

SELECT PROG MODE:

(G)Greeting

SELECT PROG MODE:
(V)Volume (B)Backup

*We recommend you customize your password to avoid unauthorized programming (see “Password” section)

To select a Program Mode, press the corresponding letter from one of the nine options.

LIST OF PROGRAM MODES:

Names

Utility

Password*

Clock/Timer

Strike Time

Talk TIme

Greeting

Volume

Backup

page 25-27

page 28

page 29

pages 30-32

page 33

page 33

page 34

page 34

page 35

Program or edit Resident Names

Program or edit Utility Codes

Program New Password ( recommended )

Program System Clock and Seven Day Timers

Program relay output time ( for 2 relays )

Program length of Talk Time

Program custom Welcome Screen Message

Program Volume level

Backup of memory card

1

2

3

4

5

6

7

8

9

N

U

P

C

S

T

G

V

B

Use the keys to scroll through the nine different Program Modes.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

Pressing the button will provide users with a help message.

25

Icon Page

RESIDENT INFORMATION

SELECT PROG MODE:
(N)Names (U)Utility

PROG A NEW NAME N
PROG BY CODE:___

You now have three options:

Resident name

Resident code

OR OR

STEP

1

STEP

2

Type in the desired Resident name, LAST name first, followed by the first name (fig c.). If the code you have

selected is already used, there will be a name already. You can edit the name by simply typing over it.

Press the key to complete the entry. You may also use the keys to move the cursor

within a code.

STEP

3

Type in the desired Resident phone number (fig d.). If you need to enter an area code refer to the area code page.

Press the key to complete the entry. The “KEY CODE” screen will be displayed. (fig e.)

STEP

4

To program by name, press

the key and the first

empty code will display.

N

To program by code, enter

a three digit code* and press

the key.

Assignment of Resident Key Codes is optional. The first three digits of the Key Code is the assigned Directory

Code. Assign the last three digits (numeric characters only) to create an individual Key Code. If using the RF

Card, proceed to Step 6 (fig e.). Press the key.

STEP

5

To view or edit an existing name

or code, use the

keys to scroll through Directory.

(fig a.)

(example - fig c.) (example - fig d.)

(example - fig e.)

(fig b.)

005 LastNAME,First
Jones, Robert_

005 KEY CODE:
005123

005 PHONE NUMBER:

_-___-496-2634

An individual six digit Resident Key code may be

assigned to each resident . Residents can use

their Key Code to access the premises.

The unit will only accept codes within it’s

range - depending on memory capacity.

*

In the Program Selection Screen (fig a.), Press the key. The screen will display (fig b.):

N

Repeat steps 7 and 8 for up to ten devices per directory code. After the last device has been programmed,

press or key to return to the program selection screen.

TRANSMITTER/CARD PROGRAMMING

26

Icon Page

STEP

6

005 TRANSM/CARD#1:
___-_____ (S) SCAN

To complete entry, press the key to return to the program selection screen.

To program RF devices ( i.e. transmitters/cards etc.) continue on to Step 7.

NOTE: To enable the transmitter/card programming feature, you must insert the communicator card
in the “backup” slot before you turn on unit. (refer to “Memory Card Installation” section)

005 TRANSM/CARD#2:
___-_____ (S) SCAN

005 TRANSM/CARD#10:
___-_____ (S) SCAN

•

•

•

•

STEP

7

STEP

9

NOTE: The time zones and restrictions associated with transmitter/card codes can only be programmed remotely using the

EMS modem software.

STEP

8

L

i

f

t

M

a

s

t

e

r

(fig a.)

(fig b.)

Use keys to view and

program up to 10 transmitter or card

codes associated to the directory code.

To program a transmitter or card code

you may enter the code manually using

the keypad or you may scan the

transmitter/card code.

To scan a card code, press the

key and activate the card as shown in

fig a.

To scan a transmitter code, press the

key and activate the transmit-

ter as shown in fig b.

S

S

Touch the card to the card reader

to activate remote device

Model ECR485B

2

1

3

5 6

4

7

8

G H J

9

0

P

O

K L

BACK

N

M

SPACE

’

STAND-ALONE
RECEIVER
Model ERRB485

Press button on transmitter to activate remote device

EXIT

PROGRAM

ERASE

SHIFT

SPACE BAR

Q W

A

ENTER

HELP

E

R

T Y U I

S

D F

Z

X

CVB

Processor

27

Icon Page

AREA CODES

In special applications, it is necessary to enter area codes for Resident Phone Numbers. Area codes are

entered from the Phone Number screen (fig a.).

Use the key to enter the area code and prefix field (fig b.). The Prefix defaults to “1” for normal

11-digit dialing. Where necessary, you can change the prefix to any number. To choose 8, 9, or 10-digit

dialing, when no prefix is needed, press while in the prefix field. Then type the required

number of digits in the area code field followed by the phone number. Press the key to

continue with the entry as described in the “Resident Information” section.

To erase “Resident” information, press the key. Press the key for assistance.

(fig a.)

005 PHONE NUMBER:

_-___-___-____

(fig b.)

005 PHONE NUMBER:

1-___-___-____

PREFIX FIELD AREA CODE FIELD

IMPORTANT NOTE: While in the help s creens, pr ogr amming will be disabled.

To continue programming, press the button to exit the help screens first.

28

Icon Page

UTILITY CODES

IMPORTANT NOTE: While in the help s creens, pr ogr amming will be disabled.

To continue programming, press the button to exit the help screens first.

Use the keys to view

or edit existing Codes. The last screen

will display memory spaces available.

Select a code that you wish to edit.

To program a new Utility Code, press

the key and type in a 4 digit

code. If the code entered is used, type

in another.

Enter the desired time zone in the

screen that follows (fig d.)

Use the keys to move the

cursor. To view the previous screen, use

the key. Press the

key to complete your transaction.

Press the key or the

key to enter code. Type the name of the

utility in the screen that follows and

press the key or

(fig c.).

A 4-digit Utility Code (numeric characters only) may be assigned to “Utility Companies” such as delivery, telephone, con­struction companies, water, power, etc. These utilities can use their individual code to access the premises
within the time zone that you program. Each system, no matter what the memory capacity, is equipped with 60
available Utility Codes and time zones.

SELECT PROG MODE:
(N)Names (U)Utility

PROG UTILITY CODE> N
View/Edit Codes >

In the Program Selection Screen (fig a.),

Press the key. The screen will

display (fig b.):

You now have two options:

OR

STEP

U

1

STEP

2

N

STEP

3

STEP

4

(fig a.)

(fig b.)

UTILITY CODE:4762
NAME:FedEx

4762 TimeZone
09:00AM To 05:00PM

(example - fig c.)

(example - fig d.)

To erase “Utility” information, press the key. Press the key for assistance.

For “User Mode” operation, Refer to the “Resident Use” Section.

29

Icon Page

PASSWORD

SELECT PROG MODE:

(P)Password

NEW PASSWORD:

****

RE-ENTER PASSWORD:

****

The factory present password is 7777. We suggest that you customize it.

In the Program Selection Screen (fig a.), Press the

key.

P

To customize a password, type in a four character

password (it may be alphanumeric characters).

Press the key to enter the new

password. It will be displayed by asterisk (*) for

security (fig b.) (To leave the password

unchanged, press the key.)

A confirmation screen will appear (fig c.). Type in

the same password and press the key.

If you enter a different password, the password will

not be confirmed and you will have to repeat the

transaction.

Always remember your password! This password is required to enter the Program Mode. If you

lose your password, you will need to contact the manufacturer to reissue a new password.

(fig a.)

(fig b.)

(fig c.)

Pressing the button will provide users with a help message.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

30

Icon Page

CLOCK/TIMER

Use the key to set the Date and time, use

the keys to move the cursor. Press the

key to enter your input.(fig c.)

Use the keys to select the

current day of the week. Press the key

to enter your input. (fig d.)

The Clock/Timer allows you to set the date and time, and to program gates and doors to be opened or closed whenever
specified. This clock is equipped with 100 year calender, auto leap year compensation and daylight savings.

1. DATE AND TIME

SELECT PROG MODE:

(C)Clock/Timer

PROG CLOCK/TIMER

(1)Date & Time

PROG CLOCK/TIMER

(2)Gate Timer

PROG CLOCK/TIMER

(3)Door Timer

DATE>02-11-2000
Time>07:31am p=pm

Today Is THURSDAY
Use To Select Day

Daylight Savings>y
(Y)Yes (N)No

In the Program Selection Screen (fig a.), Press the

key.

C

Use the keys to scroll between

the three different menu choices (fig b.). Select the

number of your choice or press the

key while on the selection of your choice.

Select daylight savings by pressing for

yes or for no. The key will

complete the date and time entry. (fig e.)

1

Y

N

(fig a.)

(fig b.)

(fig c.)

(fig d.)

(fig e.)

CAUTION: Make sure to set the Date and Time

before programming the clock timers for the
door and gate.

31

Icon Page

CLOCK/TIMER CONTINUED

•

•

•

•

Setup New Timers> N
View/Edit Timers>

Use to view and program timer(s) for

Sunday through Saturday. Move the cursor

to time and type in the setting. Two timers can be set

for each day of the week following the procedure below.

(fig a.)

Press to turn timer 1 ON or press to

turn timer 1 OFF. Press the key. Type the

desired timer 1 setting. For am type For pm

type Press to program the timer 2.

N

F

A

P

2./ 3. DOOR AND GATE TIMERS

SUN G Tmr1: ON F=off
07:00am -> 05:00pm

(fig a.)

SUN G Tmr2: ON F=off
07:00am -> 05:00pm

SAT G Tmr1: ON F=off
07:00am -> 05:00pm

SUN G Tmr1: ON F=off
07:00am -> 05:00pm

(fig c.)

(fig b.)

MON G Tmr1: ON F=off
08:00am -> 04:30pm

USE ARROWS TO VIEW / PROGRAM
INDIVIDUAL TIME ZONES

See next page for instructions

To program the second timer, repeat the above procedure. Press the key when complete.

Press to program Gate Timers Menu. Press to program the Door Timers Menu.

2

3

Program timers 1 and 2 for any day of the week (fig b. & c.)

To exit “Timers” screen, press the key. Press the key for assistance.

IMPORTANT NOTE: While in the help screens, pr ogrammin g will be disabled.

To continue programming, press the button to exit the help screens first.

32

Icon Page

CLOCK/TIMER CONTINUED

2./ 3. DOOR AND GATE TIMERS, continued’

GATE Tmr1: ON F=off
__:__am -> __:__pm

COPY Timers1,2 To
Workdays(y) Sun(n)

PRESS TO PROGRAM SETS OF
TIME ZONES

Timer 1 & 2 settings can be copied to any day(s) of the

week. Select the day(s) of the week to be copied.

Press to select day or press to not

select day of week. Press when complete.

(fig e.)

Y

N

GATE Tmr2: ON F=off
__:__am -> __:__pm

(fig d.)

(fig e.)

COPY Timers1,2 To
Mon(n) Tue(n) Wed(n)

COPY Timers1,2 To
Thr(n) Fri(n) Sat(n)

Setup New Timers> N
View/Edit Timers>

Press to program Gate Timer Menu Press to program the Door Timers Menu

2

3

See previous page for instructions

To program the second timer, repeat the above

procedure. Press the key when complete.

To exit “Timers” screen, press the key. Press the key for assistance.

IMPORTANT NOTE: While in the help screens, pr ogrammin g will be disabled.

To continue programming, press the button to exit the help screens first.

Press to turn timer 1 ON or press to

turn timer 1 OFF. Press the key. Type the

desired timer 1 setting. For am type ,For pm type

. Press to program the timer 2.

N

N

F

A

P

Program timers 1 and 2 for any day of the week (fig d.)

33

Icon Page

STRIKE TIME

Strike Time sets the amount of time your gate or door relay will be held open.

TALK TIME

(fig c.)

(fig e.)

(fig g.)

In the Program Selection Screen (fig g.), Press the key. Choose the desired Talk Time, press for 20 seconds,

for 40 seconds, or for 80 seconds (fig h.). Press the key to confirm your entry.

You can set the amount of time to talk on the Entry Phone at 20, 40, or 80 seconds.

SELECT PROG MODE:

(T)Talk Time

TALKTIME IS 20 SEC
(B)40 Sec (C)80 Sec

In the Program Selection

Screen (fig a.), Press the

key.

S

The strike time can be set for

both gates and doors (fig b.)

For either the Gate or Door Strike TIme, you may now type in a name and location (up to 13 characters) to which you want

the programmed strike time applied. (fig e.) and (fig f.) Press the key to complete the transaction.

Press the key to set the Door Strike Time. Type in

a time from 1 to 99 seconds (fig c.). Press the

key to enter your selection.

D

Press the key to set the Gate Strike Time. Type in

a time from 1 to 12 seconds (fig d.). Press the

key to enter your selection.

G

SELECT PROG MODE:

(S)Strike Time

(fig a.)

Door Strike Time > D
Gate Strike Time > G

(fig b.)

DOOR STRIKE TIME:
[01-99] 10 Seconds

DOOR NAME/LOCATION
South Entry Door

GATE NAME/LOCATION
North Side Gate

(fig d.)

(fig f.)

(fig h.)

GATE STRIKE TIME:
[01-12] 05 Seconds

AT

B

C

34

Icon Page

GREETING

VOLUME ADJUST

SELECT PROG MODE:

(G)Greeting

In the Program Selection Screen (fig a.), Press

the key.

Type the name of the facility and press the

key to complete your entry. The

system will automatically center your entry on

the Welcome screen.(fig b.)

G

(fig a.)

FACILITY NAME:

Woodbridge Meadows

(fig b.)

Use the Greeting Screen to customize the Welcome message.

SELECT PROG MODE:
(V)Volume (B)Backup

In the Program Selection Screen (fig c.), Press

the key.

Use the keys to adjust the

volume to the desired level (fig d.). Press the

key to complete the entry.

V

(fig c.)

SPEAKER VOLUME>

- ___________ +

(fig d.)

Use the Speaker Volume Screen to adjust both voice message and speakerphone volume levels.

Pressing the button will provide users with a help message.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

35

Icon Page

BACK-UP MEMORY

MAIN Card Updated On
05-15-01 03:50am

Press the key to Backup.

Press the key to exit the backup

process (fig e.).

NOTE: You must have an extra memory card (sold separately)
installed in the RS 485 Slot (fig a.) of the Processor in order
to perform the backup process.

NOTE: Back-up Memory card must be
the same size or greater than the Main
Memory card being backed up.

The screens will display when the cards

were last updated. (fig c.) and (fig d.)

Use the keys to scroll

through the information.

SELECT PROG MODE:
(V)Volume (B)Backup

(fig b.)

(fig c.)

BACKUP Card Updated
02-11-01 04:20am

(fig d.)

(ENTER) To Backup
(EXIT) To Quit

(fig e.)

In the Program Selection Screen (fig b.),

Press the key.

Insert additional memory card in the
Backup Slot.

B

(fig a.)

Pressing the button will provide users with a help message.

IMPORTANT NOTE: While in the help screens, programming will be disabled.

To continue programming, press the button to exit the help screens first.

Mai

n Memo

RS485 Memo

ry Ca

ry Ca

r

d Slot

r

d Slo

t

Back-Up Memory Card Release Button

36

Icon Page

ERROR MESSAGES

WELCOME

WELCOME

Battery Is Low

It Must Be Recharged

Codes Detected out

of Range, See Manual

(fig a.)

B

(fig b.)

(fig c.)

OUT OF RANGE CODES: If the processor detects one
or more 3-digit codes present on the memory card
inserted that cannot be accessed, an error message is
displayed. (fig a.) Codes that cannot be accessed by
the limitation of the system being used cannot be
edited.

LOW BATTERY If the battery backup is reaching it’s
minimal charge level, a battery icon with a “B” next to
it will display in the top right corner of the
display. (fig b.) An alert beep will accompany this
icon. The batteries must be charged to continue.*

LOW BATTERY ICONS: If a battery icon appears in
the top right corner of the display and the letter next
to it is an “M” or a “C”, as shown in (fig d.) and (fig
e.), contact Manufacturer for instructions.

If the battery backup level reaches it’s minimal charge,
an error message will display (fig c.) and the system
will become non-functional until the battery backup is
charged by using the plug in transformer.*

C

(fig d.)

WELCOME

M

(fig e.)

*IMPORTANT NOTE: In order to charge the battery in the Dial Code System, the processor MUST be plugged in to the
transformer and the processor MUST BE ON. If the power is off on the processor, the battery will not be charging.

DISPLAY CONTROLLER BOARD

37

Icon Page

9

8

10

1

Display Contrast

2

Adjustment

7

BUSY

Power Input
Overvoltage

OVRV

3

Battery

BATT

Power

4

5

11

Power

POWER

9

6

12 Vac Input

1

12 Vac Output - (Not used)

2

Battery - (On/Off switch input)

3

Input/Output

4

Comm Port - (Connected to processors parallel port)

5

Sensor Input

6

Large Display Contrast Adjustment -

7

(Clockwise-Lighter Contrast, Counterclockwise-Darker Contrast)

8

Batt

9

Power

10

OVRV

LED Indicators

11

Busy

ON: System is working using battery power.
OFF: System is working using transformer power.

ON: System has power (Transformer, Battery).
OFF: System has no power (Transformer, Battery).
ON: Incorrect transfor

mer voltage (Overvoltage).

OFF: Proper transformer voltage (Transformer plugged in).

ON: LED flashes when receiving data from processor.
OFF: No data being received from processor.

38

Icon Page

LARGE DISPLAY BATTERY BACK-UP

OVRV

BUSY

T-100 is a built-in battery back-up module for the Large Display Controller Board. It provides the system with 3
to 5 hours of battery operation.

NOTE: “LCD Power” switch must always be turned ON for large display to oper-

AUXILIARY INPUT/OUTPUT CONNECTIONS

39

Icon Page

Input 2

Postal Lock

Connection Example

Input 1

GND

2-IN

2-NO

2-NC

OUTPUT RELAYS

RS-485 (3)

RS-485 (4)

2-COM

AUX

(+)
(-)

GND

(+)
(-)

GND

1-NO

1-NC

1-COM

RS-485 (1)

RS-485 (2)

GND

AUX

INPUT

POSTAL
SWITCH

2-IN

1-IN

(+)
(-)

GND

(+)
(-)

GND

1-IN

POWER IN

IN

GND

EXIT

/

INPUT

12V

AC/DC

TEL LINE IN

V-C

VCR

RELAY

V-NO

COMNCNO

GATE

RELAY

CHASSIS
GROUND

COMNCNO

DOOR

RELAY

CAMERA

VIDEO

OUT

Exit Switch

Connection Example

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"

Auxiliary inputs can be used for Postal Lock and/or Exit switch operations.

wire must be connected to the ground rod.
If unit is not grounded, lightning damage

Wiring Instructions:

1

Connect one terminal of a switch to Auxiliary Input (1-IN, or 2-IN)

2

Connect the other terminal to Ground (GND).

Note:

Auxiliary Input 1-IN activates auxiliary Relay 1

will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

Auxiliary Input 2-IN activates auxiliary Relay 2

Strike Time of Relay 1 is equ
Strike Time of Relay 2 are equal to the programmable “Door Strike Time” of processor

al to the programmable “Gate Strike Time” of processor

DOOR

KBRD

AUX 1 AUX 2

GATE

OPTIONAL CAMERA

40

Icon Page

This compact, optional color camera is only 22 mm x 26 mm and is
capable of 10-bit DSP, 330 line resolution output.

Connect camera to surge suppression terminal board with cable
supplied with camera.

Connect a BNC cable from a time lapse recorder or monitor to the
Video Out connector on the surge suppression terminal board.

(+)
(-)

GND

(+)
(-)

GND

(+)
(-)

GND

IN

GND

V-C

V-NO

(+)
(-)

GND

COMNCNO

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

COMNCNO

RS-485 (4)

RS-485 (3)

AUX

OUTPUT RELAYS

AUX

INPUT

12V

AC/DC

RS-485 (2)

POWER IN

TEL LINE IN

POSTAL
SWITCH

EXIT

INPUT

VCR

RELAY

/

RS-485 (1)

GATE

RELAY

DOOR
RELAY

CHASSIS
GROUND

CAMERA

VIDEO

OUT

It is MANDATORY that this unit is properly

It is MANDATORY that this unit is properly

1

1

1

2

2

For further detailed installation instructions please refer
to the installation sheet supplied with the camera.

Part # ICON26CAMERA

41

Icon Page

PARTS LIST AND ILLUSTRATIONS

(+)
(-)
GND

(+)
(-)
GND

(+)
(-)
GND

IN

GND

V-C

V-NO

(+)
(-)
GND

COMNCNO

2-NO

2-NC

2-COM

1-NO

1-NC

1-COM

GND

2-IN

1-IN

COMNCNO

RS485 (4)

RS485 (3)

AUX

OUTPUT RELAYS

AUX

INPUT

12V

AC/DC

RS485 (2)

FAN

KBRD

LIGHT

AUX 1
RELAY

AUX 2
RELAY

GATE

RELAY

DOOR
RELAY

POWER

POWER IN

TEL LINE IN

POSTAL
SWITCH

EXIT

INPUT

VCR

RELAY

/

RS485 (1)

GATE

RELAY

DOOR
RELAY

CHASSIS
GROUND

CAMERA

VIDEO

OUT

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

It is MANDATORY that this unit is properly
grounded. The provided "chassis ground"
wire must be connected to the ground rod.
If unit is not grounded, lightning damage
will occur. Please refer to the owners
manual for proper grounding instructions.

MADE IN USAeliteentryphone.com

COMMUNICATOR CARD

Remote Access RS485

capacity

T011

T030

Memory

Card

RS485

Card

T103 T111T010T109

T150SPT

T135

T027

T020

T000

T160

T012SPT

T025

T026

T114

T044

T108

T029

T003

T148

T180

T104

T106

Icon
Camera

T140

T132

T137

ICON26CAMERA Camera
RFCARD4K RS485 Communicator Card 4000
RFCARD8K RS485 Communicator Card 8000
RFCARD16K RS485 Communicator Card 16000
T000 Transformer 12 Vac 50 VA (Provided)
T003 Keylock
T010 Processor Key Release / Lock
T011 Battery Back-Up
T012SPT 9-Pin Comm Port Co

nnector (Surge Protection Terminal)

T020 LC Complete Internal Metal Box (Processor Box)
T025 Programming Keys
T026 Postal Lock Assembly
T027 LCD Processor - No Memory Card
T029 Key for Internal / External Lock
T030 LCD Display
T036 Heater Pad Option (Pre-Installed in Processor)
T044 Speaker 4 OHM
T103 Icon Keylock Bracket
T104 Icon Display Window Glass

Icon26 Part # Icon26 Description

T106 Icon Display Window Assembly
T108 Icon Stainless Steel Door
T109 Icon Processor Containment Box
T111 Icon Battery Back-Up
T114 Icon External Box Connection Kit

(Surge Protection Terminal)

T132 Icon External Front Door, W/O Display
T135 Icon LC External Box Assembly
T137 Icon Keypad Light
T140 GLCD Metal Keypad Complete W/ Lighting
T148 Temp / Light Sensor Cable (GLCD)
T150SPT Icon Fan

(Surge Protection Terminal)

T160 Icon Surge Protection Board
T180 Icon Display HT W/ Control Board
T25MEM 25 Name Memory Card
T50MEM 50 Name Memory Card
T150MEM 150 Name Memory Card
T250MEM 250 Name Memory Card
T500MEM 500 Name Memory Card
T1000MEM 1000 Name Memory Card

Icon26 Part # Icon26 Description

T032

LC Processor

All components and specifications are subject to change without notice.

42

Icon Page

APPROVALS

Instruction to the User:

This equipment has been tested and found to comply with the limits for a class 13 digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment.
Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV
reception. The user is cautioned that changes and modifications made to the equipment without the approval of
manufacturer could void the users authority to operate this equipment.

"Notice: The Industry Canada (IC) label identifies certified equipment. This certification means that the
equipment meets telecommunications network protective, operational and safety requirements as prescribed in
the appropriate Terminal Equipment Technical Requirements document(s). The department does not guarantee
the equipment will operate to the users satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the
local telecommunications company. The equipment must also be installed using a acceptable method of
connection. The customer should be aware that compliance with the above conditions may not prevent
degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs
or alterations made by a user to this equipment, or equipment malfunctions, may give the telephone
communications company cause to request the user to disconnect the equipment.

User should ensure for their own protection, that the electrical ground connections of the power utility, telephone
lines and internal metallic water pipe system, if present, are connected together. This precaution may be
particularly important in rural areas."

Caution: Users should not attempt to make such connection themselves, but should contact the appropriate
electric inspection authority, or an electrician, as appropriate.”

"Notice: The Ringer Equivalent Number (REN) assigned to each terminal device provides an indication of the
maximum number of terminals allowed to be connected to the telephone interface. The termination on a
interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer
Equivalent Numbers of all the devices does not exceed 5."

UL STD 294, 5th Ed.
UL STD 1950, 3rd Ed.

The Chamberlain Group, Inc.

Complies with Part 68, FCC Rules

FCC Part 15 - Tested to comply with
FCC standards for home or office use

This Class B digital apparatus meets all requirements of
CANADIAN Interference Causing Equipment Regulations.

845 larch avenue

Elmhurst, Illinois 60126-1196

114A2894B

© 2005 The Chamberlain Group, Inc. – All Rights Reserved
