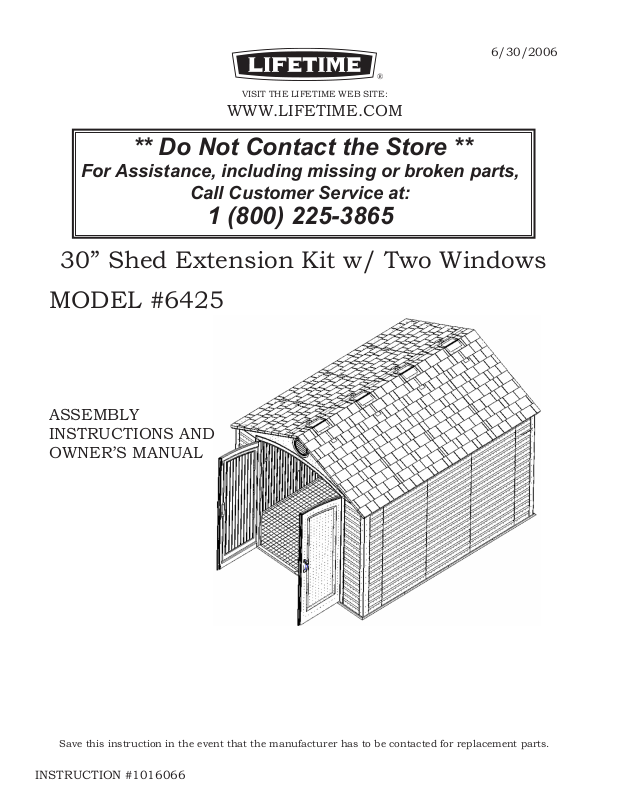

Lifetime 6425 User Manual
6/30/2006
®
VISIT THE LIFETIME WEB SITE:
WWW.LIFETIME.COM
** Do Not Contact the Store **
For Assistance, including missing or broken parts,
Call Customer Service at:
1 (800) 225-3865
30” Shed Extension Kit w/ Two Windows
MODEL #6425
ASSEMBLY
INSTRUCTIONS AND
OWNER’S MANUAL
Save this instruction in the event that the manufacturer has to be contacted for replacement parts.
INSTRUCTION #1016066
**A MINIMUM OF TWO ADULTS ARE REQUIRED FOR ASSEMBLY**
BEFORE BEGINNING ASSEMBLY
Identify and inventory all parts using the checklist boxes on the Parts List. Keep the
hardware bags and their contents separate. If any parts are missing, call our Customer
Service Department.
SAFETY INSTRUCTIONS
Failure to follow these safety instructions may result in serious injury or property damage. Proper and complete
assembly, use and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability
of serious injury exists if this display is not installed, maintained, or operated properly. • If using a ladder during assembly,
use extreme caution. Follow all warnings and cautions on the ladder carefully. • 2 people are required for assembly. •
Misuse could result in system failure. • If technical assistance is required, contact the manufacturer.
Most injuries are caused by misuse and/or failure to follow instructions.
PARTS LIST
AA 1007995 Center Roof Cap 1
AB 1007984 Gutter Channel 2
AC 1007977 Wall Support Channel 2
AD 1007988 Truss Channel 1
AE 1007996 Inner Roof Panel 2
AG 1009232 Skylight 1
AH 1007998 Window Wall Panel 2
AI 1007999 Window Frame C 4
AJ 1008000 Inner Floor Panel 2
AK 1008001 Roof Support Strip 4
AL 1013660 Window C 4
AM 1009156 Truss Support Strip 2
Shed Parts Box [1016073]
Window Hardware Bag [1011813] 2
CA BS05800 #10 x 3/4” Pan-Head Screw 5
CB BS05900 #10 x 1/2” Pan Head Screw 16
CC BW01300 #10 Washer 4
CD BN01600 #10 Cap Nut 2
CE 1005984 #10 x .38” Flat Head Screw 2
CF 1005981 #10 x 1 1/4” Pan Head Screw 4
CG 1005982 #10 x 1/2” Pan Head Screw 6
SS BS07500 1/4” x 5/8” Screw 4
CI 1008533 #10 x 5/16” Pan Head Screw 2
CJ 1009211 Window Stay Bracket 2
CK 1009212 Mounted Window Stay 2
CL 1009213 Sliding Window Stay 2
CM 1009214 Window Latch Bearing 4
CN 1009215 Window Latch 4
CO 1004592 Window Hinge 4
Skylight Hardware Bag [1011616] 1
LA BW01200 #10-1” Fender Washer 7
LB 1010132 #10 x 5/8” Pan Head Screw 7
Truss Extension Hardware Bag [1016014] 1
FA 1009117 Floor Bracket 2
FB 300072 1/4” x 1 1/2” Hex Bolt 11
FC BN00300 1/4” Cap Nut 11
FD 1012933 Center Gutter Connector 1
Shed Screw Hardware Bag [1011615] 1
SS BS07500 1/4” x 5/8” Screw 60
