Page 1
Wrist Auto-Inflation
Wrist Blood Pressure Monitor
Trilingual Instruction Guide – MODEL UB-511
Page 2
IMPORTANT INFORMATION
✓
Please read this important information before using your monitor.
Please remember that only a medical practitioner is qualified
☞
to interpret your blood pressure measurements. Use of this
device should not replace regular medical examinations.
Have your physician review your procedure for using this
☞
device. He or she will want to verify blood pressure measurements before prescribing or adjusting medications.
Consult your physician if you have any doubt about your
☞
readings. Should a mechanical problem occur, contact
A&D Medical.
Do not attempt to service, calibrate, or repair this device.
☞
Because your UB-511 monitor contains delicate, high-
☞
precision parts, avoid exposing it to extremes in temperature
or humidity or to direct sunlight, shock and dust. A&D
Medical guarantees the accuracy of this device only when it is
stored and used within the temperature and humidity ranges
noted on page E-15.
Clean the monitor and cuff with a dry, soft cloth or a cloth
☞
dampened with water and a mild detergent. Never use alcohol,
benzene, thinner or other harsh chemicals to clean monitor or
cuff.
Remove and replace batteries if monitor is not used for more
☞
than
six months.
PRECAUTIONS FOR USE
The UB-511 is designed to be used at home, by those who are 18
years and older to monitor blood pressure: systolic and diastolic,
and pulse rate.
Page 3
Congratulations. You have purchased a LifeSource state-of-the-
art blood pressure monitor, one of the most technologically
advanced yet easy to use products available in the marketplace
today. This LifeSource monitor is designed to make your daily
regimen useful and convenient.
?
TABLE OF CONTENTS
WHAT DISPLAY SYMBOLS MEAN . . . . . . . . . E-2
MONITOR COMPONENTS . . . . . . . . . . . . . . E-3
HOW UB-511 WORKS . . . . . . . . . . . . . . . . E-4
BEFORE YOU START . . . . . . . . . . . . . . . . . . E-4
Physicians agree that daily self-monitoring of blood pressure is
an important way individuals can contribute to maintaining
their cardiovascular health and preventing the serious consequences of hypertension left undiagnosed and untreated.
A&D Medical has been manufacturing quality healthcare
products for more than 20 years. Rest assured that we are
committed to providing you and your family with monitoring
devices specifically designed for high accuracy and ease of use.
LifeSource Health Line (Toll-Free): 1-888-726-9966
TAKING YOUR BLOOD PRESSURE . . . . E-5 — E-6
WHAT IS AN IRREGULAR HEARTBEAT . . . . . .E-7
ABOUT AVERAGE READING . . . . . . . . . . . . .E-7
ABOUT MEMORY . . . . . . . . . . . . . . . . . . . .E-8
ABOUT PRESSURE INDICATOR . . . . . . . . . . .E-9
ABOUT BLOOD PRESSURE . . . . . . . E-10 — E-12
❤
✓
In Canada (Toll-Free): 1-800-461-0991
BLOOD PRESSURE RECORD . . . . . . . . . . . . E-13
TROUBLESHOOTING . . . . . . . . . . . . . . . . . E-14
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . E-15
CONTACT INFORMATION . . . . . . . . . . . . . E-16
E-1
Page 4
WHAT DISPLAY SYMBOLS MEAN
MONITOR COMPONENTS
?
Display
Symbol
❤
IRREGULAR HEARTBEAT
FULL BATTERY
LOW BATTERY
PULSE DISPLAY ERROR
E-2
?
Condition/
Error
Appears when measuring
is in progress, and flashes
when pulse is detected.
An irregular heartbeat or
body movement may have
occurred. Refer to page E7 for more information on
irregular heartbeats.
The monitor is using sufficiently charged batteries.
The batteries are low
when the indicator blinks.
The systolic and diastolic
measurements are within
10 mmHg of each other.
Unstable blood pressure
due to excessive body
movement.
The pressure value did not
increase during inflation.
The cuff is not fastened
correctly.
The pulse is not detected
correctly.
Indicates previous measurement stored in memory.
Pressure Indicator
LifeSource Health Line (Toll-Free): 1-888-726-9966
Recommended
Action
Remain still and refrain
from talking during
monitoring process.
Take measurement again
and consult with your
physician.
Replace batteries with two
new batteries when the
indicator blinks.
Fasten the cuff correctly, try
the measurement again.
Try the measurement
again. Remain very still
during the measurement.
Check cuff to ensure fit
and fastening is correct,
and measure again.
Check cuff to ensure fit
and fastening is correct,
and measure again.
Check for correct fit and
position of cuff and take
another reading.
Measurement is in progress,
remain as still as possible.
DISPLAY
SYSTOLIC PRESSURE
DIASTOLIC PRESSURE
PULSE RATE
CASE
AAA BATTERIES
In Canada (Toll-Free): 1-800-461-0991
BATTERYHOLDER
COVER
STARTBUTTON
CUFF
?
E-3
?
Page 5
?
HOW UB-511 WORKS
TAKING YOUR BLOOD PRESSURE
LifeSource™ Blood Pressure Monitors are easy to use, accurate
and display clear digital measurements. Our technology is based
on the “oscillometric method”. The term “oscillation” refers to the
measure of vibrations caused by the arterial pulse and is a noninvasive method to determine blood pressure.
Our monitors examine the pulsatile pressure generated by the
arterial wall as it expands and contracts with each heartbeat
against the monitor’s cuff. This monitor measures your blood
pressure while the cuff is inflating.

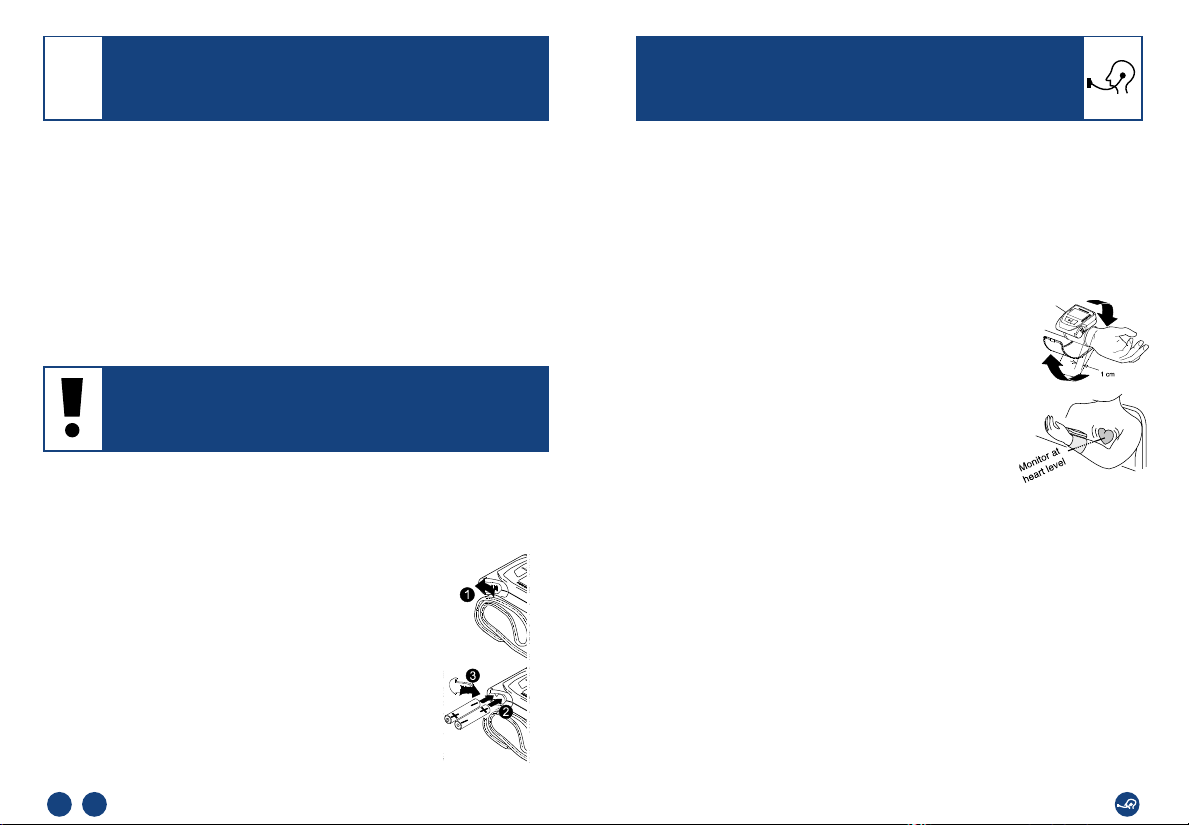

BEFORE YOU START
The UB-511 provides accurate readings on wrists with a circumference between
The unit requires two “AAA” (1.5 volt) batteries to operate. To
install batteries (or to replace when “Low Battery” symbol
appears), proceed as follows:
1. Slide the battery cover as shown to remove
from the device.
2. Insert batteries into designated areas
ensuring a correct match with positive (+)
and negative (-) terminals.
3. Return battery cover by sliding back on to
monitoring device.
5.3" and 8.5" (13.5 cm and 21.5 cm).
Tips for Blood Pressure Monitoring:
Relax for 5 to 10 minutes prior to measurement
☞
Remove watch, jewelry or tight-fitting garments
☞
Use left wrist unless otherwise recommended by physician
☞
Now you are ready to follow these simple steps:
1. Sit comfortably in a chair near a flat surface.
2. With palm facing upward, attach monitor to
left wrist and fasten securely. The top edge of
the cuff should align with the crease of your
wrist.
3. Position your wrist so it is level with your
heart, using an arm rest if needed.
Positioning of the wrist at heart level is
critical for accurate measurement.
4. Press the START button. The average readings from blood
pressure measurements stored in memory will appear for a few
seconds and the number of measurements stored in memory
will flash two times (e.g. A04). The cuff will then begin to
inflate. It is normal for the cuff to feel very tight.
NOTE: To stop inflation at any time, press START
5. Remain still and refrain from talking or moving during reading.
E-4
? !
LifeSource Health Line (Toll-Free): 1-888-726-9966
In Canada (Toll-Free): 1-800-461-0991
E-5
Page 6

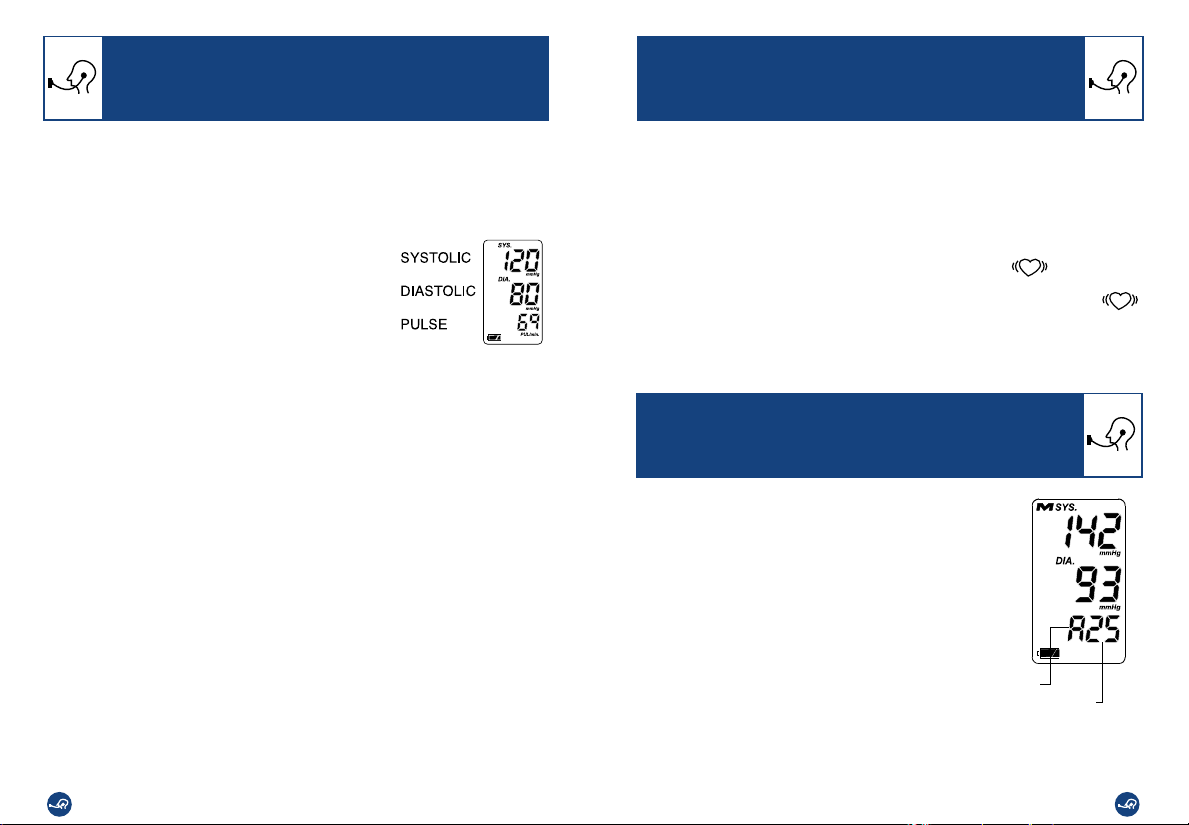

TAKING YOUR BLOOD PRESSURE
WHAT IS AN IRREGULAR HEARTBEAT?
6. As the cuff is inflating, the ❤ (heart symbol) will appear to
indicate that the measurement is in progress. The monitor
measures your blood pressure while the cuff is inflating, so
remain still. Once the pulse is detected, the symbol will flash
with each pulse beat.
7. When measurement is complete, the
systolic and diastolic pressure and pulse
rate readings are displayed. The cuff will
automatically deflate completely,
expelling all remaining air.
8. Press START button once to turn off power. The device has an
automatic power-down feature which turns off power automatically one minute after measurement is obtained.
For the most useful blood pressure history, we recommend that
you record the date and time after each measurement. The most
accurate history relies not on a single or sporadic readings, but
on a consistent monitoring pattern over time.
NOTE: If you wish to take your blood pressure measurement
again, relax and wait 5-10 minutes to enable the flow of blood
in the arm to return to normal.
NOTE: If you have poor blood circulation in winter (especially
when your hands and wrists are cold), you may not get a blood
pressure measurement.
The UB-511 Blood Pressure Monitor provides a blood pressure and
pulse rate measurement even when an irregular heartbeat occurs.
An irregular heartbeat is defined as a heartbeat that varies by 25%
from the average of all heartbeat intervals during the blood pressure measurement. It is important that you relax, remain still and
refrain from talking during measurements. If an irregular heartbeat
occurs during a reading, this symbol will appear .
NOTE: We recommend contacting your physician if you see this
symbol frequently.
ABOUT AVERAGE READING
The UB-511 provides an average blood pressure
reading based on the total measurements stored in
memory. When taking a measurement, the average
blood pressure reading will appear and the number
of measurements stored in memory will flash two
times before the cuff begins to inflate. The average
blood pressure reading will also appear briefly when
you recall the measurements stored in memory.
AVERAGE
NUMBER OF MEASUREMENTS
STORED IN MEMORY
E-6
LifeSource Health Line (Toll-Free): 1-888-726-9966
In Canada (Toll-Free): 1-800-461-0991
E-7
Page 7
ABOUT MEMORY
ABOUT PRESSURE INDICATOR
The UB-511 automatically stores up to 30 blood pressure and
pulse measurements in its memory. Measurements stored in memory are assigned an index number in the order of the newest to the
oldest. The oldest reading displays as "n01".
To retrieve readings, follow these simple steps:
1. When the display screen is blank, press and hold the START
button. While holding down the START button, you will see
the average reading displayed first. You will then see the
memory index number (e.g. n03) of the most recent reading
followed by the measurement. Release the START button
when you see the memory index number.
2. The display will shut off automatically a few seconds after all
of the readings are displayed. To turn off the monitor at any
time, press the START button.
3. The display will shut off automatically a few seconds after the
readings are displayed.
To clear the measurement history from memory, remove the batteries from the unit and then place the batteries back into the battery holder.
NOTE: If there are no measurements stored in memory, you will
see two 0s displayed vertically followed by a blinking "A00".
NOTE: Stored measurements will be lost if batteries become low
or are removed.

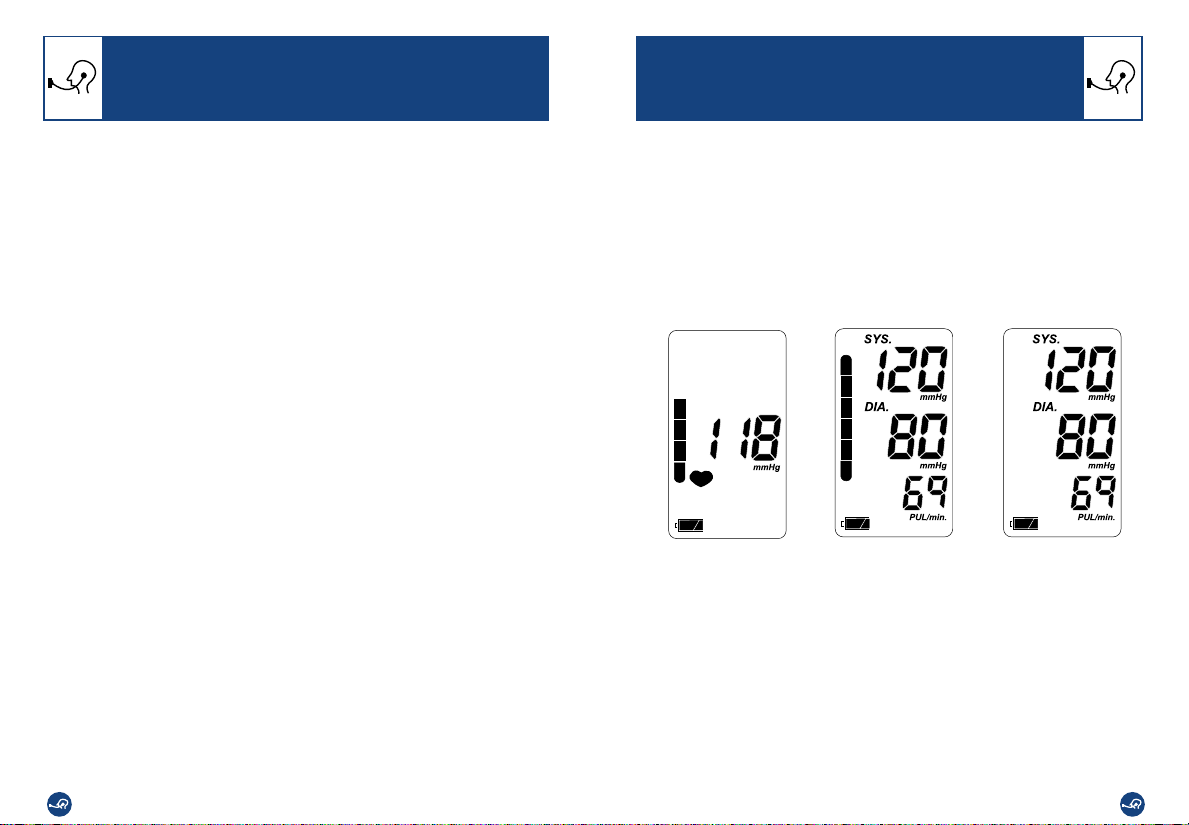

The Pressure Indicator is located on the left side of the display
screen to tell you when the blood monitor is inflating the cuff.
The indicator consists of a scale with six levels and moves up
during inflation.
Inflation in
Progress
NOTE: The motor will inflate the cuff at a slow speed starting at
20mmHg to begin the blood pressure measurement process.
Inflation/Measurement
Complete
Measurement
Displayed
E-8
LifeSource Health Line (Toll-Free): 1-888-726-9966
In Canada (Toll-Free): 1-800-461-0991
E-9
Page 8
❤

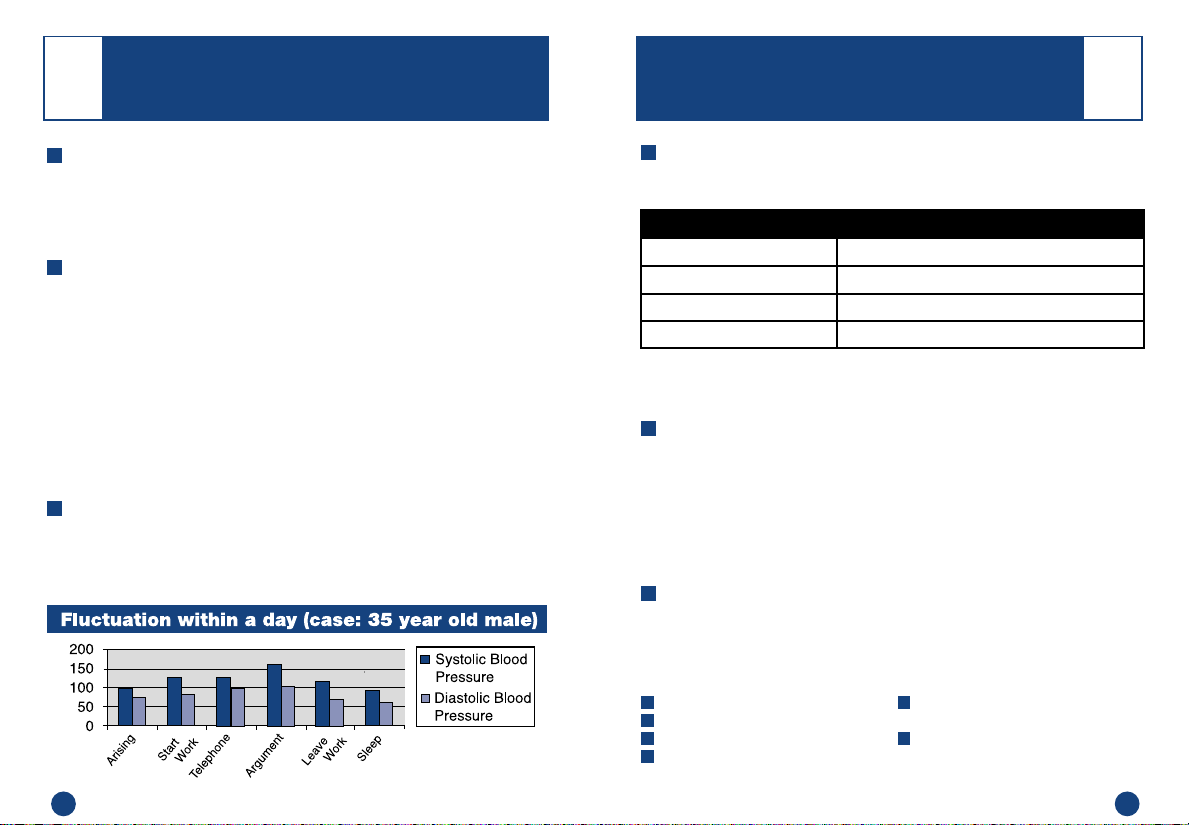

ABOUT BLOOD PRESSURE
ABOUT BLOOD PRESSURE
❤
What Is Blood Pressure?
Blood pressure is the force exerted by blood against the walls of
the arteries. Systolic pressure occurs when the heart contracts;
diastolic pressure occurs when the heart expands. Blood pressure
is measured in millimeters of mercury (mmHg).
What Affects Blood Pressure?
Blood pressure is affected by many factors: age, weight, time of day,
activity level, climate, altitude and season. Certain activities can
significantly alter blood pressure. Walking can raise systolic pressure by 12 mmHg and diastolic pressure by 5.5 mmHg. Sleeping
can decrease systolic blood pressure by as much as 10 mmHg.
Taking your blood pressure repeatedly without waiting an interval
of 5 to 10 minutes between readings, or without raising your arm
to allow blood to flow back to the heart, can also affect it.
In addition to these factors, beverages containing caffeine or alcohol, certain medications, emotional stress and even tight-fitting
clothes can make a difference in the readings.
What Causes Variations In Blood Pressure?
An individual’s blood pressure varies greatly from day to day and
season to season. In hypersensitive individuals, these variations
are even more pronounced. Normally, blood pressure rises during
work or play and falls to its lowest levels during sleep.
Assessing High Blood Pressure
The following standards for assessing high blood pressure (without regard to age) have been established as a guideline.
BP Classification Systolic (mmHg) Diastolic (mmHg)
Normal <120 and <80
Prehypertension 120-139 or 80-89
Stage 1 Hypertension 140-159 or 90-99
Stage 2 Hypertension ≥160 or ≥100
SOURCE: The Seventh Report of the Joint National Committee on
Prevention, Evaluation and Treatment of High Blood Pressure.
National Heart, Lung and Blood Institute - May 2003.
What Is Hypertension?
Hypertension (high blood pressure) is the diagnosis given when
readings consistently rise above normal. It is well known that
hypertension can lead to stroke, heart attack or other illness if left
untreated. Referred to as a “silent killer” because it does not
always produce symptoms that alert you to the problem, hypertension is treatable when diagnosed early. Those who fall within the
Prehypertensive range are more likely to develop hypertension in
the future.
Can Hypertension Be Controlled?
In many individuals, hypertension can be controlled by altering
lifestyle and minimizing stress, and by appropriate medication prescribed and monitored by your doctor. The American Heart
Association recommends the following lifestyle suggestions to prevent or control hypertension:
Don’t smoke. Have regular physical
Reduce salt and fat intake. checkups.
Maintain proper weight. Monitor your blood
Exercise routinely. pressure at periodic intervals.
E-10
LifeSource Health Line (Toll-Free): 1-888-726-9966
In Canada (Toll-Free): 1-800-461-0991
E-11
❤❤
Page 9
❤
?
HOW 401 WORKS
ABOUT BLOOD PRESSURE
HOW 401 WORKS
?
Why Measure Blood Pressure at Home?
It is now well known that, for many individuals, blood pressure
readings taken in a doctor’s office or hospital setting might be ele-
vated as a result of apprehension and anxiety. This response is
commonly called “white coat hypertension.” One way to determine whether this is the case for you is to take your home monitor to the doctor’s office and, before the doctor or nurse takes your
pressure, do it yourself on your home monitor and compare it to
your record of home readings.
In any case, self-measurement at home supplements your doctor’s
readings and provides a more accurate, complete blood pressure
history. In addition, clinical studies have shown that the detection
and treatment of hypertension is improved when patients both
consult their physicians and monitor their own blood pressure at
home.
Keys to Successful Monitoring:
Blood pressure fluctuates throughout the day. We recommend that
you are consistent in your daily measurement routine:
• Measure at the same time every day.
• Sit in the same chair/position.
• Relax for 5 minutes before measurement.
• Sit still during measurement – no talking, eating or sudden
movements.
• Record your measurement in a logbook.
How Do I Record My Blood Pressure?
Blood pressure readings are typically recorded with the systolic
pressure written first, followed by a slash mark and the diastolic
pressure. For example, 120 mmHg systolic and 80 mmHg diastolic
measurements are written as 120/80. Pulse is simply written with
the letter “P” followed by the pulse rate—P 72, for example.
Please see Page E-13 for the blood pressure record, or visit
www.LifeSourceOnline.com for the BP traking diary
E-12
❤
LifeSource Health Line (Toll-Free): 1-888-726-9966
BLOOD PRESSURE RECORD
Name : Age : Weight :
DATE AM SYS/DIA PULSE PM SYS/DIA PULSE
1/14 9:30 132/98 P 69 6:30 128/87 P 63
EXAMPLE
In Canada (Toll-Free): 1-800-461-0991
❤
E-13
Page 10
✓
TROUBLESHOOTING
TAKING YOUR BLOOD PRESSURE
SPECIFICATIONS
✓
Problem
Display is blank,
even when the
power is turned
on.
The device will
not measure.
Readings are too
high or too low.
Other
NOTE: If the actions described above do not solve the problem,
contact A&D Medical or Auto Control Medical at the numbers listed
at the bottom of these pages. Do not attempt to repair the device
yourself.
E-14
✓
Probable cause
Batteries are drained.
Battery terminals are
not in the correct
position.
The cuff is not fastened properly.
You moved your arm
or body during the
measurement.
The position of your
wrist is not correct.
The blood pressure
reading is different
from that measured
at a clinic or doctor’s
office.
LifeSource Health Line (Toll-Free): 1-888-726-9966
Corrective action
Replace with new batteries.
Place the battery with
negative and positive terminals matching those
indicated in the battery
compartment.
Fasten the cuff correctly.
Make sure you remain
very still and quiet during
the measurement.
Position your wrist so it
is level with your heart,
using an arm rest if
needed.
See Pg E-12 “Why
Measure Blood Pressure
at Home?”
Remove the batteries.
Place back in correctly,
and try the measurement
again.
Model . . . . . . . . . . . . . . . . . . . .UB-511
Type . . . . . . . . . . . . . . . . . . . . . .Oscillometric
Display . . . . . . . . . . . . . . . . . . .Digital, 10/7-mm character height,
. . . . . . . . . . . . . . . . . . . . . . .Pressure/Pulse displayed simultaneously
Memory . . . . . . . . . . . . . . . . . .30 readings
Measurement range . . . . . . .Pressure: 20 mmHg to 280 mmHg
. . . . . . . . . . . . . . . . . . . . . . .Pulse: 40 pulses to 199 pulses/minute
Accuracy . . . . . . . . . . . . . . . . . .Pressure: +
. . . . . . . . . . . . . . . . . . . . . . .is greater, Pulse: +5%
Pressurization . . . . . . . . . . . . .Automatic, using micropump
Depressurization . . . . . . . . . .Constant air release-valve system
Power source . . . . . . . . . . . . .2 type AAA (1.5 volt) alkaline batteries
. . . . . . . . . . . . . . . . . . . . . . .(included)
Battery life . . . . . . . . . . . . . . . .Approximately 400 measurements
Operating environment . . . .50ºF to 104ºF (10ºC to 40ºC)
Less than 95% relative humidity
Storage environment . . . . . .14ºF to 140ºF (-10ºC to 60ºC)
Less than 95% relative humidity
Wrist Circumference Range 5.3 – 8.5”(13.5 – 21.5 cm),
Dimensions . . . . . . . . . . . . . . .Depth: 0.8” (21 mm), Width: 2.5”
(63 mm), Height: 2.2” (56 mm),
Dimensions with case . . . . . .Length: 4.0” (102 mm), Width: 3.0”
(76 mm), Height: 3.3” (83 mm),
approximately
Weight . . . . . . . . . . . . . . . . . . . .2.9 oz. (82 g) without batteries
Blood pressure measurements determined by the UB-511 are
equivalent to those obtained by a trained observer using the
cuff/stethoscope auscultation method within the limits prescribed
by the American National Standards Institute for electronic or
automated sphygmomanometers.
In Canada (Toll-Free): 1-800-461-0991
3 mmHg or 2%, whichever
✓
E-15
Page 11
TAKING YOUR BLOOD PRESSURECONTACT INFORMATION
IMPORTANT!
If You Need Assistance with the Set-Up or Operation
Our products are designed and manufactured using the latest
scientific and technological methods, and offer accurate, easy to
use, home monitoring and treatment options. The product line
includes:
Aneroid Blood Pressure Kits
Blood Pressure Cuffs
Digital Blood Pressure Monitors
Digital Thermometers
Heart Rate Monitors
Personal Health Scales
Stethoscopes
Nebulizers
This LifeSource product is covered by a Lifetime Warranty.
See warranty card for details.
For more information regarding use, care or servicing of your
Blood Pressure Monitor, contact:
A&D Medical
A division of A&D Engineering, Inc.
1555 McCandless Drive
Milpitas, CA 95035
LifeSource Health Line (Toll-Free): 1-888-726-9966
www.LifeSourceOnline.com
For Canada Residents, please contact:
Auto Control Medical
6695 Millcreek Drive, Unit 5
Mississauga, Ontario
L5N 5R8 Canada
Auto Control (Toll-Free): 1-800-461-0991
www.autocontrol.com
E-16
?
LifeSource Health Line (Toll-Free): 1-888-726-9966
We Can Help!
Please call us FIRST before contacting your retailer at
LifeSource Health Line
1-888-726-9966 - Toll Free
1-800-461-0991 - In Canada
A specially trained representative will assist you
A division of A&D Engineering, Inc.
1555 McCandless Drive
Milpitas, CA 95035
www.LifeSourceOnline.com
LifeSource is a trademark of A&D Medical. ©2004 A&D Medical. All rights reserved.
Specifications subject to change without notice.
I-MAN:511 Printed in China 11/04
Loading...
