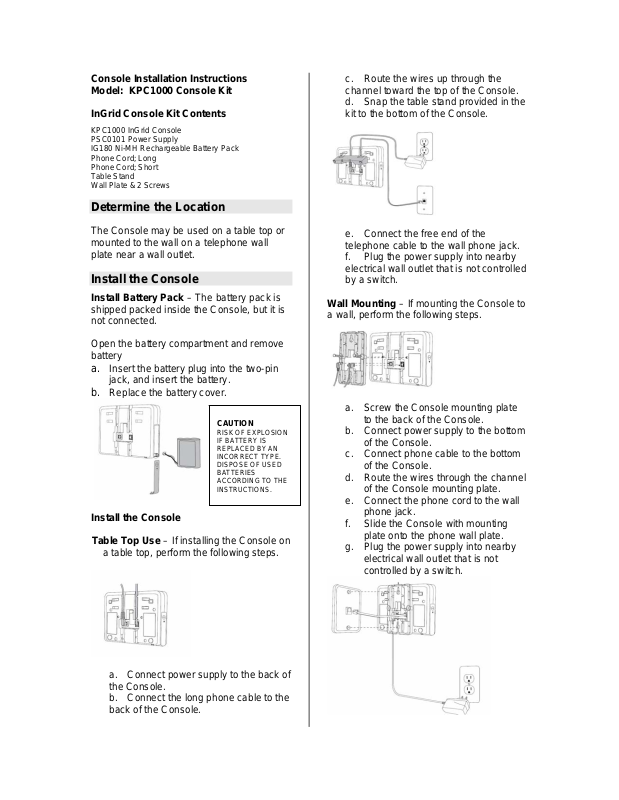

Console Installation Instructions
Model: KPC1000 Console Kit
InGrid Console Kit Contents
KPC1000 InGrid Console
PSC0101 Power Supply
IG180 Ni-MH Rechargeable Battery Pack
Phone Cord; Long
Phone Cord; Short
Table Stand
Wall Plate & 2 Screws
Determine the Location
The Console may be used on a table top or
mounted to the wall on a telephone wall
plate near a wall outlet.
Install the Console
Install Battery Pack – The battery pack is
shipped packed inside the Console, but it is
not connected.
Open the battery compartment and remove
battery
a. Insert the battery plug into the two-pin
jack, and insert the battery.
b. Replace the battery cover.
CAUTION
RISK OF EXPLOSION
IF BATTERY IS
REPLACED BY AN
INCORRECT TYPE.
DISPOSE OF USED
BATTERIES
ACCORDING TO THE
INSTRUCTIONS.
Install the Console
Table Top Use – If installing the Console on
a table top, perform the following steps.
c. Route the wires up through the
channel toward the top of the Console.
d. Snap the table stand provided in the
kit to the bottom of the Console.
e. Connect the free end of the
telephone cable to the wall phone jack.
f. Plug the power supply into nearby
electrical wall outlet that is not controlled
by a switch.
Wall Mounting – If mounting the Console to
a wall, perform the following steps.
a. Screw the Console mounting plate
to the back of the Console.
b. Connect power supply to the bottom
of the Console.
c. Connect phone cable to the bottom
of the Console.
d. Route the wires through the channel
of the Console mounting plate.
e. Connect the phone cord to the wall
phone jack.
f. Slide the Console with mounting
plate onto the phone wall plate.
g. Plug the power supply into nearby
electrical wall outlet that is not
controlled by a switch.
a. Connect power supply to the back of
the Console.
b. Connect the long phone cable to the
back of the Console.
Note:
p
o Use only InGrid IG180 rechargeable battery
packs supplied with your various Home
Protection components.
o Replacement battery packs are also
available through the InGrid’s customer
service at 1-877-INGRID7 or on-line at
www.InGridHome.comUse only the
supplied AC power adapter. Do not use any
other adapter.
o Place the power cord so that it does not
create a trip hazard or where it could
become
inched and create an electrical
Add the Console to your InGrid System
After the initial installation of the InGrid
System, components may be added to
enhance access or performance.
These devices may be added to the InGrid
System up to the number shown in the table:
Device Device
Maximum
Handsets 6
Consoles 4 9*
Grid Extenders 4
*The system will allow a maximum of 9
Handset/Console or Grid Extender combinations.
After the hardware is hooked up, use a
Handset or Console that is currently
registered on the System to enter the
Security Menu and follow the steps for
installing new hardware.
Enter the Security Menu
After installing the hardware, enter Menu on
your Handset or Console.
o Scroll to Security Setup and press
SELECT
o Enter Code and press SELECT
.
Add the Console
On your existing Handset or Console,
navigate to GC or Handset (Menu/Security
Setup/GC or Handset/<Add New>).
1. Press the SELECT key to <Add New>.
The system will begin searching for the
System
Maximum
new Handset or Console you are
looking to add.
2. On the New Handset or Console, press
the SEARCH key.
Not Available
SEARCH
3. The system will inform you when it has
found and added the Handset or
Console via the display and an audio
signal. Press OK when you have been
informed that the Handset or Console
has been added.
4. You will then be given the option to edit
the default name.
5. Press OK.
