Page 1
OWNER’S
Blood Glucose
Monitoring System
®
™
a company
BOOKLET
Page 2
Dear ONE TOUCH®BASIC™Owner:
Congratulations! You’ve chosen a very easyto-use blood glucose monitoring system for
home testing. Your ONE TOUCH BASIC
System will give you the accurate test
results you need, in just a few simple steps.
If you have any questions, please feel free
to call our toll-free number and speak
with our Technical Services Department,
1 800 227-8862.
Thank you for choosing the ONE TOUCH
BASIC Meter.
Everything you need to know about using
the ONE TOUCH BASIC System is included in this booklet. A free instructional
videotape is also available by calling
LifeScan Technical Services.
Blood glucose monitoring plays an important role in controlling your diabetes. The
results you get with the ONE TOUCH
BASIC System can help you and your
Health Care Professional monitor and
adjust your treatment plan (diet, exercise,
and medication) to help you gain better
control of your diabetes.
Sincerely,
Richard P. Thompson
President, LifeScan Inc.
P.S. Don’t forget to complete and mail the
Warranty Registration Card. When we
receive your Warranty Card, we’ll send you
a complimentary gift to show our appreciation. See your Warranty Card for details.
Page 3
CAUTION: Before using any product to test your blood glucose (sugar),
read all instructions and practice the test. Do all quality control checks
as directed and consult with a diabetes Health Care Professional. These
recommendations apply to all blood glucose monitoring systems and
are supported by the American Association of Diabetes Educators, the
American Diabetes Association, the Food and Drug Administration,
and the Health Industry Manufacturers Association.
Page 4
TABLE OF CONTENTS
1. GETTING STARTED
2. SETTING THE METER Selecting the Display Language . . . . . . . . . . .7
3. CHECKING THE SYSTEM Checking with the Check Strip . . . . . . . . . .11

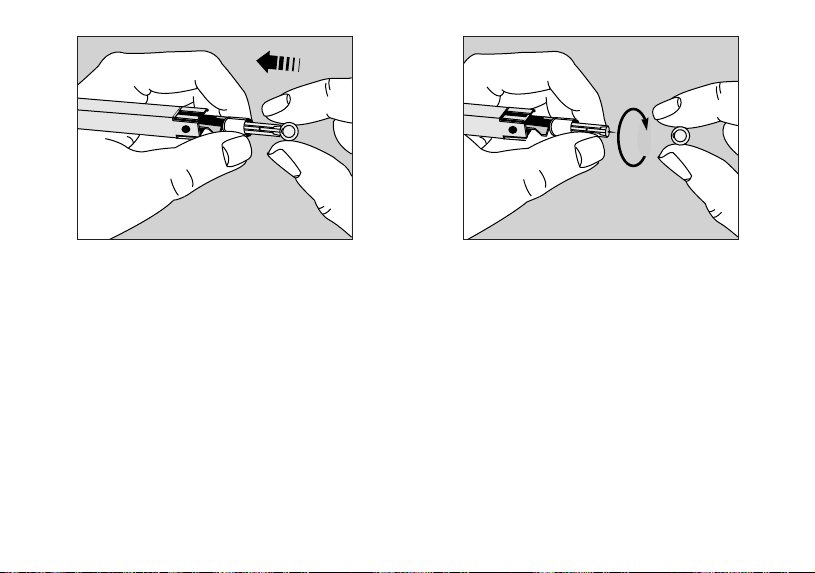

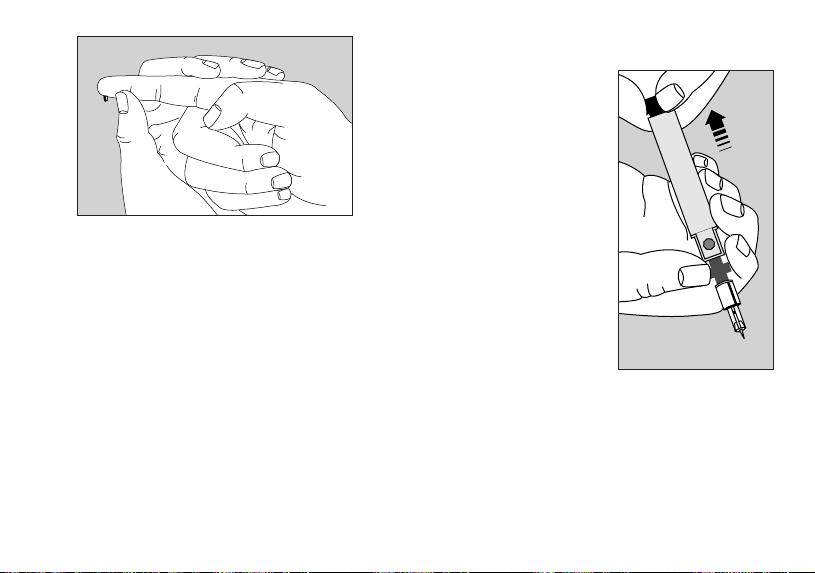

4. GETTING A DROP OF BLOOD Using the PENLET®II Automatic
5. TESTING YOUR BLOOD Step-by-Step Instructions . . . . . . . . . . . . . . .28
Description and Use . . . . . . . . . . . . . . . . . . . . . .1
Getting to Know the Meter . . . . . . . . . . . . . .2
Precautions and Limitations . . . . . . . . . . . . .5
Coding the Meter . . . . . . . . . . . . . . . . . . . . . .8
Checking with Control Solution . . . . . . . . .17
Blood Sampler . . . . . . . . . . . . . . . . . . . . . . .20
LifeScan Technical Services: USA 1 800 227-8862
Canada 1 800 663-5521
Page 5
6. AFTER TESTING Checking the Amount of Blood . . . . . . . . . .36
Recording Your Test Results . . . . . . . . . . . .37
Displaying Last Test Result . . . . . . . . . . . . .38
7. HELP! (Troubleshooting) Test Procedure Messages . . . . . . . . . . . . . . .40
Error Messages . . . . . . . . . . . . . . . . . . . . . . .43
8. TAKING CARE OF THE METER Daily Meter Check . . . . . . . . . . . . . . . . . . . .54
Cleaning the Meter . . . . . . . . . . . . . . . . . . . .54
Battery Replacement . . . . . . . . . . . . . . . . . .59
9. QUESTIONS AND ANSWERS 63
10. SPECIFICATIONS Performance Characteristics . . . . . . . . . . . . .71
Guarantee and Warranty . . . . . . . . . . . . . . .72
11. INDEX 74
LifeScan Technical Services: USA 1 800 227-8862
Canada 1 800 663-5521
Page 6
1. GETTING STARTED
Description and Use
The ONE TOUCH®BASIC™Blood
Glucose Monitoring System is
intended for
This statement means that the
system should be used only for
testing purposes and only outside of
the human body. The ONE TOUCH
BASIC Meter and Test Strips are
used for monitoring whole blood
glucose for people who have been
diagnosed with diabetes mellitus.
This device is not to be used for the
diagnosis of diabetes.
in vitro diagnostic use.
The ONE TOUCH BASIC Blood
Glucose Monitoring System measures the amount of glucose (sugar) in
whole blood. When blood is applied
to the Test Strip, compounds on the
Test Strip react with the blood and a
blue color is formed. The intensity
of the color is then measured and
read by the ONE TOUCH BASIC
Meter.
1
Page 7

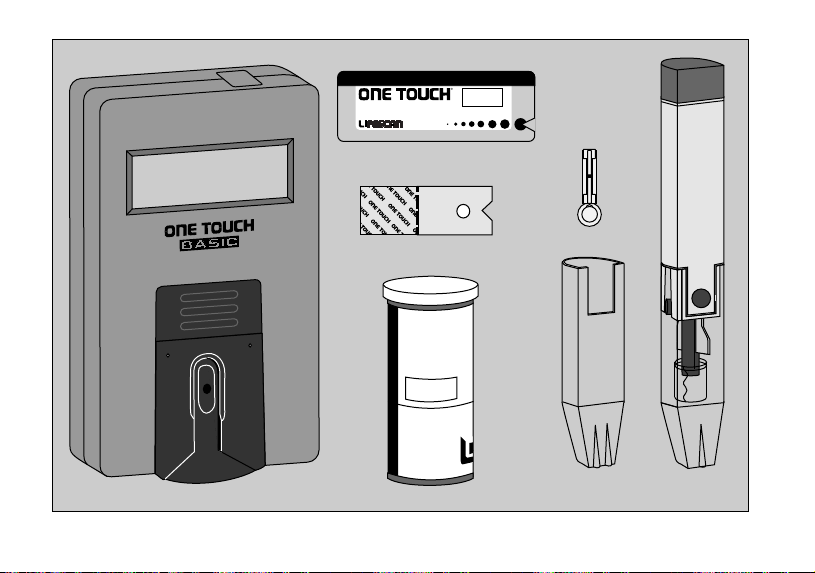

Getting to Know the
C Button
Battery
Compartment
(on back)
Display
On/Off
Button
Test Area
with Protective
Coating
Test Strip
Holder
Meter
Study this diagram
and become familiar
with all the parts of
your ONE TOUCH
BASIC™Meter.
®
2
Page 8
ON/OFF BUTTON. This button turns
the Meter on and off.
DISPLAY. This is where you read
your test results and the simple
messages that help guide you
through the test.

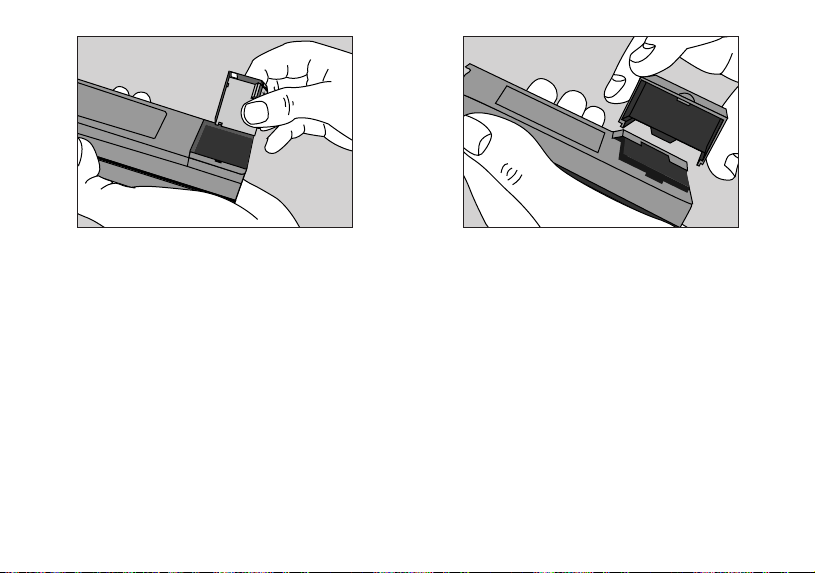

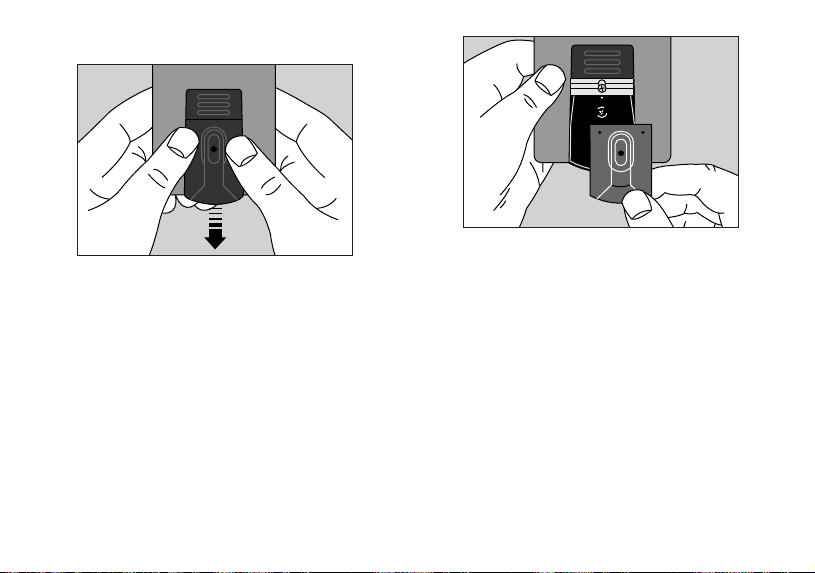

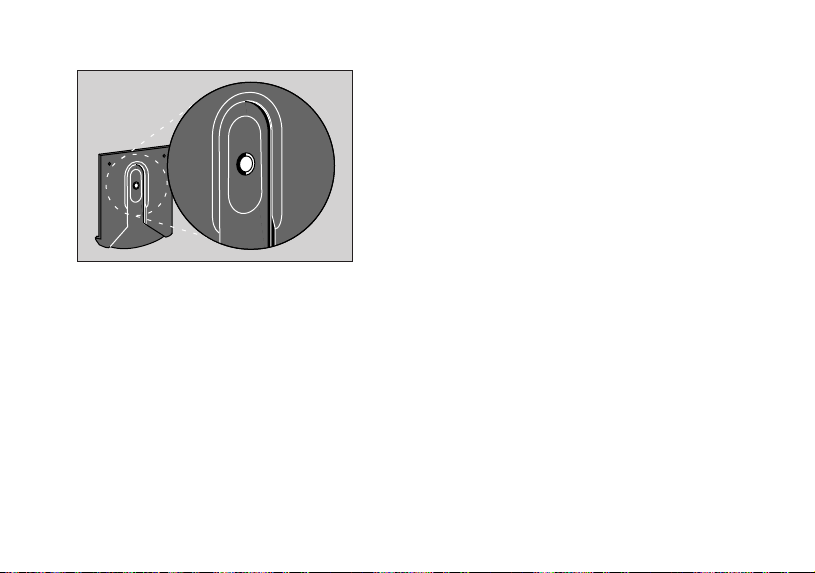

TEST STRIP HOLDER. The dark
gray Test Strip Holder keeps the Test
Strip in place. The Meter reads the
color of the reacted Test Strip
through the small hole in the Test

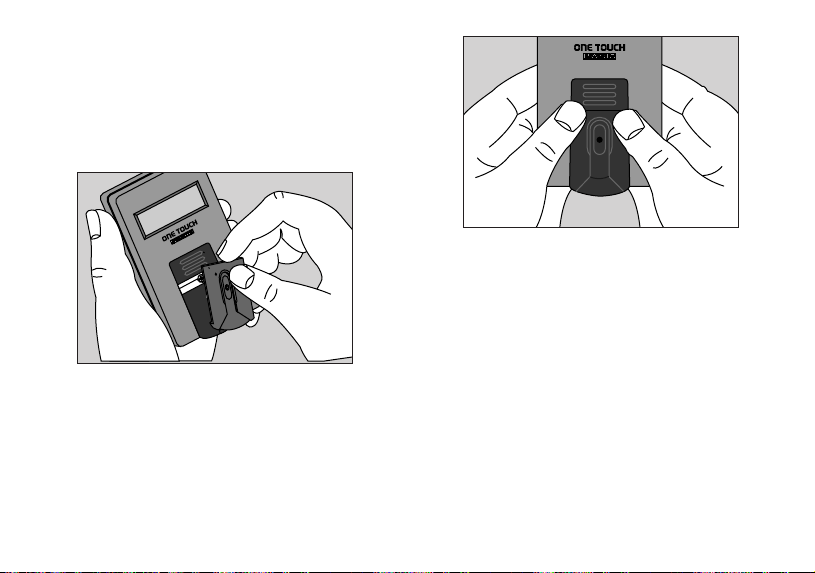

Strip Holder. Remove the Test Strip
Holder from the Meter for cleaning.

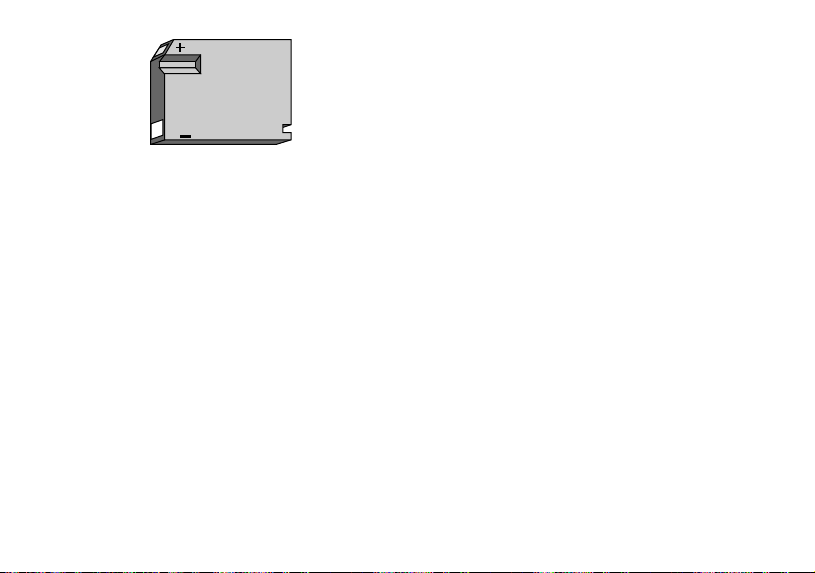

BATTERY COMPARTMENT.
Holds one J-size battery. The battery
is already installed in your Meter.
C BUTTON. Use the C Button to
match the Meter code with the code
number on the Test Strip package.
You can also use the C Button to
select English or Spanish display
messages.

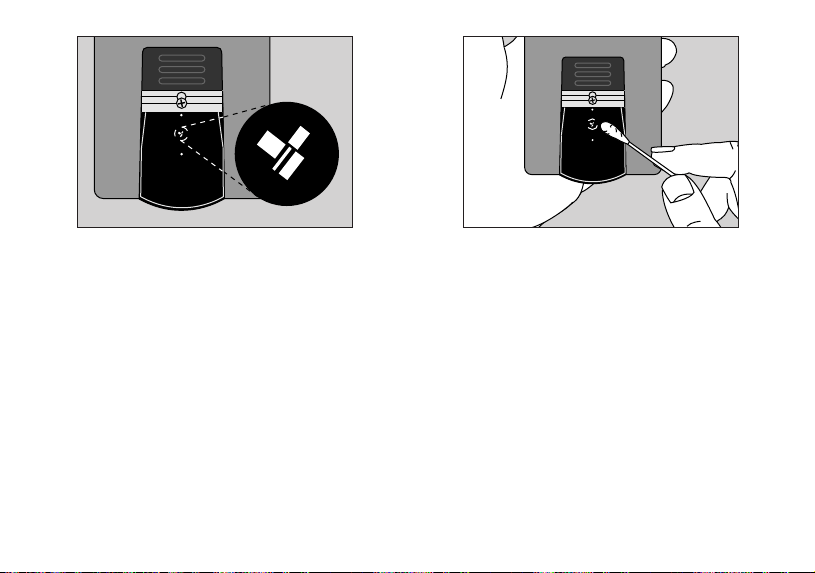

TEST AREA. When the Test Strip
Holder is removed, the Test Area is
exposed. The Test Area has a clear,
protective coating over the Meter
optics window that must be kept
clean and lint-free for accurate
results. Be careful not to scratch
or damage this coating.
3
Page 9
TEST STRIPS. ONE TOUCH®Test
TEST SUMMARY*
®
TM
TEST SUMMARY*
®
TM
TEST SUMMARY*

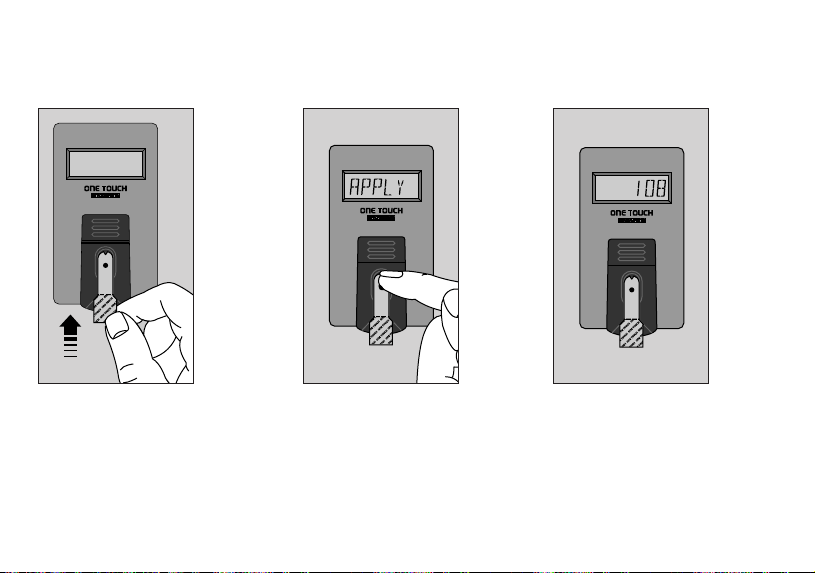

1 2 3
Press On/ Off Button,
Insert test strip
Apply Blood Sample
Results in
45 Seconds
1✔1
✔
1
0
C
o
d
e
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
T E S T S T R I P
10
CODE:
TEST FOR GLUCOSE
IN WHOLE BLOOD
OPEN
HERE
Milpites,CA Made in U.S.A. 51-453B
INC.
R
T E S T S T R I P
10
CODE:
TEST FOR GLUCOSE
IN WHOLE BLOOD
OPEN
HERE
Milpites,CA Made in U.S.A. 51-453B
INC.
R
S T R I P
10
CODE:
OPEN
HERE
R
10
CODE:
OPEN
HERE
R
1
✔
Strips are used to test your blood
glucose (sugar) level. They are
sensitive to moisture and light, so
they come in a moisture-resistant,
light-protected vial or foil package.
Keep the Test Strips sealed in their
original package until you’re ready
to use them. DO NOT store Test
Strips outside of their packaging.
To ensure accurate results, use only
genuine ONE TOUCH Test Strips
made by LifeScan.
■
Carefully read this Owner’s
Booklet and all other instructional material provided with
your blood glucose monitoring
system and test supplies.
■
For a free copy of the instructional
®
“ONE TOUCH
BASIC™VIDEO
PROCEDURE GUIDE,” call
LifeScan Technical Services.
4
Page 10
Precautions and Limitations
The following information may
be useful to you and your Health
Care Professional when using the
®
ONE TOUCH
monitor your blood glucose level.
If you experience symptoms that
are not consistent with your blood
glucose results, and you have
carefully followed the procedure
described in the Owner’s Booklet,
contact your Health Care Professional immediately.
BASIC™System to
Never make significant changes to
your medication program or ignore
physical symptoms without consulting your Health Care Professional.
If the message HIGH appears on the
meter display, this indicates severe
hyperglycemia (high blood sugar);
contact your Health Care Professional immediately.
IMPORTANT: The ONE TOUCH
BASIC™Meter is not intended for
monitoring neonatal (newborn
child) blood samples.
5
®
Page 11
DO NOT use ONE TOUCH®Test
Strips beyond the expiration date
printed on the package label. If using
Test Strips from a vial, discard the
vial and unused Test Strips 4
months after the date first opened.
DO NOT use ONE TOUCH Test
Strips that are discolored, wrinkled,
torn, cut or altered in any way (the
Test Spot of a normal Test Strip is
white or ivory-colored).
DO NOT store or carry Test Strips
outside of their vial or foil package.
ONE TOUCH Test Strips must be
stored in a cool, dry place, below
86°F (30°C). Do not refrigerate Test
Strips or place Test Strips in heat
or direct sunlight.
It is important to clean your Meter
as described in this booklet to
ensure that you get accurate results.
(See Cleaning the Meter, page 54.)
6
Page 12
2. SETTING THE METER
Selecting the Display
Language
The ONE TOUCH®BASIC™Meter
displays easy-to-follow messages in
English or Spanish to help guide you
through the test procedure.
To select your display language:
“P 1” will display messages in
English. Press the C Button again
and
p 2
will appear. “P 2” will display
messages in Spanish. Press the C
Button again and the display will
return to “P 1.”
1.) Press and hold the C Button.
2.) Press and release the On/Off
Button.
3.) Release the C Button.
p 1
will appear in the display window.
When your desired selection is
displayed, press the On/Off Button.
All messages will now appear in the
language you have chosen.
7
Page 13
Coding the Meter
IMPORTANT: Every time you
test, the code number on the
Meter display must match
the code number on the
®
ONE TOUCH
package you’re using. If these
two code numbers do not match,
you will get inaccurate results.
Set the code:
■
Before using the Meter for the
first time.
■
Every time you open a new
package of Test Strips or change
to a different package of Test
Strips.
Test Strip
■
If the Meter is displaying reset
code.
Step 1: Turn on the Meter
Press the On/Off Button to turn the
Meter on. The result from your last
blood glucose or Control Solution
test will appear for 3 seconds.
memory or memory
(example) c98 (example)
106
(Your ONE TOUCH®BASIC™Meter automatically recalls and displays your last
result—either from a blood glucose or
Control Solution test—whenever the Meter
is turned on. When using the meter for the
first time, memory/no data appears to
indicate that there is no test result in the
memory. See Displaying Last Test Result,
page 38.)
8
Page 14
Then
1
0
C
o
d
e
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
10
C
O
D
E
:
OPEN
HERE
I
N
C
.
Milpites,CA Made in U.S.A. 51-453B
TEST FOR GLUCOSE
IN WHOLE BLOOD
R
code 7 (example)
appears on the
display for 2
seconds, followed
by
insert
strip
code7

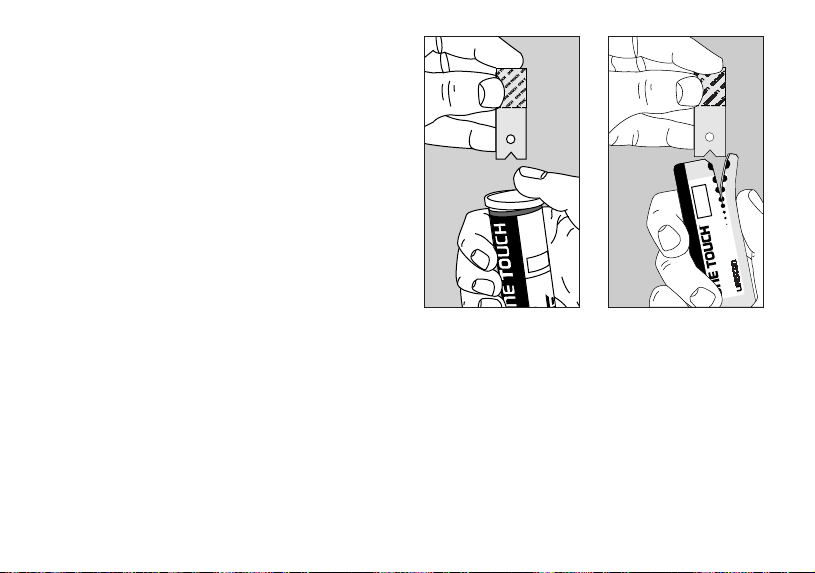

The code number
on the Test Strip
package (vial or foil)
ranges from 1 to 16.
If the number on the
display matches the
code number on
your Test Strip
package, you may
proceed with a blood
test. If it is not the same, go on to
Step 2.
9
Page 15
Step 2: Match the Code Number
code10

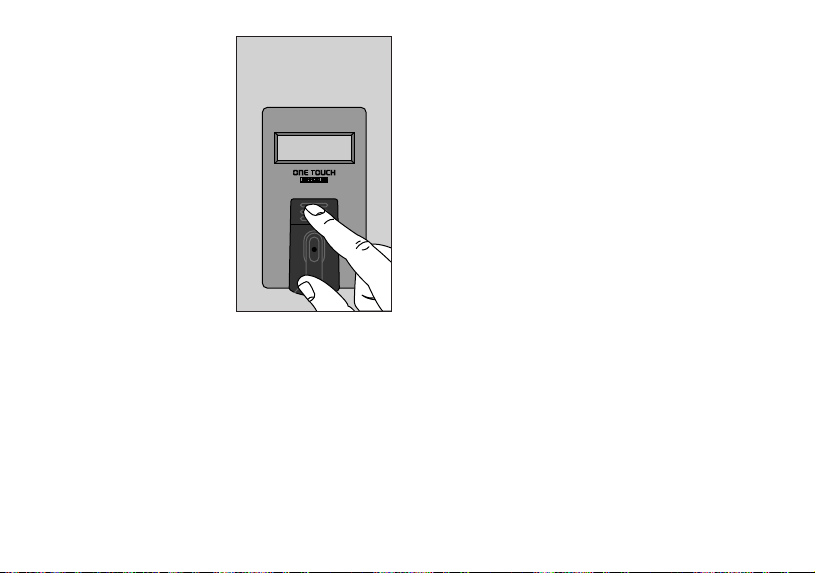

Press the C Button. With
code 7 (example)
on the display, press and release the
C Button, and the number will
increase by one. Continue pressing
until the number on the display
matches the code
number on your
Test Strip package.
code 10 (example)
The Meter is now properly coded
and you may proceed with the
test. From now on, the Meter will
remember this code until you
change the code for a new package
of Test Strips.
10
Page 16
3. CHECKING THE
SYSTEM
There are two ways to make sure
®
your ONE TOUCH
is working properly. The Check
Strip is used to check that the
Meter is operating properly. The
ONE TOUCH
®
Control Solution— Blue Formula is
used to check that both the Meter
and the Test Strips are working
together as a system, and that you
are doing the test correctly. It is very
important that you do these simple
checks routinely to make sure you
get accurate results.
BASIC™System
Normal Glucose
Checking with the Check
Strip

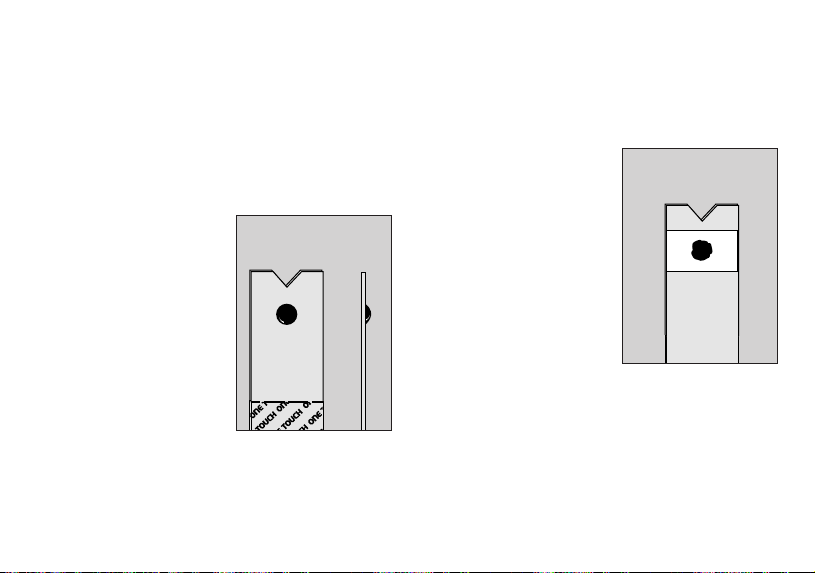

A purple and white Check Strip is
included with your ONE TOUCH
BASIC Meter. The Check Strip is
used to make sure your Meter is
working properly.
Front Back
1
2
✔
✔
11
Page 17
Before doing a Check Strip test,
code7
make sure the Test Strip Holder, the
Test Area and Check Strip are clean,
dry, and lint-free. Do the Check Strip
test at room temperature—between
64°F and 79°F (18°C– 26°C).
How to use the Check Strip
Step 1:
Press On/Off Button. Your last blood
glucose or Control Solution test
result will appear for 3 seconds,
memory or memory
(example) c98 (example)
106
then
code 7 (example)
will appear on the
display.
12
Page 18
When
insert
strip

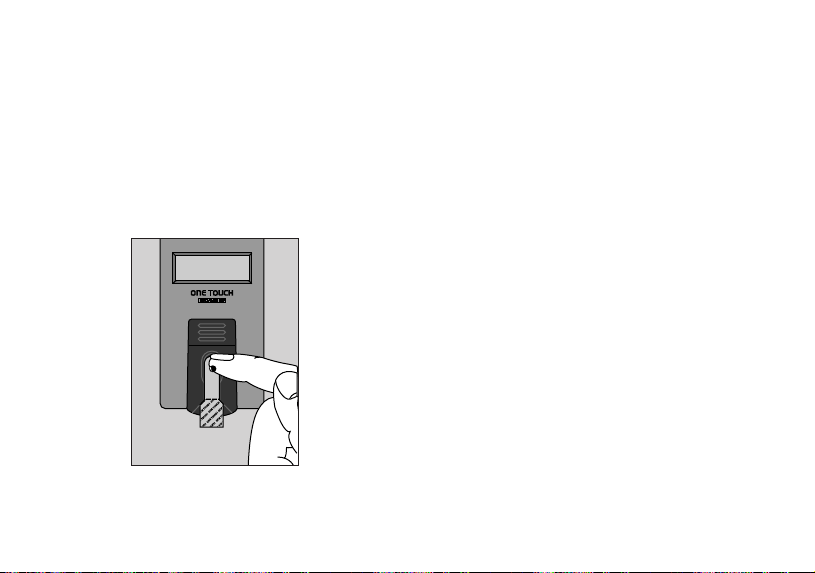

appears, slide the
notched end of the
Check Strip into the
Test Strip Holder
with Side 1 (purple)
facing up.
wait
appears for a few seconds.
strip
1
✔
Step 2:
When
apply
sample
appears, slide the
Check Strip from
the Test Strip
Holder.
13
sample
1
✔
Page 19
Step 3:
When
insert
side2
side 2
appears, turn the
Check Strip over
and slide it back
2
✔
into the Test Strip
Holder, notched
end first, Side 2

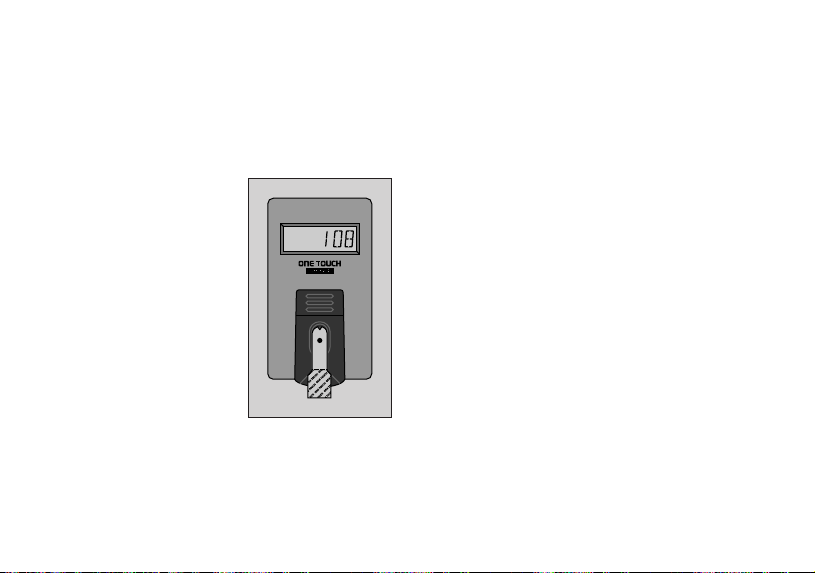

(white) facing up. The Meter counts
down from 4 to 0, then
A 80 (example)
A ok
appears if the number falls within
the acceptable Check Strip range.
The Meter automatically tells you if
your reading falls within the correct
Check Strip range. (The range is also
printed on the back of the Meter.)
These messages will continue to
display until you turn the Meter off
or for 2 minutes, when the Meter
automatically turns off.
14
Page 20
If the reading is not within the
printed range, the Meter displays
will read
result will appear for 3 seconds the
next time you turn on your Meter,
then
A 38 (example)
A not ok
redo A
Go back to Step 1 and repeat the
Check Strip test. If this message
appears again, clean your Meter
and repeat the test. For further
assistance, call LifeScan Technical
Services.
If you do not obtain an acceptable
Check Strip reading, your last blood
glucose or Control Solution test
redo A
code 7
(example)
will appear, indicating your Check
Strip was out of range at the last
reading.
This message will appear each time
the Meter is turned on until you
obtain a Check Strip reading that
falls in the printed range.
15
Page 21
CAUTION: If your Check Strip
result falls outside the printed
range, the Meter is not working
properly. DO NOT use the Meter
to test your blood until you get
a Check Strip reading that is
within the printed range. For
assistance, call LifeScan
Technical Services.
You must use the Check Strip:
■
At least once a day.
■
After cleaning the Meter.
■
Whenever your results are not
consistent with how you feel, or
when you think your results are
not accurate.
■
Whenever this message appears:
A 38
(example)
A not ok
redo A

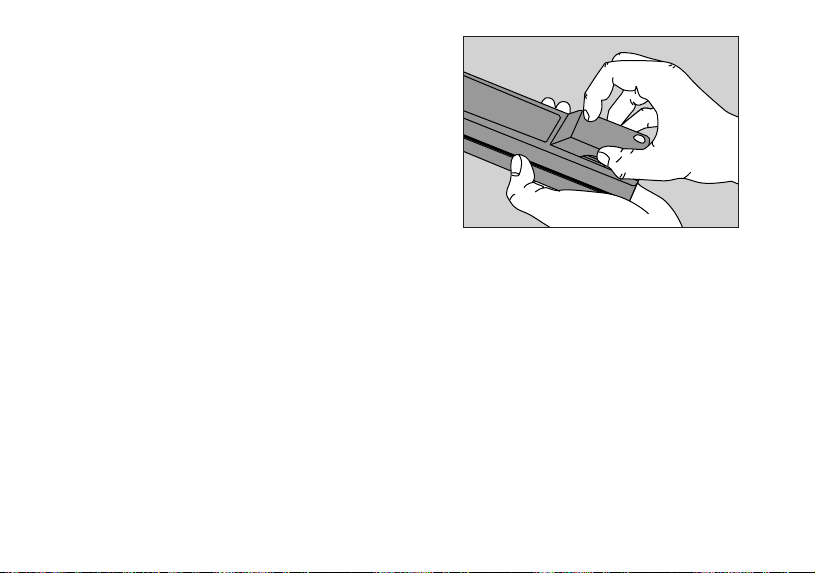

Cleaning and Maintaining the
Check Strip
■
Make sure both sides of the Check
Strip are clean. If not, wipe with a
soft cloth or tissue dampened with
water. Dry completely.
■
Do not put blood, alcohol, Control
Solution, or any other fluid (except
water) on the Check Strip.
■
Do not scratch the Check Strip.
■
Do not leave the Check Strip in
sunlight for long periods of time.
16
Page 22
■
If you lose or damage the Check
Strip, call LifeScan Technical
Services for a free replacement.
Checking with Control
Solution
R
Solution - Blue Formula
Normal Glucose Control
ONE TOUCH Normal Glucose
Control Solution—Blue Formula
ONE TOUCH®Normal Glucose
Control Solution—Blue Formula
should be used to make sure your
Meter and Test Strips are working
properly.
Before you use the Meter to test
your blood glucose for the first time,
practice the procedure using the
Control Solution in place of blood.
When you can do three tests in a
row that are within the ONE TOUCH
Normal Control range, you are ready
to test your blood.
17
Page 23
■
Use only ONE TOUCH®Normal
Glucose Control Solution—Blue
Formula, available from your drug
store or Authorized LifeScan
Distributor.
■
Check the expiration date on the
Control Solution vial. If it has
expired, replace it with new
Control Solution.
■
Shake the Control Solution vial
vigorously before using.
To do a Control Solution test, follow
the same procedure you would if
you were testing your blood. (See
TESTING YOUR BLOOD, page 27.)
Your Control Solution results will
appear on the Meter display as
follows:
c 98 (example)
contrl
c 98
18
Page 24
The range for the ONE TOUCH
®
Normal Glucose Control Solution—
Blue Formula is printed on the Test
Strip vial or the foil wrapper. This
range is for the Glucose Control
Solution only; it is not intended as a
recommended range for your blood
glucose test results.
CAUTION: If your Control
Solution result falls outside the
printed range, the system is not
working properly. DO NOT use
the system to test your blood
until you get a reading that falls
within the printed range. For
assistance, call LifeScan
Technical Services.
You should use the Glucose Control
Solution:
■
At least once a week.
■
When you begin using a new
package of Test Strips.
■
Whenever you suspect the Meter
or Test Strip may not be working
properly (for example, when your
results are not consistent with how
you feel).
19
Page 25
4. GETTING A DROP OF
BLOOD
The PENLET®II Automatic Blood
Sampler is an easy, safe tool for
obtaining a good drop of blood for
testing.
Using the PENLET II
Automatic Blood Sampler
Sliding Barrel
Release Button
Cap
Lancet Holder
Step 1: Insert a Lancet

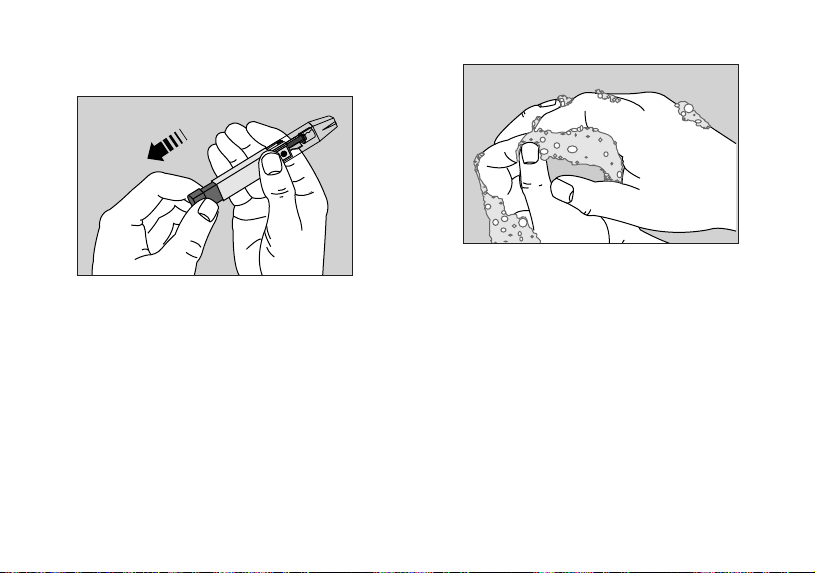

Remove the PENLET II Cap by
pulling it straight off.
20
Page 26
Insert a new, sterile Lancet into the
Lancet Holder. The Lancet will slide
into the Lancet Holder easier if you
DO NOT line up the ridges on the
Lancet with the slots in the Lancet
Holder. (NOTE: Inserting the Lancet
may automatically cock the
®
PENLET
II.)
Hold the Lancet firmly and gently
twist off the Lancet Protective Disk.
21
Page 27

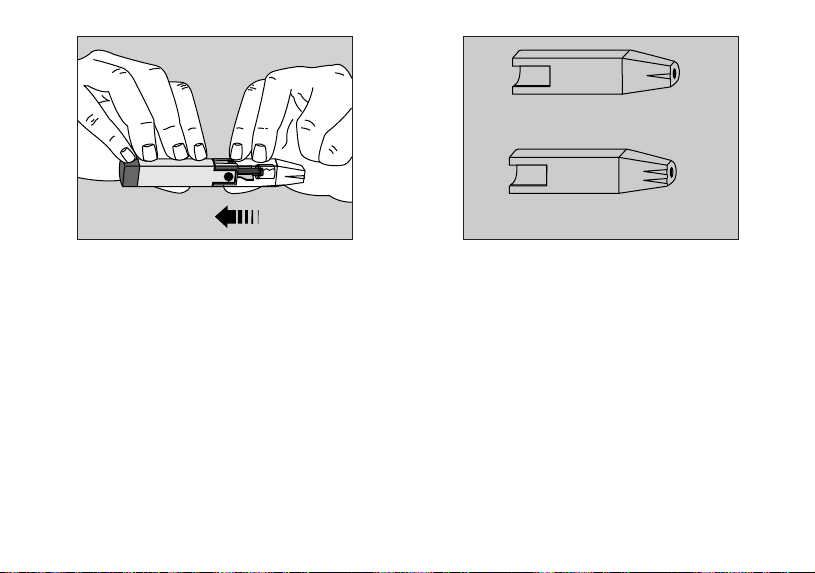

Regular
Deep Penetration
Replace the PENLET®II Cap. The PENLET II Sampler includes
two Caps. The Cap that comes
attached to the PENLET II Sampler
has a single line on the flat side and
works well for children and most
adults. The other Cap has two lines
on the flat side and works well for
very thick or calloused skin, or
when a deeper puncture is needed.
22
Page 28
Step 2: Cock the PENLET®II
Sampler
Holding the lower portion of the
PENLET II Sampler, pull out the
dark gray sliding barrel until it
clicks. If it does not click, the
PENLET II Sampler may have
been cocked when the Lancet
was inserted.
Step 3: Get a Drop of Blood
Wash your hands with soap and
warm water and dry them thoroughly. Warm water stimulates the
flow of blood to the fingers. Hanging
your arm down at your side for
10–15 seconds before the fingerstick
will make it easier, too. If you use
alcohol to clean your finger, make
sure you let it dry before sticking
your finger.
23
Page 29

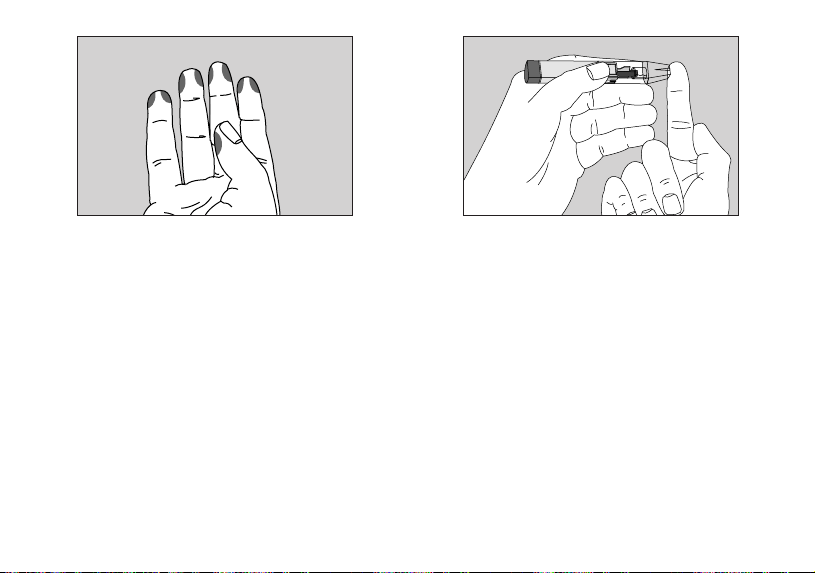

Choose a spot on the side of a
different finger each time you test.
Repeated punctures in the same
spot can make your finger sore
and calloused.
®
Hold the PENLET
II Sampler firmly
against the side of the finger, with
the Cap resting on the finger. (The
harder you press, the deeper the
puncture.)
Press the dark gray Release Button.
24
Page 30
Squeeze the finger gently to obtain a
large, hanging drop of blood.
Proceed with the blood glucose test.
(See TESTING YOUR BLOOD, page
27.)
Step 4: Remove the Lancet
Always use caution
when removing
the Lancet and
®
PENLET
II Cap.
Remove the
PENLET II Cap.
Grasp the ridges on
the dark gray
prongs located on
the shaft near the
Release Button.
Point the Lancet down and away
from you. Pull back on the dark gray
sliding barrel until the Lancet drops
out.
25
Page 31
CAUTION:
■
Never use a Lancet that has
been used by someone else.
■
Dispose of the Lancet in a
container for sharp objects.
■
To help avoid infection, use a
new sterile Lancet every time
you test.
■
If you share a PENLET®II
Sampler, each person should
always use a new Lancet and
a new or properly disinfected
Cap. For assistance, call
LifeScan Technical Services.
Cleaning the PENLET II Sampler
Clean the PENLET II Sampler and
Cap with soap and water as
needed.
26
Page 32
5. TESTING YOUR BLOOD
You can test your blood glucose by following these three simple steps:
insertinsert
PAS D'ALCOOL
Step 1: Press On/Off
Button (last test result
Step 2: Apply
blood sample.
Step 3: Accurate
results in 45 seconds.
appears), insert Test
Strip.
NOTE: Be sure to read the following section carefully before testing.
27
Page 33
Step-by-Step Instructions
Choose a clean, dry work surface.
Make sure you have all the materials
needed for a test:
■
ONE TOUCH®BASIC™Meter
■
ONE TOUCH®Test Strips
■
PENLET®II Automatic Blood
Sampler (with choice of Caps)
■
Sterile Lancet
IMPORTANT:
■
The Test Strip Holder and
Test Area of the Meter must
be clean, dry and lint-free.
■
Check the expiration date on
the Test Strip package. If the
date has passed, discard the
Test Strips and open a new
package.
■
If using vial Test Strips,
discard unused Test Strips 4
months after opening.
■
If you have questions about
the testing procedure, call
LifeScan Technical Services.
28
Page 34
1
0
C
o
d
e
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
t
e
s
t
f
o
r
t
h
e
q
u
a
n
t
i
t
i
e
s
m
e
a
s
u
r
m
Deep Regular
T E S T S T R I P
10
CODE:
TEST FOR GLUCOSE
IN WHOLE BLOOD
OPEN
HERE
Milpites,CA Made in U.S.A. 51-453B
INC.
R
29
Page 35
Step 1: Press On/
•
Off Button to turn
the Meter on
Then
code 10 (example)
appears on the display for 2 seconds.
Make sure the code number on the
Meter display matches the code
number on the Test Strip package
you’re using. (See Coding the Meter,
page 8.)
Your last blood glucose or Control
Solution test result will appear for
3 seconds.
memory or memory
(example) c98 (example)
106
The message
insert
strip
then appears.
30
Page 36
Insert Test Strip
Remove a Test Strip from the
package. DO NOT touch the white
Test Spot. When using Test Strips
from a vial, replace the cap
immediately. When using a foilwrapped Test Strip, be careful not to
tear the Test Strip when opening the
foil.
m
r
u
s
a
e
m
s
e
i
t
i
m
t
r
n
RR
a
u
u
q
e
t
h
s
e
t
s
r
t
o
f
a
e
m
s
e
i
t
i
m
t
r
n
a
u
u
q
e
t
h
s
e
t
s
r
t
o
f
a
e
m
s
e
i
t
i
m
t
r
n
a
u
u
q
e
t
h
s
e
t
s
r
t
o
f
a
e
m
s
e
i
t
i
m
t
r
n
a
u
u
q
e
t
h
s
e
t
s
r
t
o
f
a
e
m
s
e
i
t
i
m
t
r
n
a
u
u
q
e
t
h
s
e
t
s
r
t
o
f
a
e
m
s
e
i
t
i
t
n
a
u
q
e
t
h
e
t
s
r
t
o
f
m
r
u
s
a
e
m
s
e
i
m
t
i
r
t
n
u
a
u
q
s
e
t
h
e
t
s
r
a
t
o
f
e
m
s
e
m
i
t
i
r
t
n
u
a
u
s
q
e
t
h
e
t
a
s
r
t
o
f
e
m
s
e
i
t
i
t
n
a
u
q
e
t
h
e
t
s
r
t
o
f
m
r
u
s
a
e
m
m
r
TEST STRIPS
s
u
e
i
t
s
i
t
a
n
a
e
u
e
t
h
m
t
Vial Test Strips Foil-Wrapped Test Strips
31
N
E
P
O
E
R
E
H
10
:
E
D
O
C
R
E
S
.
D
C
O
N
I
O
C
.S.A. 51-453B
O
U
L
L
B
G
ade in U
E
R
L
A M
O
O
F
H
T
S
W
ilpites,C
E
M
IN
T
E S T S T R I P
Page 37
The Test Spot should be white or
ivory-colored, with no tears or
wrinkles.
Test Spot
When
insert
strip
insertinsert
wait
appears, slide the notched end of the
Test Strip into the Holder with the
Test Spot side up. Make sure you
push the Test Strip all the way into
the Holder until it stops.
appears for a few seconds. Then,
apply
sample
appears until you apply blood to the
Test Spot (or for 5 minutes).
32
Page 38
Step 2: Apply blood sample
With the Test Strip in the Meter and
apply
sample
on the display, apply a drop of blood
to the Test Spot.
sample
The Meter will beep when the blood
has been applied to the Test Spot.
Make sure that you:
■
Do not remove the Test Strip from
the Meter to apply blood.
■
Do not smear blood on the Test
Spot or apply a second drop after
the test begins.
■
Do not move the Test Strip when
you are applying blood. If the Test
Strip moves, push it back to its
original position.
■

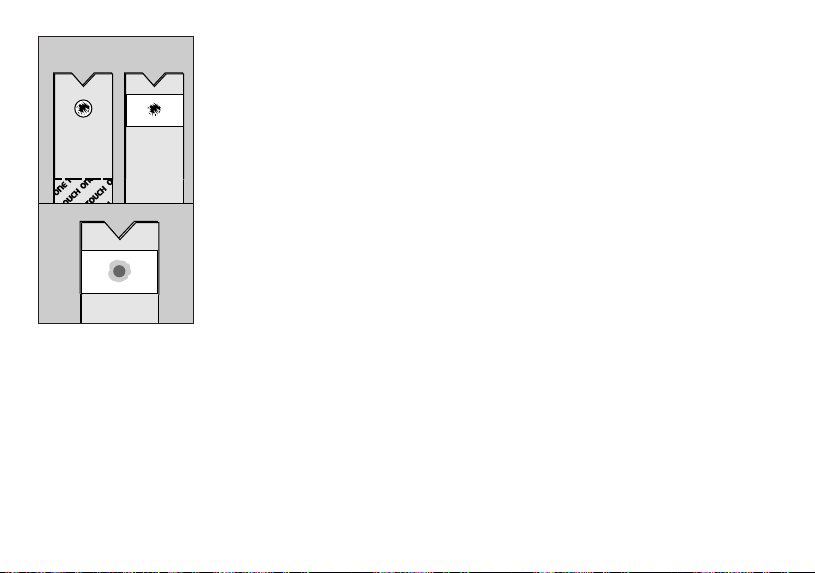

Touch only the tip of the drop of
blood to the Test Spot.
■
Apply enough blood to form a
round, shiny drop that covers the
Test Spot completely and stays
wet during the entire test.
33
Page 39
Step 3: Accurate results in 45
seconds
The Meter then counts down from
45 to 0 seconds, followed by a series
of beeps when your result is
displayed.
Be sure to wait for the beeps before
you note your result. Your result
will continue to display until you
turn the Meter off, or for two minutes, after which the Meter automatically turns off.
108 (example)
The Meter displays results which are
between 0 and 600 mg/dL. Results
above 600 mg/dL are displayed as
high
Press the On/Off Button to turn the
Meter off.
34
Page 40
6. AFTER TESTING
Although the ONE TOUCH®BASIC
System requires only a small drop of
blood, it is very important that the
drop be large enough to cover the
Test Spot completely.
In many cases, the Meter can detect
if the drop of blood was too small to
give an accurate reading. If
not
enough
blood
retest
or
™
c 104 (example)
contrl
appears on the display, your drop of
blood was too small or smeared, or
the Test Strip was inserted only
partway into the Test Strip Holder.
Repeat the test with a new Test Strip
and enough blood to cover the entire
Test Spot.
35
Page 41
Checking the Amount of
Blood on the Test Strip
The Meter cannot always tell if a
sample is too small, so it is important that you also look at the Test
Strip to make sure that you applied
enough blood.
■
Remove the Test
Strip from the
Meter and look at
the Test Spot. It
should still have
a wet, shiny drop
Front Side
that completely covers the circle.
If the blood sample has a dull, dry
appearance, you may not have
applied enough blood, or you may
have smeared it.
■
Look at the back
of the Test Strip.
You should see a
full, dark circle.*
*The white portion on
the back of the Test
Strip may also appear as a small square,
due to different manufacturing processes.
This difference will not affect your blood
glucose results.
36
Back
Page 42
(Incorrect)
If there are any
white patches or
streaks, you may
have smeared the
blood or the drop
was too small. In
either case, you
may have an
inaccurately low
result. Repeat the
test with a new
Test Strip.
Recording Your Test Results
Your ONE TOUCH®BASIC™System
Kit comes with a Logbook that you
can use to keep a permanent record
of your test results, along with
information on diet and medication.
If you run out of space in your
Logbook, you can get a new one
from your Authorized LifeScan
Distributor, drug store, or directly
from LifeScan.
37
Page 43
Displaying Last Test Result
The ONE TOUCH®BASIC™Meter
automatically recalls and displays
your last result—either from a
blood glucose or Control Solution
test—whenever the Meter is
turned on.
Only blood glucose or Control
Solution test results are recalled and
displayed. Check Strip test results
are not stored in the Meter memory.
When using the Meter for the first
time
memory or memory
(example) c98 (example)
106
appears for 3 seconds, then the
Meter immediately displays test
messages starting with
code 7 (example)
memory
no data
appears to indicate that there is no
blood glucose or Control Solution
test result in the Meter’s memory.
38
Page 44
7. HELP! (Troubleshooting)
The display messages that appear on the Meter will guide you through the
glucose test and quality control test procedures and alert you to problems as
they occur. This section provides you with a complete listing of the display
messages, what they mean, and what to do if there is a problem.
39
Page 45
Test Procedure Messages
These messages appear during routine testing. Just follow them carefully and
they will guide you through the test.
MESSAGE APPEARS WHEN
You press and hold the On/Off Button. It provides a
visual test that all display segments are working.
memory
(example)
108
memory
code 7
(example)
The Meter is turned on. The value displayed is your
last blood glucose test result. (When using the Meter
for the first time, memory nodata will appear.)
The Meter is turned on. The value displayed is your
last Control Solution test result.
The Meter is in a code setting mode. The code number
(1–16) displayed must match the code number on the
Test Strip package.
40
Page 46
MESSAGE APPEARS WHEN
insert
strip
wait
apply
sample
108
(example)
The Meter is ready for you to perform a blood, Check
Strip, or Control Solution test.
The Meter is performing internal checks.
The Meter is ready to receive a blood or Control
Solution sample. If performing a Check Strip test, this
is your signal to remove the Check Strip (Side 1) from
the Meter.
The Meter is counting down from 45 seconds to 0.
A blood test is completed. This indicates a blood
glucose result.
41
Page 47
MESSAGE APPEARS WHEN
c 90 (example)
contrl
insert
side 2
(example)
A80
Aok
high
A Control Solution test is completed. However, if this
appears after a blood test, it means that your test
result was not accurate because the blood sample was
too small and the Meter read it as a Control Solution
sample.
You are performing a Check Strip test. Turn the Check
Strip over and slide it back into the Test Strip Holder
with Side 2 up.
The Check Strip result falls into the acceptable range.
Your blood glucose result is above 600 mg/dL.
Indicates severe hyperglycemia. Contact your
physician immediately.
42
Page 48
p 1
You are setting the Display Language. This means
messages will appear in English.
p 2
You are setting the Display Language. This means
messages will appear in Spanish.
Error Messages
When any of these messages appear, there is a problem with the Meter or the
way in which you are performing a procedure. In most cases, problems are
easy to fix. If you need it, help is available from LifeScan Technical Services
24 hours a day.
MESSAGE PROBLEM WHAT TO DO
Some parts of the display Call LifeScan
are not working. The Services.
messages will be incomplete.
43
Technical
Page 49
MESSAGE PROBLEM WHAT TO DO
T
battry
he battery is too low. The Replace the battery.
Meter will not operate.
clean
test
area
1) There is dirt, blood, or lint Clean the Test Area
on the Test Area. and Test Strip Holder
according to instructions.
2) Your hand or an object Repeat the test. Keep
covered the Test Area while Test Area clear.
the Meter was turned on.
3) The Test Strip was Repeat the test. Wait for
inserted before insert insert strip before
strip appeared on the inserting a new Test
display. Strip.
44
Page 50
MESSAGE PROBLEM WHAT TO DO
4) The center of the Test Depress the center by
Strip Holder where the pressing forward on the
small hole is located is base, or by pressing
raised. down on the center, or by
inserting a Check Strip
into the Test Strip Holder.
(example)
c 68
contrl
error 1
retest
If this message appears after Repeat the test with a
a blood test, your blood new Test Strip and
sample was too small, a larger drop of blood.
smeared, or another drop was
added after the test began.
The sample was applied Repeat test with a new
before apply sample Test Strip and wait for
appeared. apply sample to appear.
45
Page 51
MESSAGE PROBLEM WHAT TO DO
error 2
retest
Error in the test procedure
such as:
1) The Test Strip moved Repeat the test with a
during the test. new Test Strip.
2) The Test Strip was not Repeat the test, pushing
inserted correctly. a new Test Strip all the
way into the Test Strip
Holder.
3) The Test Strip was Repeat the test with a
removed before the test new Test Strip.
was completed.
46
Page 52
MESSAGE PROBLEM WHAT TO DO
4) There was not enough Repeat the test with a
blood on the Test Strip. new Test Strip and a
larger drop of blood.
5) The Meter was used in very Move the Meter out of
bright light. direct light and repeat
the test with a new Test
Strip.
6) The Check Strip procedure Repeat the Check Strip
was incorrect. test.
7) The Meter may not be Call LifeScan Technical
operating correctly. Services.
47
Page 53
MESSAGE PROBLEM WHAT TO DO
insert
insert
insert
(example)
memory
retest
When any message flashes Test results will still be
continually, it means the accurate, but replace
battery is getting low. the battery as soon as
possible.
Your last test result was not
stored in the Meter’s memory
for one of the following reasons:
1) A not enough blood Repeat the test with a
retest message was dis- new Test Strip and a
played during your last larger drop of blood.
blood or Control Solution
test due to a too small or
smeared sample.
48
Page 54
MESSAGE PROBLEM WHAT TO DO
2) An error 2 retest Review the error 2
message was displayed retest problems listed
during your last test due on pages 46–47 before
to a procedural error. repeating the test.
3) A not ok message was Call LifeScan Technical
displayed during your last Services.
test.
4) A power loss, including Repeat the test with a
turning the Meter off, new Test Strip.
occurred during your
last test.
49
Page 55
MESSAGE PROBLEM WHAT TO DO
not
enough
blood
retest
not ok
A 105 (example)
Anot ok
redo A
1) The blood sample Repeat the test with a
was too small or new Test Strip and a
smeared. large, shiny drop of
blood.
2) The Test Strip was not Repeat the test. This
inserted all the way time push the Test Strip
into the Test Strip all the way into the
Holder. Test Strip Holder.
Your Meter may have an Call LifeScan Technical
electronic problem. Services.
The Check Strip test result is Clean the Meter and
outside the acceptable range. Check Strip. Repeat the
Check Strip test.
50
Page 56
MESSAGE PROBLEM WHAT TO DO
redo A
code 7
remove
strip
reset
code
(example)
The last Check Strip test was Stop and do a Check
outside the acceptable range Strip test.
and a repeat test which passed
has not been performed.
The Test Strip was inserted Remove the Test Strip.
before the Meter was ready. Wait for insert strip
message.
The Meter has lost Use the C Button to reset
the code number and the Meter code to match
has set its language to the Test Strip package
English. code. If this continues to
happen, there may be a
problem with your Meter.
Call LifeScan Technical
51
Services.
Page 57
8. TAKING CARE OF THE
METER
Your ONE TOUCH®BASIC™Meter
is simple to use and easy to maintain. However, it must be handled
carefully and cleaned regularly to
remain in good operating condition.
You should follow these rules at all
times:
■
Keep the Test Strip Holder and
Test Area clean.
■
Do not drop or toss the Meter.
The Meter’s electronics could be
damaged by such treatment. If
you drop the Meter, make sure
the Test Strip Holder is still
securely in place and check the
Meter with the Check Strip before
doing a blood glucose test.
■
Avoid exposing the Meter or Test
Strips to extremes in temperature
or humidity for long periods of
time. For example, do not store
the Meter or Test Strips in your
car.
■
Never let your Meter get wet.
Meter could be permanently
damaged if water or other liquids
get inside.
52
Page 58
■
Do not take the Meter apart.
Sensitive parts could be damaged
and cause inaccurate results.
Taking the Meter apart will
invalidate the Meter warranty.
IMPORTANT: Infection Control Information
■
If you are sharing the ONE TOUCH®BASIC™Meter with another
person, always use a new or properly disinfected Test Strip Holder
for each person.
■
If you are sharing the PENLET®II Automatic Blood Sampler with
another person, always use a new sterile Lancet and a new or
properly disinfected PENLET II Cap for each person.
■
For disinfecting information, an additional Test Strip Holder, or a
PENLET II Cap, please call LifeScan Technical Services.
53
Page 59
Daily Meter Check
Look through the small hole in the
Test Strip Holder to make sure there
is no lint, dirt, or blood blocking any
part of the hole.
If there is anything blocking the
hole, or if the Test Area has dirt, lint,
or blood on it, remove the Test Strip
Holder. Clean the Test Strip Holder
and Test Area by following the
instructions in the next section.
Cleaning the Meter
The Meter and Test Strip Holder
should be cleaned once a week. In
addition, they must be cleaned
whenever the Test Area looks dirty
or the message
clean
test
area
appears on the display.
54
Page 60
Step 1: Remove Test Strip Holder
Hold the Meter and place your
thumbs on the two raised dots on
the Test Strip Holder.
Slide the Test Strip Holder toward
you.
Remove the Test Strip Holder to
expose the Test Area.
55
Page 61
Step 2: Clean Test Strip Holder
Wash the Test Strip Holder with
soap and water.
Clean the underside of the Test Strip
Holder and the small hole to make
sure that any dirt, blood, or lint is
removed. Rinse well.
Dry completely with a soft cloth or
tissue.
Step 3: Clean Test Area
CAUTION: DO NOT GET
WATER INSIDE THE METER.
The following cleaning agents will
damage the Meter.
DO NOT USE:
■
Alcohol
■
Cleansers with ammonia or
phenol
■
Windex®or other glass cleaners
■
Abrasive cleansers
Windex is a registered trademark of The Drackett Products
Company.
56
Page 62
Check the clear, protective coating
over the Meter optics to make sure it
is not scratched or damaged.
Rub Test Area with a cotton swab or
soft cloth dampened with water to
remove all blood, dirt, or lint from
the Test Area. If necessary, a mild
liquid dishwashing detergent mixed
with water may also be used. Do not
apply full-strength detergent to the
Test Area. Be careful not to scratch
the Test Area.
57
Page 63
Dry the Test Area with a soft, dry
cloth or tissue that doesn’t contain
lotion or perfume. Remove any lint.
Step 4: Replace Test Strip Holder
Hook the bottom of the Test Strip
Holder onto the square notch on the
Meter.
R
Press down on the raised dots of
the Test Strip Holder until it snaps
firmly into place. Press forward on
the base, then down on the center of
the Test Strip Holder to make sure
the small hole over the Test Area is
not raised. You are now ready to do
a Check Strip test. If the Check Strip
will not slide into the Test Strip
Holder, repeat Step 4.
58
Page 64
Battery Replacement
6-VOLT
The ONE TOUCH®BASIC™Meter
comes with a battery already
installed. When the battery must
be replaced, use only a Duracell
brand alkaline battery (J-size,
6 Volts, part #7K67), which is
commonly available in drug and
hardware stores. This will ensure
you get the best performance from
your ONE TOUCH BASIC Meter.
Duracell is a registered trademark of Duracell International Inc.
®
The battery should last about one
year with typical home use.
When the battery is getting low, the
display will flash.
insert (example)
insert
insert
The Meter will still provide accurate
test results with a low battery, but
you should replace it as soon as
possible.
59
Page 65
When
battry
appears on the display, the Meter
will no longer give results and you
must replace the battery before you
can perform another test.
A dead battery or battery removal
will not affect the previous test
result stored in the Meter’s memory,
as long as the battery is replaced
within 30 days.
Replacing the battery
Make sure the Meter is turned off
before you remove the battery.
Turn the Meter upside down. With
your thumb, firmly press in and up
on the ridges on the side of the
battery door until the door releases
from the clasp. Remove the battery
door by sliding it out.
60
Page 66
6
-V
O
L
T
Remove the old battery and discard
properly. Insert a new J-size battery
in the battery compartment.
To replace the battery door, insert
the tabbed side of the door into the
slot in the battery compartment.
61
Page 67
With your thumb, press in and down
on the ridged side of the battery
door until it snaps shut.
62
Page 68
9. QUESTIONS AND
ANSWERS
In the following pages, we’ve
provided answers to some of the
most common questions people
have about home blood glucose
monitoring and the ONE TOUCH
BASIC™Meter. If you have a question
that isn’t covered here, consult your
Health Care Professional or call
LifeScan Technical Services.
Q. Why should I test my blood
glucose (sugar)?
A. No doubt your Health Care
Professional has explained the
importance of keeping your diabetes
®
under control. Your ONE TOUCH
BASIC System helps you check
whether or not you are in control by
monitoring your blood glucose levels.
The test results provide a good
picture of how diet, exercise, and
medication are affecting your
diabetes.
Test results can also indicate whether
your diabetes is changing in ways
that might require an adjustment in
your treatment program.
Always consult your Health Care
Professional before making changes
in your diabetes control plan.
63
Page 69
Q. How often should I test my
blood glucose?
A. This is best decided by you and
your Health Care Professional. It
may vary according to your age, the
type of diabetes you have, any
medication you are using, whether
you are ill, and any physical or
emotional changes in your life.
Q. Should my test results always
be the same?
A. No. Results will vary somewhat
from test to test, depending on diet,
activity level, and time of day. These
variations provide useful clues about
your condition and how well your
treatment program is working.
With your Health Care Professional,
determine your own personal target
blood glucose values, as well as
what an unusually high or low test
result is for you. In most cases, your
test results should stay within that
range.
Q. What can I do to be sure I get
accurate test results?
A. Make sure that you do the
following:
Keep your Meter clean at all times.
64
Page 70
Use enough blood. The entire Test
Spot must be completely covered
with blood. Touch the drop of blood
lightly to the middle of the Test Spot
to fill the entire Spot. The drop of
blood should form a round, shiny
circle over the entire Spot, and stay
wet during the entire test.
Do not smear the blood or touch the
Test Spot with your finger. Do not
add more blood after you’ve applied
the first drop.
Never use Test Strips beyond their
expiration date. Do not store Test
Strips outside of their packaging.
Make sure the Meter code number is
set to match the code number on the
package of Test Strips you are using.
Periodically review your use of the
Meter with your Health Care
Professional.
Q. What should I do if my blood
glucose test results are consistently high for my own diabetes
control plan?
A. The goal of diabetes management
is to maintain a “near normal”
amount of glucose in the blood.
Normal, low, and high blood glucose
values for your individual treatment
plan should be determined with
65
Page 71
your Health Care Professional. If
your blood glucose test results
remain consistently high, contact
your Health Care Professional.
Q. What are the expected blood
glucose values associated with
well-controlled diabetes?
A. Fasting: 60–130 mg/dL
After meals (1 hour): Less than
180 mg/dL
After meals (2 hours): Less than
150 mg/dL
1,2
Q. What do I do if test results still
seem too low or too high?
A. Remember, the test results you
obtain will vary from time to time
depending on food intake, insulin
dose, exercise, etc. Ask yourself the
following questions:
“How do I feel?”
“Do I have symptoms of low
blood sugar (hypoglycemia)
or high blood sugar (hyperglycemia)?”
“What have I eaten?”
“How much exercise have
I had?”
“Am I ill (i.e., common cold,
flu, etc.)?”
66
Page 72
In addition to the common factors
listed above which cause real
variations in blood glucose results,
there are certain abnormal conditions which can interfere with the
accuracy of your blood glucose
monitoring results. These limitations
are described below and should be
discussed with your physician:
Extremes in hematocrit (the amount
of red blood cells in the blood) can
affect test results. High hematocrits
(above 60%) cause inaccurately low
results. Very low hematocrits (below
25%) can also cause inaccurately
low results.
Severe dehydration and excessive
water loss may cause inaccurately
low results. This has been reported
in the medical literature for leading
blood glucose monitoring products.
Severe dehydration can lead to many
serious medical complications. One
complication which is of particular
importance in diabetes management
is a “hyperglycemic-hyperosmolar”
state, with or without ketosis, which
may be life-threatening if left untreated. The following are some
of the factors which could lead
to severe dehydration:
67
3,4
Page 73
■
Vomiting and diarrhea
■
Prescription drugs, e.g., diuretics
■
Inability to recognize or respond
to “thirst” sensations
■
Sustained uncontrolled diabetes
Whenever inadequate fluid intake
or excessive water loss occurs,
CONSULT A PHYSICIAN
IMMEDIATELY.
Remember, if you ever experience
symptoms which are not consistent
with your blood glucose monitoring
results and you have eliminated
common procedural errors described
in this Owner’s Booklet as the cause,
you should contact a physician
immediately!
Never make significant changes to
your medication program or ignore
physical symptoms without
consulting a physician.
IMPORTANT: When the
message HIGH appears on the
Meter display, this indicates
severe hyperglycemia (blood
sugar too high); contact your
physician immediately.
68
Page 74
Q. Why don’t my Meter results
match the results that I got from
my doctor’s laboratory exactly?
A. Many Health Care Professionals
believe that the result that you get
with your Meter should fall within
15% to 20% of the result obtained
when whole blood is tested on
5
laboratory equipment.
However,
there are a number of reasons why
the blood glucose result from your
Meter may vary even more than 20%
6
from a laboratory result.
One of the
most common reasons is that
laboratories use serum or plasma
samples, while home blood glucose
monitors use whole blood. Whole
blood results are approximately
10%–12% lower than serum or
plasma values from the same blood
sample (at average hemocrit levels
41%– 45%). To adjust for this
difference, divide the laboratory
value by 112% or 1.12.
7
Example:
■
Let’s assume your lab (plasma)
result is 150 mg/dL.
■
150 divided by 1.12=134 mg/dL.
■
Compare your Meter result to
134 mg/dL.
69
Page 75
There is a difference in the glucose
levels of venous blood (usually
drawn from a vein in your arm)
and capillary blood (blood from a
fingerstick). After a meal, the glucose
levels in the capillaries may be
20–70 mg/dL higher than the levels
6
in venous blood.
If your lab test is
taken while you are in the fasting
state (before breakfast), this difference will be minimal (2–5 mg/dL).
7
Variation may also occur between
your Meter and the lab if the two
tests were not done within 10–15
minutes of each other. Blood glucose
values change rapidly, especially
after you have eaten, and the two
tests could have very different
results.
1 Skyler JS, et al: Postgraduate Medicine (1987) 81(6):163– 174.
2 Skyler JS, et al: Diabetes Care (1981) 4:311–318.
3 Wickham NWR, et al: Practical Diabetes (1986) 3(2):100.
4 Cohen FE, et al: Diabetes Care (1986) 9(3):320–322.
5 Clarke WL, et al: Diabetes Care (1987) 10(5):622–628.
6 Gadsen RH: Challenges in Diabetes Management. Milpitas
7 Caraway WT: “Carbohydrates,” in Tietz NW (ed).
8 Surwit RS and Feinglos MN: Diabetes Forecast (1988) April:
9 Nelson RL: Diabetes Spectrum (1989) 2:219– 223.
70
8,9
CA, LifeScan, Inc. (1988) 63–66.
Fundamentals of Clinical Chemistry. Philadelphia, WB
Saunders Company (1976) 242–244.
49– 51.
Page 76
10. SPECIFICATIONS
Performance Characteristics
See the ONE TOUCH®Test Strip
package insert for ONE TOUCH
System accuracy and precision.
Power Supply: One Duracell
alkaline battery, size J (6V) part #
7K67 is included with Meter.
Battery Life: Approximately one
year (at two tests per day).
Result Range: 0–600 mg/dL. Higher
values displayed as HIGH.
Display Type: Alphanumeric;
6-character, 14-segment LCD.
®
®
Dimensions: Length—4 3/4
0
Width— 2 5/80 Height —1 1/160
Weight— approx. 4.8 oz. (including
battery)
Operating Temperature Range:
59°F–95°F (15°C –35°C)
Operating Humidity Range:
0%–90% relative humidity (noncondensing).
Memory: Last result — either a
blood glucose or Control Solution
test.
Code Numbers: 1–16
71
Page 77
Guarantee and Warranty
30-Day Money-Back Guarantee
If you are not fully satisfied with the
®
ONE TOUCH
refund may be obtained by calling a
LifeScan Technical Representative at
the toll-free number within 30 days
of purchase. You must return the
ONE TOUCH
copy of your receipt to receive a
refund.
BASIC™System, a full
®
BASIC™Meter and a
replace it with a new or rebuilt
Meter or equivalent product free of
charge.
The warranty policy applies only to
the original purchaser of this Meter
and does not include the battery
supplied with the Meter.
Please complete the Warranty
Registration Card and mail it to
LifeScan.
Three-Year Warranty
If, at any time during the first three
years after purchase, the Meter does
not work for any reason (except for
obvious abuse), LifeScan will
The ONE TOUCH BASIC Meter has
a full three-year warranty from the
original date of purchase. Write your
date of purchase here:
__________________________________
72
Page 78
The warranty policy does not
apply to the performance of the
®
ONE TOUCH
BASIC™Meter when
used with any test strip other than
®
ONE TOUCH
Test Strips, or when
the ONE TOUCH BASIC Meter or
Test Strips are changed or modified
in any way.
Before you return your Meter, or
any product for warranty replacement, first call your LifeScan
Technical Representative at the
toll-free number for detailed
instructions.
This warranty is in lieu of all other
warranties, express or implied,
including any implied warranty of
merchantability or fitness for a
particular purpose.
73
Page 79
11. INDEX
Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Blood Glucose Values (Expected) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Blood Sample Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Check Strip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Cleaning and Maintaining
Check Strip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
PENLET
Test Area of the Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Test Strip Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
®
II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
LifeScan Technical Services: USA 1 800 227-8862
Canada 1 800 663-5521
74
Page 80
Coding the Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Control Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 17
Displaying Last Test Result . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8, 38
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43–51
Hematocrit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67, 69
Infection Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Language Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Money-Back Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
PENLET
®
II Automatic Blood Sampler . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
LifeScan Technical Services: USA 1 800 227-8862
Canada 1 800 663-5521
75
Page 81
Precautions and Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Questions and Answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Testing Your Blood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27–34
Test Procedure Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40–43
Test Strips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4, 31–32
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
LifeScan Technical Services: USA 1 800 227-8862
Canada 1 800 663-5521
76
Page 82
El Folleto para el Propietario del ONE TOUCH®BASIC™se encuentra disponible en
a company
INC.
español. Para recibir su copia gratuita, favor del llamar al numero gratis 1 800 227-8862.
The ONE TOUCH®BASIC™instructional materials are available in Spanish. To receive your
free copy, please call toll-free 1 800 227-8862.
LifeScan Technical Services toll-free numbers:
U.S.A. 1 800 227-8862 (24 hour service)
Canada 1 800 663-5521
Milpitas, California 95035
Printed in U.S.A.
AW 052-635-01A
© LIFESCAN INC. 1996 11/96 Protected under U.S. Patents No. 4,935,346; 5,049,487; 5,059,394; 4,976,724; 5,304,468
Loading...
