SIGNATURE SERIES
SOIB
SIGNATURE OLYMPIC INCLINE BENCH
Customer Support Services
PARTS LIST
Page 1
SOIB SIGNATURE OLYMPIC INCLINE BENCH
PAGE
COMPONENT ASSEMBLY 3
COMPONENT ASSEMBLY LEGEND 4
RIGHT UPRIGHT ASSEMBLY 5
RIGHT UPRIGHT ASSEMBLY LEGEND 6
LEFT UPRIGHT ASSEMBLY 7
LEFT UPRIGHT ASSEMBLY LEGEND 8
CENTER FRAME ASSEMBLY 9
CENTER FRAME ASSEMBLY LEGEND 10
IMAGE 11
CONTENTS
________________________________________
________________________________________
NOTE: SUBSTITUTE PART NUMBERS ENDING
WITH ‘XX’ WITH THE REQUIRED COLOR CODES.
FRAME
01 = WHITE
02 = PLATINUM
PADS
01 = BLACK
99 = CUSTOM
03 = BLACK
Page 2
SOIB SIGNATURE OLYMPIC INCLINE BENCH
8
9
4
13
11
11
3
10
5
1
7
6
2
12
COMPONENT ASSEMBLY
________________________________________
SEE PAGE 4 FOR LEGEND
Page 3
SOIB SIGNATURE OLYMPIC INCLINE BENCH
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 78442XX PTD ASSY, SOIB, RT UPRIGHT
2 1 78437XX PTD ASSY, SOIB, LEFT UPRIGHT
3 1 78431XX PTD ASSY, SOIB, CENTER FRAME
4 1 78138XX PAD, 10 X 16 TAPERED CONVEX
5 6 3237403 PLUG, 1" HOLE
6 1 78140XX PAD, 24 X 11 FLAT
7 1 78219XX PAD, HEAD REST, FLAT
8 1 3260805 BOLT, M10-1.5 X 95MM, 10-0122-025, BNR
9 13 3102514 WASHER, FLAT 3/8" SAE ST ZN
10 3 3256215 SCREW, M10 X 1.5 90MM ZN
11 6 LEA3256204 SCREW, M10 X 1.5 35MM ZN
12 1 8137701 DECAL, WARNING, HORIZ, MULTI-LANG SHEET
13 3 3242002 NUT, M10 X 1.5 HEX NYLOCK
COMPONENT ASSEMBLY LEGEND
________________________________________
Page 4
SOIB SIGNATURE OLYMPIC INCLINE BENCH
11
13
8
4
12
14
7
10
6
9
5
1
2
3
RIGHT UPRIGHT ASSEMBLY - 78442XX
________________________________________
SEE PAGE 6 FOR LEGEND
Page 5
SOIB SIGNATURE OLYMPIC INCLINE BENCH
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 78442XX PTD ASSY, SOIB, RT UPRIGHT
2 1 7340201 COVER, FOOT - STRAIGHT
3 1 7800401 CAP, LRG FLOV END
4 2 7804501 HOOK, BAR CATCH
5 1 8077501 GUARD, BAR CATCH, LOWER
6 1 7334001 FOOT, 2.50 X 4.49 FLOV
7 9 3256202 SCREW, M10 X1.5 25MM
8 11 3102514 WASHER, FLAT 3/8" SAE ST ZN
9 2 3242002 NUT, M10 X 1.5 HEX NYLOCK
10 2 3251202 SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN
11 1 8003301 LABEL, LIFE FIT 2-1/2 X 15 SG
12 1 8106801 LABEL, SERIAL NUMBER, LARGE
13 1 7804601 GUARD, BAR CATCH
14 1 LEA7002501 LABEL, H WARNING 4.5 X 1.625
RIGHT UPRIGHT ASSEMBLY LEGEND
________________________________________
Page 6
SOIB SIGNATURE OLYMPIC INCLINE BENCH
2
5
6
3
4
9
12
10
7
8
11
1

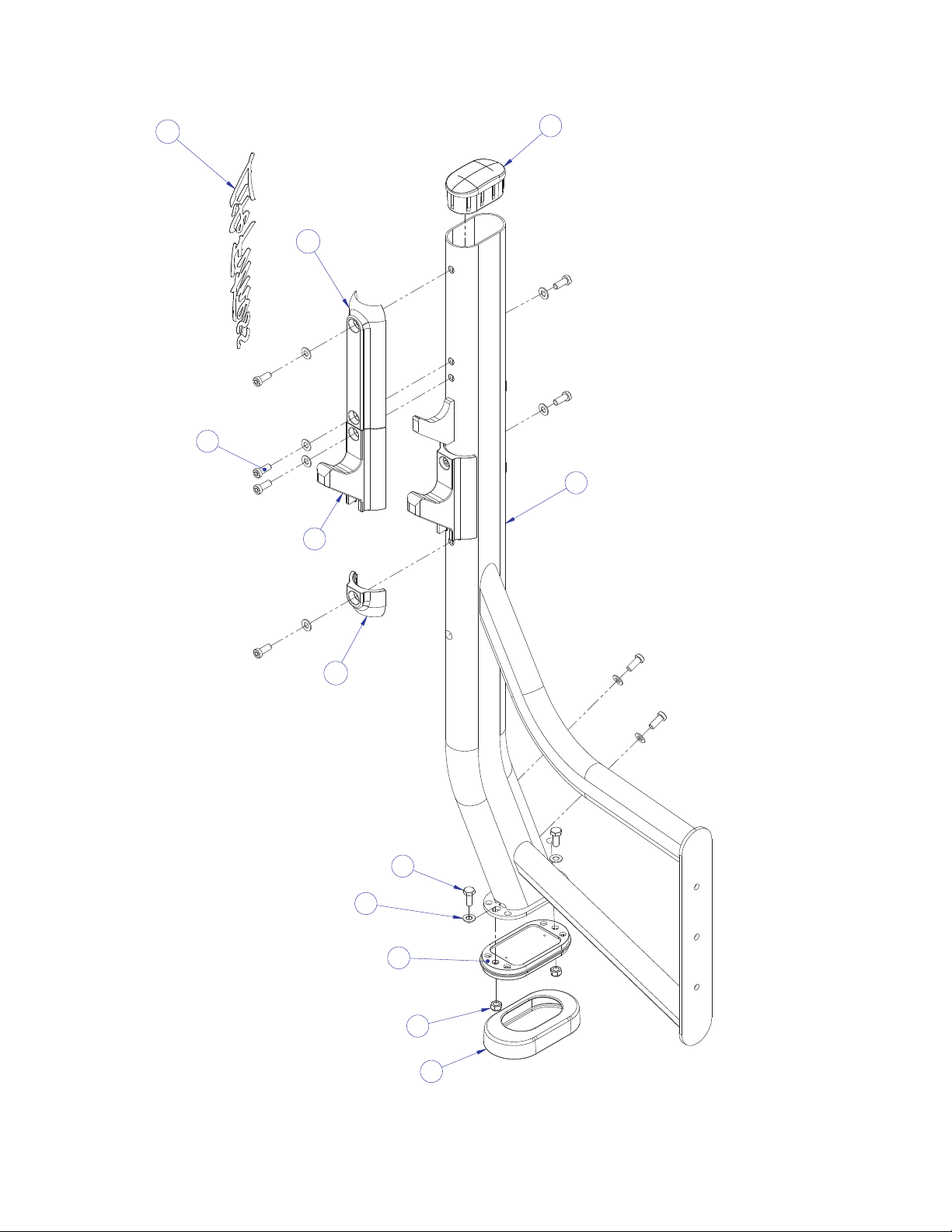

LEFT UPRIGHT ASSEMBLY - 78437XX
________________________________________
SEE PAGE 6 FOR LEGEND
Page 7
SOIB SIGNATURE OLYMPIC INCLINE BENCH
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 78437XX PTD ASSY, SOIB, LEFT UPRIGHT
2 11 3102514 WASHER, FLAT 3/8" SAE ST ZN
3 2 3242002 NUT, M10 X 1.5 HEX NYLOCK
4 9 3256202 SCREW, M10 X1.5 25MM
5 2 3251202 SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN
6 1 7334001 FOOT, 2.50 X 4.49 FLOV
7 1 7340201 COVER, FOOT - STRAIGHT
8 1 7800401 CAP, LRG FLOV END
9 2 7804501 HOOK, BAR CATCH
10 1 7804601 GUARD, BAR CATCH
11 1 8077501 GUARD, BAR CATCH, LOWER
12 1 8003301 LABEL, LIFE FIT 2-1/2 X 15 SG

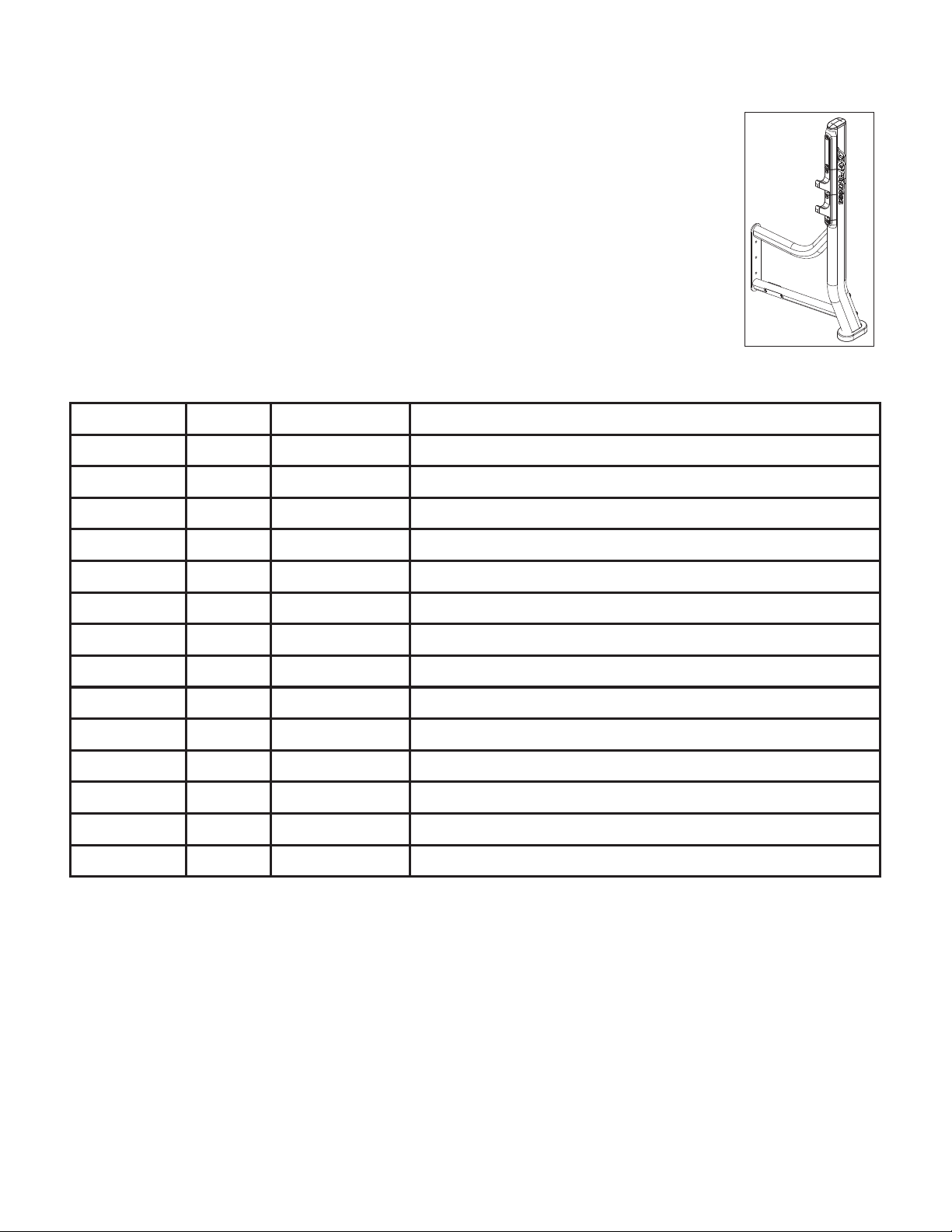

LEFT UPRIGHT ASSEMBLY LEGEND
________________________________________
Page 8
SOIB SIGNATURE OLYMPIC INCLINE BENCH
10
9
5
3
2
15
14
13
12
11
1
8
7
4
6
1
CENTER FRAME ASSEMBLY - 78431XX
________________________________________
SEE PAGE 10 FOR LEGEND
Page 9
SOIB SIGNATURE OLYMPIC INCLINE BENCH
ITEM # QTY. PART NO. DESCRIPTION
1 1 78431XX PTD ASSY, SOIB, CENTER FRAME
2 1 78487XX PTD. ASSY, SOIB, SEAT
3 1 LEA7763001 FOOT, 2.50 X 4.49 FLOV
4 1 7340201 COVER, FOOT - STRAIGHT
5 3 7800401 CAP, LRG FLOV END
6 2 3242002 NUT, M10 X 1.5 HEX NYLOCK
7 2 3251202 SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN
8 2 3102514 WASHER, FLAT 3/8" SAE ST ZN
9 2 8087201 BUSHING, SLIP TUBE, PLASTIC, 55.3MM O.D. X 45.2MM I.D.
10 1 8039501 LABEL, WARNING, SM. TRIANGLE
11 1 7351301 PIN, PULL
12 1 7351501 SPRING; PULL PIN LARGE
13 1 7351401 KNOB, TULIP STYLE
14 1 8153501 KEY, SOIB, SEAT ADJ.
15 2 3251703 SCREW, M10 X1.5 30MM
CENTER FRAME ASSEMBLY LEGEND
________________________________________
Page 10
SOIB SIGNATURE OLYMPIC INCLINE BENCH
