Synrgy 180 Personal
S180P
Owner's Manual/Assembly Instructions
1013910-0001 REV AA
Corporate Headquarters
Columbia Centre III, 9525 West Bryn Mawr Avenue, Rosemont, Illinois 60018 • U.S.A.
Service phone number: 800.351.3737 (toll-free within U.S.A., Canada)
International Offices
847.288.3300 • FAX: 847.288.3703
Global Website: www.lifefitness.com
AMERICAS
North America
Life Fitness, Inc.
Columbia Centre III
9525 West Bryn Mawr Avenue
Rosemont, IL 60018 U.S.A.
Telephone: (847) 288 3300
Service Email:
customersupport@lifefitness.com
Sales/Marketing Email:
commercialsales@lifefitness.com
Brazil
Life Fitness Brasil
Av. Rebouças, 2315
Pinheiros
São Paulo, SP 05401-300
BRAZIL
SAC: 0800 773 8282 option 2
Telephone: +55 (11) 3095 5200 option 2
Service Email: suportebr@lifefitness.com
Sales/Marketing Email:
vendasbr@lifefitness.com
United Kingdom
Life Fitness UK LTD
Queen Adelaide
Ely, Cambs, CB7 4UB
Telephone: General Office (+44)
1353.666017
Customer Support (+44) 1353.665507
Service Email: uk.support@lifefitness.com
Sales/Marketing Email: life@lifefitness.com
Germany, Austria, and Switzerland
Life Fitness Europe GMBH
Neuhofweg 9
85716 Unterschleißheim
GERMANY
Telephone:
+49 (0) 89 / 31775166 Germany
+43 (0) 1 / 6157198 Austria
+41 (0) 848 / 000901 Switzerland
Service Email:
kundendienst@lifefitness.com
Sales/Marketing Email:
vertrieb@lifefitness.com
All Other EMEA Countries and Distributor
Business EMEA*
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: (+31) 180 646 644
Service Email:
EMEAServiceSupport@lifefitness.com
ASIA PACIFIC (AP)
Japan
Life Fitness Japan, Ltd
4-17-33 Minami Aoyama 1F/B1F
Minato-ku - Tokyo 107-0062
Japan
Telephone: (+81) 0120.114.482
Fax: (+81) 03-5770-5059
Service Email: service.lfj@lifefitness.com
Sales/Marketing Email:
sales@lifefitnessjapan.com
Latin America and Caribbean*
Life Fitness, Inc.
Columbia Centre III
9525 West Bryn Mawr Avenue
Rosemont, IL 60018 U.S.A.
Telephone: (847) 288 3300
Service Email:
customersupport@lifefitness.com
Sales/Marketing Email:
commercialsales@lifefitness.com
EUROPE, MIDDLE EAST, and AFRICA (EMEA)
Netherlands and Luxemburg
Life Fitness Atlantic BV
Bijdorpplein 25-31
2992 LB Barendrecht
THE NETHERLANDS
Telephone: (+31) 180 646 666
Service Email:
service.benelux@lifefitness.com
Sales/Marketing Email:
marketing.benelux@lifefitness.com
Spain
Life Fitness IBERIA
C/Frederic Mompou 5,1º1ª
08960 Sant Just Desvern Barcelona
SPAIN
Telephone: (+34) 93.672.4660
Service Email:
servicio.tecnico@lifefitness.com
Sales/Marketing Email:
info.iberia@lifefitness.com
Belgium
Life Fitness Benelux NV
Parc Industrial de Petit-Rechain
4800 Verviers
BELGIUM
Telephone: (+32) 87 300 942
Service Email:
service.benelux@lifefitness.com
Sales/Marketing Email:
marketing.benelux@lifefitness.com
*Also check www.lifefitness.com for local representation or distributor/dealer
Hong Kong
Life Fitness Asia Pacific LTD
32/F, Global Trade Square
21 Wong Chuk Hang Road
Hong Kong
Telephone: (+852) 2575.6262
Service Email: Service.HK@lifefitness.com
Sales/Marketing Email:
hongkong.sales@lifefitness.com
All Other Asia Pacific countries and distributor
business Asia Pacific*
32/F, Global Trade Square
21 Wong Chuk Hang Road
Hong Kong
Telephone: (+852) 2575.6262
Fax: (+852) 2575.6894
Service Email: Service.AP@lifefitness.com
Sales/Marketing Email:
Marketing.HK.Asia@lifefitness.com
Page 1 of 33
User and Service Documents Link
https://www.lftechsupport.com/web/document-library/documents
Additional information is available online using the link above.
.
点击上面的链接可在线获取更多信息。
Flere oplysninger er tilgængelige online gennem linket ovenfor.
Bijkomende informatie is online beschikbaar via bovenstaande link.
Vous trouverez plus d'informations en ligne à l'aide du lien ci-dessus.
Zusätzliche Informationen finden Sie online über den oben angegebenen Link.
Ulteriori informazioni sono disponibili online utilizzando il link sopra riportato.
追加情報は上記リンクを使用してオンラインで利用可能です。
상기 링크를 통해 온라인에서 추가 정보를 볼 수 있습니다.
Informações adicionais estão disponíveis on-line, através do link acima.
Дополнительная информация доступна в интернете по ссылке, указанной выше.
Mediante el enlace anterior podrá acceder a información adicional en línea.
Ytterligare information finns online genom att använda länken ovan.
İnternet üzerinden daha fazla bilgi edinmek için yukarıdaki bağlantıyı kullanabilirsiniz.
.
Informazio osagarria eskuragarri dago goiko estekaren bidez.
Допълнителна информация можете да намерите онлайн, като използвате връзката по-горе.
Mitjançant l'enllaç anterior podreu accedir a informació addicional en línia.
使用上面的連結線上提供額外資訊。
Dodatne informacije možete pronaći na internetu sljedeći vezu iznad.
ከላይ የተቀመጠውን አገናኝ(ሊንክ) በመጠቀም መረጃዎች ኦንላይን ያገኛሉ
Lisätietoja on saatavissa verkosta käyttämällä yllä olevaa linkkiä.
Wubetumi anya nsɛm afoforo aka ho wɔ wɛbsait so denam asɛm a ɛwɔ atifi hɔ a wubemia so so.
Πρόσθετες πληροφορίες είναι διαθέσιμες ονλάιν χρησιμοποιώντας το σύνδεσμο παραπάνω.
. עדימ ףסונ רשפא לבקל טנרטניאב תועצמאב רושיקה ליעל
További információ elérhető online, a fenti hivatkozás segítségével.
Viðbótarupplýsingar eru fáanlegar á netinu með því að smella á tengilinn hér fyrir ofan.
Plus indicium per superum situm potes invenire.
.
Ytterligere informasjon er tilgjengelig på nettet via linken ovenfor.
Dodatkowe informacje są dostępne online pod powyższym odnośnikiem.
Informações adicionais estão disponíveis online a usar o link acima.
Informații suplimentare sunt disponibile online, utilizând link-ul de mai sus.
Dodatne informacije dostupne su na mreži putem gornjeg linka.
Ďalšie informácie sú dostupné online na vyššie uvedenom odkaze.
Page 2 of 33
Table of Contents
Safety
Safety Information......................................................... 4
Warnings and Cautions................................................ 5
Product Labels............................................................... 5
Label Locations..............................................................5
Assembly
Tools Required...............................................................6
Option Categories.........................................................7
Shelf Options................................................................. 7
Shelf Storage Compatibility......................................... 8
Shelf Option Clearance................................................ 9
Components................................................................ 10
Hardware List: Uprights and Shelves........................11
Hardware List: Digital Coach Mounting Shelf......... 12
Suspension Chin..........................................................13
Lower Shelf...................................................................14
Middle Shelves............................................................ 14
Digital Coach Mounting Shelf....................................16
Top Shelf...................................................................... 20
Final Assembly (Digital Coach and Storage)........... 21
Variations
S180P Example Packages.......................................... 23
Pullout Force
Tools Required............................................................ 30
Dynamic HSL-3 8/40 Anchor Procedure.................. 31
Dynamic HST Safety Stud Anchor Procedure..........32
Foot Dimensions......................................................... 33
................................................................29
Product Information
Footprint and Live Area..............................................24
Maintenance Procedures
Maintenance Schedule...............................................25
Warranty
What is Covered..........................................................26
Who is Covered...........................................................26
Who Pays Transportation and Insurance For
Service.....................................................................26
What We Will Do To Correct Covered Defects.......26
What is Not Covered.................................................. 26
Owner's Manual.......................................................... 26
Exclusive Warranty...................................................... 26
Changes in Warranty Not Authorized...................... 26
Effects of State Laws....................................................26
Warranty Coverage.....................................................27

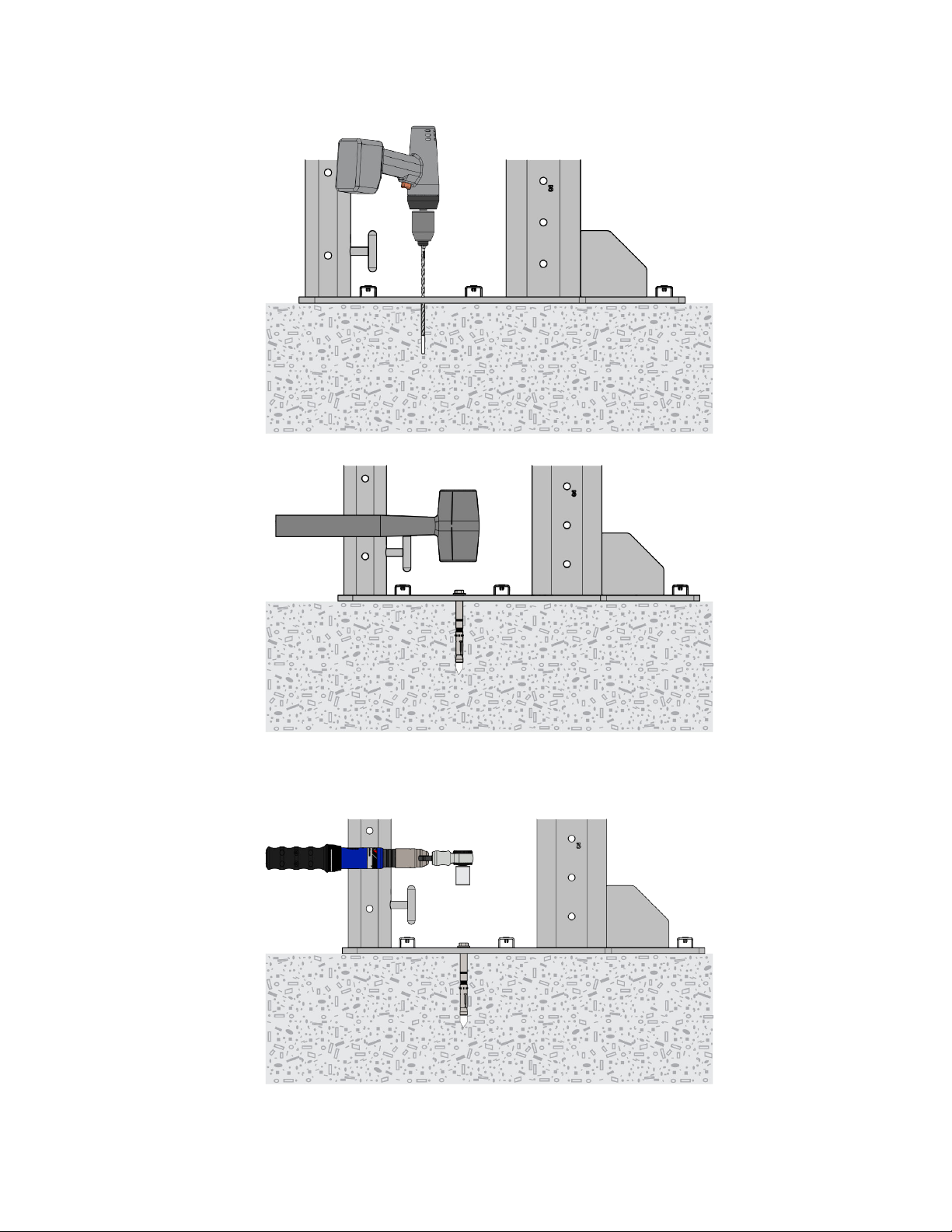

Bolt to Floor Guide
Introduction................................................................. 28
Delivery and Installation Tips.....................................28
Anchor Types...............................................................29
Anchor Specifications.................................................29
Life Fitness® is a registered trademark.
Gym Wipes® is a registered trademark of the 2XL Corporation. PureGreen 24 is a trademark of Pure Green.
©
Copyright 2019, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of
Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick
Corporation. Disclaimer: Images and specifications are current as of the date of publication and are subject to change.
Columbia Center III - 9525 West Bryn Mawr Ave., Rosemont, IL 60018 • 847-288-3300 •
www.lifefitness.com • 1013910-0001 AA • 2019
Page 3 of 33
1. Safety
Safety Information
Operating Warnings
WARNING: This product can expose you to chemicals including Methyl Isobutyl Ketone, which is known to the
State of California to cause cancer and birth defects or other reproductive harm. For more information go to
http://www.P65Warnings.ca.gov
• It is the purchaser’s sole responsibility to properly instruct its end users and supervising personnel as to the proper
operating procedures of all equipment.
• This equipment is not intended for use by children. Keep children under the age of 13 away from the machine.
• Do not allow users to wear loose fitting clothing or jewelry while using equipment. It is also recommended to have
users secure long hair back and up to avoid contact with moving parts.
• All bystanders must stay clear of all users, moving parts and attached accessories and components while machine is
in operation.
• This equipment is categorized as class S per EN ISO 20957-1. As such this equipment is only intended for
commercial, institutional and/or studio facilities. It is not intended for home use. Contact Life Fitness with any
questions regarding this classification.
Access Control
• Life Fitness recommends that all commercial fitness equipment be used in a supervised area. It is recommended
that the equipment be located in an access controlled area. Control is the responsibility of the facility owner.
Installation

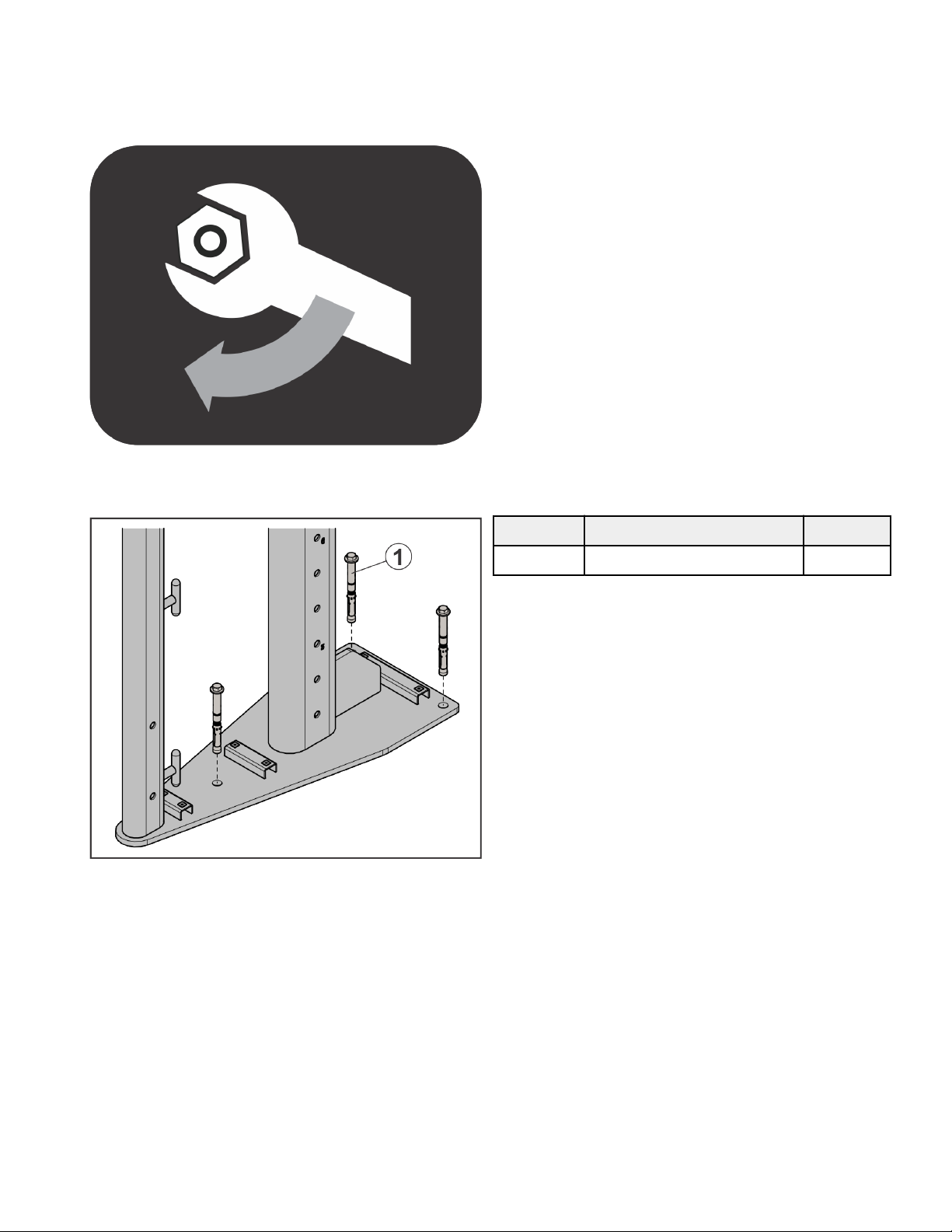

• Life Fitness requires that all equipment be secured to a solid, level surface to stabilize it and eliminate rocking or
tipping over. This must be performed by a licensed contractor. See Bolt to Floor Guide for installation procedure.
Proper Usage
• Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that
Life Fitness equipment is used properly to avoid injury.
• Injuries may result if exercising improperly or excessively. It is recommended that all individuals consult a physician
prior to commencing an exercise program. If at any time during exercise you feel faint, dizzy or experience pain,
STOP EXERCISING and consult your physician.
• Keep body parts (hands, feet, hair, etc.), clothing and jewelry away from moving parts to avoid injury.
Inspection
• DO NOT attempt to use or repair any accessory approved for use with the equipment which appears to be
damaged or worn.
• DO NOT use or permit use of any equipment that is damaged and/or has worn or broken parts. For all Life Fitness
equipment use only replacement parts supplied by Life Fitness.
• Maintain labels and name plates - Do not remove labels for any reason. They contain important information. If
unreadable or missing, contact Life Fitness customer service for a replacement.
• Equipment Maintenance - Preventative maintenance is the key to smooth operating equipment as well as to keep
your liability to a minimum. Equipment needs to be inspected at regular intervals.
• Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do
so. Life Fitness will provide service and maintenance training at our corporate facility upon request or in the field if
proper arrangements are made.
• Before use, examine all accessories approved for use with the Life Fitness equipment for damage or wear.
Plate Loaded, Free Weight, and Body Weight Systems
• If the unit is equipped with weight rods, use only Olympic style weight plates (2.0” bore) for training weight. Do not
use dumbbells or any means other than those stated to increase weight resistance - See machine specific section
for more information.
• Always utilize weight plate retention devices such as clamps or pins.
• Only add weight plates up to the load limits of the unit. Make sure all weight plates are completely placed on the
weight rod.
• Never exceed the load rating for any plate loaded station, body weight station, bench or other free weight device;
including specific weight rod and band peg limits. See machine specific section for load limit information.
Page 4 of 33
• Contact a Life Fitness representative with any questions regarding proper weights and loading.
Warnings and Cautions
Warning labels indicate a potentially hazardous situation that could result in serious injury or death if the precautions
are not observed.
Caution labels indicate a potentially hazardous situation that could result in serious injury or damage to machine if the
precautions are not observed.
Contact Customer Support Services to replace any worn or damaged labels.
Product Labels
General Warning Serial Number Required Bolt to Floor
Label Locations
Item Description
1 General Warning Label
2 Serial Number Label
3 Required Bolt to Floor Label
Page 5 of 33
2. Assembly
Tools Required
Item Description Qty.
1 1/2" Wrench 1
3/4" Wrench 1
6mm Wrench 1
17mm Wrench 1
2 3mm Hex Wrench 1
7mm Hex Wrench 2
3 #2 Phillips Screwdriver 1
4 Rubber Mallet 1
See Bolt to Floor Guide section for required anchoring tools.
Page 6 of 33
Option Categories
Item Description
1 Shelf Option
Shelf Options
Item Description
1.1 Dual Rail Shelf
1.2 Accessory Shelf
1.3 Digital Coach Mounting Shelf
Page 7 of 33
Shelf Storage Compatibility
Shaded sections signify the occupied positions of the shelf option with its accessories.
*Digital Coach Mounting Shelf must be moved down one hole if Accessory Shelf is to be used in the 5th shelf position.
Page 8 of 33
Shelf Option Clearance
Shelf Spacing
• Ensure shelves have minimum spacing requirements, shown in table above, by counting bolt holes between the
top bolt of the lower shelf and the bottom bolt of the shelf above it.
• Above bolt hole spacing table are recommended positions. S180P allows for various shelf positioning based on
your accessories.
Page 9 of 33
Components
Item Description Qty.
1 Upright 2
2 Left Chin End Plate/Suspension Anchor 1
3 Right Chin End Plate/Suspension Anchor 1
4 Left Foot Cover 2
5 Right Foot Cover 2
6 End Cap 2
7 Suspension Anchor 1
8 Chin Option Cover 1
9 Foam Roller/Mat Storage 2
10 Suspension Chin 1
Page 10 of 33
Hardware List: Uprights and Shelves
Upright Hardware
Item Description Qty.
1 Socket Nut 8
2 1/4" Spacer 4
3 Retainer 8
4 M10 X 80mm Screw 8
5 7/16" Hole Plug 116
6 8 x 3/4" Screw 12
7 Grommet 12
8 Floor Anchor 6
Shelf Hardware (Accessory and Dual Rail)
Item Description Qty.
1 Socket Nut 4
2 1/4" Spacer 4
3 Retainer 4
4 M10 X 80mm Screw 4
NOTE: Each shelf comes with its own hardware kit.
Page 11 of 33
Hardware List: Digital Coach Mounting Shelf
Item Description Qty.
1 Retainer 4
2 Socket Nut 4
3 1/4" Spacer 8
4 Tie Wrap 3
5 3/8" Washer 4
6 M10 X 1.5 X 80 Screw 4
7 M10 X 1.5 X 25 Screw 4
8 M3.5 X 12 Phillips Screw 4
9 M3.5 Washer 4
10 M3.5 Nut 4
Page 12 of 33
Suspension Chin
Install Suspension Chin:
1. Loosely install Suspension Chin and hardware.
Item Description Qty.
1 Upright 2
2 Socket Nut 4
3 Suspension Chin 1
2. Chin End Plate/Suspension Anchor on the left or right side:
Ensure tab is orientated as shown below.
4 Chin End Plate/Suspension Anchor (left
and right)
5 Retainer 4
6 M10 X 80mm Screw 4
Item Description Qty.
1 Suspension Anchor 1
NOTE: Suspension training strap hang from Suspension
Anchor.
1
Install Chin Option Cover on the left or right side:
3.
Item Description Qty.
1 Chin Option Cover 1
Page 13 of 33

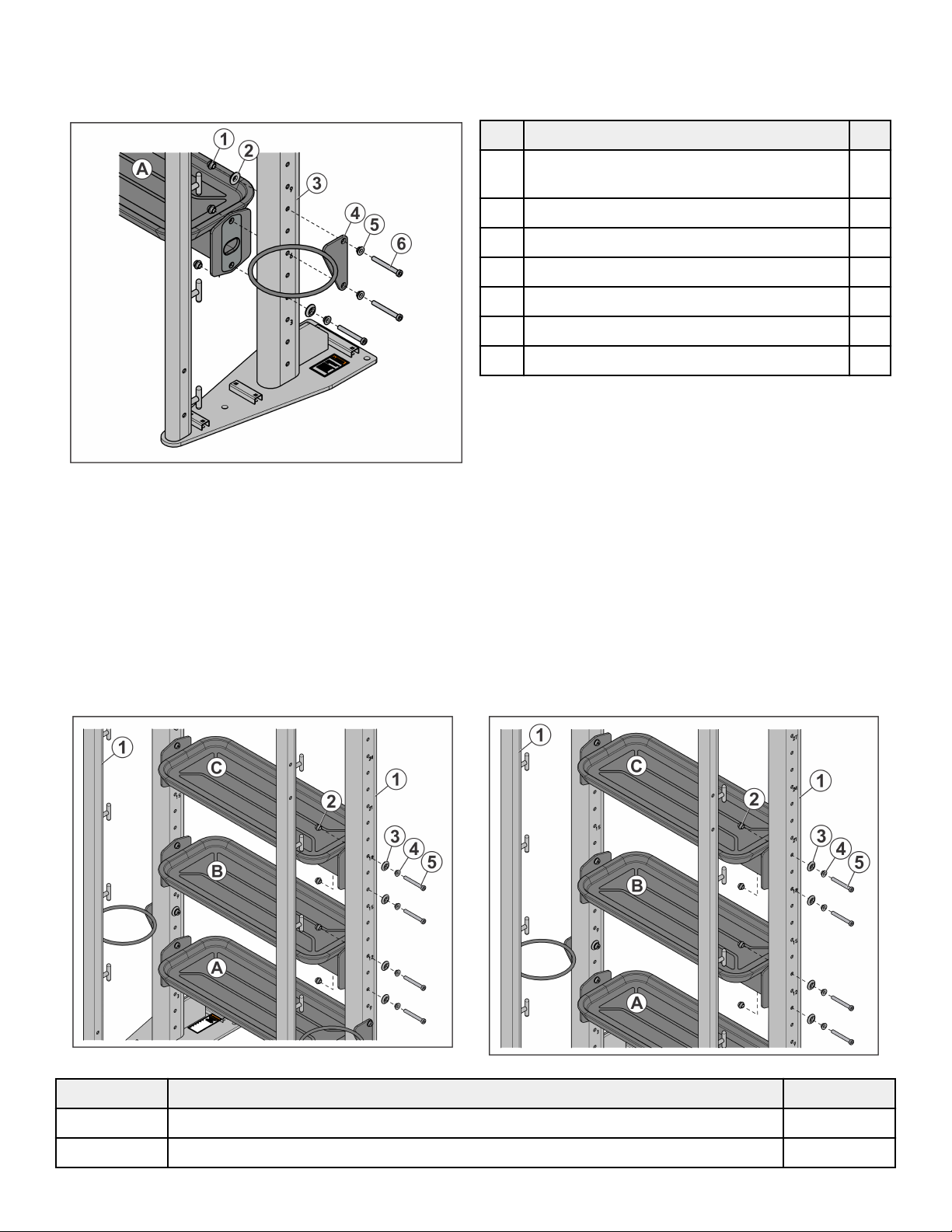

Lower Shelf
Install Shelf Option (Accessory or Dual Rail) and Foam Roller/Mat Storage:
Loosely install Shelf A, Foam Roller/Mat Storage and hardware, using holes 8, 6 and 4 (holes 8, 7 and 5 for Dual Rail).
Item Description Qty.
A Lower Shelf A (Accessory Shelf or Dual Rail
Shelf, not shown)
1 Socket Nut 6
2 1/4" Spacer 4
3 Upright 2
4 Foam Roller/Mat Storage 2
5 Retainer 6
6 M10 X 80mm Screw 6
1
Middle Shelves
Install Shelf Options (Accessory or Dual Rail):
With Digital Coach Mounting Shelf:
• Loosely install Shelf B and C using holes 13 and 11 for Shelf B (holes 13 and 12 for Dual Rail), and holes 20 and 18
for Shelf C (holes 20 and 19 for Dual Rail).
Without Digital Coach Mounting Shelf:
• Loosely install Shelf B and C using holes 13 and 11 for Shelf B (holes 13 and 12 for Dual Rail), and holes 20 and 18
for Shelf C (holes 20 and 19 for Dual Rail).
Shown with Digital Coach Mounting Shelf: Shown without Digital Coach Mounting Shelf:
Item Description Qty.
B Middle Shelf B (Accessory Shelf or Dual Rail Shelf, not shown) 1
C Middle Shelf C (Accessory Shelf or Dual Rail Shelf, not shown) 1
Page 14 of 33
Item Description Qty.
1 Upright 2
2 Socket Nut 8
3 1/4" Spacer 8
4 Retainer 8
5 M10 X 80mm Screw 8
Page 15 of 33
Digital Coach Mounting Shelf
Install Digital Coach Mounting Shelf Option, if equipped:
1. Loosely install Digital Coach Brackets and hardware, using holes 25 and 19 (use holes 24 and 18 if an Accessory
Shelf is to be used above Digital Coach).
Item Description Qty.
1 Upright 2
2 Media Bracket 2
3 Socket Nut 4
4 1/4" Spacer 8
5 Retainer 4
6 M10 X 80mm Screw 4
2. Install Bracket for Monitor or iPad® (not supplied) to the Media Mount.
For Monitor use: For iPad® use:
NOTE: Tighten hardware to 30-39 IN-LBS. (3.9-4.4 Nm)
Item Description Qty.
1 M3.5 X 12 Phillips Screw 4
2 Bracket (not supplied) 1
3 Media Mount 1
4 M3.5 Washer 4
5 M3.5 Nut 4
Page 16 of 33
3. Mount Monitor or iPad® (not supplied) to the Bracket/Media Mount.
For Monitor use: For iPad® use:
NOTE: Refer to Bracket instructions for installation details.
Item Description Qty.
1 Monitor/iPad® (not supplied) 1
2 Bracket/Media Mount 1
4. For Monitor use: Fasten Electrical Power Block (not supplied) to Media Mount Tabs
Item Description Qty.
1 Media Mount 1
2 Tie Wrap 2
3 Electrical Power Block (not supplied) 1
4 Media Mount Tab 2
Page 17 of 33
5. Fasten Electrical Cord to Media Mount.
For Monitor use: For iPad® use:
Item Description Qty.
1 Media Mount 1
2 Electrical Cord (not supplied) 1
3 Tie Wrap 1
6. Slide Media Mount onto Media Center Brackets
For Monitor use: For iPad® use:
Item Description Qty.
1 Media Center Bracket 1
2 Media Mount 1
Page 18 of 33

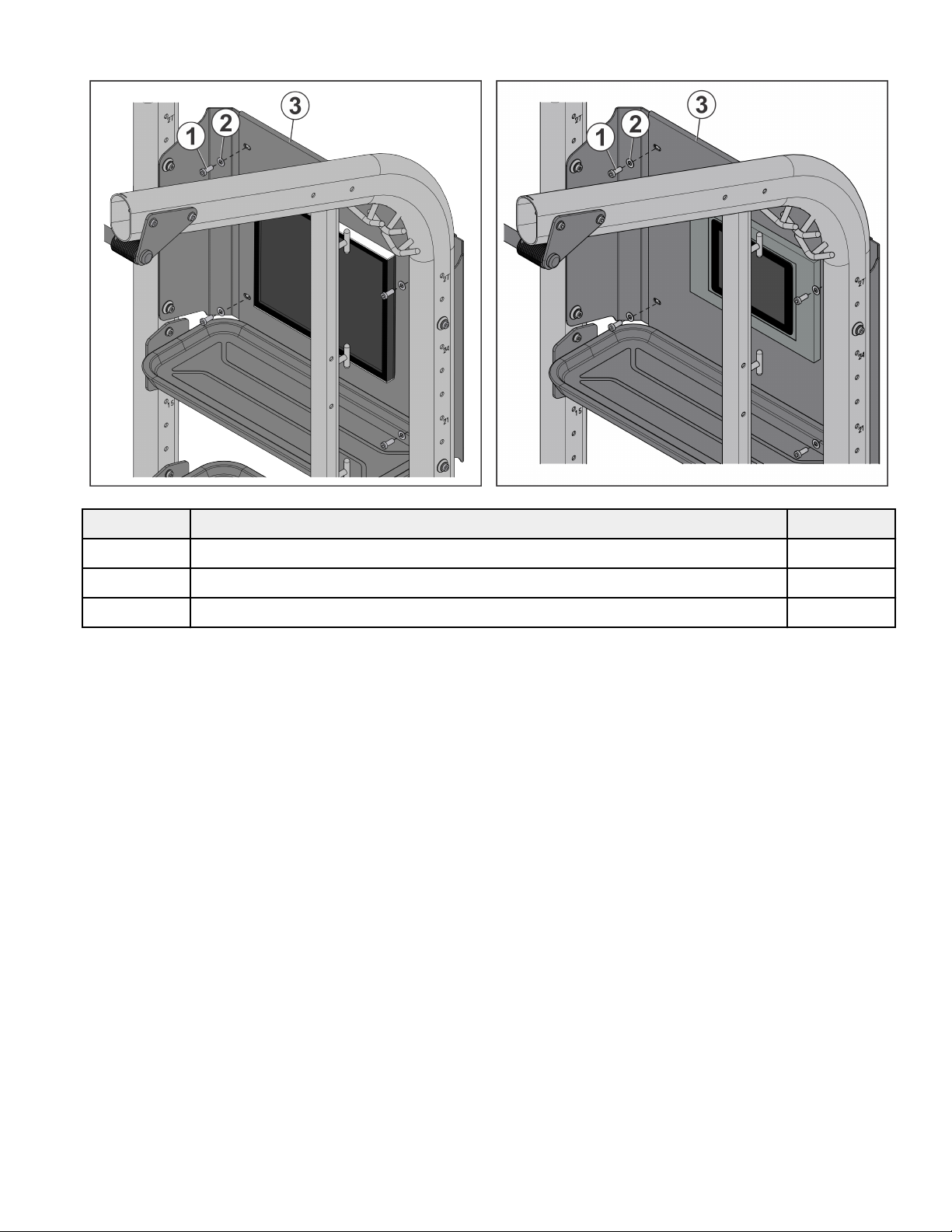

7. Loosely install hardware, affixing the Media Mount.
For Monitor use: For iPad® use:
Item Description Qty.
1 M10 X 1.5 X 25 Screw 4
2 3/8 Washer 4
3 Media Mount 1
iPad® is a registered trademark of Apple Inc.
Page 19 of 33

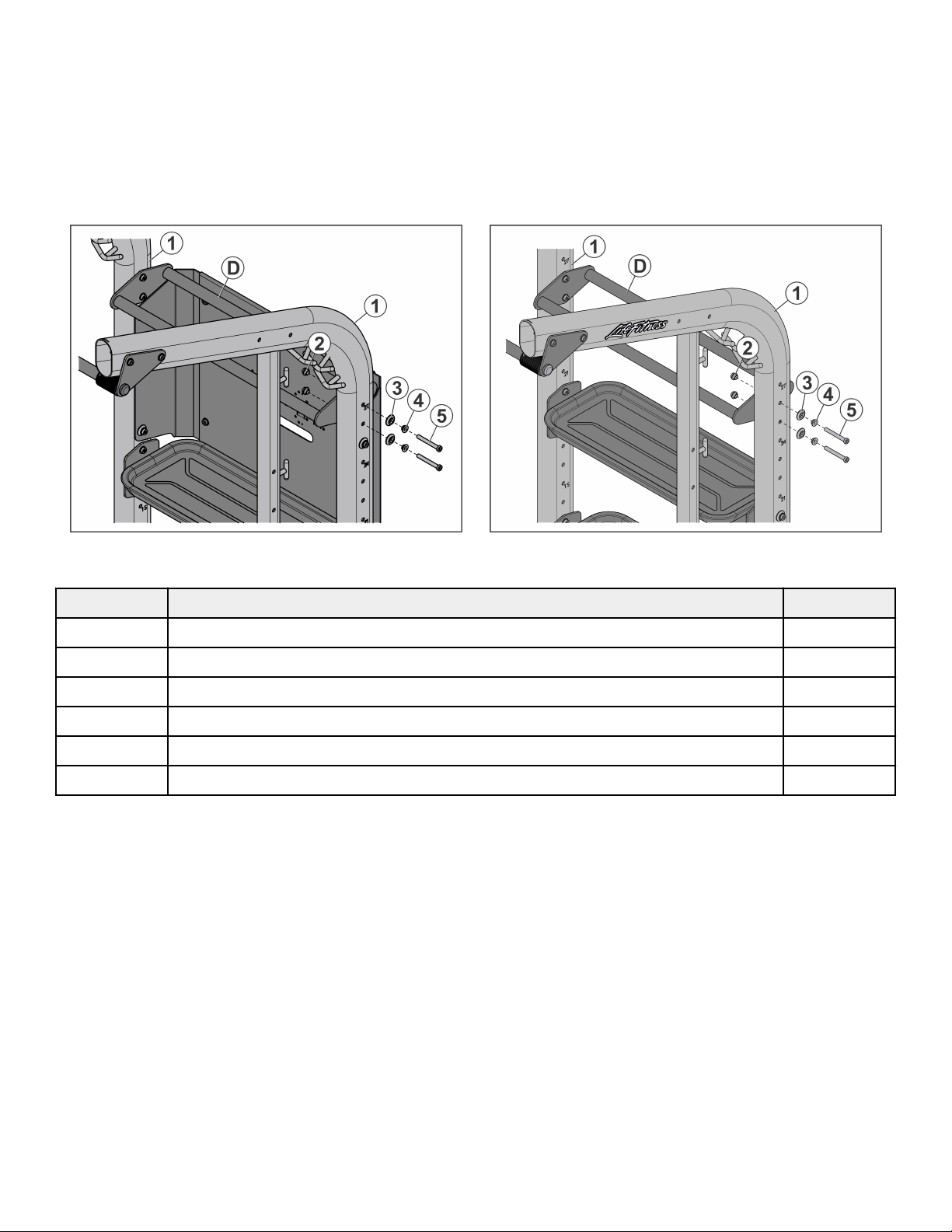

Top Shelf
Install Shelf Options (Accessory or Dual Rail):
With Digital Coach Mounting Shelf:
• Loosely install Shelf D and hardware, using holes 27 and 26 (holes 28 and 26 for Accessory Shelf).
Without Digital Coach Mounting Shelf:
• Loosely install Shelf D and hardware, using holes 26 and 25 (holes 27 and 25 for Accessory Shelf).
Shown with Digital Coach Mounting Shelf: Shown without Digital Coach Mounting Shelf:
NOTE: Tighten hardware to 30-39 IN-LBS. (3.9-4.4 Nm)
Item Description Qty.
D Top Shelf D (Accessory Shelf or Dual Rail Shelf, not shown) 1
1 Upright 2
2 Socket Nut 4
3 1/4" Spacer 4
4 Retainer 4
5 M10 X 80mm Screw 4
Page 20 of 33
Final Assembly (Digital Coach and Storage)
Follow these steps to complete assembly.
1. Tighten all loosely assembled hardware:
Torque hardware to 18-20 FT-LBS (24.4-27.1 Nm).

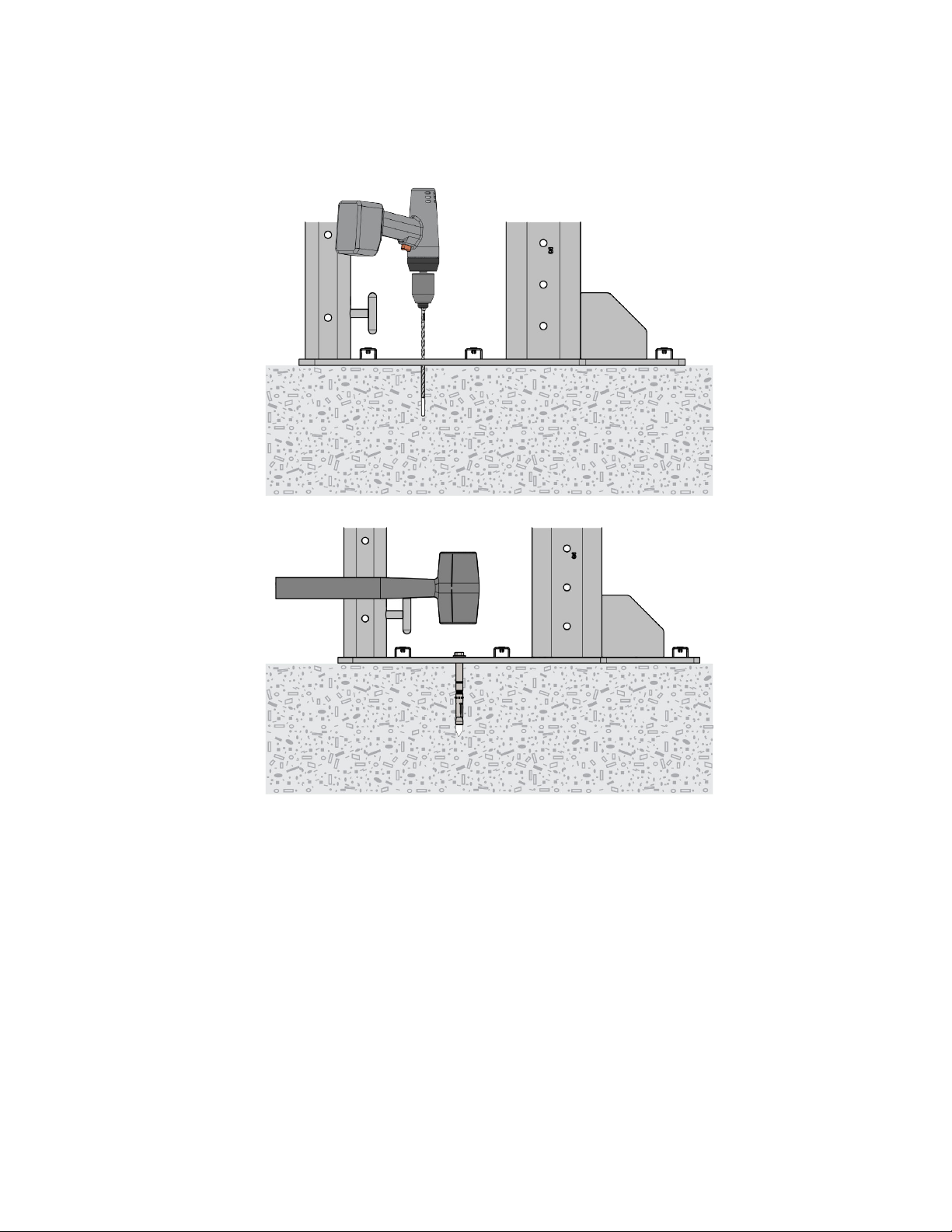

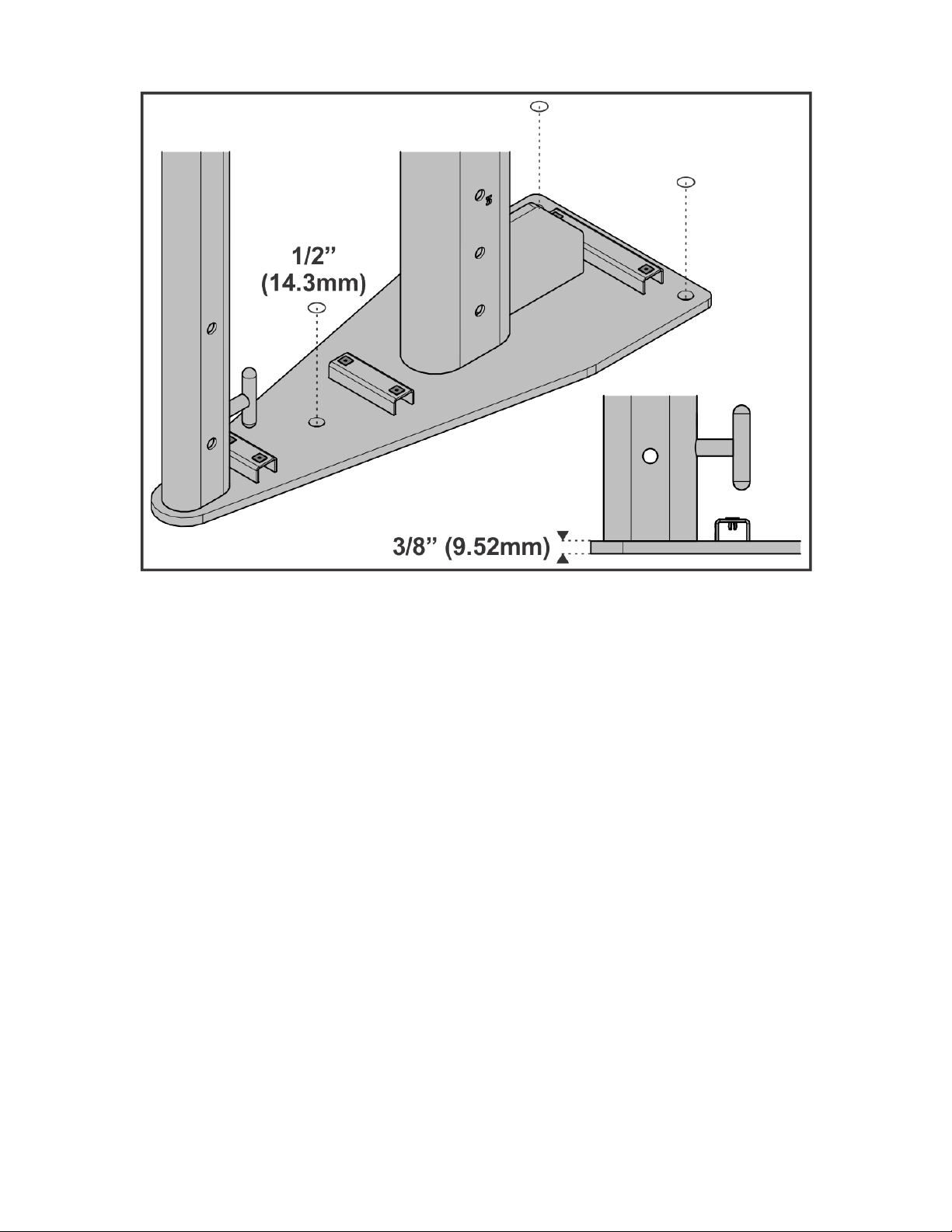

2. Anchor unit to floor:
Refer to Bolt to Floor Guide in this manual for further details.
Item Description Qty.
1 Floor Anchor 3
NOTE: Each upright foot requires 3 Floor Anchors.
Page 21 of 33

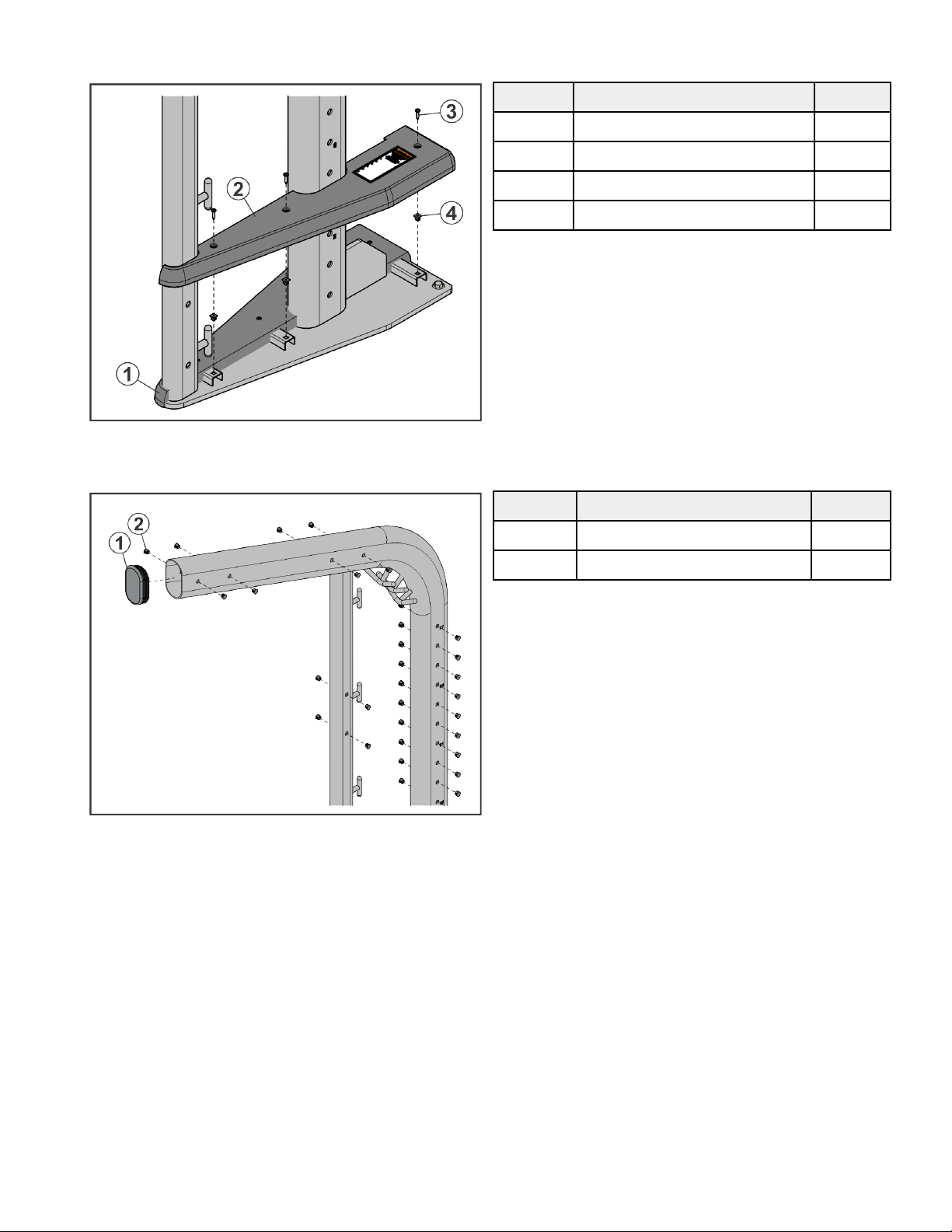

3. Attach Foot Covers:
Install Foot Covers and hardware.
4. Attach End Caps and Hole Plugs (where applicable):
Fill all holes with End Caps and Hole Plugs; tap flush into frame.
Item Description Qty.
1 Left Foot Cover 1
2 Right Foot Cover 1
3 8 X 3/4" Screw 6
4 Grommet 6
NOTE: Left Foot Cover must be installed first.
NOTE: Tighten hardware to 30-39 IN-LBS. (3.9-4.4 Nm).
Item Description Qty.
1 End Cap 1
2 7/16" Hole Plug 29
Page 22 of 33
3. Variations

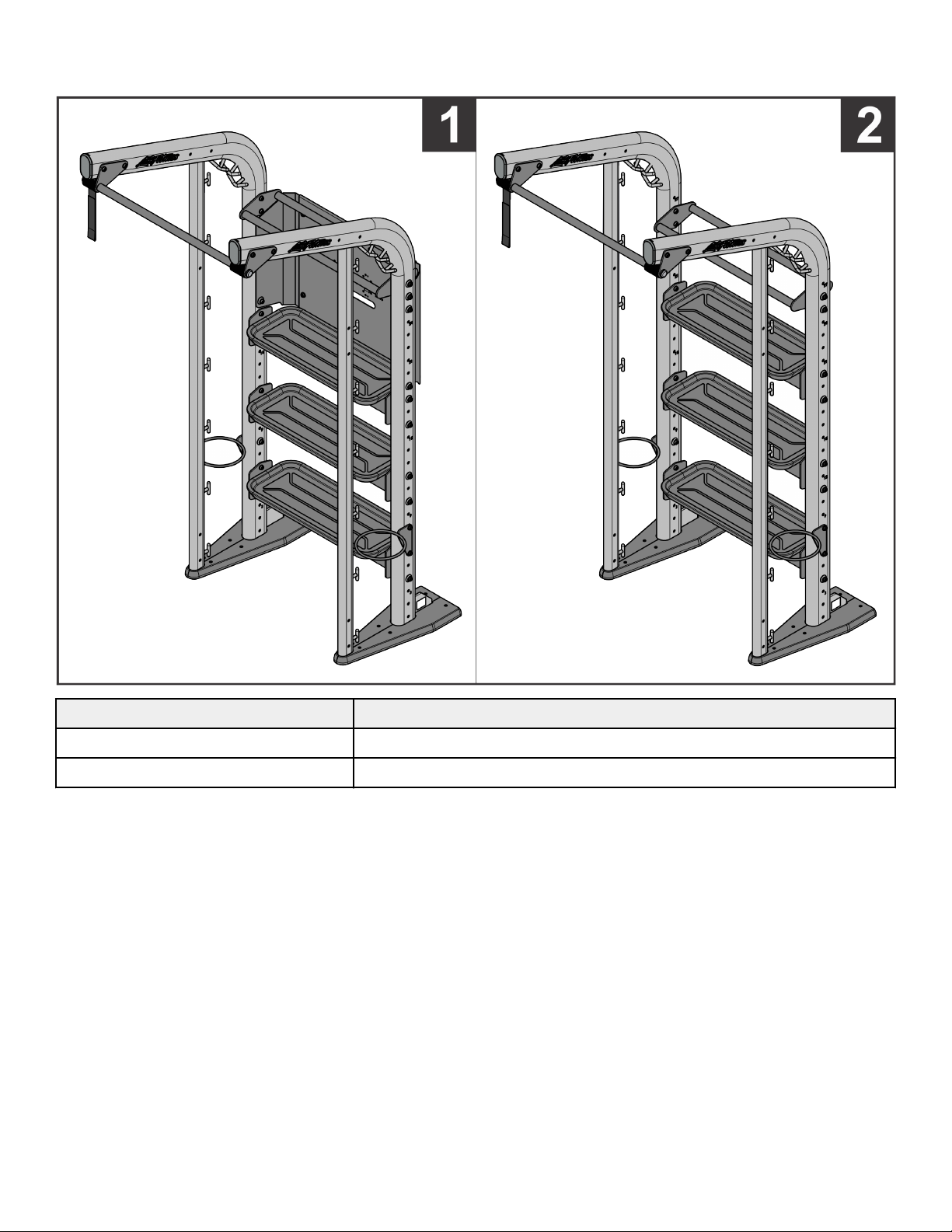

S180P Example Packages
Item Description
1 S180P Digital Coach
2 S180P Storage
Each package comes standard with the options shown in the respective images.
Page 23 of 33
4. Product Information
Footprint and Live Area
Component Weight Load Rating Footprint (D x W x H) Live Area (D x W x H)
S180P 185 lbs n/a 46.5" x 44.5" x 94" 12' x 83.5" x 105.5"
83.9 kg n/a 118cm x 113cm x 239cm 366cm x 212cm x 268.5cm
Accessory Shelf 41.5 lbs 135 lbs n/a n/a
18.8 kg 61.2 kg n/a n/a
Dual Rail Shelf 12 lbs 120 lbs n/a n/a
5.4 kg 54.4 kg n/a n/a
Digital Coach Mounting Shelf 37 lbs n/a n/a n/a
16.8 kg n/a n/a n/a
NOTE: S180P weight includes two uprights, foam roller/mat storage and suspension chin.
NOTE: Reduce footprint width by 1.5" (4cm) when removing foam roller/mat storage rings.
Page 24 of 33
5. Maintenance Procedures
Maintenance Schedule
ACTION DAILY WEEKLY MONTHLY AS NEEDED
WAX
Frames X
INSPECT
Paint X
Hardware X
Frame X
Wax
• Frames with a standard, non-abrasive, wax finish.
Inspect
• Hardware. Check for loosening. Tighten as required.
• Frames. Inspect for wear and damage.
• For paint chips. Fill in immediately with manufacturers touch-up paint.
Once a Week
• Visually inspect all hardware for loosening, tampering or wear.
Once a Month
• Inspect hardware on all machines and tighten any bolts or nuts that may have loosened over the life of the product.
Notes
• Use polishing compound (such as car wax) and remove shoe scuffs from powder coated surfaces as necessary.
Approved and Compatible Cleaners
Two preferred cleaners have been approved by reliability experts: PureGreen 24 and Gym Wipes. Both cleaners will
safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24 and the Antibacterial Force
formula of Gym Wipes are both disinfectants that are effective against MRSA and H1N1.
PureGreen 24 is available in a spray which is convenient for gym staff to use. Apply the spray to a microfiber cloth and
wipe down the equipment. Use PureGreen 24 on the equipment for at least 2 minutes for general disinfection
purposes and at least 10 minutes for fungus and viral control.
Gym Wipes are large, durable pre-moistened wipes to use on the equipment before and after workouts. Use Gym
Wipes on the equipment for at least 2 minutes for general disinfection purposes.
Contact Customer Support Services to order these cleaners (1-800-351-3737 or email:
customersupport@lifefitness.com).
Mild soap and water or a mild non-abrasive household cleaner can also be used to clean the display and all exterior
surfaces. Use a soft microfiber cloth only. Apply the cleaner to the microfiber cloth before cleaning. DO NOT use
ammonia or acid based cleaners. DO NOT use abrasive cleaners. DO NOT use paper towels. DO NOT apply cleaners
directly to the equipment surfaces.
Removal of Paint, Marking Pens, or Labels
• Butyl cellosolve works well for removal of paints, marking pen inks, lipstick, etc.
• Labels, stickers, etc. may be removed using kerosene. When the solvent will not penetrate sticker material, apply
heat (hair dryer) to soften the adhesive and promote removal. GASOLINE SHOULD NOT BE USED.
Page 25 of 33
6. Warranty
What is Covered
This Life Fitness commercial exercise equipment product is warranted to be free of all defects in material and
workmanship.
Who is Covered
The original purchaser or any person receiving the product as a gift from the original purchaser.
Who Pays Transportation and Insurance For Service
If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness, will pay all
transportation and insurance charges for the first year. You are responsible for transportation and insurance charge
after the first year.
What We Will Do To Correct Covered Defects
We will ship to you any new or rebuilt replacement part or component, or at our option, replace the Product. Such
replacement parts are warranted for the remaining portion of the original warranty period.
What is Not Covered
Any failures or damage caused by unauthorized service, misuse, accident, negligence, improper assembly or
installation, debris resulting from any construction activities in the Product’s environment, rust or corrosion as a result
of the Product’s location, alterations or modifications without our written authorization, or by failure on your part to
use, operate and maintain the Product as set out in your Operation Manual.
All terms of this warranty are void if this product is moved beyond the continental borders of the United States of
America (excluding Alaska, Hawaii and Canada) and are then subject to the terms provided by that country’s local
authorized Life Fitness representative.
Owner's Manual
It is VERY IMPORTANT THAT YOU READ THIS MANUAL before operating the Product. Remember to perform the
periodic maintenance requirements specified in the Manual to assure proper operation and your continued
satisfaction.
Exclusive Warranty
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND EITHER EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, AND ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART. We neither assume nor
authorize any person to assure for us any other obligation or liability concerning the sale of this Product. Under no
circumstances shall we be liable under this warranty, or otherwise, of any damage to any person or property, including
any lost profits or lost savings, for any special, indirect, secondary, incidental or consequential damages of any nature
arising out of the use of or inability to use this Product. Some states do not allow the exclusion or limitation of implied
warranties or of liability for incidental or consequential damages, so the above limitations or exclusions may not apply
to you. Warranty coverages and terms may differ outside the United States. Please contact the Life Fitness office
servicing your country (contact information found at the front of this manual) or visit the applicable local Life Fitness
website to receive the specific warranty information for your country.
Changes in Warranty Not Authorized
No one is authorized to change, modify or extend the terms of this limited warranty.
Effects of State Laws
This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country
by country.
Page 26 of 33
Warranty Coverage
NOTE: There is no warranty coverage for labor on Strength Products.
Item 10 Years 5 Years 1 Year 90 Days
Frame X
Hardware / Mechanical X
Items Not Specified X
Page 27 of 33
7. Bolt to Floor Guide
Introduction
Life Fitness designs its products to be stable when used as designed. Because strength training is dynamic, we cannot
predict how users will ultimately use the products in all circumstances. Therefore, Life Fitness requires that strength
training equipment be secured to a solid, level surface to stabilize and eliminate rocking or tipping over.
Each new unit shipped comes with a multi-language hangtag stating the importance of bolting the unit down as a
safety precaution.
It is the facility’s responsibility to adhere to local and regional building codes.
Delivery and Installation Tips
All Anchors
• Fasteners must have minimum embedment in concrete floor, not including screed, regardless of wood/tile/rubber
over sub-floor. (See Anchor Types for maximum sub-floor thickness between unit and concrete to equipment foot
must be made of flooring or other material (i.e. no air gaps)).
• DO NOT reuse fasteners. Static and Dynamic anchors are designed for one-time use only.
• Factor in equipment’s feet height when selecting fastener length.
• Factor in flooring thickness when selecting fastener length.
• It is also recommended to drill an additional 1/2” (12.7 mm) of depth beyond the length of the fastener being used
to ensure that debris does not block the entry of the anchor.
• Minimum concrete compressive strength: 3000 psi (20 N/mm2).
Anchoring
• All anchors must have a minimum embedment into concrete, regardless of wood/tile/rubber/screed over sub-floor.
• Dynamic anchors must have a minimum embedment depth in concrete to ensure maximum security and pull out
force. See Anchor Types for embedment depth minimums.
Building Codes
It is the facility’s responsibility to adhere to local and regional building codes. Please verify with the customer to ensure
that they are aware of this.
Carpeting
If bolted down to carpet flooring, be sure to use a box cutter knife to cut the carpet threads around each foot. This will
help avoid the carpet threads from being wrapped around and pulled by the drill bit.
Competitor Product
The bolt down guidelines and procedures for Life Fitness products were determined by the company’s Engineering
and Installation Development groups. These guidelines include which anchors to use and positioning of the anchors
are required for Life Fitness product.
• Life Fitness does not have that level of specification or engineering input for competitive product.
• Life Fitness installation teams are not permitted to anchor competitor equipment.
Drilling
It is also recommended to drill an additional 1/2” (12.7 mm) of depth beyond the length of the fastener being used to
ensure that debris does not block the entry of the anchor.
• This can be done by marking your drill bit with a piece of tape.
• While it is recommended that a vacuum be used to clean up debris, this will not account for all the debris that will
settle at the bottom of the drilled hole.
Page 28 of 33
Anchor Types
Subfloor thickness between unit and concrete
Anchor 0” - 3/4” (0mm - 19.1mm) 3/4” - 1.0” (19.1mm -
HSL HST
• HS Anchors listed are Metric Hilti™ Concrete Anchors
• Minimum concrete compressive strength: 3000psi (20 N/mm2)
• Minimum concrete thickness:
HSL-3 M 8/40 HST M12 x 115/20 to HST M12 x 295/200
1.0” - 7.0” (25.4mm -
25.4mm)
(length depends on subfloor thickness)
178mm)
• HSL-3 M 8: 4-3/4” (120mm)
• HST M12 : 5-1/2” (140mm)
• Minimum distance from anchor to concrete edge or seam:
• HSL-3 M 8: 2-3/8” (60mm)
• HST M12: 4-3/4” (120mm)
• Minimum hole depth in concrete:
• HSL-3 M 8: 3-1/64” (80mm)
• HST M12 Safety Stud Anchor (EMEA): 3.7” (95mm)
• Minimum concrete embedment:
• HSL-3 M 8: 2-13/32” (60mm)
• HST M12 Safety Stud Anchor (EMEA): 2.8” (70mm)
Anchor Specifications
Static Anchor Minimum Concrete
Thickness
HSL-3 M8/40 4-3/4” (120mm) 1/2” (12.7mm)
HST M 12 5-1/2” (140mm) 25/64" (10mm)
Minimum Drill Depth
in Concrete
beyond anchor
length
beyond anchor
length
Minimum Concrete
Embedment
2-13/32” (60mm) 3000psi (20.7 N/
2.8" (70mm) 3000psi (20.7 N/
Minimum concrete
compressive strength
mm2)
mm2)
Pullout Force
Life Fitness specifies Hilti™ static and dynamic anchors. According to the anchor manufacturer, the recommended
design pullout force (in tension) for the specified anchors, when properly installed in cracked concrete, is provided in
the side table. This table should be used for reference only; for additional and up-to-date information on the anchor
capabilities or the design pullout force in other substrates, please consult Hilti directly at https://www.us.hilti.com.
Page 29 of 33
Selected Anchor Design Resistance in Tension *
KH-EZ ¼” x 4” 830 lb
HUS-H 6MM x 120MM 3.3 kN
KH-EZ 3/8” x 4” 1535 lb
KH-EZ 3/8” x 5” 1535 lb
HUS-H 8MM x 120MM 3.3 kN
HUS-H 8MM x 150MM 3.3 kN
HSL-3 M 8/40 2000 lb
HST M12 x 115/20 8 kN
HST M12 x 195/200 8 kN
KB-TZ 3/8” x 3-3/4” 1615 lb
* Design strength extracted from the Hilti Anchor Fastening Technology Manual issued September 2014.
Tools Required
WARNING: Adhere to manufacturer’s equipment warnings and guidelines. Follow manufacturer’s instructions
for proper usage.
Dynamic Anchor
• Floor scanner / rebar detector (optional)
• 1” L-shape SDS rotary hammer
• 12mm x 305mm carbide drill bit
• Blackhawk™ by Proto™ 3/8” ratcheting micrometer adj. torque wrench (34870- A)
• Rubber mallet/dead blow hammer
• Safety glasses
• Extension cord
• Vacuum (for debris)
Page 30 of 33
Dynamic HSL-3 8/40 Anchor Procedure
1. Place unit into position to be mounted.
2. Wearing protective glasses, drill down into flooring perpendicularly to the required depth, ensuring that the foot
thickness is being accounted for; refer to Anchor Selection and Foot Dimensions Section.
3. Clear out the debris from hole, insert fastener and hammer into hole until flush against frame plate.
4. Tighten to 18 Foot-Pounds (24Nm).
NOTE: If the legs/frame do not contact the mounting surface DO NOT pull down with the fastener or anchor.
Loosen frame hardware and re-tighten to allow machine to align.
Page 31 of 33
Dynamic HST Safety Stud Anchor Procedure
1. Place unit into position to be mounted and cycle unit to set stance.
2. If necessary, cut HST Safety Stud Anchor to length before installation, leaving enough length to ensure proper
concrete embedment (see Anchor Section for embedment depth required) and proper tightening torque (44 FootPounds/60Nm).
3. Wearing protective glasses, drill down into flooring perpendicularly to the required depth, ensuring that the foot
thickness is being accounted for; refer to Anchor Selection and Foot Dimensions.
4. Clear out the debris from hole and then insert fastener and hammer into hole until flush against frame plate.
5. Tighten to 44 Foot-Pounds (60Nm).
6. If necessary, cut extra length from top of anchor with a rotary tool leaving proper concrete engagement and torque
requirements.
7. Re-tighten anchor to 44 Foot-Pounds (60Nm).
Page 32 of 33
Foot Dimensions
Use below image to determine foot specifications.
Page 33 of 33
