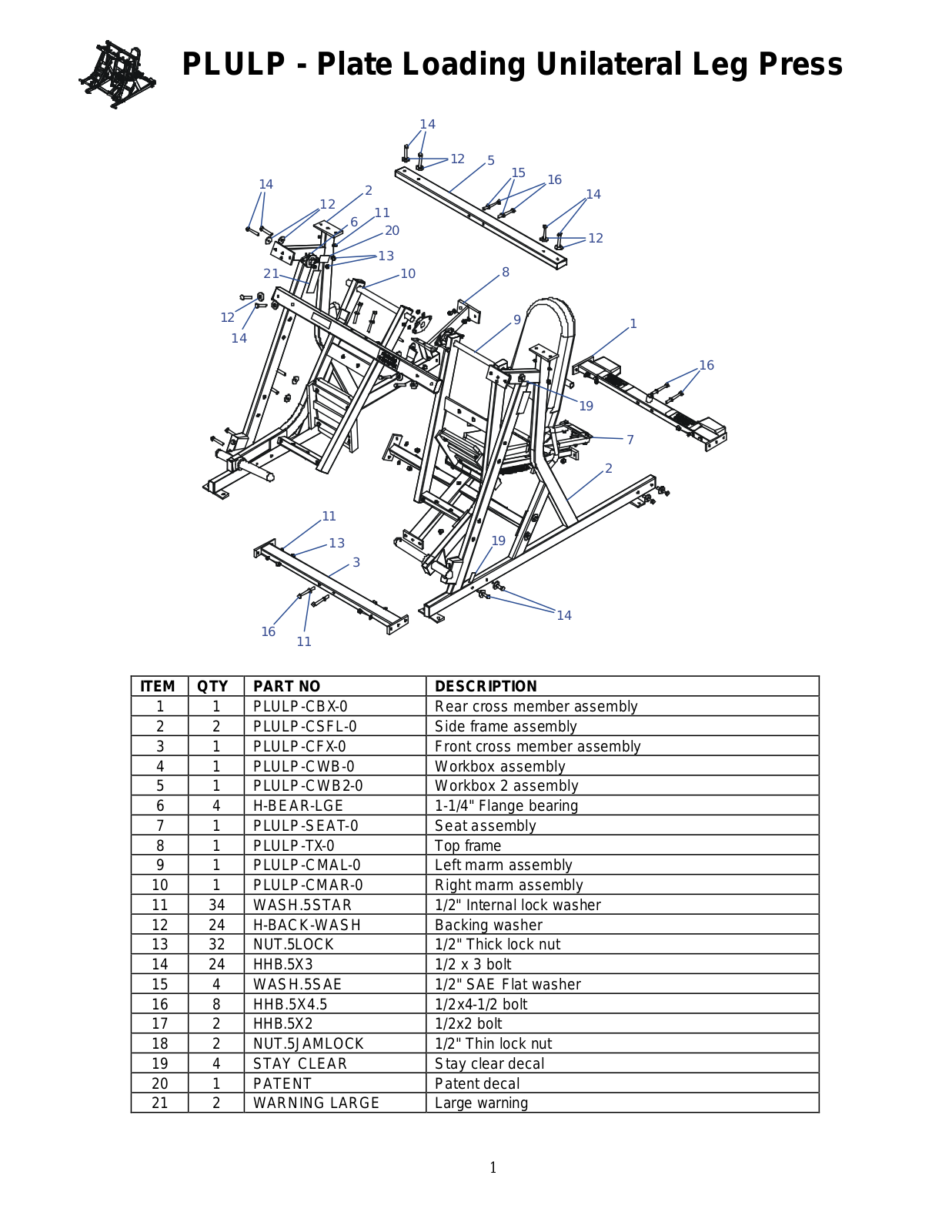

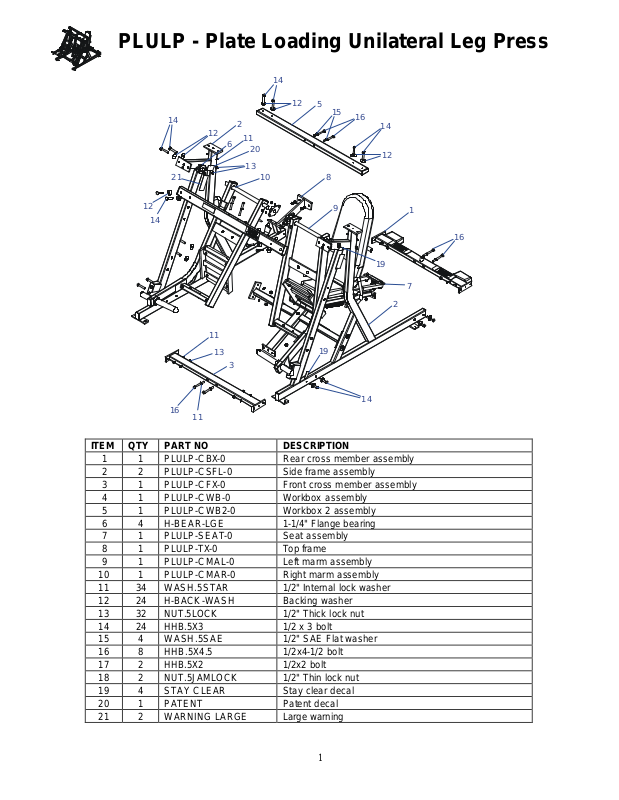

PLULP - Plate Loading Unilateral Leg Press

14

21

12

2

11

6

20

13

10

12

14

3

ITEM QTY PART NO DESCRIPTION

1 1 PLULP-CBX-0 Rear cross member assembly
2 2 PLULP-CSFL-0 Side frame assembly
3 1 PLULP-CFX-0 Front cross member assembly
4 1 PLULP-CWB-0 Workbox assembly
5 1 PLULP-CWB2-0 Workbox 2 assembly
6 4 H-BEAR-LGE 1-1/4" Flange bearing
7 1 PLULP-SEAT-0 Seat assembly
8 1 PLULP-TX -0 Top frame

9 1 PLULP-CMAL-0 Left marm assembly
10 1 PLULP-CMAR-0 Right marm assembly
11 34 WASH.5STAR 1/2" Internal lock washer
12 24 H-BACK-WASH Backing washer
13 32 NUT.5LOCK 1/2" Thick lock nut
14 24 HHB.5X3 1/2 x 3 bolt
15 4 WASH.5SAE 1/2" SAE Flat washer
16 8 HHB.5X4.5 1/2x4-1/2 bolt
17 2 HHB.5X2 1/2x2 bolt
18 2 NUT.5JAMLOCK 1/2" Thin lock nut
19 4 STAY CLEAR Stay clear decal
20 1 PATENT Patent decal
21 2 WARNING LARGE Large warning

1

12

15

16

14

12
