Lifebreath 200ERV, MAXTOP, 195DCS, 300DCS, 200ERVD User Manual

CLEAN • FRESH • AIR

OPERATION AND

INSTALLATION MANUAL

Contains

ControlAir 15

For Models:

95MAX 155MAX 200MAX MAXTOP 195DCS 300DCS

200ERV 200ERVD

TO BE COMPLETED BY CONTRACTOR AFTER INSTALLATION

IMPORTANT - PLEASE READ THIS MANUAL BEFORE INSTALLING UNIT

CAUTION

Before installation, careful consideration must be given to how this system will operate if connected to any other piece of mechanical equipment, i.e. a forced air furnace or air handler, operating at a higher static. After installation, the compatibility of the two pieces of equipment must be confirmed by measuring the airflow’s of the Heat Recovery Ventilator (HRV) or Energy Recovery Ventilator (ERV) by using the balancing procedure found in this manual.

It is always important to assess how the operation of any HRV/ERV may interact with vented combustion equipment (ie. Gas Furnaces, Oil Furnaces, Wood Stoves, etc.).

NEVER install a ventilator in a situation where its normal operation, lack of operation or partial failure may result in the backdrafting or improper functioning of vented combustion equipment!!!

Installing Contractor

Telephone / Contact

Serial Number

Installation Date Model

* LEAVE FOR HOMEOWNER

NOTE: Due to ongoing research and product development, specifications,

ratings and dimensions are subject to change without notice.

TI-84R-NE

0202

Table of Contents

INTRODUCTION

Introduction...................

Warranty ....................................................................... 2

ERV Questions & Answers .......................................... 3

Climate Map ................................................................. 4

Technical Data - Model 95MAX ................................... 5

Technical Data - Model 155MAX ................................. 6

Technical Data - Model 200MAX ................................. 7

Technical Data - Model MAXTOP................................ 8

Technical Data - Model 195DCS ................................. 9

Technical Data - Model 300DCS ............................... 10

Technical Data - Model 200ERV ................................ 11

Technical Data - Model 200ERVD ............................. 12

......

.......................................... 2

Function and Control

Operation of the ControlAir 15 ....................................13

Glossary of Terms

To Select Mode of Operation.......................................14

Optional Remote Controls ......................................... 15

Using the Dehumidistat............................................ 16

Schematic Diagram - Model 95MAX ....................... 17

....................................................

..13

HRV - Aluminum Core

A Heat Recovery Ventilator (HRV) is designed to provide fresh air into a building while exhausting an equal amount of stale air. During the winter months, the incoming cold fresh air is warmed by utilizing the heat recovered from the stale air before it is exhausted to the outdoors. During summer months when the indoor space is air conditioned, the Heat Recovery Ventilator will help in cooling the incoming fresh air with the stale air that is being exhausted.

ERV - Enthalpic Paper Core

An Energy Recovery Ventilator (ERV) is designed to provide fresh air into a building while exhausting an equal amount of stale air. An ERV is designed for use in warm humid areas with heavy air conditioning use. The ERV will transfer both sensible and latent heat from the incoming fresh air to the outgoing stale air thereby reducing the load (due to ventilation) on the air conditioning system.

ERVs are not suitable for climates where the temperature drops below -4˚C (25˚F).

Installation

• Location

• Mounting the HRV/ERV

• Electrical

• Installing the Drain Line and "P" Trap

Installing Air Ducts .................................................. 19

• Outside Weatherhoods

• Locating the Weatherhoods

•

Installing Ducting from Weatherhoods to the HRV/ERV

• Warmside Ducting

Supply Air Ducting ..................................................... 20

Stale Air Exhaust System .......................................... 20

Dampers and Grilles .................................................. 20

Installation Diagrams .......................................... 21 - 24

Air Flow Balancing ..................................................... 25

............................................................... 18

WARRANTY

All Heat Recovery Ventilators carry a Lifetime Warranty on the heat recovery core and a 5 (five) year replacement parts warranty.

All Energy Recovery Ventilators carry a 5 (five) year warranty on the energy recovery core and a 5 (five) year replacement parts warranty.

During the warranty period, if any core experiences a failure or perforation caused by normal use while owned by the original purchaser, a replacement core (FOB our plant) will be supplied at no expense.

Maintenance

Maintenance Routine For HRV .................................. 27

Maintenance Routine For ERV .................................. 28

Troubleshooting.......................................................... 29

Wiring Diagram .......................................................... 31

ERV Questions & Answers

What is the difference between an HRV and an ERV?

The core in an HRV (Heat Recovery Ventilator) transfers heat from one air stream to the other. This is called sensible heat. The term ERV (Energy Recovery Ventilator) is usually used to describe a unit with an enthalpic core that transfers moisture as well as heat from one air stream to the other. This (moisture transfer) is called latent heat.

Enthalpic - what does it mean?

Enthalpy is the term used to describe the energy content of air. This energy is a combination of the sensible and latent heat. Therefore, a core which transfers energy is called an enthalpic core.

Is an ERV better than an HRV?

NOT NECESSARILY!! In cold climates such as most of North America, an HRV works better than an ERV. This is because the air inside the home during the winter months will be more humid than the outside air. An ERV would transfer the latent heat (humidity) from the exhaust air back into the incoming airstream. This will aggravate moisture problems in the home and encourage the growth of mold and mildew. If the air in the home is too dry for comfort, an ERV will not help. A humidifier should be used to increase the humidity to a comfortable level.

and damp situation. In fact, about 2/3 of the energy used by the air conditioner system is to remove moisture. Therefore, when ventilating in the summer, less moisture brought into the home means less work for the air conditioner, and energy savings for you.

During the winter, an ERV recovers some humidity from the exhaust air, reducing the need for humidification if the required ventilation rate would make the home too dry.

What's the difference between this type of core and a rotary type?

Here's a list of characteristics of the fixed plate core.

1. No rotating parts, so maintenance is easy and the unit lasts a long time.

2. It is very flexible in terms of installation.

3. The core can easily be changed.

4. Because the supply and exhaust air streams are

completely separate, there is very little cross leakage of any dust or germs.

Can the core become clogged with dust?

Because the surface of the core is a turbulent flow area, dust sticks to it easily; however, because the inside of the element is a laminar flow area, virtually no dust sticks to it.

Where do you use an ERV instead of an HRV?

An ERV is recommended for warm, humid areas with heavy air conditioning use. As there is no defrost in an ERV it is not recommended for areas where the temperature drops below -4˚C (25˚F).

Why transfer moisture in the summer (cooling season)?

The enthalpic core will allow moisture to be transferred from a humid air flow to a dry air flow. This property is useful in the cooling season if an air conditioning system is used to lower the indoor humidity. You will then have dry, cool air in the exhaust of the ERV, and warm humid air in the supply stream. With these conditions, the ERV will be able to transfer the moisture and heat of the supply air to the exhaust air. In this way, the ERV will supply to the home air which is cooler and drier than outside. Remember that an ERV is not a dehumidifier, and on its own will not take moisture out of the air.

So why use an ERV?

A properly operating air conditioner will not only lower the temperature in your house, but will also lower the humidity level. This prevents an uncomfortable cold

What is the maintenance?

About once a year you should use a vacuum cleaner to remove the dust from the core's surface. DO NOT WASH WITH WATER!!

Is an air filter needed?

To prevent clogging of the core, an air filter should always be installed on the supply and exhaust sides of the core.

How much ventilation do I need?

During seasons when your windows and doors are closed, the ERV should operate continuously when the dwelling is occupied, and either continuously or intermittently when not occupied.

For most installations the ERV will normally be set to operate continuously on low speed with the option of going to high speed as the need arises. For example; if you are entertaining and there is a large number of people present (some may be smoking), the unit should be switched to high speed.

Your ERV may be equipped with automatic or manual switches, but all ERVs will have a manual speed control override.

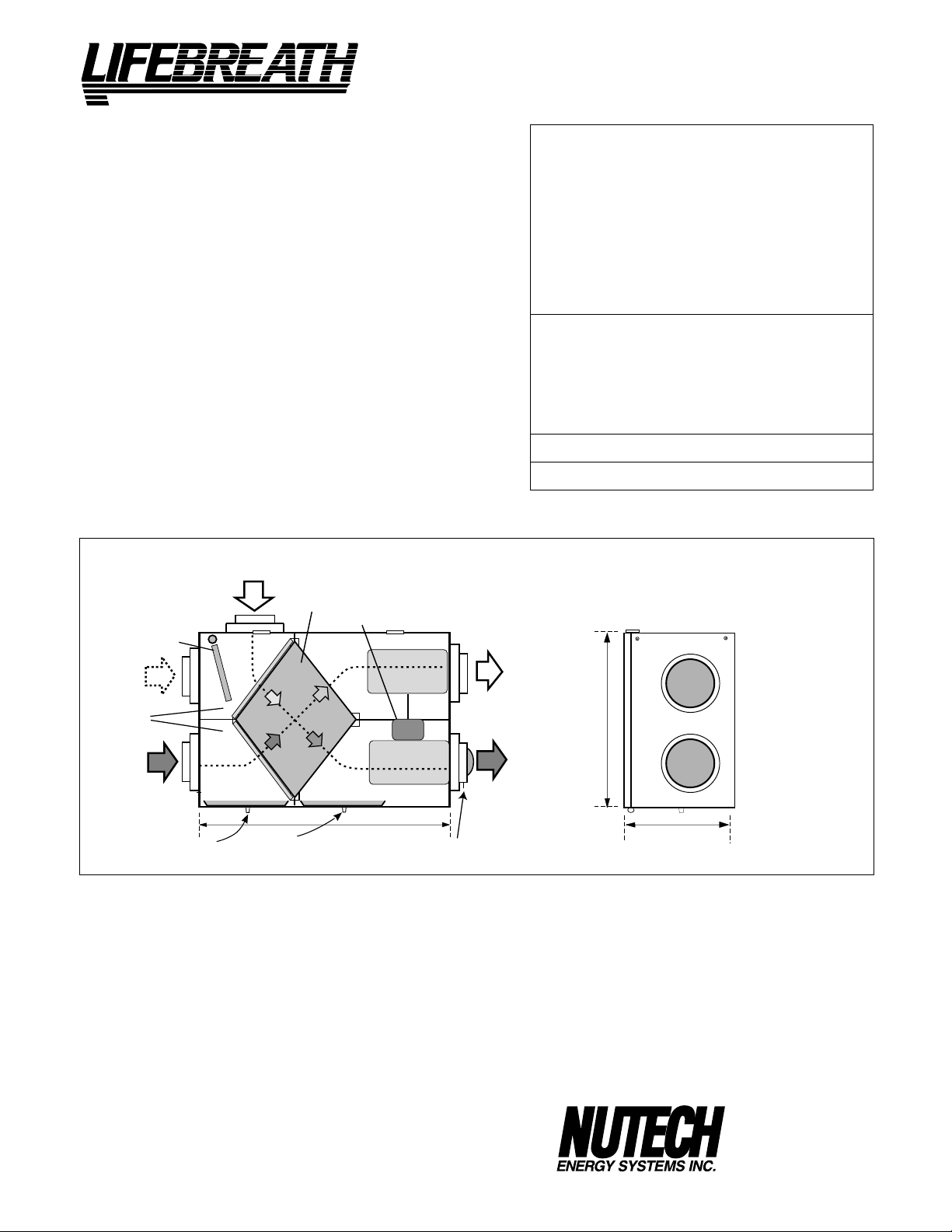

Model 95MAX

ENGINEERING DATA

THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE

The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service.

MOTORS AND BLOWERS

- Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. 120 VAC, .8 Amps.

FILTERS MOUNTING THE HRV

- Washable air filters in exhaust and supply air streams.

- Four threaded inserts at corners of the cabinet designed to accept PVC reinforced polyester straps that are supplied with the unit.

DEFROST CASE

- Recirculating defrost system.

- Twenty gauge prepainted galvanized steel (G60) for superior corrosion resistance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2" (12 mm) OD.

CONTROLS

WEIGHT 52 lbs. (23.6 kg) SHIPPING WEIGHT 56 lbs. (25.4

- ControlAir 15 kg)

DIMENSIONS 95MAX

PERFORMANCE

Net supply airflow in cfm (L/s) against external static pressure

E.S.P cfm L/s

@ 0.1” (25 Pa) 89 (42) @ 0.2” (50 Pa) 78 (37) @ 0.3” (75 Pa) 64 (30) @ 0.4” (100 Pa) 36 (17)

Maximum Temperature Recovery 74% Sensible Effectiveness

@ 64 cfm (30 L/s) Sensible Efficiency

@ 64 cfm (30 L/s) 32˚F (0˚C) 75% Sensible Efficiency

@ 64 cfm (30 L/s) -13˚F (-25˚C) 75% VAC @ 60HZ 120

WATTS / Low speed 35 WATTS / High speed 136 Amp rating 0.8

inches (mm)

HVI CERTIFIED

(CSA C439M)

80%

24.5" (622 mm)

18.5"

(470 mm)

Removably

Heat Recovery

Core

Drain Pan

Drain spout

FRONT TOP

knockout for

side mounting of

EXHAUST return port

6" round collar

converted to oval

minimum

18 inches (459 mm)

required for

service access

SIDE

Hanging

straps (4)

16"

(406 mm)

OPTIONS

99-104 Digital Electronic Timer - 20/40/60 min. 99-105 Programmable Ventilation Control

(PVC) includes Programmable Time Clock, Dehumidistat and Air Sentry™

99-109 Air Sentry™ Air Quality Monitor designed to

accept remotely mounted Control Pad

99-250 Ventilation Dehumidistat - Dehumidistat designed

to accept remotely mounted Control Pad

DATE: __________________________

PROJECT: ________________________________________

MECHANICAL CONTRACTOR: ________________________________

99-163 Duct Heater

99-185 Weatherhoods, Two - 5” (125 mm)

All units conform to CSA and UL standards.

WARRANTY

Units carry a LIFETIME warranty on the heat recovery core and a 5 year replacement parts warranty.

Threaded inserts (4) at corners

18.5"

(470 mm)

SUPPLY

Fresh air

from outside

5" round collar

SUPPLY

Fresh air

to building

6" round

(conv. to oval)

collar

w/ Electronic SCR Thermostat, 1 Kw,

6” (150 mm)

c/w 1/4” (6 mm) mesh screen

EXHAUST

Stale Air

to outside

5" round collar

EXHAUST

Return air

from building

Choice of port location

Knockouts on top and side of unit (use 1 only) 6" round (conv. to oval)

collar supplied

511 McCormick Blvd. London, Ontario

Ph: (519) 457-1904 Fx: (519) 457-1676 Email: nutech@lifebreath.com Website: www.lifebreath.com

N5W 4C8

TI-113-NE

0202

Model 155MAX

ENGINEERING DATA

THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE

The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service.

MOTORS AND BLOWERS -

Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. 120 VAC, 1.0 Amps.

FILTERS - Washable air filters in exhaust and supply air streams. MOUNTING THE HRV

- Four threaded inserts at corners of case designed to accept four reinforced polyester straps that are supplied with the unit.

DEFROST - Recirculating damper defrost system. DEHUMIDISTAT - Adjustable Internal Dehumidistat. CASE - Twenty gauge prepainted galvanized steel (G60) for superior

corrosion resistance. Insulated to prevent exterior condensation.

1/2

Drain connections 2 -

" (12 mm) OD.

CONTROLS - ControlAir 15

WEIGHT 71 lbs. (32.5 kg) SHIPPING WEIGHT 73 lbs. (33.5 kg)

DIMENSIONS 155MAX

FRESH AIR

FROM OUTSIDE

RECIRCULATING

DEFROST

DAMPER

FILTERS

STALE AIR

FROM INSIDE

PERFORMANCE

Net supply airflow in cfm (L/s) against external static pressure

E.S.P cfm L/s

@ 0.1” (25 Pa) 169 (80) @ 0.2” (50 Pa) 161 (76) @ 0.3” (75 Pa) 150 (71) @ 0.4” (100 Pa) 130 (61) @ 0.5” (125 Pa) 56 (26)

Maximum Temperature Recovery 83% Sensible Effectiveness

@ 64 cfm (30 L/s) Sensible Efficiency

@ 64 cfm (30 L/s) 32°F (0 Sensible Efficiency

@ 64 cfm (30 L/s) -13°F (-25 VAC @ 60HZ 120 WATTS / Low speed 49 WATTS / High speed 120 Amp rating 1.0

inches (mm)

HVI CERTIFIED

(CSA C439M)

76%

C) 70%

70%

CORE

STALE AIR

TO OUTSIDE

CONDENSATE DRAINS

OPTIONS

32 5/8"

(828)

*All Duct Connections 6" (150mm)

BALANCING DAMPER

BLOWERS

MOTOR

99-163 Duct Heater w/ Electronic SCR Thermostat, 1 Kw,

99-104 Digital Electronic Timer - 20/40/60 min. 99-105 Programmable Ventilation Control

(PVC)

99-164 Duct Heater w/ Electronic SCR Thermostat, 2 Kw,

includes Programmable Time Clock, Dehumidistat and Air Sentry™

99-186 Weatherhoods, Two - 6” (150 mm)

99-109 Air Sentry™ Air Quality Monitor designed to

accept remotely mounted Control Pad

99-250 Ventilation Dehumidistat - Dehumidistat designed

to accept remotely mounted Control Pad.

All units conform to CSA and UL standards.

WARRANTY

Units carry a LIFETIME warranty on the heat recovery core and a 5 year replacement parts warranty.

DATE: __________________________

PROJECT: __________________________________________

MECHANICAL CONTRACTOR: _____________________________

19"

(483)

FRESH AIR

TO INSIDE

6” (150 mm)

c/w 1/4” (6 mm) mesh screen

14 3/4"

(375)

*NOTE: Front clearance  of 25 inches (635 mm)  is recommended  for servicing unit.

511 McCormick Blvd. London, Ontario

Ph: (519) 457-1904 Fx: (519) 457-1676 Email: nutech@lifebreath.com Website: www.lifebreath.com

N5W 4C8

TI-92-NE

0202

Model 200MAX

ENGINEERING DATA

THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE

The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service.

MOTORS AND BLOWERS

- Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. 120 VAC, 1.4 Amps.

FILTERS MOUNTING THE HRV

- Washable air filters in exhaust and supply air streams.

- Four threaded inserts at corners of case designed to accept four reinforced polyester straps that are supplied with the unit.

DEFROST DEHUMIDISTAT CASE

- Recirculating damper defrost system.

- Adjustable Internal Dehumidistat.

- Twenty gauge prepainted galvanized steel (G60) for superior corrosion resistance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2" (12 mm) OD.

CONTROLS

- ControlAir 15

WEIGHT 71 lbs. (32.5 kg SHIPPING WEIGHT 73 lbs. (33.5 kg)

DIMENSIONS 200MAX

PERFORMANCE

Net supply airflow in cfm (L/s) against external static pressure

E.S.P cfm L/s

@ 0.1” (25 Pa) 232 (109) @ 0.2” (50 Pa) 223 (105) @ 0.3” (75 Pa) 215 (102) @ 0.4” (100 Pa) 195 (92) @ 0.5” (125 Pa) 189 (89)

Maximum Temperature Recovery 81% Sensible Effectiveness

@ 117 cfm (55 L/s) Sensible Efficiency

@ 117 cfm (55 L/s) 32˚F (0˚C) 65% Sensible Efficiency

@ 117 cfm (55 L/s) -13˚F (-25˚C) 66% VAC @ 60HZ 120

WATTS / Low speed 87 WATTS / High speed 164 Amp rating 1.4

inches (mm)

HVI CERTIFIED

(CSA C439M)

74%

RECIRCULATING

DEFROST

DAMPER

CORE

STALE AIR

TO OUTSIDE

CONDENSATE DRAINS

OPTIONS

FRESH AIR

FROM OUTSIDE

FILTERS

32 5/8"

(828)

*All Duct Connections 6" (150mm)

STALE AIR

FROM INSIDE

BLOWERS

MOTOR

BALANCING DAMPER

99-163 Duct Heater w/ Electronic SCR Thermostat, 1 Kw,

99-104 Digital Electronic Timer - 20/40/60 min. 99-105 Programmable Ventilation Control (PVC)

99-164 Duct Heater w/ Electronic SCR Thermostat, 2 Kw,

includes Programmable Time Clock, Dehumidistat and Air Sentry™

99-186 Weatherhoods, Two - 6” (150mm)

99-109 Air Sentry™ Air Quality Monitor designed to accept

remotely mounted Control Pad

99-250 Ventilation Dehumidistat - Dehumidistat designed to

accept remotely mounted Control Pad.

All units conform to CSA and UL standards.

WARRANTY

Units carry a LIFETIME warranty on the heat recovery core and a 5 year replacement parts warranty.

DATE: __________________________

PROJECT: __________________________________________

MECHANICAL CONTRACTOR: _____________________________

19"

(483)

FRESH AIR

TO INSIDE

6” (150mm)

c/w 1/4” (6mm) mesh screen

14 3/4"

(375)

*NOTE: Front clearance  of 25 inches (635 mm)  is recommended  for servicing unit.

511 McCormick Blvd. London, Ontario

Ph: (519) 457-1904 Fx: (519) 457-1676 Email: nutech@lifebreath.com Website: www.lifebreath.com

N5W 4C8

TI-99-NE

0202

Model MAXTOP

ENGINEERING DATA

THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE

The cross-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service.

MOTORS AND BLOWERS

blower driven by a common PSC motor. 5 speed fan operation. 120 VAC, 1.4 Amps.

FILTERS

- Washable air filters in exhaust and supply air streams.

MOUNTING THE HRV

designed to accept four reinforced polyester straps that are supplied with the unit.

DEFROST DEHUMIDISTAT CASE

- Recirculating damper defrost system.

- Adjustable Internal Dehumidistat.

- Twenty gauge prepainted galvanized steel (G60) for superior corrosion resistance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2" (12 mm) OD.

CONTROLS

- ControlAir 15

WEIGHT 87 lbs. (39.5 kg) SHIPPING WEIGHT 89 lbs. (40.5 kg)

- Each air stream has one centrifugal

- Four threaded inserts at corners of case

DIMENSIONS MAXTOP

CONTROLS

7 1/2"

(191 mm)

inches (mm)

PERFORMANCE

Net supply airflow in cfm (L/s) against external static pressure

E.S.P cfm L/s

@ 0.1” (25 Pa) 196 (93) @ 0.2” (50 Pa) 188 (89) @ 0.3” (75 Pa) 178 (84) @ 0.4” (100 Pa) 165 (78) @ 0.5” (125 Pa) 149 (71)

Maximum Temperature Recovery 80% Sensible Effectiveness

@ 117 cfm (55 L/s ) Sensible Efficiency

@ 117 cfm (55 L/s) 32 Sensible Efficiency

@ 67 cfm (31 L/s) -13 VAC @ 60HZ 120 WATTS / Low speed 74 WATTS / High speed 164 Amp rating 1.4

STALE AIR EXHAUST

HVI CERTIFIED

(CSA C439M)

F (0°C) 64%

F (-25°C)

ALL DUCT CONNECTIONS ARE 6" (150 mm)

72%

70%

FRESH AIR  SUPPLY TO BUILDING

25 1/2 "

(648 mm)

18"

(457 mm)

26 1/2"

(673 mm)

99-163 Duct Heater

FRONT VIEW

OPTIONS

22 1/2"

(572 mm)

DRAIN CONNECTION

SIDE VIEW

99-104 Digital Electronic Timer - 20/40/60 min. 99-105 Programmable Ventilation Control

(PVC)

99-164 Duct Heater

includes Programmable Time Clock, Dehumidistat and Air Sentry™

99-186 Weatherhoods, Two - 6” (150mm)

99-109 Air Sentry™ Air Quality Monitor designed to

accept remotely mounted Control Pad

99-250 Ventilation Dehumidistat - Dehumidistat designed

to accept remotely mounted Control Pad

All units conform to CSA and UL standards.

WARRANTY

Units carry a LIFETIME warranty on the heat recovery core and a 5 year replacement parts warranty.

DATE: __________________________

PROJECT: __________________________________________

MECHANICAL CONTRACTOR: _____________________________

SUPPLY OF FRESH AIR

TOP VIEW

w/ Electronic SCR Thermostat, 1 Kw,

6” (150mm)

w/ Electronic SCR Thermostat, 2 Kw,

6” (150mm)

c/w 1/4” (6mm) mesh screen

STALE AIR RETURN FROM  BUILDING

*Service Clearance 25" (635 mm)

511 McCormick Blvd. London, Ontario

Ph: (519) 457-1904 Fx: (519) 457-1676 Email: nutech@lifebreath.com Website: www.lifebreath.com

N5W 4C8

TI-100-NE

0103

Model 195DCS

ENGINEERING DATA

THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE

The cross-flow heat recovery core transfers heat between the two airstreams. The two cores are arranged for highly efficient counter current airflow.

MOTORS AND BLOWERS - Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. 120 VAC, 1.5 Amps.

FILTERS - Washable air filters in exhaust and supply air streams. MOUNTING THE HRV - Four threaded inserts at corners of case

designed to accept four reinforced polyester straps that are supplied with the unit.

DEFROST - Damper defrost system. DEHUMIDISTAT - Adjustable Internal Dehumidistat. CASE - Twenty gauge prepainted galvanized steel (G60) for superior

corrosion resistance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2" (12 mm) OD.

CONTROLS - ControlAir 15 WEIGHT 106 lbs. (48 kg) SHIPPING WEIGHT 108 lbs. (49 kg)

DIMENSIONS 195DCS

PERFORMANCE

Net supply airflow in cfm (L/s) against external static pressure

E.S.P cfm L/s

@ 0.1” (25 Pa) 203 (96) @ 0.2” (50 Pa) 191 (90) @ 0.3” (75 Pa) 182 (86) @ 0.4” (100 Pa) 167 (79) @ 0.5” (125 Pa) 155 (73)

Maximum Temperature Recovery 88% Sensible Effectiveness

@ 117 cfm (55 L/s) Sensible Efficiency

@ 117 cfm (55 L/s) 32 Sensible Efficiency

@ 117 cfm (55 L/s) -13°F (-25 VAC @ 60HZ 120 WATTS / Low speed 100 WATTS / High speed 173 Amp rating 1.5

inches (mm)

HVI CERTIFIED

(CSA C439M)

F (0°C) 80%

88%

77%

STALE AIR

TO OUTSIDE

Ports 

6" (150 mm)

FILTER

FRESH AIR

FROM OUTSIDE

DEFROST

DAMPER

METAL CLASPS

DEFROST AIR FROM INSIDE

CONDENSATE

DRAINS

FILTER

49 "

(1245)

MOTOR

OPTIONS

99-104 Digital Electronic Timer - 20/40/60 min. 99-105 Programmable Ventilation Control

includes Programmable Time Clock, Dehumidistat and Air Sentry™

99-109 Air Sentry™ Air Quality Monitor designed to

accept remotely mounted Control Pad

99-250 Ventilation Dehumidistat - Dehumidistat designed

to accept remotely mounted Control Pad.

(PVC)

STALE AIR

FROM INSIDE

Ports 

99-160

7" (178 mm)

BLOWERS

FRESH AIR

TO INSIDE

Duct Heater w/ Electronic SCR Thermostat,

19"

(483)

14 3/4"

(375)

*NOTE: 

Front clearance  of 25 inches (635 mm)  is recommended  for servicing unit.

1 Kw, 7” (178 mm)

99-161

Duct Heater w/ Electronic SCR Thermostat,

2 Kw, 7” (178 mm)

99-186 Weatherhoods, Two - 6” (150 mm)

c/w 1/4” (6mm) mesh screen

All units conform to CSA and UL standards.

WARRANTY

Units carry a LIFETIME warranty on the heat recovery core and a 5 year replacement parts warranty.

DATE: __________________________

PROJECT: __________________________________________

MECHANICAL CONTRACTOR: _____________________________

511 McCormick Blvd. London, Ontario

Ph: (519) 457-1904 Fx: (519) 457-1676 Email: nutech@lifebreath.com Website: www.lifebreath.com

N5W 4C8

TI-101-NE

0112

Model 300DCS

ENGINEERING DATA

THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE

The cross-flow heat recovery core transfers heat between the two airstreams The two cores are arranged for highly efficient counter current airflow.

MOTORS AND BLOWERS - Each air stream has one centrifugal blower driven by a common PSC motor. 5 speed fan operation. 120 VAC, 2.9 Amps.

FILTERS - Washable air filters in exhaust and supply air streams. MOUNTING THE HRV - Four threaded inserts at corners of case

designed to accept four reinforced polyester straps that are supplied with the unit.

DEFROST - Damper defrost system. DEHUMIDISTAT - Adjustable Internal Dehumidistat. CASE - Twenty gauge prepainted galvanized steel (G60) for superior

corrosion resistance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2" (12 mm) OD.

CONTROLS - ControlAir 15 WEIGHT 106 lbs. (48 kg) SHIPPING WEIGHT 108 lbs. (49 kg )

PERFORMANCE

Net supply airflow in cfm (L/s) against external static pressure

E.S.P cfm L/s

@ 0.1” (25 Pa) 265 (125) @ 0.2” (50 Pa) 260 (123) @ 0.3” (75 Pa) 250 (118) @ 0.4” (100 Pa) 235 (111) @ 0.5” (125 Pa) 220 (104)

Maximum Temperature Recovery 90% Sensible Effectiveness

@ 117 cfm (55 L/s) Sensible Efficiency

@ 117 cfm (55 L/s) 32°F (0 Sensible Efficiency

@ 117 cfm (55 L/s) -13°F (-25 VAC @ 60HZ 120 WATTS / Low speed 150 WATTS / High speed 333 Amp rating 2.9

HVI CERTIFIED

(CSA C439M)

90%

C) 79%

75%

DIMENSIONS 300DCS

METAL CLASPS

STALE AIR

TO OUTSIDE

Ports 

6" (150 mm)

FILTER

FRESH AIR

FROM OUTSIDE

DEFROST

DAMPER

DEFROST AIR FROM INSIDE

CONDENSATE

DRAINS

OPTIONS

99-104 Digital Electronic Timer - 20/40/60 min. 99-105 Programmable Ventilation Control

includes Programmable Time Clock, Dehumidistat and Air Sentry™

99-109 Air Sentry™ Air Quality Monitor designed to

accept remotely mounted Control Pad.

99-250 Ventilation Dehumidistat - Dehumidistat designed

to accept remotely mounted Control Pad.

DATE: __________________________

PROJECT: __________________________________________

MECHANICAL CONTRACTOR: _____________________________

FILTER

(PVC)

49 "

(1245)

MOTOR

99-160

99-161

99-186 Weatherhoods, Two - 6” (150mm)

All units conform to CSA and UL standards.

WARRANTY

Units carry a LIFETIME warranty on the heat recovery core and a 5 year replacement parts warranty.

inches (mm)

STALE AIR

FROM INSIDE

Ports 

7" (178 mm)

BLOWERS

FRESH AIR

TO INSIDE

19"

(483)

14 3/4"

(375)

*NOTE: 

Front clearance  of 25 inches (635 mm)  is recommended  for servicing unit.

Duct Heater w/ Electronic SCR Thermostat,

1 Kw, 7” (178 mm)

Duct Heater w/ Electronic SCR Thermostat,

2 Kw, 7” (178 mm)

c/w 1/4” (6mm) mesh screen

511 McCormick Blvd. London, Ontario

Ph: (519) 457-1904 Fx: (519) 457-1676 Email: nutech@lifebreath.com Website: www.lifebreath.com

N5W 4C8

TI-102-NE

0112

+ 22 hidden pages
