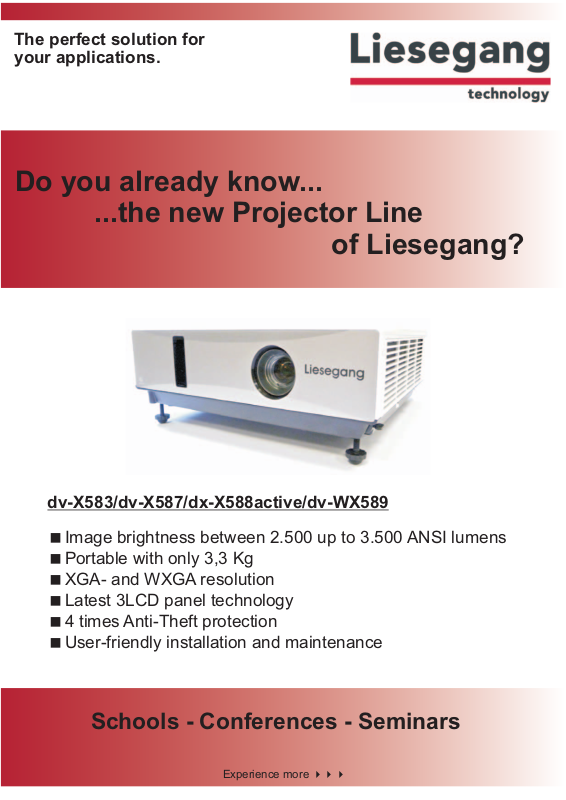

Page 1
The perfect solution for
your applications.
Do you already know...
...the new Projector Line
of Liesegang?
dv-X583/dv-X587/dx-X588active/dv-WX589
<Image brightness between 2.500 up to 3.500 ANSI lumens
<
Portable with only 3,3 Kg
<
XGA- and WXGA resolution
<
Latest 3LCD panel technology
<
4 times Anti-Theft protection
<
User-friendly installation and maintenance
Schools - Conferences - Seminars
Experience more 444
Page 2
Directory
Cover 1
Directory 2
Characteristics 3/4
Technical Specifications 5
Image Sizes & Connectors 6
Scope of Delivery, Accessories,
Order numbers, Warranty 7
Page
Page
Page
Page
Page
Page
Contact Page 8
This flyer can be download on our homepage at
www.liesegang.com.
Characteristics 444 Page 3
Page 3
Characteristics
Even though in class-,seminar- or conference rooms, the new Liesegang multimedia
Projectors dv-X583, dv-X587, dv-X588active and dv-WX589, distinguished to superb
fitting characteristics, brilliant image quality and durable technique.
They were developed for ambitious environments and users.
<Flexible Application
Five new models and thus 2,500 up to 3,500 ANSI lumens image brightness
offer users the right projector for its individual usage and application.
<
Distinguish Image Quality
Latest 3LCD panel technology provides true-to-detail and brilliant image projection
<
Characteristics
Optimized Optical Components
Provides that images will be project geometrically (low distorsion [Barrel- and cushion distorsion]).
Integrated8WSpeaker
For convincing sound quality.
Quick Start and Quick Cooling
Ready-to-use and shoot down in 10 seconds.
< 2.6 Watt Power Consumption in Stand-By Mode
Two Computer Inputs, 1x RGB, 1x DVI-I
Low fan noise, only 30 dB in Whisper Mode
Advanced Dust Cover Filter
The Advanced Dust Cover Filter has a 10-times larger surface than the standard filter.
It is optional available and for special environments, e.g. Assembly halls, gastronomy.
djustable Audio Output
A
The volume can be adjusted via the menu.
<
4-times Anti-Theft Protection
Kensington Lock Interface
For fixing the anti-theft cable on a fixed object.
6 mm Anti-Theft Protection Device
It’s a integrated metal bar in the Projector.
PIN-Lock Protection
Protect unauthorized access.
Logo as Start Screen
Save the company logo as a Start Screen whwn turn on the Projector.
TM
Characteristics 444 Page 4
Page 4
Characteristics
<
Automatic Adjustments
Auto Search
Auto Sync
Auto Ceiling
Auto Keystone
Auto Filter Alarm
Auto Lamp Alarm
<
Improved Video Processing
Motion Adaptive De-Interlacing
No cords during fast image movings.
10 bit Gamma Processing
<
User-friendly Installation and Maintenance
Automatic search for a connected source.
Automatic Synchronisation (Image Adjustment).
Automatic Image Reversal by ceiling suspension.
Automatic correction of image distortions.
Automatic advice, that change of the filter or cleaning is required.
Automatic advice, that the lamp has to be changed.
On the side lamp and filter access
This is an advantage when the Projektor is mounted on the ceiling.
<
Characteristics
With quality and elegant chassis
Encouraged Video Signal HDTV (compatible to HDTV Signals)
1,2x optical and 4-times Digital Zoom
Freeze Function
The current video image can be stopped “Freeze”, even if the
video continues to run in the background.
Multilingual On-Screen-Menu
<
Native 16:10 Format (only dv-WX589)
Native panel size, 16:10 Format, SXGA 1280x800 resolution.
Technichal Specifications 444 Page 5
Page 5

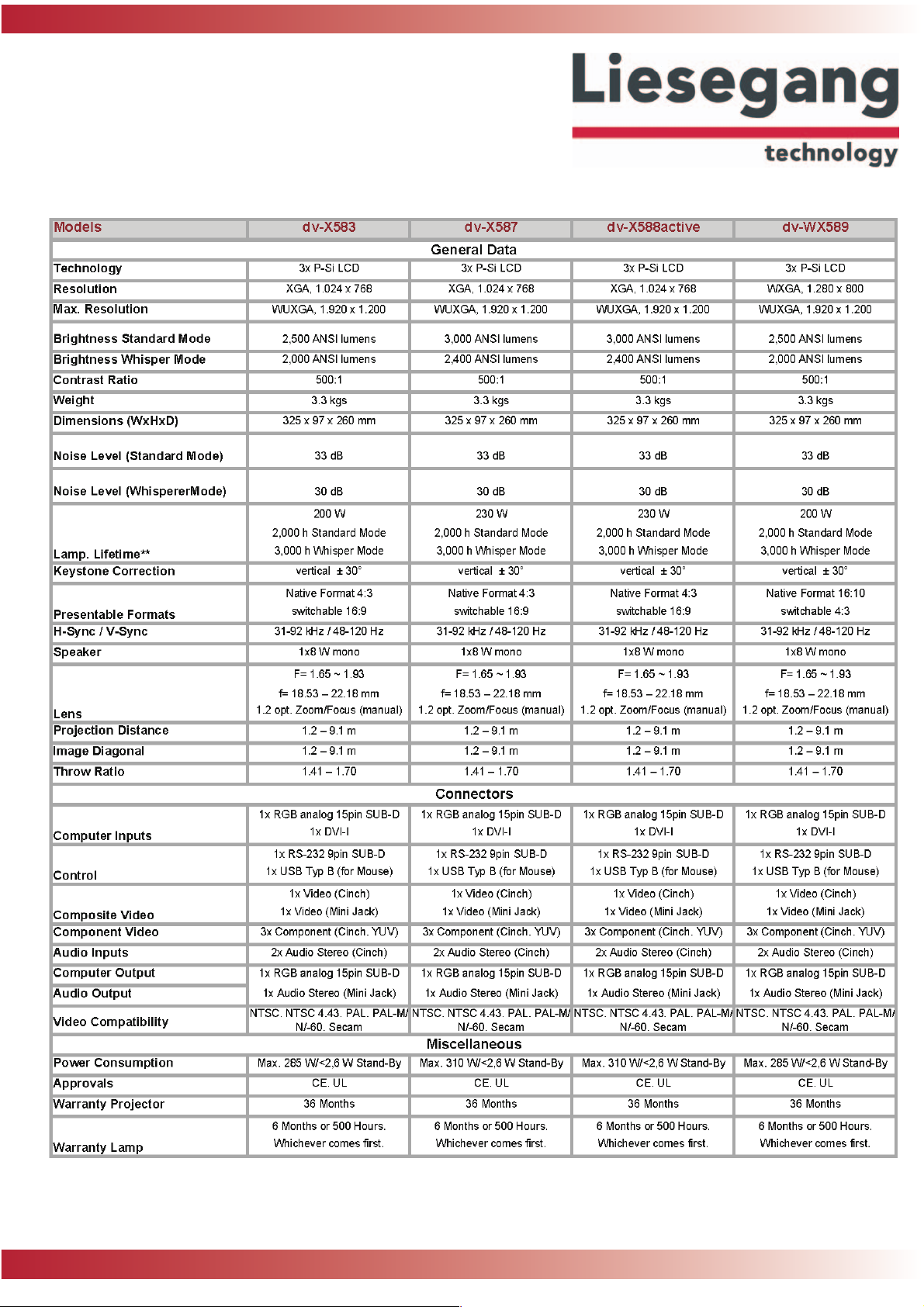

Technical Specifications
*Errors, missprints and technical changes are subject to change without notice.
Image Sizes and Connectors 444 Page 6
Page 6
Image Sizes and Connectors
<<Image Size Chart
Our current Image Size Calculator can be found at www.liesegang.com, Beamer, Image Size Calculator.
Connector Panel / Connectors
Connectors Illustration Remarks Connectors Illustration Remarks
Mouse
RS-232
Audio In- and
Output
for Computer
(Mini jack)
Monitor Input
RGB (analog)
Monitor Input
DVI-I (digital)
All models
All models
All models
All models
All models
S-Video
(Mini-DIN)
Video
(Cinch)
Audioeingang
for Video
(right / left)
(Cinch)
Component
Video
(Cinch)
All models
All models
All models
Alle Modelle
besides
dv-X581
Monitor Output
All models
Electrical
connection
Scope of Delivery, Accessories, Order Numbers, Warranty... Page 7444
All models
Page 7
Scope of Delivey, Accessories,
Order numbers, Warranty
<
Content of Delivery
Projector
Remote Control with Laser Pointer and Mouse Function
RGB Cable
Power Cable
<
Accessories (optional)
Spare Lampe
Filter
Softcase
<
Warranty
36 Months Warranty: For Projektor
6 Months or 500 hours Lamp Warranty (whichever comes first)
Contact... Page 8444
Page 8
Contact
Liesegang technology Vertriebsgesellschaft mbH
Nuenningstrasse 13
45141 Essen, Germany
Phone: +49(0)201-890 70-0
Fax: +49(0)201-890 70-18
E-Mail: [email protected]
Internet: www.liesegang.com
Further product information can be found on our websites!
Data-/Video Projectors
Overhead Projectors
Documenten Cameras
Public Adress Systems
Episkop (Opaque)
Updated on: July 2008, Errors, missprints and technical changes are subject to change without notice!
