dv 486
. The
-
angle lens and projects large pictures at a short projection distance. Two computer inputs, one monitor
the
cooling phase of the projector after separation from electricity mains possible. Further functions e.g. 6
times Digital Zoom, Keystone Correction, individually adjustable Colour Temperature and the automatic

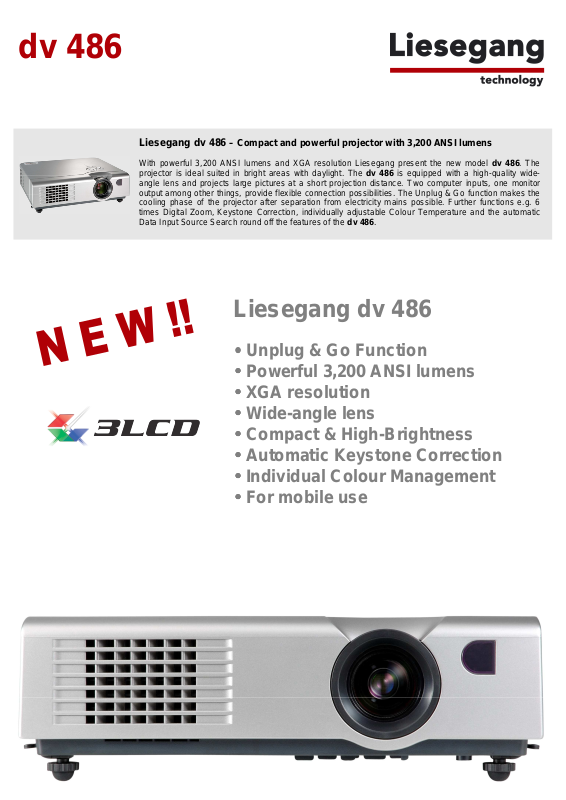

Liesegang dv 486
With powerful 3,200 ANSI lumens and XGA resolution Liesegang present the new model dv 486
projector is ideal suited in bright areas with daylight. The dv 486 is equipped with a high-quality wide
output among other things, provide flexible connection possibilities. The Unplug & Go function makes
Data Input Source Search round off the features of the dv 486.
– Compact and powerful projector with 3,200 ANSI lumens
Liesegang dv 486
•••• Unplug & Go Function
•••• Powerful 3,200 ANSI lumens
•••• XGA resolution
•••• Wide-angle lens
•••• Compact & High-Brightness
•••• Automatic Keystone Correction
•••• Individual Colour Management
•••• For mobile use
Page 2
dv 486
s been
Distance
1.50 m
2.00 m
2.50 m
3.00 m
5.00 m
7.00 m
Image diagonal in m
Key Features
•••• 3LCD technology
The 3LCD technology allows to project images and presentations with
high-contrast and convincing image brilliance, even under daylight
conditions.
•••• HDTV compatible
•••• 6 times Digital Zoom
The digital zoom makes the emphasis of details possible
•••• Wide-angle lens – ideal for small rooms
For large screen diagonals over short projection distances.
•••• Whisper Mode
The user can select between the standard modus of 3,200 ANSI
lumens and whisper mode of 2,600 ANSI lumens
•••• Integrated Light Sensor
Automatic achievement of the environment brightness for the regulation
of the projection achievement.
•••• Automatic Image Inversion
For projections from the ceiling.
•••• Variety of connections
2 computer inputs, separate monitor output
•••• IR remote control with laser pointer and mouse control
For professional presentations – facilitate the work
•••• Colour temperature individual adjustable
•••• Integrated speaker
•••• Automatic Keystone Correction switchable
•••• Automatic Data Input Source search
•••• Unplug & Go Function
This function allows that the fan cools down even if the projector ha
disconnected from power without waiting that cooling phase has been
finalized.
•••• Lockable standing feet for hight adjustment of the projector
Order number Liesegang dv 486: 1240 0000 0000
Technical Data*
Technology
Resolution
Supported Resolution
Brightness Standard Mode
Brightness Whisper Mode
Contrast Ratio
Weight
Dimensions (W x H x D)
Noise Level Standard Mode
Noise Level Whisper Mode
Lamp, Lifetime**
Keystone Correction
Scanning Frequency
Hsync
V-sync
Pixel Clock
Image Uniformity
Speaker
Projection Lens
Digital Zoom
Projection Distance
Screen Size (diagonal)
Throw Ratio
Power Consumption
Video Compatibility
Connectors
Computer in
Control
Monitor out
Video in
Audio in
Audio out
Approvals
Miscellaneous Specifications
Supplied Accessories
Image Sizes
*Errors, missprints and technical specification are subject to change without notice.
**average life time, 1up to 3,000 hours in whisper mode
Image size in m
min. max. min. max. min. max.
0.88 1.07 0.66 0.80 1.10 1.34
1.18 1.43 0,88 1.07 1.47 1.79
1.47 1.79 1.10 1.34 1.84 2.24
1.76 2.14 1.32 1.60 2.20 2.67
2.94 3.57 2.20 2.68 3.67 4.46
4.12 5.00 3.09 3.75 5.15 6.25
dv 486
3x 0,63“ p-Si LCD
XGA, 1024 x 768 Pixel
SXGA, 1280 x 1024 Pixel
3,200 ANSI lumens
2,600 ANSI lumens
500:1
2.9 kgs
310 x 96 x 270 mm
33 dB
30 dB
205 W NSH, 3,000 hours1
±30° vertical
15-69 kHz
43-85 Hz
120 MHz
>85%
1 x 2 W
F= 1.6 - 1.88
f = 18.6 – 22.3 mm
1.2x Zoom & Focus manual
6x
1.2 – 9.1 m
0.77 – 7.70 m
1.40 – 1.70:1
250 W
NTSC, NTSC 4.43, PAL, PAL-M,
PAL-N, Secam
2x RGB analog (D-Sub HD)
1x RS-232
1x USB (Mouse)
1x RGB analog (D-Sub HD)
1x Video (Cinch)
1x S-Video (Mini-DIN)
1x Component (RGB-analog)
1x Audio (Mini jack)
1x Audio Stereo (Mini jack)
CE, FCC, UL
• Automatic signal detection
• Multilingual On-Screen Menu
• Suitable for 4:3 and 16:9 aspect
ratio
• Kensington Lock™-slot
Remote control with laserpointer, mouse
control and batteries, softcase, Audio cable
3.5 mm Mini jack / 3.5 mm Mini jack, Audio
cable 3.5 mm / Cinch, FBAS video cable
Cinch / Cinch, USB cable, power cord, VGA
cable, S-Video cable, replacement air filter,
quick start manual, user manual on CD-Rom
D, GB, F, I, E
Image height in m
Updated on: 05/2007
