Professional quality
General Information
Catering & bakery
Drinks
General Information
Catering & bakeryDrinks
Impulse sales chest storage
appliances
appliances
Impulse sales chest storage
Laboratory
Laboratory
2
10 good reasons to choose Liebherr
Experience counts
Liebherr is a specialist in refrigerator and freezer technology, and has been developing and
producing pioneering refrigeration solutions for more than 50 years. No other refrigeration
appliance manufacturer secures greater brand loyalty from its customers than Liebherr.
· Perfectly aligned refrigeration systems
· Electronic components and relays designed for maximum durability
· Ultra- reliable, perfectly balanced fans
Optimum product quality
To guarantee consistent product quality, Liebherr always uses first-class materials in the
manufacture of its appliances. The quality and functionality of every appliance is constantly
monitored, and superb workmanship, with attention to the smallest details, maintains the
well-renowned Liebherr quality.
Unequalled refrigeration performance
Refrigeration performance plays a central role in promoting produce freshness quality, and is
therefore particularly important in the commercial sector. By using the highest-quality compo-
nents we achieve outstanding refrigeration performance in our commercial sector appliances.
Environmentally friendly
Liebherr takes environmental responsibility seriously, and our ActiveGreen philosophy is
applied right through from the appliance development stage. Not only does Liebherr use the
highest-quality components to create appliances that are reliable, durable and offer optimum
energy efficiency, but also Liebherr exclusively uses environmentally friendly refrigerants
throughout its entire product range. In doing so, Liebherr is helping to protect the environ-
ment by the considered use of resources.
Award-winning energy efficiency
Energy efficiency has always been and remains a core priority at Liebherr, and is a major
consideration influencing everything we do from the appliance design stage onwards. In
this way we are able to develop even more efficient refrigeration components, leading to a
significant reduction our appliances’ energy consumption.
Robustness
Appliances used in the commercial sector have to endure intensive use; therefore Liebherr
appliances are extremely robustly designed.
· Solidly-designed door handles, hinges, locks, and feet
· Reinforced housing
· Doors and covers welded and strengthened for additional torsion-resistance and a long
service life on many models
· Coating on Liebherr’s housing is highly resistant to scratches, impact, and corrosion, and
is easy to clean
Hygiene
Hygiene is of considerable importance in the commercial sector and, at Liebherr, optimal
hygiene is a key focus.
· Easy-to-clean moulded inner liners with generously radiused corners
· Recessed seals for less condensation and greater dirt-resistance
· Casters or roller tracks available as accessories to make storage areas easier to clean
Maximum capacity and compact design
Because available floor space is often restricted, optimal use of available space is extremely
important. Innovative initial design ensures that the usable volume of Liebherr appliances is
maximised. When looking at available volume versus floor space required, Liebherr appliances
offer significant added value.
Reliability
When selecting quality materials and developing refrigeration components, Liebherr’s focus
is on appliances that function trouble-free and reliably over many years of use in the
commercial sector.
4 5
Low costs over entire service life
Durability, low energy costs, high functionality, simple hygiene, optimum reliability, and low
service costs: whether from a purely economic perspective or with a view to achieving real
sustainability, the benefits reaped by choosing Liebherr appliances are winning over more
and more users.
ActiveGreen – Environmental
protection and sustainability
Award-winning energy efficiency
Liebherr takes environmental responsibility seriously, and so the
focus on ActiveGreen begins when designing refrigeration and freezer
appliances. Not only does Liebherr use extremely high-quality compo-
nents in its appliances to ensure that they function reliably and durably whilst offering
premium energy efficiency, but all plastics used are labelled for optimum recycling. All
manufacturing processes are tailored to use resources efficiently, e.g. heat naturally
generated during manufacture of appliances is recycled back as heating energy.
Liebherr was the first company to switch over its entire range of commercial refrigerators
and freezers to the environmentally friendly refrigerants R 290 and R 600a. These are
HFC-free and do not damage the ozone layer or contribute to the greenhouse effect.
All European Liebherr production sites are certified to the international environmental
management standard ISO 14001.
Energy consumption in 24 h
2,900
kWh
GKS 6570
199 7
Saving over 15 years: : 2.735 € (0.23 €/kWh)
By bringing together precision electronic control systems, optimised refrigeration
components, top-quality insulating materials, and highly efficient compressors continual
improvements towards energy efficiency are achieved.
– 75 %
0,728
kWh
GKPv 6590
2012
General Information
6
7
Demand-responsive hot-gas defrosting
30 min 10 m in
Electric defrosting Hot gas defrosting
Elektroabtauung Heißgasabtauung
Demand-responsive hot-gas defrosting prevents unnecessary defrosting, which saves a
great deal of energy. This highly efficient defrosting method guarantees short defrosting
times of about 10 minutes. During defrosting hot-gas, released from the conventional
refrigeration cycle, is used to defrost the iced evaporator. This keeps the temperature
increase inside Liebherr appliances to a minimum during defrosting, increasing tem-
perature stability and consistency.
Interior temperature increase during hot-gas defrosting process:
■
Hot-gas defrosting: from 5 °C bis 6,5 °C = 1,5 K
■
Electric defrosting: from 5 °C bis 9,0 °C = 4,0 K
Catering & bakery
Catering &
Hot-gas condensate vaporiser
bakery
Condensate water from the refrigeration system is vaporised using excess and free
heat energy from the compressor. The intelligent design and layout of the Liebherr
In a professional environment, where freshness is of paramount
importance, refrigerators and freezers are subject to particularly high
demands. Liebherr has developed a special product range specifically
for use in kitchens and bakeries, combining refrigeration proficiency
and quality materials have been brought together. Liebherr professional
appliances are designed for maximum storage capacity and to
work efficiently even with frequent door openings and in the hottest
environments. Liebherr’s combination of excellent refrigeration
performance, superb workmanship down to the last detail, and
specialised features meets the most stringent professional requirements.
8 9
vaporiser on the heavy-duty models is simple, corrosion-free and ultra-reliable and is
also highly energy-efficient.
Large evaporator
surface area
Highly efficient
fans
NoFrost technology
Both the rear-wall and finned evaporator
types have been designed with the larg-
est possible dimensions. This means that
there is a large surface area available for
heat exchange, which leads to greater
refrigeration performance and therefore
more rapid cooling of the interior.
Highly efficient fans ensure that freshly
stored produce is cooled quickly, and that
the refrigeration temperature throughout
the entire interior remains uniform.
Highly efficient refrigeration system
With decades of experience in refrigeration systems and continuous research and
development Liebherr guarantees the outstanding quality of its refrigeration appliances.
Liebherr uses top-performance compressors, condensers, evaporators and other
refrigeration components to vastly reduce both energy consumption and operating
costs. The Liebherr top-mounted refrigeration system is cleverly designed to make
the maximum use of the space available. As a result the entire refrigeration system
is outside of the storage space thus increasing the internal volume. This layout also
means these Liebherr cabinets can easily be placed on plinths thus adapting to various
kitchen designs.
Defrosting is history: Liebherr NoFrost appliances provide professional quality refrig-
eration that gives reliable long-term freshness. Chilled circulating air freezes the food
and any humidity is expelled. As a result, the freezer is always free from ice and the
food never frosts over.
Optimum air distribution system
An air duct on the back interior wall
facilitates optimum circulation of cold air.
The twin fans positioned by the evapora-
tor draw air across the evaporator posi-
tioned at the top of the appliance. Here,
the air cools down and is fed downwards
air duct
behind an air duct on the rear wall. This
results in the cold air constantly circulat-
ing and thus provides optimum tempera-
ture distribution within the interior.
Catering & bakery
10 11

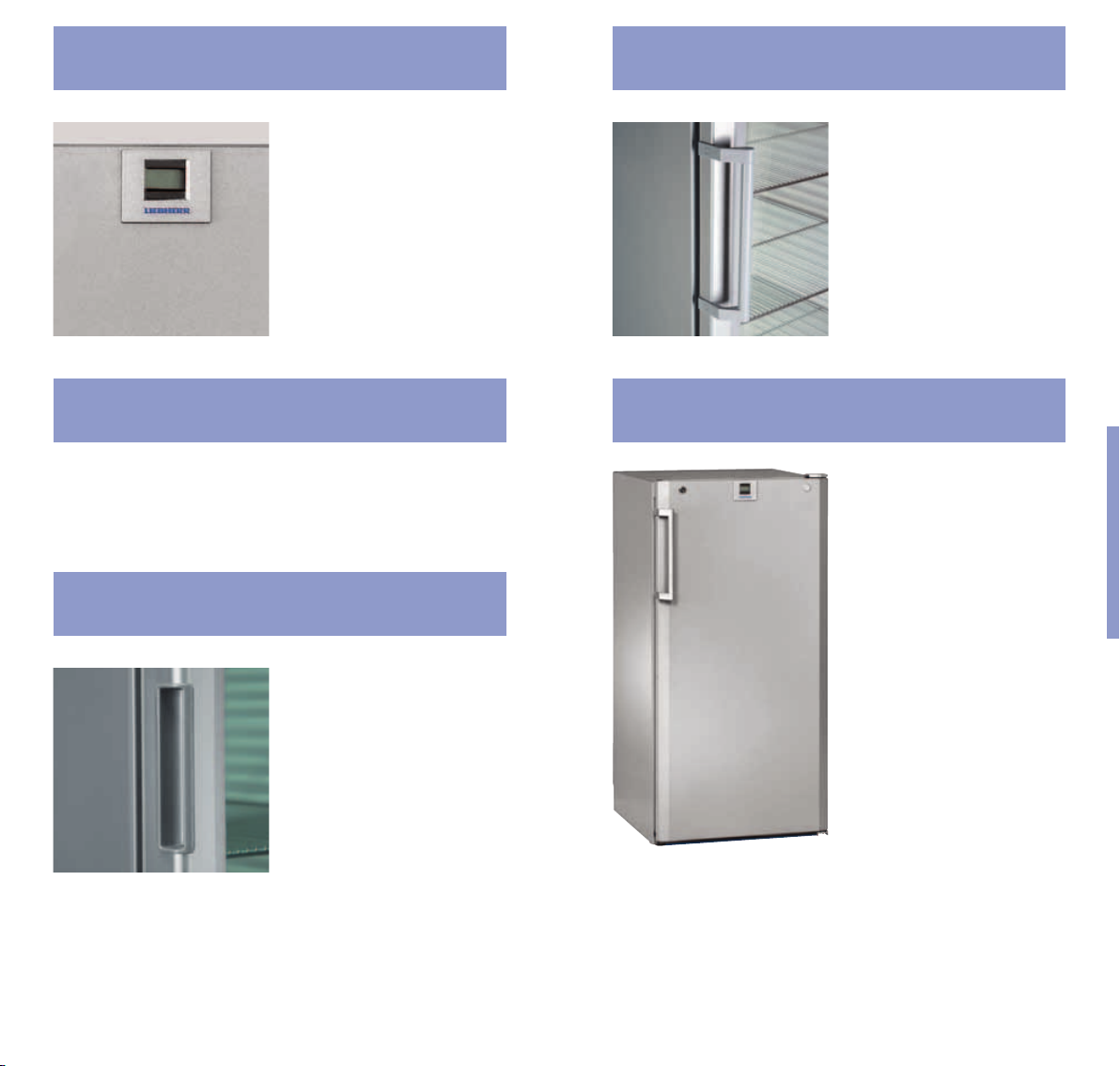

Digital temperature display
The digital temperature display indicates
the interior temperature of the refrigera-
tion appliance to the exact degree and
can be easily read from the outside,
giving a quick overview without having to
open the appliance.
Infrared interface
Using the infrared key, temperature data
can be read directly from the interface at
the front of the ProfiPremiumLine elec-
tronics system and transferred to a PC or
laptop for documentation purposes. The
infrared key and associated software are
available as accessories.
Serial bus interface
Connection
Appliance 1 Appliance 2 Appliance 20
The serial bus interface can be used to connect appliances to an external monitoring
system. If no interface-connectable monitoring system is available, an interface converter
retrofit kit is available as an accessory, which can be connected to a PC or laptop. The
bus interface can be used to switch and network up to 20 appliances in series.
Temperature alarm Door open alarm
Catering & bakery
Volt-free contact
The integrated temperature alarm signals
A volt-free contact can be used to integrate refrigerators or freezers into an existing
warning system, to notify security personnel or a caretaker of malfunction outside
normal working hours. Warning systems can be equipped with acoustic or visual alarms.
12 13
if the lower or upper thresholds have been
breached. This alarm is equipped with
acoustic and visual signals to provide
maximum security for the goods stored.
The appliances detect if a door has been
left open or not shut properly and draw
attention to this by means of an integrated
acoustic and visual door open alarm. This
alarm has a one-minute delay, which can
be adjusted if necessary.
304-grade stainless steel outer housing
High-performance insulation
The outer housing is constructed with
single-sheet side walls, without any gaps,
making it extremely hygienic and easy to
clean. 304-grade stainless steel is tough
and highly corrosion-resistant and ideal
for the requirements in the commercial
sector.
Stainless steel wire shelves
The robust 304-grades stainless steel
wire shelves from Liebherr fulfil the high-
est hygiene requirements and are re-
sistant to acids and other chemicals. They
can bear loads of up to 60 kg and thus
easily withstand intensive levels of strain.
High-performance insulation ensures low energy consumption and maximum
temperature stability and consistency inside the appliance. Polyurethane rigid foam
insulation is highly durable, environmentally friendly, and demonstrates outstanding
insulation properties. This insulation, combined with advanced refrigeration technology,
is the reason for the low energy consumption of Liebherr appliances.
Hinged, detachable unit
compartment cover
Catering & bakery
Separately controlled ceiling lighting
The GKPv 6572 model with glass door
comes equipped with a separately con-
trolled ceiling light. The glass door with
internal light provides a quick overview
of the cabinet contents from outside. This
can help to reduce door opening times
and thus energy consumption and also
speed up product handling.
14 15
The refrigeration components are integrated into the unit compartment where they can
be easily accessed for cleaning or servicing purposes. The unit compartment cover can
be easily opened on hinges or completely dismounted, which guarantees excellent
accessibility, e.g. it is easy to clean the filter on the condenser, which is positioned
behind the unit cover without having to move the appliance.
Height-adjustable
legs
Integrated foot
pedal
SwingLine
In areas where room hygiene is important
on a daily basis, the height-adjustable
levelling feet give sufficient floor clear-
ance to allow cleaning to be done, easily
and conveniently, under the appliance.
The stainless steel legs are height adjust-
able from 150 mm to 180 mm.
Self-closing door Moulded stainless steel inner liners
Even without a free hand, the appliances
can be conveniently opened using the
built-in foot pedal. This feature makes
the refrigerators and freezers far easier
to use, particularly important in the com-
mercial sector, as the door can be easily
opened with full hands without loss of
precious time.
Catering & bakery
The elegant SwingLine design makes these appliances a perfect choice meeting the
highest technical design requirements. The sophisticated curved design makes Liebherr
appliances a visual focal point in any commercial environment. Thanks to a grip profile
integrated into the entire door height the SwingLine doors are ergonomic and easy to
open as well as being particularly easy to keep clean.
The self-closing door prevents unnecessary loss of cold air and therefore helps to
reduce energy consumption and costs. The door has a 90° dwell position for loading
but is self-closing from 75° onwards.
16 17
In areas in which large quantities of food are processed every day, hygiene plays
a particularly important role. The Liebherr catering models have a unique liner in
304-grade stainless steel with moulded shelf support ribs. This design is particularly
easy to clean and shelves can be quickly and simply repositioned. The single-piece,
moulded liner base, with large corner radii, has a cleaning drain. Using this drain the
inner liner can be easily rinsed with water.
Under-worktop models
Several models can be installed beneath
a worktop. In this case, a ventilation grill
with cross-section of at least 200 cm2 is
required in the worktop for ventilation at
the rear of the appliance. If no ventilation
grill is going to be fitted in the work-
top, the recess height must be at least
860mm to ensure sufficient heat dissi-
pation to the front. Under-worktop models
offer a space-saving solution, which is
particularly suitable for use in restricted
spaces.
Interchangeable door hinges
Bakery shelves
Catering & bakery
The 304-grades stainless steel interior is optimally designed to accommodate baking
trays. The adjustable, L-shaped tray slides can be used to hold baking trays of 600
x 400 mm and 600 x 800 mm, depending on the appliance size. A special air duct
ensures that cold air is not directly aimed at delicate products.
Gastronorm 2/1 models
The stainless steel moulded inner liners
are robust, versatile, and very hygienic.
The ribs can be used to hold Gastronorm
2/1 and 1/1 containers as well as wire
The appliances are factory-fitted with door hinges on the right. Being able to change
the hinge side allows the appliance to be positioned even more optimally and tailored
to individual requirements.
18 19
shelves.
Automatic fan cut-out function
The fan cut-out function deactivates the fan when the door is opened to save valuable
energy. If a door is opened frequently, this vastly reduces the flow of warm air into the
refrigeration appliance.
Dynamic cooling system
Highly-efficient fans ensure that freshly-
stored food and drinks are cooled quickly
and guarantee an even temperature
distribution in the entire interior. During
busy events in particular, when refrig-
erators need to be regularly restocked,
Liebherr’s dynamic cooling system cools
drinks at an impressive speed – even if
the door is frequently opened.
Drinks
Getränke
Increased side wall insulation
Drinks
Refreshing drinks are always in high demand, whatever the time of
year. Ensuring they are always ready-to-serve at a thirst-quenching
The the right side walls of the display models have extra insulation which saves valuable
energy, whilst also making it convenient and simple to remove grid shelves at a 90°
door opening angle.
Environmentally friendly refrigerant
R600a
temperature requires a consistently top-performing appliance.
Liebherr drinks refrigerators cool the products very quickly, even
if the doors are frequently opened. They have a high refrigeration
capacity, are reliable, and have an extremely long service life
thanks to superb-quality workmanship. All drinks refrigerators use
the highly energy-efficient and environmentally friendly HFC-free
footprint and promotes sustainability.
The refrigerant R600a is environmentally friendly as it has a very
low greenhouse effect potential and no ozone depletion potential.
R600a has therefore almost completely replaced the previously
used refrigerant, R134a. All Liebherr drinks refrigerators use R600a
and have outstanding energy efficiency, which improves their carbon
refrigerant, R 600a.
20 21
Digital temperature display
Ergonomic bar handle
The digital temperature display indicates
the interior temperature of the appliance
to the exact degree. The temperature can
be easily read from the outside giving a
quick overview without having to open
the appliance, again leading to energy
savings.
Adjustable temperature range
The temperature in the drinks refrigerators can be variably set depending on the model,
so that the interior temperature can be precisely tailored to individual needs.
Recessed grip handle
Certain models are fitted with a handle
recessed into the edge of the door.
This avoids damage to protruding parts
and is particularly intended for use at
events where cabinets are frequently
transported.
As drinks refrigerator doors are frequently
opened, easy-to-open appliances are
essential. The ergonomic bar handle
guarantees effortless opening, even when
the door is in frequent use. It is easy to
clean and highly hygienic.
Housing made from powder-
coated sheet steel
The housing of drinks refrigerators is
made from powder-coated, seam-free
sheet steel and is therefore highly durable
and extremely impact-resistant. Impact
resistance is of particular value if the
drinks refrigerators have to be regularly
transported, e.g. in the events sector.
Drinks
22 23

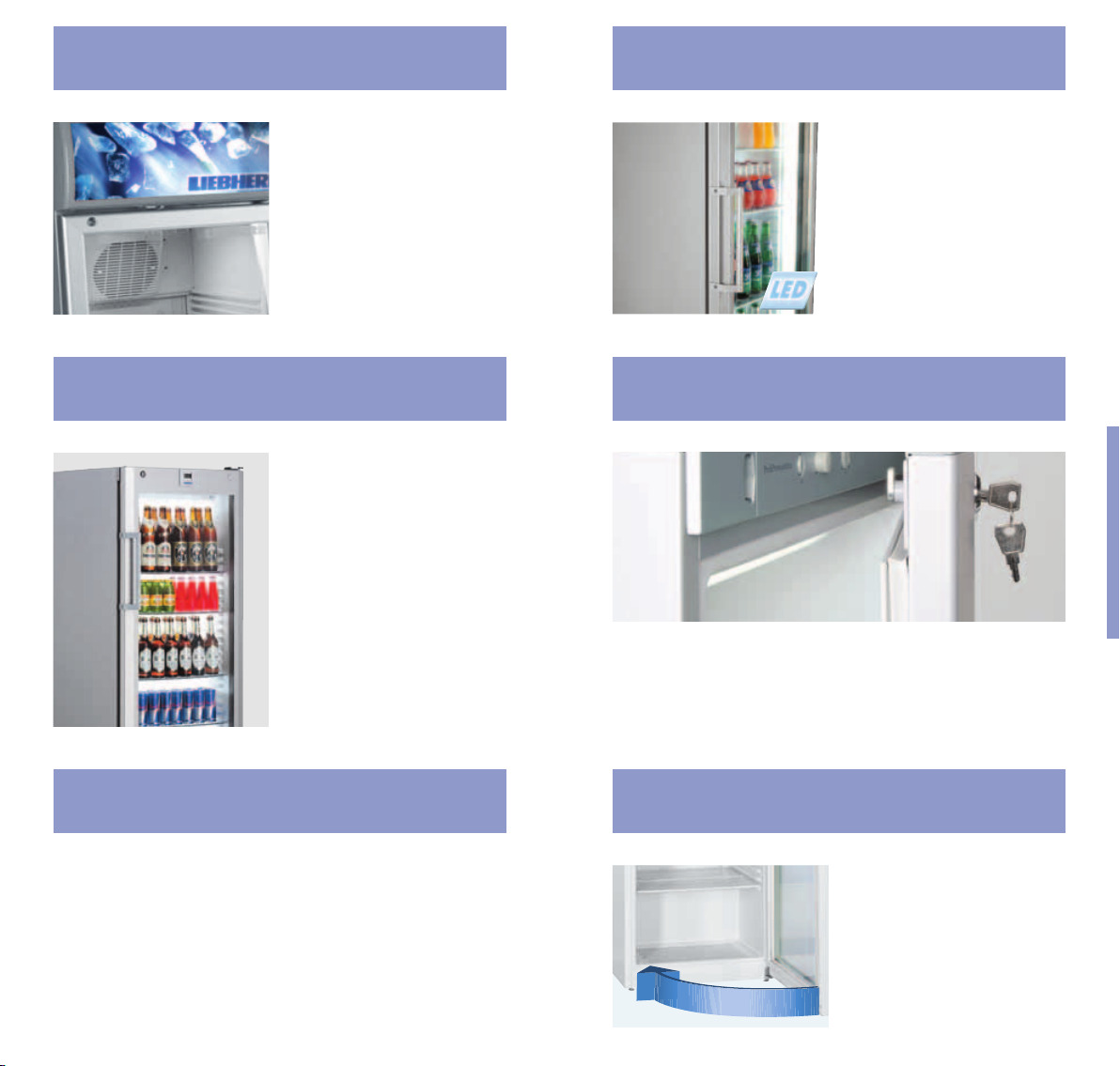

Backlit display
LED interior lighting
The illuminated display on the FKDv and
BCDv models, with adjustable interior
lighting, attracts attention to the appli-
ance and its contents. The display panel
design can be individually customised
to a customer-specific design. For the
FKv(sl) model, a separate display canopy
is available as an accessory.
Glass door
Goods can be showcased to their best
advantage behind the glass door – an
eye-catching display will capture the
interest of potential customers. The glass
door has low heat permeability, making
it much more energy efficient than a
conventional glass door.
In addition to providing perfect interior
illumination, the LED lighting system is also
extremely energy efficient. It bathes goods
in just the right amount of light to attract
customers’ attention. LED lighting is availa-
ble as either a vertical light or a ceiling light,
depending on the model. Unlike neon tubes
the Liebherr LED light systems are extremely
long-lasting and will often be maintenance-
free over the lifespan of a bottle cooler.
Sturdy lock
Drinks
A robust lock prevents unauthorised access to the refrigerator. Therefore, refrigerators
can be locked, e.g. overnight, so that drinks can be left stored safely in them. The locks
are attached independently to the handle, making them particularly secure.
Moulded inner liner
The moulded, plastic inner liner is produced from a single sheet and therefore extremely
easy to clean. It is made from commercial grade polystyrol, a fully recyclable plastic,
which is extremely tough and long-lasting and is also environmentally friendly.
24 25
Self-closing door
The self-closing door prevents unneces-
sary loss of cold air and therefore helps
to reduce energy consumption and costs.

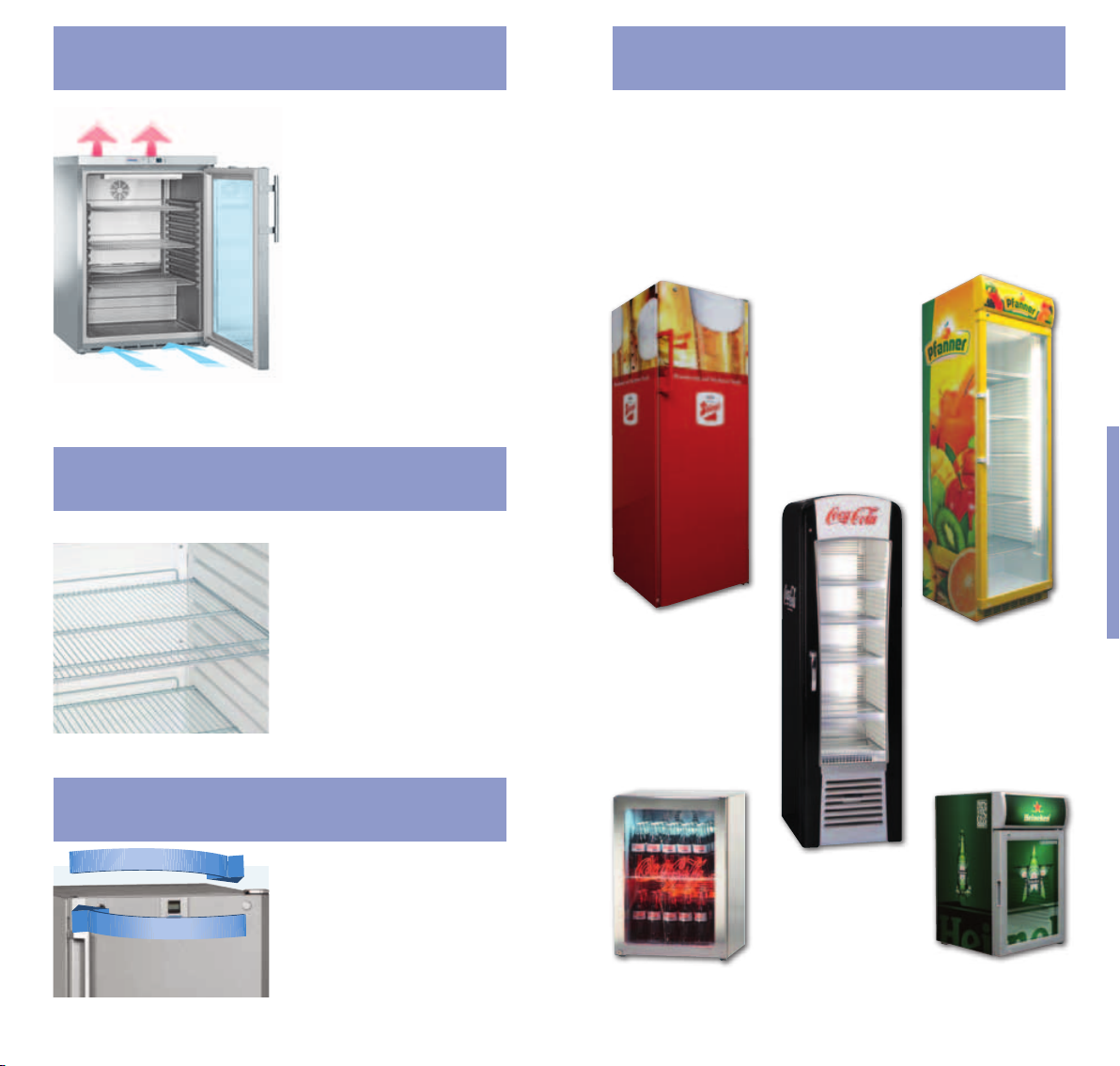

Customised brandingUnder-worktop models
Several models can be installed beneath
a worktop. In this case, a ventilation grill
with cross-section of at least 200 cm2 is
required in the worktop for ventilation at
the rear of the appliance. If no ventilation
grill is going to be fitted in the work-
top, the recess height must be at least
860mm to ensure sufficient heat dissi-
pation to the front. Under-worktop models
offer a space-saving solution, which is
particularly suitable for use in restricted
spaces.
Adjustable wire shelves
The clear-coated wire shelves are height
adjustable so the interior layout can be
varied, allowing storage of all sizes of
bottles – both standing up and lying down.
With a load-bearing capacity of between
30 and 50 kg, the shelves are highly robust
and suitable for holding large quantities.
Liebherr offers a range of customised branding options. Drinks refrigerators can be
individually customised with brand names, logos or other unique designs. Customer
attention is thus directed towards the brand being advertised, increasing brand
recognition. There are no limits to customised creativity; not only the displays but also
the side walls and glass/ solid doors can be individually designed.
Drinks
Interchangeable door hinges
The appliances are factory-fitted with
door hinges on the right. Being able to
change the hinge side allows the appli-
ance to be positioned even more optimally
and tailored to individual requirements.
26 27
Foam-embedded condenser
The condenser is embedded in foam in-
sulation all the way around the outer shell,
which reduces vibration and means that
the appliance operates with minimum
noise. Further, no condensation forms on
the housing and the outer shell is easy
to clean.
Hot-gas frame heater
The hot-gas frame heater prevents condensation on the glass cover lids, which is often
a problem if humidity is high, and ensures that the sliding glass cover can be easily
opened. The efficient use of hot-gas reduces the appliances’ energy consumption
(compared to electrical frame heaters) and ensures that goods are optimally presented,
even at high humidity levels.

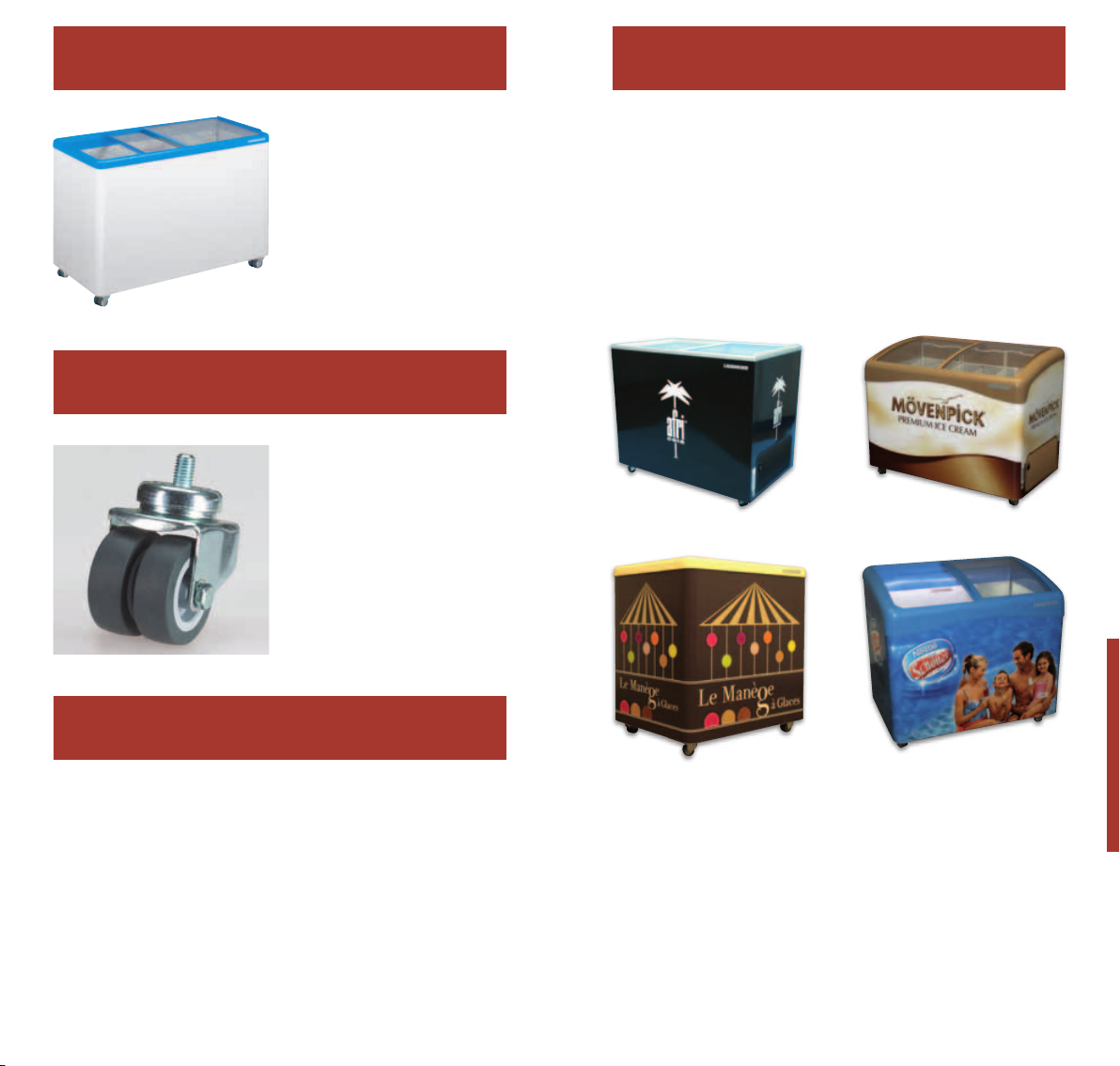

Impulse sales
High-performance insulation
chest storage appliances
High-performance insulation ensures both low energy consumption and outstanding
interior temperature consistency. Working together, the excellent refrigeration technol-
ogy and insulation give Liebherr chest freezers extraordinarily low energy consumption.
Whether in a supermarket, at a petrol station, or at a kiosk –
Liebherr’s impulse sales chest storage appliances actively promote
sales in all self-service areas. Liebherr chest freezers present goods
attractively, clearly and invitingly – there’s no better way to entice
customers to quick purchase decisions. Liebherr chest freezers also
make sense economically – state-of-the-art refrigeration technology
leads to impressively low energy consumption. Outstanding quality
guarantees durable and reliable functioning for years to come.
28 29
Impulse sales chest storage appliances
StopFrost system Temperature display
The StopFrost system offers two distinct advantages: frosting over of the freezer
compartment and its contents is vastly reduced, so that defrosting is required far less
often; a vacuum is prevented from forming when the chest lid is opened and closed,
and therefore the chest freezer can be opened effortlessly every time.
Refrigerants R600a and R290 are environmentally friendly as they
have a very low greenhouse effect potential and no ozone depletion
potential. These refrigerants have therefore nearly completely replaced
the previously used refrigerants R134a and R404a. All Liebherr impulse
sales chest storage appliances come with R600a or R290 and have outstanding energy
efficiency, which improves their carbon footprint and promotes sustainability.
An analogue temperature display indicates the interior temperature to the exact degree,
giving customers confidence that the goods are stored at the correct temperature.
Adjustable temperature Environmentally friendly refrigerant
The temperature can be set independently on the impulse sales chest storage
appliances. So, whether you are storing drinks, ice creams or frozen food, Liebherr
offers the perfect solution whatever your needs.
Impulse sales chest storage appliances
30 31
Baskets
For clear presentation and easy sorting of displayed goods.
One-piece ABS frame
Flip-top lids
Sturdy hinges connect the two parts of the lockable flip-top lid. This means, even with
heavy usage, the lid keeps on performing and closes fully to prevent cold from escaping.
Toughened single-pane safety glass
Single-pane safety glass is made from a single, specially thermally-treated and tempered
pane, which is highly resistant to both impact and temperature fluctuations. If the glass
does break under too high a strain it shatters into small pieces without any danger-
ous edges.
The one-piece ABS frame gives dimensional stability, robustness and modern design.
ABS plastic offers high resistance to impact and dirt.
One-piece plastic/glass lid frame
The one-piece plastic/glass lid frame,
with integrated handles, guarantees
durability even under the most inten-
sive use.
32 33
Housing made from powder-
coated sheet steel
The housing of impulse sales chest storage
appliances is made from powder-coated
sheet steel and is therefore highly durable
and extremely impact-resistant. Impact
resistance is of particular value if the ap-
pliances have to be transported regularly.
Impulse sales chest storage appliances
Sliding glass lids
Customised branding
The sliding glass lids give a clear view
of the products stored, presenting them
highly effectively in a sales-promoting
manner. They are made of tempered,
single-pane safety glass and are there-
fore extremely impact-resistant.
Sturdy twin casters
The casters enable the chest appliances
to be moved around with minimal effort,
which is extremely helpful, especially
in situations where the position of the
appliance is regularly changed.
Liebherr offers a range of customised branding options. The impulse sales chest storage
appliances can be individually customised with brand names, logos or other unique
designs. Buyers’ attention is thus directed towards the brand being advertised, increas-
ing brand recognition. There are no limits to customised creativity.
Teflon inserts in profiled seals
Teflon inserts in the profiled seals facilitate easy lid opening and closing as Teflon has
an extremely low friction coefficient. The chest lids glide easily over each other, and
are extremely easy to use.
34 35
Impulse sales chest storage appliances
Demand-responsive hot-gas defrosting
30 min 10 m in
Electric defrosting Hot-gas defrosting
Elektroabtauung Heißgasabtauung
Demand-responsive hot-gas defrosting prevents unnecessary defrosting, which saves a
great deal of energy. This highly efficient defrosting method guarantees short defrosting
times of about 10 minutes. During defrosting, hot-gas released from the conventional
refrigeration cycle is used to defrost the iced evaporator. This keeps the temperature
increase inside Liebherr laboratory appliances to a minimum during defrosting, increas-
ing temperature stability and consistency.
Interior temperature increase during the hot-gas defrosting process:
■
Hot-gas defrosting: from 5 °C bis 6,5 °C = 1,5 K
■
Electric defrosting: from 5 °C bis 9,0 °C = 4,0 K
Laboratory
Hot-gas condensate vaporiser
In the laboratory and medical sectors refrigerators and freezers
have to meet the most stringent standards and safety requirements.
Liebherr appliances designed for these sectors are renowned for their
compliance with all relevant safety standards and their outstanding
energy efficiency. Top quality materials, high-performance components,
and precise workmanship down to the smallest details guarantee the
superb quality and reliability of Liebherr appliances.
36 37
Condensate water from the refrigeration system is vaporised using excess and free
heat energy from the compressor. The intelligent design and layout of the Liebherr
vaporiser on the heavy-duty models is simple, corrosion-free and ultra-reliable and is
also highly energy-efficient.
Laboratory
Evaporator surface
area
Highly-efficient
fans
Optimum air distribution system
An air duct on the back interior wall
facilitates optimum circulation of cold air.
The twin fans positioned by the evapora-
tor draw air across the evaporator posi-
tioned at the top of the appliance. Here,
air duct
the air cools down and is fed downwards
behind an air duct on the rear wall. This
results in the cold air constantly circulat-
ing and thus provides optimum tempera-
ture distribution within the interior.
Both the rear-wall and finned evaporator
types have been designed with the larg-
est possible dimensions. This means that
there is a large surface area available for
heat exchange, which leads to greater
refrigeration performance and therefore
more rapid cooling of the interior.
Highly-efficient fans ensure that freshly
stored produce is cooled quickly, and that
the refrigeration temperature throughout
the entire interior remains uniform.
Highly-efficient refrigeration system
With decades of experience in refrigeration technology and continuous research and
development Liebherr guarantees the outstanding quality of its refrigeration appliances.
Liebherr uses only top-performance compressors, condensers, evaporators, and other
refrigeration components to vastly reduce both energy consumption and operating costs
of their laboratory appliances.
+ 2 °C
Safety thermostat
Laboratory refrigerators with comfort electronic controllers
are fitted with a safety thermostat, which prevents stored
samples or medicines from freezing. In the event of a fault,
the safety thermostat takes control and prevents the interior
temperature from falling below +2 °C.
StopFrost system
The StopFrost system offers two distinct
advantages: frosting over of the freezer
compartment and of its contents is vastly
reduced, so that defrosting is required far
less often; in addition, StopFrost rapidly
equalises the vacuum formed when the lid
is opened and closed. Therefore a Liebherr
laboratory chest freezer can be opened
effortlessly, even at – 45 °C.
Laboratory
38 39
Infrared interface
Calibration function
To use data stored by the electronic
system, an infrared key is available as
an optional accessory. The temperature
data is transferred from the infrared inter-
face on the appliance to the infrared key,
which can then be connected to a PC or
laptop using a data cable.
+0.8°C
-0.4°C
+0.5°C
Cal.1 1.0°C 0.5°C Cal.2 8.0°C -0.4°C Cal.3 15.0°C 0.8°C
The calibration function can be used to
compensate for differences between the
set and the actual interior temperature,
enabling precise temperature control.
Volt-free contact
Integrated data memory
A volt-free contact can be used to
40 °C
30 °C
20 °C
10 °C
0 °C
-10 °C
-20 °C
16.07.2009
-30 °C
17.07.2009
12:00
18:00
06:0000:00 12:00 18:00
18.07.2009
06:0000:00 12:00 18:00
19.07.2009
06:0000:00 12:00 18:00
The integrated data memory guarantees
complete documentation and logs not only
the last 30 alarm incidents with date, time
and maximum temperature, but also the
internal temperature profile at four-minute
intervals. In total, 2,800 temperature
integrate laboratory appliances into an
existing warning system, to notify security
personnel or a caretaker of malfunction
outside normal working hours. Warning
systems can be equipped with acoustic
or visual alarms.
recordings are captured, which equates
to a logging-period of one week approx.
Serial RS 485 interface
Integrated min/max
memory
Power-failure alarm
The serial RS 485 interface can be used
to connect laboratory appliances to a
monitoring system or network them to
a PC or laptop.
Max
In the event of a power cut, the electron-
Min
ics system is immediately supplied by an
integrated 12 V rechargeable battery or
a power cut alarm device. The integrated
The min/max memory ensures precise
control of the minimum and maximum
interior temperatures.
40 41
memory will thus document all interior
temperatures, even in the event of a
power cut, and an alarm can be triggered.
Laboratory
Temperature alarm
A visual and acoustic temperature alarm provides a warning if the temperature fluctu-
ation thresholds are breached. The alarm parameters for the temperature alarm can
be individually set.
Door-open alarm
Separately controlled ceiling light
The LKPv 6522 and LKPv 1422 models,
with glass doors, come equipped with
a separately controlled ceiling light. The
glass panel provides a quick overview
of the produce and prevents unneces-
sary door opening, which in turn saves
energy and avoids unnecessary temper-
ature fluctuation.
The Liebherr glass door is designed to
combine visibility with the maximum
insulation value in the interest of temper-
ature stability.
Optional use of external
temperature sensor
The ability to use an external tempera-
ture sensor makes it possible to individu-
ally control the interior temperature using
existing monitoring systems or to connect
an independent temperature sensor.
A visual and acoustic alarm goes off once the door/lid has been open for more than
one minute. The alarm delay after opening can be individually set.
The high-performance insulation ensures low energy consumption and maximum
temperature stability and consistency inside the appliance. Polyurethane rigid foam insu-
lation is highly durable, environmentally friendly, and demonstrates outstanding insulation
properties. This insulation, combined with advanced refrigeration technology, is the reason
for the low energy consumption of Liebherr appliances.
42 43
High performance insulation
Laboratory
Hinged, detachable unit
compartment cover
SwingLine Design
The refrigeration components are inte-
grated into the unit compartment where
they can be easily accessed for cleaning
or servicing purposes. The unit compart-
ment cover can be easily opened on an
upward hinge, which guarantees excel-
lent accessibility, e.g. it is easy to clean
the filter on the condenser, which is po-
sitioned behind the unit cover without
having to move the appliance
Plastic-coated wire shelves
Liebherr’s robust wire shelves fulfil the
highest hygiene requirements and are
extremely durable. They can also bear
high loads and therefore withstand in-
tensive strain.
Self-closing door
The elegant SwingLine design makes
these appliances a perfect choice meet-
ing the highest technical design require-
ments. The sophisticated curved design
makes Liebherr appliances a visual fo-
cal point in any commercial environment.
Thanks to a grip profile integrated into the
entire door height the SwingLine doors
are ergonomic and easy to open as well
as being particularly easy to keep clean.
304-grade stainless steel inner liners
Hygiene can be an important factor in
laboratory applications. The 304-grade
stainless steel liner with large radius
corners is easy to clean and provides max-
imum corrosion-resistance. The moulded
line base has an integrated drain to facil-
itate rinsing with water.
The self-closing door prevents unneces-
sary loss of cold air and therefore helps
to reduce energy consumption and costs.
The door has a 90° dwell position for
loading but is self-closing from 75° on-
wards
44 45
Laboratory
Pharmaceutical storage: DIN 58345Under-worktop models
Several models can be installed beneath
a worktop. In this case, a ventilation grill
with cross-section of at least 200 cm2 is
required in the worktop for ventilation at
the rear of the appliance. If no ventilation
grill is going to be fitted in the worktop,
the recess height must be at least 860
mm to ensure sufficient heat dissipation
to the front. Under-worktop laboratory ap-
pliances offer a space-saving solution,
which is particularly suitable for use in
restricted spaces.
Interchangeable door hinges
The appliances are factory-fitted with
door hinges on the right. Being able to
change the hinge side allows the appli-
ance to be positioned even more optimally
and tailored to individual requirements.
DIN stands for ‘Deutsches Institut für Normung’ (German Institute
DIN
are used to store pharmaceuticals at an operating temperature of 2 °C to 8 °C. DIN
58345 currently reflects the latest technological advances and establishes precisely
formulated requirements in relation to pharmaceutical refrigerators.
Basic requirements established by DIN 58345:
✓ Operating temperature: +2 °C to +8 °C
✓ Usable in ambient temperatures of +10 °C to +35°C
✓ Noise emissions: < 60 dB(A))
✓ Visual and acoustic warning system for high and low temperature alarm (min/
max thermometer)
✓ Warning system for min. 12h in the event of a power cut
(power cut alarm device)
✓ Safety thermometer for preventing freezing temperatures
✓ Component mechanical load-bearing capacity
✓ Lockable doorr
The MKv and MKUv models comply with DIN 58345. Conversely, all other Liebherr
laboratory refrigerators and freezers do not comply with DIN 58345.
for Standardization). The Institute’s specialist bodies define industry
standards. DIN 58345 relates to pharmaceutical refrigerators that
Explosion protection: ATEX 95
The Atex 95 certification certifies that Liebherr laboratory refrigerators
and freezers with explosion protection as defined by EU Directive 94/9/
EC (ATEX 95) are suitable for the storage of explosive and highly flam-
Atex
mable materials.
Most important precautions:
✓ Interior free from ignition sources
✓ No openings of the interior area to the exterior
✓ Separate condensate dish for emptying the condensate in the interior
✓ Interior components made from glass, plastic or with plastic coating
✓Metal parts with protective earth connection
No risk of sparks being formed against metal
➞
46 47
Laboratory
Temperature stability and consistency:
The evaluation of air temperatures of the LKPv and LGPv models according to NF X 15-140 using a PT 100 temperature probe with 25 g copper thermal mass
shows the following results:
Results according to NF X 15-140
Gradient H0- : 1.8 K (+ 0.9 K / – 0.9 K from
set temperature)
Max. fluctuation: 1.0 K
LKPv and LGPv laboratory appliances with Profi-Controller
NF X15. 140
Key words index
All laboratory refrigerators and freezers
are checked in the state-of-the-art
Liebherr development facilities using the
procedure NF X 15-140 for measuring
temperature stability. This involves meas-
uring the temperature at nine different
points on the appliance interior.
A
ABS frame .................................... 32
ActiveGreen ..................................... 6
Air distribution system ................ 11, 39
F
Fans.......................................... 10, 38
Fan cut-out function ........................ 21
Feet ............................................... 16
Flip-top lid ....................................... 33
Foot pedal ...................................... 16
B
Bakery standard .............................. 19
Bar handle ...................................... 23
Baskets .......................................... 32
Branding, chest freezers .................. 35
Gradient H0- : 1.8 K (+ 0.9 K / – 0.9 K deviation from
the set temperature
Max. fluctuation: 1.0 K
Branding, drinks .............................. 27
C
Calibration function ......................... 41
Casters .......................................... 34
LKPv 6520
8,0 °C
7,5 °C
7,0 °C
6,5 °C
max(0m4+Um4) = average warmest measurement channel + expanded measurement uncertainty
6,0 °C
5,5 °C
5,0 °C
4,5 °C
4,0 °C
min(0
3,5 °C
3,0 °C
2,5 °C
2,0 °C
Average probe temperature
m6-Um6) = average coldest measurement channel – expanded measurement uncertainty
t1 t2 t3 t4 t5 t6 t7 t8 t9
H0= Gradient
Probes
Set temperature
Ceiling lighting:
Catering & bakery ...................... 14
Laboratory ................................. 43
Condenser ..................................... 29
Cooling system ............................... 21
D
Data memory .................................. 40
Display ........................................... 24
Door ................................... 16, 25, 44
Door hinges,
interchangeable .................. 18, 26, 46
Door open alarm ........................ 13, 42
E
Energy efficiency ............................... 7
Explosion protection ........................ 47
48 49
Evaporator surface ares ............. 10, 38
G
Gastronorm .................................... 19
Glass frame .................................... 32
Grip handle ..................................... 22
Grid shelves ......................... 14, 26, 44
H
Hot-gas condensate evaporation:
Gastronomy & bakery ................... 9
Laboratory ................................. 37
Hot-gas defrosting:
Catering & bakery ........................ 9
Laboratory ................................. 37
Hot-gas frame heater ...................... 29
Housing:
Drinks........................................ 23
Impulse sales chest storage
appliances ................................. 33
I
Infrared interface ....................... 12, 40
Inner container:
Catering & bakery ................. 17,19
Drinks........................................ 24
Laboratory ................................. 45
Insulation............................. 15, 29, 43
Appliance indexStichwort-Index
Glass door ...................................... 24
L
LED interior lighting ......................... 25
Lock ............................................... 25
M
Min/max memory ............................ 40
N
NoFrost ......................................... 11
O
Outer housing ............................... 14
P
Pharmaceutical storage:
DIN 58345 .................................... 47
Volt-free contact ........................ 12, 41
Power cut alarm ............................. 40
Serial RS 485 interface ................... 41
Side panels..................................... 21
Sliding glass lid ............................... 34
StopFrost system ....................... 30, 39
SwingLine ................................. 17, 45
T
Teflon inserts .................................. 34
Temperature alarm ................... 13, 42
Temperature display ............. 12, 22, 31
Temperature range ..................... 22, 31
Temperature sensor ........................ 43
Temperature stability/consistency ..... 48
U
Under-worktop ......................18, 26, 46
Unit compartment cover .................. 44
Catering & bakery
BGPv
BKv
BKPv
FKUv
G
GG
GGU
GGv
GGPv
GKv
GKPv
TGS
Drinks refrigeration
BCDv
FKDv
FKS
FKSBv
FKU
FKUv
FKv
FKvsl
Impulse sales chest storage appliances
FT
GTE
GTI
GTL
R
Refrigerant cycle ............................. 45
Refrigerant ................................ 21, 30
Refrigeration system .................. 10, 38
S
Safety glass .................................... 33
Safety thermostat ............................ 39
Serial bus interface ........................ 13
50 51
Laboratory
LCv
LGex
LGPv
LGT
Please note that not all of the features shown in the individual sections are applicable to all models.
LGUex
LKexv
LKv
LKPv
LKUexv
LKUv
MKv
MKUv
