Page 1

Operating instructions

Combined fridge-freezer

081110

7084698 - 00

CN(es) ... 3

Page 2

Appliance at a glance

Contents

1 Appliance at a glance............................................ 2

1.1 Description of appliance and equipment.................. 2

1.2 Range of appliance use............................................ 2

1.3 Conformity................................................................ 3

1.4 External dimensions of the appliance....................... 3

1.5 Saving energy.......................................................... 3

2 General safety information................................... 3

3 Controls and displays........................................... 4

3.1 Operating and control elements............................... 4

3.2 Temperature display................................................. 4

4 Putting into operation............................................ 4

4.1 Transporting the appliance....................................... 4

4.2 Installing the appliance............................................. 4

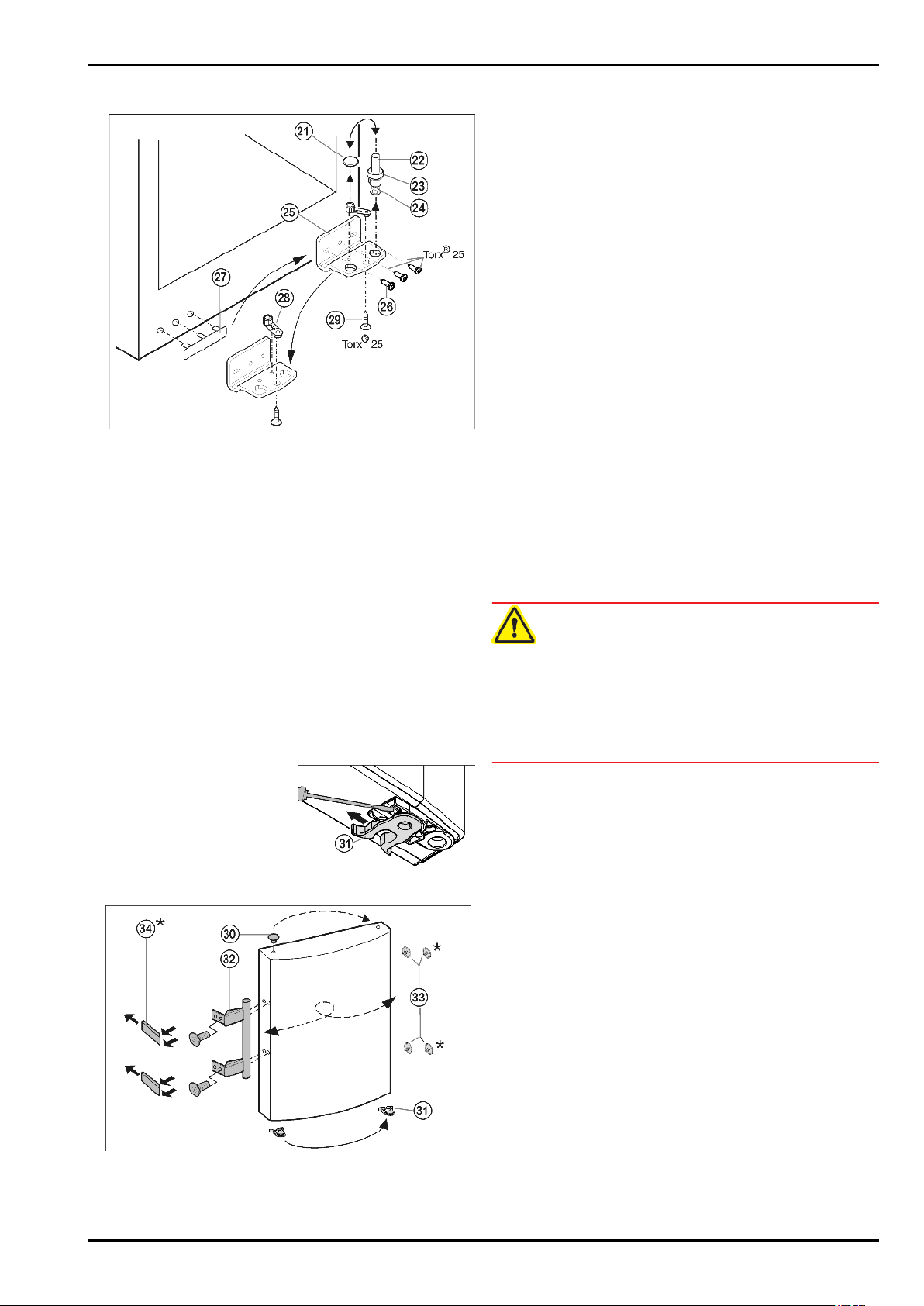

4.3 Changing over the door hinges................................ 5

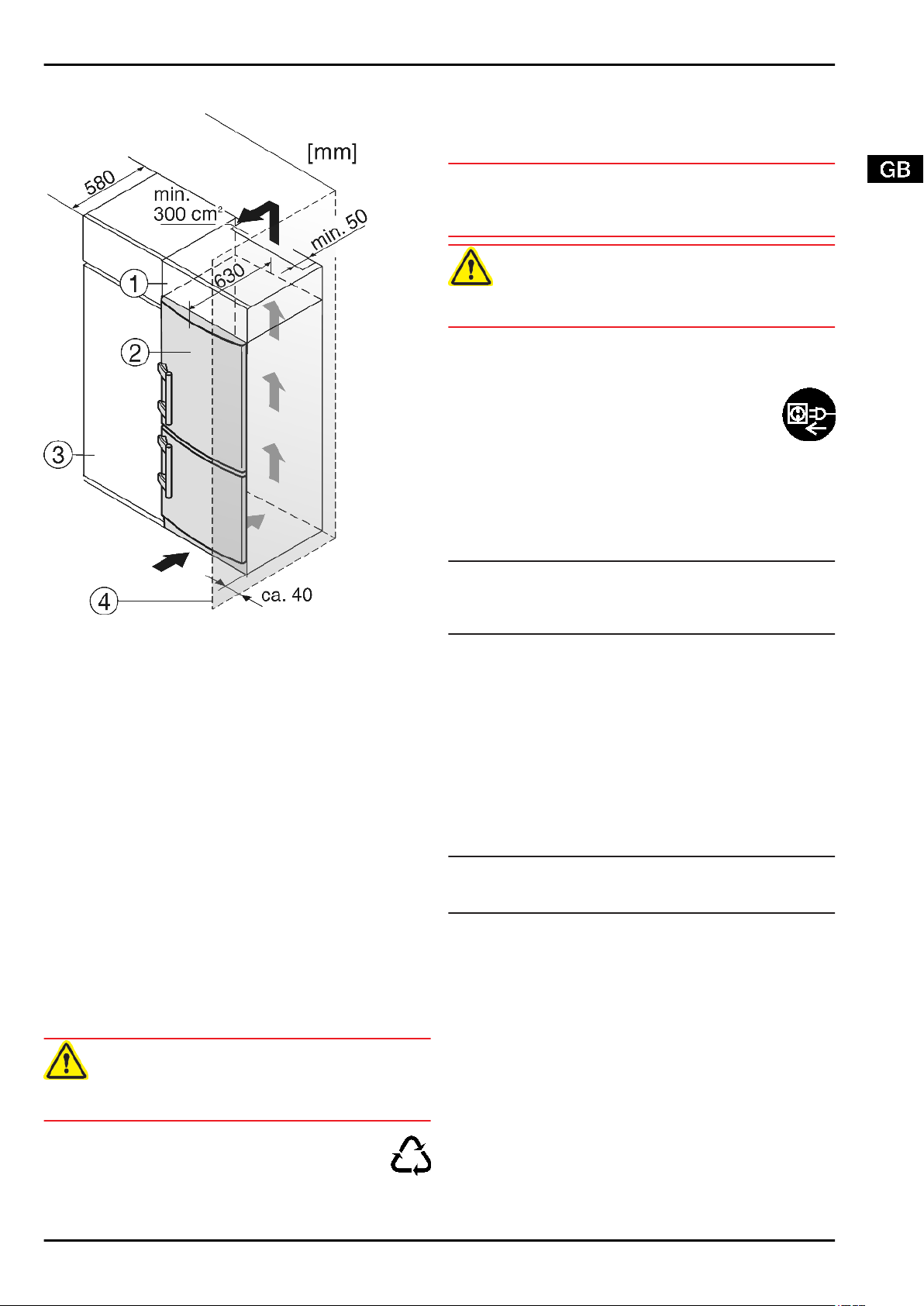

4.4 Insertion into a row of kitchen units........................... 7

4.5 Disposing of packaging............................................ 7

4.6 Connecting the appliance......................................... 7

4.7 Switching on the appliance....................................... 7

5 Control.................................................................... 7

5.1 Door alarm................................................................ 7

5.2 Temperature alarm................................................... 8

5.3 Refrigerator compartment........................................ 8

5.4 Freezer compartment............................................... 9

6 Maintenance........................................................... 11

6.1 Defrosting with NoFrost............................................ 11

6.2 Cleaning the appliance............................................. 11

6.3 Cleaning the IceMaker............................................. 12

6.4 Changing the interior light with bulb.......................... 12

6.5 Customer service..................................................... 12

7 Malfunction............................................................. 12

8 Decommissioning.................................................. 13

8.1 Switching off the appliance....................................... 13

8.2 Taking the appliance out of service.......................... 13

9 Disposing of the appliance................................... 14

The manufacturer works constantly on the further development of all the types and models. Therefore please understand that we have to reserve the right to make design, equipment and technical modifications.

To get to know all the benefits of your new appliance, please read the information contained in these instructions carefully.

The instructions apply to several models. Differences may occur. Text relating only to specific appliances is marked with an asterisk (*).

Instructions for action are marked with a , the results of action are marked with a

Fig. 1

(1) Transport grips at back (12) Coldest zone (2) Operating and control

elements

(3) Butter and cheese

compartment

(4) Fan* (15) Cold storage accumula-

(5) Door rack (16) VarioSpace (6) Interior light (17) Freezer drawer (7) Shelf, sectioned (18) Ice-cube tray (8) Bottle holder (19) IceMaker* (9) Bottle shelf* (20) Information system*

(10) Shelf, relocatable (21) Adjustable feet, transport

(11) Drain hole

(13) Vegetable bin

(14) Type plate

tors*

grips at front, transport castors at back

1.2 Range of appliance use

1 Appliance at a glance

1.1 Description of appliance and equipment

Note

Place food inside the appliance as shown in the diagram.

This allows the appliance to save energy during operation. Shelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

The appliance is suitable solely for cooling food in a domestic environment or similar. This includes use in, for example

in staff kitchenettes, bed and breakfast establishments,

by guests in country homes, hotels, motels and other forms

of accommodation, in catering and similar services in the wholesale trade

Use the appliance solely as is customary within a domestic environment. All other types of use are inadmissible. The appliance is not suitable for storing and cooling medicines, blood plasma, laboratory preparations or similar substances and products covered by the 2007/47/EC Medical Devices Directive. Misuse of the appliance can result in the stored products suffering harm or perishing. Furthermore, the appliance is not suitable for operation in potentially explosive atmospheres.

The appliance is set to operate within specific ambient temperature limits according to its climate rating. The correct climate rating for your appliance is indicated on the type plate.

Page 3

Note

Compliance with the ambient temperatures indicated is

required, otherwise the cooling performance is reduced.

Climate rating

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

for ambient temperatures of

1.3 Conformity

The refrigerant circuit has been tested for leaks. The appliance complies with current safety regulations and EC directives 2006/95/EC and 2004/108/EC.

1.4 External dimensions of the appliance

Fig. 2

Model Height of appliance H

(mm)

CN(es) 35.., CNP(esf) 35.. 1817

CN 39.., CNP(esf) 39.. 2011

CN(es/esf) 40.., CNP(esf) 40.. 2011

1.5 Saving energy

Always ensure good ventilation. Do not cover ventilation

openings or grille. Always keep fan louvres clear.

Do not place appliance in areas of direct sunlight or next to a

stove, heater or similar object. The energy consumption depends on the installation condi-

tions, e.g. the ambient temperature (see 1.2) . Keep the time the appliance is open to a minimum.

The lower the temperature setting, the higher the power

consumption. Store food logically. (see Appliance at a glance).

Ensure that all food is well packed and covered for storage.

This will prevent frost from forming. Remove food as needed in order that it does not warm too

much. First cool warm food to room temperature before storing it .

Defrost frozen food in the refrigerator.

General safety information

Empty and switch off refrigerating unit for longer vacation

periods. Accumulated dust increases the energy consumption:

Once a year, dust the refrigerating unit

together with the metal grille of the heat

exchanger at the back of the appliance.

2 General safety information

Danger for the user:

This appliance is not designed for persons (including chil-

dren) with physical, sensory or mental impairment or

persons not having sufficient experience and knowledge,

unless they are instructed in the use of the appliance and

are initially supervised by a person responsible for their

safety. Keep children under supervision to ensure they do

not play with the appliance.

In case of a fault, pull out the mains plug (not by pulling the

connecting cable) or switch off the fuse.

Have any repairs to or intervention in the appliance, and any

change of the mains power cable, carried out by the

customer service only or by other specialised personnel

trained for the purpose.

When disconnecting the appliance from the supply, always

take hold of the plug. Do not pull the cable.

Install and connect the appliance only as instructed.

Please keep these instructions in a safe place and pass

them on to any subsequent owners.

All repairs to and intervention in the IceMaker may be

carried out only by service personnel or by other skilled

personnel trained for the purpose.*

Special-purpose lamps (incandescent lamps, LEDs, fluores-

cent tubes) in the appliance serve to illuminate the appliance

interior and are not suited for room illumination.

Fire hazard:

The refrigerant R 600a is environmentally friendly but flam-

mable. Escaping refrigerant may ignite.

Do not damage the refrigerant circuit pipes.

•

Do not allow naked flames or ignition sources to enter the

•

appliance. Do not use any electrical appliances in the interior (e.g.

•

steam cleaners, heaters, ice cream maker etc.). If refrigerant escapes: eliminate naked flames or sources

•

of ignition from the vicinity. Pull out the power plug. Ventilate the area well. Notify customer service.

Do not store explosives or sprays using combustible propel-

lants such as butane, propane, pentane, etc. in the appli-

ance. Respective spray cans can be identified by reference

to the contents printed on the can or by a flame symbol.

Gases possibly escaping may ignite due to electrical

components.

Do not place any burning candles, lamps or other items with

naked flames on or in the appliance.

Only store high-percentage alcohol in tightly sealed, upright

containers. Alcohol possibly escaping may ignite due to

electrical components.

Danger of tipping and falling:

Do not misuse the plinth, drawers, doors etc. as a step or for

support. This applies particularly to children.

Danger of food poisoning:

Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

Avoid lasting skin contact with cold surfaces or refrigerated/

frozen food or take protective steps, e.g. wear gloves. Do

not consume ice cream, water ice or ice cubes immediately

and do not consume them too cold.

Page 4

Controls and displays

Please observe the specific information in the other sections:

DANGER identifies a situation involving direct

danger which, if not obviated, may result in death or severe bodily injury.

WARNING identifies a dangerous situation

which, if not obviated, may result in death or severe bodily injury.

CAUTION identifies a dangerous situation

which, if not obviated, may result in minor or medium bodily injury.

NOTICE identifies a dangerous situation

which, if not obviated, may result in damage to property.

Note identifies useful information and tips.

3 Controls and displays

3.1 Operating and control elements

4.2 Installing the appliance

In the event that the appliance is damaged, contact the supplier immediately before connecting to the mains.

The floor at the site must be flat and level. Do not install the appliance in a location where it is exposed to

direct radiation of the sun, next to a cooker, heater and similar. Always install the appliance with the back directly against the

wall. Do not install the appliance without assistance. Standard EN 378 specifies that the room in which you install

your appliance must have a volume of 1 m2 per 8 g of R 600a refrigerant used in the appliance. If the room in which the appliance is installed is too small, a flammable gas-air mixture may form in the event of a leakage in the refrigeration circuit. The quantity of refrigerant used in your appliance is indicated on the type plate on the inside of the appliance.

The appliance may be moved only when it is empty.

Fire hazard due to dampness! If live parts or the mains lead become damp this may cause short circuits.

WARNING

The appliance is designed for use in enclosed areas. Do not operate the appliance outdoors or in areas where it is exposed to splash water or damp conditions.

(1) On/Off button, refriger-

ator compartment

(2) Fan button (7) SuperFrost buttont (3) Setting button, refriger-

ator compartment

(4) Refrigerator compart-

ment temperature display

(5) Freezer compartment

temperature display

(6) Setting button, freezer

compartment

(8) Alarm button

(9) On/Off button, freezer

compartment

3.2 Temperature display

The following are displayed in normal operation:

the set freezing temperature

the set cooling temperature

The freezer compartment temperature display flashes:

the temperature setting is being changed

after switch-on the temperature is not yet cold enough

the temperature has risen several degrees

4 Putting into operation

4.1 Transporting the appliance

Fig. 3

Fire hazard due to refrigerant! The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.

Fire hazard and danger of damage!

Blocked ventilation openings pose a risk of fire and damage!

NOTICE*

The stainless steel doors are provided with a high-quality surface coating and must not be treated using the accompanying care product.

WARNING

Do not damage the piping of the refrigeration circuit.

WARNING

Do not place appliances emitting heat e.g. microwaves, toasters etc. on the appliance!

WARNING

Always keep the ventilation openings clear. Always ensure that the appliance is properly ventilated!

Detach the connecting cable from the rear of the appliance, removing the cable holder at the same time because otherwise there will be vibratory noise! Remove the protective film from the outside of the appliance.*

CAUTION

Risk of injury and danger of damage as a result of incorrect transport!

Transport the appliance in a packed condition.

Transport the appliance upright.

Do not transport the appliance without assistance.

Otherwise the surface coating will be affected.

Wipe the coated door surfaces using a soft, clean cloth

only. Apply a stainless steel cleaner only to the stainless steel

side walls evenly, wiping with the grain. Subsequent cleaning becomes easier as a result. Wipe side walls with a paint finish using a soft, clean

cloth only.

Page 5

Remove the protective film from the decorative trims and

drawer fronts.* Remove all transit supports.

Dispose of packaging material (see 4.5) .

NOTICE

Risk of damage due to condensate!

Do not install the appliance directly alongside a further

refrigerator/freezer.

Align the appliance so that it

stands firmly and on a level by applying the accompanying spanner to the adjustableheight feet (A) and using a spirit level. Then support the door: Extend

the adjustable foot at the turn hinge (B) until it rests on the floor and then make a further 90° turn.

Note

Clean the appliance (see 6.2) .

If the appliance is installed in a very damp environment, condensate may form on the outside of the appliance.

Always see to good ventilation at the installation site.

Putting into operation

CAUTION

Risk of injury if the door tips!

Take good hold of the door.

Set down the door carefully.

Unscrew the upper turn hinge

Fig. 4 (4)

Lift up the upper door and set it aside.

and lift it off.

4.3.2 Detaching the lower door

Close the lower door.

Draw the middle bearing pin

and lower door.

Remove the plastic cap

Risk of injury if the door tips!

u u

u u u

CAUTION

Take good hold of the door.

Set down the door carefully.

Open the lower door.

Unscrew the middle turn hinge (2x Torx® 25).

Lift up the door and set it aside.

Fig. 5 (10)

4.3.3 Transferring the middle bearing elements

Fig. 4 (3)

Fig. 5 (11)

(2x Torx® 25)

out of the turn hinge

Fig. 5 (13)

4.3 Changing over the door hinges

You can change over the door hinges if necessary.

Ensure that the following tools are to hand:

Torx® 25

Torx® 15

Screwdriver

Cordless screwdriver, if necessary

Second person for fitting work, if needed

4.3.1 Detaching the upper door

Note

Remove any food from the door racks before removing the

door, so that no food falls out.

Fig. 5

Carefully detach the cover panel

Turn the middle turn hinge

Fig. 5 (14)

new hinge side (with 4 Nm).

Turn the cover panel

into place again on the new handle side.

through 180° and screw it firmly into place on the

Fig. 5 (12)

Fig. 5 (13)

with the washer

through 180° and snap it

Fig. 4

Close the upper door.

Pull off the cover

Lift off the cover

Fig. 4 (1)

Fig. 4 (2)

forwards and upwards.

Page 6

Putting into operation

4.3.4 Transferring the lower bearing elements

Fig. 6

Lift out the bearing pin

Fig. 6 (23)

Lift off the stopper

Unscrew

it to the opposite location hole of the turn hinge and screw it firmly into place. Carefully lift off the cover on the handle side

transfer it to the opposite side. Screw the turn hinge

hinge side, possibly using a cordless screwdriver (with 4 Nm).

Re-insert the stopper

Re-insert the bearing pin

and foot. In so doing, pay attention that the locating lug points backwards

and foot

Fig. 6 (26) Fig. 6 (29)

Fig. 6 (22)

Fig. 6 (24)

Fig. 6 (21)

the turn hinge

the bearing element

Fig. 6 (25)

Fig. 6 (21)

Fig. 6 (25)

firmly into place on the new

into the other hole.

Fig. 6 (22)

together with washer

Fig. 6 (28)

together with washer

, transfer

Fig. 6 (27)

and

4.3.5 Transferring the handles

On both the upper and lower door:

Transfer the spring clamp

Fig. 7 (31)

latch nose and pull the spring clamp off over it. Slide the spring clamp

into place on the new hinge side until it clicks into place.

: Depress the

Fig. 7

Detach door handle

sure plates When fitting the pressure plates on the opposite side, make

sure they snap properly into place*

Fig. 8 (34)

Fig. 8 (32)

and transfer to the opposite side.

, stopper

Fig. 8 (33)

and pres-

4.3.6 Fitting the lower door

Place the lower door from above onto the lower bearing pin

Fig. 6 (22)

Close the door.

Place the plastic cap

hinge Place the middle bearing pin

the new hinge side, through the middle turn hinge

Fig. 5 (13)

Fig. 5 (10)

Fig. 5 (11)

back onto the middle turn

in the lower door, on

4.3.7 Fitting the upper door

Place the upper door on the middle bearing pin

Insert the upper turn hinge

hinge side. Screw the upper turn hinge firmly into place (with 4 Nm)

(2x Torx® 25) with a bradawl or use a cordless screwdriver. Apply the cover

site side from the outside and snap them into place.

Fig. 4 (4)

Fig. 4 (1)

Fig. 4 (3)

. Possibly make preliminary holes

and cover

in the door on the new

Fig. 4 (2)

Fig. 5 (11)

to the oppo-

4.3.8 Aligning the doors

If necessary, align the doors to the appliance housing by

way of the two oblong holes in the bottom turn hinge

Fig. 6 (25)

unscrew the middle screw in the bottom turn hinge

Fig. 6 (25)

Risk of injury due to the door dropping out! If the bearing parts are not screwed into place firmly enough, the door may drop out. This may lead to severe injuries. What is more, the door may not close and therefore the appliance may fail to cool properly.

Screw the turn hinges firmly into place with 4 Nm.

Check all of the screws and retighten if necessary.

and middle turn hinge

WARNING

Fig. 5 (13)

. To do so,

Fig. 8

Lift the stopper

transfer it.

Fig. 8 (30)

out of the door bearing bush and

Page 7

4.4 Insertion into a row of kitchen units

Control

nailed wooden frame with polyethylene panel*

Take the packaging material to an official collecting point.

4.6 Connecting the appliance

NOTICE

Risk of damage to the electronic control system!

Do not use stand-alone inverters (conversion of d.c. to a.c./

three-phase) or energy saving plugs.

Fig. 9

(1) Stack cabinet (3) Kitchen cabinet (2) Appliance (4) Wall

The appliance can be inserted into a row of kitchen units. To match the appliance a suitable stack cabinet ance.

When inserting the appliance into a row of kitchen units (max. depth 580 mm), the appliance can be installed directly next to the kitchen unit to the front of the kitchen unit by 34 mm at the side and by 50 mm in the middle of the appliance. It can be opened and closed perfectly as a result.

Important for the ventilation:

At the back of the stack cabinet there has to be a ventilation

duct of at least 50 mm depth throughout the width of the stack cabinet. The ventilation space under the ceiling has to be at least

300 cm2.

If the appliance is installed with the hinges next to a wall

Fig. 9 (4)

least 40 mm. This corresponds to the projection of the handle when the door is open.

, the distance between appliance and wall has to be at

Fig. 9 (2)

Fig. 9 (3)

to the height of the row of units,

Fig. 9 (1)

. The appliance door projects relative

can be fitted above the appli-

Fire and overheating hazard!

The type of current (alternating current) and voltage at the installation site have to conform with the data on the type plate (see Appliance at a glance). Connect the appliance only with a properly installed socket outlet with earthing contact. The socket outlet must be fused with 10 A or higher.

It must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency.

u u

WARNING

Do not use extension cables or multiple socket outlets.

Check the electrical connection.

Plug in the power plug.

4.7 Switching on the appliance

Note

To switch on the entire appliance it is necessary only to

switch on the freezer compartment. In so doing, the refriger-

ator compartment is automatically switched on as well.

Put the appliance into operation about 2 hours before first loading food to be frozen.

4.7.1 Switching on the freezer compartment

PressOn/Off button, freezer compartment

The appliance is switched on. The refrigerator compartment

temperature display indicates the set temperature. The

freezer compartment temperature display and the alarm

button flash until the temperature is sufficiently low.

4.7.2 Switching on the refrigerator compartment

Note

When the refrigerator compartment is switched on, the

freezer compartment is automatically switched on as well.

Press On/Off button, refrigerator compartment

The interior light is on when the door is open.

The temperature display shines. Refrigerator compartment

and freezer compartment are switched on.

Fig. 3 (9)

Fig. 3 (1)

4.5 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic film!

Do not allow children to play with packing material.

The packaging is made of recyclable materials:

corrugated board/cardboard

expanded polystyrene parts

polythene bags and sheets

polypropylene straps

5 Control

5.1 Door alarm

For refrigerator and freezer compartment If the door is open longer then 60 s, the audible alarm sounds. The audible alarm is automatically silenced when the door is

closed.

Page 8

Control

5.1.1 Muting the door alarm

The audible alarm can be muted when the door is open. The sound switch-off function is active as long as the door is left open.

Press alarm button

The door alarm is silenced.

5.2 Temperature alarm

The audible alarm sounds if the freezer temperature is not cold enough.

The alarm button flashes at the same time.

The cause of the temperature being too high may be:

warm fresh food was placed inside

too much warm ambient air flowed in when rearranging and

removing food power failure for some time

the appliance is faulty

The audible alarm is automatically silenced, the alarm button

Fig. 3 (8)

when the temperature is sufficiently cold again. If the alarm status persists: (see Malfunction).

Note

Food may be spoilt if the temperature is not cold enough.

goes out and the temperature display stops flashing

Check the quality of the food. Do not consume spoiled food.

5.2.1 Muting the temperature alarm

The audible alarm can be muted. When the temperature is sufficiently cold again, the alarm function is active again.

Press alarm button

The audible alarm is silenced.

5.3 Refrigerator compartment

The natural circulation of air in the refrigerator compartment results in zones differing in temperature. It is coldest directly above the vegetable drawers and at the rear wall. It is warmest at the top front of the compartment and in the door.

5.3.1 Food refrigeration

Note

The energy consumption increases and the cooling performance decreases if the ventilation is inadequate.

Always keep the air slits of the fan free.

Fig. 3 (8)

the type, temperature and quantity of frozen food

Temperature setting to be recommended: 5 °C The temperature can be changed continuously. Once the 1 °C

setting is reached, it starts again with 9 °C.

To access temperature adjustment: press the setting button,

refrigerator compartment The LED of the current temperature flashes in the tempera-

ture display. Press the setting button, refrigerator compartment

the number of times needed until the required temperature shines in the LED display.

Note

Long pressing of the setting button sets a slightly colder

value within a small temperature range (e.g.: between 5 °C and 7 °C). The LED of the next lower temperature range then shines in the temperature display.

Fig. 3 (3)

once.

Fig. 3 (3)

5.3.3 Fan

With the fan you can rapidly cool large quantities of fresh food or achieve a relatively even distribution of temperature across all the storage levels.

The forced-air cooling is to be recommended:

at high room temperature (from approx. 30 °C )

at high humidity

The forced-air cooling uses slightly more energy. To save energy, the fan switches off automatically when the door is open.

Switching on the fan

Briefly press the fan button

The fan button shines.

The fan is active. It switches on automatically when the

compressor runs.

To switch off the fan

Briefly press the fan button

The fan button goes out.

The fan is switched off.

Fig. 3 (2)

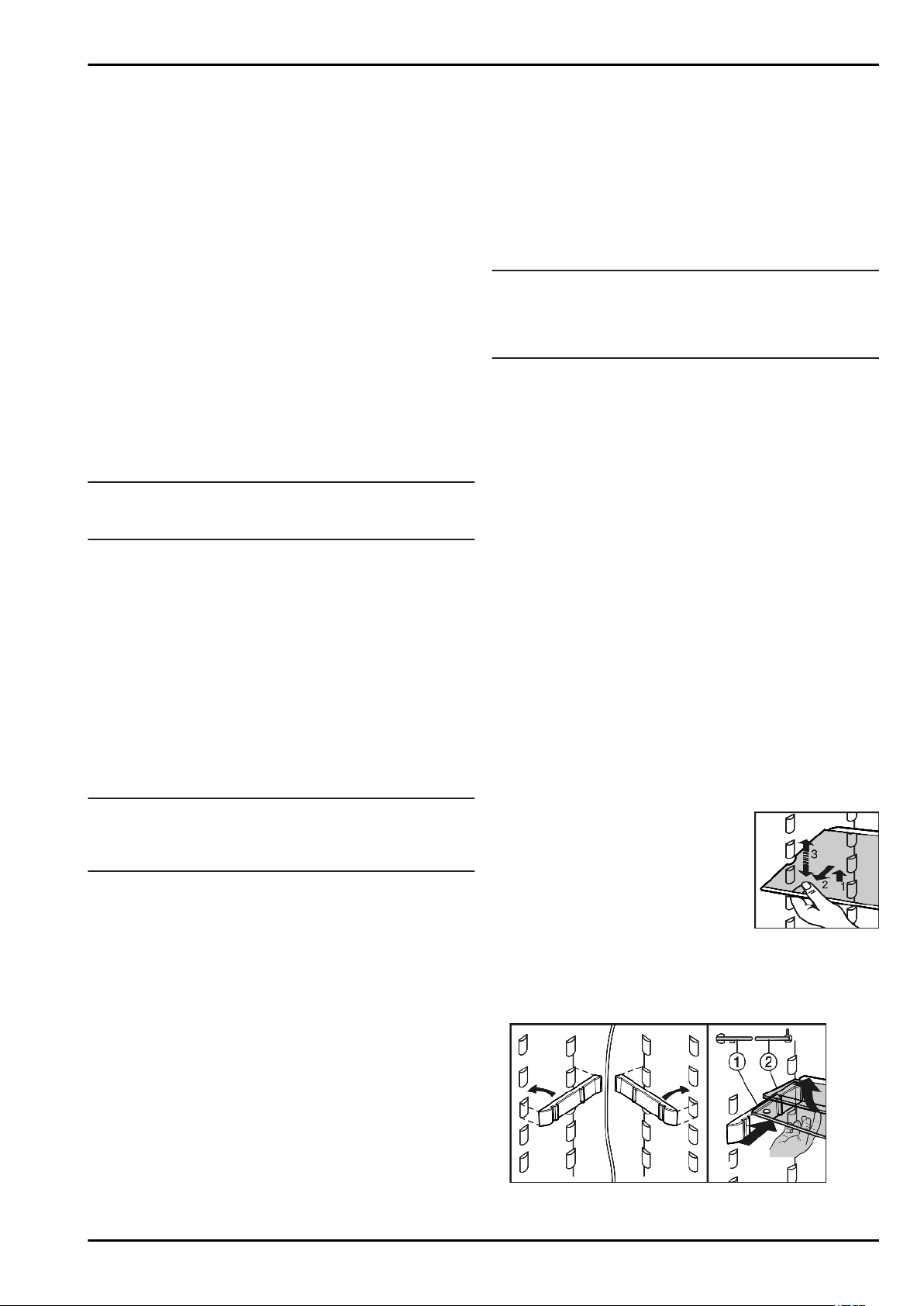

5.3.4 Relocating the shelves

The shelves have stops preventing them from being unintentionally pulled out.

Lift the shelf and draw it out forwards.

Store perishable food such as ready-to-serve dishes, meat

products and sausages in the coldest zone. Place butter and preserves in the upper area and in the door (see Appliance at a glance). Use recyclable plastic, metal, aluminium and glass

containers and cling film for wrapping. Use the front area of the refrigerator compartment floor only

for briefly putting down cooled products, e.g. when rearranging and sorting. However do not leave cooled products there otherwise they may be pushed back or tipped over when the door is closed. Do not store food too close together to enable good air

circulation. To safeguard bottles from tipping over: move the bottle

holder.

5.3.2 Setting the temperature

The temperature depends on the following factors:

the door opening frequency

the room temperature at the site where the appliance is

installed

Insert shelf with the raised edge pointing upwards at the

back. The food does not freeze onto the rear wall.

5.3.5 Using the sectioned shelf

Fig. 10

The glass shelf with stop face (2) has to be at the back.

Page 9

5.3.6 Moving the storage rack

Remove storage rack according to

illustration.

The boxes can be removed and placed on the table as a single unit.*

Only one box or both boxes can be used. If particularly tall bottles are to be stored, attach only the wide box above the bottle rack.*

Three small boxes are available through the customer service as optional equipment instead of one wide and one small box.*

Re-positioning the boxes: Lift them

for removal and re-position them as required.*

To detach lid: Open 90° and raise to

disengage.*

Control

CAUTION

Risk of injury due to broken glass! Bottles and cans containing drinks may burst when being frozen. This applies particularly to sparkling drinks.

Do not freeze bottles and cans containing drinks!

In order that the food is rapidly frozen through to the core, do not exceed the following quantities per pack:

- Fruit, vegetables up to 1 kg

- Meat up to 2.5 kg

Pack the food in portions in freezer bags, reusable plastic,

metal or aluminium containers.

5.4.2 Thawing food

- in the refrigerator compartment

- at room temperature

- in a microwave oven

- in a conventional or fan oven

Food once thawed should be re-frozen only in exceptional

cases.

5.4.3 Setting the temperature

Temperature setting to be recommended: -18 °C The temperature can be changed continuously. Once the

-32 °C setting is reached, it starts again with -15 °C.

To access temperature adjustment: press setting button,

freezer compartment

The LED of the current temperature flashes in the tempera-

ture display of the freezer compartment.

Press the setting button, freezer compartment

number of times needed until the required temperature

shines in the LED display.

Fig. 3 (6)

once.

Fig. 3 (6)

the

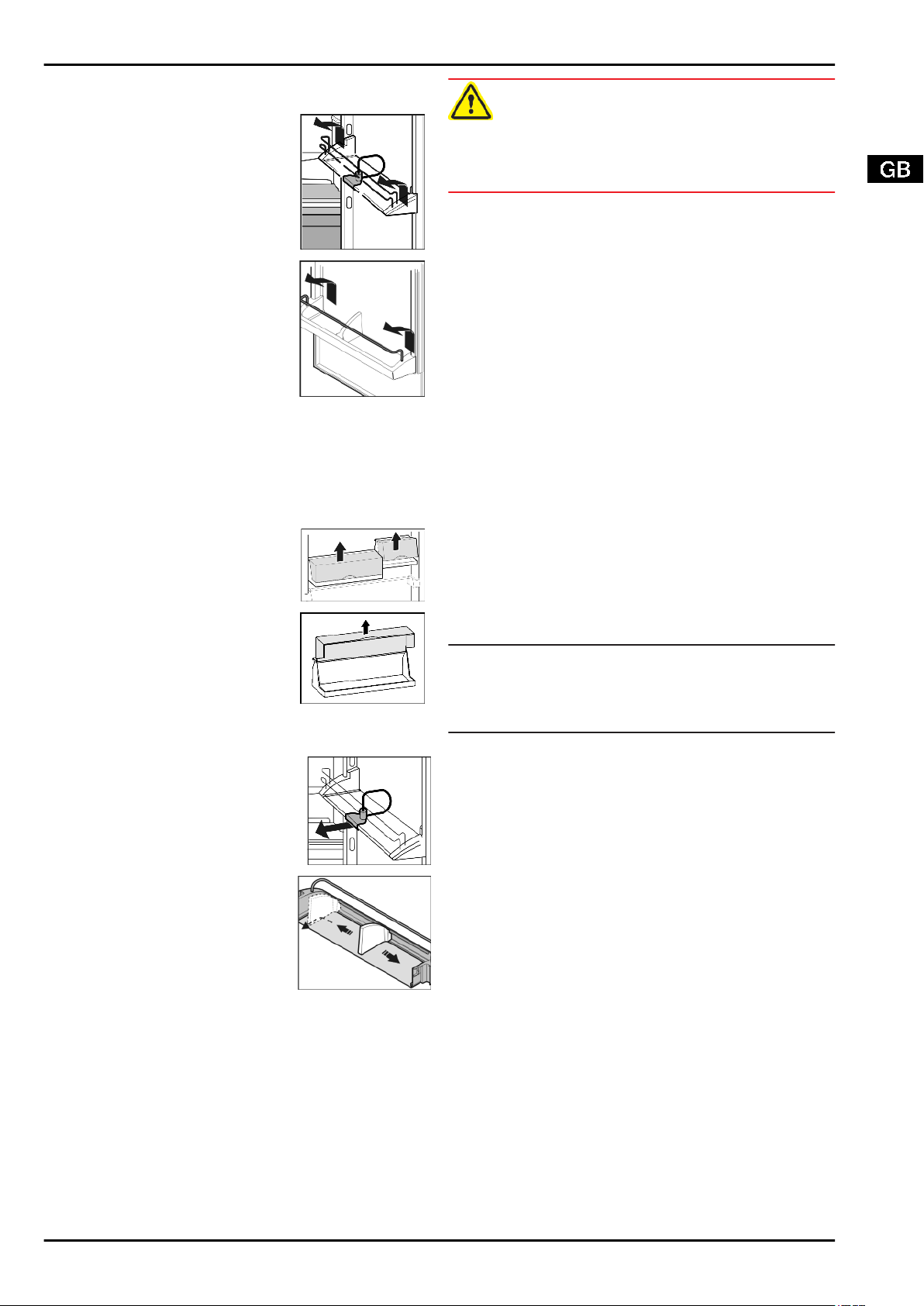

5.3.7 Removing the bottle holder*

Always take hold of the bottle holder

on the plastic part.

5.4 Freezer compartment

You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

5.4.1 Freezing food

The rating plate indicates the maximum quantity of fresh food you can freeze within 24 hours (see Appliance at a glance) under "Freezing capacity ... kg/24h".

The maximum load of frozen food for the drawers is 25 kg each and for the shelves 35 kg each.

Note

Long pressing of the setting button sets a slightly colder

value within a small temperature range (e.g.: between

-15 °C and -18 °C). The LED of the next lower temperature

range then shines in the temperature display.

5.4.4 SuperFrost

With this function you can freeze fresh food quickly through to the core. The appliance operates with maximum refrigeration. The noise of the refrigeration unit may be temporarily louder as a result.

The maximum amount of fresh food which can be frozen in 24 h is indicated on the type plate under "freezing capacity ... kg/ 24h". This amount varies according to the model and climate rating.

You do not have to activate SuperFrost in the following cases:

when placing frozen food in the freezer

Freezing with SuperFrost

Briefly press the SuperFrost button

The SuperFrost button shines.

The freezer temperature drops, the appliance operates with

the maximum refrigerating capacity.

In case of a small amount of food to be frozen:

wait about 6 h.

Place the fresh food in the top drawers.

In case of the maximum amount of food to be frozen (see

type plate):

wait about 24 h.

Place food in the drawers.

SuperFrost is automatically deactivated after about 65 h.

The SuperFrost button is dark.

The appliance continues to operate in the energy-saving,

normal mode.

Fig. 3 (7)

Page 10

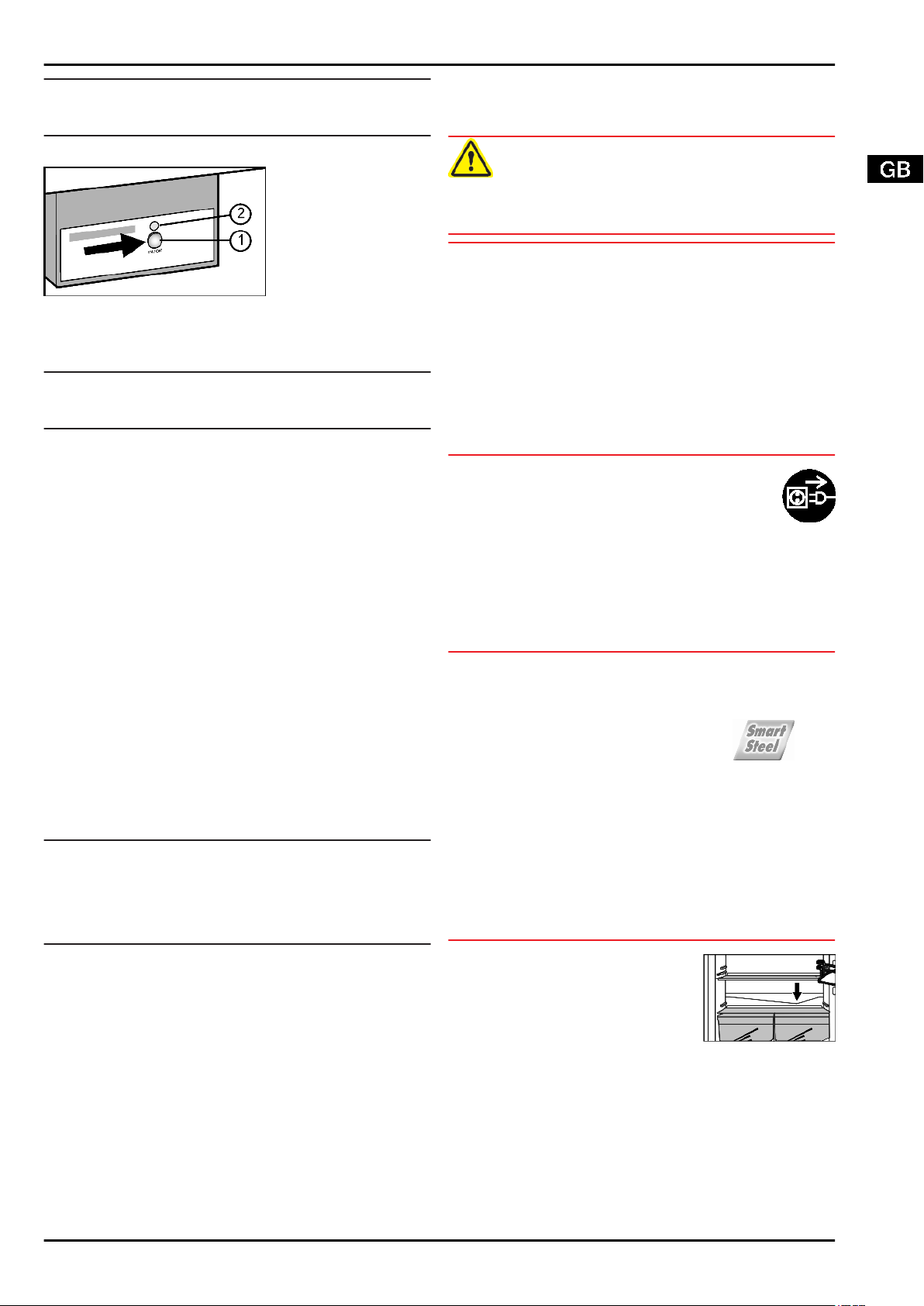

Control

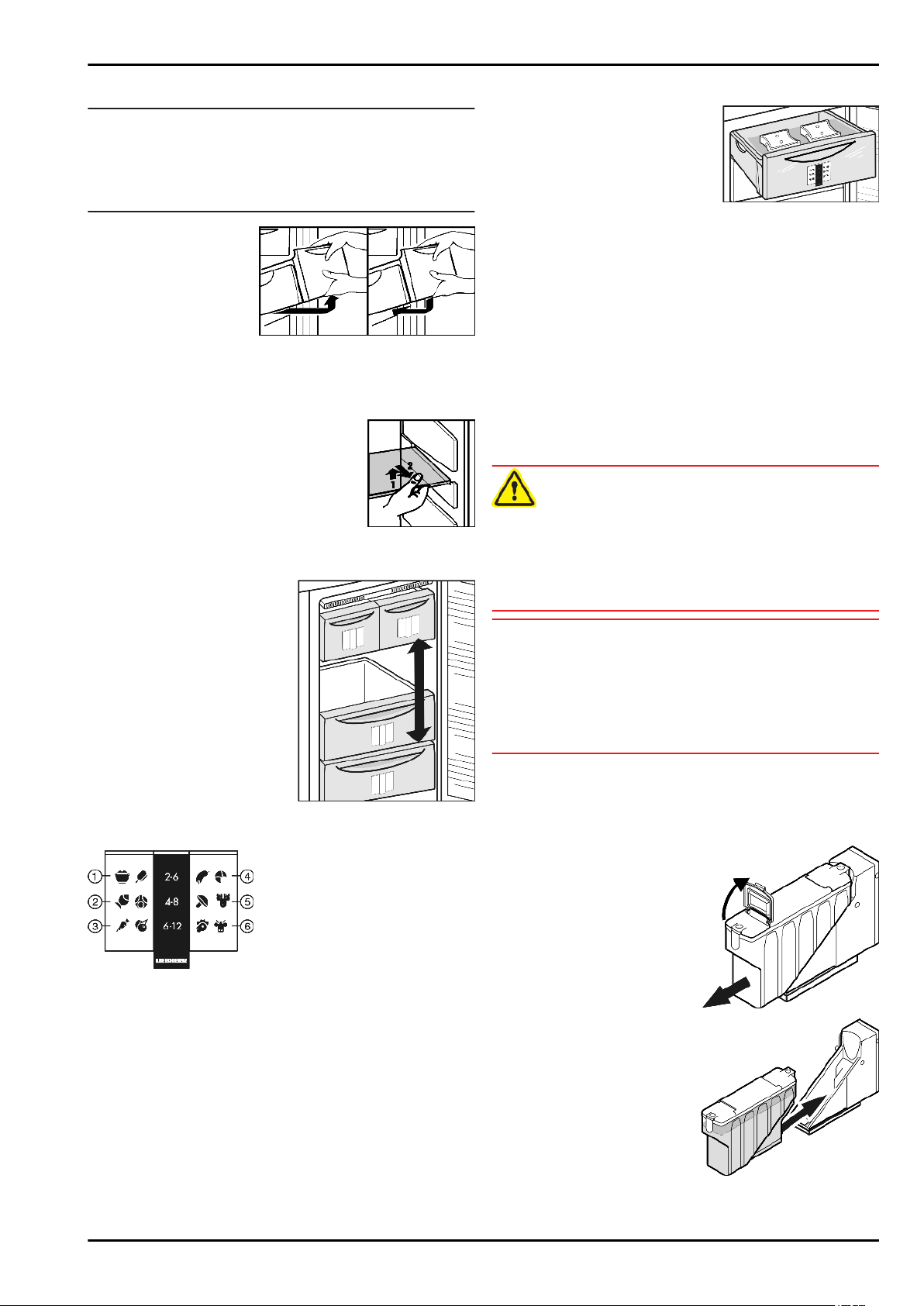

5.4.5 Drawers

Note

The energy consumption increases and the cooling performance decreases if there is insufficient ventilation. For appliances with NoFrost:

Leave the bottom drawer in the appliance!

Always keep the air slits of the fan free at the rear wall!

To store frozen food directly on the shelves: pull the drawer

forwards and lift it out.

5.4.6 Shelves

To remove the shelf: lift up at the front

and pull out. To put the shelf back: simply push in as

far as it will go.

5.4.7 VarioSpace*

Apart from being able to remove the drawers, you can also remove the shelves, creating space for large items of frozen food. Poultry, meat, large pieces of game and high bakery products can be frozen in one piece and prepared.

The maximum load of frozen

food for the drawers is 25 kg each and for the shelves 35 kg each.

5.4.8 Information system*

Using cold storage accumulators*

Place the cold storage accumula-

tors in the top freezer compartment to save space. Place the frozen cold storage

accumulators on the frozen food in the upper front area of the freezer compartment.

5.4.10 IceMaker*

The IceMaker and the water reservoir situated in the refrigerator compartment can be used to produce ice cubes or to provide chilled drinking water.

The IceMaker is in the top drawer of the freezer compartment. The drawer is marked "IceMaker".

Make certain that the following conditions are met:

The appliance is level.

The appliance is connected.

The freezer compartment is switched on.

The water tank was cleaned with water and is filled.

Filling the water tank*

Risk of poisoning!

NOTICE

Risk of damage to the IceMaker! Liquids containing sugar, such as soft drinks, fruit juices or similar, gum up the pump and therefore lead to total pump failure and, as a consequence, to damage to the IceMaker.

The IceMaker is supplied with water from a water tank in the refrigerator compartment (see Appliance at a glance).

u u

WARNING

The water quality has to comply with the drinking water ordinance of the respective country (e.g. 98/8 The IceMaker serves exclusively for making ice cubes in household quantities and has to be operated with water suitable for the purpose.

Fill the water reservoir with drinking water only! Do not use any liquids containing sugar, such as soft drinks, fruit juices or similar!

Before initial operation: clean the water tank thoroughly with water to remove any dust etc. Pull the water tank forwards. Open the front flap and fill the tank with water.

Fig. 11

(1) Ready-made meals, ice

cream

(2) Pork, fish (5) Game, mushrooms (3) Fruit, vegetables (6) Poultry, beef/veal

The figures indicate the storage time in months for several types of frozen food in each case. Storage times given are guide times.

(4) Sausages, bread

5.4.9 Cold storage accumulators*

The cold storage accumulators prevent the temperature from rising too fast in the event of power failure.

Place the filled water tank in

the holder and slide it all the way back.

Page 11

Maintenance

Note

The water reservoir has to be slid all the way into the bracket

provided for the purpose in the refrigerator compartment!

Switching on the IceMaker*

Fig. 12

Pull out the drawer.

Press the On/Off button

Fig. 12 (2)

Push in the drawer.

Note

The IceMaker produces ice cubes only if the drawer is fully

closed.

Switching off the IceMaker*

If no ice cubes are needed, the IceMaker can be switched off independently of the freezer compartment.

When the IceMaker is switched off, the IceMaker drawer can also be used for freezing and storing food.

Press the On/Off button for about 1 second until the LED

goes out. Clean the IceMaker.

This ensures that no water or ice remains in the IceMaker.

Producing ice cubes*

The production capacity depends on the freezer temperature. The lower the temperature, the more ice cubes can be produced in a specific period.

The ice cubes drop from the IceMaker into the drawer. When a certain filling level has been reached, no further ice cubes are produced. The IceMaker does not fill the drawer right up to the brim.

If large quantities of ice cubes are needed, the complete IceMaker drawer can be exchanged for the adjacent drawer. When the drawer is closed, the IceMaker automatically recommences production.

Once the IceMaker has been switched on for the first time, it may take up to 24 hours until the first ice cubes are produced.

Note

When the appliance is used for the first time and if it has been out of use for a long time, particles may collect in the IceMaker and/or water conduit.

Therefore do not use or consume the ice cubes made in the

first 24 hours.

shines.

Fig. 12 (1)

so that the LED

6 Maintenance

6.2 Cleaning the appliance

Before cleaning:

Risk of injury and damage as a result of hot steam! Hot steam may damage the surfaces and cause burns.

NOTICE

Incorrect cleaning damages the appliance!

u u u

u u

- Use soft cleaning cloths and a multi-purpose

- Only use food compatible cleaning and care

u w

Outside surfaces and interior:

NOTICE*

The stainless steel doors are provided with a high-quality surface coating and must not be treated using the accompanying care product.

Otherwise the surface coating will be affected.

CAUTION

Do not use any steam cleaners!

Do not use cleaning agents in concentrated form.

Do not use any scouring or abrasive sponges or steel wool.

Do not use any cleaning agents containing sand, chloride,

chemicals or acid.

Do not use chemical solvents.

Do not damage or remove the type plate on the inside of the

appliance. It is important for the customer service.

Do not pull off, bend or damage cables or other compo-

nents.

Do not allow any cleaning water to enter the drain channel,

ventilation grille or electrical parts.

Empty the appliance.

Pull out the plug.

cleaning agent with neutral pH value.

agents on the inside of the appliance.

Regularly clean ventilation grilles.

Dust deposits increase energy consumption.

Clean the plastic surfaces, outside and inside, by hand

using lukewarm water and a little washing-up liquid.

Wipe the coated door surfaces using a soft, clean cloth

only. In case of stubborn dirt, use a little water or a neutral

cleaning agent. A microfibre cloth can be optionally used.

If the stainless steel side walls are dirty, clean them using

a commercially available stainless steel cleaning agent.

Then evenly apply the accompanying stainless steel care

product, making strokes in the direction of the grain.

Wipe side walls with a paint finish using a soft, clean

cloth only. In case of stubborn dirt, use a little water or a

neutral cleaning agent. A microfibre cloth can be optionally

used.

To clean the drain opening: remove

any deposits with a fine instrument,

e.g. a cotton bud.

6.1 Defrosting with NoFrost

The NoFrost system automatically defrosts the appliance.

Refrigerator compartment:

The defrost water evaporates due to the compressor heat. Drops of water on the rear wall are perfectly normal.

Regularly clean the drain opening to allow the water to flow

away (see 6.2) .

Freezer compartment:

The moisture condenses on the evaporator, is periodically defrosted and evaporates.

The appliance does not have to be manually defrosted.

Items of equipment:

Clean items of equipment by hand with lukewarm water and

a little washing-up liquid.

For cleaning, remove the support rails for the half-sized

glass shelves.

Page 12

Malfunction

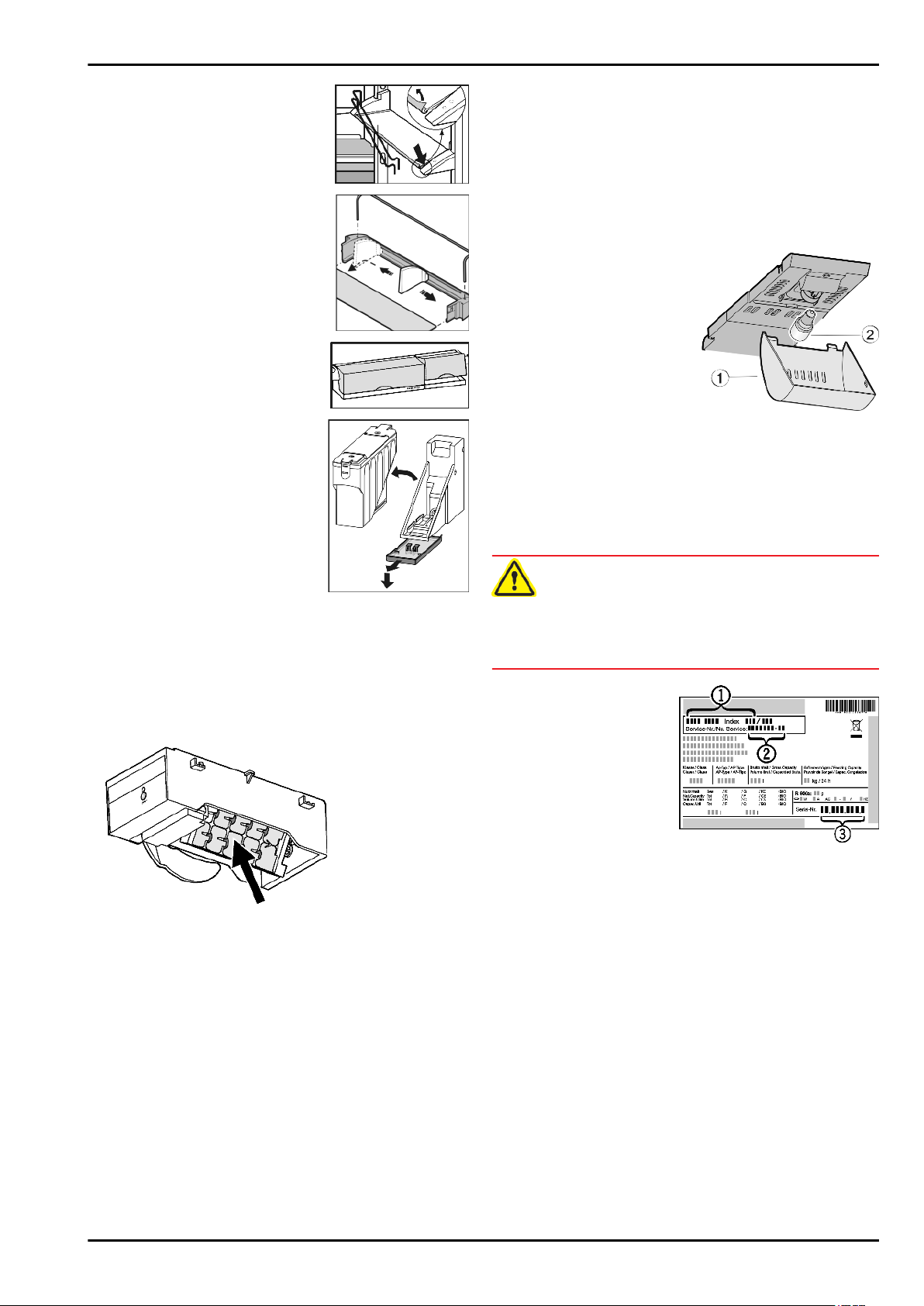

To dismantle the shelves: remove

the trims and side parts.* To dismantle the storage rack:

remove the protective film from the decorative trims.*

Lift out the boxes and lift the covers

for removal.*

To empty the water collecting tray:

Remove the water tank. Carefully disengage the tray forwards and then lower for removal.*

throw away the first three loads of ice cubes to get rid of any

remaining washing-up liquid.

6.4 Changing the interior light with bulb

Bulb data

max. 25 W Fitting: E14 Type of current and voltage must conform with the details on the type plate

Switch off the appliance.

Pull out the power plug or

switch off the fuse. Take holder of the cover

Fig. 14 (1)

and unhook it at the back. Change the bulb

Fig. 14 (2)

Put the cover

back in place.

at the front

Fig. 14 (1)

6.5 Customer service

First check whether you can correct the fault yourself by reference to the list (see Malfunction). If this is not the case, please contact the customer service whose address is given in the enclosed customer service list.

Fig. 14

After cleaning:

Wipe dry the appliance and items of equipment.

Connect the appliance and switch it on again.

Switch on SuperFrost (see 5.4.4) .

When the temperature is sufficiently cold: Put the food back inside.

6.3 Cleaning the IceMaker*

Fig. 13

The IceMaker has to be switched on.

Pull out the drawer and remove the ice cubes.

Clean the drawer with warm water and mild washing-up

liquid. When the drawer is pulled out, hold down the On/Off button

(about 10 seconds). After about 1 s the LED goes out, the IceMaker is switched

off. After about 10 s the LED flashes for about 60 s.

Slide in the drawer while the LED is flashing.

The ice-cube tray of the IceMaker turns to a skew position.

Remove the drawer.

Clean the ice cube tray with warm water. If necessary, use

mild washing-up liquid. Then rinse. Switch the IceMaker on again. Press the ON/OFF button until the LED shines, then slide in

the drawer. The IceMaker starts producing ice cubes.

If washing-up liquid was used:

Risk of injury if repair work is not carried out professionally!

w u

WARNING

Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see Maintenance)

Read the appliance designation

Fig. 15 (1)

No.

Fig. 15 (2)

serial No. off the type plate located inside the appliance on the lefthand side.

Notify the customer service, specifying the fault, appliance designation

Fig. 15 (3)

This will help us to provide you with a faster and more accurate service. Keep the appliance closed until the customer service arrives. The food will stay cool longer. Pull out the mains plug (not by pulling the connecting cable) or switch off the fuse.

, service

and

Fig. 15 (3)

Fig. 15 (1)

, service No.

Fig. 15 (2)

and serial No.

7 Malfunction

Your appliance is designed and manufactured for a long life span and reliable operation. If a malfunction nonetheless occurs during operation, check whether it is due to a handling error. In this case you will have to be charged for the costs incurred, even during the warranty period. You may be able to rectify the following faults yourself:

Appliance does not work.

The appliance is not switched on.

→

Fig. 15

Page 13

Decommissioning

Switch on the appliance.

The power plug is not properly inserted in the wall socket.

→

Check power plug.

The fuse of the wall socket is not in order.

→

Check fuse.

The compressor runs for a long time.

The compressor switches to a low speed when little cold is

→

needed. Although the running time is increased as a result, energy is saved. This is normal in energy-saving models.

SuperFrost is activated.

→

The compressor runs for longer in order to rapidly cool the

food. This is normal.

Excessive noise.

Speed-controlled* compressors may produce varying

→

running noise due to different speed steps. The sound is normal.

A bubbling and gurgling noise.

This noise comes from the refrigerant flowing in the refriger-

→

ation circuit. The sound is normal.

A quiet clicking noise.

The noise is produced whenever the refrigeration unit

→

(motor) automatically switches on or off. The sound is normal.

A hum. It is briefly a little louder when the refrigeration unit (the motor) switches on.

The refrigeration increases automatically when the Super-

→

Frost, function is activated, fresh food has just been placed in the appliance or the door has been left open for a while. The sound is normal.

The ambient temperature is too high.

→

Solution: (see 1.2)

A low hum.

The sound is produced by air flow noise of the fan.

→

The sound is normal.

Vibratory noise.

The appliance is not standing firmly on the floor. As a result,

→

adjoining units or objects are set into vibration by the running refrigeration unit.

Move the appliance away a little and align it using the

adjustable feet. Move bottles and containers apart.

Hum of the water tank pump.*

When water is pumped out of the water reservoir, a brief

→

hum of the pump can be heard. The sound is normal.

The SuperFrost button flashes together with the temperature display.

There is a fault.

→

Contact the customer service. (see Maintenance).

The IceMaker cannot be switched on. *

The appliance and therefore the IceMaker are not

→

connected. Connect the appliance. (see Putting into operation).

The IceMaker does not make any ice cubes.*

The IceMaker is not switched on.

→

Switch on the IceMaker.

The drawer of the IceMaker is not properly closed.

→

Close the drawer properly.

The water tank is not correctly inserted.

→

Insert the water tank.

There is not enough water in the water tank.

→

Fill the water tank.

The LED of the IceMaker flashes.*

There is not enough water in the water tank.

→

Fill the water tank.

If the LED flashes and the water tank is full, the IceMaker is

→

defective. Contact the customer service. (see Maintenance).

The temperature is not cold enough.

The door of the appliance is not properly closed.

→

Close the door of the appliance.

Insufficient ventilation.

→

Clear ventilation grilles.

The ambient temperature is too high.

→

Solution: (see 1.2) .

The appliance was opened too frequently or for too long.

→

Wait until the appliance reaches the required temperature

itself. If not, contact the customer service. (see Maintenance). Too much fresh food was placed inside without SuperFrost.

→

Solution: (see 5.4.4)

The appliance is too close to a heat source.

→

Solution: (see Putting into operation).

The interior light is not on.

The appliance is not switched on.

→

Switch on the appliance.

The door was open longer than 15 min.

→

The interior light automatically switches off if the door has

been open for about 15 min. If the interior light is not on but the temperature display is lit,

→

the bulb is faulty. Change the bulb. (see Maintenance).

8 Decommissioning

8.1 Switching off the appliance

Note

To switch on the entire appliance it is necessary only to

switch off the freezer compartment. In so doing, the refriger-

ator compartment is automatically switched off as well.

8.1.1 Switching off the freezer compartment

Press ON/OFF button, freezer compartment

least 3 seconds.

The temperature displays are dark. The entire appliance is

switched off.

8.1.2 Switching off the refrigerator compartment

Press ON/OFF button, refrigerator compartment

for at least 3 seconds.

The interior light is off.

The temperature display of the refrigerator compartment is

dark.

Note

If only the refrigerator compartment is to be switched off, e.g

during holidays, then always pay attention: the freezer

compartment temperature display has to shine.

8.2 Taking the appliance out of service

Empty the appliance.

Put the IceMaker in the cleaning position (see Mainte-

nance).

Fig. 3 (9)

Fig. 3 (1)

for at

Page 14

Disposing of the appliance

Pull out the power plug.

Clean the appliance (see 6.2) .

Leave the door open to prevent odour.

9 Disposing of the appliance

The appliance contains some reusable materials and should be disposed of properly - not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

When disposing of the appliance, ensure that the refrigeration circuit is not damaged to prevent uncontrolled escape of the refrigerant it contains (data on type plate) and oil.

Disable the appliance.

Pull out the plug.

Cut through the connecting cable.
