Page 1

Operating instructions

Combined fridge-freezer

090913

7081881 - 02

CN(sl)3033 ... 3

Page 2

Appliance at a glance

Contents

1 Appliance at a glance............................................ 2

1.1 Overview of the appliance and equipment................ 2

1.2 Range of appliance use............................................ 2

1.3 Conformity................................................................ 3

1.4 External dimensions of the appliance....................... 3

1.5 Saving energy.......................................................... 3

2 General safety information................................... 3

3 Controls and displays........................................... 4

3.1 Operating and control elements............................... 4

3.2 Temperature display................................................. 4

4 Putting into operation............................................ 4

4.1 Transporting the appliance....................................... 4

4.2 Installing the appliance............................................. 4

4.3 Changing the door stop............................................ 5

4.4 Insertion into a row of kitchen units........................... 6

4.5 Disposing of packaging............................................ 6

4.6 Connecting the appliance......................................... 7

4.7 Switching on the appliance....................................... 7

5 Control.................................................................... 7

5.1 Door alarm................................................................ 7

5.3 Refrigerator compartment........................................ 7

5.4 Freezer compartment............................................... 8

6 Maintenance........................................................... 10

6.1 Defrosting with NoFrost............................................ 10

6.2 Cleaning the appliance............................................. 10

6.3 Replacing the interior light........................................ 10

6.4 Customer service..................................................... 10

7 Malfunction............................................................. 11

8 Decommissioning.................................................. 11

8.1 Switching off the appliance....................................... 11

8.2 Taking the appliance out of service.......................... 12

9 Disposing of the appliance................................... 12

The manufacturer works constantly on the further development of all the types and models. Therefore please understand that we have to reserve the right to make design, equipment and technical modifications.

To get to know all the benefits of your new appliance, please read the information contained in these instructions carefully.

The instructions apply to several models. Differences may occur. Text relating only to specific appliances is marked with an asterisk (*).

Instructions for action are marked with a , the results of action are marked with a .

1 Appliance at a glance

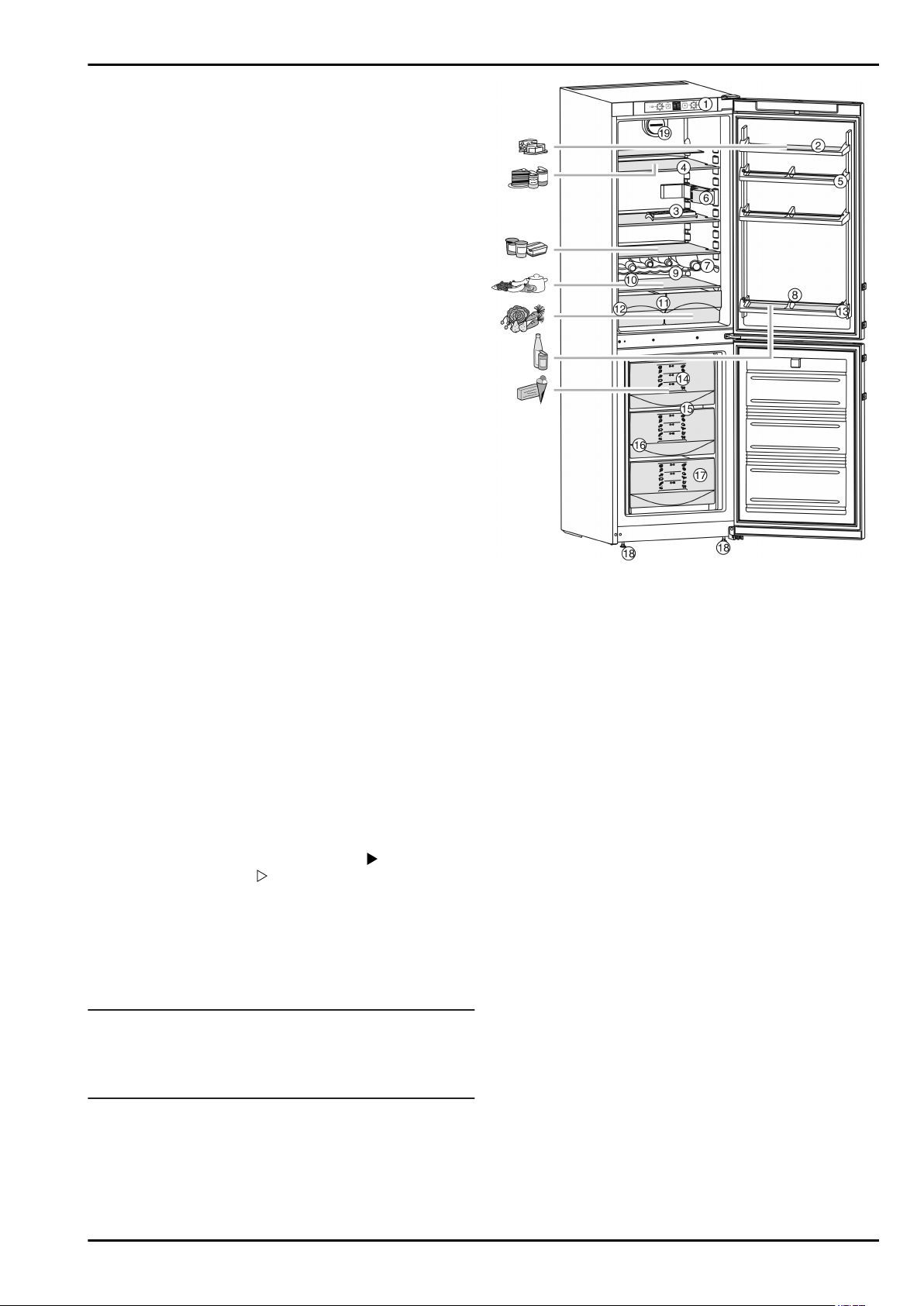

1.1 Overview of the appliance and equipment

Note

Place food inside the appliance as shown in the diagram.

This allows the appliance to save energy during operation. Shelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

Fig. 1

(1) Operating controls (11) Vegetable bins (2) Butter shelf (12) Type plate (3) Egg tray (13) Bottle shelf (4) Shelves, adjustable (14) InfoSystem (5) Door rack, adjustable (15) VarioSpace (6) Interior light (16) Freezer drawer (7) Bottle rack (17) Ice cube tray (8) Adjustable bottle and jar

shelf

(9) Defrost water drain (19) Fan

(10) Coldest area

(18) Adjustable feet at the

front, castors for transport at the rear

1.2 Range of appliance use

The appliance is suitable solely for cooling food in a domestic environment or similar. This includes use in, for example

in staff kitchenettes, bed and breakfast establishments,

by guests in country homes, hotels, motels and other forms of accommodation,

in catering and similar services in the wholesale trade

Use the appliance solely as is customary within a domestic environment. All other types of use are inadmissible. The appliance is not suitable for storing and cooling medicines, blood plasma, laboratory preparations or similar substances and products covered by the 2007/47/EC Medical Devices Directive. Misuse of the appliance can result in the stored products suffering harm or perishing. Furthermore,

2 * Depending on model and options

Page 3

the appliance is not suitable for operation in potentially explosive atmospheres.

The appliance is set to operate within specific ambient temperature limits according to its climate rating. The correct climate rating for your appliance is indicated on the type plate.

Note

Compliance with the ambient temperatures

indicated is required, otherwise the cooling performance is reduced.

Climate rating

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

for ambient temperatures of

General safety information

Do not place appliance in areas of direct sunlight or next to a

stove, heater or similar object. The energy consumption depends on the installation condi-

tions, e.g. the ambient temperature (see 1.2) . Keep the time the appliance is open to a minimum.

The lower the temperature setting, the higher the power

consumption. Store food logically. (see Appliance at a glance).

Ensure that all food is well packed and covered for storage.

This will prevent frost from forming. Remove food as needed in order that it does not warm too

much. First cool warm food to room temperature before storing it .

Defrost frozen food in the refrigerator.

Empty and switch off refrigerating unit for longer vacation

periods. Accumulated dust increases the energy consumption:

Once a year, dust the refrigerating unit

together with the metal grille of the heat

exchanger at the back of the appliance.

1.3 Conformity

The refrigerant circuit is tested for leakage. The appliance complies with the relevant safety regulations and EC Directives 2006/95/EC, 2004/108/EC, 2009/125/EC and 2010/30/EU.

Note for test institutions:

Tests are to be carried out according to the applicable standards and guidelines. Preparation and testing of the appliances must be carried out taking the manufacturer's loading plans and the

notes in the operating manual into account.

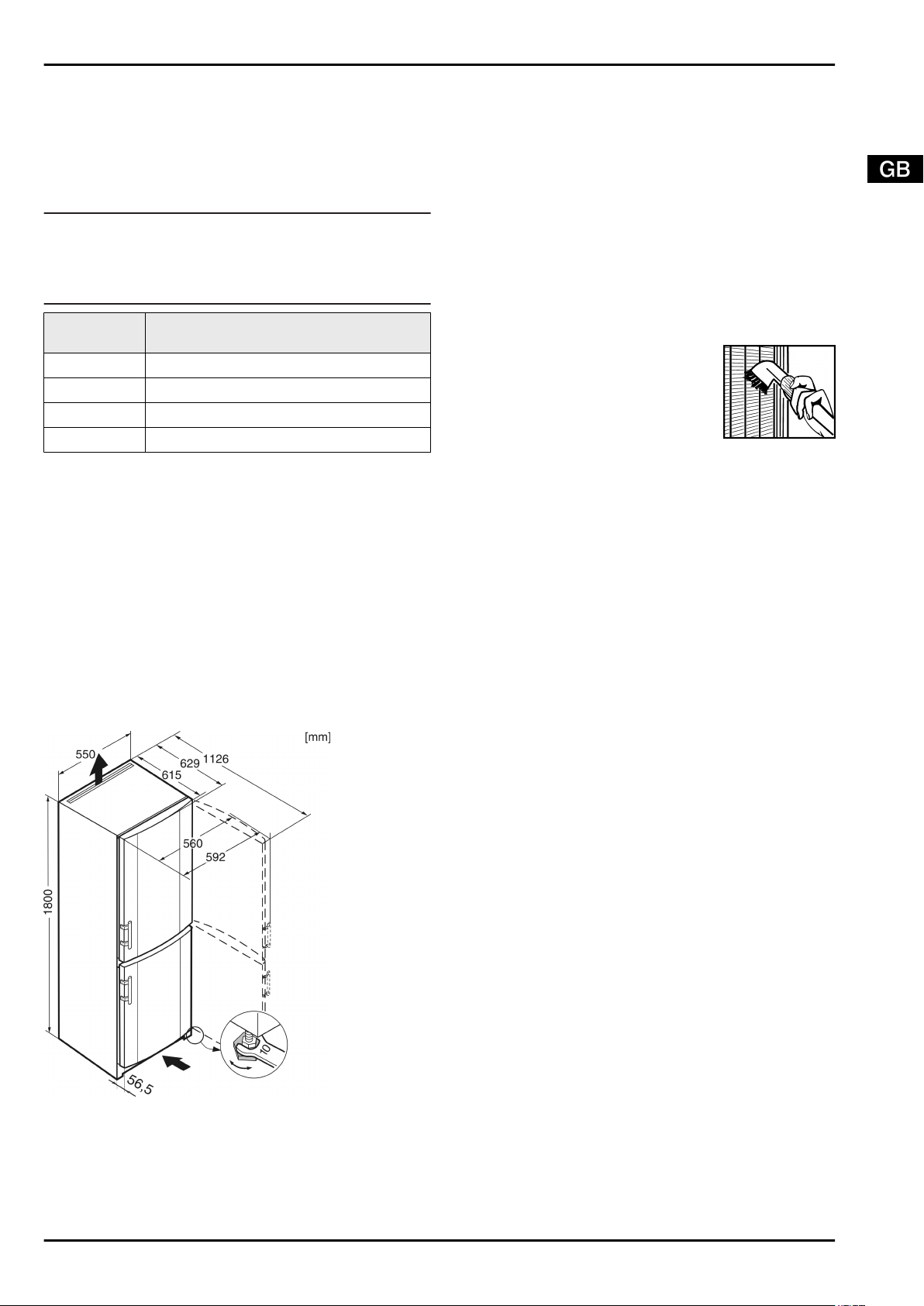

1.4 External dimensions of the appliance

Fig. 2

1.5 Saving energy

Always ensure good ventilation. Do not cover ventilation

openings or grille. Always keep fan louvres clear.

2 General safety information

Danger for the user:

This appliance can be used by children of 8

years old and over, and also by persons with

restricted physical, sensory or mental

capacity or lack of experience and knowl-

edge, if they are supervised or have been

instructed on safe use of the appliance and

understand the resulting risks. Children must

not be allowed to play with the appliance.

Cleaning and user maintenance must not be

carried out by children without supervision.

When disconnecting the appliance from the

supply, always take hold of the plug. Do not

pull the cable.

In the event of a fault pull out the mains plug

or deactivate the fuse.

Do not damage the mains power cable. Do

not operate the appliance with a defective

mains power cable.

Have any repairs to or intervention in the

appliance, and any change of the mains

power cable, carried out by the customer

service only or by other specialised personnel

trained for the purpose.

Only assemble, connect and dispose of the

appliance according to the instructions.

Please keep these instructions in a safe place

and pass them on to any subsequent owners.

Special-purpose lamps (incandescent lamps,

LEDs, fluorescent tubes) in the appliance

serve to illuminate the appliance interior and

are not suited for room illumination.

Fire hazard:

* Depending on model and options 3

Page 4

Controls and displays

The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.

•

Do not damage the refrigerant circuit pipes.

•

Do not allow naked flames or ignition sources to enter the appliance.

•

Do not use any electrical appliances in the interior (e.g. steam cleaners, heaters, ice cream maker etc.).

•

If refrigerant escapes: remove any naked flames or sources of ignition from the leakage area. Ventilate the room well. Notify the after-sales service.

Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.

Keep burning candles, lamps and other items with naked flames away from the appliance so that they do not set the appliance on fire.

Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components.

Danger of tipping and falling:

Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.

Danger of food poisoning:

Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

Avoid lasting skin contact with cold surfaces or refrigerated/frozen food or take protective steps, e.g. wear gloves. Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Danger of injury and damage:

Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment, open flames or defrosting sprays to defrost.

Do not use sharp implements to remove the ice.

Please observe the specific information in the other sections:

DANGER identifies a situation involving direct

danger which, if not obviated, may result in death or severe bodily injury.

WARNING identifies a dangerous situation

which, if not obviated, may result in death or severe bodily injury.

CAUTION identifies a dangerous situation

which, if not obviated, may result in minor or medium bodily injury.

NOTICE identifies a dangerous situation

which, if not obviated, may result in damage to property.

Note identifies useful information and tips.

3 Controls and displays

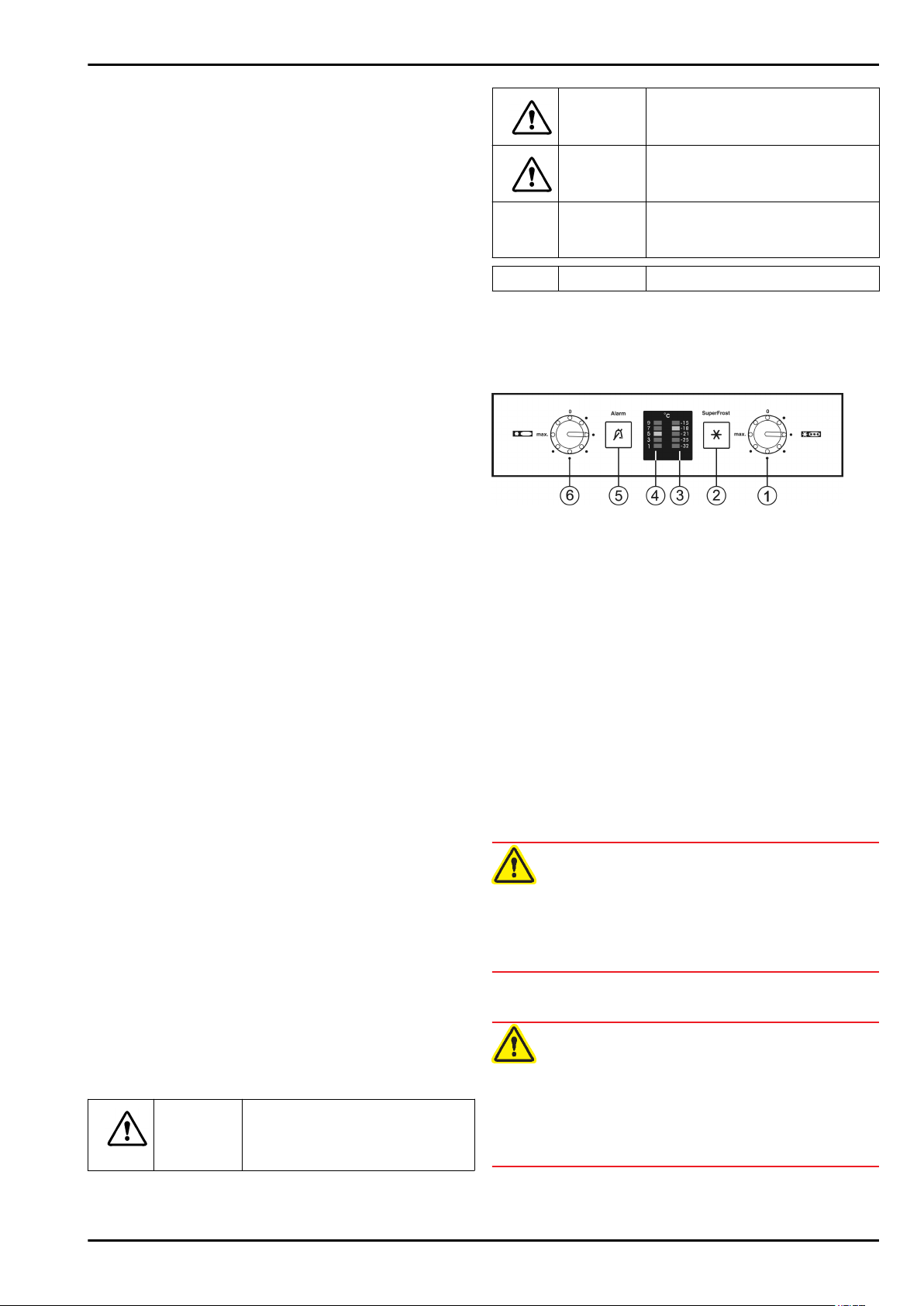

3.1 Operating and control elements

Fig. 3

(1) Temperature controller,

freezer section

(2) SuperFrost button (5) Alarm button (3) Temperature display,

freezer section

(4) Temperature display,

fridge section

(6) Temperature controller,

fridge section

3.2 Temperature display

The following are displayed in normal operation:

the set cooling temperature

The temperature display flashes:

the temperature setting is being changed

4 Putting into operation

4.1 Transporting the appliance

CAUTION

Risk of injury and danger of damage as a result of incorrect transport!

Transport the appliance in a packed condition.

Transport the appliance upright.

Do not transport the appliance without assistance.

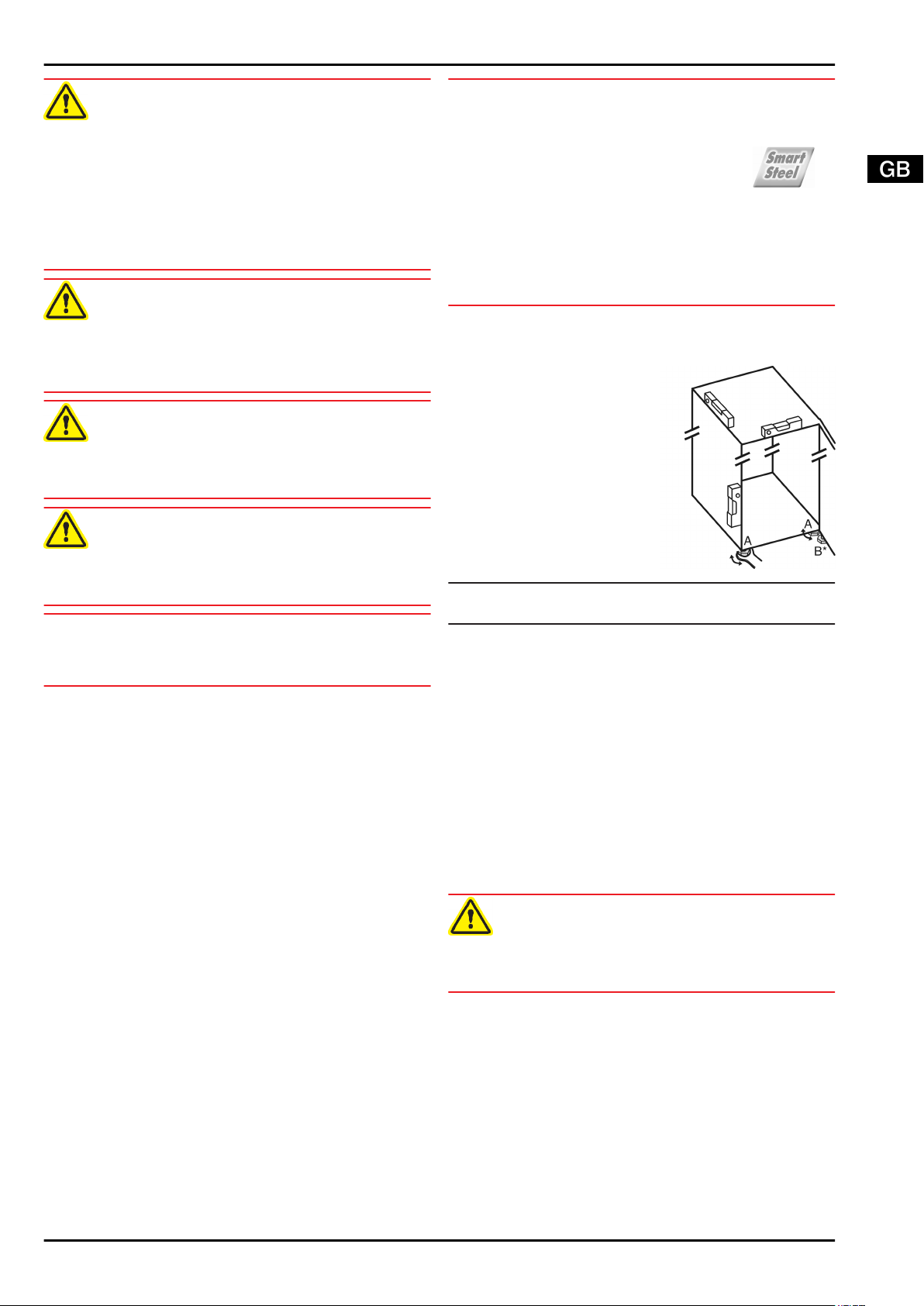

4.2 Installing the appliance

WARNING

Fire hazard due to dampness! If live parts or the mains lead become damp this may cause short circuits.

The appliance is designed for use in enclosed areas. Do not

operate the appliance outdoors or in areas where it is exposed to splash water or damp conditions.

4 * Depending on model and options

Page 5

Risk of fire due to short circuit! If the mains cable/connector of the appliance or of another appliance touch the rear of the appliance, the mains cable/ connector may be damaged by the appliance vibrations, leading to a short circuit.

Fire hazard due to refrigerant! The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.

Fire hazard and danger of damage!

WARNING

Stand the appliance so that it is not touched by connectors or main cables. Do not plug the appliance or any others into sockets located near the rear of the appliance.

WARNING

Do not damage the piping of the refrigeration circuit.

WARNING

Do not place appliances emitting heat e.g. microwaves, toasters etc. on the appliance!

Putting into operation

NOTICE

The stainless steel doors are finished with a high quality surface coating and must not be treated with the enclosed care product,

as otherwise the surface coating will be damaged.

Please only use a soft clean cloth to wipe the coated door

surfaces.

Only use a stainless steel care product on the stainless

steel side walls, applying it evenly in the direction of

polishing. Subsequent cleaning will then be easier.

Use only a soft clean cloth to wipe side walls and door

surfaces with a paint finish.

Remove the protective film from the decorative trims.

Remove all transit supports.

Dispose of packaging material (see 4.5) .

Align the appliance so that it

stands firmly and on a level by

applying the accompanying

spanner to the adjustable-

height feet (A) and using a

spirit level.

Blocked ventilation openings pose a risk of fire and damage!

NOTICE

Risk of damage due to condensate!

q q

q q q q

WARNING

Always keep the ventilation openings clear. Always ensure that the appliance is properly ventilated!

Do not install the appliance directly alongside a further refrigerator/freezer.

In the event that the appliance is damaged, contact the supplier immediately before connecting to the mains. The floor at the site must be flat and level.

Do not install the appliance in a location where it is exposed to direct radiation of the sun, next to a cooker, heater and similar. Always stand the appliance with its back directly to the wall.

The appliance may be moved only when it is empty. Do not install the appliance without assistance. Standard EN 378 specifies that the room in which you install

your appliance must have a volume of 1 m2 per 8 g of R 600a refrigerant used in the appliance. If the room in which the appliance is installed is too small, a flammable gas-air mixture may form in the event of a leakage in the refrigeration circuit. The quantity of refrigerant used in your appliance is indicated on the type plate on the inside of the appliance.

Detach the connecting cable from the rear of the appliance, removing the cable holder at the same time because otherwise there will be vibratory noise!

Note

Clean the appliance (see 6.2) .

If the appliance is installed in a very damp environment, condensate may form on the outside of the appliance.

Always see to good ventilation at the installation site.

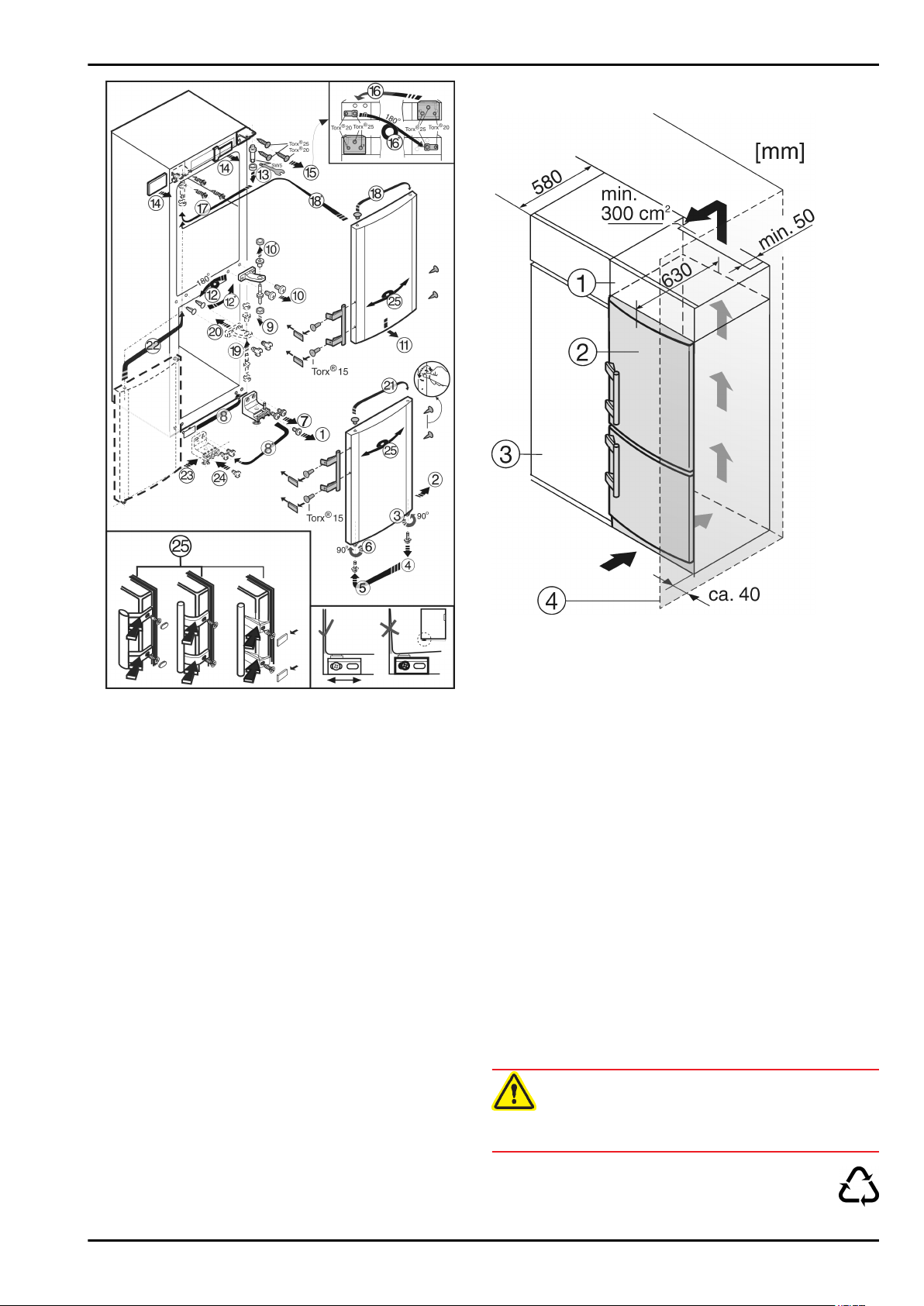

4.3 Changing the door stop

You can change over the door hinges if necessary.

Make sure that the following tools are to hand:

Torx® 25

Torx® 20

Torx® 15

Screwdriver

Supplied open-ended wrench

If necessary, a second person to assist with installation.

CAUTION

Risk of injury if the door tips!

Take good hold of the door.

Set down the door carefully.

* Depending on model and options 5

Page 6

Putting into operation

4.4 Insertion into a row of kitchen units

Fig. 4

Follow the order of the positions.

Fig. 5

(1) Stack cabinet (3) Kitchen cabinet (2) Appliance (4) Wall

The appliance can be inserted into a row of kitchen units. To match the appliance a suitable stack cabinet ance.

When inserting the appliance into a row of kitchen units (max. depth 580 mm), the appliance can be installed directly next to the kitchen unit to the front of the kitchen unit by 34 mm at the side and by 50 mm in the middle of the appliance. It can be opened and closed perfectly as a result.

Important for the ventilation:

At the back of the stack cabinet there has to be a ventilation

duct of at least 50 mm depth throughout the width of the stack cabinet. The ventilation space under the ceiling has to be at least

300 cm2. the larger the ventilation space, the more energy-saving the

appliance is in operation.

If the appliance is installed with the hinges next to a wall

Fig. 5 (4)

least 40 mm. This corresponds to the projection of the handle when the door is open.

, the distance between appliance and wall has to be at

Fig. 5 (2)

Fig. 5 (3)

to the height of the row of units,

Fig. 5 (1)

. The appliance door projects relative

can be fitted above the appli-

4.5 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic film!

Do not allow children to play with packing material.

The packaging is made of recyclable materials:

corrugated board/cardboard

expanded polystyrene parts

6 * Depending on model and options

Page 7

polythene bags and sheets

polypropylene straps

nailed wooden frame with polyethylene panel*

Take the packaging material to an official collecting point.

4.6 Connecting the appliance

Control

5.2.1 Temperature alarm

The audible alarm sounds if the freezer temperature is not cold enough.

The alarm button flashes at the same time.

NOTICE

Risk of damage to the electronic control system!

Do not use stand-alone inverters (conversion of d.c. to a.c./

three-phase) or energy saving plugs.

Fire and overheating hazard!

The type of current (alternating current) and voltage at the installation site have to conform with the data on the type plate (see Appliance at a glance).

The socket must be properly earthed and fused. The tripping current for the fuse must be between 10 A and 16 A.

The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.

u u

WARNING

Do not use extension cables or multiple socket outlets.

Check the electrical connection. Plug in the power plug.

4.7 Switching on the appliance

Put the appliance into operation about 4 hours before first loading food to be frozen.

Do not load food to be frozen before the alarm button goes out.

Turn the temperature control of the freezer compartment

Fig. 3 (1)

Turn the temperature control of the refrigerator compartment

Fig. 3 (6)

The temperature displays light up.

The interior light goes on.

The alarm button

to the right with a coin.

Fig. 3 (5)

lights up.

5 Control

5.1 Door alarm

For refrigerator and freezer compartment If the door is open for longer than 60 seconds, the audible warning will sound.

The audible alarm is automatically silenced when the door is closed.

5.1.1 Muting the door alarm

The audible alarm can be muted when the door is open. The sound switch-off function is active as long as the door is left open.

Press alarm button

The door alarm is silenced.

Fig. 3 (5)

The cause of the temperature being too high may be:

warm fresh food was placed inside

too much warm ambient air flowed in when rearranging and

removing food

power failure for some time

the appliance is faulty

The audible alarm is automatically silenced, the alarm button

Fig. 3 (5)

when the temperature is sufficiently cold again. If the alarm status persists: (see Malfunction).

Note

Food may be spoilt if the temperature is not cold enough.

goes out and the temperature display stops flashing

Check the quality of the food. Do not consume spoiled food.

5.2.1 Muting the temperature alarm

The audible alarm can be muted. When the temperature is sufficiently cold again, the alarm function is active again.

Press alarm button

The audible alarm is silenced.

Fig. 3 (5)

5.3 Refrigerator compartment

The natural circulation of air in the refrigerator compartment results in zones differing in temperature. It is coldest directly above the vegetable drawers and at the rear wall. It is warmest at the top front of the compartment and in the door.

5.3.1 Food refrigeration

Note

The energy consumption increases and the cooling performance decreases if the ventilation is inadequate.

Always keep the air slits of the fan free.

Store perishable food such as ready-to-serve dishes, meat

products and sausages in the coldest zone. Place butter

and preserves in the upper area and in the door (see Appli-

ance at a glance).

Use recyclable plastic, metal, aluminium and glass

containers and cling film for wrapping.

Always store liquids and food which is subject to odour or

taste transfer in closed containers or cover them.

Foods which give off a large amount of ethylene gas and

delicate foods, such as fruit, vegetables, salad, should

always be stored separately or wrapped so as not to reduce

the storage life; e.g. do not store tomatoes together with

kiwis or cabbage.

Do not store food too close together to enable good air

circulation.

To safeguard bottles from tipping over: move the bottle

holder.

5.3.2 Setting the temperature

The temperature can be set between the first point (warmest temperature, lowest refrigerating capacity) and max. (coldest temperature, highest refrigerating capacity).

The recommended temperature is 5 °C i.e. a medium control setting.

Turn the temperature control of the refrigerator compartment

Fig. 3 (6)

the temperature display.

with a coin until the temperature wanted flashes in

* Depending on model and options 7

Page 8

Control

The temperature can be set slightly colder within a temperature range, e.g. 5 °C to 7 °C, or between two points of the control.

If required, slowly turn the temperature control further.

The lit bar of the temperature range e.g. 5 °C to 7 °C flashes

briefly. The temperature within the temperature range was set colder.

The temperature is dependent on the following factors:

- the frequency of door opening

- the room temperature of the installation site

- the type, temperature and quantity of frozen food In case of need, adjust the temperature with the control.

5.3.3 Fan

With the fan you can rapidly cool large quantities of fresh food or achieve a relatively even distribution of temperature across all the storage levels.

The forced-air cooling is to be recommended:

at high room temperature (above33 °C )

at high humidity

The forced-air cooling uses slightly more energy. To save energy, the fan switches off automatically when the door is open.

Using the fan

To switch on: set the fan switch to |.

The fan is switched on.

To switch off: set the fan switch to 0.

The fan is switched off.

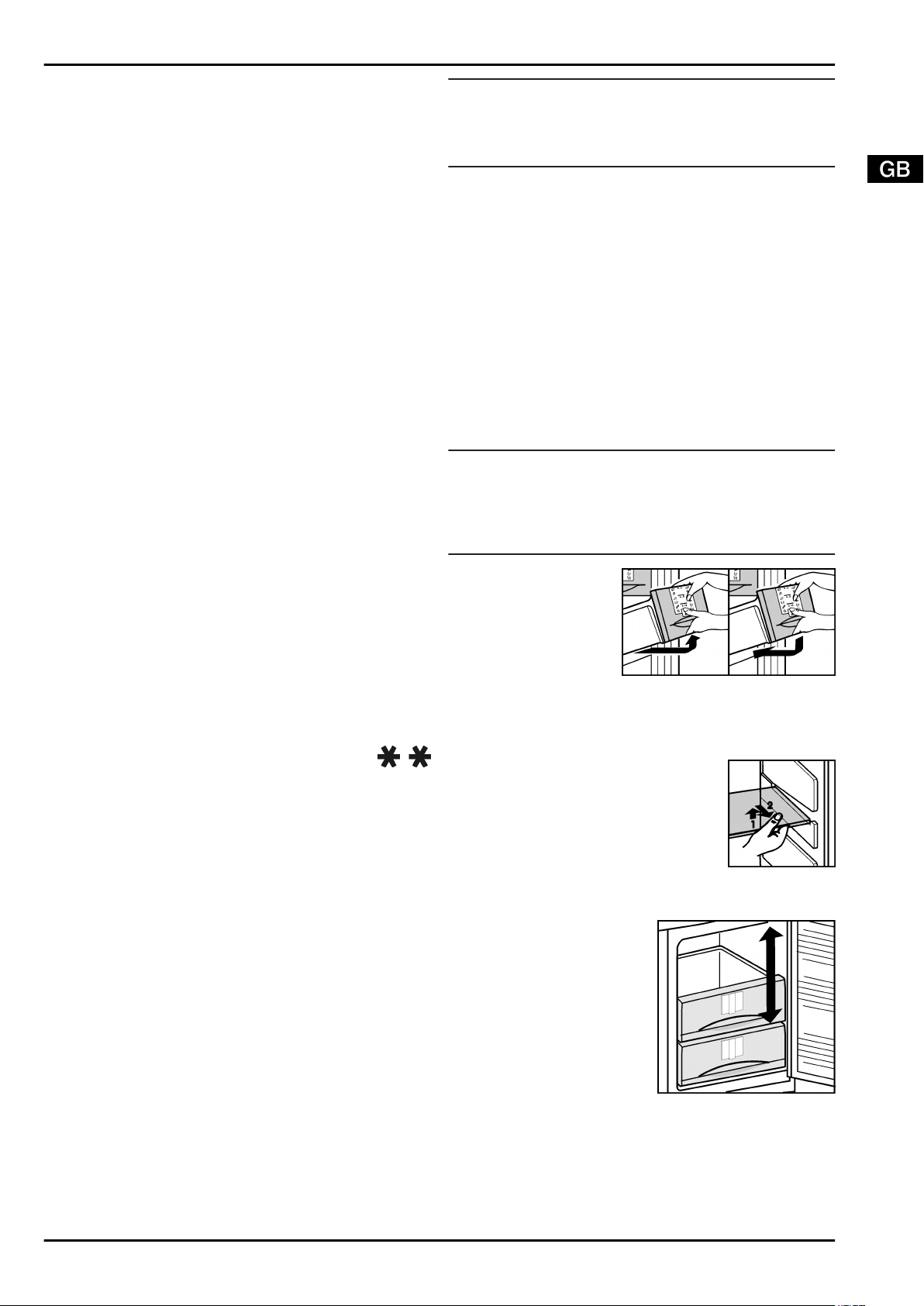

5.3.5 Using the sectioned shelf

Fig. 6

The glass shelf with stop face (2) has to be at the back.

5.3.6 Door racks

Moving the storage rack

Remove storage rack according to

illustration.

Dismantling door racks

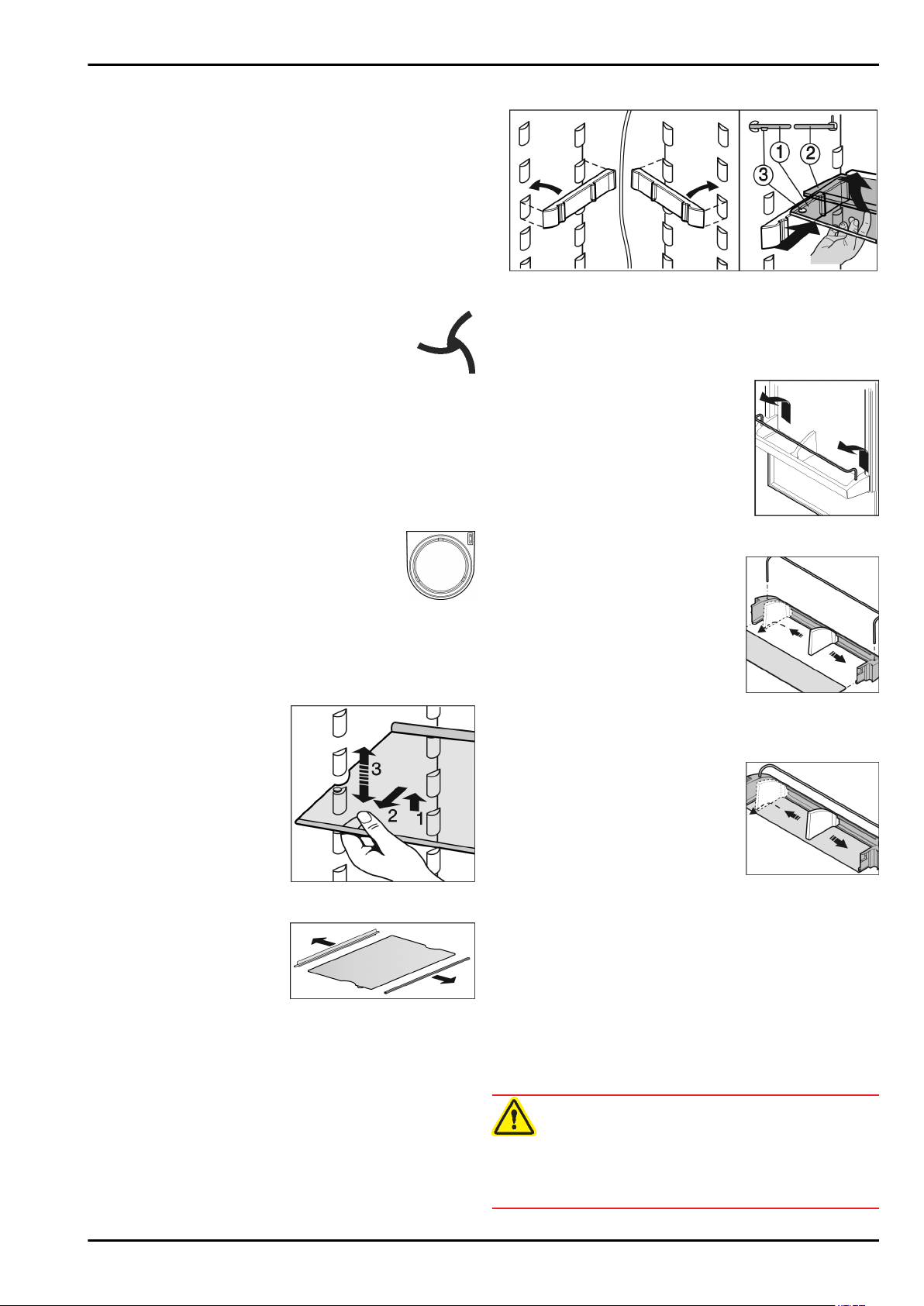

5.3.4 Shelves

Relocating the shelves

The shelves have stops preventing them from being unintentionally pulled out.

Lift the shelf and draw it out

forwards. Insert shelf with the raised

edge pointing upwards at the back. The food does not freeze

onto the rear wall.

Dismantling shelves

The shelves can be disman-

tled for cleaning.

The door racks can be dismantled for cleaning.

5.3.7 Removing the bottle holder

Remove the bottle holder according

to the illustration.

5.4 Freezer compartment

You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

5.4.1 Freezing food

The rating plate indicates the maximum quantity of fresh food you can freeze within 24 hours (see Appliance at a glance) under “Freezing capacity ... kg/24h”.

The maximum load of frozen food for the drawers is 25 kg each and for the shelves 35 kg each.

CAUTION

Risk of injury due to broken glass! Bottles and cans containing drinks may burst when being frozen. This applies particularly to sparkling drinks.

Do not freeze bottles and cans containing drinks!

8 * Depending on model and options

Page 9

Control

In order that the food is rapidly frozen through to the core, do not exceed the following quantities per pack:

- Fruit, vegetables up to 1 kg

- Meat up to 2.5 kg Pack the food in portions in freezer bags, reusable plastic,

metal or aluminium containers.

5.4.2 Thawing food

- in the refrigerator compartment

- at room temperature

- in a microwave oven

- in a conventional or fan oven Remove only as much food as is required. Use thawed food

as quickly as possible. Food once thawed should be re-frozen only in exceptional

cases.

5.4.3 Setting the temperature

The temperature can be set between the first point (warmest temperature, lowest refrigerating capacity) and max. (coldest temperature, highest refrigerating capacity), the recommended temperature is-18 °C i.e. the 3rd point.

Turn the temperature control of the freezer compartment

Fig. 3 (1)

in the temperature display.

The temperature is dependent on the following factors:

the frequency of door opening the room temperature of the installation site the type, temperature and quantity of frozen food You may have to readjust the temperature, depending on

the temperature wanted.

The temperature can be set slightly colder within a temperature range, e. g. –15 °C to –18 °C or between two control settings.

If required, slowly turn the temperature control further.

The lit bar of the temperature range, e. g. –18 °C flashes

briefly. The temperature within the temperature range was set colder.

with a coin until the temperature wanted lights up

5.4.4 SuperFrost

With this function you can freeze fresh food quickly through to the core. The appliance operates with maximum refrigeration. The noise of the refrigeration unit may be temporarily louder as a result.

The maximum amount of fresh food which can be frozen in 24 h is indicated on the type plate under “freezing capacity ... kg/ 24h”. This amount varies according to the model and climate rating.

You have to activate SuperFrost in good time, depending on how much fresh food is to be frozen: about 6 hours before placing the food inside in case of small amounts and about 24 hours in advance in case of the maximum amount of food to be frozen.

Wrap produce and spread it out as far as possible. Do not allow produce to be frozen to touch produce that is already frozen to prevent the latter thawing.

You do not have to activate SuperFrost in the following cases:

when placing frozen food in the freezer

when freezing up to approx. 2 kg fresh food daily

Freezing with SuperFrost

Briefly press the SuperFrost button

The SuperFrost button shines.*

The freezer temperature drops, the appliance operates with

the maximum refrigerating capacity.

Fig. 3 (2)

Note

Pressing the SuperFrost button can cause the compressor

to switch on up to 8 minutes later, thanks to the integrated switch-on delay. This delay increases the service life of the compressor.

In case of a small amount of food to be frozen: wait approx. 6 h.

Place wrapped produce in the top drawers.

In case of the maximum amount of food to be frozen (see type plate): wait about 24 h.

Remove top drawers and place produce directly on the top

shelves. SuperFrost is automatically deactivated after about 65 h.

The temperature range set for the normal mode shines in

the temperature display. Place produce in the drawers and push the latter back in

again. The appliance continues to operate in the energy-saving,

normal mode.

5.4.5 Drawers

Note

The energy consumption increases and the cooling performance decreases if there is insufficient ventilation. For appliances with NoFrost:

Leave the bottom drawer in the appliance!

Always keep the air slits of the fan free at the rear wall!

To store frozen food directly on the shelves: pull the drawer

forwards and lift it out.

5.4.6 Shelves

To remove the shelf: lift up at the front

and pull out. To put the shelf back: simply push in as

far as it will go.

5.4.7 VarioSpace

Apart from being able to remove the drawers, you can also remove the shelves, creating space for large items of frozen food. Poultry, meat, large pieces of game and high bakery products can be frozen in one piece and prepared.

The maximum load of frozen

food for the drawers is 25 kg each and for the shelves 35 kg each.

* Depending on model and options 9

Page 10

Maintenance

5.4.8 Information system

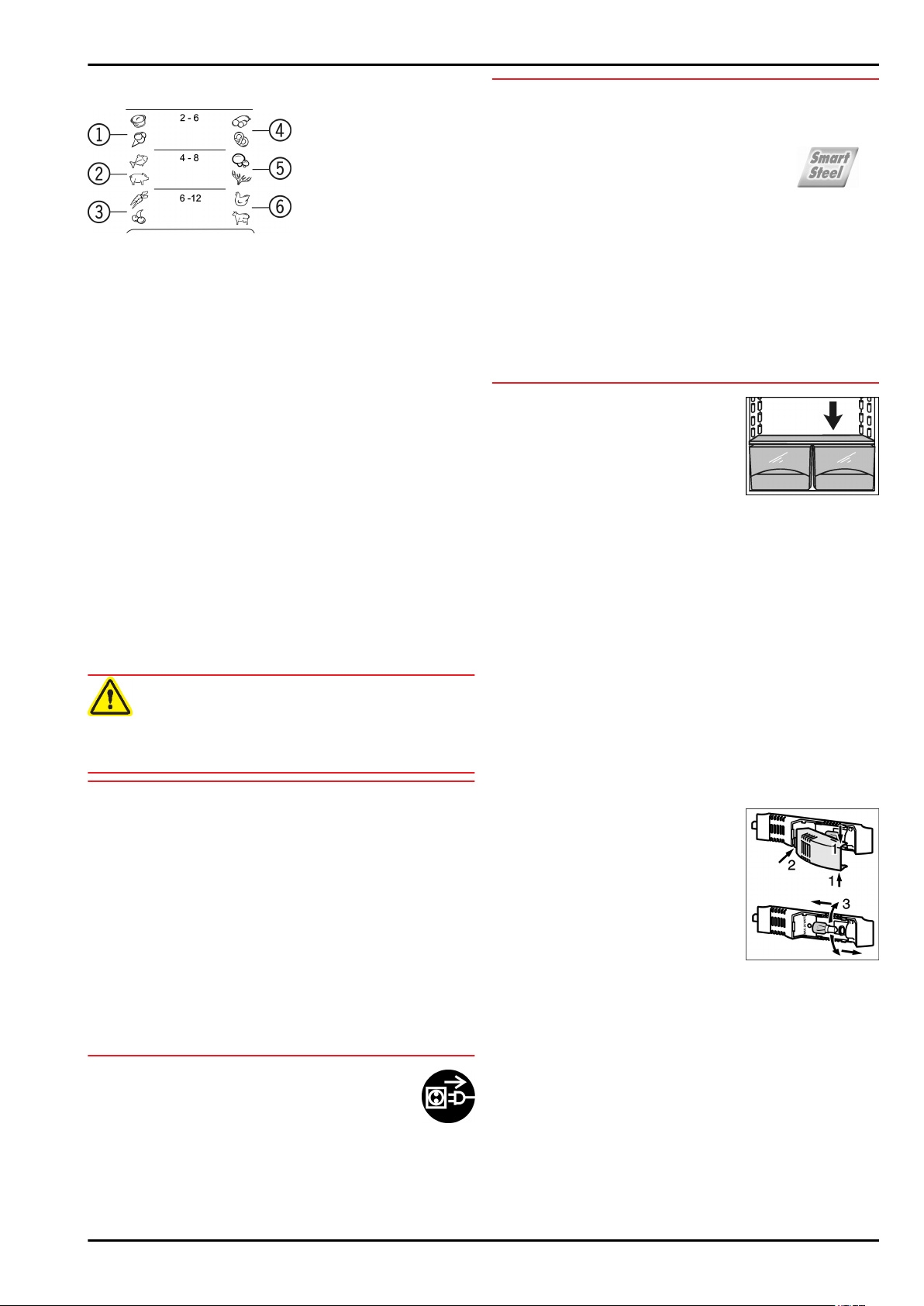

Fig. 7

(1) Ready-made meals, ice

cream

(2) Pork, fish (5) Game, mushrooms (3) Fruit, vegetables (6) Poultry, beef/veal

The figures indicate the storage time in months for several types of frozen food in each case. Storage times given are guide times.

(4) Sausages, bread

6 Maintenance

6.1 Defrosting with NoFrost

The NoFrost system automatically defrosts the appliance.

Refrigerator compartment:

The defrost water evaporates due to the compressor heat. Drops of water on the rear wall are perfectly normal.

Regularly clean the drain opening to allow the water to flow

away (see 6.2) .

Freezer compartment:

The moisture condenses on the evaporator, is periodically defrosted and evaporates.

The appliance does not have to be manually defrosted.

NOTICE

The stainless steel doors are finished with a high quality surface coating and must not be treated with the enclosed care product,

as otherwise the surface coating will be damaged.

Please only use a soft clean cloth to wipe the coated door

surfaces. In the case of heavy soiling, use a little water or neutral cleaning agent. A micro-fibre cloth can be used optionally. When soiled, clean stainless steel side walls with a

commercially available stainless steel cleaning agent. Then apply the enclosed stainless steel care product evenly in the direction of polishing. Use only a soft clean cloth to wipe side walls and door

surfaces with a paint finish. In the case of heavy soiling, use a little water or neutral cleaning agent. A micro-fibre cloth can be used optionally.

Clean drain hole: Remove deposits

with a narrow instrument, e.g. a cotton bud.

Clean items of equipment by hand with lukewarm water

and a little washing-up liquid.

After cleaning:

Wipe dry the appliance and items of equipment.

Connect the appliance and switch it on again.

Switch on SuperFrost (see 5.4.4) .

When the temperature is sufficiently cold: Put the food back inside.

6.2 Cleaning the appliance

WARNING

Risk of injury and damage as a result of hot steam! Hot steam can lead to burns and can damage the surfaces.

Do not use any steam cleaners!

NOTICE

Incorrect cleaning damages the appliance!

Do not use cleaning agents in concentrated form.

Do not use any scouring or abrasive sponges or steel wool.

Please do not use any aggressive, scouring, sand-,

chloride-, chemical- or acid-based cleaning agents. Do not use chemical solvents.

Do not damage or remove the type plate on the inside of the

appliance. It is important for the customer service. Do not pull off, bend or damage cables or other compo-

nents. Do not allow any cleaning water to enter the drain channel,

ventilation grille or electrical parts. Please use soft cleaning cloths and a universal pH-neutral

cleaning agent. Please use cleaning and care products suitable for contact

with foodstuffs in the appliance interior.

Empty appliance.

Pull out the power plug.

6.3 Replacing the interior light

Bulb data

max. 25 W

Bulb fitting: E14

Current type and voltage must conform with the data on the

type plate Switch off the appliance.

Pull out the mains plug or switch off/unscrew the fuse.

Take hold of the lamp cover at

the top and bottom Disengage the lamp cover at the

back and detach it Replace the bulb

Apply slight pressure when turning the bulb to overcome the friction of the seal. Pay attention that the seal is seated properly in the lamp socket.

Clip the back end of the cover in

and clip the sides into place.

Fig. 8 (1)

Fig. 8 (2)

Fig. 8 (3)

Fig. 8

6.4 Customer service

First check whether you can correct the fault yourself by reference to the list (see Malfunction). If this is not the case, please contact the customer service whose address is given in the enclosed customer service list.

Clean plastic outer and inner surfaces with lukewarm

water and a little washing-up liquid.

10 * Depending on model and options

Page 11

Risk of injury if repair work is not carried out professionally!

WARNING

Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see Maintenance)

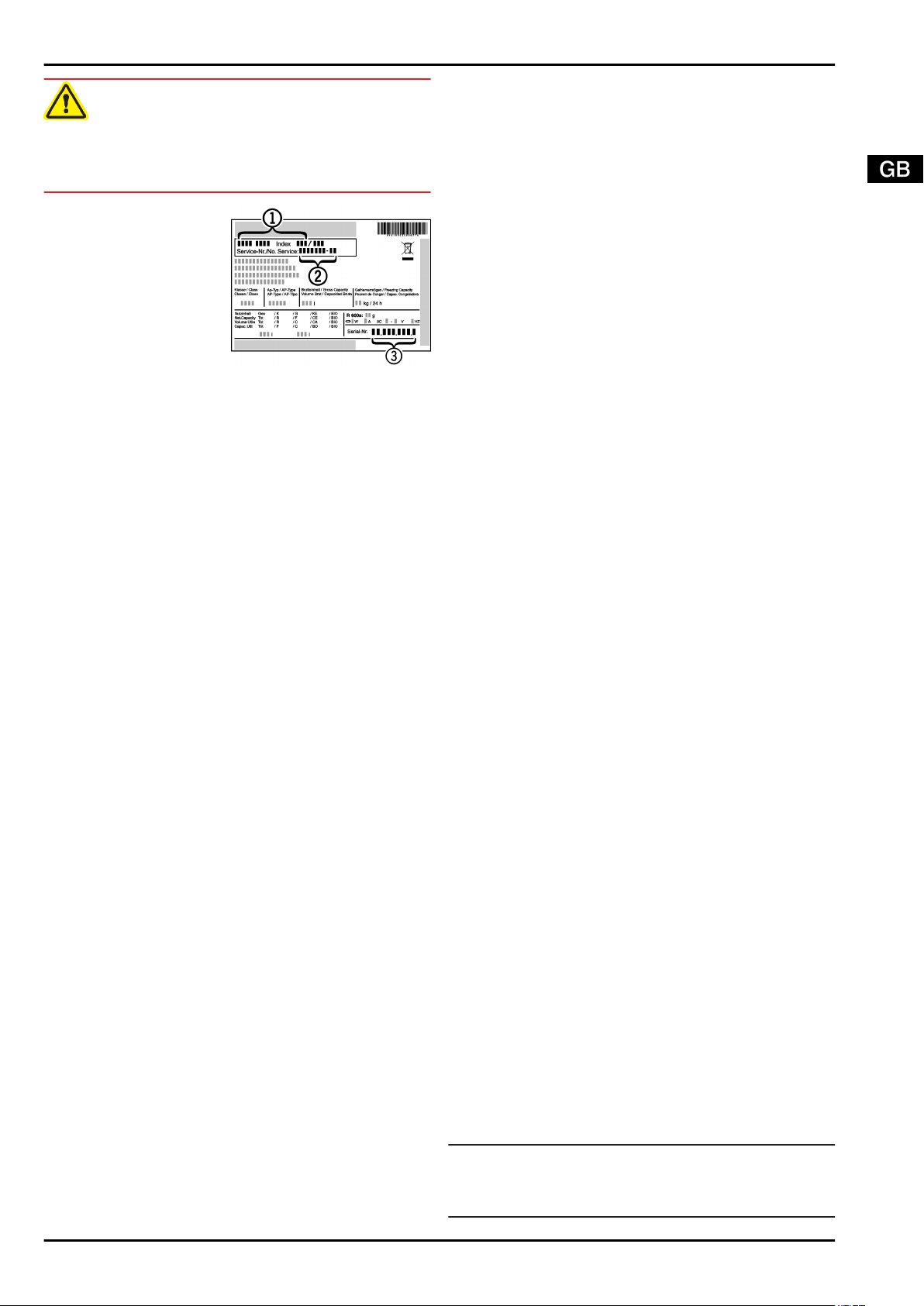

Read the appliance designation service No. and serial No.

Fig. 9 (3)

plate located inside the appliance on the left-hand side.

Fig. 9 (1) Fig. 9 (2)

off the type

Fig. 9

Notify the customer service, specifying the fault, appliance

designation

Fig. 9 (3)

This will help us to provide you with a faster and more accu-

rate service. Keep the appliance closed until the customer service

arrives. The food will stay cool longer.

Pull out the mains plug (not by pulling the connecting cable)

or switch off the fuse.

Fig. 9 (1)

, service No.

Fig. 9 (2)

and serial No.

7 Malfunction

Your appliance is designed and manufactured for a long life span and reliable operation. If a malfunction nonetheless occurs during operation, check whether it is due to a handling error. In this case you will have to be charged for the costs incurred, even during the warranty period. You may be able to rectify the following faults yourself:

Appliance does not work.

The appliance is not switched on.

→

Switch on the appliance.

The power plug is not properly inserted in the wall socket.

→

Check power plug.

The fuse of the wall socket is not in order.

→

Check fuse.

The compressor runs for a long time.

The compressor switches to a low speed when little cold is

→

needed. Although the running time is increased as a result, energy is saved. This is normal in energy-saving models.

SuperFrost is activated.

→

The compressor runs for longer in order to rapidly cool the

food. This is normal.

A LED on the bottom rear of the appliance (at the compressor) flashes regularly every 15 seconds*.

The inverter is equipped with a diagnostic LED.

→

The flashing is normal.

Excessive noise.

Due to the various speed steps, speed-regulated*

→

compressors can generate different running noises. The sound is normal.

A bubbling and gurgling noise.

This noise comes from the refrigerant flowing in the refriger-

→

ation circuit. The sound is normal.

A quiet clicking noise.

The noise is produced whenever the refrigeration unit

→

(motor) automatically switches on or off.

Malfunction

The sound is normal.

A hum. It is briefly a little louder when the refrigeration unit (the motor) switches on.

The refrigeration increases automatically when the Super-

→

Frost, function is activated, fresh food has just been placed in the appliance or the door has been left open for a while. The sound is normal.

The ambient temperature is too high.

→

Solution: (see 1.2)

A low hum.

The sound is produced by air flow noise of the fan.

→

The sound is normal.

Vibratory noise.

The appliance is not fixed to the ground. The running of the

→

cooling unit therefore makes objects and adjacent furniture vibrate.

Adjust appliance via the height-adjustable feet.

Move bottles and containers apart.

The SuperFrost button flashes together with the temperature display.

There is a fault.

→

Contact the customer service. (see Maintenance).

All LEDs are illuminated in the refrigerator compartment temperature display.

Demo mode is activated.

→

Please contact the after sales service. (see Maintenance).

The outer surfaces of the appliance are warm*.

The heat of the refrigeration circuit is used to prevent

→

condensate from forming. This is normal.

The temperature is not cold enough.

The door of the appliance is not properly closed.

→

Close the door of the appliance.

Insufficient ventilation.

→

Clear ventilation grilles.

The ambient temperature is too high.

→

Solution: (see 1.2) .

The appliance was opened too frequently or for too long.

→

Wait until the appliance reaches the required temperature

itself. If not, contact the customer service. (see Maintenance). Too much fresh food was placed inside without SuperFrost.

→

Solution: (see 5.4.4)

The appliance is too close to a source of heat (stove, heater

→

etc). Change the position of the appliance or the source of heat.

The interior light is not on.

The appliance is not switched on.

→

Switch on the appliance.

The door was open longer than 15 min.

→

The interior light automatically switches off if the door has

been open for about 15 min. If the interior light is not on but the temperature display is lit,

→

the bulb is faulty. Change the bulb. (see Maintenance).

8 Decommissioning

8.1 Switching off the appliance.

Note

To switch off the entire appliance it is necessary only to

switch off the freezer compartment. In so doing, the refrigerator compartment is automatically switched off as well.

* Depending on model and options 11

Page 12

Disposing of the appliance

8.1.1 Switching off the freezer compartment

Using a coin, turn the temperature control of the freezer

compartment The temperature displays are dark.

8.1.2 Switching off the refrigerator compartment

Using a coin, turn the temperature control of the refrigerator

compartment The temperature display is dark.

Note

If only the fridge section is to be switched off, e.g. during

holiday periods, always make sure that: the temperature display on the freezer section remains lit.

8.2 Taking the appliance out of service

Empty the appliance.

Pull out the power plug.

Clean the appliance (see 6.2) .

Leave the door open to prevent odour.

Fig. 3 (1)

Fig. 3 (6)

to 0.

9 Disposing of the appliance

The appliance contains some reusable materials and should be disposed of properly - not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

When disposing of the appliance, ensure that the refrigeration circuit is not damaged to prevent uncontrolled escape of the refrigerant it contains (data on type plate) and oil.

Disable the appliance.

Pull out the plug.

Cut through the connecting cable.

12 * Depending on model and options
