Operating and installation instructions
Combined fridge-freezer with BioFresh compartment
020714
7085650 - 01
CBP/ CBPesf ... 3
Appliance at a glance
Contents
1 Appliance at a glance............................................ 2
1.1 Description of appliance and equipment.................. 2
1.2 Range of appliance use............................................ 2
1.3 Conformity................................................................ 3
1.4 External dimensions of the appliance....................... 3
1.5 Saving energy.......................................................... 3
2 General safety information................................... 3
3 Controls and displays........................................... 4
3.1 Operating and control elements............................... 4
3.2 Temperature display................................................. 4
4 Putting into operation............................................ 5
4.1 Transporting the appliance....................................... 5
4.2 Installing the appliance............................................. 5

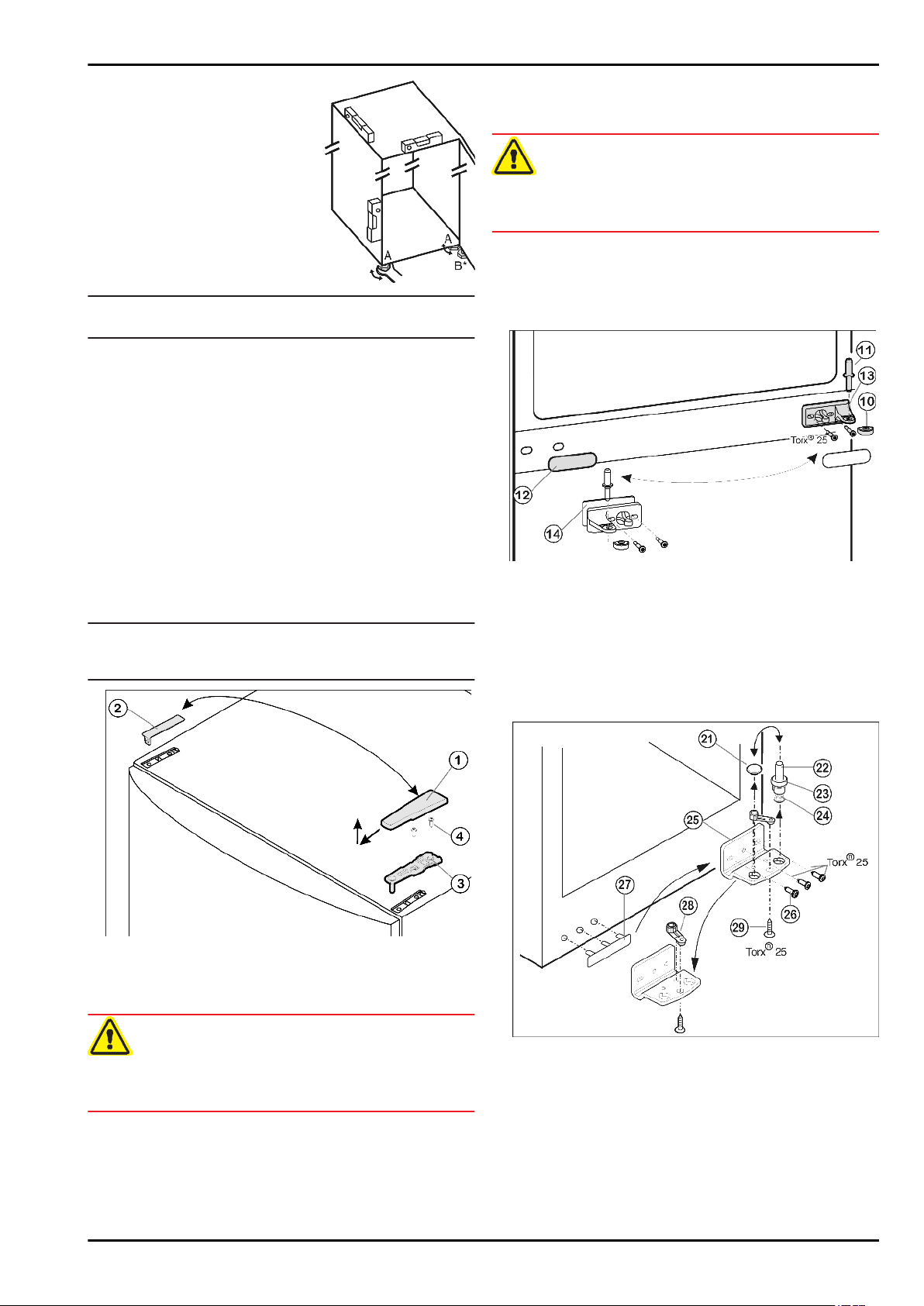

4.3 Changing over the door hinges................................ 6
4.4 Insertion into a row of kitchen units........................... 7
4.5 Disposing of packaging............................................ 8
4.6 Connecting the appliance......................................... 8
4.7 Switching on the appliance....................................... 8
5 Control.................................................................... 8
5.1 Temperature alarm................................................... 8
5.2 Refrigerator compartment........................................ 8
5.3 BioFresh compartment............................................. 9
5.4 Freezer compartment............................................... 11
6 Maintenance........................................................... 12
6.1 Manual defrosting..................................................... 12
6.2 Cleaning the appliance............................................. 13
6.3 Customer service..................................................... 13
7 Malfunction............................................................. 13
8 Decommissioning.................................................. 14
8.1 Switching off the appliance....................................... 14
8.2 Taking the appliance out of service.......................... 14
9 Disposing of the appliance................................... 14
The manufacturer works constantly on the further development
of all the types and models. Therefore please understand that
we have to reserve the right to make design, equipment and
technical modifications.
To get to know all the benefits of your new appliance, please
read the information contained in these instructions carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked with
an asterisk (*).
Instructions for action are marked with a , the results of
action are marked with a .
1 Appliance at a glance
1.1 Description of appliance and equipment
Note
Place food inside the appliance as shown in the diagram.
u
This allows the appliance to save energy during operation.
Shelves, drawers and baskets are arranged for optimum
u
energy efficiency on delivery.
Fig. 1
(1) Operating and control
elements
(2) Interior light (10) BioFresh compartment,
(3) Fan (11) Type plate
(4) Glass shelf, relocatable (12) Freezer drawer
(5) Rack for tinned food,
relocatable
(6) Sectioned glass shelf,
relocatable
(7) Bottle holder (15) Information system*
(8) Bottle rack, relocatable (16) Height-adjustable feet,
(9) BioFresh compartment,
DrySafe
HydroSafe
(13) Cold storage accumula-
tors*
(14) VarioSpace
transport grips at front,
transport castors at back
1.2 Range of appliance use
Intended use
The appliance is suitable solely for cooling food
in a domestic environment or similar. This
includes use in, for example
-
in staff kitchenettes, bed and breakfast establishments,
-
by guests in country cottages, hotels, motels
and other accommodation,
2 * Depending on model and options
-
for catering and similar services in the wholesale trade.
Use the appliance solely in a domestic type of
environment. All other applications are inadmissible.
Foreseeable misuse
The following applications are expressly
prohibited:
-
Storage and cooling of medicines, blood
plasma, laboratory compounds or similar
materials and products subject to the Medical
Devices Directive 2007/47/EC
-
Use in potentially explosive areas
Improper use of the appliance can lead to
damage to or spoilage of the stored goods.
Climate rating definitions
The appliance is set to operate within specific
ambient temperature limits according to its
climate rating. The correct climate rating for
your appliance is indicated on the type plate.
Note
Compliance with the ambient temperatures
u
indicated is required, otherwise the cooling
performance is reduced.
Climate
rating
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
for ambient temperatures of
1.3 Conformity
The refrigerant circuit is tested for leakage. The appliance
complies with the relevant safety regulations and EC Directives
2006/95/EC, 2004/108/EC, 2009/125/EC and 2010/30/EU.
The BioFresh compartment satisfies the requirements of a chill
compartment to EN ISO 15502.
Note for test institutions:
Tests are to be carried out according to the applicable
standards and guidelines.
Preparation and testing of the appliances must be carried
out taking the manufacturer's loading plans and the
notes in the operating manual into account.
General safety information
1.4 External dimensions of the appliance
Fig. 2
Model H (mm)
CBP(esf) 36.. 1817
CBP(esf) 40.. 2011
x
For appliances supplied with wall spacers, the measurement
increases by 35 mm (see 4.2) .
1.5 Saving energy
Always ensure good ventilation. Do not cover ventilation
-
openings or grille.
Do not place appliance in areas of direct sunlight or next to a
-
stove, heater or similar object.
The energy consumption depends on the installation condi-
-
tions, e.g. the ambient temperature (see 1.2) .
Keep the time the appliance is open to a minimum.
-
The lower the temperature setting, the higher the power
-
consumption.
Store food logically (see Control).
-
Store food logically. (see Appliance at a glance).
-
Ensure that all food is well packed and covered for storage.
-
This will prevent frost from forming.
Remove food as needed in order that it does not warm too
-
much.
First cool warm food to room temperature before storing it .
-
Defrost frozen food in the refrigerator.
-
If there is a thick layer of frost in the appliance: defrost the
-
appliance.
Accumulated dust increases the energy
consumption:
Once a year, dust the refrigerating unit
-
together with the metal grille of the heat
exchanger at the back of the appliance.
2 General safety information
Danger for the user:
-
This appliance can be used by children of 8
years old and over, and also by persons with
restricted physical, sensory or mental
capacity or lack of experience and knowl-
* Depending on model and options 3
Controls and displays
edge, if they are supervised or have been
instructed on safe use of the appliance and
understand the resulting risks. Children must
not be allowed to play with the appliance.
Cleaning and user maintenance must not be
carried out by children without supervision.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains plug
or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Have any repairs to or intervention in the
appliance, and any change of the mains
power cable, carried out by the customer
service only or by other specialised personnel
trained for the purpose.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
-
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
-
Special-purpose lamps (incandescent lamps,
LEDs, fluorescent tubes) in the appliance
serve to illuminate the appliance interior and
are not suited for room illumination.
Fire hazard:
-
The refrigerant R 600a is environmentally
friendly but flammable. Escaping refrigerant
may ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not allow naked flames or ignition
sources to enter the appliance.
•
Do not use any electrical appliances in the
interior (e.g. steam cleaners, heaters, ice
cream maker etc.).
•
If refrigerant escapes: remove any naked
flames or sources of ignition from the
leakage area. Ventilate the room well.
Notify the after-sales service.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list of
contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other items
with naked flames away from the appliance
so that they do not set the appliance on fire.
-
Please be sure to store alcoholic drinks or
other packaging containing alcohol in tightly
closed containers. Any alcohol that leaks out
may be ignited by electrical components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc.
as a step or for support. This applies particularly to children.
Danger of food poisoning:
-
Do not consume food which has been stored
too long.
Danger of frostbite, numbness and pain:
-
Avoid lasting skin contact with cold surfaces
or refrigerated/frozen food or take protective
steps, e.g. wear gloves. Do not consume ice
cream, water ice or ice cubes immediately
and do not consume them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment,
open flames or defrosting sprays to defrost.
-
Do not use sharp implements to remove the
ice.
Please observe the specific information in
the other sections:
DANGER identifies a situation involving direct
danger which, if not obviated, may
result in death or severe bodily
injury.
WARNING identifies a dangerous situation
which, if not obviated, may result in
death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result in
minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result in
damage to property.
Note identifies useful information and tips.
3 Controls and displays
3.1 Operating and control elements
Fig. 3
(1) On/Off button, refriger-
ator compartment
(2) Setting button, refriger-
ator compartment
(3) Refrigerator compart-
ment temperature
display
(4) Freezer compartment
temperature display
3.2 Temperature display
The following are displayed in normal operation:
(5) Setting button, freezer
compartment
(6) SuperFrost button
(7) Alarm button
(8) On/Off button, freezer
compartment
4 * Depending on model and options
the set freezing temperature
-
the set cooling temperature
-
The freezer compartment temperature display flashes:
the temperature setting is being changed
-
after switch-on the temperature is not yet cold enough
-
the temperature has risen several degrees
-
4 Putting into operation
4.1 Transporting the appliance
CAUTION
Risk of injury and danger of damage as a result of incorrect
transport!
Transport the appliance in a packed condition.
u
Transport the appliance upright.
u
Do not transport the appliance without assistance.
u
4.2 Installing the appliance
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
The appliance is designed for use in enclosed areas. Do not
u
operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
Putting into operation
NOTICE
Risk of damage due to condensate!
Do not install the appliance directly alongside a further
u
refrigerator/freezer.
In the event that the appliance is damaged, contact the
q
supplier immediately before connecting to the mains.
The floor at the site must be flat and level.
q
Do not install the appliance in a location where it is exposed
q
to direct radiation of the sun, next to a cooker, heater and
similar.
Always stand the appliance backed directly to the wall using
q
the enclosed wall spacers (see below).
The appliance may be moved only when it is empty.
q
Do not install the appliance without assistance.
q
The more R 600a refrigerant there is in the appliance, the
q
larger the room in which the appliance is standing needs to
be. In rooms that are too small, a flammable mix of gas and
air may be created if there is a leak. According to the EN
378 standard, every 11 g of R 600a refrigerant requires at
least 1 m3 space in the room for the appliance. The amount
of refrigerant in your appliance is on the type plate inside the
appliance.
Detach the connecting cable from the rear of the appliance,
u
removing the cable holder at the same time because other-
wise there will be vibratory noise!
Remove the protective film from the outside of the appli-
u
ance.*
NOTICE
The stainless steel doors are provided with a high-quality
surface coating and must not be treated using the accompanying care product.
WARNING
Risk of fire due to short circuit!
If the mains cable/connector of the appliance or of another
appliance touch the rear of the appliance, the mains cable/
connector may be damaged by the appliance vibrations,
leading to a short circuit.
Stand the appliance so that it is not touched by connectors
u
or main cables.
Do not plug the appliance or any others into sockets located
u
near the rear of the appliance.
WARNING
Fire hazard due to refrigerant!
The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.
Do not damage the piping of the refrigeration circuit.
u
WARNING
Fire hazard and danger of damage!
Do not place appliances emitting heat e.g. microwaves,
u
toasters etc. on the appliance!
WARNING
Blocked ventilation openings pose a risk of fire and damage!
Always keep the ventilation openings clear. Always ensure
u
that the appliance is properly ventilated!
Otherwise the surface coating will be affected.
Wipe the coated door surfaces using a soft, clean cloth
u
only.
Apply a stainless steel cleaner only to the stainless steel
u
side walls evenly, wiping with the grain. Subsequent
cleaning becomes easier as a result.
Wipe side walls with a paint finish using a soft, clean
u
cloth only.
Remove the protective film from the decorative trims and
u
drawer fronts.*
Remove all transit supports.
u
The spacers supplied with some appliances must be used to
achieve the stated energy consumption. These will extend the
depth of the appliance by approx. 35 mm. The appliance is fully
functional if the spacers are not used, but does have a slightly
higher energy consumption.
In the case of an appliance with
u
enclosed wall spacers, mount the
wall spacers on the back of the
appliance at the top left and right.
Dispose of packaging material (see 4.5) .
u
* Depending on model and options 5
Putting into operation
Align the appliance so that it
u
stands firmly and on a level by
applying the accompanying
spanner to the adjustableheight feet (A) and using a
spirit level.
Then support the door: Extend
u
the adjustable foot at the turn
hinge (B) until it rests on the
floor and then make a further
90° turn.
Note
Clean the appliance (see 6.2) .
u
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
Always see to good ventilation at the installation site.
u
4.3 Changing over the door hinges
You can change over the door hinges if necessary.
Ensure that the following tools are to hand:
Torx® 25
q
Torx® 15
q
Screwdriver
q
Cordless screwdriver, if necessary
q
Second person for fitting work, if needed
q
4.3.1 Detaching the upper door
Note
Remove any food from the door racks before removing the
u
door, so that no food falls out.
Draw the middle bearing pin
u
and lower door.
Remove the plastic cap
u
CAUTION
Risk of injury if the door tips!
Take good hold of the door.
u
Set down the door carefully.
u
Open the lower door.
u
Unscrew the middle turn hinge (2x Torx® 25).
u
Lift up the door and set it aside.
u
Fig. 5 (11)
Fig. 5 (10)
out of the turn hinge
.
Fig. 5 (13)
4.3.3 Transferring the middle bearing elements
Fig. 5
Carefully detach the cover panel
u
Turn the middle turn hinge
u
Fig. 5 (14)
new hinge side (with 4 Nm).
Turn the cover panel
u
into place again on the new handle side.
through 180° and screw it firmly into place on the
Fig. 5 (12)
Fig. 5 (12)
Fig. 5 (13)
through 180° and snap it
.
with the washer
Fig. 4
Close the upper door.
u
Pull off the cover
u
Lift off the cover
u
CAUTION
Risk of injury if the door tips!
Take good hold of the door.
u
Set down the door carefully.
u
Unscrew the upper turn hinge
u
Fig. 4 (4)
Lift up the upper door and set it aside.
u
and lift it off.
Fig. 4 (1)
Fig. 4 (2)
forwards and upwards.
.
Fig. 4 (3)
4.3.2 Detaching the lower door
Close the lower door.
u
(2x Torx® 25)
4.3.4 Transferring the lower bearing elements
Fig. 6
Lift out the bearing pin
u
Fig. 6 (23)
Lift off the stopper
u
Unscrew
u
Unscrew
u
it to the opposite location hole of the turn hinge and screw it
firmly into place.
Carefully lift off the cover on the handle side
u
transfer it to the opposite side.
and foot
Fig. 6 (26)
Fig. 6 (29)
Fig. 6 (22)
Fig. 6 (24)
Fig. 6 (21)
the turn hinge
the bearing element
.
.
Fig. 6 (25)
together with washer
.
Fig. 6 (28)
, transfer
Fig. 6 (27)
and
6 * Depending on model and options
Putting into operation
Screw the turn hinge
u
hinge side, possibly using a cordless screwdriver (with
4 Nm).
Re-insert the stopper
u
Re-insert the bearing pin
u
and foot. In so doing, pay attention that the locating lug
points backwards
Fig. 6 (25)
Fig. 6 (21)
Fig. 6 (22)
firmly into place on the new
into the other hole.
together with washer
4.3.5 Transferring the handles
On both the upper and lower door:
Transfer the spring clamp
u
Fig. 7 (31)
latch nose and pull the
spring clamp off over it.
Slide the spring clamp
u
into place on the new
hinge side until it clicks
into place.
: Depress the
Fig. 7
WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly enough,
the door may drop out. This may lead to severe injuries. What
is more, the door may not close and therefore the appliance
may fail to cool properly.
Screw the turn hinges firmly into place with 4 Nm.
u
Check all of the screws and retighten if necessary.
u
4.4 Insertion into a row of kitchen units
Fig. 8
Lift the stopper
u
transfer it.
Detach door handle
u
sure plates
When fitting the pressure plates on the opposite side, make
u
sure they snap properly into place*
Fig. 8 (30)
Fig. 8 (32)
Fig. 8 (34)
out of the door bearing bush and
, stopper
and transfer to the opposite side.
Fig. 8 (33)
and pres-
4.3.6 Fitting the lower door
Place the lower door from above onto the lower bearing pin
u
Fig. 6 (22)
Close the door.
u
Place the plastic cap
u
hinge
Place the middle bearing pin
u
the new hinge side, through the middle turn hinge
Fig. 5 (13)
.
Fig. 5 (13)
.
.
Fig. 5 (10)
Fig. 5 (11)
back onto the middle turn
in the lower door, on
4.3.7 Fitting the upper door
Place the upper door on the middle bearing pin
u
Insert the upper turn hinge
u
hinge side.
Screw the upper turn hinge firmly into place (with 4 Nm)
u
(2x Torx® 25)
with a bradawl or use a cordless screwdriver.
Apply the cover
u
site side from the outside and snap them into place.
Fig. 4 (4)
Fig. 4 (1)
Fig. 4 (3)
. Possibly make preliminary holes
and cover
in the door on the new
Fig. 4 (2)
Fig. 5 (11)
to the oppo-
4.3.8 Aligning the doors
If necessary, align the doors to the appliance housing by
u
way of the two oblong holes in the bottom turn hinge
Fig. 6 (25)
unscrew the middle screw in the bottom turn hinge
Fig. 6 (25)
and middle turn hinge
.
Fig. 5 (13)
. To do so,
(1) Stack cabinet (3) Kitchen cabinet
(2) Appliance (4) Wall
x
For appliances supplied with wall spacers, the measurement
increases by 35 mm (see 4.2) .
The appliance can be inserted into a row of kitchen units. To
match the appliance
a suitable stack cabinet
ance.
When installing with kitchen units (max. depth 580 mm), the
appliance can be positioned directly next to the kitchen cabinet
.
Fig. 9 (3)
50 mmx in the centre of the appliance in relation to the kitchen
cabinet front.
Ventilation requirements:
-
-
-
If the appliance is installed with the hinges next to a wall
Fig. 9 (4)
least 40 mm. This corresponds to the projection of the handle
when the door is open.
. The appliance will project by 34 mmx at the sides and
At the back of the stack cabinet there has to be a ventilation
duct of at least 50 mm depth throughout the width of the
stack cabinet.
The ventilation space under the ceiling has to be at least
300 cm2.
the larger the ventilation space, the more energy-saving the
appliance is in operation.
, the distance between appliance and wall has to be at
Fig. 9 (2)
Fig. 9 (1)
to the height of the row of units,
can be fitted above the appli-
Fig. 9
* Depending on model and options 7
Control
4.5 Disposing of packaging
The temperature display shines. Refrigerator compartment
w
and freezer compartment are switched on.
WARNING
Danger of suffocation due to packing material and plastic film!
Do not allow children to play with packing material.
u
The packaging is made of recyclable materials:
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
-
Take the packaging material to an official collecting point.
u
4.6 Connecting the appliance
NOTICE
Risk of damage to the electronic control system!
Do not use stand-alone inverters (conversion of d.c. to a.c./
u
three-phase) or energy saving plugs.
WARNING
Fire and overheating hazard!
Do not use extension cables or multiple socket outlets.
u
The type of current (alternating current) and voltage at the
installation site have to conform with the data on the type plate
(see Appliance at a glance).
The socket must be properly earthed and fused. The tripping
current for the fuse must be between 10 A and 16 A.
The socket must be easily accessible so that the appliance can
be quickly disconnected from the supply in an emergency. It
must be outside the area of the rear of the appliance.
Check the electrical connection.
u
Plug in the power plug.
u
4.7 Switching on the appliance
Note
To switch on the entire appliance it is necessary only to
u
switch on the freezer compartment. In so doing, the refrigerator compartment is automatically switched on as well.
Put the appliance into operation about 2 hours before first
loading food to be frozen.
4.7.1 Switching on the freezer compartment
PressOn/Off button, freezer compartment
u
The appliance is switched on. The refrigerator compartment
w
temperature display indicates the set temperature. The
freezer compartment temperature display and the alarm
button flash until the temperature is sufficiently low.
If all LEDs in the display light up, demo mode is activated.
w
Please contact the after sales service.
4.7.2 Switching on the refrigerator compartment
Note
When the refrigerator compartment is switched on, the
u
freezer compartment is automatically switched on as well.
Fig. 3 (8)
.
5 Control
5.1 Temperature alarm
The audible alarm sounds if the freezer temperature
is not cold enough.
The alarm button flashes at the same time.
The cause of the temperature being too high may be:
warm fresh food was placed inside
-
too much warm ambient air flowed in when rearranging and
-
removing food
power failure for some time
-
the appliance is faulty
-
The audible alarm is automatically silenced, the alarm button
Fig. 3 (7)
when the temperature is sufficiently cold again.
If the alarm status persists: (see Malfunction).
Note
Food may be spoilt if the temperature is not cold enough.
u
5.1.1 Muting the temperature alarm
The audible alarm can be muted. When the temperature is
sufficiently cold again, the alarm function is active again.
u
w
5.2 Refrigerator compartment
The natural circulation of air in the refrigerator compartment
results in zones differing in temperature. It is coldest directly
above the plate separating off the BioFresh zone and at the
rear wall. It is warmest at the top front of the compartment and
in the door.
5.2.1 Food refrigeration
Note
The energy consumption increases and the cooling performance decreases if the ventilation is inadequate.
u
u
u
u
u
u
At the base of the refrigerator compartment, the integrated
bottle shelf or alternatively the glass shelf can be used:
goes out and the temperature display stops flashing
Check the quality of the food. Do not consume spoiled food.
Press alarm button
The audible alarm is silenced.
Always keep the air slits of the fan free.
Place butter and preserves in the upper area and in the door
(see Appliance at a glance).
Use recyclable plastic, metal, aluminium and glass
containers and cling film for wrapping.
Use the front area of the refrigerator compartment floor only
for briefly putting down cooled products, e.g. when rearranging and sorting. However do not leave cooled products
there otherwise they may be pushed back or tipped over
when the door is closed.
Do not store food too close together to enable good air
circulation.
To safeguard bottles from tipping over: move the bottle
holder.
Fig. 3 (7)
.
Press On/Off button, refrigerator compartment
u
The interior light is on when the door is open.
w
Fig. 3 (1)
.
8 * Depending on model and options
To use the bottle shelf: store
u
the glass shelf compactly
under the bottle shelf.
Place the bottles with the
u
base pointing backwards
facing the rear wall.
If the bottles project beyond
the bottle shelf:
set the lower door rack one
u
position higher.
5.2.2 Setting the temperature
The temperature depends on the following factors:
the door opening frequency
-
the room temperature at the site where the appliance is
-
installed
the type, temperature and quantity of frozen food
-
Temperature setting to be recommended: 5 °C
The temperature can be changed continuously. Once the 3 °C
setting is reached, it starts again with 9 °C.
To access temperature adjustment: press the setting button,
u
refrigerator compartment
The LED of the current temperature flashes in the tempera-
w
ture display.
Press the setting button, refrigerator compartment
u
the number of times needed until the required temperature
shines in the LED display.
Note
Long pressing of the setting button sets a slightly colder
u
value within a small temperature range (e.g.: between 5 °C
and 6 °C). The LED of the next lower temperature range
then shines in the temperature display.
Fig. 3 (2)
once.
Fig. 3 (2)
Control
5.2.4 Using the sectioned shelf
Fig. 11
The glass plate (1) with pull-out stops must be at the front so
u
that the stops (3) face downwards.
5.2.5 Door racks
Moving the storage rack
Remove storage rack according to
u
illustration.
Dismantling door racks
5.2.3 Shelves
Moving or removing shelves
The shelves have stops preventing them from being unintentionally pulled out.
Fig. 10
Lift the shelf slightly and pull forward a little.
u
Adjust the height of the shelf. To do so, push the cut-outs
u
along the supports.
In order to remove the shelf fully, place it at a slant and pull
u
out towards the front.
Re-insert shelves at the required height. The stops must
u
face downwards and lie behind the front shelves.
Dismantling shelves
The shelves can be disman-
u
tled for cleaning.
The door racks can be dismantled for cleaning.
u
5.2.6 Removing the bottle holder
Remove the bottle holder according
u
to the illustration.
5.3 BioFresh compartment
The BioFresh compartment allows some types of fresh food to
be stored up to three times longer than in conventional refrigerators, without compromising quality.
For food with an indicated best before date, the date specified
on the packaging always applies.
5.3.1 HydroSafe
The HydroSafe at the moist setting is suited for storing
unwrapped salad, vegetables and fruit with high inherent moisture. When the drawer is well filled, a dewy climate with up to
90% humidity is established. The humidity in the compartment
depends on the moisture content of the food stored and on the
opening frequency. You can set the humidity yourself.
* Depending on model and options 9
Control
5.3.2 DrySafe
The DrySafe is suitable for storing dry or wrapped food (e.g.
dairy products, meat, fish, sausages). A relatively dry storage
climate is established here.
5.3.3 Storing food
Note
Vegetables sensitive to cold, such as cucumbers, auber-
u
gines, semi-ripe tomatoes, zucchinis and all tropical fruits
sensitive to cold, do not belong in the
BioFresh compartment.
To prevent food spoilage due to transfer of germs: Store
u
unwrapped animal and vegetable products separate from
one another in the drawers. This also applies to different
sorts of meat.
If food has to be stored together due to lack of space:
wrap the food.
u
5.3.4 Storage times
Standard values for storage time at low humidity
Butter up to 90 days
Hard cheese up to 110 days
Milk up to 12 days
Sausage, cold meat up to 9 days
Poultry up to 6 days
Pork up to 7 days
Beef up to 7 days
Game up to 7 days
Standard values for storage time at high humidity
Asparagus up to 18 days
Spinach up to 13 days
Savoy cabbage up to 20 days
Fruit
Apricots up to 13 days
Apples up to 80 days
Pears up to 55 days
Blackberries up to 3 days
Dates up to 180 days
Strawberries up to 7 days
Figs up to 7 days
Blueberries up to 9 days
Raspberries up to 3 days
Currants up to 7 days
Sweet cherries up to 14 days
Kiwis up to 80 days
Peaches up to 13 days
Plums up to 20 days
Cranberries up to 60 days
Rhubarb up to 13 days
Gooseberries up to 13 days
Grapes up to 29 days
Note
Please note that protein-rich food deteriorates faster, i.e.
u
shellfish and crustaceans deteriorate faster than fish, fish
faster than meat.
Standard values for storage time at high humidity
Vegetables, salad
Artichokes up to 14 days
Celery up to 28 days
Cauliflower up to 21 days
Broccoli up to 13 days
Chicory up to 27 days
Lamb's lettuce up to 19 days
Peas up to 14 days
Kale up to 14 days
Carrots up to 80 days
Garlic up to 160 days
Kohlrabi up to 55 days
Lettuce up to 13 days
Herbs up to 13 days
Leek up to 29 days
Mushrooms up to 7 days
Radishes up to 10 days
Brussels sprouts up to 20 days
5.3.5 Adjusting the temperature in the BioFresh compartment
The temperature is regulated automatically. At a temperature of
5 °C in the refrigerator compartment, the temperature in the
BioFresh compartment is between 0 °C and 3 °C.
You can adjust the temperature slightly colder or warmer. The
temperature is adjustable from 1 (coldest temperature) to 9
(warmest temperature). The preset value is 5. At 1 to 4, the
temperature can drop below 0 °C and therefore the food may
freeze a little.
The temperature can be changed continuously. Once the value
9 is reached, the selection starts from the beginning again. A
combination of LEDs that corresponds to the value shines in
the temperature display.
To activate the setting mode: Press the SuperFrost button
u
Fig. 3 (6)
The SuperFrost button
w
the set value shines in the temperature display.
Press the setting button, freezer compartment
u
number of times needed until the LED pattern of the value
wanted shines.
To confirm: Press the SuperFrost button
u
for at least 5 seconds.
Fig. 3 (6)
flashes. The LED pattern of
Fig. 12
Fig. 3 (5)
Fig. 3 (6)
the
.
10 * Depending on model and options
The temperature is indicated again in the temperature
w
display.
To deactivate the setting mode: press On/Off button, freezer
u
compartment
-or-
Wait for 5 minutes.
u
Fig. 3 (8)
.
5.3.6 Setting the humidity in the HydroSafe
u
Low humidity: move the regulator to
the left.
u
High humidity: move the regu-
lator to the right.
5.3.7 Drawers
Fig. 13
Pull out the drawer, lift it at the back and draw it forwards for
u
removal.
Push the rails in again!
u
Fig. 14
Pull out the rails.
u
Attach the drawer to the rails and push it in until it engages
u
audibly at the back.
5.3.8 Humidity control plate
Control
CAUTION
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
Do not freeze bottles and cans containing drinks!
u
In order that the food is rapidly frozen through to the core, do
not exceed the following quantities per pack:
- Fruit, vegetables up to 1 kg
- Meat up to 2.5 kg
Pack the food in portions in freezer bags, reusable plastic,
u
metal or aluminium containers.
5.4.2 Thawing food
- in the refrigerator compartment
- in a microwave oven
- in a conventional or fan oven
- at room temperature
Food once thawed should be re-frozen only in exceptional
u
cases.
5.4.3 Setting the temperature
Temperature setting to be recommended: -18 °C
The temperature can be changed continuously. Once the
-32 °C setting is reached, it starts again with -15 °C.
To access temperature adjustment: press setting button,
u
freezer compartment
The LED of the current temperature flashes in the tempera-
w
ture display of the freezer compartment.
Press the setting button, freezer compartment
u
number of times needed until the required temperature
shines in the LED display.
Note
Long pressing of the setting button sets a slightly colder
u
value within a small temperature range (e.g.: between
-15 °C and -18 °C). The LED of the next lower temperature
range then shines in the temperature display.
Fig. 3 (5)
once.
Fig. 3 (5)
the
Fig. 15
To remove the humidity control plate: Having removed the
u
drawers, carefully draw the plate forwards and lower it for
removal.
To insert the humidity control plate: Insert the cover mould-
u
ings of the plate into the rear holder
neath and engage them in the holder
Fig. 15 (1)
Fig. 15 (2)
from under-
at the front.
5.4 Freezer compartment
You can store frozen food, make ice cubes and freeze fresh
food in the freezer compartment.
5.4.1 Freezing food
The rating plate indicates the maximum quantity of fresh food
you can freeze within 24 hours (see Appliance at a glance)
under “Freezing capacity ... kg/24h”.
The maximum load of frozen food for the drawers is 25 kg each
and for the shelves 35 kg each.
5.4.4 SuperFrost
With this function you can freeze fresh food quickly
through to the core. The appliance operates with
maximum refrigeration. The noise of the refrigeration
unit may be temporarily louder as a result.
In addition, frozen food already in storage is given a “cold
reserve”. The food stays frozen longer as a result when you
defrost the appliance.
The maximum amount of fresh food which can be frozen in 24
h is indicated on the type plate under “freezing capacity ... kg/
24h”. This amount varies according to the model and climate
rating.
You have to activate SuperFrost in good time, depending on
how much fresh food is to be frozen: about 6 hours before
placing the food inside in case of small amounts and about 24
hours in advance in case of the maximum amount of food to be
frozen.
Wrap produce and spread it out as far as possible. Do not
allow produce to be frozen to touch produce that is already
frozen to prevent the latter thawing.
You do not have to activate SuperFrost in the following cases:
when placing frozen food in the freezer
-
when freezing up to approx. 2 kg fresh food daily
-
Freezing with SuperFrost
Briefly press the SuperFrost button
u
The SuperFrost button shines.
w
Fig. 3 (6)
.
* Depending on model and options 11
Maintenance
The freezer temperature drops, the appliance operates with
w
the maximum refrigerating capacity.
In case of a small amount of food to be frozen:
wait approx. 6 h.
u
Place wrapped produce in the bottom drawers.
u
In case of the maximum amount of food to be frozen (see
type plate):
wait about 24 h.
u
Remove bottom drawer and place produce directly in the
u
appliance so that it touches the base or sides.
SuperFrost is automatically deactivated after about 65 h.
w
The SuperFrost button extinguishes once freezing is
w
completed.
Place produce in the drawer and then push the drawer back
u
in again.
The appliance continues to operate in the energy-saving,
w
normal mode.
5.4.5 Drawers
To store frozen food directly on the shelves: pull the drawer
u
forwards and lift it out.
Using cold storage accumulators*
Freeze and store the cold storage accumu-
u
lators in the ceiling of the freezer compartment.
With the top drawer
removed:
to insert cold storage accu-
u
mulators: slide cold
storage accumulator into
the top back of the freezer
compartment ceiling and
snap into place at the front.
With the top drawer
removed:
to remove cold storage
u
accumulators: take hold of
the cold storage accumulator at the side and press
it down for removal.
6 Maintenance
6.1 Manual defrosting
5.4.6 Shelves
To remove the shelf: lift up at the front
u
and pull out.
To put the shelf back: simply push in as
u
far as it will go.
5.4.7 VarioSpace
Apart from being able to remove the
drawers, you can also remove the
shelves, creating space for large
items of frozen food. Poultry, meat,
large pieces of game and high
bakery products can be frozen in
one piece and prepared.
The maximum load of frozen food
u
for the drawers is 25 kg each and
for the shelves 35 kg each.
5.4.8 Information system*
Fig. 16
(1) Ready-made meals, ice
cream
(2) Pork, fish (5) Game, mushrooms
(3) Fruit, vegetables (6) Poultry, beef/veal
The figures indicate the storage time in months for several
types of frozen food in each case. Storage times given are
guide times.
(4) Sausages, bread
5.4.9 Cold storage accumulators*
The cold storage accumulators prevent the temperature from
rising too fast in the event of power failure.
The refrigerator compartment is defrosted automatically.
The defrost water evaporates as a result of the heat of the
compressor. Drops of water on the rear wall are perfectly
normal.
Regularly clean the drain opening to allow the water to flow
u
away (see 6.2) .
A layer of frost or ice can build up in the freezer compartment
after a long period of operation.
The layer of frost or ice builds up faster if the appliance is
opened often or if the food is warm when placed inside.
However, a thick layer of ice will increase the appliance‘s
energy consumption. You should therefore defrost the appliance regularly.
CAUTION
Risk of injury and damage as a result of hot steam!
Do not use electric heaters or steam cleaners, naked flames
u
or defrosting sprays for defrosting.
Do not remove ice using sharp instruments.
u
Switch on SuperFrost one day before defrosting.
u
The frozen goods are provided with a “cold reserve”.
w
Switch off the appliance.
u
The temperature display goes out.
w
Pull out the power plug or switch off the fuse.
u
Place cold storage accumulators on top of the frozen food.
u
If possible, put the frozen goods in the freezer drawer,
u
wrapped in newspaper or a blanket, and store in a cool
place.
Place a pan with hot, not boiling
u
water on a middle shelf.
Defrosting is speeded up.
w
Leave the door of the appliance open while defrosting.
u
Remove detached pieces of ice.
u
If necessary, pick up defrost water several times, using a
u
sponge or cloth.
Clean the appliance (see 6.2) and rub dry.
u
12 * Depending on model and options
6.2 Cleaning the appliance
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
Do not use any steam cleaners!
u
NOTICE
Incorrect cleaning damages the appliance!
Do not use cleaning agents in concentrated form.
u
Do not use any scouring or abrasive sponges or steel wool.
u
Please do not use any aggressive, scouring, sand-,
u
chloride-, chemical- or acid-based cleaning agents.
Do not use chemical solvents.
u
Do not damage or remove the type plate on the inside of the
u
appliance. It is important for the customer service.
Do not pull off, bend or damage cables or other compo-
u
nents.
Do not allow any cleaning water to enter the drain channel,
u
ventilation grille or electrical parts.
Please use soft cleaning cloths and a universal pH-neutral
u
cleaning agent.
Please use cleaning and care products suitable for contact
u
with foodstuffs in the appliance interior.
Empty appliance.
u
Pull out the power plug.
u
Malfunction
Connect the appliance and switch it on again.
u
Switch on SuperFrost (see 5.4.4) .
u
When the temperature is sufficiently cold:
Put the food back inside.
u
6.3 Customer service
First check whether you can correct the fault yourself by reference to the list (see Malfunction). If this is not the case, please
contact the customer service whose address is given in the
enclosed customer service list.
WARNING
Risk of injury if repair work is not carried out professionally!
Have any repairs and action - not expressly specified - on
u
the appliance and mains cable carried out by service
personnel only. (see Maintenance)
Read the appliance
u
designation
Fig. 17 (1)
No.
Fig. 17 (2)
serial No.
off the type plate
located inside the
appliance on the left-
hand side.
, service
and
Fig. 17 (3)
Clean plastic outer and inner surfaces with lukewarm
u
water and a little washing-up liquid.
Do not apply stainless steel cleaning agent to glass or plastic
surfaces to prevent them from being scratched. Darker areas at
the beginning and quite an intensive colour of the stainless
steel surface are normal.*
NOTICE
The stainless steel doors are provided with a high-quality
surface coating and must not be treated using the accompanying care product.
Otherwise the surface coating will be affected.
Wipe the coated door surfaces using a soft, clean cloth
u
only. In case of stubborn dirt, use a little water or a neutral
cleaning agent. A microfibre cloth can be optionally used.
If the stainless steel side walls are dirty, clean them using
u
a commercially available stainless steel cleaning agent.
Then evenly apply the accompanying stainless steel care
product, making strokes in the direction of the grain.
Wipe side walls with a paint finish using a soft, clean
u
cloth only. In case of stubborn dirt, use a little water or a
neutral cleaning agent. A microfibre cloth can be optionally
used.
Clean drain hole: Remove deposits
u
with a narrow instrument, e.g. a
cotton bud.
Most of the parts can be dismantled for cleaning: see the
u
relevant chapter.
Clean items of equipment by hand with lukewarm water
u
and a little washing-up liquid.
Only use a damp cloth to clean the telescopic rails. The
u
grease in the runners is for lubrication purposes and must
not be removed.
After cleaning:
Wipe dry the appliance and items of equipment.
u
Fig. 17
Notify the customer service, specifying the fault, appliance
u
designation
Fig. 17 (3)
This will help us to provide you with a faster and more accu-
w
rate service.
Keep the appliance closed until the customer service
u
arrives.
The food will stay cool longer.
w
Pull out the mains plug (not by pulling the connecting cable)
u
or switch off the fuse.
Fig. 17 (1)
.
, service No.
Fig. 17 (2)
and serial No.
7 Malfunction
Your appliance is designed and manufactured for a long life
span and reliable operation. If a malfunction nonetheless
occurs during operation, check whether it is due to a handling
error. In this case you will have to be charged for the costs
incurred, even during the warranty period. You may be able to
rectify the following faults yourself:
Appliance does not work.
The appliance is not switched on.
→
Switch on the appliance.
u
The power plug is not properly inserted in the wall socket.
→
Check power plug.
u
The fuse of the wall socket is not in order.
→
Check fuse.
u
The compressor runs for a long time.
The compressor switches to a low speed when little cold is
→
needed. Although the running time is increased as a result,
energy is saved.
This is normal in energy-saving models.
u
SuperFrost is activated.
→
The compressor runs for longer in order to rapidly cool the
u
food. This is normal.
A LED on the bottom rear of the appliance (at the
compressor) flashes regularly every 15 seconds*.
The inverter is equipped with a diagnostic LED.
→
The flashing is normal.
u
* Depending on model and options 13
Decommissioning
Excessive noise.
Due to the various speed steps, speed-regulated*
→
compressors can generate different running noises.
The sound is normal.
u
A bubbling and gurgling noise.
This noise comes from the refrigerant flowing in the refriger-
→
ation circuit.
The sound is normal.
u
A quiet clicking noise.
The noise is produced whenever the refrigeration unit
→
(motor) automatically switches on or off.
The sound is normal.
u
A hum. It is briefly a little louder when the refrigeration
unit (the motor) switches on.
The refrigeration increases automatically when the
→
SuperFrost, function is activated, fresh food has just been
placed in the appliance or the door has been left open for a
while.
The sound is normal.
u
The ambient temperature is too high.
→
Solution: (see 1.2)
u
A low hum.
The sound is produced by air flow noise of the fan.
→
The sound is normal.
u
Vibratory noise.
The appliance is not fixed to the ground. The running of the
→
cooling unit therefore makes objects and adjacent furniture
vibrate.
Adjust appliance via the height-adjustable feet.
u
Move bottles and containers apart.
u
The SuperFrost button flashes together with the temperature display.
There is a fault.
→
Please contact the after-sales service (see Maintenance).
u
All LEDs are illuminated in the refrigerator compartment
temperature display.
Demo mode is activated.
→
Please contact the after-sales service (see Maintenance).
u
The outer surfaces of the appliance are warm*.
The heat of the refrigeration circuit is used to prevent
→
condensate from forming.
This is normal.
u
The temperature is not cold enough.
The door of the appliance is not properly closed.
→
Close the door of the appliance.
u
Insufficient ventilation.
→
Clear ventilation grilles.
u
The ambient temperature is too high.
→
Solution: (see 1.2) .
u
The appliance was opened too frequently or for too long.
→
Wait to see whether the appliance reaches the required
u
temperature by itself. If not, please contact the after sales
service (see Maintenance).
Too much fresh food was placed inside without SuperFrost.
→
Solution: (see 5.4.4)
u
The appliance is too close to a source of heat (stove, heater
→
etc).
Change the position of the appliance or the source of heat.
u
The interior light is not on.
The appliance is not switched on.
→
Switch on the appliance.
u
The door was open longer than 15 min.
→
The interior light automatically switches off if the door has
u
been open for about 15 min.
The LED illumination is defective or the cover is damaged:
→
WARNING
Risk of injury due to electric shock!
Live parts are located under the cover.
Have the LED interior light changed or repaired only by the
u
customer service or by specialized personnel trained for the
purpose.
WARNING
Danger of injury by LED lamp!
The light intensity of the LED illumination corresponds to laser
class 1/1M.
If the cover is defective:
Do not look into the illumination with optical lenses from the
u
immediate proximity. This can cause injury to the eyes.
8 Decommissioning
8.1 Switching off the appliance
Note
To switch on the entire appliance it is necessary only to
u
switch off the freezer compartment. In so doing, the refrigerator compartment is automatically switched off as well.
8.1.1 Switching off the freezer compartment
Press ON/OFF button, freezer compartment
u
least 3 seconds.
The temperature displays are dark. The entire appliance is
w
switched off.
Fig. 3 (8)
for at
8.1.2 Switching off the refrigerator compartment
Press ON/OFF button, refrigerator compartment
u
for at least 3 seconds.
The interior light is off.
w
The temperature display of the refrigerator compartment is
w
dark.
Note
If only the refrigerator compartment is to be switched off, e.g
u
during holidays, then always pay attention: the freezer
compartment temperature display has to shine.
Fig. 3 (1)
8.2 Taking the appliance out of service
Empty the appliance.
u
Pull out the power plug.
u
Clean the appliance (see 6.2) .
u
Leave the door open to prevent odour.
u
9 Disposing of the appliance
The appliance contains some reusable materials
and should be disposed of properly - not simply
with unsorted household refuse. Appliances which
are no longer needed must be disposed of in a
professional and appropriate way, in accordance
with the current local regulations and laws.
When disposing of the appliance, ensure that the refrigeration
circuit is not damaged to prevent uncontrolled escape of the
refrigerant it contains (data on type plate) and oil.
14 * Depending on model and options
Disable the appliance.
u
Pull out the plug.
u
Cut through the connecting cable.
u
Disposing of the appliance
* Depending on model and options 15
Liebherr Hausgeräte Ochsenhausen GmbH * Memminger Strasse 77-79 * 88416 Ochsenhausen * Deutschland * www.liebherr.com
Loading...
