Operating instructions
Combined fridge-freezer
220113
CUP(sl) 2221/2721/3021 ... 1
7082814 - 00
Appliance at a glance
Contents
1 Appliance at a glance............................................ 2
1.1 Description of appliance and equipment.................. 2
1.2 Range of appliance use............................................ 2
1.3 Conformity................................................................ 3
1.4 Installation dimensions............................................. 3
1.6 Saving energy.......................................................... 3
2 General safety information................................... 3
3 Controls and displays........................................... 4
3.1 Operating controls.................................................... 4
4 Putting into operation............................................ 4
4.1 Transporting the appliance....................................... 4
4.2 Installing the appliance............................................. 4

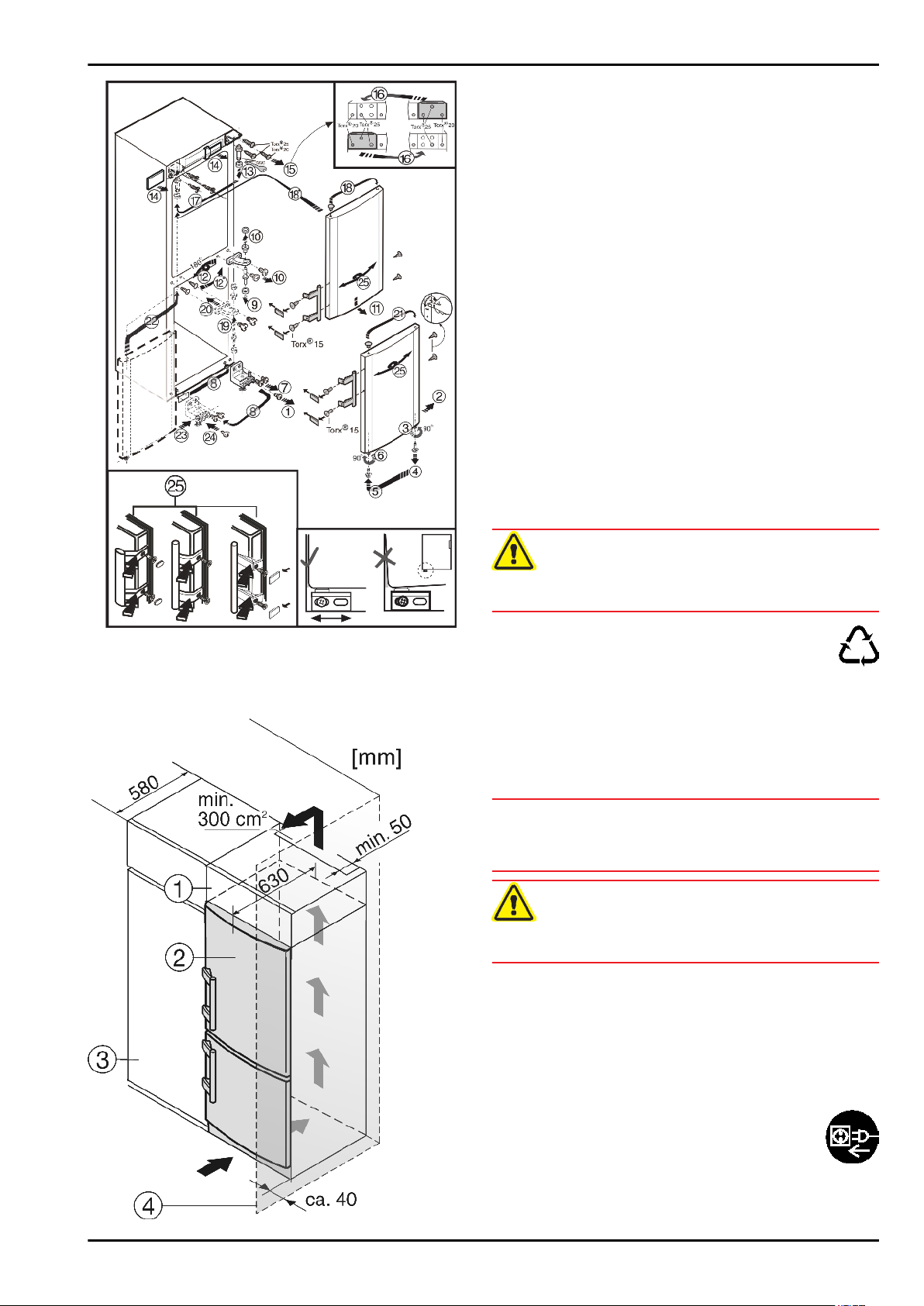

4.3 Changing the door stop............................................ 5
4.4 Insertion into a row of kitchen units........................... 6
4.5 Disposing of packaging............................................ 6
4.6 Connecting the appliance......................................... 6
4.7 Switching on the appliance....................................... 7
5 Control.................................................................... 7
5.1 Refrigerator compartment........................................ 7
5.2 Freezer compartment............................................... 8
6 Maintenance........................................................... 8
6.1 Manual defrosting..................................................... 8
6.2 Cleaning the appliance............................................. 9
6.3 Changing the interior light......................................... 9
6.4 Customer service..................................................... 10
7 Malfunction............................................................. 10
8 Decommissioning.................................................. 11
8.1 Switching off the appliance....................................... 11
8.2 Taking the appliance out of service.......................... 11
9 Disposing of the appliance................................... 11
The manufacturer works constantly on the further development
of all the types and models. Therefore please understand that
we have to reserve the right to make design, equipment and
technical modifications.
To get to know all the benefits of your new appliance, please
read the information contained in these instructions carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked with
an asterisk (*).
Instructions for action are marked with a , the results of
action are marked with a .
1 Appliance at a glance
1.1 Description of appliance and equipment
Note
Place food inside the appliance as shown in the diagram.
u
This allows the appliance to save energy during operation.
Shelves, drawers and baskets are arranged for optimum
u
energy efficiency on delivery.
Fig. 1
(1) Adjustable shelves (9) Adjustable bottle and jar
shelf
(2) Egg tray (10) Vegetable, salad and fruit
bins
(3) Butter shelf (11) Type plate
(4) Adjustable door shelf (12) Information system
(5) On/Off and temperature
controller and interior
lighting
(6) Defrost water drain (14) Adjustable feet at the
(7) Bottle rack (15) Ice cube tray
(8) Coldest area in the
refrigerator compartment, for sensitive and
perishable foodstuffs
(13) Deep freezer drawers
front, castors for transport
at the rear
1.2 Range of appliance use
The appliance is suitable solely for cooling food
in a domestic environment or similar. This
includes use in, for example
-
in staff kitchenettes, bed and breakfast establishments,
-
by guests in country homes, hotels, motels
and other forms of accommodation,
-
in catering and similar services in the wholesale trade
Use the appliance solely as is customary within
a domestic environment. All other types of use
are inadmissible. The appliance is not suitable
for storing and cooling medicines, blood
plasma, laboratory preparations or similar
substances and products covered by the
2007/47/EC Medical Devices Directive. Misuse
of the appliance can result in the stored products suffering harm or perishing. Furthermore,
the appliance is not suitable for operation in
potentially explosive atmospheres.
2
The appliance is set to operate within specific
ambient temperature limits according to its
climate rating. The correct climate rating for
your appliance is indicated on the type plate.
Note
Compliance with the ambient temperatures
u
indicated is required, otherwise the cooling
performance is reduced.
Climate
rating
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
for ambient temperatures of
1.3 Conformity
The refrigerant circuit is tested for leakage. The appliance
complies with the relevant safety regulations and EC Directives
2006/95/EC, 2004/108/EC, 2009/125/EC and 2010/30/EU.
Note for test institutions:
Tests are to be carried out according to the applicable
standards and guidelines.
Preparation and testing of the appliances must be carried
out taking the manufacturer's loading plans and the
notes in the operating manual into account.
1.4 Installation dimensions
Fig. 2
Model h
CUP(sl) 2221 1360
CUP(sl) 2721 1600
CUP(sl) 3021 1800
1.6 Saving energy
General safety information
Do not place appliance in areas of direct sunlight or next to a
-
stove, heater or similar object.
The energy consumption depends on the installation condi-
-
tions, e.g. the ambient temperature (see 1.2) .
Keep the time the appliance is open to a minimum.
-
The lower the temperature setting, the higher the power
-
consumption.
Store food logically. (see Appliance at a glance).
-
Ensure that all food is well packed and covered for storage.
-
This will prevent frost from forming.
Remove food as needed in order that it does not warm too
-
much.
First cool warm food to room temperature before storing it .
-
Defrost frozen food in the refrigerator.
-
If there is a thick layer of frost in the appliance: defrost the
-
appliance.
Accumulated dust increases the energy
consumption:
Once a year, dust the refrigerating unit
-
together with the metal grille of the heat
exchanger at the back of the appliance.
2 General safety information
Danger for the user:
-
This appliance can be used by children of 8
years old and over, and also by persons with
restricted physical, sensory or mental
capacity or lack of experience and knowl-
edge, if they are supervised or have been
instructed on safe use of the appliance and
understand the resulting risks. Children must
not be allowed to play with the appliance.
Cleaning and user maintenance must not be
carried out by children without supervision.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains plug
or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Have any repairs to or intervention in the
appliance, and any change of the mains
power cable, carried out by the customer
service only or by other specialised personnel
trained for the purpose.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
-
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
-
Special-purpose lamps (incandescent lamps,
LEDs, fluorescent tubes) in the appliance
serve to illuminate the appliance interior and
are not suited for room illumination.
Fire hazard:
*
Always ensure good ventilation. Do not cover ventilation
-
openings or grille.
3
Controls and displays
-
The refrigerant R 600a is environmentally
friendly but flammable. Escaping refrigerant
may ignite.
•
Do not damage the refrigerant circuit pipes.
•
Do not allow naked flames or ignition
sources to enter the appliance.
•
Do not use any electrical appliances in the
interior (e.g. steam cleaners, heaters, ice
cream maker etc.).
•
If refrigerant escapes: remove any naked
flames or sources of ignition from the
leakage area. Ventilate the room well.
Notify the after-sales service.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list of
contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other items
with naked flames away from the appliance
so that they do not set the appliance on fire.
-
Please be sure to store alcoholic drinks or
other packaging containing alcohol in tightly
closed containers. Any alcohol that leaks out
may be ignited by electrical components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc.
as a step or for support. This applies particularly to children.
Danger of food poisoning:
-
Do not consume food which has been stored
too long.
Danger of frostbite, numbness and pain:
-
Avoid lasting skin contact with cold surfaces
or refrigerated/frozen food or take protective
steps, e.g. wear gloves. Do not consume ice
cream, water ice or ice cubes immediately
and do not consume them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment,
open flames or defrosting sprays to defrost.
-
Do not use sharp implements to remove the
ice.
Please observe the specific information in
the other sections:
DANGER identifies a situation involving direct
danger which, if not obviated, may
result in death or severe bodily
injury.
WARNING identifies a dangerous situation
which, if not obviated, may result in
death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result in
minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result in
damage to property.
Note identifies useful information and tips.
3 Controls and displays
3.1 Operating controls
Fig. 3
(1) Temperature controller (2) Cool-Plus switch
4 Putting into operation
4.1 Transporting the appliance
CAUTION
Risk of injury and danger of damage as a result of incorrect
transport!
Transport the appliance in a packed condition.
u
Transport the appliance upright.
u
Do not transport the appliance without assistance.
u
4.2 Installing the appliance
WARNING
Fire hazard due to dampness!
If live parts or the mains lead become damp this may cause
short circuits.
The appliance is designed for use in enclosed areas. Do not
u
operate the appliance outdoors or in areas where it is
exposed to splash water or damp conditions.
Risk of fire due to short circuit!
If the mains cable/connector of the appliance or of another
appliance touch the rear of the appliance, the mains cable/
connector may be damaged by the appliance vibrations,
leading to a short circuit.
u
u
WARNING
Stand the appliance so that it is not touched by connectors
or main cables.
Do not plug the appliance or any others into sockets located
near the rear of the appliance.
4
Fire hazard due to refrigerant!
The refrigerant R 600a is environmentally friendly but flammable. Escaping refrigerant may ignite.
u
WARNING
Do not damage the piping of the refrigeration circuit.
Putting into operation
Align the appliance so that it
u
stands firmly and on a level by
applying the accompanying
spanner to the adjustable-
height feet (A) and using a
spirit level.
Fire hazard and danger of damage!
u
Blocked ventilation openings pose a risk of fire and damage!
u
NOTICE
Risk of damage due to condensate!
u
q
q
q
q
q
q
q
u
WARNING
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
WARNING
Always keep the ventilation openings clear. Always ensure
that the appliance is properly ventilated!
Do not install the appliance directly alongside a further
refrigerator/freezer.
In the event that the appliance is damaged, contact the
supplier immediately before connecting to the mains.
The floor at the site must be flat and level.
Do not install the appliance in a location where it is exposed
to direct radiation of the sun, next to a cooker, heater and
similar.
Always stand the appliance with its back directly to the wall.
The appliance may be moved only when it is empty.
Do not install the appliance without assistance.
Standard EN 378 specifies that the room in which you install
your appliance must have a volume of 1 m2 per 8 g of R
600a refrigerant used in the appliance. If the room in which
the appliance is installed is too small, a flammable gas-air
mixture may form in the event of a leakage in the refrigeration circuit. The quantity of refrigerant used in your appliance
is indicated on the type plate on the inside of the appliance.
Detach the connecting cable from the rear of the appliance,
removing the cable holder at the same time because otherwise there will be vibratory noise!
Note
Clean the appliance (see 6.2) .
u
If the appliance is installed in a very damp environment,
condensate may form on the outside of the appliance.
Always see to good ventilation at the installation site.
u
4.3 Changing the door stop
You can change over the door hinges if necessary.
Make sure that the following tools are to hand:
Torx® 25
q
Torx® 20
q
Torx® 15
q
Screwdriver
q
Supplied open-ended wrench
q
If necessary, a second person to assist with installation
q
CAUTION
Risk of injury if the door tips!
Take good hold of the door.
u
Set down the door carefully.
u
NOTICE
The stainless steel doors are finished with a high quality
surface coating and must not be treated with the enclosed care
product,
as otherwise the surface coating will be damaged.
Please only use a soft clean cloth to wipe the coated door
u
surfaces.
Only use a stainless steel care product on the stainless
u
steel side walls, applying it evenly in the direction of
polishing. Subsequent cleaning will then be easier.
Use only a soft clean cloth to wipe side walls and door
u
surfaces with a paint finish.
Remove the protective film from the decorative trims.
u
Remove all transit supports.
u
Dispose of packaging material (see 4.5) .
u
5
Putting into operation
(1) Stack cabinet (3) Kitchen cabinet
(2) Appliance (4) Wall
The appliance can be inserted into a row of kitchen units. To
match the appliance
a suitable stack cabinet
ance.
When inserting the appliance into a row of kitchen units (max.
depth 580 mm), the appliance can be installed directly next to
the kitchen unit
to the front of the kitchen unit by 34 mm at the side and by
50 mm in the middle of the appliance. It can be opened and
closed perfectly as a result.
Important for the ventilation:
At the back of the stack cabinet there has to be a ventilation
-
duct of at least 50 mm depth throughout the width of the
stack cabinet.
The ventilation space under the ceiling has to be at least
-
300 cm2.
the larger the ventilation space, the more energy-saving the
-
appliance is in operation.
If the appliance is installed with the hinges next to a wall
Fig. 5 (4)
least 40 mm. This corresponds to the projection of the handle
when the door is open.
, the distance between appliance and wall has to be at
Fig. 5 (2)
Fig. 5 (3)
to the height of the row of units,
Fig. 5 (1)
. The appliance door projects relative
can be fitted above the appli-
Fig. 4
Follow the order of the positions.
u
4.4 Insertion into a row of kitchen units
4.5 Disposing of packaging
WARNING
Danger of suffocation due to packing material and plastic film!
Do not allow children to play with packing material.
u
The packaging is made of recyclable materials:
corrugated board/cardboard
-
expanded polystyrene parts
-
polythene bags and sheets
-
polypropylene straps
-
nailed wooden frame with polyethylene panel*
-
Take the packaging material to an official collecting point.
u
4.6 Connecting the appliance
NOTICE
Risk of damage to the electronic control system!
Do not use stand-alone inverters (conversion of d.c. to a.c./
u
three-phase) or energy saving plugs.
Fire and overheating hazard!
u
WARNING
Do not use extension cables or multiple socket outlets.
The type of current (alternating current) and voltage at the
installation site have to conform with the data on the type plate
(see Appliance at a glance).
The socket must be properly earthed and fused. The tripping
current for the fuse must be between 10 A and 16 A.
The socket must be easily accessible so that the appliance can
be quickly disconnected from the supply in an emergency. It
must be outside the area of the rear of the appliance.
Check the electrical connection.
u
Plug in the power plug.
u
Fig. 5
6
Control
4.7 Switching on the appliance
Put the appliance into operation about 2 hours before first
loading food to be frozen.
Turn the temperature control
u
0 setting to point 3.
The interior light is on.
w
Fig. 3 (1)
to the right, from the
5 Control
5.1 Refrigerator compartment
The natural circulation of air in the refrigerator compartment
results in zones differing in temperature. It is coldest directly
above the vegetable drawers and at the rear wall. It is warmest
at the top front of the compartment and in the door.
5.1.1 Food refrigeration
Store perishable food such as ready-to-serve dishes, meat
u
products and sausages in the coldest zone. Place butter
and preserves in the upper area and in the door (see Appliance at a glance).
Use recyclable plastic, metal, aluminium and glass
u
containers and cling film for wrapping.
Always store liquids and food which is subject to odour or
u
taste transfer in closed containers or cover them.
Foods which give off a large amount of ethylene gas and
u
delicate foods, such as fruit, vegetables, salad, should
always be stored separately or wrapped so as not to reduce
the storage life; e.g. do not store tomatoes together with
kiwis or cabbage.
Do not store food too close together to enable good air
u
circulation.
To safeguard bottles from tipping over: move the bottle
u
holder.
5.1.2 Setting the temperature
The temperature can be set between 1 (warmest temperature,
minimum cooling performance) and 7 (coldest temperature,
maximum cooling performance).
The middle control setting is recommended, then a middle
temperature of approx.5 °C is established in the refrigerator
compartment.
To ensure ideal temperatures for storing frozen foods, a setting
of "4" to "7" on the temperature controller is recommended.
Selecting "7" makes it possible to achieve temperatures under
0 °C in the coldest part of the fridge compartment.
An average temperature of approx. –18 °C is then established
in the freezer compartment
Turn the temperature control
u
The temperature depends on the following factors:
- the door opening frequency
- the room temperature at the site where the appliance is
installed
- the type, temperature and quantity of frozen food
Adjust the temperature as needed, using the control.
u
5.1.3 CoolPlus function
At low room temperatures of 18 °C or lower:
Press the Cool-Plus switch
u
The deep temperatures in the freezer compartment are
w
ensured.
Once the room temperature is again higher than18 °C :
Deactivate the Cool-Plus
u
Fig. 3 (1)
Fig. 3 (2)
Fig. 3 (2)
.
.
switch manually.
Note
At normal room temperatures, in excess of 18 °C, the Cool-
u
Plus switch should be turned off, as it is not required.
5.1.4 Shelves
Relocating the shelves
The shelves have stops preventing them from being unintentionally pulled out.
Lift the shelf and draw it out
u
forwards.
Insert shelf with the raised
u
edge pointing upwards at
the back.
The food does not freeze
w
onto the rear wall.
Insert the bottle shelf at any position, but not at the very
u
bottom.
Dismantling shelves
The shelves can be disman-
u
tled for cleaning.
5.1.5 Using the sectioned shelf
CAUTION
Danger of laceration!
The shelf may break. The broken fragments may cause laceration.
Remove only empty shelves.
u
Fig. 6
The glass shelf with stop face (2) has to be at the back.
u
The glass plate (1) with pull-out stops must be at the front so
u
that the stops (3) face downwards.
5.1.6 Door racks
Removing the storage rack
Remove storage rack according to
u
illustration.
7
Maintenance
Dismantling door racks
The door racks can be dismantled for cleaning.
u
5.1.7 Removing the bottle holder
Remove the bottle holder according
u
to the illustration.
5.2 Freezer compartment
You can store frozen food, make ice cubes and freeze fresh
food in the freezer compartment.
5.2.1 Freezing food
The rating plate indicates the maximum quantity of fresh food
you can freeze within 24 hours (see Appliance at a glance)
under "Freezing capacity ... kg/24h".
The maximum load of frozen food for the drawers is 25 kg each
and for the shelves 35 kg each.
5.2.3 Drawers
To store frozen food directly on the shelves: pull the drawer
u
forwards and lift it out.
5.2.4 Shelves
To remove the shelf: lift up at the front
u
and pull out.
To put the shelf back: simply push in as
u
far as it will go.
5.2.5 VarioSpace
Apart from being able to remove
the drawers, you can also
remove the shelves, creating
space for large items of frozen
food. Poultry, meat, large pieces
of game and high bakery products can be frozen in one piece
and prepared.
The maximum load of frozen
u
food for the drawers is 25 kg
each and for the shelves
35 kg each.
CAUTION
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
Do not freeze bottles and cans containing drinks!
u
24 h before freezing food, set the temperature to a medium
u
to cold position.
To switch on Cool-Plus: press Cool-Plus button.
u
The freezer temperature drops, the appliance operates with
w
the maximum refrigerating capacity.
In order that the food is rapidly frozen through to the core, do
not exceed the following quantities per pack:
- Fruit, vegetables up to 1 kg
- Meat up to 2.5 kg
Pack the food in portions in freezer bags, reusable plastic,
u
metal or aluminium containers.
Spread the food over the shelf. Do not allow it to contact and
u
thaw items that are already frozen.
Set the temperature back again 24 h after placing the food
u
inside.
If the room temperature is higher than 18 °C:
switch off Cool-Plus: press Cool-Plus button
u
Fig. 3 (2)
Fig. 3 (2)
.
5.2.2 Thawing food
- in the refrigerator compartment
- at room temperature
- in a microwave oven
- in a conventional or fan oven
Remove only as much food as is required. Use thawed food
u
as quickly as possible.
Food once thawed should be re-frozen only in exceptional
u
cases.
5.2.6 Information system
Fig. 7
(1) Ready-made meals, ice
cream
(2) Pork, fish (5) Game, mushrooms
(3) Fruit, vegetables (6) Poultry, beef/veal
The figures indicate the storage time in months for several
types of frozen food in each case. Storage times given are
guide times.
(4) Sausages, bread
6 Maintenance
6.1 Manual defrosting
The refrigerator compartment is defrosted automatically.
The defrost water evaporates as a result of the heat of the
compressor. Drops of water on the rear wall are perfectly
normal.
Regularly clean the drain opening to allow the water to flow
u
away (see 6.2) .
A layer of frost or ice can build up in the freezer compartment
after a long period of operation.
8
Maintenance
The layer of frost or ice builds up faster if the appliance is
opened often or if the food is warm when placed inside.
However, a thick layer of ice will increase the appliance‘s
energy consumption. You should therefore defrost the appliance regularly.
Risk of injury and damage as a result of hot steam!
u
u
u
u
u
u
-or-
u
w
w
u
u
u
u
CAUTION
Do not use electric heaters or steam cleaners, naked flames
or defrosting sprays for defrosting.
Do not remove ice using sharp instruments.
Switch off the appliance.
Pull out the power plug or switch off the fuse.
If possible, put the frozen goods in the freezer drawer,
wrapped in newspaper or a blanket, and store in a cool
place.

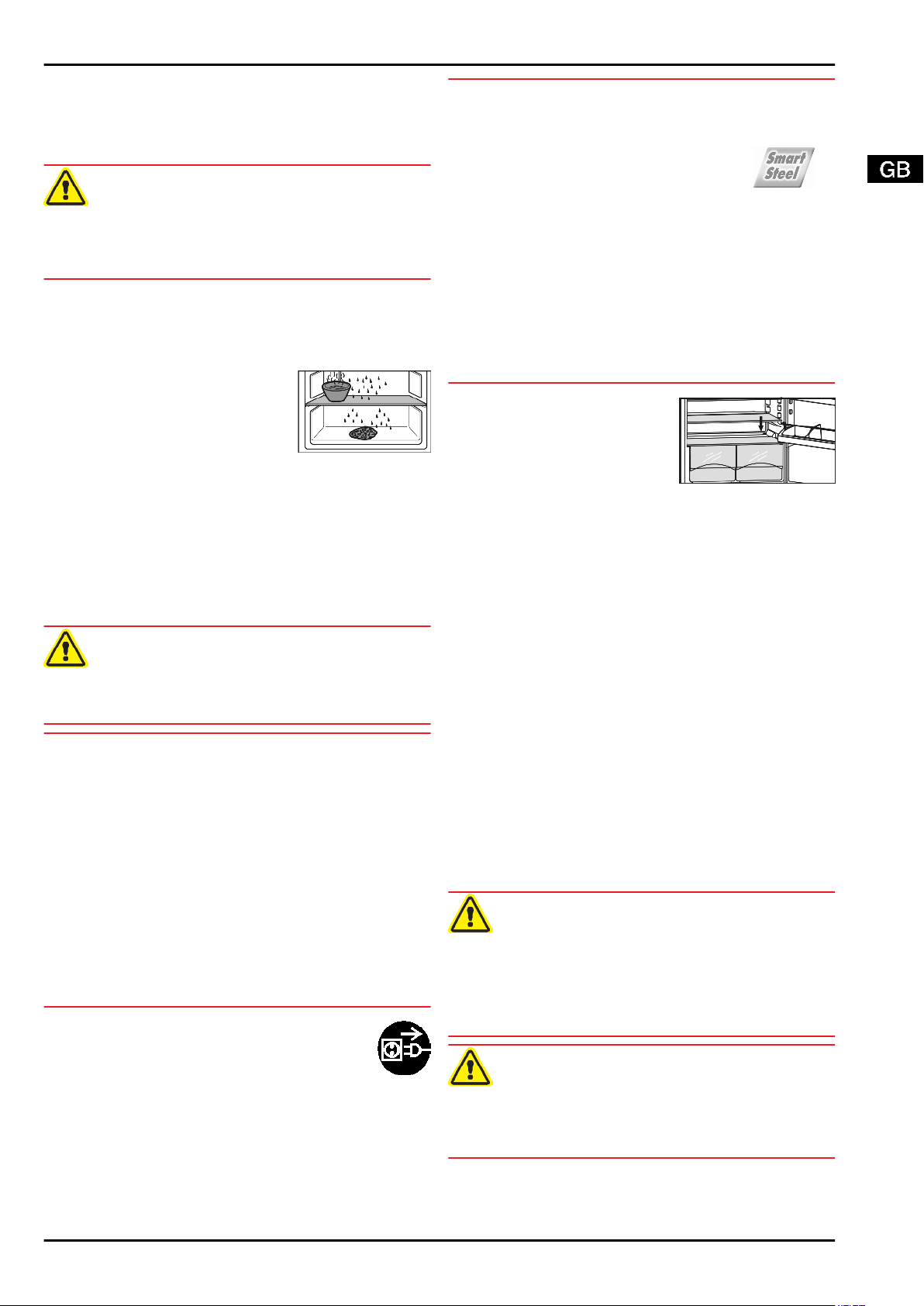

Place a pan with hot, not boiling
water on a middle shelf.
Half-fill the two lower drawers with
lukewarm water and put them in the
appliance.
Defrosting is speeded up.
Defrost water is collected in the drawers.
Leave the door of the appliance open while defrosting.
Remove detached pieces of ice.
If necessary, pick up defrost water several times, using a
sponge or cloth.
Clean the appliance (see 6.2) .
6.2 Cleaning the appliance
NOTICE
The stainless steel doors are finished with a high quality
surface coating and must not be treated with the enclosed care
product,
as otherwise the surface coating will be damaged.
Please only use a soft clean cloth to wipe the coated door
u
surfaces. In the case of heavy soiling, use a little water or
neutral cleaning agent. A micro-fibre cloth can be used
optionally.
When soiled, clean stainless steel side walls with a
u
commercially available stainless steel cleaning agent. Then
apply the enclosed stainless steel care product evenly in the
direction of polishing.
Use only a soft clean cloth to wipe side walls and door
u
surfaces with a paint finish. In the case of heavy soiling, use
a little water or neutral cleaning agent. A micro-fibre cloth
can be used optionally.
Clean drain hole: Remove
u
deposits with a narrow instrument, e.g. a cotton bud.
Most of the parts can be dismantled for cleaning: see the
u
relevant chapter.
Clean items of equipment by hand with lukewarm water
u
and a little washing-up liquid.
After cleaning:
Wipe dry the appliance and items of equipment.
u
Connect the appliance and switch it on again.
u
When the temperature is sufficiently cold:
Put the food back inside.
u
CAUTION
Risk of injury and damage as a result of hot steam!
Hot steam may damage the surfaces and cause burns.
Do not use any steam cleaners!
u
NOTICE
Incorrect cleaning damages the appliance!
Do not use cleaning agents in concentrated form.
u
Do not use any scouring or abrasive sponges or steel wool.
u
Please do not use any aggressive, scouring, sand-,
u
chloride-, chemical- or acid-based cleaning agents.
Do not use chemical solvents.
u
Do not damage or remove the type plate on the inside of the
u
appliance. It is important for the customer service.
Do not pull off, bend or damage cables or other compo-
u
nents.
Do not allow any cleaning water to enter the drain channel,
u
ventilation grille or electrical parts.
Please use soft cleaning cloths and a universal pH-neutral
u
cleaning agent.
Please use cleaning and care products suitable for contact
u
with foodstuffs in the appliance interior.
Empty appliance.
u
Pull out the power plug.
u
Clean the vent grille regularly.
u
Dust deposits increase energy consumption.
w
Clean plastic outer and inner surfaces with lukewarm
u
water and a little washing-up liquid.
6.3 Changing the interior light
In the device, an LED lamp is used as standard illumination for
the interior space.
When an incandescent bulb is used:
Use an incandescent lamp with max. 15 W and E14 socket.
q
Power supply (AC) and voltage at the operating point must
q
comply with the details on the rating plate (see Appliance at
a glance).
When a LED is used:
Use only the original LED lamp from the manufacturer. The
q
lamp can be obtained through customer service or a
specialist dealer (see 6.4) .
WARNING
Risk of injury from LED light!
The light intensity of the LED lighting corresponds to laser
class 1/1M.
If the cover is removed:
Do not look directly into the light at close quarters through
u
optical lenses. Doing so may damage your eyes.
Fire hazard from the LED light!
If different LED lights are used, there is a danger of overheating
or fire.
u
WARNING
Use the manufacturer's original LED light.
If the lamp is defective, exchange it as follows:
9
Malfunction
Switch off the appliance.
u
Pull out the power plug or switch off
u
the fuse.*
Take hold of the lamp cover.
u
As shown in the diagram, press open
u
the lamp cover on the inside at the
front, and pull it off to the side.
Replace the lamp.
u
Put on the lamp cover again and
u
snap it into place.
6.4 Customer service
First check whether you can correct the fault yourself by reference to the list (see Malfunction). If this is not the case, please
contact the customer service whose address is given in the
enclosed customer service list.
Risk of injury if repair work is not carried out professionally!
u
u
WARNING
Have any repairs and action - not expressly specified - on
the appliance and mains cable carried out by service
personnel only. (see Maintenance)
Read the appliance
designation
Fig. 8 (1)
No.
Fig. 8 (2)
serial No.
off the type plate
located inside the
appliance on the lefthand side.
, service
and
Fig. 8 (3)
Fig. 8
Notify the customer service, specifying the fault, appliance
u
designation
Fig. 8 (3)
This will help us to provide you with a faster and more accu-
w
rate service.
Keep the appliance closed until the customer service
u
arrives.
The food will stay cool longer.
w
Pull out the mains plug (not by pulling the connecting cable)
u
or switch off the fuse.
Fig. 8 (1)
.
, service No.
Fig. 8 (2)
and serial No.
7 Malfunction
Your appliance is designed and manufactured for a long life
span and reliable operation. If a malfunction nonetheless
occurs during operation, check whether it is due to a handling
error. In this case you will have to be charged for the costs
incurred, even during the warranty period. You may be able to
rectify the following faults yourself:
Appliance does not work.
The appliance is not switched on.
→
Switch on the appliance.
u
The power plug is not properly inserted in the wall socket.
→
Check power plug.
u
The fuse of the wall socket is not in order.
→
Check fuse.
u
The compressor runs for a long time.
The compressor switches to a low speed when little cold is
→
needed. Although the running time is increased as a result,
energy is saved.
This is normal in energy-saving models.
u
A LED on the bottom rear of the appliance (at the
compressor) flashes regularly every 15 seconds*.
The inverter is equipped with a diagnostic LED.
→
The flashing is normal.
u
Excessive noise.
Speed-controlled* compressors may produce varying
→
running noise due to different speed steps.
The sound is normal.
u
A bubbling and gurgling noise.
This noise comes from the refrigerant flowing in the refriger-
→
ation circuit.
The sound is normal.
u
A quiet clicking noise.
The noise is produced whenever the refrigeration unit
→
(motor) automatically switches on or off.
The sound is normal.
u
A hum. It is briefly a little louder when the refrigeration
unit (the motor) switches on.
The refrigeration increases automatically when fresh food
→
has just been placed in the appliance or the door has been
left open for a while.
The sound is normal.
u
The ambient temperature is too high.
→
Solution: (see 1.2)
u
Vibratory noise.
The appliance is not fixed to the ground. The running of the
→
cooling unit therefore makes objects and adjacent furniture
vibrate.
Adjust appliance via the height-adjustable feet.
u
Move bottles and containers apart.
u
The outside surfaces of the appliance are warm.
The heat of the refrigeration circuit is used to prevent
→
condensate from forming.
This is normal.
u
The temperature is not cold enough.
The door of the appliance is not properly closed.
→
Close the door of the appliance.
u
Insufficient ventilation.
→
Clear ventilation grilles.
u
The ambient temperature is too high.
→
Solution: (see 1.2) .
u
The appliance was opened too frequently or for too long.
→
Wait until the appliance reaches the required temperature
u
itself. If not, contact the customer service. (see Maintenance).
The appliance is too close to a source of heat (stove, heater
→
etc).
Change the position of the appliance or the source of heat.
u
The interior light is not on.
The appliance is not switched on.
→
Switch on the appliance.
u
The illuminant (delivery with LED illuminant) is defective.
→
WARNING
Risk of injury from LED light!
The light intensity of the LED lighting corresponds to laser
class 1/1M.
If the cover is removed:
Do not look directly into the light at close quarters through
u
optical lenses. Doing so may damage your eyes.
Replace the illuminant. (see Maintenance)
u
10
With an ambient temperature below 18 °C the device is
slightly warmed in places on the inner surface of the
fridge compartment's right side wall.
This is a necessary part of the function.
→
This is normal.
u
8 Decommissioning
8.1 Switching off the appliance
Decommissioning
Turn temperature control
u
Fig. 3 (1)
to 0.
8.2 Taking the appliance out of service
Empty the appliance.
u
Pull out the power plug.
u
Clean the appliance (see 6.2) .
u
Leave the door open to prevent odour.
u
9 Disposing of the appliance
The appliance contains some reusable materials
and should be disposed of properly - not simply
with unsorted household refuse. Appliances which
are no longer needed must be disposed of in a
professional and appropriate way, in accordance
with the current local regulations and laws.
When disposing of the appliance, ensure that the refrigeration
circuit is not damaged to prevent uncontrolled escape of the
refrigerant it contains (data on type plate) and oil.
Disable the appliance.
u
Pull out the plug.
u
Cut through the connecting cable.
u
11
Disposing of the appliance
12
Loading...
