Installation
Instructions
Combined fridge-freezer for
integrated use, door-on-door
HC 1011/1060 HC 1001/1050
020707 7084000 - 01
General safety information
Contents
1 General safety information........................... 2
2 Setting up the appliance............................... 2
3 Changing the door hinges............................ 3
3.1 To detach the soft stop mechanism.................. 3
3.2 Reversing the door........................................... 3
3.3 Re-attaching the soft stop mechanism............. 3
4 Kitchen Cabinet Construction...................... 4
4.1 Kitchen Cabinet Airflow.................................... 4
4.2 Designing the Kitchen Cabinet......................... 5
4.3 Designing the Kitchen Cabinet Doors............... 6
5 Water supply.................................................. 8
6 Installation...................................................... 8
6.1 Assembling the appliance................................ 9
6.2 Fitting the unit doors......................................... 11
7 Connecting the appliance............................. 13
The manufacturer is constantly working to improve all
models. Therefore please understand that we reserve the
right to make design, equipment and technical
modifications.
To get to know all the benefits of your new appliance, please
read the information contained in these instructions
carefully.
The instructions apply to several models, so there may be
differences. Sections which only apply to certain appliances
are indicated with an asterisk (*).
Instructions for action are marked with a
of action are marked with a .
, the results
1 General safety information
Read and follow these instructions. They contain safety
advice which is important for safe and problem-free
installation and operation. Always read and follow the safety
advice.
DANGER indicates a hazardous situation,
which if not avoided, will result in
death or serious injury.
WARNING indicates a hazardous situation,
which if not avoided, could result in
death or serious injury.
CAUTION indicates a hazardous situation,
NOTICE indicates a hazardous situation,
Note indicates useful advice and tips.
It is important that the guidelines and instructions in this
manual are followed so that the appliance is correctly
which if not avoided, will result in
minor or moderate injury.
which if not avoided, could result in
damage to property.
installed and operates properly. Read and understand all
information in this manual before the appliance is installed.
2 Setting up the appliance
WARNING
Risk of fire due to moisture!
If live parts or the power cord get wet, this can cause a short
circuit.
u
The appliance is designed for use in enclosed spaces.
Do not operate the appliance in open space or in damp
areas or where there is spray.
WARNING
Danger of fire and damage!
u
Do not place devices that give off heat, e.g. microwaves,
toasters, etc. on the appliance.
CAUTION
Risk of personal injury!
u
Have two people move this appliance into place.
NOTICE
Risk of damage caused by condensation
Installing the appliance next to any other refrigerator or
freezer can cause damage or condensation to the Liebherr
appliance.
u
Do not install this appliance next to any other refrigerator
or freezer except another Liebherr model. Liebherr
models are designed to allow side-by-side installation.
They are equipped with a heating system to eliminate
condensation when refrigerators or freezers are installed
side-by-side.
NOTICE
Risk of damage for the finished floor surface!
u
Protect the finished floor surface before you uncrate the
unit.
Verify that:
q
the floor under the appliance is flat and level.
q
the floor can support the appliance's weight plus
approximately 1200 pounds (544 kg) of food weight.
q
the appliance is not placed in direct sunlight or near the
stove, range top, radiators and similar heat sources.
q
the kitchen cabinet that the appliance is installed in is
shimmed to the floor level if the floor heights are not
equal.
q
cutout dimensions are accurate.
q
electrical outlet is in correct location.
q
the air flow is not restricted. Air flow must be provided for
the appliance to operate properly. The factory air vents
provide 31 square inches (200 cm2) of air flow per
appliance. If you are replacing the air vents with an
overlay, the air flow must be the same or greater than the
factory air vents.
2
u
Examine the unit and packaging for shipping damage.
Contact the carrier immediately if you suspect there is
any damage.
u
Note the type (model, number), index, appliance/serial
number, date of purchase and where purchased on the
spaces provided in see Appliance Information.
u
Remove anything attached to the rear or side walls of
appliance that would prevent proper installation or
impede proper ventilation.
If the appliance is set up in humid areas, condensation may
build on the outside of the appliance.
u
Always ensure proper ventilation.
3 Changing the door hinges
Make sure you have the following tools on hand:
q
Hex wrench 13
q
Cordless screwdriver Torx 15, 20, 25, 30
Push the appliance 2/3 of the way into the recess.
Disconnect the power plug.
Open the doors.
Changing the door hinges
3.2 Reversing the door
3.1 To detach the soft stop mechanism*
HC1011, HC1060
CAUTION
Risk of injury if soft stop contracts!
u
Detach with care.
u
Unscrew retainer
u
Unscrew ball stud
mechanism
Fig. 1 (1)
Fig. 1 (3)
Fig. 1 (2)
.
together with the soft stop
from the door and set to one side.
Fig. 1
Fig. 2
u
Lift off covers
u
Just loosen top and bottom screws
of the appliance.
u
Push doors outwards and unhook.
u
Swap screws
them in a little.
CAUTION
Risk of injury if hinges fold!
u
Leave hinges open.
u
Undo screws
diagonally.
The screws
screwdriver.
u
Tighten the hinges.
u
Close off the now unused fastening holes with the
plugs
Fig. 2 (11)
u
Hang doors on the pre-fitted screws
screws.
Fig. 2 (5,6,7,8)
Fig. 2 (9)
Fig. 2 (10)
Fig. 2 (10)
supplied.
using a slot screwdriver.
Fig. 2 (9)
to the opposite side and screw
and change over the hinges
are self-tapping: use a cordless
Fig. 2 (9)
on the body
and tighten
3.3 Re-attaching the soft stop mechanism*
HC1011, HC1060
u
Screw on retainer
Fig. 3 (1)
Fig. 3
.
3
Kitchen Cabinet Construction
u
Screw in ball stud
mechanism
u
Re-attach all covers
Fig. 3 (3)
Fig. 3 (2)
together with the soft stop
in the fastening hole.
Fig. 2 (5,6,7,8)
.
4 Kitchen Cabinet Construction
This is a fully integrated appliance which means that it is
fully enclosed by a kitchen cabinet. This type of cabinet
must be carefully constructed using the proper dimensions
and it must provide proper ventilation to ensure proper
appliance operation.
Make a separate kitchen cabinet
for each appliance for Side-bySide installations.
Consider having a professional install the appliance in your
kitchen cabinet.
- The top ventilation space can be either directly over the
appliance
Fig. 4 (3)
Fig. 4 (2)
, or through a vent installed in a soffit
or next to the ceiling over a cabinet
Fig. 4 (4)
.
4.1 Kitchen Cabinet Airflow
Fig. 5
- There must be a clear ventilation space (without any
obstructions) of at least 1-1/2 in. (38 mm) at the back of
the kitchen cabinet.
u
Observe the above ventilation dimensions.
Ventilation through the cabinet base at the bottom can be
achieved by installing the provided ventilation grille
Fig. 6 (3)
(200 cm2). When using the provided ventilation grille
Fig. 6 (3)
or via a ventilation opening of at least 31 in
, please proceed as follows:
2
Fig. 4
- There must be a ventilation space at least 31 in
(200 cm2) at the airflow inlet
outlet
Fig. 4 (2)
4
.
Fig. 4 (1)
and at the airflow
2
Fig. 6
u
In the cabinet base, cut out a ventilation opening that is
17-23/32 in. (450 mm) in width and 2-7/32 in. (56 mm) in
height.
Kitchen Cabinet Construction
u
Insert ventilation grille
out
Fig. 6 (1)
u
From the back side, slide the snap-fits
.
grille until the hooks make contact with the cabinet base.
u
Completely mount cabinet base (with ventilation grille
and snap-fits) to kitchen cabinet.
4.2 Designing the Kitchen Cabinet
Install the appliance in stable kitchen cabinets only.
Fig. 6 (3)
into the cabinet base cut-
Fig. 6 (2)
into the
Fig. 6
1 Power cord 3 Electrical outlet
2 Level 4 Fish line for power cord
A 21-7/32 in. (539 mm) B 69-21/32 in. (1769.5 mm)
C 21-15/16 in. (557 mm) D 69-3/4 in. - 70-3/8 in. (1772 mm) - (1788 mm)
E 24 in. (609.6 mm) (American Style Cabinet) F 21-21/32 in. (550 mm)
23-5/8 in. (600 mm) (European Style Cabinet) G 1-1/2 in. (38 mm)
H 27-3/8 in. (695 mm) J 24-3/4 in. (629 mm)
K max. 3/4 in. (19 mm) L 9-21/32 in. (245 mm)
u
Construct the kitchen cabinet using the dimensions
shown in
Fig. 6
.
u
Align the kitchen cabinet with a level
Fig. 6 (2)
square. If necessary, shim underneath the cabinet to
make it level.
and a
5
Kitchen Cabinet Construction
w
The floor and side walls must be at right angles to each
other.
The joint between the upper and the lower kitchen cabinet
door must align with the joint between the upper and lower
appliance door.
Follow distance L to the wall to allow the drawers to be
pulled out properly.
u
Follow the dimensions provided in
4.3 Designing the Kitchen Cabinet
Doors
Fig. 6
.
You need two doors for the kitchen cabinet, one on top for
the refrigerator compartment, and one on the bottom for the
freezer compartment.
In general, the doors have these characteristics:
The doors should be at least 5/8 in. (16 mm) and max.
3/4 in. (19 mm) thick to allow the connecting rails to be
fastened to them.
With both doors closed, there should be a minimum of
1/8 in. (3 mm) between the upper and lower doors.
Also, there should be an 1/8 in. (3 mm) clearance
between the upper door and the cabinet door above it (if
any).
The width of the cabinet doors depends on the kitchen
style and size of the gaps between the door panels of the
cabinetry. Generally, a 1/8 in. (3 mm) vertical gap
between the cabinet doors is recommended.
The top edge of the upper door
-
Fig. 7 (2)
cabinet(s), if any.
The position of the joint between the kitchen cabinet
doors must be level with the position of the joint
Fig. 7 (2)
Adjust the door alignment before installing the appliance.
It is impossible to adjust the door with the appliance
installed.
u
Check the installation dimensions according to
should be even with the doors of adjoining
between the appliance doors.
Fig. 7 (1)
and lower door
Fig. 6
.

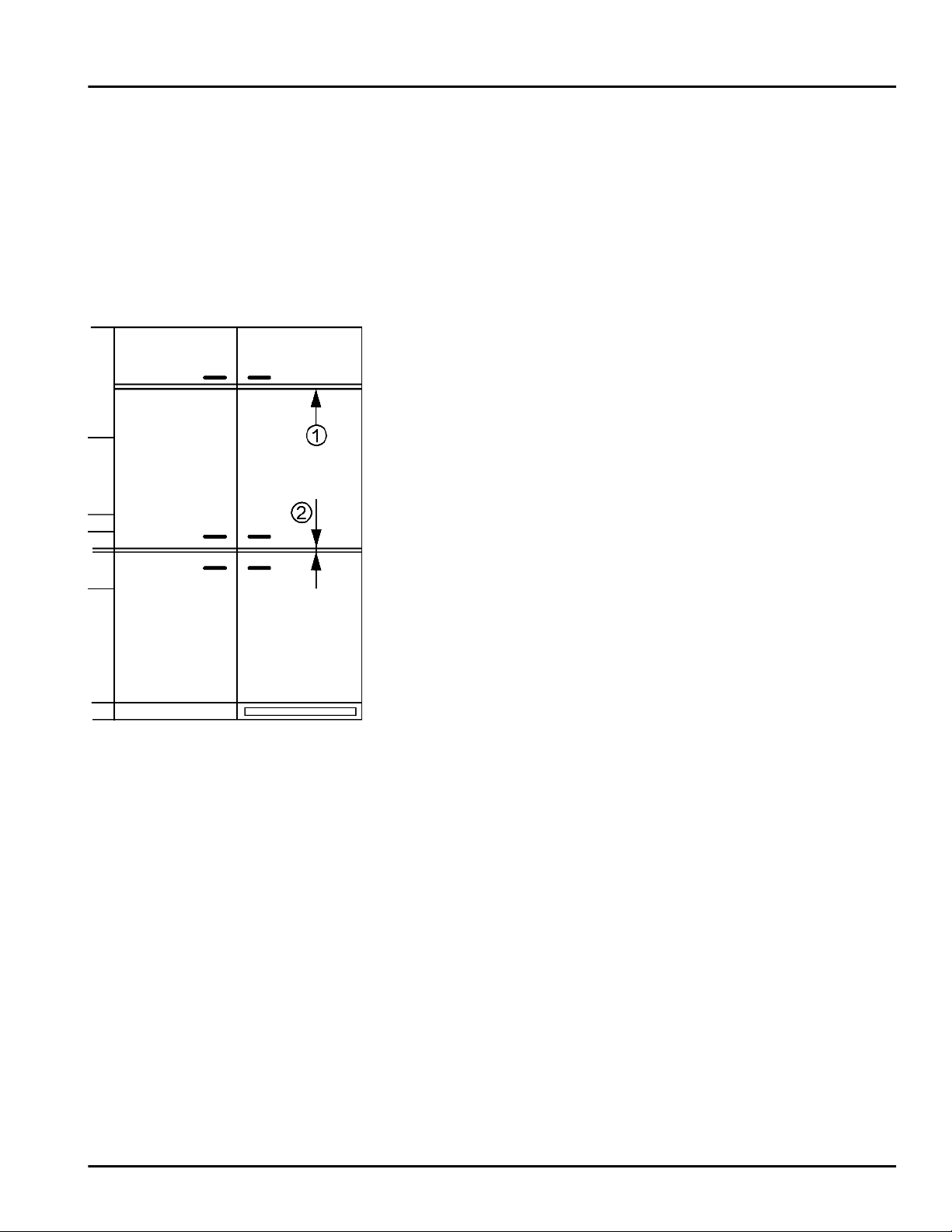

Fig. 7
6
Kitchen Cabinet Construction
Fig. 7
1 Unit door fridge compartement 3 Fridge compartement door
2 Unit door freezer
compartement
The freezer door height is 24-24/32 in. (629 mm).
u
To cover the lower part of the appliance: increase the
height of the panel to 27-3/32 in. (695 mm).
The thickness of the floor board is usually 3/4 in. (19 mm).
u
To cover the face side of the floor board
the height of the panel to 27-3/8 in. + 3/4 in. = 28-1/8 in.
( 695 mm + 19 mm = 714 mm ).
Without door panels on the unit, there is a gap of 19/32 in.
(15 mm) betwenn the freezer
door
Fig. 7 (3)
gap between the two doors
1/8 in. (3 mm) and must be in the hatched area.
. After the installation of the cabinet doors, the
Fig. 7 (4)
Fig. 7 (1,2)
4 Freezer compartement door
Of course, the final door height depends on the gap position
of the cabinets that stand to the left and right of the
appliance cabinet.
If there is other furniture standing close to the appliance
Fig. 7 (a)
and the refrigerator
will only be around
: increase
cabinet this furniture typically has a gap between two
drawers or two doors. Depending on your kitchen, these
gaps are approximately 1/8 in. (3 mm) wide.
u
In this case, increase the height of the panel to
27-3/8 in. + 3/4 in. + 19/32 in. - 1/8 in. = 28-19/32 in.
( 695 mm + 19 mm + 15 mm - 3 mm = 726 mm ).
The height of the refrigerator door panel is:
7
Water supply
u
The total opening of the cabinet (i.e. 70-3/8 in.
(1788 mm)) plus the thickness of the top as well as the
floor board (usually 3/4 in. (19 mm)) minus the height of
the freezer door panel (xxx in. (xxx mm)) as calculated
above and subtract the width of the gap (approximately
1/8 in. (3 mm)): 70-3/8 in. + 3/4 in. + 3/4 in. - xxx in. 1/8 in. = 71-25/32 in. - xxx in. ( 1788 mm + 19 mm +
19 mm - xxx mm - 3 mm = 1823 mm – xxx mm )
5 Water supply*
WARNING
Electrical Shock Hazard!
u
Do not make the water connection while the appliance is
connected to an electrical outlet.
u
Disconnect the water supply before connecting the water
lines for the IceMaker.
u
The connection to the water supply may only be made by
a trained and licensed plumber.
WARNING
Poisoning Hazard!
u
The water quality must comply with the drinking water
regulations for the geographical area where the
appliance is located.
u
The IceMaker is designed exclusively to make ice cubes
in quantities needed by a household and must only be
operated with water appropriate for this purpose.
- Do not damage or bend the
water supply pipe during
installation.
u
Connect the straight portion of the supplied stainless
steel hose to the solenoid valve.
The solenoid valve is located on the back of the appliance
at the bottom. It has a Metric R¾ male connection.
u
Connect the bent portion of the stainless steel hose to
the shut-off valve.
u
Open the shut-off valve of the water supply
pipe and check the entire water system to
ensure there are no leaks.
Before initial operation:
u
Have a competent fitter bleed the water supply
pipe.
6 Installation
All installation components are supplied with the appliance.
- The water pressure must be
between 21.76 psi (1.5 bar) and
87.02 psi (6 bar). (0,15 MPa 0,6 MPa)
- Water must be supplied to the
appliance by means of a coldwater pipe that can withstand
the operating pressure and
conforms to hygiene
regulations.
Use the supplied steel hose
(59-1/16 '' (1.5 m), metric
thread) to connect to the water
supply. A 118-1/8 '' (3 m) hose
is available from Customer
Service. This hose must be
installed by a qualified fitter.
The connecting piece of the
hose contains a filter with a
gasket seal.
- A shut-off valve must be
provided between the hose line
and the domestic water supply
to turn off the water supply, if
necessary.
- All devices and fixtures used to
supply water must comply with
the regulations in force in the
respective country.
Fig. 8
Make sure you have the following tools on hand:
q
Cordless Torx 15. 20. 25 screwdrivers
q
Hexagonal wrench 13
The floor and side walls of the unit must be at right angles
to one another. Level the unit using a spirit level and set
square. If necessary, level up by placing something
underneath.
The appliance can also be built into a normal kitchen
cabinet. In this case, detach the fittings on the unit door and
the recess. They are no longer needed, as the unit door is
fitted to the appliance door.
8
Installation
Note
u
Before assembling the unit door, make sure that the
permitted weight for the unit doors is not exceeded.
u
Otherwise damage to the hinges and malfunctions
arising from this cannot be ruled out.
Maximum weight of unit door
Fridge
compartment door
Freezer
compartment door
30.5 lbs (14 kg)
26.5 lbs (12 kg)
6.1 Assembling the appliance
Fig. 9
u
Remove the power supply cable from the back of the
appliance. Also remove the cable holder, otherwise
there will be vibration noise!
u
Position the power supply
cable using a piece of string so
that the appliance can easily
be connected to the electricity
supply after it has been
installed.
Fig. 10
9
Installation
For appliances with a fixed water supply for the
IceMaker:*
u
Connect the IceMaker as indicated the section entitled
Water Supply.*
u
Fit the locking clip
Fig. 11 (62)
.*
Fig. 11
All appliances:
u
Push the appliance 3/4 of the way into the recess.
u
Remove the covers
u
Screw
Fig. 12 (61)
equalizer trim
Fig. 9 (5,6,7)
the
Fig. 12 (20)
.
to
the appliance through the
oblong holes on top.
Fig. 12
u
Fasten all mounting
brackets
Fig. 13 (34)
with
hex head screws
Fig. 13 (35)
to the prebored holes in the
appliance door.
Fig. 13
With 5/8 '' (16 mm) thick unit
walls = 22-3/8 '' (568 mm) wide
recess:
u
Clip a spacer
Fig. 14 (23)
onto
the upper hinges and a
spacer
Fig. 9 (24)
hinges.
u
Attach the top and bottom
covers
Fig. 15 (53)
onto the lower
to the
Fig. 14
mounting brackets
Fig. 15 (50)
u
Fasten the mounting
brackets
.
Fig. 15 (50)
at the
top with screws
Fig. 15 (55)
and at the
bottom with screws
Fig. 9 (51)
such that the
bracket can still be moved
slightly to the left and to the
Fig. 15
right.
u
Remove the protective film from the
trim
Fig. 16 (22)
Fig. 16 (22)
on the handle side and flush
.Attach the trim
with the front to the projecting edge of the
cover
Fig. 15 (53)
and glue to the sidewall
of the appliance.
Fig. 16
u
To shorten the trim
Fig. 16 (22)
at the
bottom, if necessary: Position the cover
Fig. 9 (54)
bracket
Fig. 16 (22)
on the bottom mounting
Fig. 15 (50)
and shorten the trim
so that it is flush with the upper
edge of the cover.
u
Remove the cover
Fig. 9 (54)
again.
To slide the appliance in and align it:
u
Slide the appliance in until it comes into contact with the
covers
Fig. 15 (53)
on the side wall of the unit.
Fig. 15
With 5/8 '' (16 mm) thick unit
walls = 22-3/8 '' (568 mm) wide
recess:
*
u
Allow the spacers on the side
wall of the unit to butt up against
the appliance.
With 3/4 '' (19 mm) thick unit
walls = 22-1/8 '' (562 mm) wide
recess:
u
Align the front edges of the
hinges flush with the side wall
of the unit.
For units (5/8 '' (16 mm) and 3/4 '' (19 mm)) with door
stop components (knobs, sealing lips, etc.):
u
Allow for the additional distance (depth of door stop
components). Allow the hinges and the covers
Fig. 15 (53)
to protrude by the additional distance.
All appliances:
u
Adjust the adjustable feet
open-ended wrench
Fig. 9 (25)
Fig. 9 (26)
with the supplied
to align the appliance
vertically.
w
The appliance is now correctly positioned in depth. The
gap between the front edge of the side wall of the unit
and the body of the appliance is 1-21/32 '' (42 mm) all the
way around. (Allow for door stop components, such as
knobs and sealing lips.)
Note
Malfunction due to incorrect assembly!
If the spacing is not correct, the door may not close. This
can cause icing up, the formation of condensate, and
malfunctions.
u
A continuous space of 1-21/32 '' (42 mm) must be
maintained. (Allow for door stop components, such as
knobs and sealing lips.)
To secure the appliance in the recess:
u
Screw chipboard
screws
Fig. 19 (28)
on
both doors at the top
and at the bottom
through the hinge
plates.
On the handle side at the top:
Fig. 17
Fig. 18
Fig. 19
10
Installation
u
Slightly loosen the
screws
u
Secure the top
Fig. 20 (55)
.
mounting bracket
Fig. 20 (50)
to the unit
wall with a ø4x19
chipboard screw
Fig. 20 (29)
u
Break off the protruding
.
end of the cover
Fig. 20 (53)
u
Tighten the screws
u
Place the cover
.
Fig. 20 (55)
Fig. 20 (53)
in position.
On the handle side at the bottom:
u
Slightly loosen the
screws
u
Secure the bottom
Fig. 21 (51)
.
mounting bracket
Fig. 21 (50)
to the unit wall
with a ø4x19 chipboard
screw
Fig. 21 (29)
u
Break off the protruding
.
end of the cover
Fig. 21 (53)
u
Tighten the screws
Fig. 21 (51)
u
Place the cover
Fig. 21 (54)
.
.
into position on
the bottom mounting
bracket
u
Slide the equalizer trim
Fig. 21 (50)
.
Fig. 12 (20)
as far as it will go.
u
Close the appliance door.
.
toward the handle side
Fig. 20
Fig. 21
u
Unscrew the
crosspiece
Fig. 23 (31)
by
undoing the
locknuts
u
Hang the
Fig. 23 (32)
.
crosspiece
Fig. 23 (31)
on the
inside of the unit
door using the
fitting aids
Fig. 23 (30)
.
For a 23-5/8 '' (600 mm) wide recess:
u
To center the crosspiece
Fig. 23 (31)
: Mark a short center
line on the unit door and place the tip of the arrow on the
crosspiece over it.
w
Distances to the outer edges are the same to the right
and to the left.
For a 24 '' (609.6 mm) wide recess:
u
To align the crosspiece
Fig. 23 (31)
: Mark a short center
line on the unit door and place the tip of the arrow on the
crosspiece over it. Now shift the crosspiece
Fig. 23 (31)
3/16 in. (5.5 mm) towards the hinge side.
For chipboard doors:
u
Fasten the crosspiece
Fig. 23 (41)
.
Fig. 23 (31)
with at least 6 screws
For frame and panel doors:
u
Fasten the crosspiece
Fig. 23 (41)
u
Lift up the fitting aids
at the edge.
Fig. 23 (31)
Fig. 23 (30)
with 4 screws
, turn them around, and
insert them into the adjacent openings.
Fig. 23
6.2 Fitting the unit doors
Fig. 22
The fitting aids
You must therefore fit the unit doors one after the
other.
u
Verify the 5/16 '' (8 mm) presetting. (Distance between
appliance door and lower edge of crosspiece)
u
Raise the fitting aids
Bottom stop edge ▲ of fitting aid = top edge of unit door
to be fitted.
Fig. 22 (30)
Fig. 22 (30)
are required for both doors.
to the unit door height.
Fig. 24
u
Attach the unit door on the adjusting bolts
loosely screw the locknuts
Fig. 24 (32)
Fig. 24 (33)
onto the adjusting
bolts.
u
Close the door.
u
Check the gap between the door and the surrounding unit
doors.
u
To laterally align the unit door: Move the unit door in the
X direction.
u
To align the unit door in height and in lateral inclination:
Adjust the adjusting bolts
w
The unit door is flush and in alignment with the
Fig. 24 (33)
with a screwdriver.
surrounding unit fronts.
u
Tighten the locknuts
Fig. 24 (32)
.
and
11
Installation
Ensure that both metal
edges are flush,
symbol //:
u
Drill pilot holes in the
door of the unit (you
could make a
preliminary hole with a
bradawl).
u
Fasten the appliance door to the unit door with screws
Fig. 25 (41)
Fig. 26
u
To align the unit door in depth Z: Undo the screws
Fig. 26 (36)
Fig. 26 (35)
Fig. 26 (37)
u
Do not allow the knobs and sealing lips
through the mounting brackets
Fig. 25 (34)
at the top and the hex head screws
at the bottom using the ring wrench
supplied, then move the door.
to come into contact with the door important for function!
u
Set an air gap of 3/32 '' (2 mm) between
the door of the unit and the body of the
unit.
For large unit doors:
u
Fit a 3rd pair of mounting brackets
Fig. 26 (34)
u
Use the holes pre-drilled in the handle
.
area of the appliance door for this
purpose.
Fig. 25
.
u
Position the upper
covers
Fig. 28 (38)
and
snap into place.
u
Place the side covers
Fig. 28 (39)
in position,
slide to the limit and
then press until they
snap audibly into place.
u
Attach the covers
Fig. 28 (40)
to the side
and then draw them
forward with a
screwdriver, so that
they snap properly into
place.
Fig. 28
For a 24 '' (609.6 mm) wide recess:
u
Position the covers
Fig. 9 (6,7,60)
and snap into place.
For a 23-5/8 '' (600 mm) wide recess:
u
Position the covers
Fig. 9 (5,6,7)
and snap into place.
For appliances without a stop mechanism, adjust the
opening resilience:
The opening resilience of the
door can be adjusted if
necessary using the Allen
wrench supplied:*
u
For more spring force: Turn
clockwise.*
u
For less spring force (factory
setting): Turn
counterclockwise.*
u
Attach the remaining covers to
the hinges.*
u
Check the fit of
the door and readjust, if
necessary.
u
Tighten all
screws.
u
Tighten the locknuts
Fig. 27 (37)
Fig. 27 (33)
12
while bracing the adjusting bolts
with a screwdriver.
Fig. 27 (32)
Fig. 27
with the ring wrench
Check the following points to ensure that the appliance has
been installed correctly. Incorrect installation can cause
icing up, the formation of condensate, and malfunctions:
w
The door must close properly.
w
The door of the unit must not touch the body of the unit.
w
The seal at the top edge on the handle side must fit tightly.
To verify this, darken the room, place a flashlight inside
the appliance near the top, and close the door. If you see
light shining through, check the assembly.
*
7 Connecting the appliance
WARNING
Electrical shock hazard!
u
Start-up should only take place once the appliance has
been installed according to these instructions.
u
Electrically ground appliance.
u
Do not ground to a gas pipe.
u
Check with a qualified electrician if you are not sure the
appliance is properly grounded.
u
Do not have a fuse in the neutral or grounding circuit.
u
Do not use an extension cord or a multiple socket.
u
Do not use a power cord that is frayed or damaged.
WARNING
Electrical shock hazard!
This appliance is equipped with a three-prong (grounding)
polarized plug for your protection against possible shock
hazards. Electrical Grounding Required.
u
Do not remove the round grounding prong from the plug.
u
Do not use a two-prong grounding adapter.
Connecting the appliance
Wait 30 minutes up to 1 hour after installation before you
plug in the appliance. This allows the refrigerant and
system lubrication to reach equilibrium.
Make sure incoming voltage is the same as the appliance
rating. A 110-120 Volt, 60 Hz, 15 Amp electrical supply
(20 Amp for side-by-side installations) circuit that is
controlled by a circuit breaker or fuse is required.
We recommend using a dedicated circuit for this
appliance to prevent electrical overload.
Follow all Federal, State and local electrical, fire and
building codes and ordinances when installing the
receptacle and / or the appliance.
In some communities, a wall switch is required to turn
power to the appliance ON and OFF.
To reduce the risk of fire, electric shock, or personal
injury, installation work and electrical wiring must be
done by a qualified electrician in accordance with all
applicable codes and standards, including fire-rated
construction.
You are advised to clean the appliance before switching
it on the first time (see Cleaning).
The top of the electric outlet must be located within
82-5/8 in. (2100 mm) from the top of the base in the
cabinet.
13
Connecting the appliance
14
Loading...
