Operating instructions
Combined fridge-freezer with BioFresh compartment for integrated use, door-ondoor
131113
7085462 - 01
ICBP/ (S)ICBN ... LP
Appliance at a glance
Contents
1 Appliance at a glance............................................ 2
1.1 Description of appliance and equipment.................. 2
1.2 Range of appliance use............................................ 2
1.3 Conformity................................................................ 3
1.4 Saving energy.......................................................... 3
2 General safety information................................... 3
3 Controls and displays........................................... 4
3.1 Operating and control elements............................... 4
3.2 Temperature display................................................. 4
4 Putting into operation............................................ 5
4.1 Switching on the appliance....................................... 5
5 Control.................................................................... 5
5.1 Child proofing........................................................... 5
5.2 Door alarm................................................................ 5
5.3 Temperature alarm................................................... 5
5.4 Refrigerator compartment........................................ 5
5.5 BioFresh compartment............................................. 8
5.6 Freezer compartment............................................... 9
6 Maintenance........................................................... 11
6.1 Defrosting with NoFrost............................................ 11
6.2 Manual defrosting..................................................... 11
6.3 Cleaning the appliance............................................. 12
6.4 Cleaning the IceMaker............................................. 12
6.5 Customer service..................................................... 12
7 Malfunction............................................................. 13
8 Decommissioning.................................................. 14
8.1 Switching off the appliance....................................... 14
8.2 Taking the appliance out of service.......................... 14
9 Disposing of the appliance................................... 14
1 Appliance at a glance
1.1 Description of appliance and equipment
The manufacturer works constantly on the further development
of all the types and models. Therefore please understand that
we have to reserve the right to make design, equipment and
technical modifications.
To get to know all the benefits of your new appliance, please
read the information contained in these instructions carefully.
The instructions apply to several models. Differences may
occur. Text relating only to specific appliances is marked with
an asterisk (*).
Instructions for action are marked with a , the results of
action are marked with a .
Fig. 1
(1) Operating and control
elements
(2) Fan (14) Humidity control plate
(3) Shelf, sectioned (15) HydroSafe
(4) Shelf (16) Drain hole
(5) VarioSafe* (17) LED lighting, freezer
(6) Adjustable bottle shelf (18) Soft stop mechanism
(7) LED light column,
double sided
(8) Package rack (20) IceMaker*
(9) Can rack* (21) Information system*
(10) Bottle rack (22) Cold storage accumula-
(11) Bottle holder (23) Type plate
(12) LED lighting, BioFresh
compartment
Note
Place food inside the appliance as shown in the diagram.
u
This allows the appliance to save energy during operation.
Shelves, drawers and baskets are arranged for optimum
u
energy efficiency on delivery.
(13) DrySafe
compartment
(19) Freezer compartment
drawer
tors
1.2 Range of appliance use
The appliance is suitable solely for cooling food
in a domestic environment or similar. This
includes use in, for example
2 * Depending on model and options
General safety information
-
in staff kitchenettes, bed and breakfast establishments,
-
by guests in country homes, hotels, motels
and other forms of accommodation,
-
in catering and similar services in the wholesale trade
Use the appliance solely as is customary within
a domestic environment. All other types of use
are inadmissible. The appliance is not suitable
for storing and cooling medicines, blood
plasma, laboratory preparations or similar
substances and products covered by the
2007/47/EC Medical Devices Directive. Misuse
of the appliance can result in the stored products suffering harm or perishing. Furthermore,
the appliance is not suitable for operation in
potentially explosive atmospheres.
The appliance is set to operate within specific
ambient temperature limits according to its
climate rating. The correct climate rating for
your appliance is indicated on the type plate.
Note
Compliance with the ambient temperatures
u
indicated is required, otherwise the cooling
performance is reduced.
Climate
rating
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
for ambient temperatures of
1.3 Conformity
The refrigerant circuit is tested for leakage. When built-in the
appliance complies with the relevant safety regulations and EC
Directives 2006/95/EC, 2004/108/EC, 2009/125/EC and
2010/30/EU.
The BioFresh compartment satisfies the requirements of a chill
compartment to EN ISO 15502.
Note for test institutions:
Tests are to be carried out according to the applicable
standards and guidelines.
Preparation and testing of the appliances must be carried
out taking the manufacturer's loading plans and the
notes in the operating manual into account.
1.4 Saving energy
Always ensure good ventilation. Do not cover ventilation
-
openings or grille.
Do not place appliance in areas of direct sunlight or next to a
-
stove, heater or similar object.
The energy consumption depends on the installation condi-
-
tions, e.g. the ambient temperature (see 1.2) .
Keep the time the appliance is open to a minimum.
-
The lower the temperature setting, the higher the power
-
consumption.
Store food logically. (see Appliance at a glance).
-
Ensure that all food is well packed and covered for storage.
-
This will prevent frost from forming.
Remove food as needed in order that it does not warm too
-
much.
First cool warm food to room temperature before storing it .
-
Defrost frozen food in the refrigerator.
-
If there is a thick layer of frost in the appliance: defrost the
-
appliance.*
Use the vacation function for longer vacation periods
-
(see 5.4.4) .
2 General safety information
Danger for the user:
-
This appliance can be used by children of 8
years old and over, and also by persons with
restricted physical, sensory or mental
capacity or lack of experience and knowledge, if they are supervised or have been
instructed on safe use of the appliance and
understand the resulting risks. Children must
not be allowed to play with the appliance.
Cleaning and user maintenance must not be
carried out by children without supervision.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains plug
or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
Have any repairs to or intervention in the
appliance, and any change of the mains
power cable, carried out by the customer
service only or by other specialised personnel
trained for the purpose.
-
Only install, connect and dispose of the appliance according to the instructions.
-
Only use the appliance when it is installed.
-
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
-
All repairs to and intervention in the IceMaker
may be carried out only by service personnel
or by other skilled personnel trained for the
purpose.*
-
The manufacturer is not liable for damage
caused by a faulty fixed water connection.*
-
Special-purpose lamps (incandescent lamps,
LEDs, fluorescent tubes) in the appliance
serve to illuminate the appliance interior and
are not suited for room illumination.
Fire hazard:
-
The refrigerant R 600a is environmentally
friendly but flammable. Escaping refrigerant
may ignite.
•
Do not damage the refrigerant circuit pipes.
* Depending on model and options 3
Controls and displays
•
Do not allow naked flames or ignition
sources to enter the appliance.
•
Do not use any electrical appliances in the
interior (e.g. steam cleaners, heaters, ice
cream maker etc.).
•
If refrigerant escapes: remove any naked
flames or sources of ignition from the
leakage area. Ventilate the room well.
Notify the after-sales service.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list of
contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Please be sure to store alcoholic drinks or
other packaging containing alcohol in tightly
closed containers. Any alcohol that leaks out
may be ignited by electrical components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors etc.
as a step or for support. This applies particularly to children.
Danger of food poisoning:
-
Do not consume food which has been stored
too long.
Danger of frostbite, numbness and pain:
-
Avoid lasting skin contact with cold surfaces
or refrigerated/frozen food or take protective
steps, e.g. wear gloves. Do not consume ice
cream, water ice or ice cubes immediately
and do not consume them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment,
open flames or defrosting sprays to defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing
-
Do not reach into the soft stop mechanism.
Fingers may be trapped when the door is
closed.
Please observe the specific information in
the other sections:
DANGER identifies a situation involving direct
danger which, if not obviated, may
result in death or severe bodily
injury.
WARNING identifies a dangerous situation
which, if not obviated, may result in
death or severe bodily injury.
CAUTION identifies a dangerous situation
which, if not obviated, may result in
minor or medium bodily injury.
NOTICE identifies a dangerous situation
which, if not obviated, may result in
damage to property.
Note identifies useful information and tips.
3 Controls and displays
3.1 Operating and control elements
Fig. 2
(1) Refrigerator compart-
ment On/Off button
(2) Refrigerator compart-
ment temperature
display
(3) Refrigerator compart-
ment Up setting button
(4) Refrigerator compart-
ment Down setting
button
(5) Holiday button (15) Alarm symbol
(6) SuperCool button (16) Menu symbol
(7) SuperCool symbol (17) Child lock symbol
(8) Refrigerator compart-
ment On/Off button
(9) Freezer compartment
temperature display
(10) Freezer compartment
Up setting button
3.2 Temperature display
The following are displayed in normal operation:
the warmest freezing temperature
-
the average cooling temperature
-
The freezer compartment temperature display flashes:
the temperature setting is being changed
-
after switch-on the temperature is not yet cold enough
-
the temperature has risen several degrees
-
Dashes flash in the display:
(11) Freezer compartment
Down setting button
(12) SuperFrost button
(13) SuperFrost symbol
(14) Alarm button
(18) IceMaker symbol*
(19) Water tank symbol*
(20) Power failure symbol
4 * Depending on model and options
Putting into operation
the freezer temperature is above 0 °C.
-
The following displays indicate malfunction. Possible causes
and corrective action (see Malfunction).
-
F0 to F9
-
FE*
-
The power failure symbol
shines.
4 Putting into operation
4.1 Switching on the appliance
Note
To switch on the entire appliance it is necessary only to
u
switch on the freezer compartment.
Switch on the appliance approx. 2 hours before
adding frozen food for the first time.
Do not load food to be frozen before the temperature display reads -18 °C.
4.1.1 Switching on the freezer compartment
Open the door.
u
Press On/Off button, freezer compartment
u
The temperature display of the refrigerator compartment
w
indicates the current temperature inside.
The temperature display of the freezer compartment and the
w
alarm symbol flash until the temperature is sufficiently low. If
the temperature is above 0 °C, dashes flash. If it is below,
the current temperature flashes.
4.1.2 Switching on refrigerator and BioFresh compartment
If the refrigerator compartment was switched off (e.g. during an
extended absence like holidays), it can be switched back on
separately.
Open the door.
u
Press On/Off button, refrigerator compartment
u
The interior light is on when the door is opened.
w
The temperature display shines. Refrigerator and BioFresh
w
compartment are switched on.
Fig. 2 (8)
Fig. 2 (1)
.
.
5 Control
to deactivate the child lock, briefly press the SuperFrost
u
button
Fig. 2 (12)
w
The child lock symbol
display.
To deactivate the set-up mode: press On/Off button, freezer
u
compartment
-or-
Wait for 5 minutes.
u
The temperature is indicated again in the temperature
w
display.
.
Fig. 2 (8)
Fig. 2 (17)
.
goes out. c flashes in the
5.2 Door alarm
For refrigerator/BioFresh compartment and freezer compartment
If the door is open for longer than 60 seconds, the
audible warning will sound.
The audible alarm is automatically silenced when
the door is closed.
5.2.1 Muting the door alarm
The audible alarm can be muted when the door is open. The
sound switch-off function is active as long as the door is left
open.
Press alarm button
u
The door alarm is silenced.
w
Fig. 2 (14)
.
5.3 Temperature alarm
The audible alarm sounds if the freezer temperature
is not cold enough.
The temperature display and the alarm symbol
Fig. 2 (15)
The cause of the temperature being too high may be:
-
-
-
-
The audible alarm is automatically silenced, the alarm symbol
Fig. 2 (15)
when the temperature is sufficiently cold again.
If the alarm status persists: (see Malfunction).
flash at the same time.
warm fresh food was placed inside
too much warm ambient air flowed in when rearranging and
removing food
power failure for some time
the appliance is faulty
goes out and the temperature display stops flashing
5.1 Child proofing
The child-proofing function enables you to make
sure that the appliance is not inadvertently switched
off by playing children.
5.1.1 Setting the child lock function
To activate the setting mode: press SuperFrost button
u
Fig. 2 (12)
w
c flashes on the display.
The menu symbol
w
Briefly press the SuperFrost button
u
When
Tto activate the child lock, briefly press the
u
SuperFrost button
w
The child lock symbol
display.
When c0 is indicated in the display:
for about 5 s.
Fig. 2 (16)
shines.
c1 is indicated in the display:
Fig. 2 (12)
.
Fig. 2 (17)
Fig. 2 (12)
shines. c flashes in the
.to confirm.
Note
Food may be spoilt if the temperature is not cold enough.
Check the quality of the food. Do not consume spoiled food.
u
5.3.1 Muting the temperature alarm
The audible alarm can be muted. When the temperature is
sufficiently cold again, the alarm function is active again.
Press alarm button
u
The audible alarm is silenced.
w
Fig. 2 (14)
.
5.4 Refrigerator compartment
The natural circulation of air in the refrigerator compartment
results in zones differing in temperature. It is coldest directly
above the plate separating off the BioFresh zone and at the
rear wall. It is warmest at the top front of the compartment and
in the door.
* Depending on model and options 5
Control
5.4.1 Food refrigeration
Note
The energy consumption increases and the cooling performance decreases if the ventilation is inadequate.
Always keep the air slits of the fan free.
u
Place butter and preserves in the upper area and in the door
u
(see Appliance at a glance).
Use recyclable plastic, metal, aluminium and glass
u
containers and cling film for wrapping.
Always store liquids and food which is subject to odour or
u
taste transfer in closed containers or cover them.
Foods which give off a large amount of ethylene gas and
u
delicate foods, such as fruit, vegetables, salad, should
always be stored separately or wrapped so as not to reduce
the storage life; e.g. do not store tomatoes together with
kiwis or cabbage.
Use the front area of the refrigerator compartment floor only
u
for briefly putting down cooled products, e.g. when rearranging and sorting. However do not leave cooled products
there otherwise they may be pushed back or tipped over
when the door is closed.
Do not store food too close together to enable good air
u
circulation.
5.4.2 Setting the temperature
The temperature depends on the following factors:
the frequency of opening the door
-
the room temperature of the installation location
-
the type, temperature and quantity of the food
-
The temperature can be set from 9 °C to 3 °C, the recommended temperature is 5 °C.
Note
If the temperature is to be colder than 3 °C:
set the cooling temperature to 3 °C.
u
u
Set the BioFresh temperature to a value between b4
(slightly colder) and b1 (coldest) (see 5.5)
For a higher temperature setting: press Up button, refriger-
u
ator compartment
For a lower temperature setting: press Down button, refrig-
u
erator compartment
When the button is pressed for the first time, the previously
w
set value is indicated, flashing, in the refrigerator compartment temperature display.
To change the temperature in 1 °C steps: briefly press the
u
button.
To change the temperature continuously: hold down the
u
button.
The value is displayed flashing during the setting operation.
w
The actual temperature is displayed about 5 s after the last
w
press of a button. The temperature slowly adjusts to the new
value.
5.4.3 SuperCool
With SuperCool you switch to the highest cooling
performance to reach lower cooling temperatures.
Use SuperCool, to rapidly cool large amounts of
food.
The SuperCool function uses slightly more energy.
Cooling with SuperCool
Briefly press SuperCool button
u
The SuperCool symbol
w
The cooling temperature drops to the coldest value. Super-
w
Cool is activated.
Fig. 2 (3)
Fig. 2 (4)
Fig. 2 (7)
.
.
Fig. 2 (6)
lights up in the display.
.
SuperCool is automatically deactivated after 12 hours. The
w
appliance continues to operate in the energy-saving, normal
mode.
To prematurely deactivate SuperCool
Briefly press SuperCool button
u
The SuperCool symbol
w
SuperCool is deactivated.
w
Fig. 2 (7)
Fig. 2 (6)
goes out in the display.
.
5.4.4 Holiday mode
The holiday mode saves energy and prevents odour
from occurring when the door of the refrigerator
compartment stays closed for a lengthy period.
The freezer compartment remains in operation in the
holiday mode.
Activating the holiday mode
Remove all the food from the refrigerator
u
and BioFresh compartment, otherwise they
will perish..
Press the holiday button
u
w
The holiday mode is activated. The display indicates Ho.
Deactivating the holiday mode
Briefly press the holiday button
u
The holiday mode is deactivated.
w
The current cooling temperature is indicated in the display.
w
Fig. 2 (5)
Fig. 2 (5)
for 3 sec.
.
5.4.5 Shelves
Relocating the shelves
The shelves have stops preventing them from being unintentionally pulled out.
Lift the shelf and draw it out
u
forwards.
Re-insert shelves at the
u
required height. The stops
must face downwards and
lie behind the front shelves.
Dismantling shelves
The shelves can be disman-
u
tled for cleaning.
5.4.6 Using the sectioned shelf
Slide the sectioned shelf
u
under, as shown in the illustration.
*
Fig. 3
The glass plate (1) with pull-out stops must be at the front so
u
that the stops (3) face downwards.
6 * Depending on model and options
Control
5.4.7 Using adjustable bottle shelf
At the base of the refrigerator compartment, the integrated
bottle shelf or alternatively the glass shelf can be used:
To use the bottle shelf: store
u
the glass shelf compactly
under the bottle shelf.
Place the bottles with the
u
base pointing backwards
facing the rear wall.
If the bottles project beyond
the bottle shelf:
set the lower door rack one
u
position higher.
5.4.8 VarioSafe*
The VarioSafe provides space for small items of food and
packages, tubes and jars.
Using VarioSafe*
The boxes can be removed
and placed on the table as a
single unit.
Either one or both the boxes can be used. If particularly tall
bottles are to be stored, hang only a single box above the bottle
rack.
Re-positioning the boxes:
u
Lift them for removal and reposition them as required.
Dismantling door racks
Fig. 4
The VarioSafe drawer can be taken out and pushed in at
u
two different heights.
The VarioSafe can also be
u
height-adjusted as a whole.
Dismantling VarioSafe*
Fig. 5
The VarioSafe can be dismantled for cleaning.
u
5.4.9 Door racks
Moving the storage rack
Fig. 7
Fig. 8
The door racks can be dismantled for cleaning.
u
5.4.10 Using the bottle holder
To avoid the bottles tipping
u
over, push the bottle holder
along.
Fig. 6
* Depending on model and options 7
Control
5.5 BioFresh compartment
The BioFresh compartment allows some types of fresh food to
be stored up to three times longer than in conventional refrigerators, without compromising quality.
For food with an indicated best before date, the date specified
on the packaging always applies.
5.5.1 DrySafe
The DrySafe is suitable for storing dry or wrapped food (e.g.
dairy products, meat, fish, sausages). A relatively dry storage
climate is established here.
5.5.2 HydroSafe
The HydroSafe at the moist setting is suited for storing
unwrapped salad, vegetables and fruit with high inherent moisture. When the drawer is well filled, a dewy climate with up to
90% humidity is established. The humidity in the compartment
depends on the moisture content of the food stored and on the
opening frequency. You can set the humidity yourself.
5.5.3 Setting the humidity in the HydroSafe
u
Low humidity: move the regulator to
the left.
u
High humidity: move the regu-
lator to the right.
5.5.4 Storing food
Note
Vegetables sensitive to cold, such as cucumbers, auber-
u
gines, semi-ripe tomatoes, zucchinis and all tropical fruits
sensitive to cold, do not belong in the BioFresh compartment.
To prevent food spoilage due to transfer of germs: Store
u
unwrapped animal and vegetable products separate from
one another in the drawers. This also applies to different
sorts of meat.
If food has to be stored together due to lack of space:
wrap the food.
u
5.5.5 Storage times
Standard values for storage time at low humidity
Butter up to 90 days
Hard cheese up to 110 days
Milk up to 12 days
Sausage, cold meat up to 9 days
Poultry up to 6 days
Pork up to 7 days
Beef up to 7 days
Game up to 7 days
Note
Please note that protein-rich food deteriorates faster, i.e.
u
shellfish and crustaceans deteriorate faster than fish, fish
faster than meat.
Standard values for storage time at high humidity
Vegetables, salad
Standard values for storage time at high humidity
Artichokes up to 14 days
Celery up to 28 days
Cauliflower up to 21 days
Broccoli up to 13 days
Chicory up to 27 days
Lamb's lettuce up to 19 days
Peas up to 14 days
Kale up to 14 days
Carrots up to 80 days
Garlic up to 160 days
Kohlrabi up to 55 days
Lettuce up to 13 days
Herbs up to 13 days
Leek up to 29 days
Mushrooms up to 7 days
Radishes up to 10 days
Brussels sprouts up to 20 days
Asparagus up to 18 days
Spinach up to 13 days
Savoy cabbage up to 20 days
Fruit
Apricots up to 13 days
Apples up to 80 days
Pears up to 55 days
Blackberries up to 3 days
Dates up to 180 days
Strawberries up to 7 days
Figs up to 7 days
Blueberries up to 9 days
Raspberries up to 3 days
Currants up to 7 days
Sweet cherries up to 14 days
Kiwis up to 80 days
Peaches up to 13 days
Plums up to 20 days
Cranberries up to 60 days
Rhubarb up to 13 days
Gooseberries up to 13 days
Grapes up to 29 days
5.5.6 Adjusting the temperature in the BioFresh compartment
The temperature is regulated automatically. At a temperature of
5 °C in the refrigerator compartment, the temperature in the
BioFresh compartment is between 0 °C and 3 °C.
8 * Depending on model and options
Control
You can adjust the temperature slightly colder or warmer. The
temperature can be adjusted from b1 (coldest temperature) to
b9 (warmest temperature). The presetting is b5. With the b1 to
b4 values, the temperature can drop below 0 ° C and therefore
food can freeze slightly as a result.
To activate the setting mode: press the SuperFrost button
u
Fig. 2 (12)
The menu symbol
w
w
c flashes on the display.
Press the Up setting button, freezer compartment
u
the number of times required for b to flash in the display.
To confirm: briefly press the SuperFrost button.
u
To set the temperature higher: press Up button, freezer
u
compartment
To set the temperature lower: press Down button, freezer
u
compartment
To confirm: press SuperFrost button.
u
The temperature slowly adjusts to the new value.
w
To deactivate the setting mode: press On/Off button, freezer
u
compartment
-or-
Wait for 5 minutes.
u
The temperature is indicated again in the temperature
w
display.
for about 5 s.
Fig. 2 (16)
Fig. 2 (10)
Fig. 2 (11)
Fig. 2 (8)
shines.
Fig. 2 (10)
.
.
.
5.5.7 Drawers with cushioners
5.6.1 Freezing food
The rating plate indicates the maximum quantity of fresh food
you can freeze within 24 hours (see Appliance at a glance)
under “Freezing capacity ... kg/24h”.
The maximum load of frozen food for the drawers is 25 kg each
and for the shelves 35 kg each.
A vacuum is generated after the door is closed. After closing
the door, wait for about 1 minute and then it opens more easily.
Risk of injury due to broken glass!
Bottles and cans containing drinks may burst when being
frozen. This applies particularly to sparkling drinks.
u
In order that the food is rapidly frozen through to the core, do
not exceed the following quantities per pack:
- Fruit, vegetables up to 1 kg
- Meat up to 2.5 kg
u
CAUTION
Do not freeze bottles and cans containing drinks!
Pack the food in portions in freezer bags, reusable plastic,
metal or aluminium containers.
5.6.2 Thawing food
- in the refrigerator compartment
- at room temperature
- in a microwave oven
- in a conventional or fan oven
Remove only as much food as is required. Use thawed food
u
as quickly as possible.
Food once thawed should be re-frozen only in exceptional
u
cases.

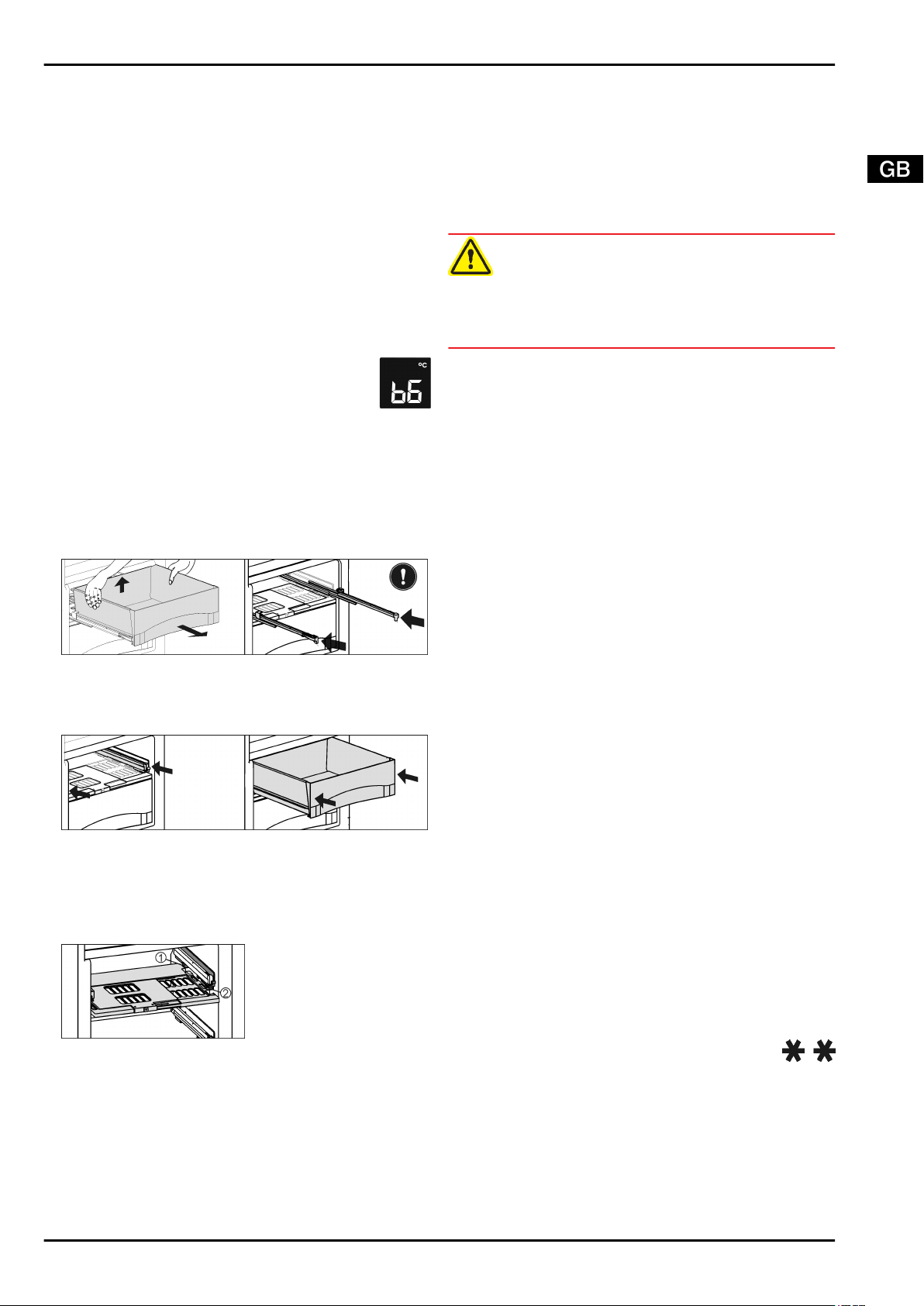

Fig. 9
Pull out the drawer, lift it at the back and draw it forwards for
u
removal.
Push the rails in again!
u
Fig. 10
Push the rails in.
u
Attach the drawer and push it in until it engages audibly at
u
the back.
5.5.8 Humidity control plate
Fig. 11
To remove the humidity control plate: Having removed the
u
drawers, carefully draw the plate forwards and lower it for
removal.
To insert the humidity control plate: Insert the cover mould-
u
ings of the plate into the rear holder
neath and engage them in the holder
Fig. 11 (1)
Fig. 11 (2)
from under-
at the front.
5.6 Freezer compartment
You can store frozen food, make ice cubes and freeze fresh
food in the freezer compartment.
5.6.3 Setting the temperature in the freezer
compartment
The appliance is pre-set for normal operation.
The temperature can be set from -15 °C to -26 °C, the recom-
mended temperature is -18 °C.
To set the temperature higher: press Up button, freezer
u
compartment
To set the temperature lower: press Down button, freezer
u
compartment
When the button is pressed the first time, the previous value
w
is indicated in the temperature display of the freezer
compartment.
To change the temperature in 1 °C steps: briefly press the
u
button.
-or-
To change the temperature continuously: hold down the
u
button.
The value is displayed flashing during the setting operation.
w
The actual temperature is displayed approx. 5 seconds after
w
the button is last pressed. The temperature gradually
adjusts to the new value.
Fig. 2 (10)
Fig. 2 (11)
.
.
5.6.4 SuperFrost
With this function you can freeze fresh food quickly
through to the core. The appliance operates with
maximum refrigeration. The noise of the refrigeration
unit may be temporarily louder as a result.
In addition, frozen food already in storage is given a “cold
reserve”. The food stays frozen longer as a result when you
defrost the appliance.*
The maximum amount of fresh food which can be frozen in 24
h is indicated on the type plate under “freezing capacity ... kg/
24h”. This amount varies according to the model and climate
rating.
* Depending on model and options 9
Control
You have to activate SuperFrost in good time, depending on
how much fresh food is to be frozen: about 6 hours before
placing the food inside in case of small amounts and about 24
hours in advance in case of the maximum amount of food to be
frozen.
Wrap produce and spread it out as far as possible. Do not
allow produce to be frozen to touch produce that is already
frozen to prevent the latter thawing.
You do not have to activate SuperFrost in the following cases:
when placing frozen food in the freezer
-
when freezing up to approx. 2 kg fresh food daily
-
Freezing with SuperFrost
Briefly press the SuperFrost button
u
The SuperFrost symbol
w
The freezing temperature drops, the appliance operates with
w
the maximum cooling capacity.
For a smaller quantity of produce to be frozen:
wait approx. 6 h.
u
Appliances with NoFrost: place wrapped produce in the top
u
drawers.
Appliances without NoFrost: place wrapped produce in the
u
bottom drawers.
For the maximum quantity of produce to be frozen:
wait approx. 24 h.
u
Appliances with NoFrost: remove top drawers and place
u
produce directly on the top shelves.
Appliances without NoFrost: remove bottom drawer and
u
place produce directly in the appliance so that it touches the
base or sides.
SuperFrost is automatically deactivated. Depending on the
w
quantity placed inside, after 30 h at the earliest, 65 h at the
latest.
The SuperFrost symbol
w
freezing is completed.
Place produce in the drawers and push the latter back in
u
again.
The appliance continues to operate in the energy-saving,
w
normal mode.
Fig. 2 (13)
Fig. 2 (13)
Fig. 2 (12)
shines.
once.
extinguishes once
5.6.5 Drawers
5.6.6 Shelves
To remove the shelf: lift up
u
at the front and pull out.
To put the shelf back: simply
u
push in as far as it will go.
5.6.7 VarioSpace
Apart from being able to
remove the drawers, you can
also remove the shelves,
creating space for large items
of frozen food. Poultry, meat,
large pieces of game and high
bakery products can be frozen
in one piece and prepared.
The maximum load of
u
frozen food for the drawers
is 25 kg each and for the
shelves 35 kg each.
5.6.8 Information system*
Fig. 12
(1) Ready meals, ice cream (4) Sausage, bread
(2) Pork, fish (5) Game, mushrooms
(3) Fruit, vegetables (6) Poultry, beef / veal
The figures indicate the storage time in months for several
types of frozen food in each case. Storage times given are
guide times.
*
Note
The energy consumption increases and the cooling performance decreases if there is insufficient ventilation.
For appliances with NoFrost:
Leave the bottom drawer in the appliance!
u
Always keep the air slits of the fan free at the rear wall!
u
To store frozen food directly on the shelves: pull the drawer
u
forwards and lift it out.
5.6.9 Cold storage accumulators
The cold storage accumulators prevent the temperature from
rising too fast in the event of power failure.
Using cold storage accumulators*
Place the frozen cold storage
u
accumulators on the frozen food
in the upper front area of the
freezer compartment.
Using cold storage accumulators*
Freeze and store the cold storage accumu-
u
lators in the ceiling of the freezer compartment.
With the top drawer
removed:
to insert cold storage accu-
u
mulators: slide cold
storage accumulator into
the top back of the freezer
compartment ceiling and
snap into place at the front.
10 * Depending on model and options
Maintenance
With the top drawer
removed:
to remove cold storage
u
accumulators: take hold of
the cold storage accumulator at the side and press
it down for removal.
5.6.10 IceMaker*
The IceMaker is in the top drawer of the freezer compartment.
The drawer is marked “IceMaker”.
Make certain that the following conditions are met:
The appliance is level.
-
The appliance is connected.
-
The freezer compartment is switched on.
-
The IceMaker is connected to the water supply.
-
Switching on the IceMaker*
Themenu symbol
w
Using the Up setting button, freezer compartment
u
and Down setting button, freezer compartment
select E.
To confirm: briefly press the SuperFrost button
u
To increase the water intake time: press the Up
u
setting button, freezer compartment
To reduce the water intake time: press the Down
u
setting button, freezer compartment
To confirm: press the SuperFrost button
u
To deactivate the setting mode: press the On/Off button,
u
freezer compartment
The temperature is indicated again in the temperature
w
display.
Switching off the IceMaker*
If no ice cubes are needed, the IceMaker can be switched off
independently of the freezer compartment.
When the IceMaker is switched off, the IceMaker drawer can
also be used for freezing and storing food.
Press the On/Off button for about 1 second until the LED
u
goes out.
The IceMaker symbol
w
Clean the IceMaker.
u
This ensures that no water or ice remains in the IceMaker.
w
Fig. 2 (16)
Fig. 2 (8)
Fig. 2 (18)
shines.
.
goes out.
Fig. 2 (10)
Fig. 2 (11)
Fig. 2 (12)
Fig. 2 (10)
Fig. 2 (11)
Fig. 2 (12)
.
.
.
.
6 Maintenance
Fig. 13
Pull out the drawer.
u
Press the On/Off button
u
Fig. 13 (2)
Push in the drawer.
u
The IceMaker symbol
w
Note
The IceMaker produces ice cubes only if the drawer is fully
u
closed.
Producing ice cubes*
The production capacity depends on the freezer temperature.
The lower the temperature, the more ice cubes can be
produced in a specific period.
The ice cubes drop from the IceMaker into the drawer. When a
certain filling level has been reached, no further ice cubes are
produced. The IceMaker does not fill the drawer right up to the
brim.
If large quantities of ice cubes are needed, the complete
IceMaker drawer can be exchanged for the adjacent drawer.
When the drawer is closed, the IceMaker automatically recommences production.
Once the IceMaker has been switched on for the first time, it
may take up to 24 hours until the first ice cubes are produced.
Note
When the appliance is used for the first time and if it has been
out of use for a long time, particles may collect in the IceMaker
and/or water conduit.
Therefore do not use or consume the ice cubes made in the
u
first 24 hours.
Setting the water intake time*
The opening time of the IceMaker valve can be set if, for
example, the water pressure in the pipe is too low or too high.
The water intake time can be set in stages from E1 (short intake
time) to E8 (long intake time). The intake is preset at E3.
To activate the setting mode: press the SuperFrost button
u
Fig. 2 (12)
w
The display indicates c.
shines.
for about 5 s.
Fig. 13 (1)
Fig. 2 (18)
so that the LED
shines.
6.1 Defrosting with NoFrost*
The NoFrost system automatically defrosts the appliance.
Refrigerator compartment:
The defrost water evaporates due to the compressor heat.
Regularly clean the drain opening to allow the water to flow
u
away (see 6.3) .
Freezer compartment:
The moisture condenses on the evaporator, is periodically
defrosted and evaporates.
The appliance does not have to be manually defrosted.
u
6.2 Manual defrosting*
The refrigerator compartment is defrosted automatically.
The defrost water evaporates as a result of the heat of the
compressor. Drops of water on the rear wall are perfectly
normal.
Regularly clean the drain opening to allow the water to flow
u
away (see 6.3) .
A layer of frost or ice can build up in the freezer compartment
after a long period of operation.
The layer of frost or ice builds up faster if the appliance is
opened often or if the food is warm when placed inside.
However, a thick layer of ice will increase the appliance‘s
energy consumption. You should therefore defrost the appliance regularly.
CAUTION
Risk of injury and damage as a result of hot steam!
Do not use electric heaters or steam cleaners, naked flames
u
or defrosting sprays for defrosting.
Do not remove ice using sharp instruments.
u
Switch on SuperFrost one day before defrosting.
u
The frozen goods are provided with a “cold reserve”.
w
Switch off the appliance.
u
The temperature display goes out.
w
If the temperature display does not go out, the child lock
w
function (see 5.1) is active.
* Depending on model and options 11
Maintenance
Pull out the power plug or switch off the fuse.
u
Place cold storage accumulators on top of the frozen food.
u
If possible, put the frozen goods in the freezer drawer,
u
wrapped in newspaper or a blanket, and store in a cool
place.
Place a pan with hot, not boiling
u
water on a middle shelf.
-or-
Half-fill the two lower drawers with
u
lukewarm water and put them in the
appliance.
Defrosting is speeded up.
w
Defrost water is collected in the drawers.
w
Leave the door of the appliance open while defrosting.
u
Remove detached pieces of ice.
u
Pay attention that the defrost water does not run into the
u
kitchen unit.
If necessary, pick up defrost water several times, using a
u
sponge or cloth.
Clean the appliance (see 6.3) and rub dry.
u
6.3 Cleaning the appliance
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
NOTICE
Incorrect cleaning damages the appliance!
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
After cleaning:
u
WARNING
Do not use any steam cleaners!
Do not use cleaning agents in concentrated form.
Do not use any scouring or abrasive sponges or steel wool.
Please do not use any aggressive, scouring, sand-,
chloride-, chemical- or acid-based cleaning agents.
Do not use chemical solvents.
Do not damage or remove the type plate on the inside of the
appliance. It is important for the customer service.
Do not pull off, bend or damage cables or other components.
Do not allow any cleaning water to enter the drain channel,
ventilation grille or electrical parts.
Please use soft cleaning cloths and a universal pH-neutral
cleaning agent.
Please use cleaning and care products suitable for contact
with foodstuffs in the appliance interior.
Empty appliance.
Pull out the power plug.
Clean plastic outer and inner surfaces with lukewarm
water and a little washing-up liquid.
Clean drain hole: Remove deposits
with a narrow instrument, e.g. a
cotton bud.
Most of the parts can be dismantled for cleaning: see the
relevant chapter.
The door interior parts are dishwasher-safe. However, the
printing may dissolve over time.
Clean other items of equipment by hand with lukewarm
water and a little washing-up liquid.
Only use a damp cloth to clean the telescopic rails. The
grease in the runners is for lubrication purposes and must
not be removed.
Wipe dry the appliance and items of equipment.
Connect the appliance and switch it on again.
u
Switch on SuperFrost (see 5.6.4) .
u
When the temperature is sufficiently cold:
Put the food back inside.
u
6.4 Cleaning the IceMaker*
The drawer of the IceMaker has to be emptied and slid in.
To activate the setting mode: press the SuperFrost button
u
Fig. 2 (12)
w
The display indicates c.
The menu symbol
w
Using the Up setting button, freezer compartment
u
Fig. 2 (10)
Fig. 2 (11)
To confirm: press the SuperFrost button
u
Using the Up setting button, freezer compartment
u
Fig. 2 (10)
ment
To confirm: press the SuperFrost button
u
Fig. 2 (12)
To deactivate the setting mode: press the On/Off button,
u
freezer compartment
-or-
Wait for 2 minutes.
u
The temperature is indicated again in the temperature
w
display.
Remove the drawer.
u
Clean the ice cube tray and drawer with warm water. If
u
necessary, use mild washing-up liquid. Then rinse.
Slide in the drawer again.
u
If washing-up liquid was used:
throw away the first three loads of ice cubes to get rid of any
u
remaining washing-up liquid.
Either leave the IceMaker switched off in this position or switch
the IceMaker on again (see 5.6.10) .
for about 5 s.
Fig. 2 (16)
/ Down setting button, freezer compartment
select I.
shines.
Fig. 2 (12)
/ Down setting button, freezer compart-
Fig. 2 (11)
.
select Ic.
Fig. 2 (8)
.
.
6.5 Customer service
First check whether you can correct the fault yourself by reference to the list (see Malfunction). If this is not the case, please
contact the customer service whose address is given in the
enclosed customer service list.
WARNING
Risk of injury if repair work is not carried out professionally!
Have any repairs and action - not expressly specified - on
u
the appliance and mains cable carried out by service
personnel only. (see Maintenance)
Read the appliance
u
designation
Fig. 14 (1)
No.
Fig. 14 (2)
serial No.
off the type plate
located inside the
appliance on the lefthand side.
Notify the customer service, specifying the fault, appliance
u
designation
Fig. 14 (3)
This will help us to provide you with a faster and more accu-
w
rate service.
Keep the appliance closed until the customer service
u
arrives.
, service
and
Fig. 14 (3)
Fig. 14 (1)
.
, service No.
Fig. 14 (2)
Fig. 14
and serial No.
12 * Depending on model and options
Malfunction
The food will stay cool longer.
w
Pull out the mains plug (not by pulling the connecting cable)
u
or switch off the fuse.
7 Malfunction
Your appliance is designed and manufactured for a long life
span and reliable operation. If a malfunction nonetheless
occurs during operation, check whether it is due to a handling
error. In this case you will have to be charged for the costs
incurred, even during the warranty period. You may be able to
rectify the following faults yourself:
Appliance does not work.
The appliance is not switched on.
→
Switch on the appliance.
u
The power plug is not properly inserted in the wall socket.
→
Check power plug.
u
The fuse of the wall socket is not in order.
→
Check fuse.
u
The compressor runs for a long time.
The compressor switches to a low speed when little cold is
→
needed. Although the running time is increased as a result,
energy is saved.
This is normal in energy-saving models.
u
SuperFrost is activated.
→
The compressor runs for longer in order to rapidly cool the
u
food. This is normal.
SuperCool is activated.
→
The compressor runs for longer in order to rapidly cool the
u
food. This is normal.
A LED on the bottom rear of the appliance (at the
compressor) flashes repeatedly every 5 seconds*.
There is a fault.
→
Please contact the after-sales service (see Maintenance).
u
Excessive noise.
Due to the various speed steps, speed-regulated*
→
compressors can generate different running noises.
The sound is normal.
u
A bubbling and gurgling noise.
This noise comes from the refrigerant flowing in the refriger-
→
ation circuit.
The sound is normal.
u
A quiet clicking noise.
The noise is produced whenever the refrigeration unit
→
(motor) automatically switches on or off.
The sound is normal.
u
A hum. It is briefly a little louder when the refrigeration
unit (the motor) switches on.
The refrigeration increases automatically when the Super-
→
Frost, function is activated, fresh food has just been placed
in the appliance or the door has been left open for a while.
The sound is normal.
u
The refrigeration increases automatically when the Super-
→
Cool function is activated, fresh food has just been placed
in the appliance or the door has been left open for a while.
The sound is normal.
u
The ambient temperature is too high.
→
Solution: (see 1.2)
u
A low hum.
The sound is produced by air flow noise of the fan.
→
The sound is normal.
u
Vibratory noise.
The appliance is not fixed to the ground. The running of the
→
cooling unit therefore makes objects and adjacent furniture
vibrate.
Check installation and reposition appliance as required.
u
Move bottles and containers apart.
u
Flow sound at the soft stop mechanism.
The noise is produced when the door is opened and
→
closed.
The sound is normal.
u
The temperature display indicates: F0 to F9
There is a fault.
→
Please contact the after-sales service (see Maintenance).
u
The temperature display reads:FE*
There is a fault.
→
Please contact the after-sales service (see Maintenance).
u
The temperature display indicates power failure
warmest temperature reached during the power failure
appears in the temperature display.
The freezer temperature rose too high over the last hours or
→
days due to a power failure or power interruption. When the
power interruption is over, the appliance will continue to
operate in the last temperature setting.
To cancel the display of the warmest temperature: press
u
alarm button
Check the quality of the food. Do not consume spoiled food.
u
Do not re-freeze thawed food.
DEMO shines in the temperature display.
The demo mode is activated.
→
Please contact the after-sales service (see Maintenance).
u
The outer surfaces of the appliance are warm*.
The heat of the refrigeration circuit is used to prevent
→
condensate from forming.
This is normal.
u
The IceMaker cannot be switched on. *
The appliance and therefore the IceMaker are not
→
connected.
Connect the appliance to the mains (see Putting into opera-
u
tion).
The IceMaker does not make any ice cubes.*
The IceMaker is not switched on.
→
Switch on the IceMaker.
u
The drawer of the IceMaker is not properly closed.
→
Close the drawer properly.
u
The water connection is not open.
→
Open the water connection.
u
The water intake to the IceMaker has been interrupted.
→
Check the water connection (see Water Connection in the
u
Fitting Instructions).*
Check the hosing (see Water Connection in the Fitting
u
Instructions).*
The screen located in the end piece of the water intake
→
hose or the screen located in the connecting piece on the
appliance is blocked.
Clean the screens.
u
The temperature is not cold enough.
The door of the appliance is not properly closed.
→
Close the door of the appliance.
u
Insufficient ventilation.
→
Clear ventilation grilles.
u
The ambient temperature is too high.
→
Solution: (see 1.2) .
u
The appliance was opened too frequently or for too long.
→
Wait to see whether the appliance reaches the required
u
temperature by itself. If not, please contact the after sales
service (see Maintenance).
Too much fresh food was placed inside without SuperFrost.
→
Solution: (see 5.6.4)
u
The temperature is incorrectly set.
→
Fig. 2 (14)
.
. The
* Depending on model and options 13
Decommissioning
Set the temperature to a colder setting and check after 24
u
hours.
The appliance is too close to a source of heat (stove, heater
→
etc).
Change the position of the appliance or the source of heat.
u
The appliance was not inserted properly into the recess.
→
Check whether the appliance was inserted correctly and
u
the door closes properly.
The interior light is not on.
The appliance is not switched on.
→
Switch on the appliance.
u
The door was open longer than 15 min.
→
The interior light automatically switches off if the door has
u
been open for about 15 min.
The LED illumination is defective or the cover is damaged:
→
Risk of injury due to electric shock!
Live parts are located under the cover.
u
Danger of injury by LED lamp!
The light intensity of the LED illumination corresponds to laser
class 1/1M.
If the cover is defective:
u
WARNING
Have the LED interior light changed or repaired only by the
customer service or by specialized personnel trained for the
purpose.
WARNING
Do not look into the illumination with optical lenses from the
immediate proximity. This can cause injury to the eyes.
8.2 Taking the appliance out of service*
Empty the appliance.
u
Put the IceMaker in the cleaning position (see Mainte-
u
nance).
Pull out the power plug.
u
Clean the appliance (see 6.3) .
u
Leave the door open to prevent odour.
u
9 Disposing of the appliance
The appliance contains some reusable materials
and should be disposed of properly - not simply
with unsorted household refuse. Appliances which
are no longer needed must be disposed of in a
professional and appropriate way, in accordance
with the current local regulations and laws.
When disposing of the appliance, ensure that the refrigeration
circuit is not damaged to prevent uncontrolled escape of the
refrigerant it contains (data on type plate) and oil.
Disable the appliance.
u
Pull out the plug.
u
Cut through the connecting cable.
u
The door gasket is defective or should be replaced for
other reasons.*
The door gasket can be replaced on some appliances.
→
Please contact the after-sales service (see Maintenance).
u
8 Decommissioning
8.1 Switching off the appliance
Note
To switch off the entire appliance it is necessary only to
u
switch off the freezer compartment.
8.1.1 Switching off the freezer compartment
Press the freezer compartment On/Off button
u
Fig. 2 (8)
A long beep is emitted. The temperature displays
w
are dark. The appliance is switched off.
If the appliance cannot be switched off, the child
w
lock function is active (see 5.1) .
8.1.2 Switching off the refrigerator compartment with BioFresh compartment
Note
The refrigerator compartment can be switched off sepa-
u
rately, if required.
for approx. 2 seconds.
Press the refrigerator compartment On/Off button
u
for approx. 2 seconds.
The temperature display of the refrigerator compartment
w
Fig. 2 (2)
BioFresh compartment are switched off.
is dark. The refrigerator compartment and
Fig. 2 (1)
14 * Depending on model and options
Disposing of the appliance
* Depending on model and options 15
Liebherr Hausgeräte Ochsenhausen GmbH * Memminger Strasse 77-79 * 88416 Ochsenhausen * Deutschland * www.liebherr.com
Loading...
