AC Power Systems for
Business Critical Continuity
Load Bus Sync™ Extender/Adapter for Dual Bus UPS
Installation Manual
120V-277VAC, 45-65Hz
TABLE OF CONTENTS
1.0 GENERAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2.0 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.1 Liebert NX UPS to Liebert NX UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2.2 Liebert NX UPS to Non-Liebert NX UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
FIGURES
Figure 1 LBS Adapter dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 2 Horizontal installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 3 Vertical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Figure 4 Connecting a Liebert NX to a Liebert NX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Figure 5 Connecting a Liebert NX to a non-NX UPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TABLES
Table 1 Human interface—indicators and switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Table 2 Electrical rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Table 3 Part number description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
i
ii
1.0 GENERAL
Liebert’s Load Bus Sync (LBS) Extender/Adapter for Dual Bus UPS is designed to extend the LBS
function, up to 150m (492 ft.) between Liebert NX series uninterruptible power system (UPS) modules
of a dual bus system (DBS). The adapter also enables a Liebert NX UPS to synchronize with other
UPS models.

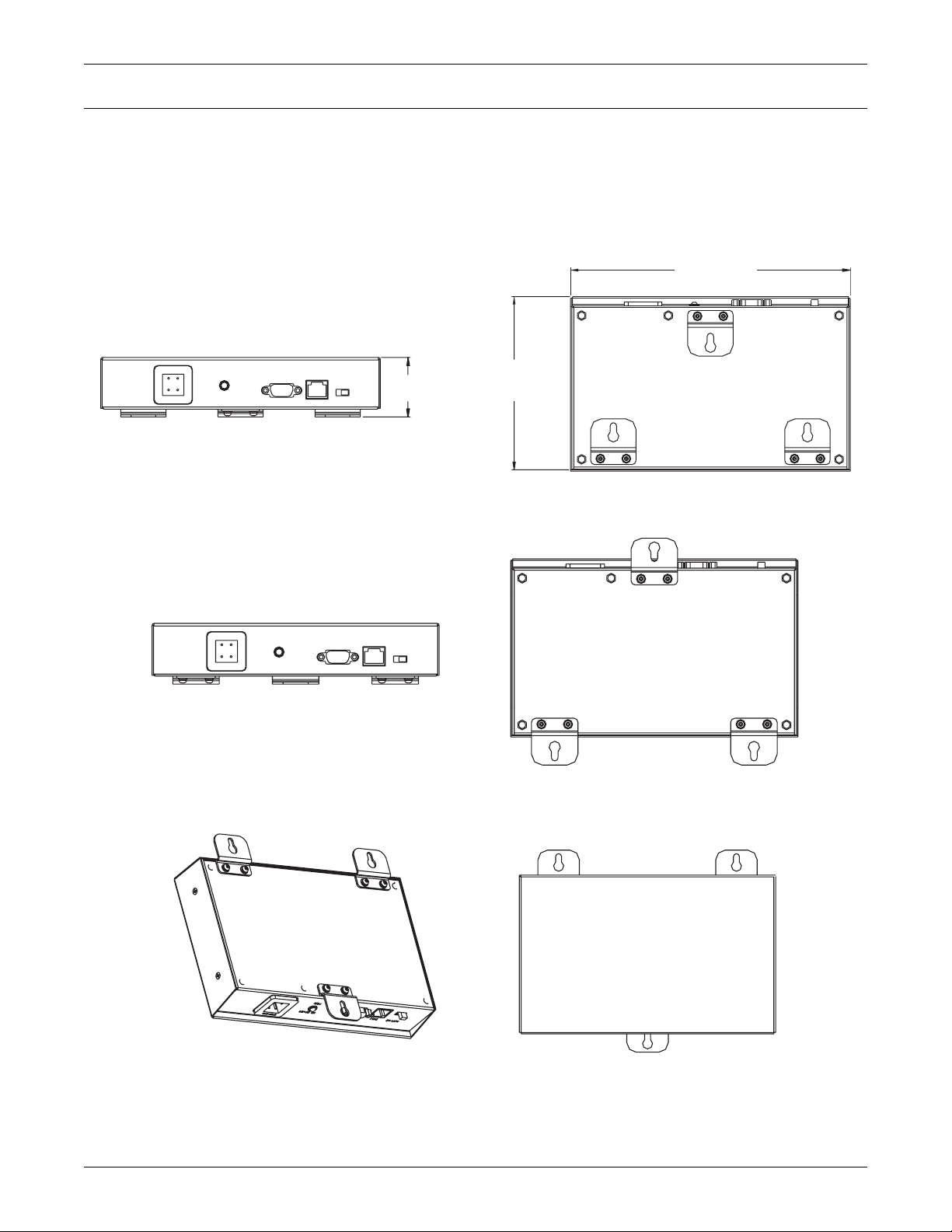

Figure 1 LBS Adapter dimensions
General
8.5”
(216.2mm)
DY3-4ZPW
POWER ON
LED1
COM2
COM1
Figure 2 Horizontal installation
DY3-4ZPW
POWER ON
LED1
Figure 3 Vertical installation
SWITCH
1.8”
(45.5mm)
COM2
COM1
SWITCH
5.25”
(133.5mm)
1
2.0 INSTALLATION
2.1 Liebert NX UPS to Liebert NX UPS
WARNING
!
Installation by qualified electrical personnel only—hazardous voltage may be present at the
UPS output connectors.
1. Connect the power cables of the adapter to the Phase A, Neutral and Ground output of each UPS.
2. Connect the LBS cable to COM1 of each LBS Signal Adapter.
3. Connect the other end of each LBS cable to X4 on the parallel board (UHW241M3) in the
NX UPS.
4. Connect the communication cable (up to 492 ft. [150m]) to the COM2 interface of each LBS Signal
Adapter.
5. The switch of both LBS signal adapters should be in the right position (see Figure 4).
Figure 4 Connecting a Liebert NX to a Liebert NX
Installation
Power ON
LED1
Power Cable
Connect to NX UPS
COM1 COM1COM2 COM2SWITCH SWITCHPower ON
LED1
Power Cable
LBS
Cable
Connect to NX UPS
Communication Cable
up to 492 ft. (150m)
LBS
Cable
2
2.2 Liebert NX UPS to Non-Liebert NX UPS
WARNING
!
Installation by qualified electrical personnel only—hazardous voltage may be present at the
UPS output connectors.
1. Connect the power cables of the adapter to the Phase A, Neutral and Ground Output of each UPS.
2. Connect the LBS cable to COM1 of the LBS Signal Adapter connected to the Liebert NX.
3. Connect the other end of the LBS cable to X4 on the parallel board (UHW241M3) in the NX UPS.
4. Connect the communication cable (up to 492 ft. [150m]) to the COM2 interface of each LBS Signal
Adapter.
5. The switches of LBS signal adapters connected to the Liebert NX should be in the right position
and the switches of LBS signal adapters connected to the non-NX UPS should be in the left
position (see Figure 5).

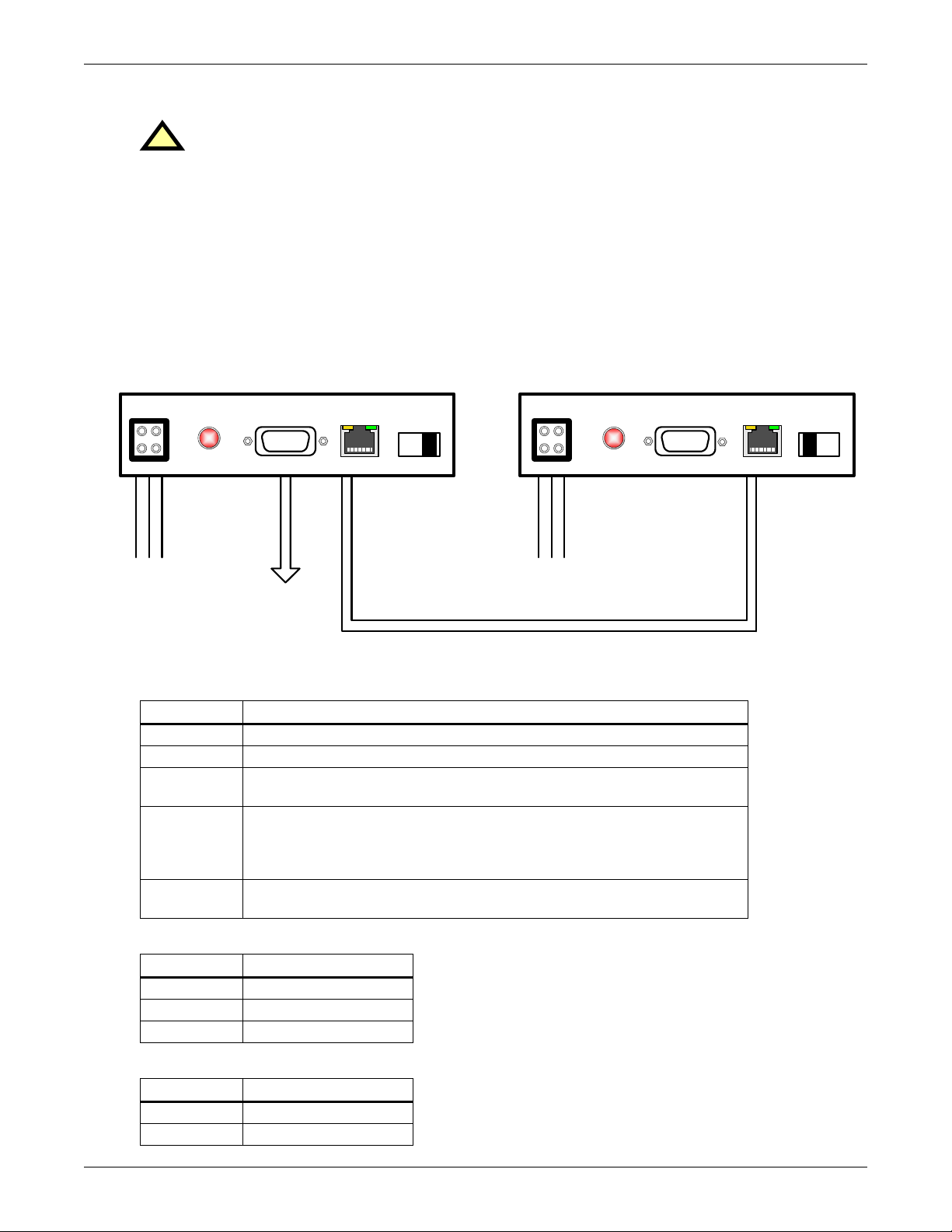

Figure 5 Connecting a Liebert NX to a non-NX UPS
Installation
LED1
Power Cable
Connect to NX UPS
Table 1 Human interface—indicators and switches
Item Description
Power port Connect to Phase A, Neutral and Ground of output of UPS.
LED1 (red) Power LED. It illuminates when the power is on, turns off when the power fails.
COM1
COM2
SWITCH
COM1 COM2 SWITCH COM1 COM2 SWITCHPower ON
Power Cable
Connect to non-NX UPS
LBS
Cable
Communication Cable
up to 492 ft. (150m)
LBS Signal interface.
Connect to NX series UPS unit.
RS485 interface.
Connect to other Signal Adapter.
Green LED: Communication Power is OK.
Yellow LED: Adapter is connected to Non NX series UPS.
Switch to left: Connect to Non-NX series UPS unit.
Switch to right: Connect to NX series UPS unit.
Power ON
LED1
Table 2 Electrical rating
Description Rating
Voltage 120V-277VAC
Frequency 45-65HZ
Current 0.2A Max
Table 3 Part number description
Description Part Number
150 Meter Kit NX150MLBSKIT
50 Meter Kit NX050MLBSKIT
3
