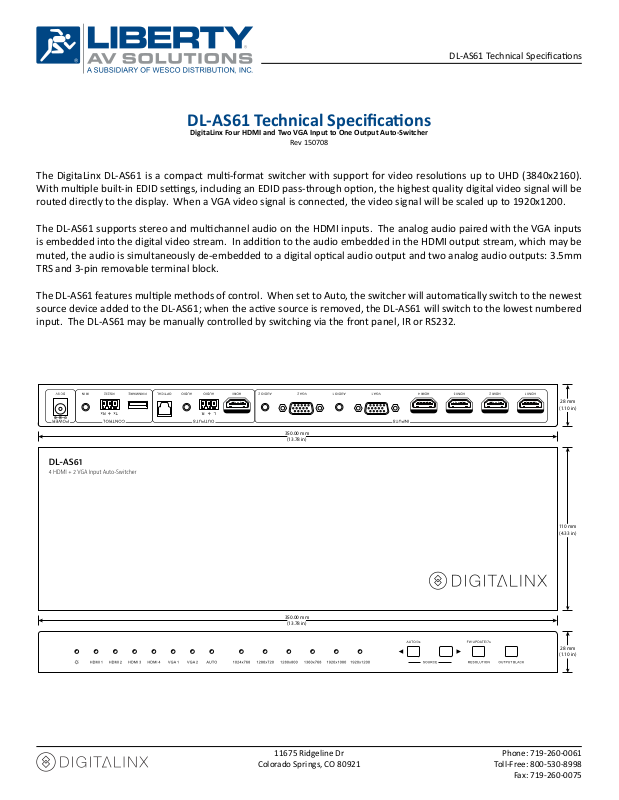

DL-AS61 Technical Specicaons
DL-AS61 Technical Specicaons
DigitaLinx Four HDMI and Two VGA Input to One Output Auto-Switcher
The DigitaLinx DL-AS61 is a compact mul-format switcher with support for video resoluons up to UHD (3840x2160).
With mulple built-in EDID sengs, including an EDID pass-through opon, the highest quality digital video signal will be
routed directly to the display. When a VGA video signal is connected, the video signal will be scaled up to 1920x1200.
The DL-AS61 supports stereo and mulchannel audio on the HDMI inputs. The analog audio paired with the VGA inputs
is embedded into the digital video stream. In addion to the audio embedded in the HDMI output stream, which may be
muted, the audio is simultaneously de-embedded to a digital opcal audio output and two analog audio outputs: 3.5mm
TRS and 3-pin removable terminal block.
The DL-AS61 features mulple methods of control. When set to Auto, the switcher will automacally switch to the newest
source device added to the DL-AS61; when the acve source is removed, the DL-AS61 will switch to the lowest numbered
input. The DL-AS61 may be manually controlled by switching via the front panel, IR or RS232.
Rev 150708
350.00 mm
(13.78 in)
350.00 mm
(13.78 in)
28 mm
(1.10 in)
110 mm
(4.33 in)
28 mm
(1.10 in)
11675 Ridgeline Dr
Colorado Springs, CO 80921
Phone: 719-260-0061
Toll-Free: 800-530-8998
Fax: 719-260-0075
DL-AS61 Technical Specicaons
I/O Connecons
HDMI Inputs Four (4) HDMI Type A Receptacle
VGA Inputs Two (2) Female HD15-F Connector
Analog Audio Inputs Two (2) 3.5mm TRS Jack
HDMI Output One (1) HDMI Type A Receptacle
Digital (Opcal) Audio Output One (1) EIAJ Opcal Connector
Analog Audio Outputs One (1) 3.5mm TRS Jack, One (1) 3-Pole/3.5mm Euroblock
IR Input One (1) 3.5mm TRS Jack
RS232 One (1) 3-Pole/3.5mm Euroblock
5V DC Power One (1) Threaded Barrel (5.5 mm OD; 2.6 mm ID)
Front Panel Control Four (4) Pushbuons
Firmware One (1) USB Type A Receptacle
Supported Audio, Video, and Control
Supported Input Resoluons (HDMI/DVI) 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@42Hz, 1024x768@60Hz, 1024x768@70Hz,
Supported Input Resoluons (VGA) 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz,
VGA Scaling Resoluons 1024x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1920x1080@60Hz, 1920x1200@60Hz
Video Compliance HDMI, HDCP
HDMI EDID Pass-through from Display, 1080p/PCM 2ch, 1080p/PCM 6ch, 1080p3D/PCM 6ch, 1080i/PCM 2 ch, 4k@30/PCM 2ch
VGA EDID 1360x768
Embedded Audio Input/Output Up to PCM 6 channel
Digital (Opcal) Audio Output PCM: 6 channel (5.1) at 16, 20, or 24 bit
Analog Audio Frequency Response 20Hz-20KHz
Analog Audio Input Impedance >10k ohm
Analog Audio Output Impedance 50 ohm
Input DDC Signal 5.0 volts p-p (TTL)
Input Video Signal 0.5 to 1.0 volts p-p
Maximum Passive HDMI Distance 5 m (16 )
IR Carrier Frequency Range 33-55kHz at 5 volts
RS232 Baud Rate 9600 baud
Chassis and Environmental
Enclosure Painted aluminum
Dimensions (H x W x D) 28 mm x 350 mm x 110 mm (1.10 in x 13.78 in x 4.33 in)
Shipping Weight 0.82 kg (1.8 lbs.)
Operang Temperature (Environment) 0° to +40° C (+32° to +104° F)
Operang Temperature (Chassis) 31° C (88° F) (S); 38° C (100° F) (R)
Operang Humidity (Environment) 20% to 90%, Non-condensing
Storage Temperature (Environment) -10° to +60° C (+14° to +140° F)
Storage Humidity (Environment) 20% to 90%, Non-condensing
Power, ESD, and Regulatory
Maximum Power Consumpon 3.8 was
Power Supply Input Voltage 100-240v AC at 50/60 Hz at 0.45 A
Power Supply Output Rang 5V DC at 3 A
ESD Protecon 15kV
Device Regulatory CE, FCC, RoHS
Power Supply Regulatory CE, RoHS, UL, SGS, FCC
Other
Standard Warranty 2 Years
Diagnosc Indicators Power, Selected Input, VGA Output Resoluon
Included Items Installaon guide, power supply, AC adapters (AU, EU, UK, and US), RS232 cable, IR receiver, IR remote with baeries,
1024x768@75Hz, 1024x768@85Hz, 1152x864@75Hz, 1280x768@60Hz, 1280x768@75Hz, 1280x768@85Hz,
1280x960@60Hz, 1280x960@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x1024@85Hz, 1365x1024@60Hz,
1365x1024@60Hz, 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz,
1600x1200@85Hz, 1680x1050@60Hz, 1792x1344@60Hz, 1856x1392@60Hz, 1856x1392@75Hz, 1920x1080@60Hz,
1920x1200@60Hz, 1920x1440@60Hz, 3840x2160@24Hz, 3840x2160@30Hz, 3840x2160@25Hz, 4096x2160@24Hz,
4096x2160@25Hz, 4096x2160@30Hz
1280x768@60Hz, 1280x768@75Hz, 1280x960@60Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1365x1024@60Hz,
1365x1024@75Hz, 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz,
1680x1050@60Hz, 1792x1344@60Hz, 1920x1080@60Hz, 1920x1200@60Hz
rubber feet, mounng “L” brackets (2 ea), mounng screws (4 ea)
Distances and picture quality may be aected by cable grade, cable quality, source and desnaon equipment, RF and electrical interference, and cable patches.
