Product Specification Sheet
Catalog Number: 14-2C-P

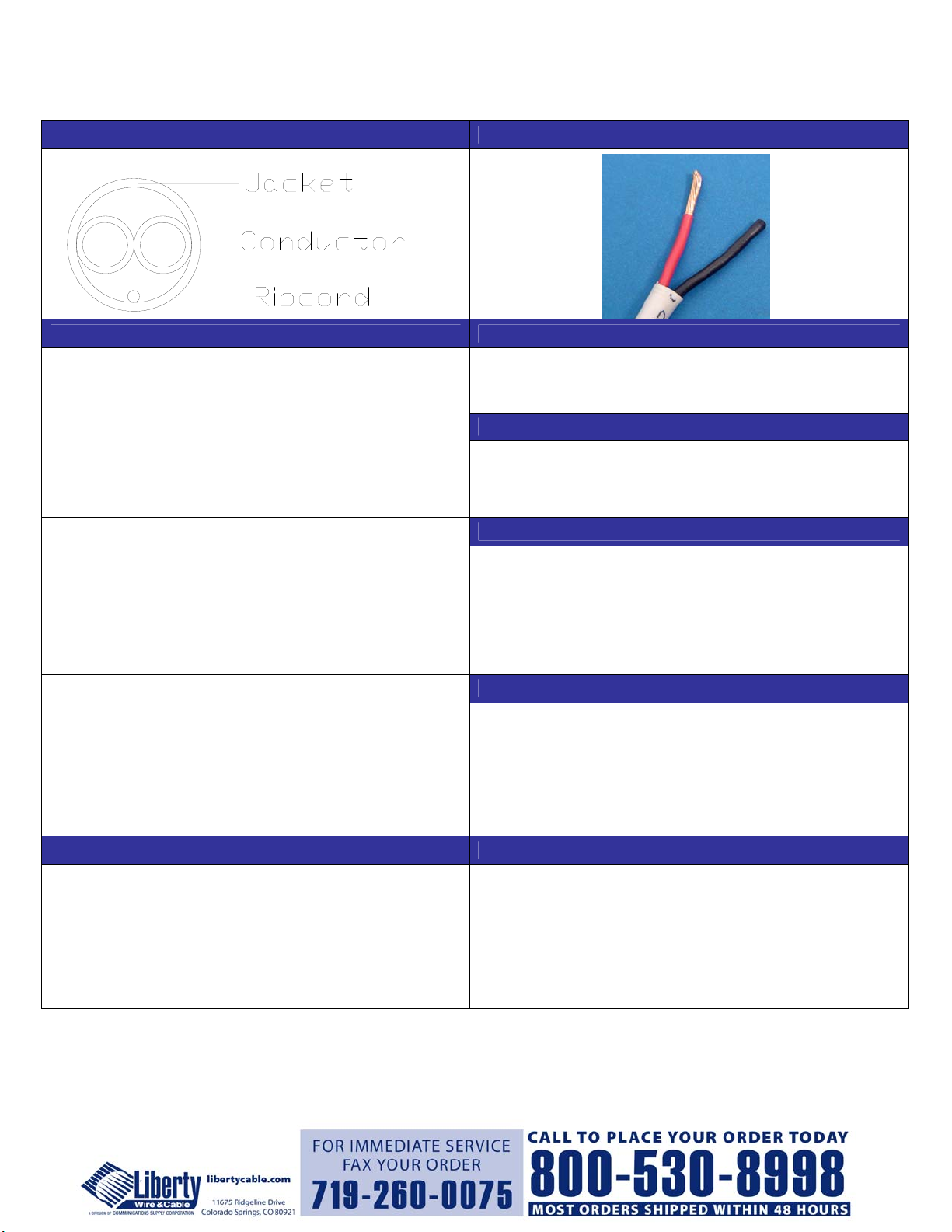

Construction Detail Product Illustration
Physical Construction Description
Component 1:
14 AWG 19/27 bare copper conductor
PL-PVC insulation: .010-inch nominal thickness
Plenum rated PLCC multi-conductor wire for audio,
instrumentation and control applications in accordance with
NEC article 725
Color Code
Black, Red
Final assembly:
2 of component 1 twisted in a 4-inch lay
Nylon ripcord under the jacket.
PL-PVC jacket: .015-inch nominal thickness
Final construction: .210-inch nominal OD
Product Print Legend: LWC 14-2C-P E190607 14 AWG
CL3P (UL) FT6
Sequential footmarks are applied in conjunction with the
print legend.
Specification Control Product Information
Revision Date: 04/11/2009
Liberty Wire & Cable specifications are subject to change
without notice. Contact an account representative for
current product specifications. Liberty Wire & Cable
continuously strives to ensure product specifications are
accurate and complete. All physical specifications are
nominal.
Electrical Specifications
14 AWG:
DCR: 2.66 per 1000 feet
Capacitance: 40.06 pF per foot
Voltage: 300 Volts RMS
Temperature: 0°C to 75C
Impedance: 51 Ω
Capacitance: 40.06 pF/FT
Regulatory Specifications
NEC rated CL3P
CEC rated CMP FT6
EU RoHS 2002/95/EC Compliant
Jacket Colors:
Natural White, Black, Dark Blue
Packaging: 1000 foot spools
Special Instructions: Plenum wire should be conditioned
for 24 hours at room temperature prior to installation and
never installed below 0°C ambient temperature
