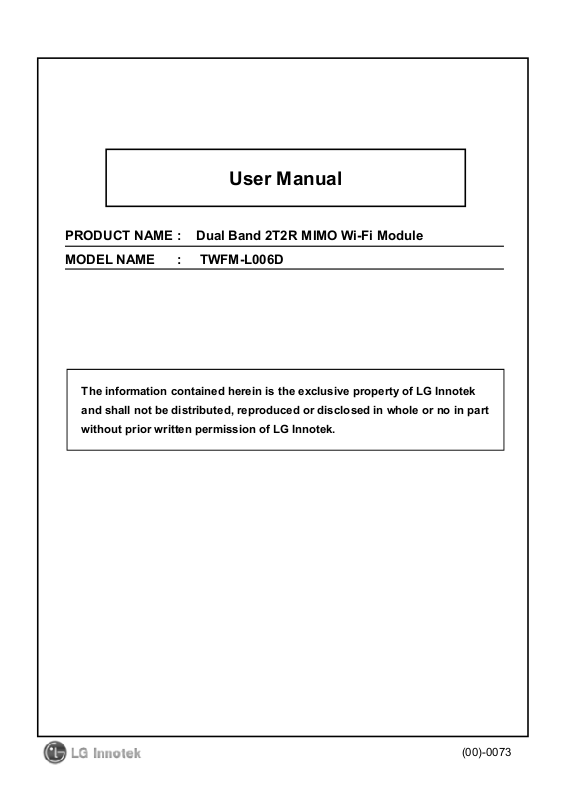

LG Innotek TWFML006D Users Manual
User Manual
PRODUCT NAME : Dual Band 2T2R MIMO Wi-Fi Module
MODEL NAME : TWFM-L006D
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.
(00)-0073
REG. DATE : 2013.12.13
User Manual
REV.NO : 1.0
REV. DATE : 2013.12.13
MODEL NAME : TWFM-L006D
PAGE :
Table of Contents
No Description Page
1 Features 2
2 Module Photo 2
3 Block Diagram 3
4 Storage Test Conditions 4
5 Operating Test Conditions 4

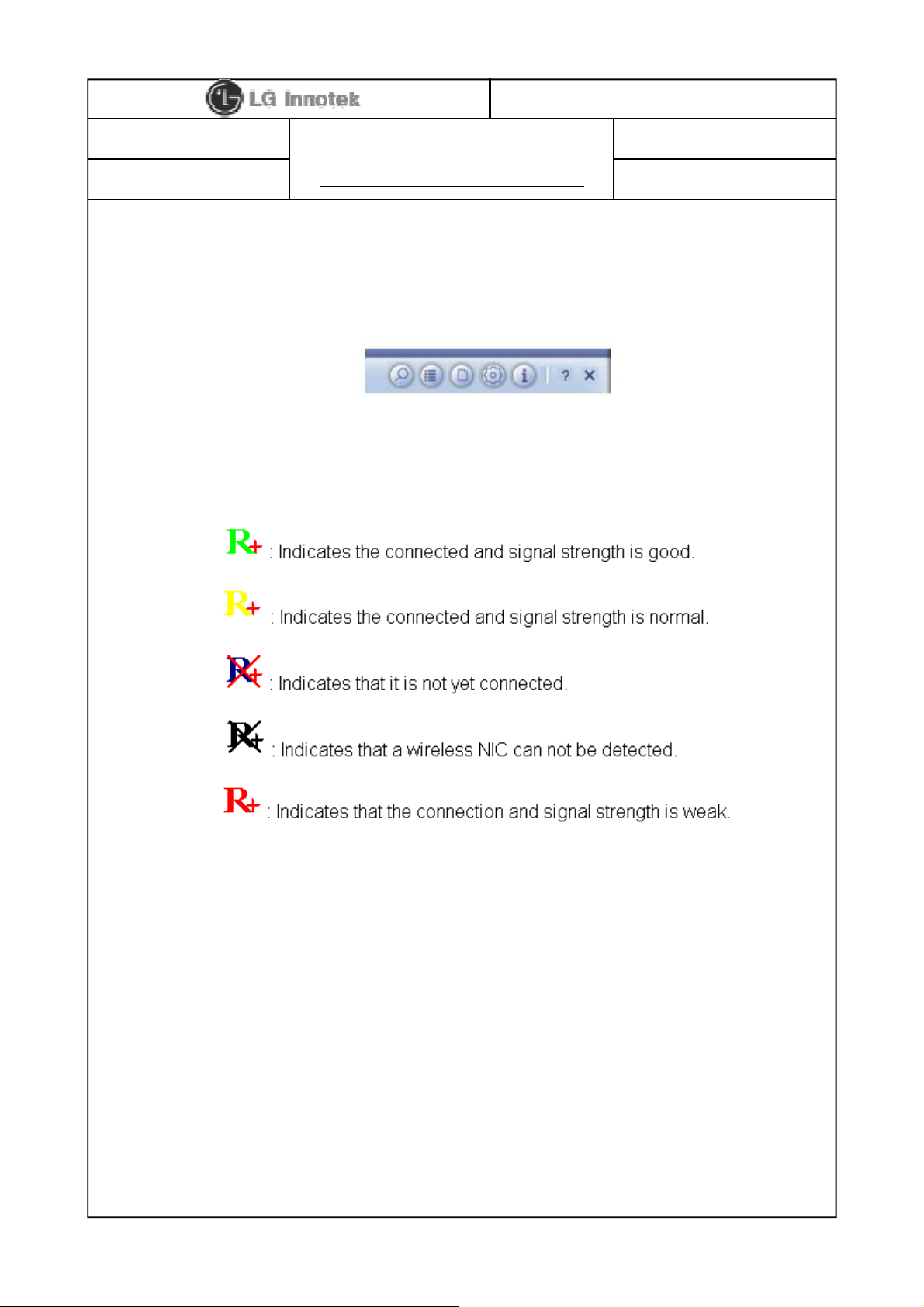

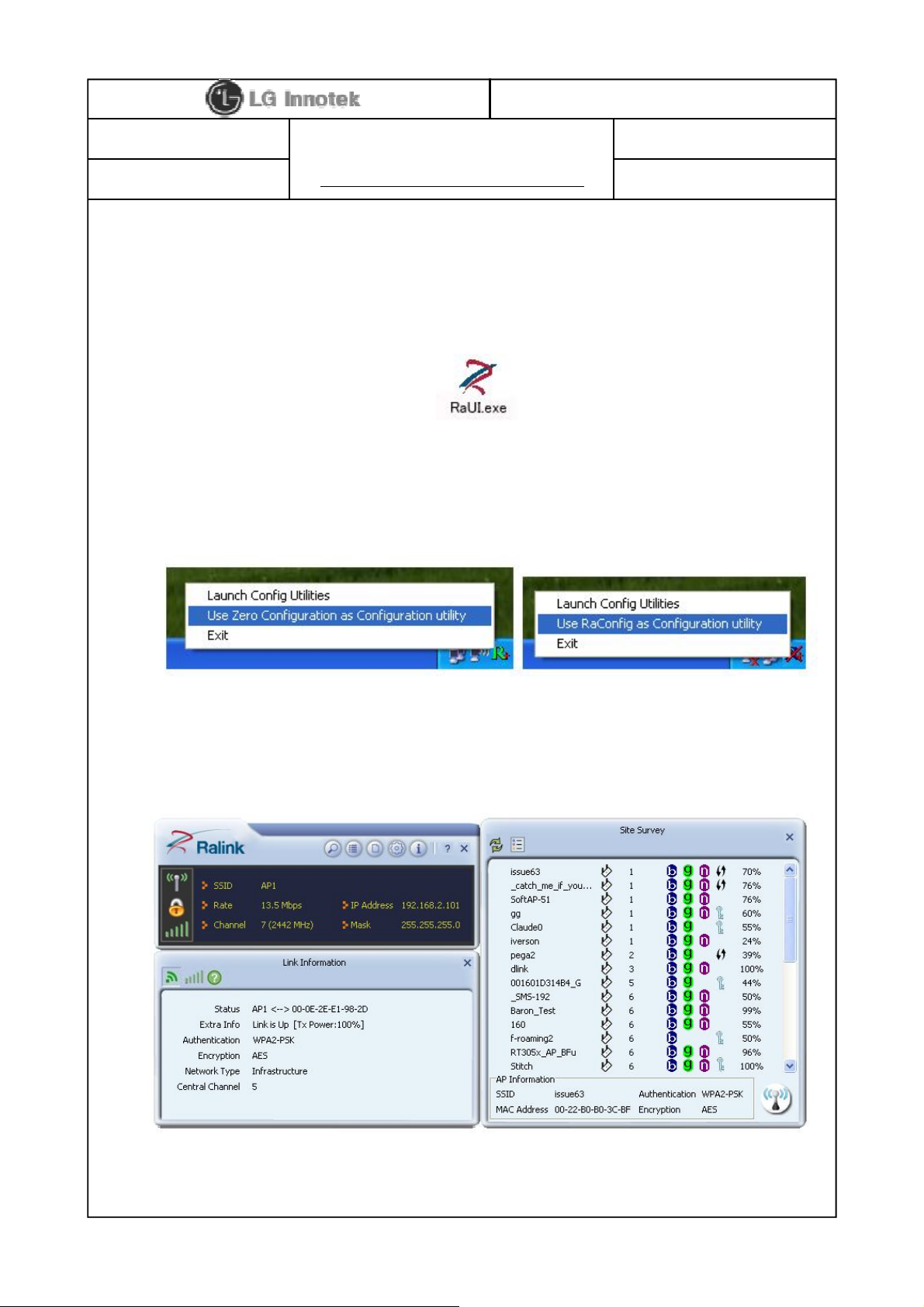

6 Software Programming 5
7 Pin Description 7

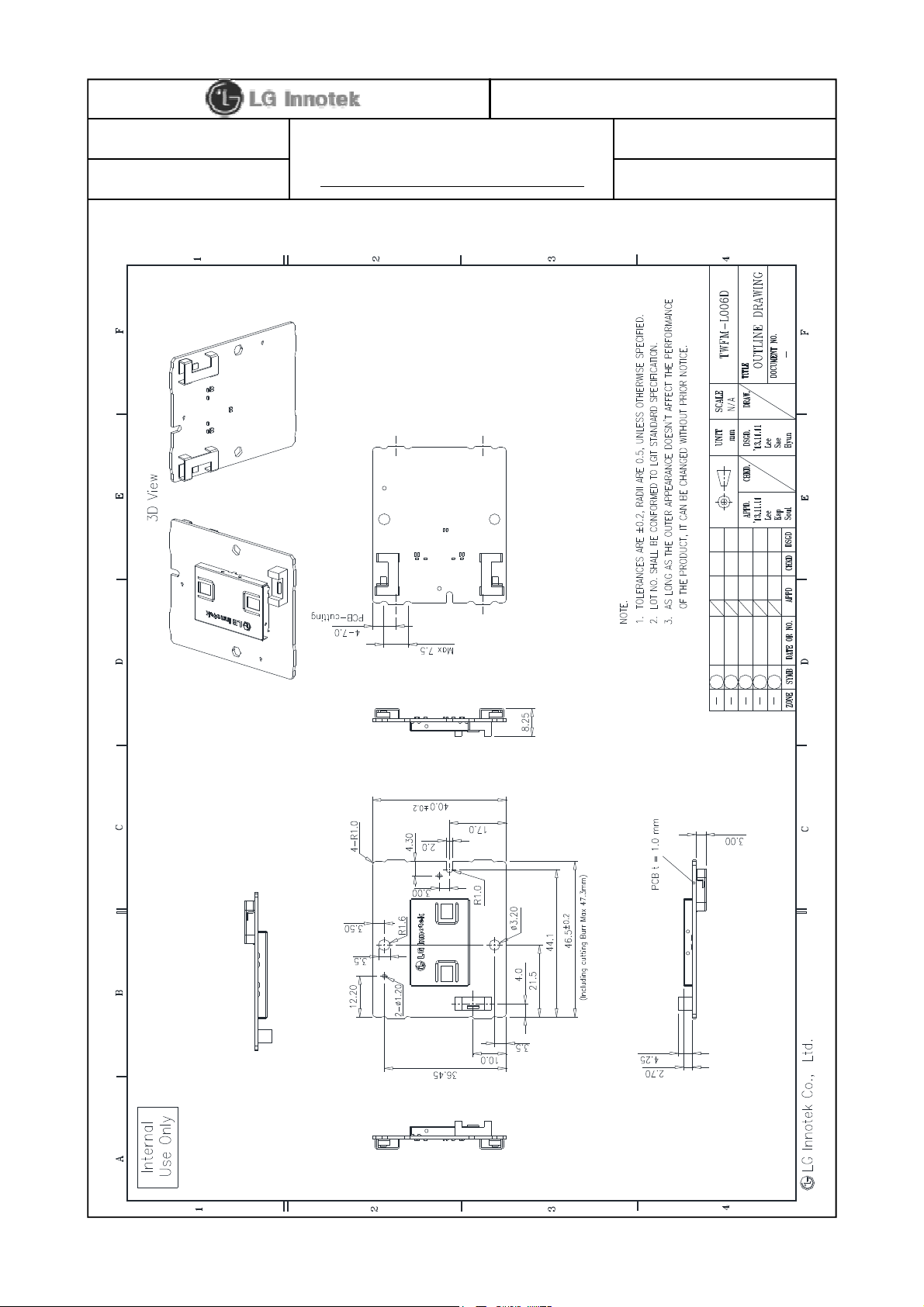

8 Outline Drawing 8

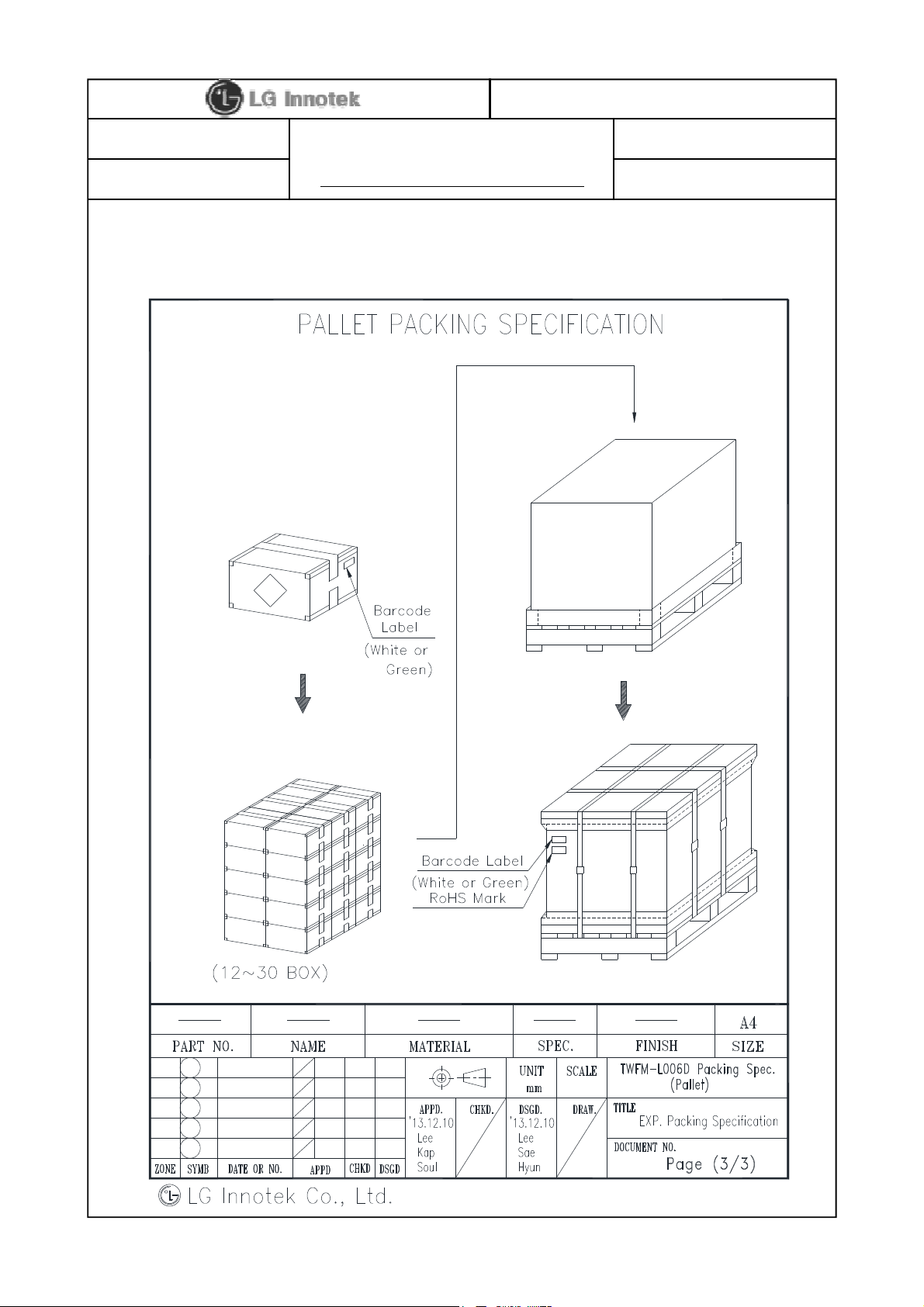

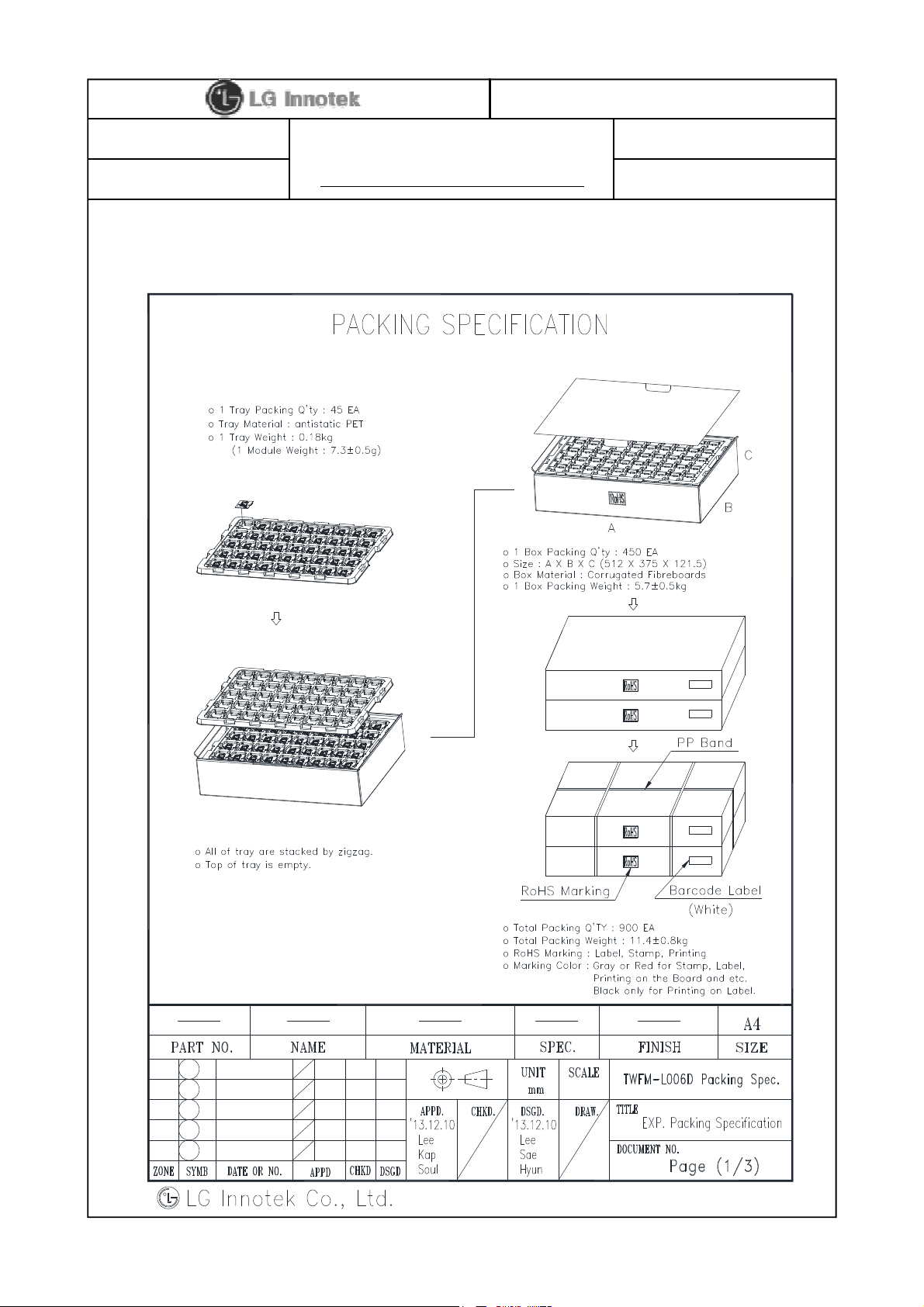

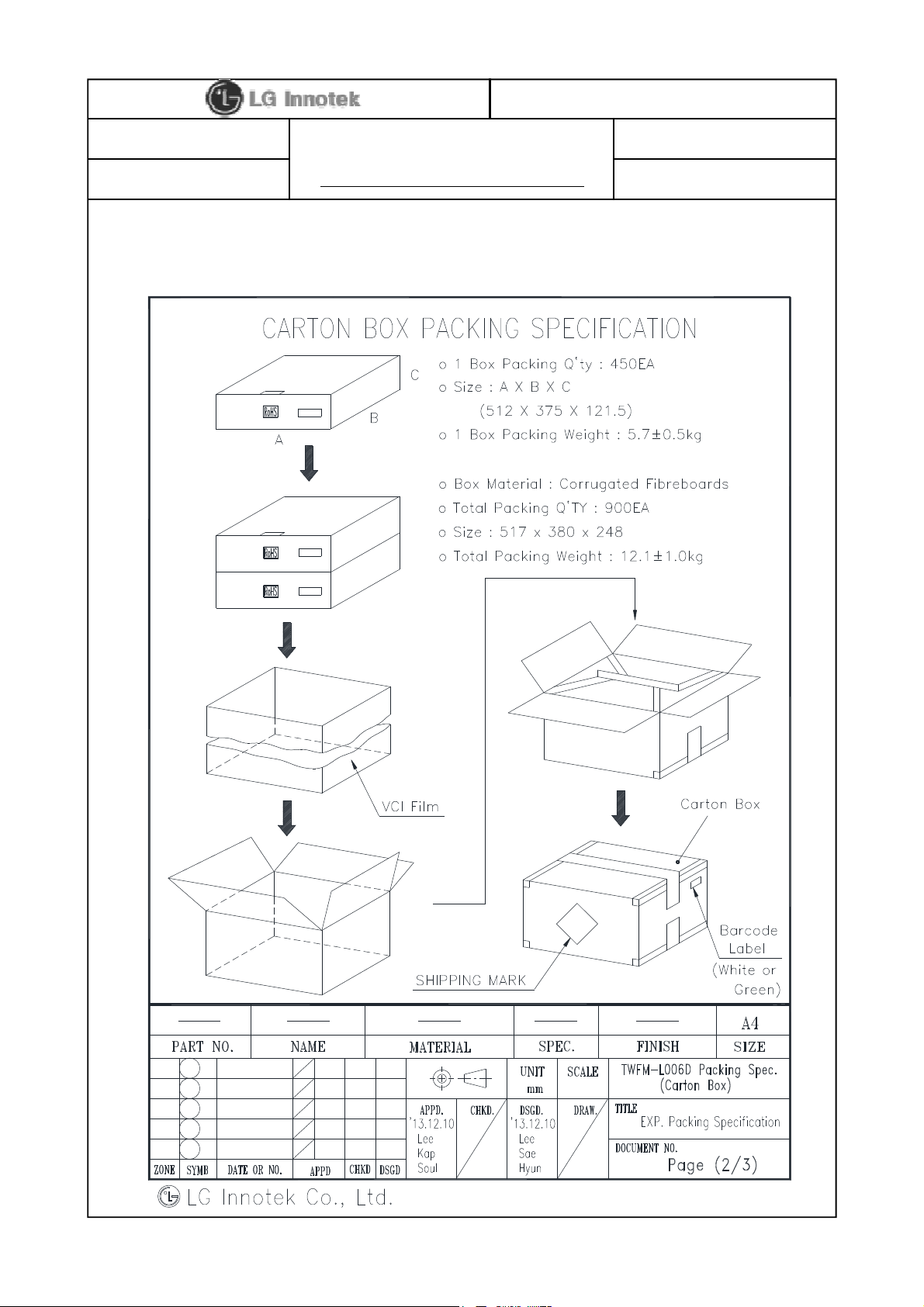

9 Packing Information 9
1 / 11
©2013 LGIT. All rights reserved.
REG. DATE : 2013.12.13
User Manual
REV.NO : 1.0
REV. DATE : 2013.12.13
MODEL NAME : TWFM-L006D
PAGE :
1. Features
TWFM-L006D is the module for IEEE 802.11a/b/g/n wireless LAN. TWFM-L006D is
based on MTK RT5572 solution.
IEEE 802.11 a/b/g/n Dual Band WLAN infrastructure
Size : 40mm x46.5mm x 8.25mm
2.4GHz and 5GHz, internal PA and LNA
Two stream spatial multiplexing up to 300Mbps
Metal Press Antenna
Use on-chip OTP (One-Time Programmable)
USB 2.0
Supports drivers for Linux, Windows
Security : WPA,WPA2,AES(TKIP) ,IEEE 802.1X
2 / 11
• Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB

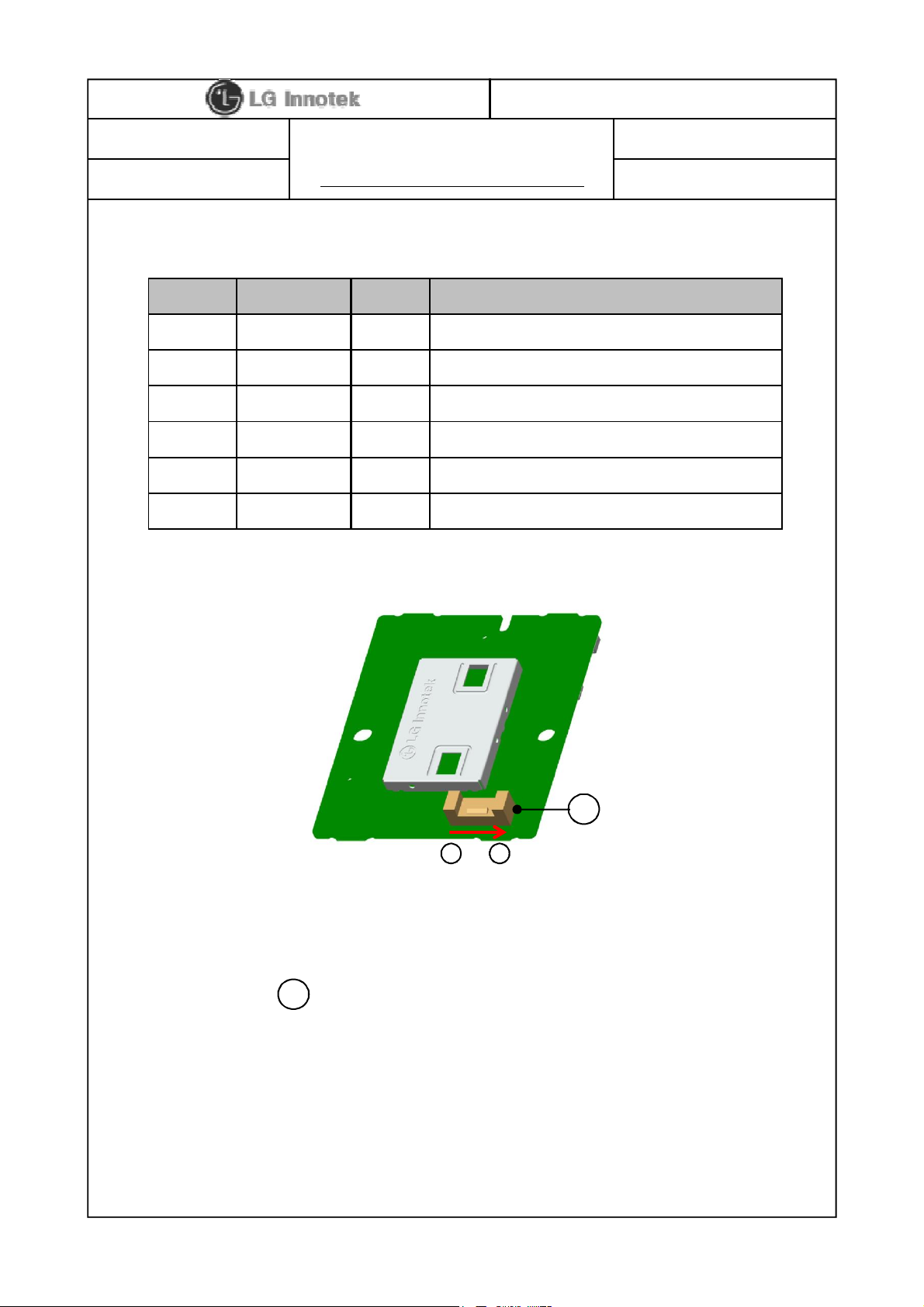

2. Module Photo
©2013 LGIT. All rights reserved.
REG. DATE : 2013.12.13
User Manual
REV.NO : 1.0
REV. DATE : 2013.12.13
3. Block Diagram
Main Clock (40MHz)
MODEL NAME : TWFM-L006D
DPX
DPX
PA
PA
mitter
Trans
ANT1
PAGE :
LNA
LNA
eiver
Rec
3 / 11
ANT0
5V
(1.5MHz)
DC-DC
1.5V
3.3V
802.11n
PHY
(2K byte)
E-Fuse
Security
802.11n
MAC
RT5572
Internal Bus
GPIO
USB 2.0
©2013 LGIT. All rights reserved.
USB I/F 6Pin Connector
REG. DATE : 2013.12.13
User Manual
REV.NO : 1.0
REV. DATE : 2013.12.13
MODEL NAME : TWFM-L006D
PAGE :
4 / 11
4. Storage Test Conditions
Parameter Min Max Unit
Storage Temperature -20 +80 ℃
Storage Humidity (@ 40℃) - 90 %
Caution : The specifications above the Table define levels at which permanent damage
to the device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
• Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃ and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
5. Operating Test Conditions
Parameter Min Typ Max Unit
Operating Temperature 0 - +60 ℃
Operating Humidity (40℃) - - 85 %
Supply Voltage 4.5 5.0 5.5 Vdc
