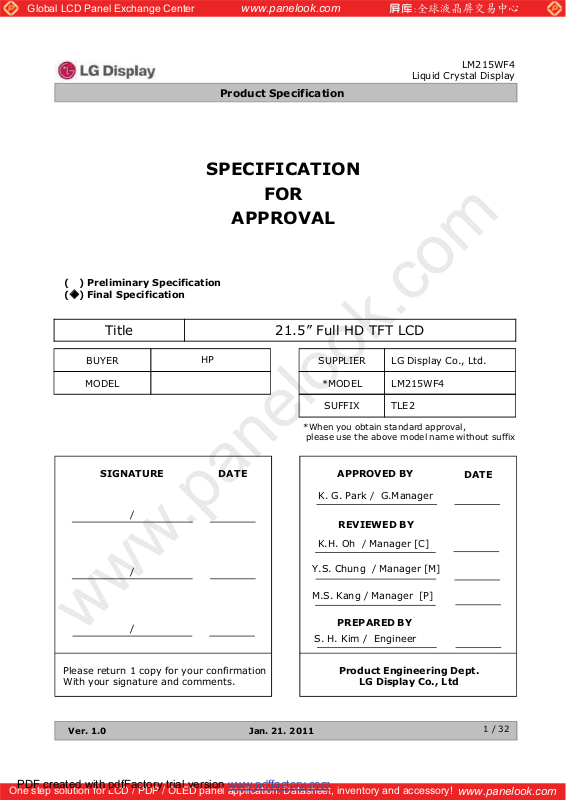

LG Display LM215WF4-TLE2 Specification
Global LCD Panel Exchange Center
( ) Preliminary Specification
(
) Final Specification
www.panelook.com
LM215WF4
Liquid Crystal Display
Product Specification
SPECIFICATION
FOR
APPROVAL
Title 21.5” Full HD TFT LCD
BUYER
MODEL
SIGNATURE DATE
/
/
HP
SUPPLIER LG Display Co., Ltd.
*MODEL LM215WF4
SUFFIX TLE2
*When you obtain standard approval,
please use the above model name without suffix
APPROVED BY
K. G. Park / G.Manager
REVIEWED BY
K.H. Oh / Manager [C]
Y.S. Chung / Manager [M]
M.S. Kang / Manager [P]
DATE
/
Please return 1 copy for your confirmation
With your signature and comments.
Ver. 1.0 Jan. 21. 2011
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
PREPARED BY
S. H. Kim / Engineer
Product Engineering Dept.
LG Display Co., Ltd
1/32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LM215WF4
Liquid Crystal Display
Product Specification
Contents
No ITEM
COVER 1
CONTENTS 2
RECORD OF REVISIONS 3
1 GENERAL DESCRIPTION 4
2 ABSOLUTE MAXIMUM RATINGS 5
3 ELECTRICAL SPECIFICATIONS 6
1) ELECTRICAL CHARACTERISTICS 6
2) INTERFACE CONNECTIONS 8

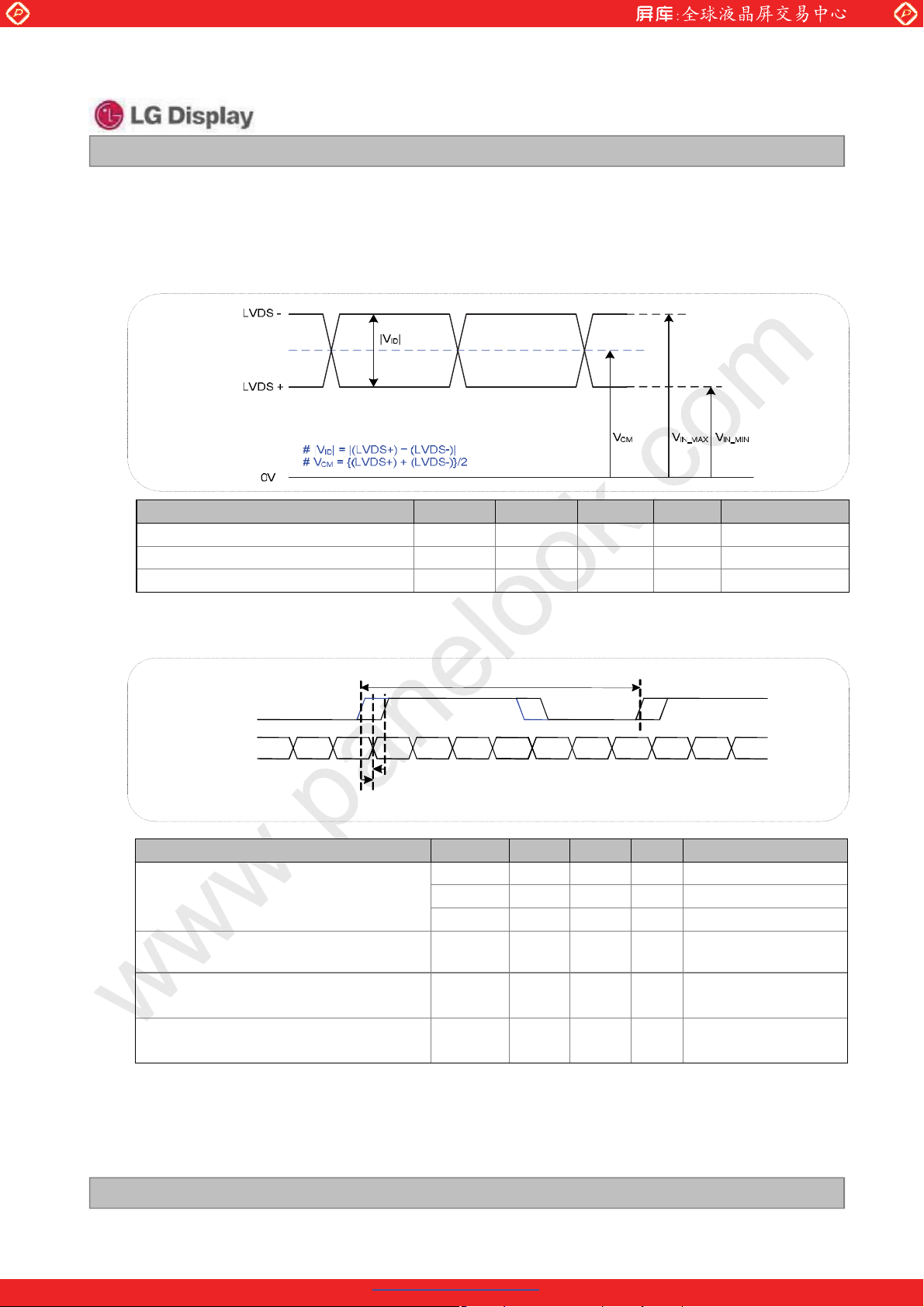

3) LVDS characteristics 11
4) SIGNAL TIMING SPECIFICATIONS 14

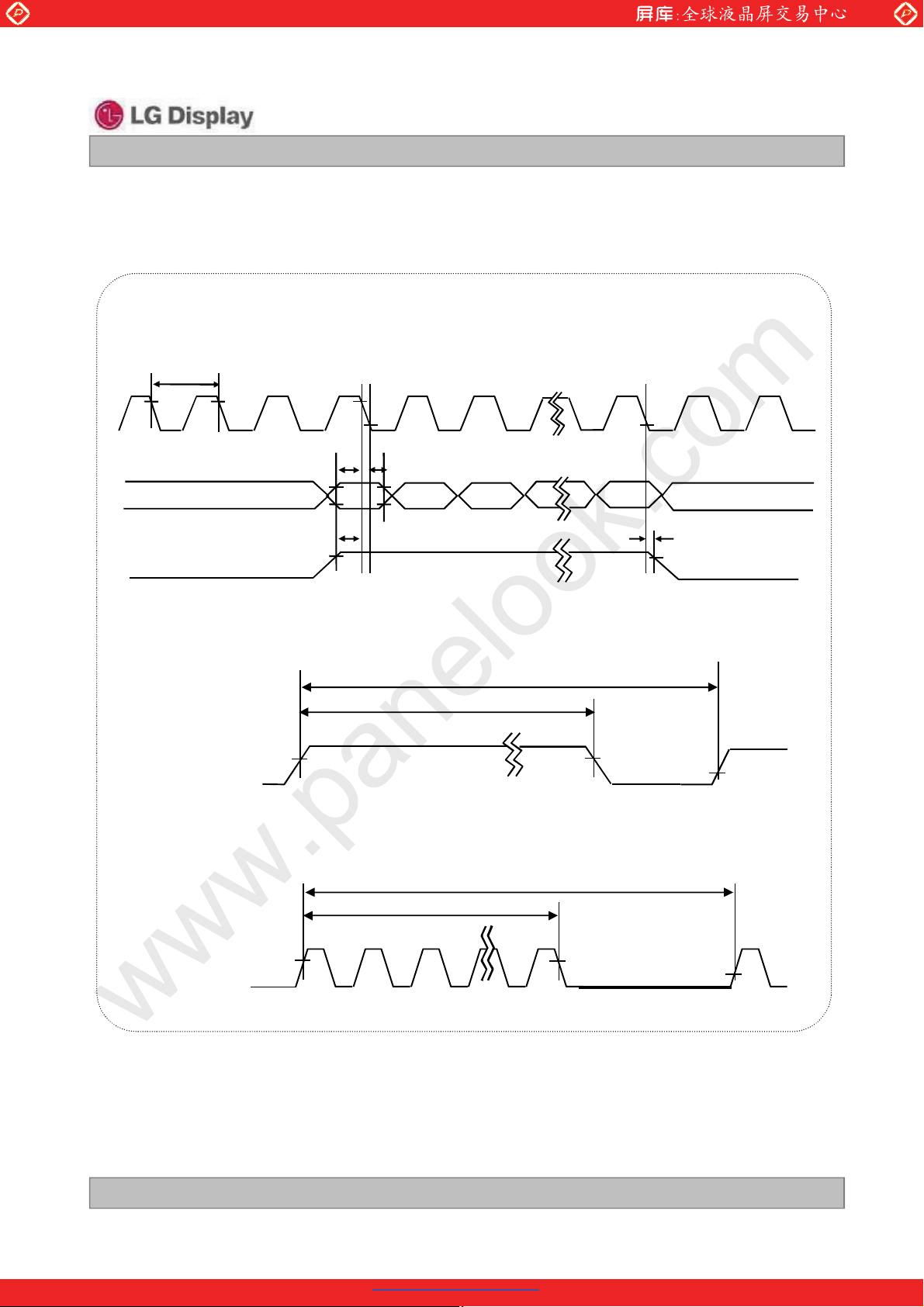

5) SIGNAL TIMING WAVEFORMS 15
6) COLOR INPUT DATA REFERNECE 16
7) POWER SEQUENCE 17
8) POWER DIP CONDITION 18
4 OPTICAL SFECIFICATIONS 19
Page

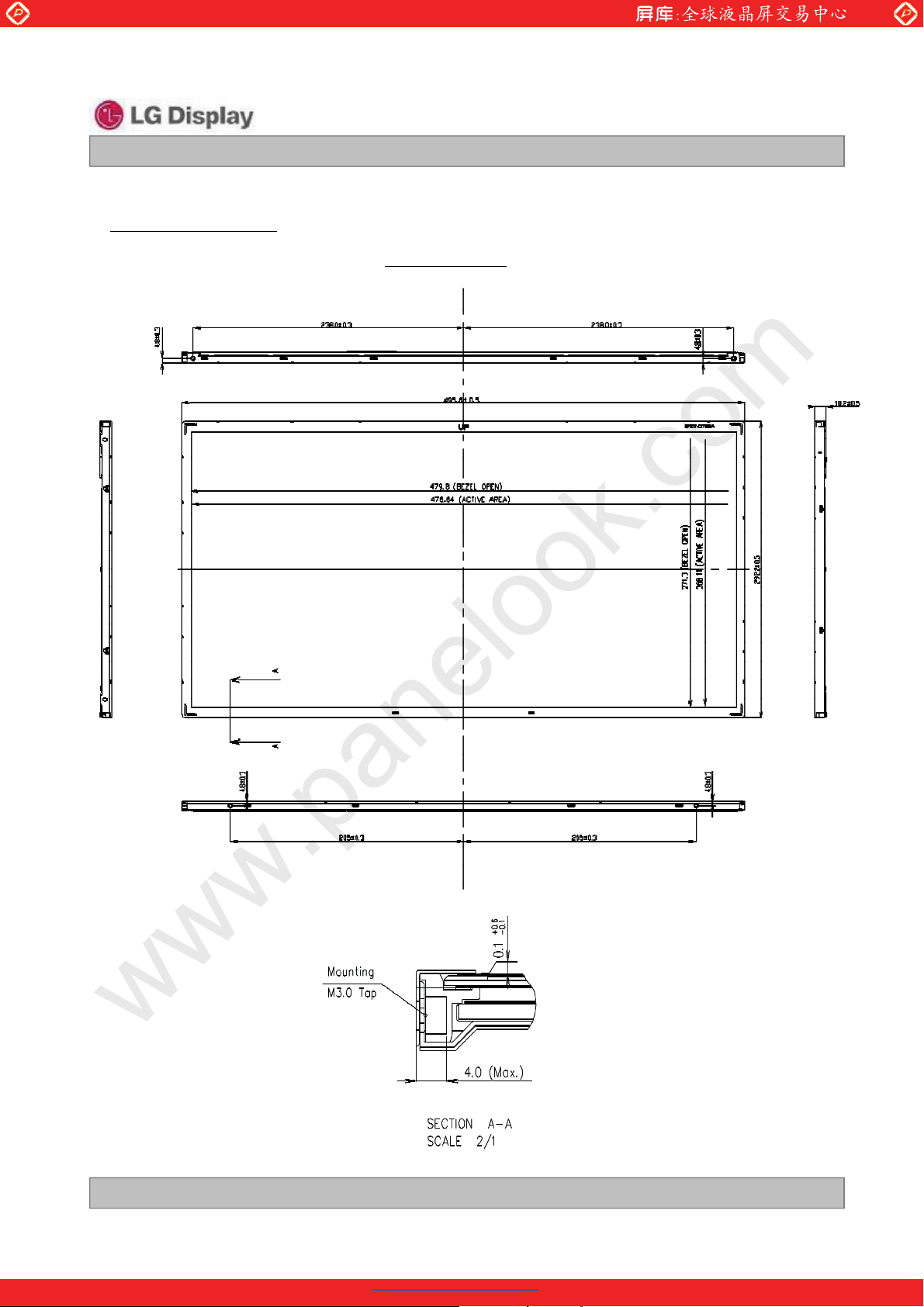

5 MECHANICAL CHARACTERISTICS 25
6 RELIABILITY 28
7 INTERNATIONAL STANDARDS 29
1) SAFETY 29
2) EMC 29
3) ENVIRONMENT 29
8PACKING 30
1) DESIGNATION OF LOT MARK 30
2) PACKING FORM 30
9 PRECAUTIONS 31
1) MOUNTING PRECAUTIONS 31
2) OPERATING PRECAUTIONS 31
3) ELECTROSTATIC DISCHARGE CONTROL 32
4) PRECAUTIONS FOR STRONG LIGHT EXPOSURE 32
5) STROAGE 32
6) HANDLING PRECAUTIONS FOR PROTECTION FILM 32
Ver. 1.0 Jan. 21. 2011
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2/32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LM215WF4
Liquid Crystal Display
Product Specification
Record of revisions
Revision
No
Ver. 0.0 Aug. 2. 2010 - Preliminary Specifications
Ver. 0.1 Oct. 12. 2010 4, 25 Weight change (1710g 1720g)
Ver. 0.2 Nov. 5. 2010 11 Add SSC specifications.
Ver. 0.3 Jan. 21. 2011 4
Ver, 1.0 Jan.21.2011 Final Specifications.
Date Page Description
6 Inrush Current change (3A 3.5A)
26, 27 2D Drawing update
29 Safety (Laser Information) update
integral Light Emitting Diode(LED) a Light Emitting
Diode (LED)
4 Update Fig.1 (W-LEDs)
27 Update Rear View
Ver. 1.0 Jan. 21. 2011
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3/32
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
LM215WF4
Liquid Crystal Display
Product Specification
1. General description
LM215WF4-TLE2 is a Color Active Matrix Liquid Crystal Display with a Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a
transmissive type display operating in the normally white mode. It has a 21.5 inch diagonally
measured active display area with Full HD resolution (1080 vertical by 1920 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical
stripes. Gray scale or the brightness of the sub-pixel color is determined with
a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with
Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that
enables low power, high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low
Voltage Differential Signaling) chip. It is intended to support applications where thin thickness,
wide viewing angle, low power are critical factors and graphic displays are important. In
combination with the vertical arrangement of the sub-pixels, the LM215WF4-TLE2 characteristics
provide an excellent flat panel display for office automation products such as monitors.
FIG. 1 Block diagram
LVDS
pair #1
LVDS
pair #2
CN1
+5V
V
LCD
Power circuit
block
Timing
controller
VLED 2ch
RGB
Source driver circuit
S1
G1
TFT-LCD Panel
(1920RGB1080 pixels)
G1080
B/L System (W-LEDs)
S1920
General features
Active screen size 21.53 inches (546.86mm) diagonal
Outline Dimension 495.6(H) x 292.2(V) x 10.2(D) mm(Typ.)
Pixel Pitch 0.08275*RGB(H)mm x 0.248(V)mm
Pixel Format 1920 horizontal By 1080 vertical Pixels. RGB stripe arrangement
Interface LVDS 2Port
Color depth 16.7M colors
Luminance, white 250 cd/m
2
( Center 1Point, typ)
Viewing Angle (CR>10) R/L 170(Typ.), U/D 160(Typ.)
Power Consumption
Total 16.21 W(Typ.), (4.95 W@V
, 11.26 W@ILED = 110mA)
LCD
Weight 1,720g (Typ.)
Display operating mode Transmissive mode, normally White
Surface treatments
Ver. 1.0 Jan. 21. 2011
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Hard coating (3H), Anti-glare treatment of the front polarizer
4/32
www.panelook.com
Global LCD Panel Exchange Center
2. Absolute maximum ratings
The following are maximum values which, if exceeded,
may cause faulty operation or damage to the unit.
Table 1. Absolute maximum ratings
www.panelook.com
LM215WF4
Liquid Crystal Display
Product Specification
Parameter Symbol
Units Notes
Min Max
Values
Power Supply Input Voltage V
Operating Temperature T
Storage Temperature T
Operating Ambient Humidity H
Storage Humidity H
LCD
OP
ST
OP
ST
-0.3 +6.0 Vdc
050
-20 60
C
C
10 90 %RH
10 90 %RH
Note : 1. Temperature and relative humidity range are shown in the figure below.
Wet bulb temperature should be 39 C Max, and no condensation of water.
Note : 2. Storage condition is guaranteed under packing condition.
FIG. 2 Temperature and relative humidity
90%
60
60%
Wet Bulb
Temperature []
20
10
0
30
40
50
40%
10%
Humidity
[(%)RH]
Storage
Operation
At 25
1, 2
10 20 30 40 50 60 70 800-20
Dry Bulb Temperature []
Ver. 1.0 Jan. 21. 2011
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5/32
www.panelook.com
Global LCD Panel Exchange Center
3. Electrical specifications
3-1. Electrical characteristics
It requires two power inputs. One is employed to power the LCD electronics and to drive the
TFT array and liquid crystal. The second input power for the LED Backlight, is typically
generated by an LED Driver. The LED driver is an external unit to the LCDs.
Table 2. Electrical characteristics
www.panelook.com
LM215WF4
Liquid Crystal Display
Product Specification
Parameter Symbol
Values
Unit Notes
Min Typ Max
MODULE :
Power Supply Input Voltage V
Permissive Power Input Ripple V
I
LCD-MOSAIC
Power Supply Input Current
I
LCD-BLACK
I
LCD-L80
Power Consumption P
Inrush current I
LCD
LCD
LCD
RUSH
4.5 5.0 5.5 Vdc
- - 400 mV
p-p
- 990 1290 mA 1
- 1320 1715 mA 2
- 930 1210 mA 2
- 4.95 6.45 Watt 1
--3.5 A 4
Note :
1. The specified current and power consumption are
under the V
LCD=5.0V, 25 ± 2C,f
whereas mosaic pattern(8 x 6) is displayed and f
=60Hz condition
V
is the frame frequency.
V
2. The current is specified at the maximum current pattern and L80.
3. Permissive power ripple should be measured under VCC=5.0V, 25C, f
(frame frequency)=75Hz
V
condition and At that time, we recommend the bandwidth configuration of oscilloscope
is to be under 20MHz.
4. The duration of rush current is about 5ms and rising time of power Input is 500us ± 20%.
3
FIG.3 pattern for Electrical characteristics
power consumption
power input ripple
White : 255Gray
Black : 0Gray
Mosaic Pattern(8 x 6)
Ver. 1.0 Jan. 21. 2011
Full Black Pattern
Energy star 5.0
White : 255Gray (64%)
Black : 0Gray (36%)
L80 Pattern
6/32
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Product Specification
Table 3. LED array ELECTRICAL CHARACTERISTICS
LM215WF4
Liquid Crystal Display
Parameter Symbol Condition
LED : 1
LED String Current Is - 110 120 mA 2
LED String Voltage Vs - 51.2 56 V 3
Power
Parray - 11.26 12.32 Watt 4,6
Min. Typ. Max.
Values
Unit Notes
Consumption
LED Life Time LED_LT 30,000 - - Hrs 5
LED driver design guide
: The design of the LED driver must have specifications for the LED in LCD Assembly.
The performance of the LED in LCM, for example life time or brightness, is extremely
influenced by the characteristics of the LED driver.
So all the parameters of an LED driver should be carefully designed and output current
should be Constant current control.
Please control feedback current of each string individually to compensate
the current variation among the strings of LEDs.
When you design or order the LED driver, please make sure unwanted lighting caused by
the mismatch of the LED and the LED driver (no lighting, flicker, etc) never occurs.
When you confirm it, the LCD module should be operated in the same condition
as installed in your instrument.
Notes :
1. Specified values are for a single LED bar.
2. The specified current is input LED chip 100% duty current.
3. The specified voltage is input LED string voltage at typical 110mA 100% duty current.
4. The specified power consumption is input LED bar power consumption
at typical 110mA 100% duty current.
5. The life time is determined as the time at which luminance of the LED is 50%
compared to that of initial value at the typical LED current on condition of continuous
operating at 25 ± 2C.
6. The LED bar power consumption shown above does not include loss of external driver.
The used LED string current is the LED typical current.
Typ Power Consumption is calculated with PBar = Vs(Typ.) x Is(Typ.) x Nstring
Max Power Consumption is calculated with PBar = Vs(Max.) x Is(Typ) x Nstring
Ver. 1.0 Jan. 21. 2011
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7/32
www.panelook.com
Global LCD Panel Exchange Center
3-2. Interface connections
3-2-1. LCD Module
LCD connector(CN1) : GT103-30S-HF15-E2500 (LSM) , IS100-L30O-C23(UJU)
Mating connector : FI-X30H and FI-X30HL (JAE) or Equivalent
Table 4. Module connector(CN1) pin configuration
www.panelook.com
LM215WF4
Liquid Crystal Display
Product Specification
Pin No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Symbol Description
RXO0-
RXO0+
RXO1-
RXO1+
RXO2-
RXO2+
GND
RXOC-
RXOC+
RXO3-
RXO3+
RXE0-
RXE0+
GND
RXE1-
RXE1+
GND
RXE2-
RXE2+
RXEC-
RXEC+
RXE3-
RXE3+
GND
NC
NC
PWM_OUT
VLCD
VLCD
VLCD
Minus signal of 1st channel 0 (LVDS)
Plus signal of 1st channel 0 (LVDS)
Minus signal of 1st channel 1 (LVDS)
Plus signal of 1st channel 1 (LVDS)
Minus signal of 1st channel 2 (LVDS)
Plus signal of 1st channel 2 (LVDS)
Ground (AGP)
Minus signal of 1st clock channel (LVDS)
Plus signal of 1st clock channel (LVDS)
Minus signal of 1st channel 3 (LVDS)
Plus signal of 1st channel 3 (LVDS)
Minus signal of 2nd channel 0 (LVDS)
Plus signal of 2nd channel 0 (LVDS)
Ground
Minus signal of 2nd channel 1 (LVDS)
Plus signal of 2nd channel 1 (LVDS)
Ground
Minus signal of 2nd channel 2 (LVDS)
Plus signal of 2nd channel 2 (LVDS)
Minus signal of 2nd clock channel (LVDS)
Plus signal of 2nd clock channel (LVDS)
Minus signal of 2nd channel 3 (LVDS)
Plus signal of 2nd channel 3 (LVDS)
Ground
No Connection (For LCD internal use only.)
No Connection (For LCD internal use only.)
Reference signal for LED Driver control
Power Supply (5.0V)
Power Supply (5.0V)
Power Supply (5.0V)
Ver. 1.0 Jan. 21. 2011
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8/32
www.panelook.com
Global LCD Panel Exchange Center
FIG. 4 Connector diagram
1’st signal pairs
www.panelook.com
Product Specification
GT103-30S-HF15-E2500 (LSM)
#
1
#1 #30
2’nd signal pairs
#30
LM215WF4
Liquid Crystal Display
Note:
Power(+5V)
PWM_OUT
Rear view of LCM
1. NC: No Connection.
2. All GND(ground) pins should be connected together and to Vss which should also
be connected to the LCD’s metal frame.
3. All V
(power input) pins should be connected together.
LCD
4. Input Level of LVDS signal is based on the IEA 664 Standard.
5. PWM_OUT is a reference signal for LED Driver control.
This PWM signal is synchronized with vertical frequency.
Its frequency is 6 times of vertical frequency, and its duty ratio is 50%.
If the system don’t use this pin, do not connect.
Ver. 1.0 Jan. 21. 2011
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9/32
www.panelook.com
Global LCD Panel Exchange Center
3-2-2. LED Interface
The LED interface connector is a model 10019HR-06 manufactured by Yeonho Electronics.
The mating connector should be used a FFC/FPC specified in LED interface connector specification.
The pin configuration for the connector is shown in the table below.
Table 5. LED connector pin configuration
Pin Symbol Description Notes
1 FB1 Channel1 Current Feedback
www.panelook.com
LM215WF4
Liquid Crystal Display
Product Specification
2 NC No connection
3 VLED LED Power Supply
4 VLED LED Power Supply
5 NC No connection
6 FB2 Channel2 Current Feedback
FIG. 5 Backlight connector view
LED
1
Back View
6
PCB
Ver. 1.0 Jan. 21. 2011
PDF created with pdfFactory trial version www.pdffactory.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
10 / 32
www.panelook.com
Loading...
