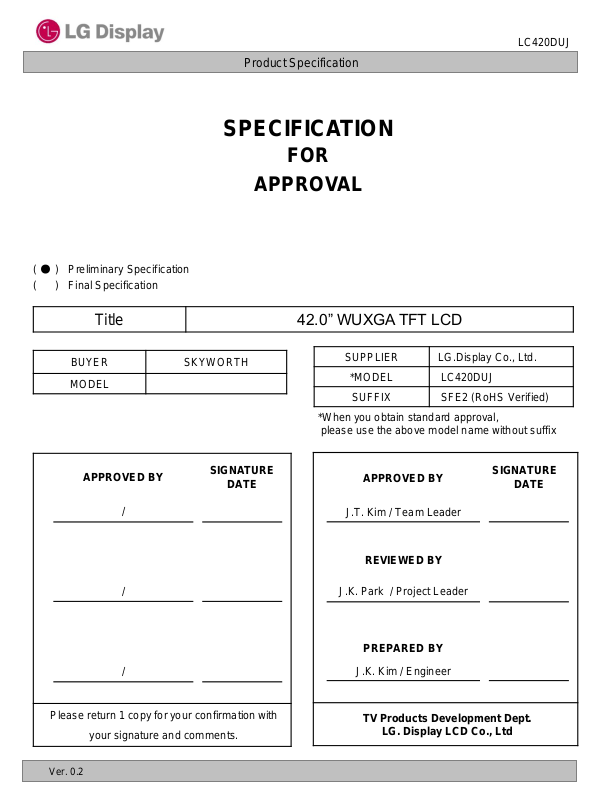

LG Display LC420DUJ-SFE2 Specification

LC420DUJ

Product Specification

SPECIFICATION

FOR

APPROVAL

)

(
(

Preliminary Specification

●
)

Final Specification

Title 42.0” WUXGA TFT LCD

BUYER SKYWORTH

MODEL

APPROVED BY

/

/

/

SIGNATURE

DATE

SUPPLIER LG.Display Co., Ltd.

*MODEL LC420DUJ

SUFFIX SFE2 (RoHS Verified)

*When you obtain standard approval,
please use the above model name without suffix

APPROVED BY

J.T. Kim / Team Leader

REVIEWED BY

J.K. Park / Project Leader

PREPARED BY

J.K. Kim / Engineer

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 0.2

TV Products Development Dept.

LG. Display LCD Co., Ltd

Product Specification

CONTENTS

LC420DUJ

Number ITEM

COVER
CONTENTS
RECORD OF REVISIONS

1
2
3

3-1

3-2

3-3
3-4
3-5

4
5
6

GENERAL DESCRIPTION

ABSOLUTE MAXIMUM RATINGS
ELECTRICAL SPECIFICATIONS

ELECTRICAL CHARACTERISTICS

INTERFACE CONNECTIONS
SIGNAL TIMING SPECIFICATIONS

PANEL PIXEL STRUCTURE

POWER SEQUENCE
OPTICAL SPECIFICATIONS
MECHANICAL CHARACTERISTICS
RELIABILITY

Page

1

2
3
4
5
6

6

8
10
11
12
13
20
22

7

7-1

8

8-1
9
9-1
9-2
9-3
9-4
9-5

Ver. 0.2

INTERNATIONAL STANDARDS
ENVIRONMENT
PACKING

PACKING FORM

PRECAUTIONS
ASSEMBLY PRECAUTIONS
OPERATING PRECAUTIONS
ELECTROSTATIC DISCHARGE CONTROL
PRECAUTIONS FOR STRONG LIGHT EXPOSURE

STORAGE

23

23
24
24
25
25
25
26
26
26

1 / 36

Product Specification

RECORD OF REVISIONS

Revision No. Revision Date Page Description

0.1 Nov, 13, 2012 - Preliminary Specification (First Draft)

0.2 Nov, 21, 2012 General Description

LC420DUJ

Ver. 0.2

2 / 36

LC420DUJ

Product Specification

1. General Description

The LC420DUJ is a Color Active Matrix Liquid Crystal Display with an integral the Source PCB and Gate
implanted on Panel (GIP). The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 42.02 inch diagonally measured
active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot.
Therefore, it can present a palette of more than 16.7M(true) colors.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

EPI(RGB)

Control
Signals

Power Signals

Source Driver Circuit

S1 S1920

G1

TFT - LCD Panel

(1920 × RGB × 1080 pixels)

[Gate In Panel]

G1080

Back light Assembly

LVDS

2Port

LVDS
Select

+12.0V

LED Anode
LED Cathode

LED Anode
LED Cathode

CN1

(51pin)

LVDS 1,2

Option
signal

I2C

EEPROM

SCL

Timing Controller

LVDS Rx + DGA

Power Circuit

SDA

Integrated

Block

CN201 (7pin)

General Features

Active Screen Size 41.92 inches(1064.77mm) diagonal
Outline Dimension

Pixel Pitch 0.4833 mm x 0.4833 mm
Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
Color Depth 8bit, 16.7Million colors

Drive IC Data Interface
Transmittance (With POL) 5.54%(Typ.) (TBD)

Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
Weight 1.5 Kg (Typ.) (TBD)
Display Mode Transmissive mode, Normally black
Surface Treatment (Top) Hard coating(3H), Anti-glare treatment of the front polarizer (Haze < 1%),

946.9(H) X 542.1(V) X 1.3(D)) mm (Typ.)

Source D-IC : 8-bit EPI, gamma reference voltage, and control signals
Gate D-IC : Gate In Panel

Ver. 0.2

3 / 36

LC420DUJ

Product Specification

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or permanent damage
to the LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter Symbol

Unit Note

Min Max

Power Input Voltage LCD Circuit VLCD -0.3 +14.0 VDC

Value

T-Con Option Selection Voltage VLOGIC
Operating Temperature TOP 0 +50
Storage Temperature TST -20 +60

Panel Front Temperature TSUR

-0.3 +4.0 VDC

°C
°C

- +68

°C

Operating Ambient Humidity HOP 10 90 %RH
Storage Humidity HST 10 90 %RH

notes:

1. Ambient temperature condition (Ta = 25  2 °C )

2. Temperature and relative humidity range are shown in the figure below. Wet bulb temperature
should be Max 39 °C and no condensation of water.

3. Gravity mura can be guaranteed below 40℃ condition.

4. The maximum operating temperature is based on the test condition that the surface temperature
of display area is less than or equal to 68 ℃ with LCD module alone in a temperature controlled
chamber. Thermal management should be considered in final product design to prevent the surface
temperature of display area from being over 68 ℃. The range of operating temperature may
degrade in case of improper thermal management in final product design.

90%

60

60%

1

2,3

4

2,3

Ver. 0.2

Wet Bulb
Temperature [°C]

20

10

0

10 20 30 40 50 60 70 80 0 -20
Dry Bulb Temperature [°C]

30

40

50

40%

10%

Storage

Operation

Humidity

[(%)RH]

4 / 36

LC420DUJ

Product Specification

3. Electrical Specifications
3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other Is used for the LED
backlight .

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

Min Typ Max

Value

Unit Note

Circuit :

Power Input Voltage VLCD 10.8 12.0 13.2 VDC

Power Input Current ILCD

Power Consumption PLCD 6.4 8.3 Watt 1
Rush current IRUSH - - 3.0 A 3

Note

1. The specified current and power consumption are under the V
condition, and mosaic pattern(8 x 6) is displayed and fV is the frame frequency.

2. The current is specified at the maximum current pattern.

- 530 690 mA 1

- 770 1000 mA 2

=12.0V, Ta=25  2°C, fV=60Hz

LCD

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

4. Ripple voltage level is recommended under ± 5% of typical voltage

Ver. 0.2

White : 255 Gray
Black : 0 Gray

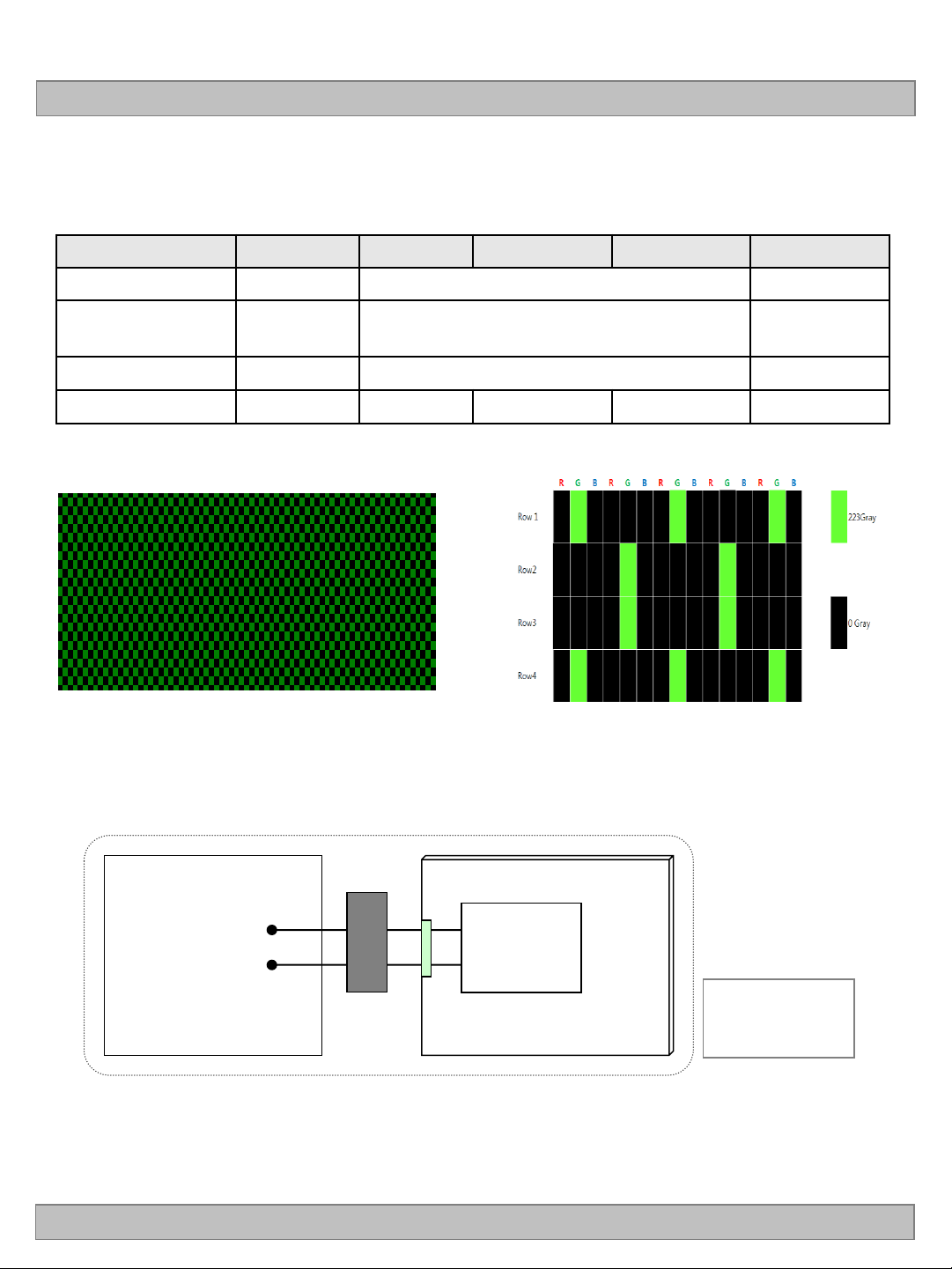

Mosaic Pattern(8 x 6)

5 / 36

LC420DUJ

Product Specification

3-2. Interface Connections

This LCD module employs two kinds of interface connection, a 51-pin connector is used for the module
electronics and 2pin,2pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN1): FI-RE51S-HF(manufactured by JAE) or GT05P-51S-H38(manufactured by LSM)
or IS050-C51B-C39(manufactured by UJU)

- Mating Connector : FI-R51HL(JAE) or compatible

Table 4. MODULE CONNECTOR(CN1) PIN CONFIGURATION

No Symbol Description No Symbol Description

1
2
3
4
5
6
7
8
9

10
11 GND

12 R1AN
13 R1AP
14 R1BN
15
16 R1CN
17 R1CP
18 GND
19 R1CLKN
20
21 GND
22 R1DN
23 R1DP
24

25
26

NC
NC
NC
NC
NC
NC

LVDS Select

NC
NC
NC

R1BP

R1CLKP

NC
NC

NC or GND

No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)
No Connection (Note 4)

‘H’ =JEIDA , ‘L’ or NC = VESA
No Connection (Note 4)

No Connection (Note 4)
No Connection (Note 4)

Ground
FIRST LVDS Receiver Signal (A-)

FIRST LVDS Receiver Signal (A+)
FIRST LVDS Receiver Signal (B-)
FIRST LVDS Receiver Signal (B+)
FIRST LVDS Receiver Signal (C-)
FIRST LVDS Receiver Signal (C+)

Ground
FIRST LVDS Receiver Clock Signal(-)

FIRST LVDS Receiver Clock Signal(+)
Ground

FIRST LVDS Receiver Signal (D-)
FIRST LVDS Receiver Signal (D+)

No Connection
No Connection
No Connection or Ground

27
28

29
30

31
32

33
34
35
36
37
38
39

40
41
42
43
44
45
46

47
48
49
50
51

- - -

NC
R2AN
R2AP
R2BN

R2BP

R2CN
R2CP

GND
R2CLKN
R2CLKP

GND

R2DN
R2DP

NC

NC
NC or GND
NC or GND

GND Ground
GND Ground
GND Ground

NC No connection

VLCD Power Supply +12.0V
VLCD Power Supply +12.0V
VLCD Power Supply +12.0V

VLCD Power Supply +12.0V

No Connection
SECOND LVDS Receiver Signal (A-)

SECOND LVDS Receiver Signal (A+)
SECOND LVDS Receiver Signal (B-)

SECOND LVDS Receiver Signal (B+)
SECOND LVDS Receiver Signal (C-)

SECOND LVDS Receiver Signal (C+)
Ground

SECOND LVDS Receiver Clock Signal(-)
SECOND LVDS Receiver Clock Signal(+)

Ground
SECOND LVDS Receiver Signal (D-)

SECOND LVDS Receiver Signal (D+)
No Connection

No Connection
No Connection or Ground
No Connection or Ground

Note

1. All GND(ground) pins should be connected together to the LCD module‟s metal frame.

2. All VLCD (power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

4. #1~#6 & #8~#10 NC (No Connection): These pins are used only for LGD (Do not connect)

5. Specific pin No. #44 is used for “No signal detection” of system signal interface.
It should be GND for NSB(No Signal Black) during the system interface signal is not.

If this pin is “H”, LCD Module displays AGP(Auto Generation Pattern).

Ver. 0.2

6 / 36

LC420DUJ

Product Specification

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

ITEM Symbol Min Typ Max Unit Note

Horizontal

Vertical

Frequency

Display

Period

Blank tHB 100 140 240 tCLK 1

Total tHP 1060 1100 1200 tCLK

Display

Period

Blank tVB

Total tVP

ITEM Symbol Min Typ Max Unit Note

DCLK fCLK 63.00 74.25 78.00 MHz

Horizontal fH 57.3 67.5 70 KHz 2

Vertical fV

tHV 960 960 960 tCLK 1920 / 2

tVV 1080 1080 1080 Lines

20

(228)

1100

(1308)

57

(47)

45

(270)

1125

(1350)

60

(50)

69

(300)

1149

(1380)

63

(53)

Lines 1

Lines

Hz

NTSC : 57~63Hz
(PAL : 47~53Hz)

2

Note: 1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical

refresh rate and the horizontal frequency

3. Spread Spectrum Rate (SSR) for 50KHz ~ 100kHz Modulation Frequency(FMOD) is calculated by
(7 – 0.06*Fmod), where Modulation Frequency (FMOD) unit is KHz.
LVDS Receiver Spread spectrum Clock is defined as below figure

※ Timing should be set based on clock frequency.

Ver. 0.2

7 / 36

LC420DUJ

Product Specification

※ Please pay attention to the followings when you set Spread Spectrum Rate(SSR) and Modulation Frequency(FMOD)

1. Please set proper Spread Spectrum Rate(SSR) and Modulation Frequency (FMOD) of TV system LVDS output.

2. Please check FOS after you set Spread Spectrum Rate(SSR) and Modulation Frequency(FMOD) to avoid
abnormal display. Especially, harmonic noise can appear when you use Spread Spectrum under FMOD 30 KHz.

Ver. 0.2

8 / 36

3-4. LVDS Signal Specification

3-4-1. LVDS Input Signal Timing Diagram

LC420DUJ

Product Specification

DE, Data

DCLK

First data

Second data

0.7VDD

0.3VDD

tCLK

DE(Data Enable)

0.5 VDD

Invalid data

Invalid data

Valid data

Pixel 0,0 Pixel 2,0

Valid data

Pixel 1,0 Pixel 3,0

tHP

Invalid data

Invalid data

tHV

DE(Data Enable)

Ver. 0.2

1 1080

tVV

tVP

9 / 36

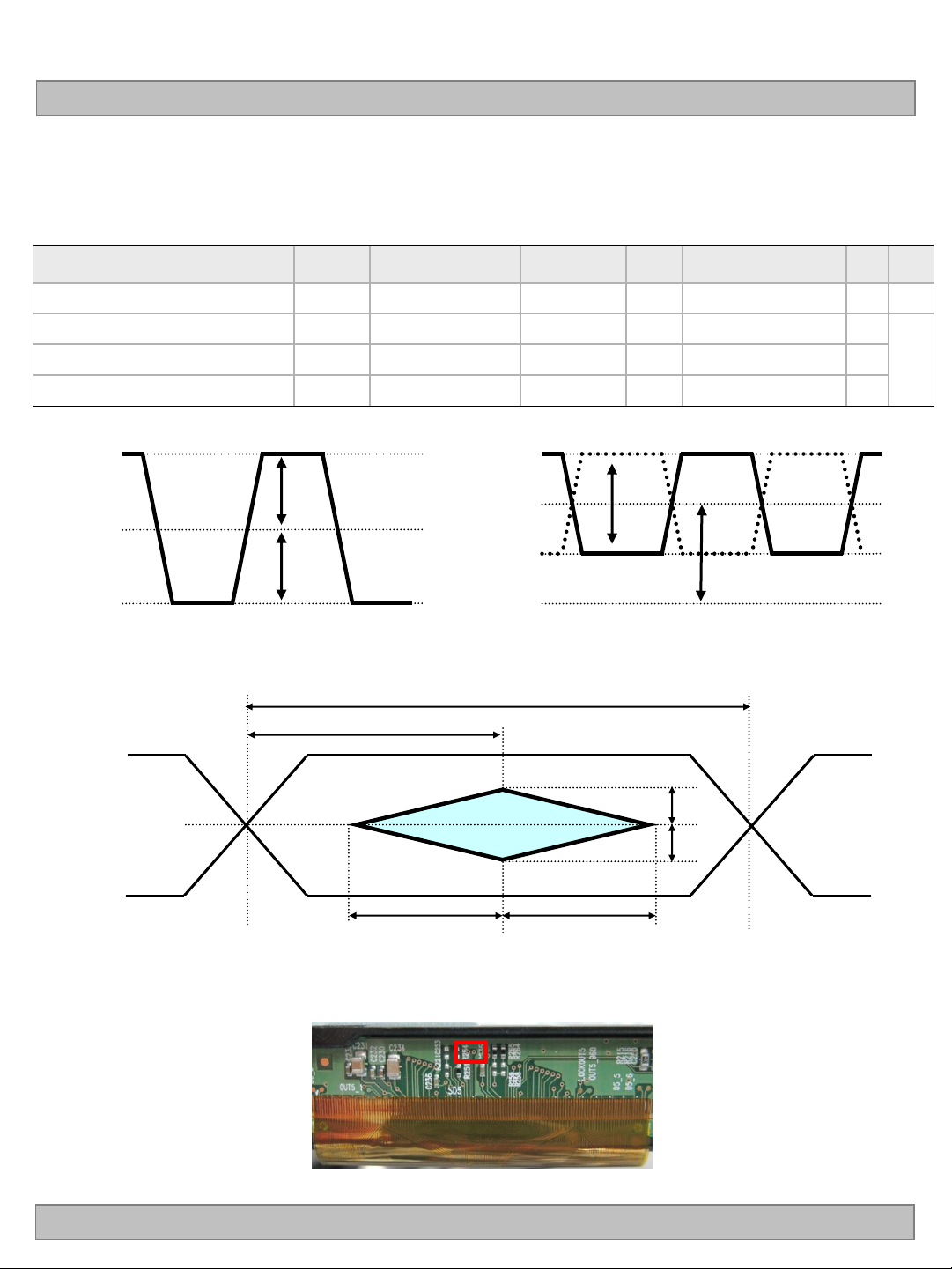

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

LC420DUJ

Product Specification

0 V

# V

= { ( LVDS +) + ( LVDS - ) } / 2

CM

V

CM

V

IN _ MAX V IN _ MIN

Description Symbol Min Max Unit Note

LVDS Common mode Voltage V

LVDS Input Voltage Range V

CM

IN

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ΔVCM - 250 mV -

2) AC Specification

2) AC Specification

T

clk

LVDS Clock

A

LVDS Data

( F

= 1 / T

)

clk

A

LVDS 1‟st Clock

LVDS 2nd Clock

tSKEW

tSKEW

t

SKEW_min tSKEW_max

clk

T

clk

80%

20%

t

RF

Description Symbol Min Max Unit Note

VTH 100 600 mV

LVDS Differential Voltage

VTL -600 -100 mV

LVDS Clock to Data Skew t

LVDS Clock/DATA Rising/Falling time t

Effective time of LVDS t

LVDS Clock to Clock Skew (Even to Odd) t

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

Note

2. If tRF isn‟t enough, t

should be meet the range.

eff

SKEW

RF

eff

SKEW_EO

3. LVDS Differential Voltage is defined within t

Ver. 0.2

- |(0.25*T

260 |(0.3*T

|± 360|

- |1/7* T

eff

)/7| ps

clk

)/7| ps 2

clk

- ps

| ps -

clk

Tested with Differential Probe

3

-

-

10 / 36

Product Specification

LC420DUJ

LVDS Data

0V

(Differential)

LVDS CLK

0.5tui

360ps

tui

VTH

VTL

360ps

teff

tui : Unit Interval

0V

(Differential)

* This accumulated waveform is tested with differential probe

Ver. 0.2

11 / 36

Product Specification

3-5. Intra interface Signal Specification

3-5-1. EPI Signal Specification

Table 2. ELECTRICAL CHARACTERISTICS

LC420DUJ

Parameter Symbol Condition MIN TYP MAX Unit

Logic & EPI Power Voltage VCC - 1.62 1.8 1.98 VDC
EPI input common voltage VCM LVDS Type 0.8 VCC/2 1.3 V
EPI input differential voltage Vdiff - 150 - 500 mV

EPI Input eye diagram Veye - 90 - - mV

EPI +

0 V

Vdiff

Vdiff

(Differential Probe)

EPI -

0 V

Vdiff

Vcm

(Active Probe)

FIG. 2-1 EPI Differential signal characteristics

1 UI

0.5 UI

note

s

0 V

(Differential Probe)

Ver. 0.2

Veye

Veye

B1 B2

FIG. 2-2 Eye Pattern of EPI Input

*Source PCB

FIG. 3 Measure point

12 / 36

LC420DUJ

Product Specification

3-6. Color Data Reference

The brightness of each primary color(red,green,blue) is based on the 8bit gray scale data input for the color.

The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

Input Color Data

Basic

Color

RED

Color

RED

MSB LSB

MSB LSB

GREEN

BLUE

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Red (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Green (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Blue (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
RED (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ... ...

RED (254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RED (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN

BLUE

Ver. 0.2

GREEN (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

... ... ... ...

GREEN (254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0
GREEN (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
BLUE (000) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

... ... ... ...

BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0
BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

13 / 36

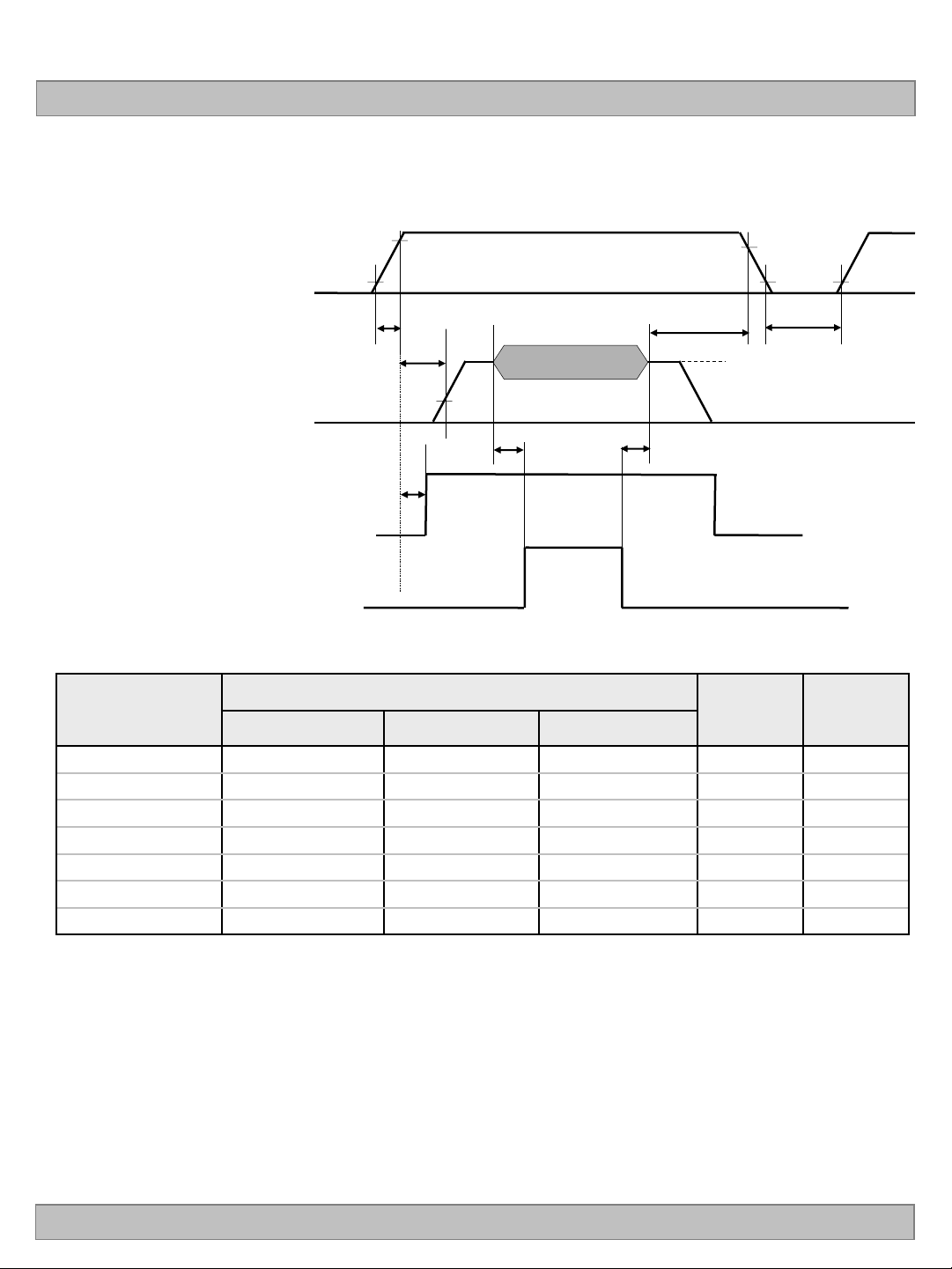

3-6. Power Sequence

3-6-1. LCD Driving circuit

LC420DUJ

Product Specification

Power Supply For LCD
V

LCD

Interface Signal (Tx_clock)

User Control Signal
(LVDS_select)

Power for LED

Table 8. POWER SEQUENCE

Parameter

90%

10%

0V

T1

T2

30%

0V

100%

T6

Valid Data

T3 T4

LED ON

Value

Min Typ Max

90%

10%

T7

T5

Vcm : LVDS Common mode Voltage

Unit Notes

10%

Note :

Ver. 0.2

T1 0.5 - 20 ms 1
T2 0 - - ms 2

T3 400 - - ms 3

T4 200 - - ms 3
T5 1.0 - - s 4
T6 0 - T2 ms 5
T7 0 - - ms 6

1. Even though T1 is over the specified value, there is no problem if I2T spec of fuse is satisfied.

2. If T2 is satisfied with specification after removing LVDS Cable, there is no problem.

3. The T3 / T4 is recommended value, the case when failed to meet a minimum specification,
abnormal display would be shown. There is no reliability problem.

4. T5 should be measured after the Module has been fully discharged between power off and on period.

5. If the on time of signals (Interface signal and user control signals) precedes the on time of Power (V

it will be happened abnormal display. When T6 is NC status, T6 doesn‟t need to be measured.

6. It is recommendation specification that T7 has to be 0ms as a minimum value.

※ Please avoid floating state of interface signal at invalid period.
※ When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

LCD

),

14 / 36

LC420DUJ

Product Specification

4. Optical Specification

Optical characteristics are determined after the unit has been „ON‟ and stable in a dark environment at 25± 2°C.
The values are specified at distance 50cm from the LCD surface at a viewing angle of  and  equal to 0 °.

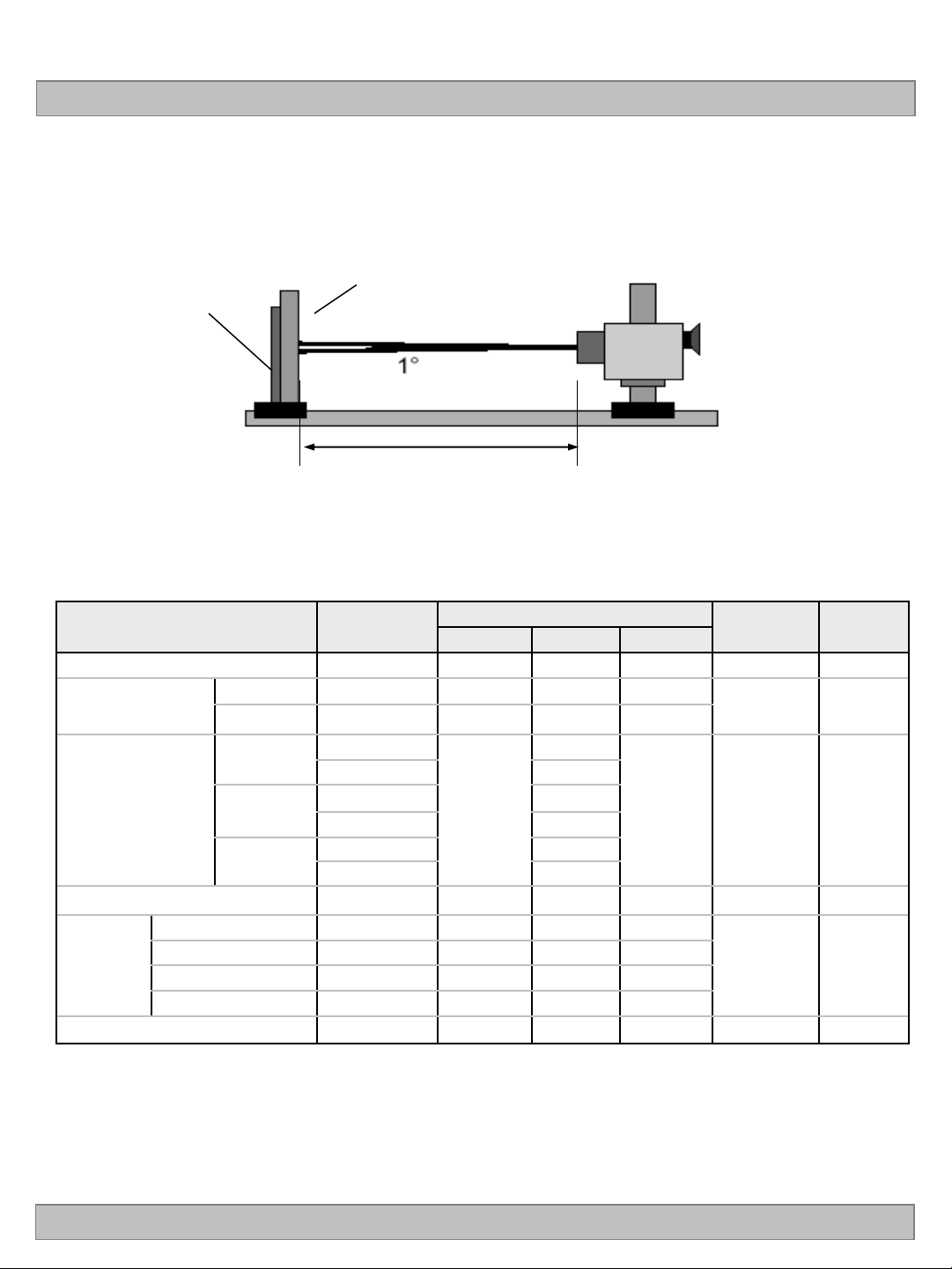

FIG. 6 shows additional information concerning the measurement equipment and method.

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 6 Optical Characteristic Measurement Equipment and Method

Ta= 25± 2°C, VDD,H_VDD,VGH,VGL=typ, fV=60Hz,

Table 6. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 850 1200 - 1

Response Time

Color Coordinates
[CIE1931]

Viewing Angle (CR>10)

x axis, right(=0°)

Gray Scale - - - 4

x axis, left (=180°)
y axis, up (=90°)
y axis, down (=270°)

Rising Tr ­ Falling Tf -

RED

GREEN

BLUE

Rx
Ry 0.333(TBD)
Gx 0.301(TBD)
Gy 0.595(TBD)
Bx 0.149(TBD)

By 0.061(TBD)

r 89 - -

l 89 - -
u 89 - -
d 89 - -

BW=0.693GBPS , EXTVBR-B =100% Back Light : LGD B/L

Value

Min Typ Max

6 9

Unit notes

ms 2

9 13

0.649(TBD)

Typ

-0.03

Typ

+0.03

degree 3

Ver. 0.2

15 / 36

LC420DUJ

Product Specification

Note : 1. Contrast Ratio(CR) is defined mathematically as :
Surface Luminance with all white pixels

Contrast Ratio =
Surface Luminance with all black pixels

It is measured at center 1-point.

2. Surface luminance are determined after the unit has been „ON‟ and 1 Hour after lighting the
backlight in a dark environment at 25± 2°C. Surface luminance is the luminance value at center

1-point across the LCD surface 50cm from the surface with all pixels displaying white.

For more information see the FIG. 2.

3. The variation in surface luminance ,  WHITE is defined as :
 WHITE(5P) = Maximum(L
Where L

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

on1,Lon2

For more information, see the FIG. 2.

4. Response time is the time required for the display to transit from any gray to white (Rise Time, TrR)
and from any gray to black (Decay time, TrD). For additional information see the FIG. 3.
※ G to GBW Spec stands for average value of all measured points.
Photo Detector : RD-80S / Field : 2 °

5. G to G σ is Variation of Gray to Gray response time composing a picture
G to G (σ) =

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

√

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which
is normal to the LCD module surface. For more information, see the FIG. 4.

7. Gray scale specification
Gamma Value is approximately 2.2. For more information, see the Table 11.

, L

Σ(Xi- u)2

N

, L

, L

on3

on4

) / Minimum(L

on5

Xi = Individual Data
u = Data average
N : The number of Data

on1,Lon2

, L

on3

, L

on4

, L

on5

)

Table 11. GRAY SCALE SPECIFICATION

Gray Level Luminance [%] (Typ)

L0 0.08
L15 0.27
L31 1.04
L47 2.49
L63 4.68
L79 7.66
L95 11.5

L111 16.1
L127 21.6
L143 28.1
L159 35.4
L175 43.7
L191 53.0
L207 63.2
L223 74.5
L239 86.7
L255 100

Ver. 0.2

16 / 36

Product Specification

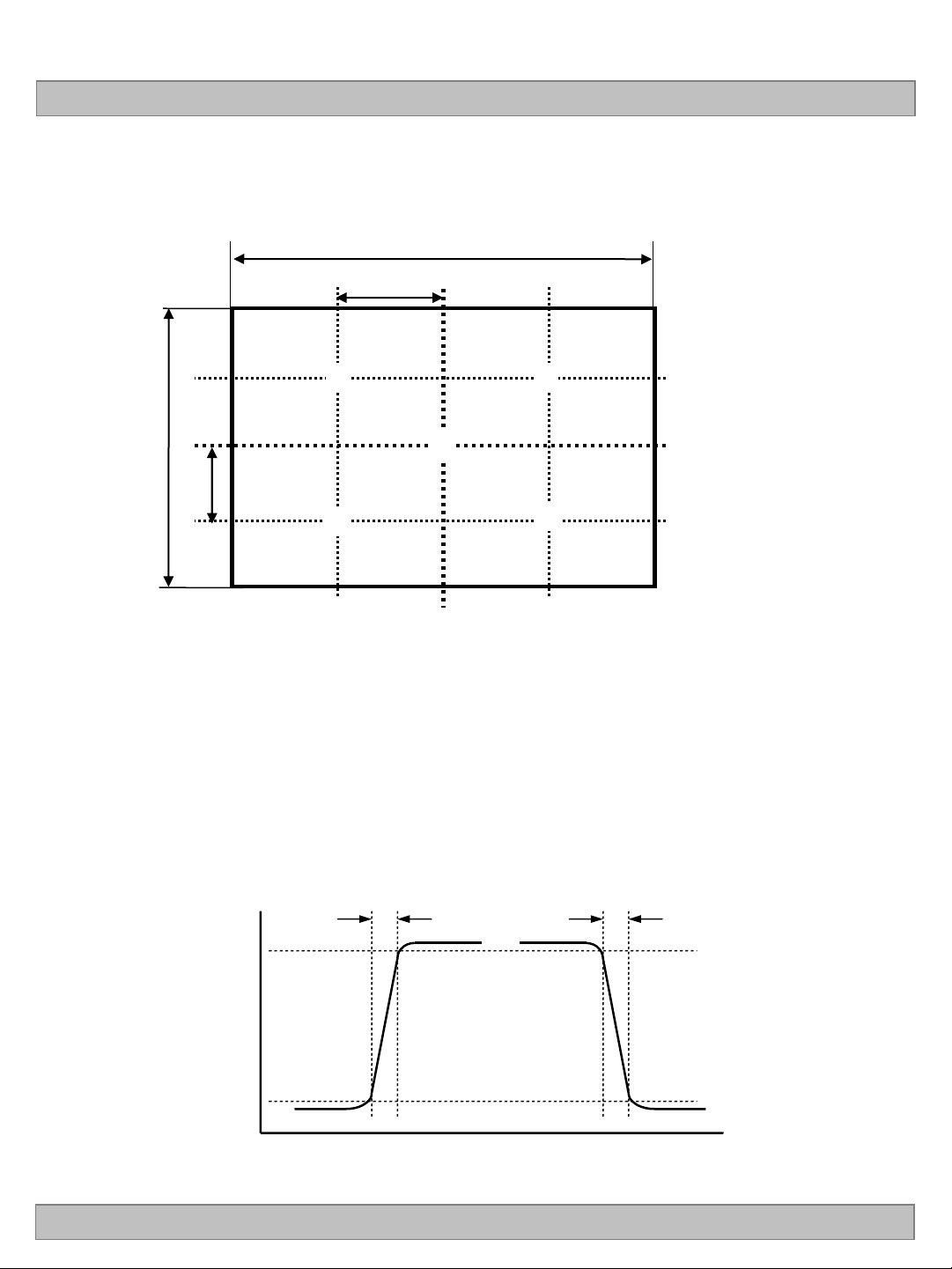

Measuring point for surface luminance & luminance variation

H

A

LC420DUJ

③ ②

V

①

B

A : H / 4 mm

④

FIG. 7 5 Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for

“Black” ~ “White” and “White” ~ “Black”.

Tr

100

90

⑤

Tf

B : V / 4 mm
@ H,V : Active Area

Ver. 0.2

Optical
Response

10

0

Black

White

FIG. 8 Response Time

White

Black

17 / 36

Dimension of viewing angle range

Normal

Y

E







= 0, Right



= 180, Left



= 270, Down



= 90, Up

LC420DUJ

Product Specification

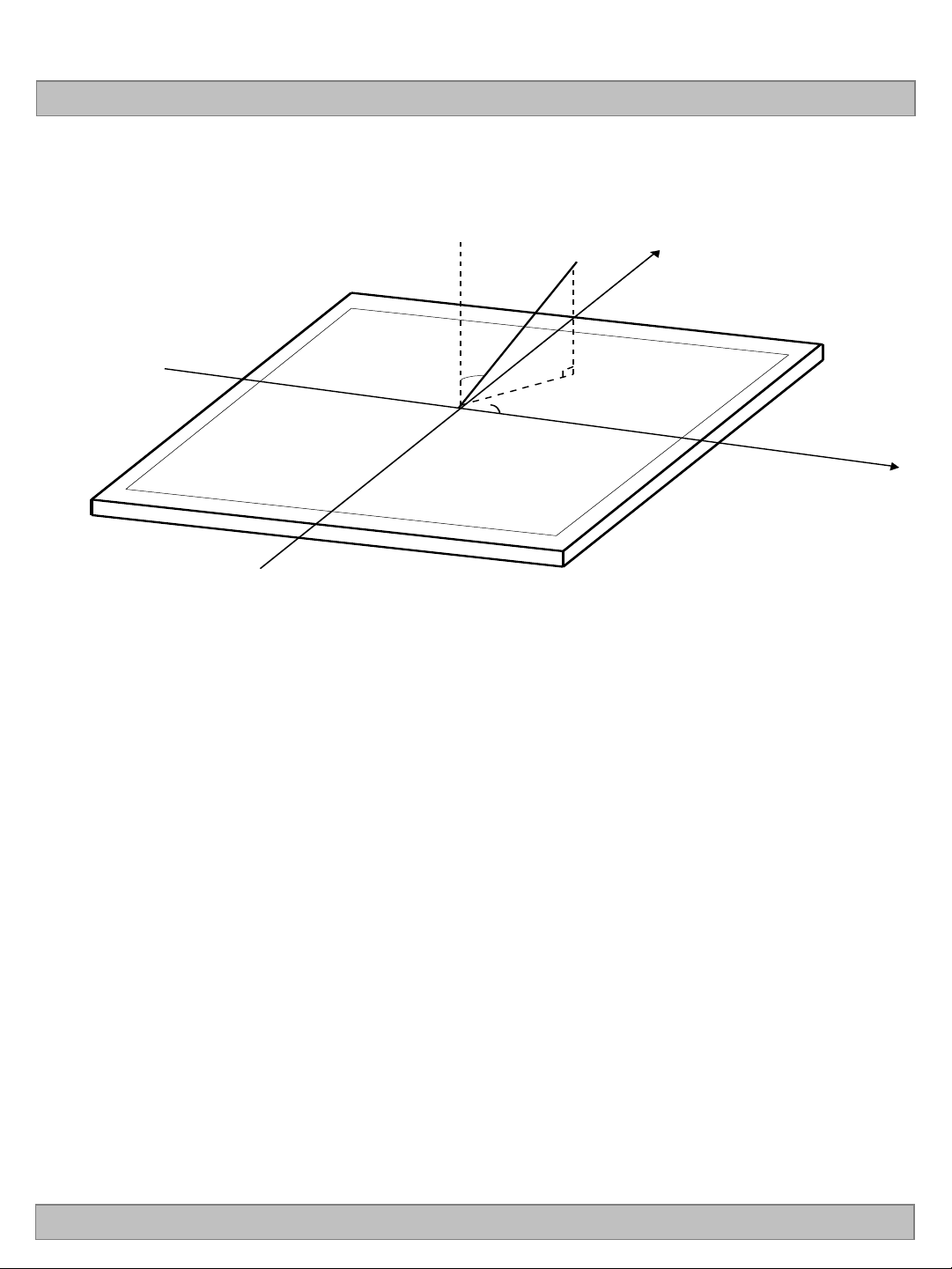

FIG.9 Viewing Angle

Ver. 0.2

18 / 36

Product Specification

5. Mechanical Characteristics

Table 8 provides general mechanical characteristics.

Table 8. MECHANICAL CHARACTERISTICS

Item Value

Horizontal 946.9mm

Outline Dimension

(Only Glass)

Active Display Area

Weight 1.5kg(typ) (TBD)

Vertical 542.1mm
Thickness 1.3 mm
Horizontal 927.94mm
Vertical 521.96mm

LC420DUJ

Surface Treatment

Hard coating(3H)
Anti-glare treatment of the front polarizer(<1%)

notes : Please refer to a mechanic drawing in terms of tolerance at the next page.

Ver. 0.2

19 / 36

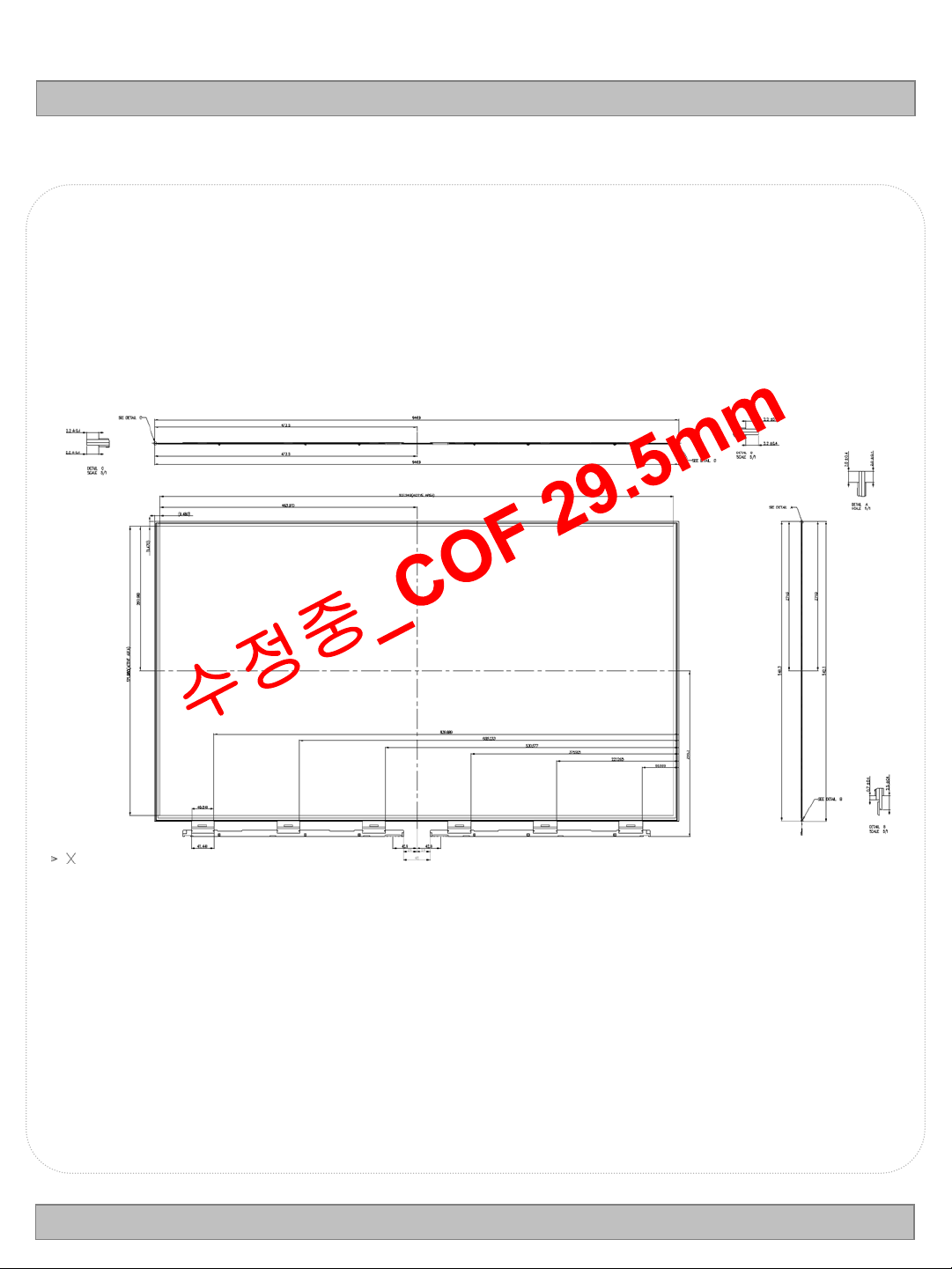

6-1. Board Assembly Dimension

LC420DUJ

Product Specification

Ver. 0.2

20 / 36

Product Specification

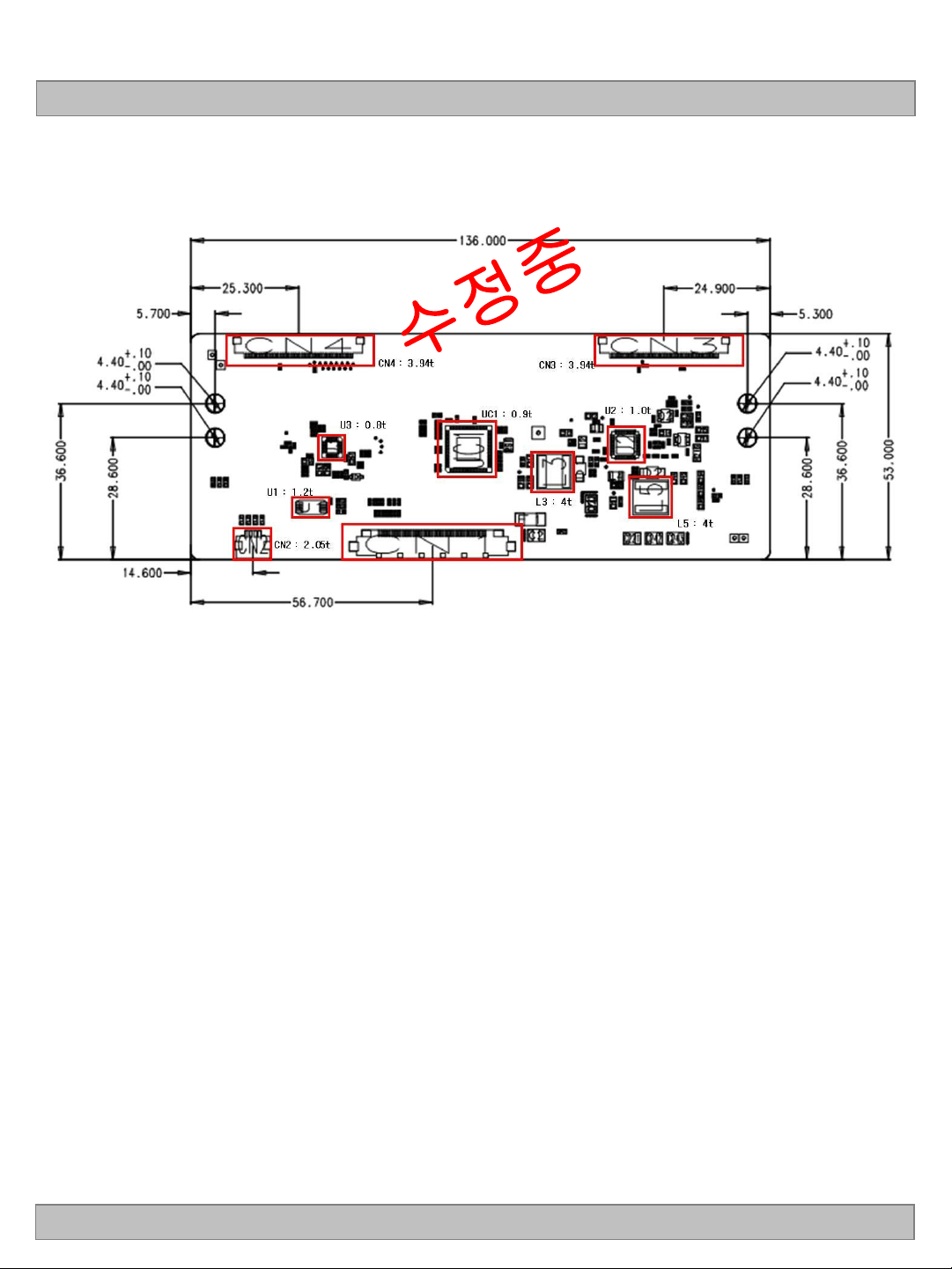

6-2. Control Board Assembly Dimension

LC420DUJ

Ver. 0.2

21 / 36

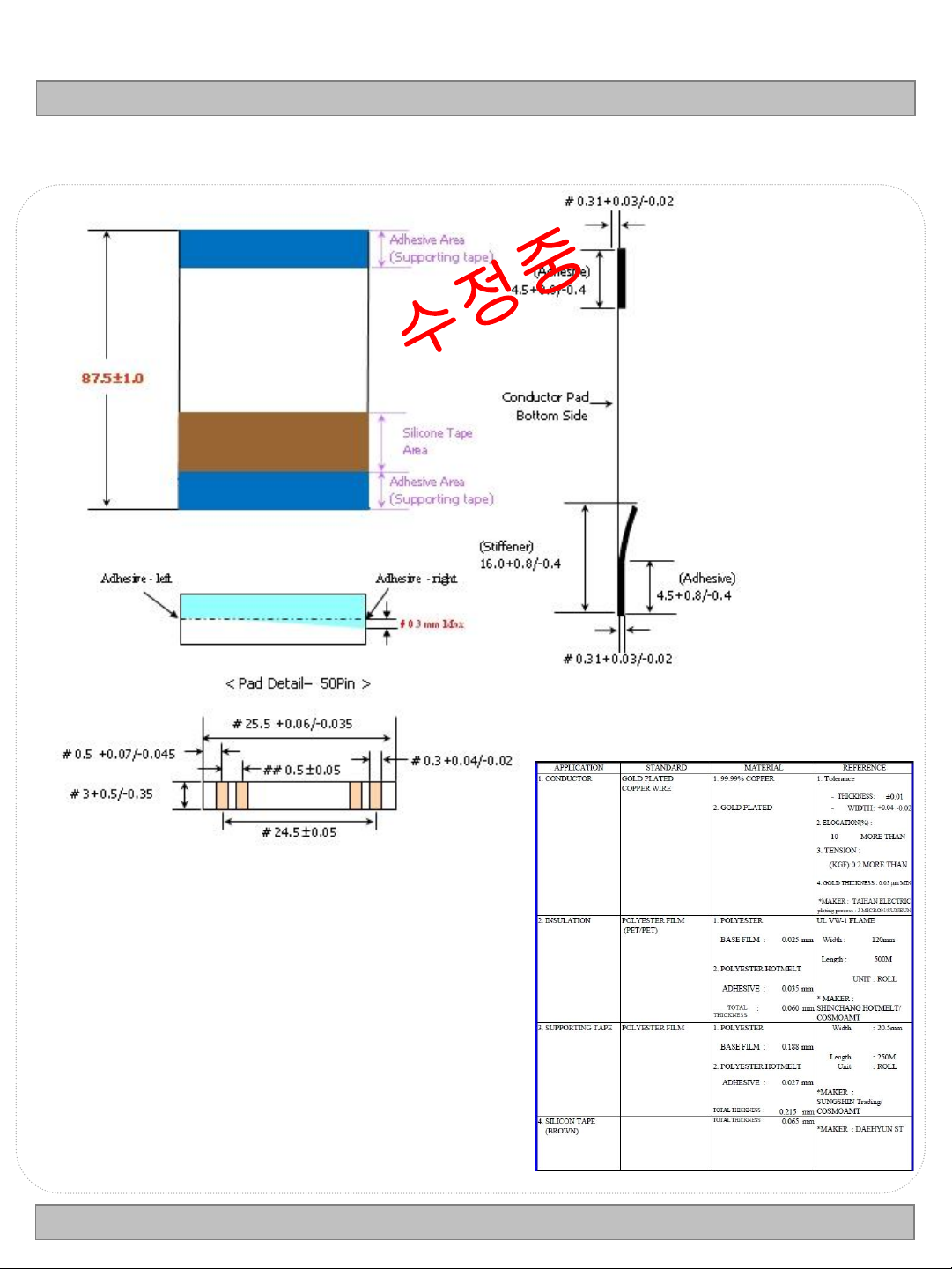

6-3. FFC Dimension

LC420DUJ

Product Specification

Ver. 0.2

- Material List

◈ Note

- Pad : GOLD Plating

- ＃치수 : Cpk 1.0 이상

- ##치수 : Cpk 1.33 이상

- Stiffener 색상 : Sky Blue

- H-F

- 치수 단위 : mm

22 / 36

Product Specification

7. Reliability

Table 9. ENVIRONMENT TEST CONDITION

No. Test Item Condition

LC420DUJ

1 High temperature storage test

2 Low temperature storage test

3 High temperature operation test

4 Low temperature operation test

5 Humidity condition Operation

6

Altitude operating

storage / shipment

Ta= 60°C 240h

Ta= -20°C 240h

Ta= 50°C 50%RH 240h

Ta= 0°C 240h

Ta= 40 °C ,90%RH

0 – 16,400 ft

0 - 40,000 ft

notes : Before and after Reliability test, Board ass‟y should be operated with normal function.

Ver. 0.2

23 / 36

Product Specification

8. International Standards
8-1. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

LC420DUJ

Ver. 0.2

24 / 36

Product Specification

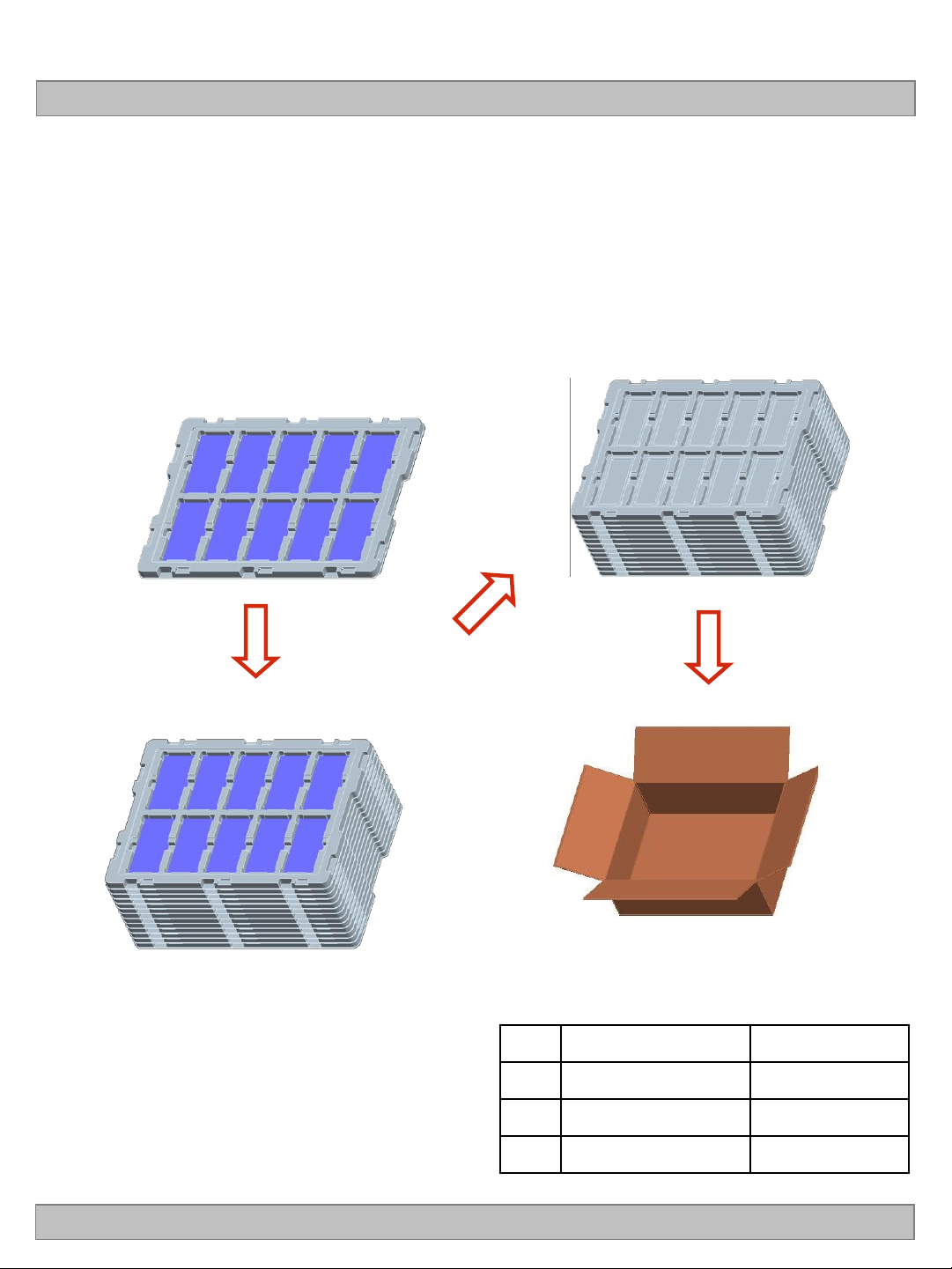

9. Packing

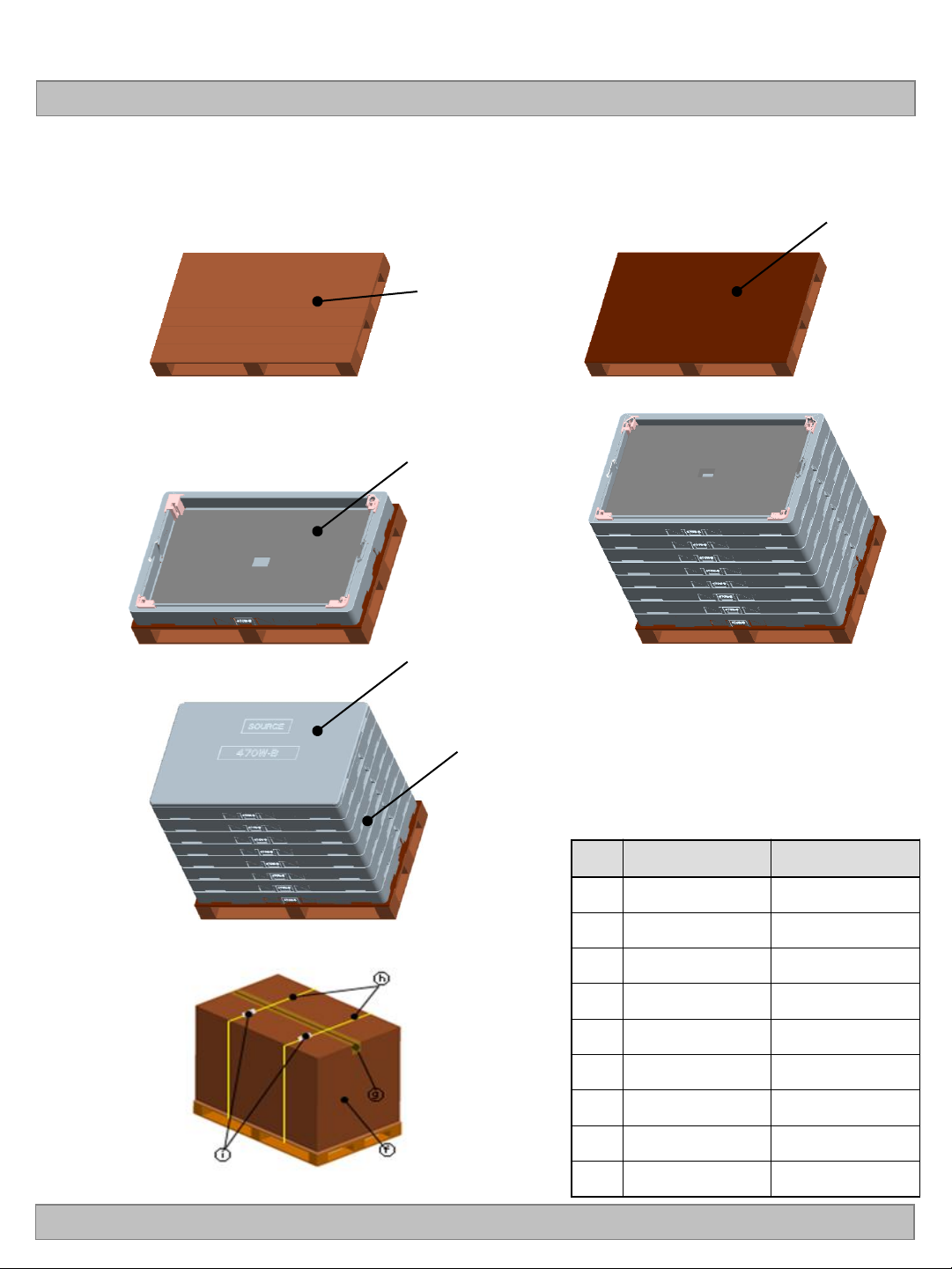

9-1. Packing Form

a) Package quantity in one Pallet : 80 pcs

b) Pallet Size : 1140 mm X 740 mm X 1090 mm.

LC420DUJ

Ver. 0.2

25 / 36

LC420DUJ

Product Specification

10. Precautions

Please pay attention to the followings when you use this TFT LCD panel.

10-1. Assembly Precautions

(1) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.
Transparent protective plate should have sufficient strength in order to the resist external force.
(2) You should adopt radiation structure to satisfy the temperature specification.
(3) Acetic acid type and chlorine type materials for the cover case are not desirable because the former
generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.
(4) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB
pencil lead. And please do not rub with dust clothes with chemical treatment.
Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental
to the polarizer.)
(5) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like
chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer

(6) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.
(7) Board ass‟y should be put on the mold frame properly.
(8) FFC Cable should be connected between System board and Source PCB correctly.
(9) Mechanical structure for backlight system should be designed for sustaining board ass‟y safely.

10-2. Operating Precautions

(1) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(2) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time(required time that brightness is stable after turned on)

becomes longer
(3) Be careful for condensation at sudden temperature change.Condensation makes damage to polarizer or
electrical contacted parts. And after fading condensation, smear or spot will occur.
(4) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(5) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be
done by system manufacturers. Grounding and shielding methods may be important to minimized the
interference.
(6) Please do not give any mechanical and/or electrical impact to board assy. Otherwise, it can‟t be operated
its full characteristics perfectly.

Ver. 0.2

26 / 36

LC420DUJ

Product Specification

10-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don‟t touch interface pin directly.

Panel ground path should be connected to metal ground.

10-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

10-5. Storage

When storing the board ass‟y as spares for a long time, the following precautions are necessary.
(1) Store them in a dark place. Do not expose the board ass‟y to sunlight or fluorescent light. Keep the

temperature between 5°C and 35°C at normal humidity.
(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.

Ver. 0.2

27 / 36

# APPENDIX-I

■ Pallet Ass‟y

LC420DUJ

Product Specification

ⓑ

①

③

⑤

②

ⓐ

④

ⓒ

ⓓ

ⓔ

Ver. 0.2

⑥

No. Description Material

ⓐ

ⓑ

ⓒ

ⓓ
ⓔ
ⓕ
ⓖ
ⓗ
ⓘ

Pallet Plywood

Carton Plate Single Wall

PE Sheet Carbon

Top Packing EPS

Bottom Packing EPS

Angle Packing Single Wall

Tape OPP
Band PP

Clip Steel

28 / 36

Product Specification

# APPENDIX-Ⅰ-2

■ LC420DUJ-FFE1 Control PCB Packing Ass’y

a) Control PCB Qty / Box : 80 pcs
b) Tray Qty / Box : 13Tray(Upper Tray Is empty)
c) Tray Size : 466 X 353 X 16
d) Box size : 468 X 355 X 119

[6pcs/Tray]

LC420DUJ

[12Tray+Empty Tray]

[12Tray]

※ FFC는 상부Tray에 삽입

[Inserting into Box

NO. DESCRIPTION MATERIAL

1 PCB Packing A,ssy -

Ver. 0.2

2 Tray PET
3 Box SWR4

29 / 36

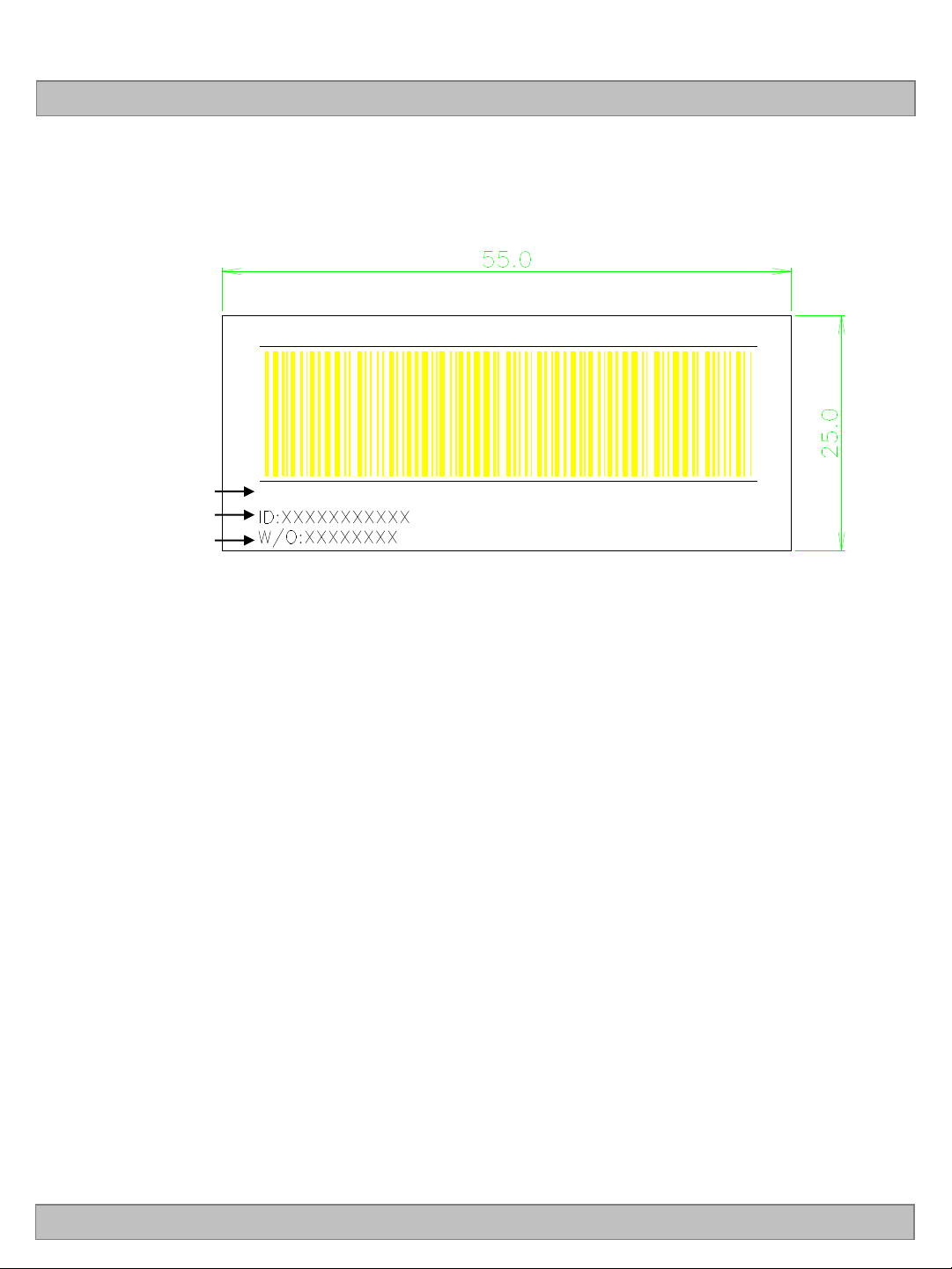

# APPENDIX- II-1

■ Board Ass’y ID Label

LC420DUJ

Product Specification

Model

Serial No.

Work Order

6060L-XXXX LC420DUJ-SFE2

XXXX

Ver. 0.2

30 / 36

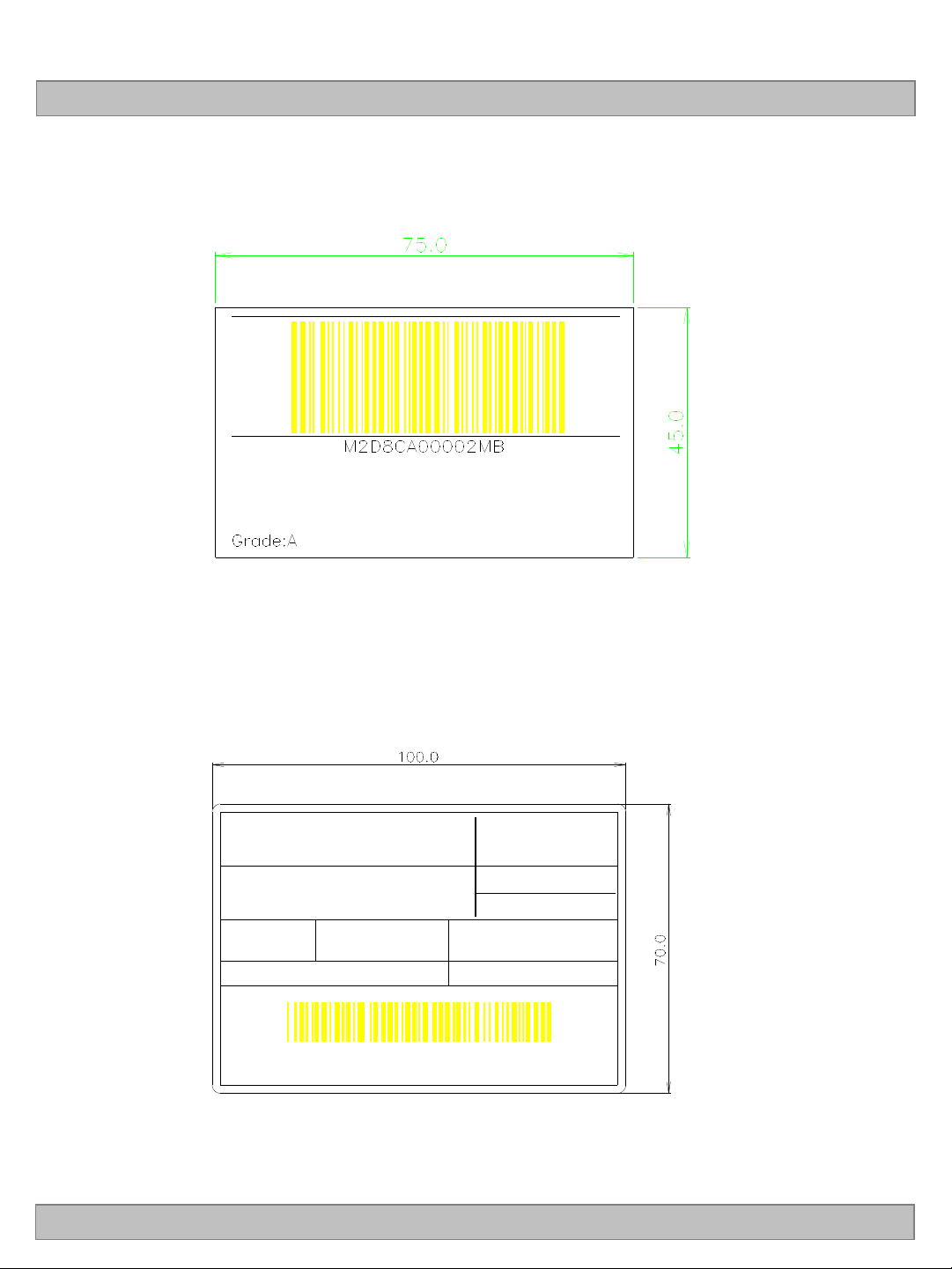

# APPENDIX- II-2

■ BOX Label

LC420DUJ

Product Specification

6060L-0000 LC420DUJ-SFE2
QTY : 10(PAJU)(P8)(01/01)

Type : BA Buyer : XXXX

Category : PROD

■ Pallet Label

LC420DUJ

6060L-XXXX

80 PCS

PAJU KOREA

001/01-01

XXXXXXXXXXXXX XXX

SFE2

BA

XXXXX

Ver. 0.2

31 / 36

Product Specification

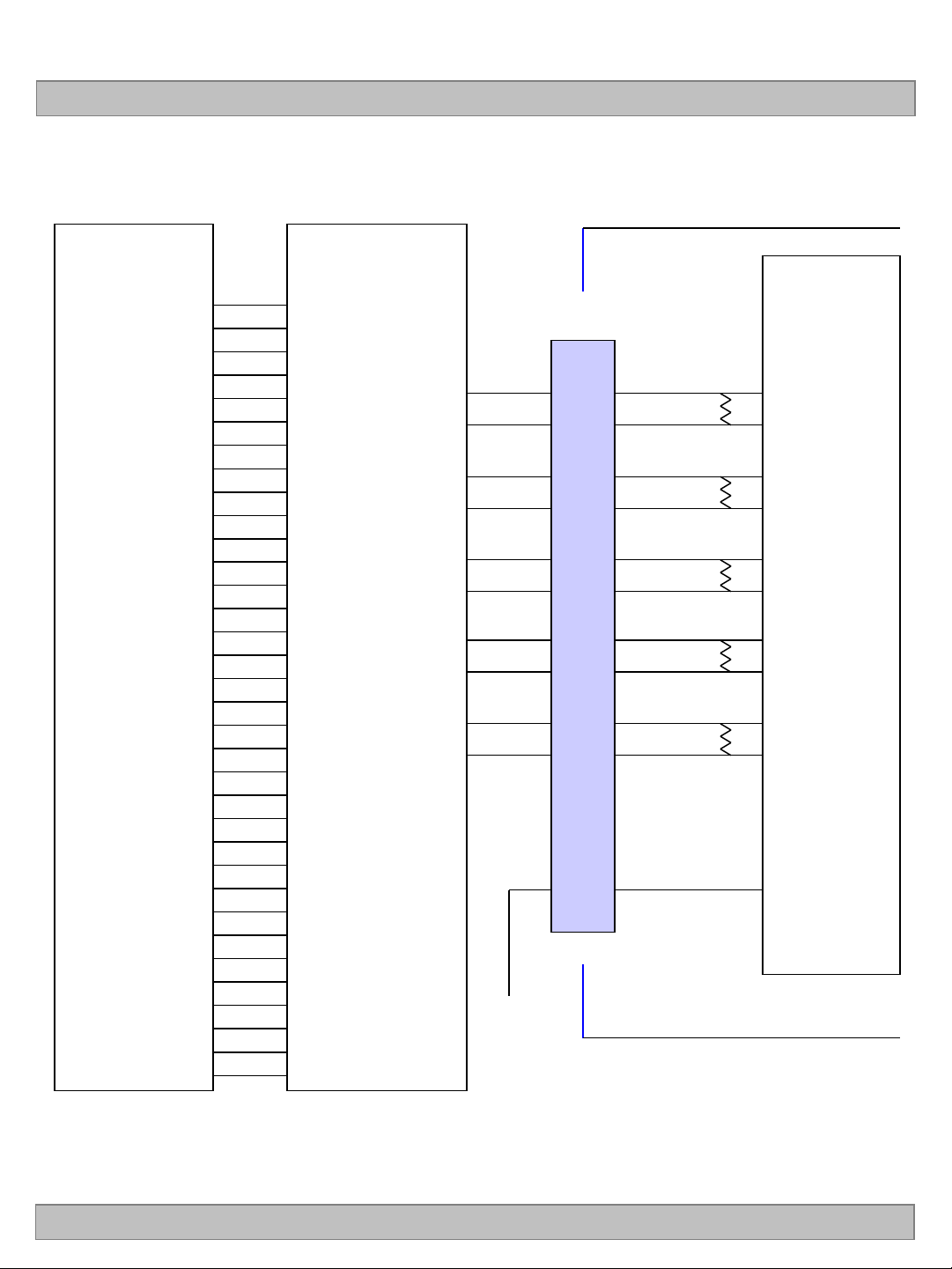

# APPENDIX- III-1

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “L” or “NC”)

LC420DUJ

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

33
34
35
36
37
38
59
61
4
5
40
41
42
44
45
46
62
63
6
8
48
49
50
52
53
54
64
1
9
11
55
57
58
12

TA­TA+

TB­TB+

TC­TC+

TCLK­TCLK+

TD-

TD+

31

30

29
28

25
24

23

22

21
20

GND

FI-RE51S-HF

12
13

14
15

16
17

19
20

22

23

7

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

Timing

Controller

RO0N
RO0P

RO1N
RO1P

RO2N
RO2P

ROCLKN
ROCLKP

RO3N

RO3P

VESA/ JEIDA

Note: 1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver
input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. „7‟ means MSB and „0‟ means LSB at R,G,B pixel data.

Ver. 0.2

32 / 36

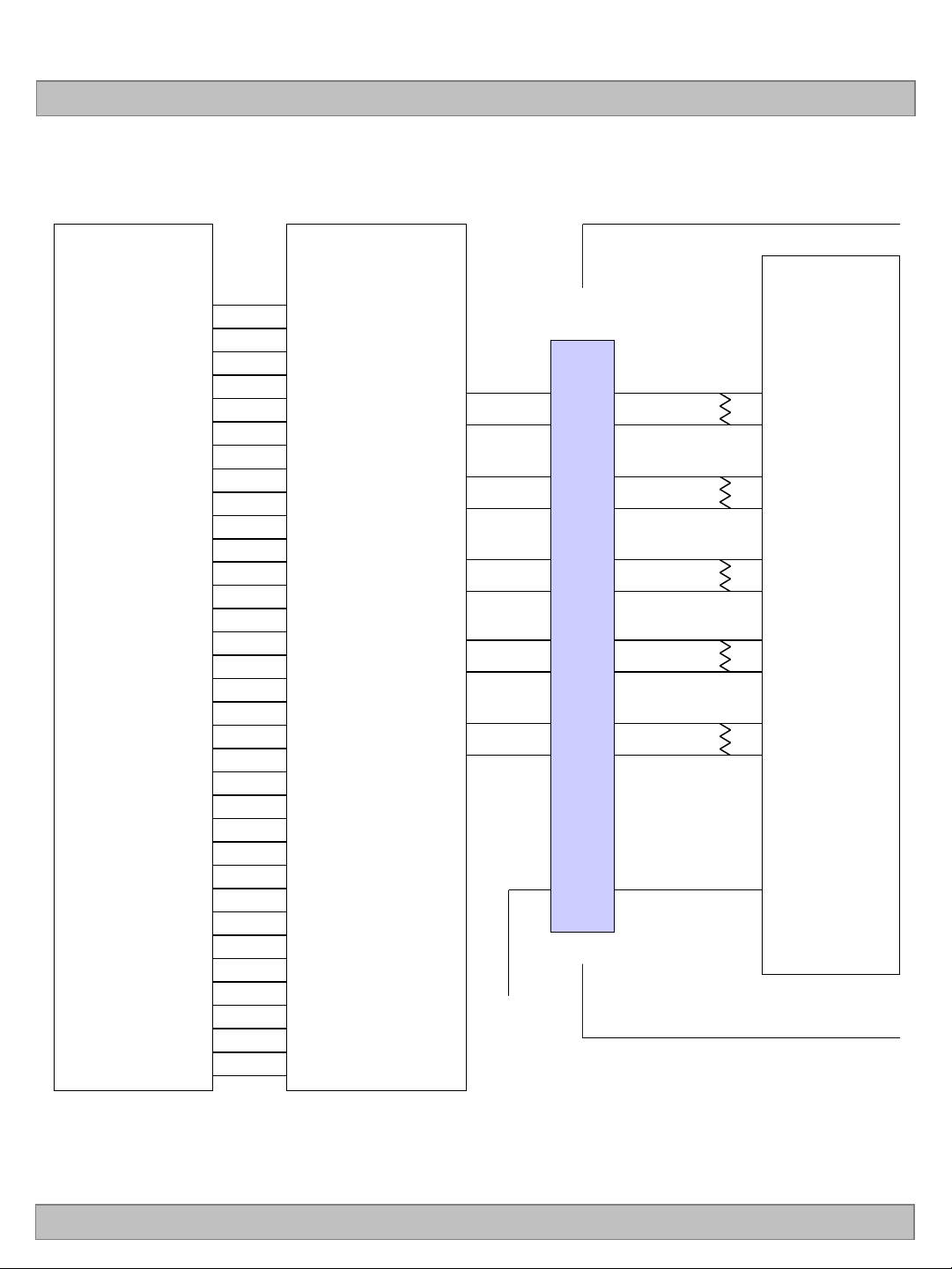

Product Specification

# APPENDIX- III-2

■ Required signal assignment for Flat Link (Thine : THC63LVD103) Transmitter(Pin7= “H” )

LC420DUJ

Host System

30 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6
RED7
RED8

RED9
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7
GREEN8
GREEN9

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7
BLUE8
BLUE9

Hsync

Vsync

Data Enable

CLOCK

THC63LVD103

or Compatible

4
5
59
61
33
34
35
36
37
38
6
8
62
63
40
41
42
44
45
46
9
11
64
1
48
49
50
52
53
54
55
57
58
12

TA­TA+

TB­TB+

TC­TC+

TCLK­TCLK+

TD-

TD+

31
30

29
28

25
24

23
22

21

20

VCC

FI-RE51S-HF

12
13

14
15

16
17

19
20

22

23

7

100Ω

100Ω

100Ω

100Ω

100Ω

LCM Module

Timing

Controller

RO0N
RO0P

RO1N
RO1P

RO2N
RO2P

ROCLKN
ROCLKP

RO3N

RO3P

VESA /JEIDA

Note :1. The LCD module uses a 100 Ohm[Ω] resistor between positive and negative lines of each receiver
input.

2. Refer to LVDS Transmitter Data Sheet for detail descriptions. (THC63LVD103 or Compatible)

3. „7‟ means MSB and „0‟ means LSB at R,G,B pixel data.

Ver. 0.2

33 / 36

Product Specification

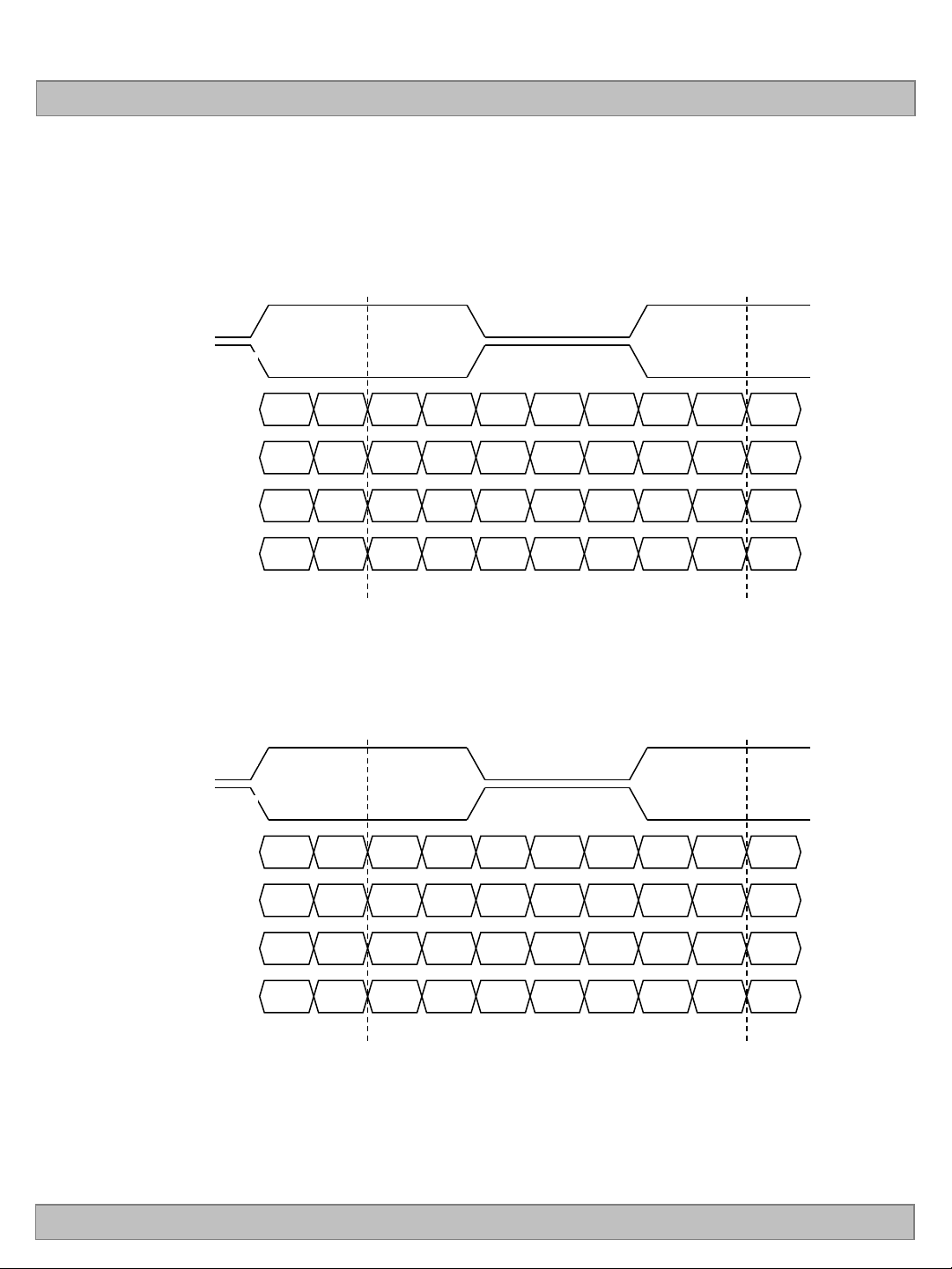

# APPENDIX- IV

■ LVDS Data-Mapping Information (8 Bit )

1) LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

LC420DUJ

RAP

RBP

RCP

RDP

R17 R16 R15 R14 G12 R13 R12’ R12 R13’ G12”

B12 G17 G16 G15 B13 G14 G13’ G13 G14’ B13”

V

SYNC HSYNC

B17 B16 DE B15 B14’ B14 B15’ DE”

B11 B10 G11 G10 X R11 R10’ R10 R11’ X”

2) LVDS Select : “L” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12 G10 R11 R10’ R10 R11’ G10”

B10 G15 G14 G13 B11 G12 G11’ G11 G12’ B15”

Ver. 0.2

RCP

RDP

V

SYNC HSYNC

B15 B14 DE B13 B12’ B12 B13’ DE”

B17 B16 G17 G16 X R17 R16’ R16 R17’ X”

34 / 36

33/36

Product Specification

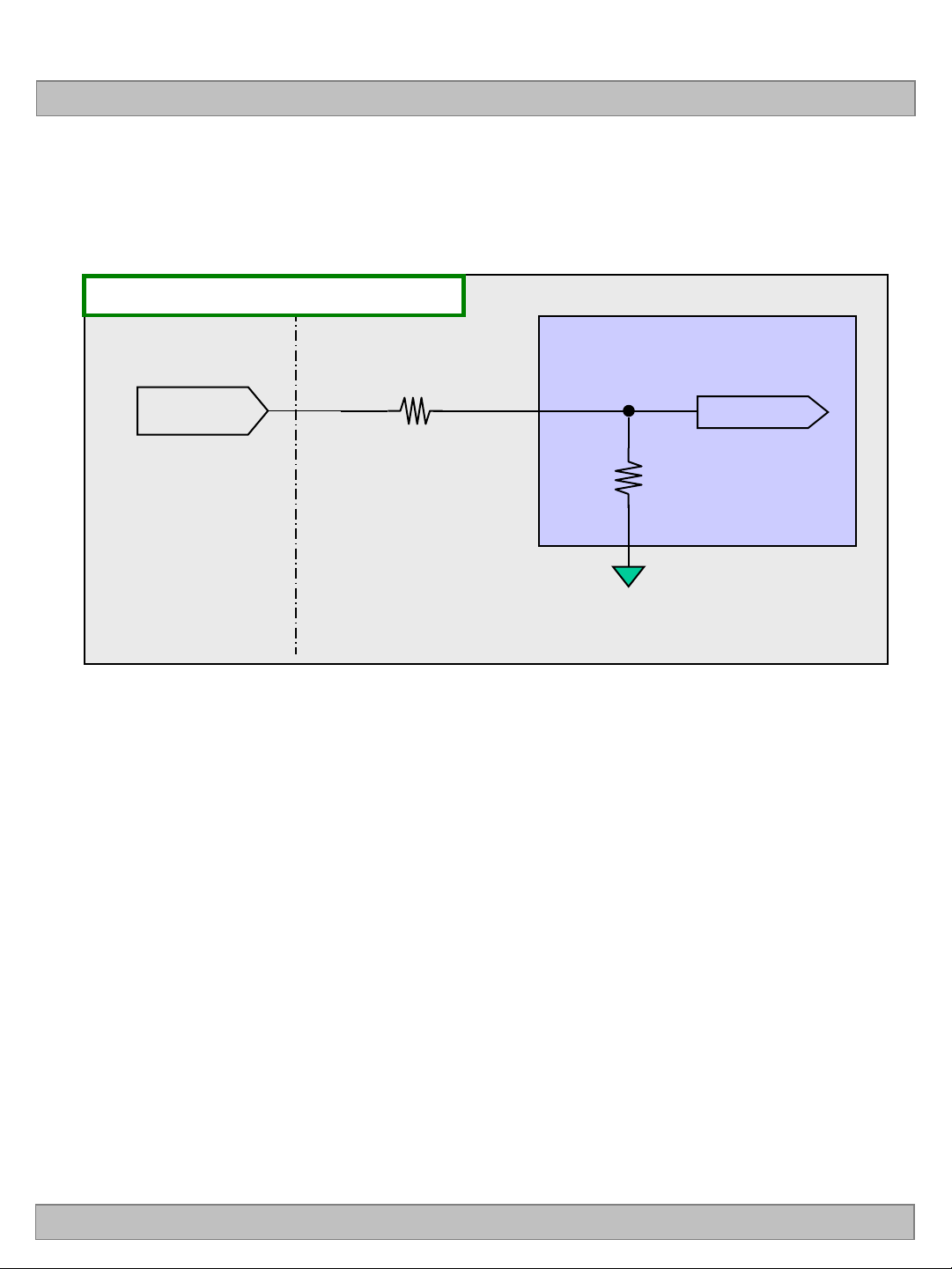

# APPENDIX- V

■ Option Pin Circuit Block Diagram

Circuit Block Diagram of LVDS Format Selection pin

LVDS Select Pin : Pin 7

1KΩ

LVDS Select

(Pin 7)

50KΩ

LVDS Select

ASIC

(TCON)

LC420DUJ

System Side LCM Side

Ver. 0.2

35 / 36

Product Specification

# APPENDIX-Ⅵ

. Flicker Adjustment

Parameter Unit Min Typ Max Note

Inversion Method - V-2Dot Inversion

LC420DUJ

Adjust Pattern /

Gray Level

Position - Center

Voltage range V

- G2Dot Full Flicker / 223Gray 60Hz

6.32(TBD) 6.82(TBD) 7.32(TBD)

Ver. 0.2

A

SCL

SDA

B

Adjustment JIG

LCD Module

FIG. 8 VCOM Adjustment Pattern & Block Diagram

P-GMA

IC

A : Pull-up Resistors
(If it is necessary)

B : I2C Connector

36 / 36
