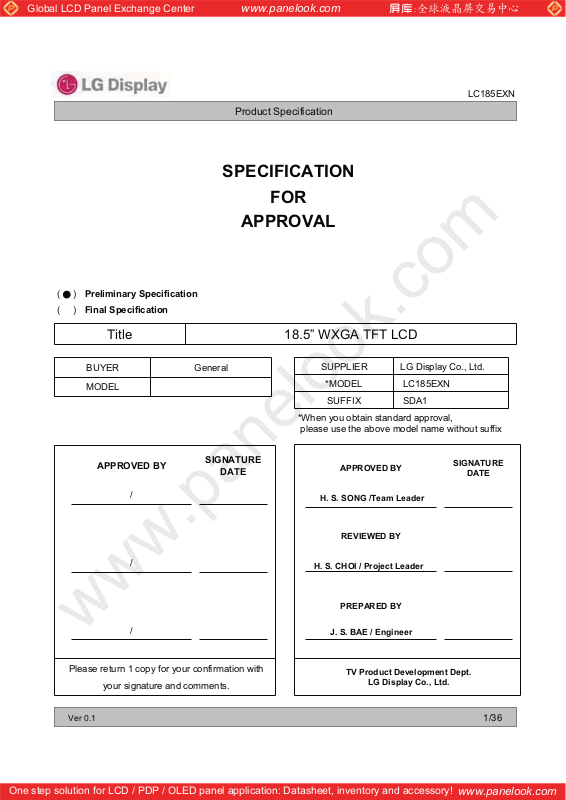

LG Display LC185EXN-SDA1 Specification

Global LCD Panel Exchange Center

www.panelook.com

LC185EXN

Product Specification

SPECIFICATION

FOR

APPROVAL

() Preliminary Specification

()Final Specification

Title 18.5” WXGA TFT LCD

BUYER General

MODEL

APPROVED BY

/

/

SIGNATURE

DATE

SUPPLIER LG Display Co., Ltd.

*MODEL LC185EXN

SUFFIX SDA1

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

H. S. SONG /Team Leader

REVIEWED BY

H. S. CHOI / Project Leader

SIGNATURE

DATE

PREPARED BY

/

Please return 1 copy for your confirmation with

your signature and comments.

Ver 0.1

J. S. BAE / Engineer

TV Product Development Dept.

LG Display Co., Ltd.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

1/36

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC185EXN

Product Specification

CONTENTS

Number ITEM

COVER

CONTENTS

RECORD OF REVISIONS

1 GENERAL DESCRIPTION

2 ABSOLUTE MAXIMUM RATINGS

3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTERISTICS

3-2 INTERFACE CONNECTIONS

3-3 SIGNAL TIMING SPECIFICATIONS

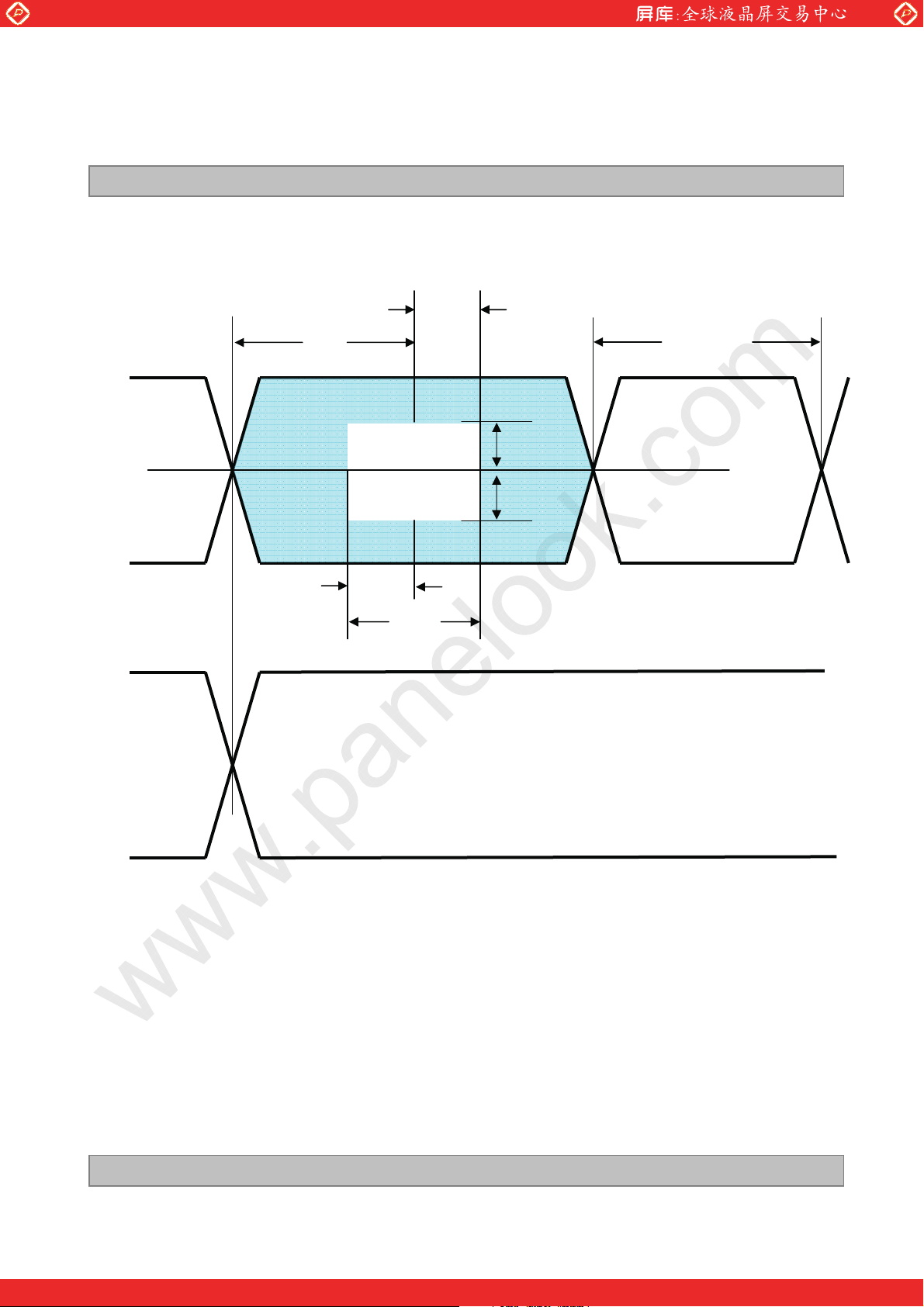

3-4 SIGNAL TIMING WAVEFORMS

3-5 COLOR DATA REFERENCE

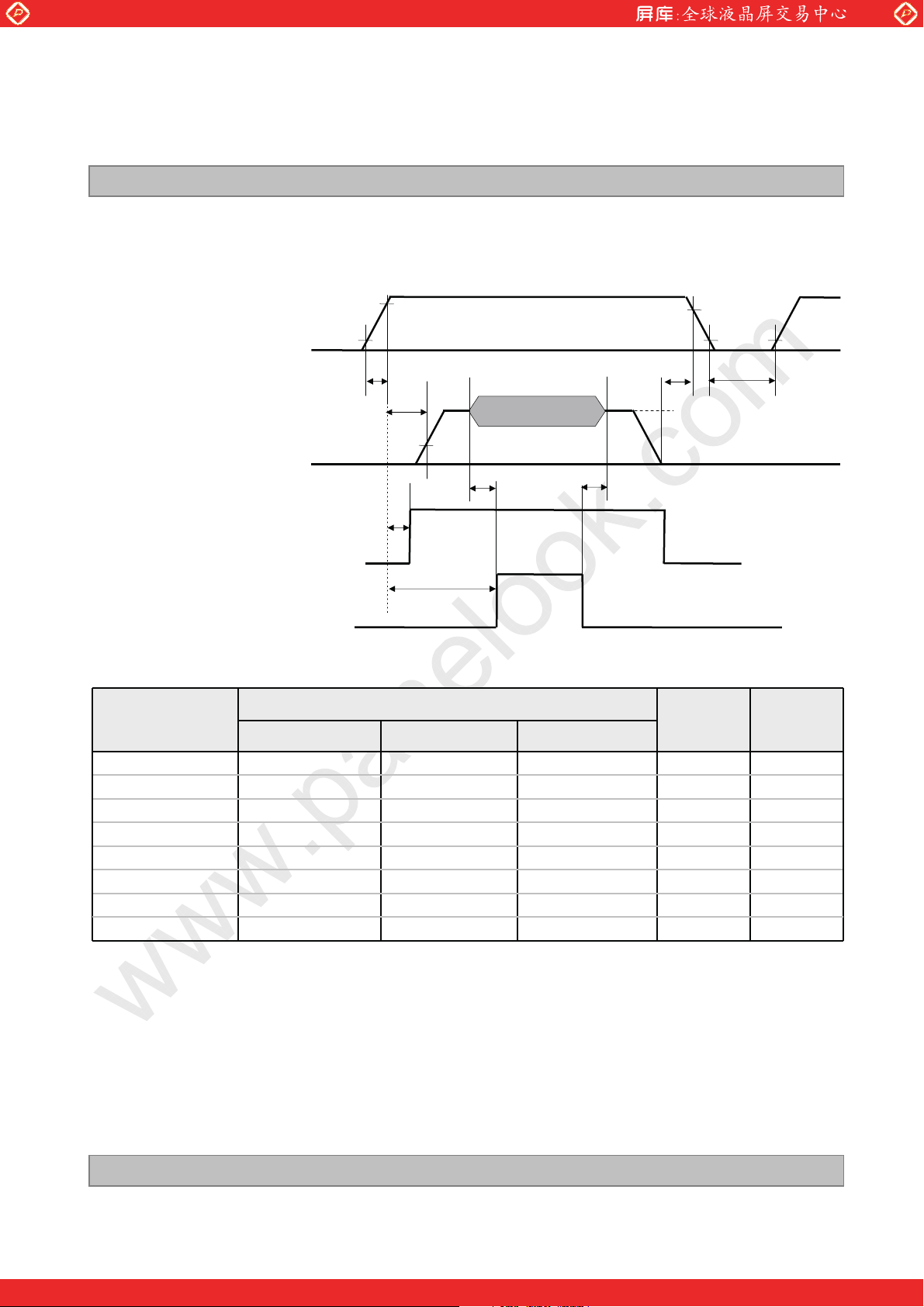

3-6 POWER SEQUENCE

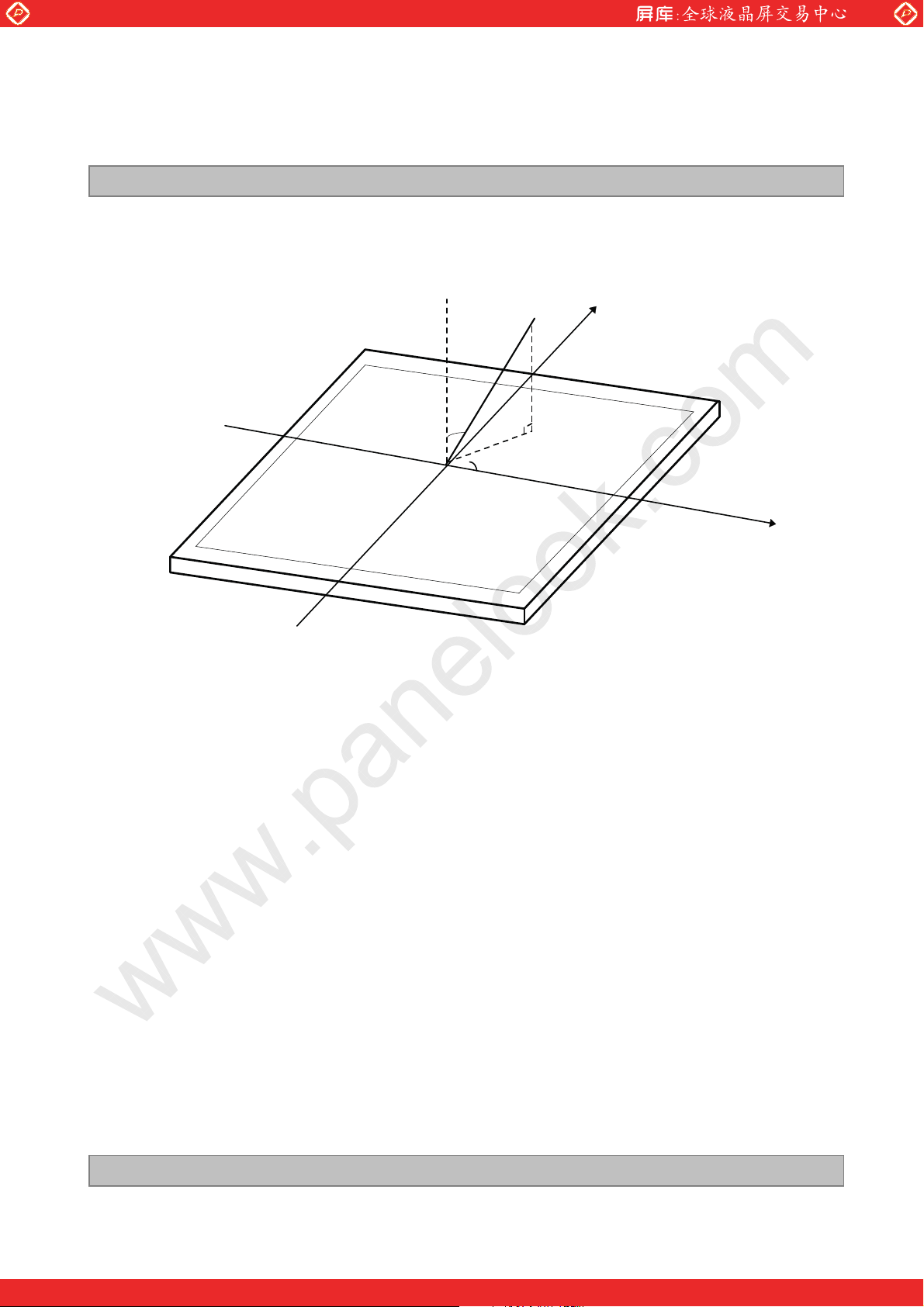

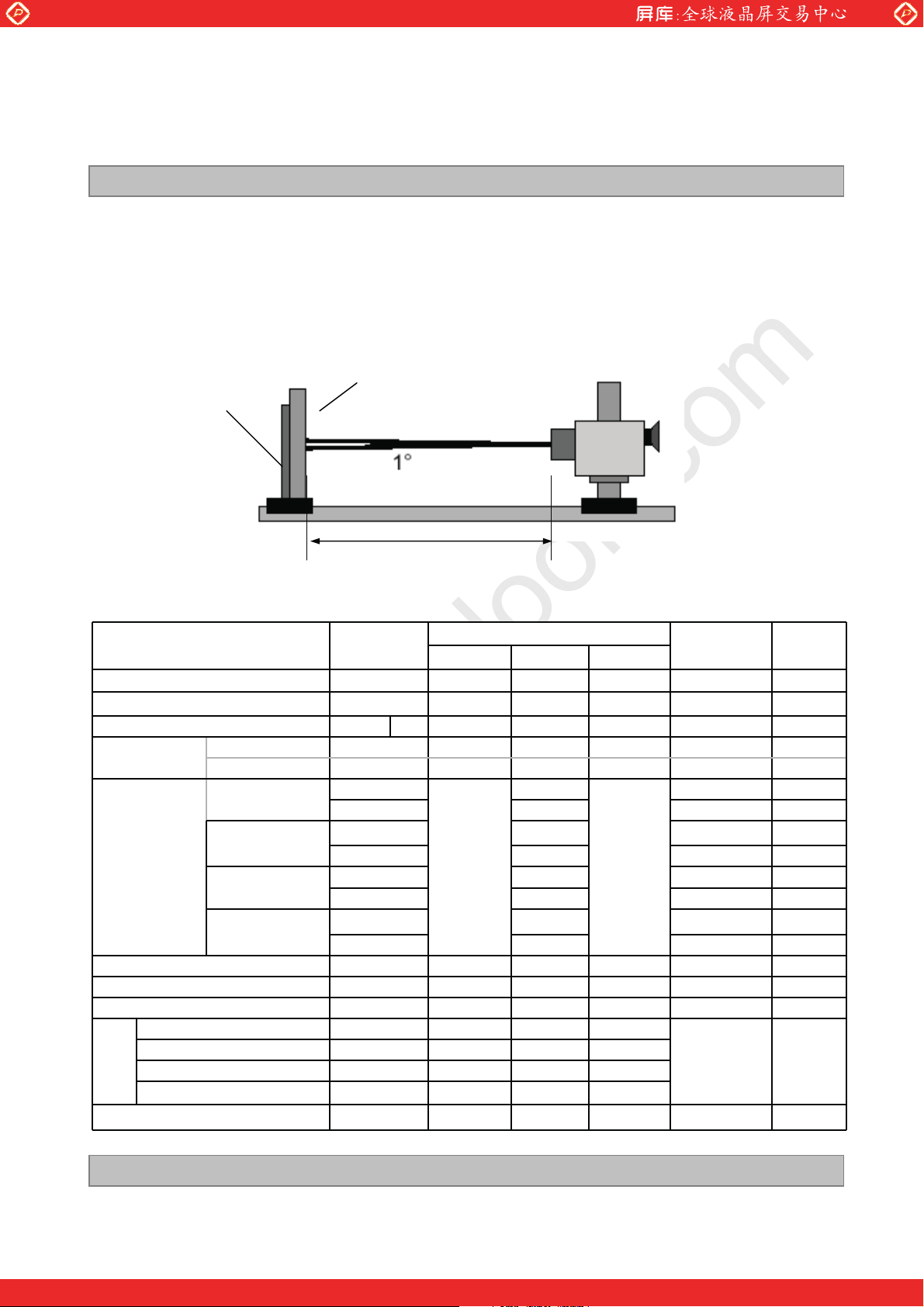

4 OPTICAL SPECIFICATIONS

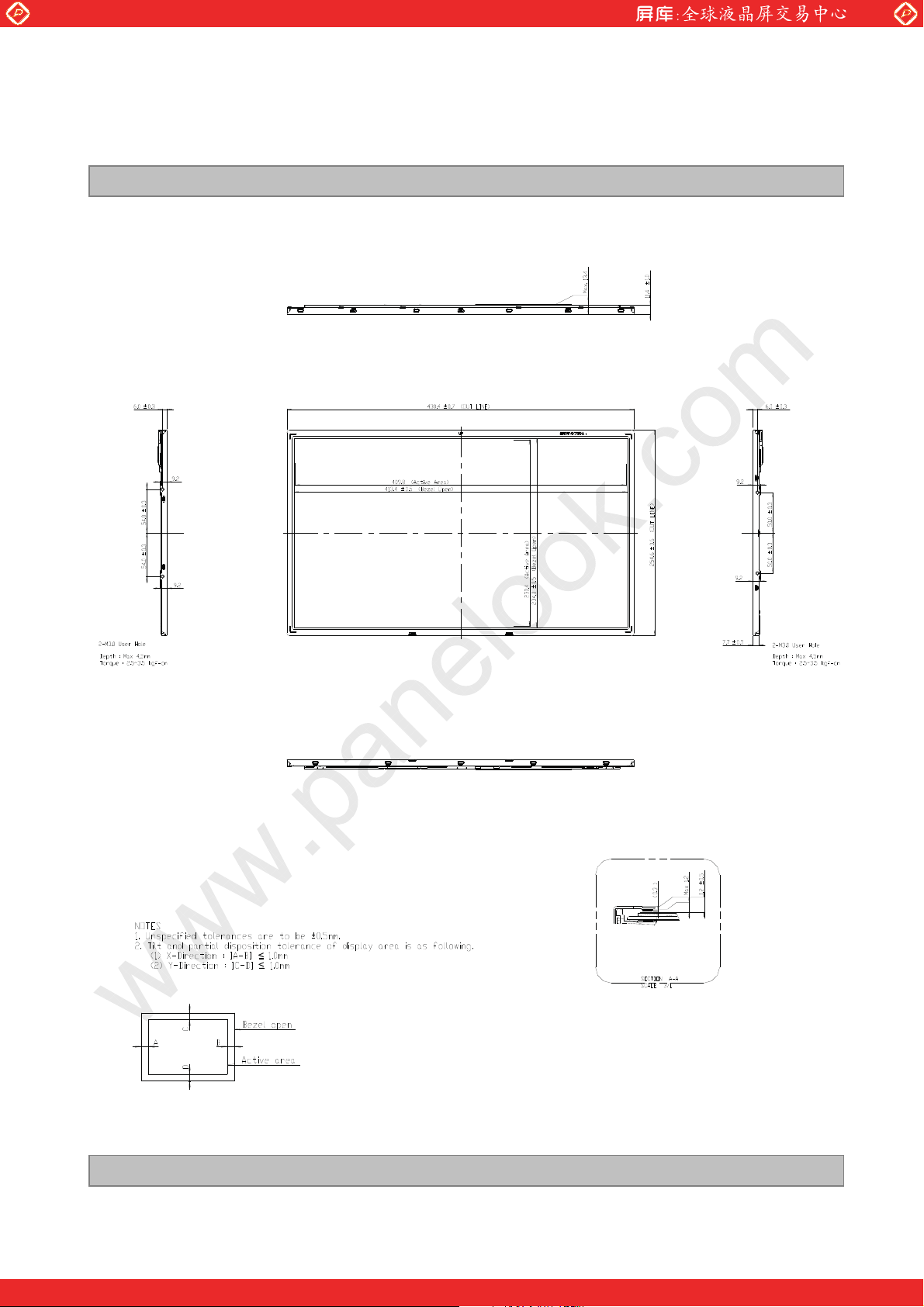

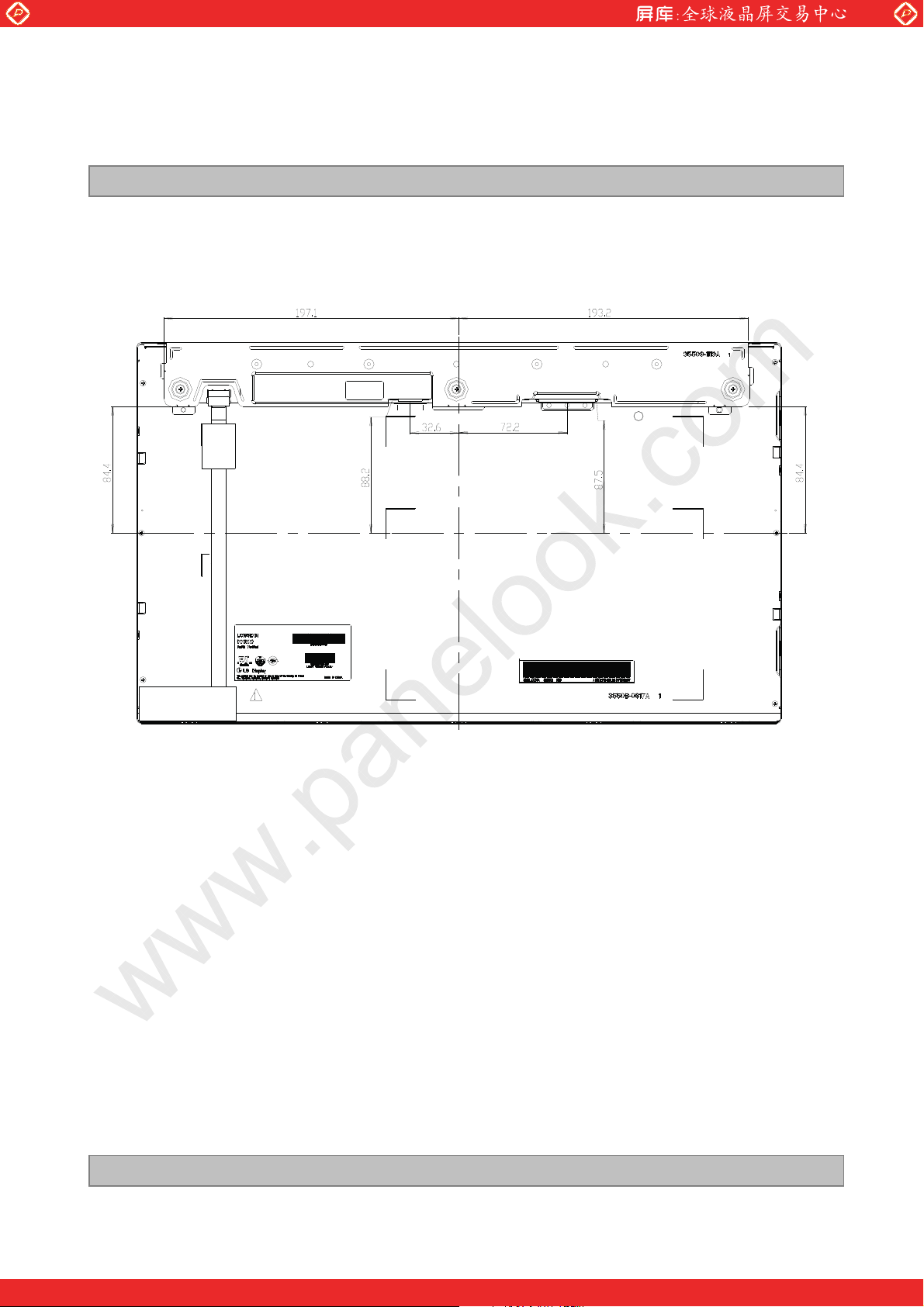

5 MECHANICAL CHARACTERISTICS

Page

1

2

3

4

5

6

6

8

10

11

14

15

17

21

6 RELIABILITY

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC

7-3 Environment

8 PACKING

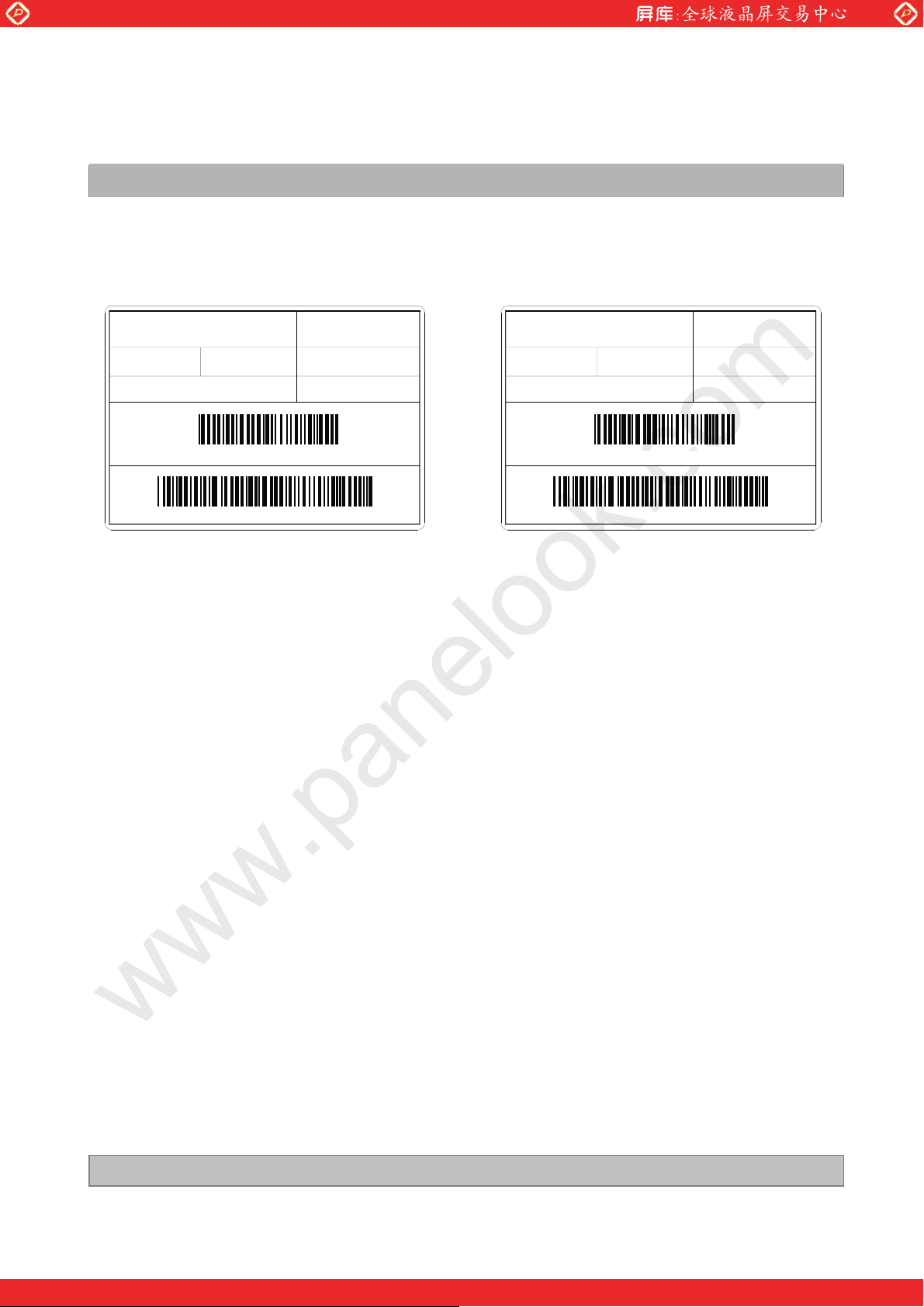

8-1 INFORMATION OF LCM LABEL

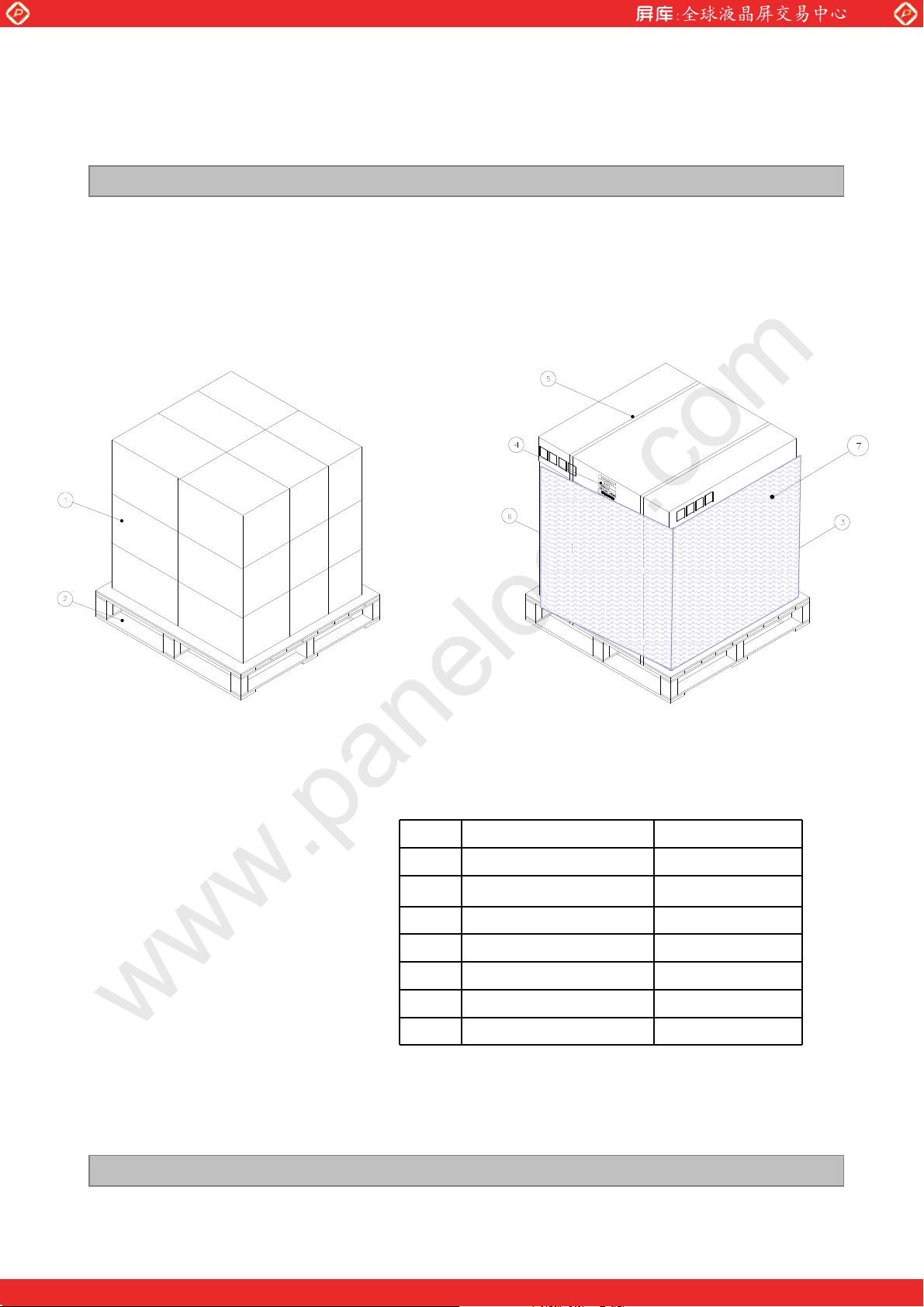

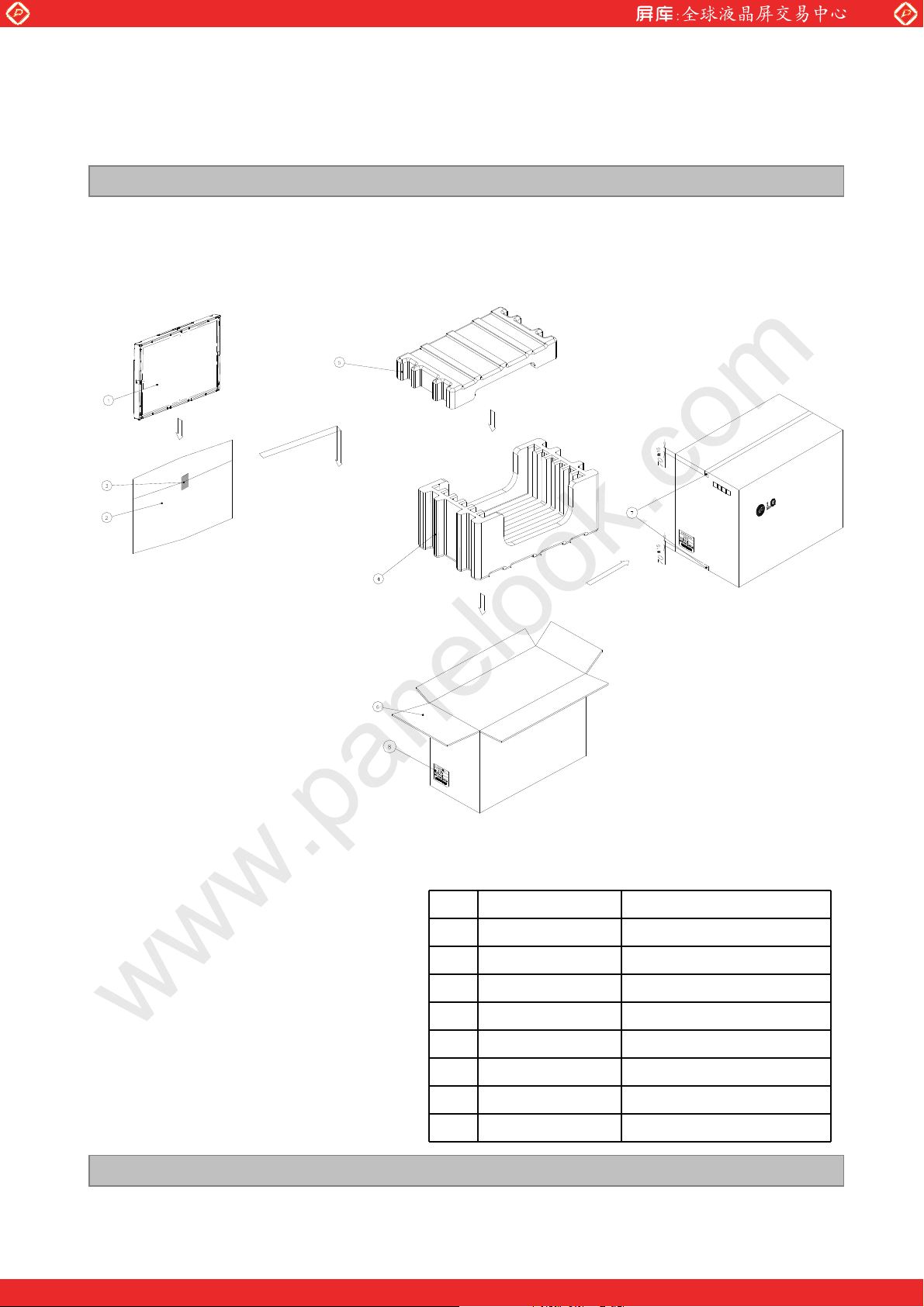

8-2 PACKING FORM

9 PRECAUTIONS

9-1 MOUNTING PRECAUTIONS

9-2 OPERATING PRECAUTIONS

9-3 ELECTROSTATIC DISCHARGE CONTROL

9-4 PRECAUTIONS FOR STRONG LIGHT EXPOSURE

9-5 STORAGE

9-6 HANDLING PRECAUTIONS FOR PROTECTION FILM

24

25

25

25

25

26

26

26

27

27

27

28

28

28

28

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2/36

www.panelook.com

Global LCD Panel Exchange Center

Revision No. Revision Date Page Description

0.1 Aug. 19, 2010 - Preliminary Specification (First Draft)

www.panelook.com

LC185EXN

Product Specification

RECORD OF REVISIONS

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3/36

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Product Specification

1. General Description

The LC185EXN is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive display type which is operating in the normally black mode. It has a 26.01 inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel array).
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in Horizontal stripes.
Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot,
thus presenting a palette of more than 16.7M(6bit + A-FRC) colors.
It has been designed to apply the 8-bit 1-port LVDS interface.
It is intended to support LCD TV, PCTV where high brightness, super wide viewing angle, high color gamut,
high color depth and fast response time are important.

LC185EXN

Mini-LVDS(RGB)

Control
Signals

Gate Driver Circuit

Source Driver Circuit

S1 S1366

G1

TFT - LCD Panel

(1366 Ý RGB Ý 768 pixels)

G768

LVDS

1Port

LVDS
Select

#21

+5.0V

CN1

(30pin)

EEPROM

SCL

SDA

Timing Controller

[LVDS Rx]

Power Circuit

Block

+24.0V, GND, V

Ext VBR-B

on/off

LED Driver

CN401(14Pin)

CN402(6Pin)

Back light Assembly(44 LED)

General Features

Active Screen Size 18.5 inches(470.1mm) diagonal

Outline Dimension 430.4(H) Ý 254.6(V) Ý 12.4(D) (Typ.)

Pixel Pitch 0.100mm x 0.300mm

Pixel Format 1366 horiz. by 768 vert. Pixels, RGB stripe arrangement

Color Depth 8-bit(D), 16.7M colors

Luminance, White 250 cd/m2(Center 1point) (Typ.)

Viewing Angle (CR>10) Viewing angle free ( R/L 178(Min.), U/D 178(Min.))

Power Consumption

Weight 1,040g (Typ.)

Display Mode Transmissive mode, Normally black

Surface Treatment Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 13%)

Ver 0.1

Total 18.1W (TBD) (Typ.)
(Logic=2.9W, LED Driver=15.2W(TBD) EXTV

BR-B=100% )

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

4/36

www.panelook.com

Global LCD Panel Exchange Center

2. Absolute Maximum Ratings

The following items are maximum values which, if exceeded, may cause faulty operation or damage to the
LCD module.

Table 1. ABSOLUTE MAXIMUM RATINGS

www.panelook.com

LC185EXN

Product Specification

Parameter Symbol

Power Input Voltage

Driver Control Voltage

T-Con Option Selection Voltage VLOGIC

Operating Temperature TOP

Storage Temperature TST

Panel Front Temperature TSUR - +68 ¶C 4

Operating Ambient Humidity HOP

Storage Humidity HST 10 90 %RH

Note

1. Ambient temperature condition (Ta = 25 r 2 ¶C )

LCD Circuit VLCD

Driver VBL -0.3 + 27.0 VDC

ON/OFF VOFF / VON

Brightness VBR

Value

Min Max

-0.3 +6.0

-0.3 +5.5

0.0 +5.5

-0.3 +4.0

0 +50

-20 +60

10 90

Unit Note

VDC

VDC

VDC

VDC

¶C

¶C

%RH

2. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be Max 39¶C, and no condensation of water.

3. Gravity mura can be guaranteed below 40¶C condition.

4. The maximum operating temperatures is based on the test condition that the surface temperature

of display area is less than or equal to 68¶C with LCD module alone in a temperature controlled chamber.
Thermal management should be considered in final product design to prevent the surface temperature of
display area from being over 68୅. The range of operating temperature may degraded in case of
improper thermal management in final product design.

1

2,3

2,3

Ver 0.1

Wet Bulb
Temperature [

10

0

10 20 30 40 50 60 70 800-20

Dry Bulb Temperature [

¶C]

20

30

40

¶C]

50

60

90%

60%

40%

10%

Storage

Operation

Humidity [(%)RH]

5/36

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3. Electrical Specifications

3-1. Electrical Characteristics

It requires two power inputs. One is employed to power for the LCD circuit. The other is used for the LED
backlight and LED Driver circuit.

Table 2. ELECTRICAL CHARACTERISTICS

Parameter Symbol

www.panelook.com

LC185EXN

Product Specification

Value

Unit Note

Min Typ Max

Circuit :

Power Input Voltage VLCD 4.5 5.0 5.5 VDC

Power Input Current ILCD

Power Consumption PLCD - 2.9 3.77 Watt 1

Rush current IRUSH - - 3.0 A 3

Notes : 1. The specified current and power consumption are under the V

condition whereas mosaic pattern(8 x 6) is displayed and f

- 580 754 mA 1

- 690 897 mA 2

=5.0V, 25 r 2¶C, fV=60Hz

LCD

is the frame frequency.

V

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power input is 0.5ms (min.).

White : 255Gray
Black : 0Gray

Mosaic Pattern(8 x 6)

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

6/36

www.panelook.com

Global LCD Panel Exchange Center

Table 3. ELECTRICAL CHARACTERISTICS (Continue)

www.panelook.com

LC185EXN

Product Specification

Parameter Symbol

LED Driver :

Power Supply Input Voltage VBL 22.8 24.0 25.2 Vdc 1

Power Supply Input Current IBL_A

Power Supply Input Current (In-Rush) Irush - - 1.5 A

Power Consumption PBL -

On/Off

Input Voltage for

Control System

Signals

LED :

Life Time 30.000 Hrs 3

Brightness Adjust ExtV

PWM Frequency for
NTSC & PAL

Pulse Duty Level
(PWM)

On V on 2.5 - 5.0 Vdc

Off V off -0.3 0.0 0.7 Vdc

BR-B 1 - 100 % On Duty

PAL 100 Hz 4

NTSC 120 Hz 4

High Level 2.5 - 5.0

Low Level 0.0 - 0.7

Min Typ Max

Values

-

0.63

15.2 16.8

0.7

Unit Notes

A1

V

BL = 22.8V

Ext V

BR-B = 100%

W1

Vdc

Vdc

HIGH : on duty

LOW : off duty

Notes :

1. Electrical characteristics are determined after the unit has been ‘ON’ and stable for approximately 60

minutes at 25·2¶C. The specified current and power consumption are under the typical supply Input voltage
24Vand V

BR (ExtVBR-B : 100%), it is total power consumption.

2. Electrical characteristics are determined within 30 minutes at 25·2¶C.

The specified currents are under the typical supply Input voltage 24V.

3. The life time is determined as the time which luminance of the LED is 50% compared to that of initial
value at the typical LED current (ExtVBR-B :100%) on condition of continuous operating in LCM state at
25·2¶C.

4. LGD recommend that the PWM freq. is synchronized with two time harmonic of Vsync signal of system.
Though PWM frequency is over 120Hz (max 252Hz), function of LED Driver is not affected.

5. The duration of rush current is about 10ms.

2

6. Even though inrush current is over the specified value, there is no problem if I

T spec of fuse is satisfied.

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

7/36

www.panelook.com

Global LCD Panel Exchange Center

3-2. Interface Connections

This LCD module employs two kinds of interface connection, a 30-pin connector is used for the module
electronics and 14-pin connector is used for the integral backlight system.

3-2-1. LCD Module

- LCD Connector(CN5) : KDF71G-30S-1H(Hirose) or Equivalent.

- Mating Connector : FI-X30C2L (Manufactured by JAE) or Equivalent

Table 4. MODULE CONNECTOR(CN5) PIN CONFIGURATION

Pin No. Symbol Description Note

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

GND Ground

Reserved “H” : Interlace Free Mode, “L or NC ” : Normal Operation

NC No Connection
GND Ground
RX0- LVDS Receiver Signal(-)

RX0+ LVDS Receiver Signal(+)

GND Ground
RX1- LVDS Receiver Signal(-)

RX1+ LVDS Receiver Signal(+)

GND Ground
RX2- LVDS Receiver Signal(-)

RX2+ LVDS Receiver Signal(+)

GND Ground

RXCLK- LVDS Receiver Clock Signal(-)

RXCLK+ LVDS Receiver Clock Signal(+)

GND Ground
RX3- LVDS Receiver Signal(-)

RX3+ LVDS Receiver Signal(+)

GND Ground

NC No Connection

LVDS Select “H” : JEIDA, “L or NC” : VESA

NC No Connection
GND Ground
GND Ground
GND Ground

VLCD Power Supply +5.0V
VLCD Power Supply +5.0V
VLCD Power Supply +5.0V
VLCD Power Supply +5.0V
VLCD Power Supply +5.0V

www.panelook.com

LC185EXN

Product Specification

5
4

Appendix V

Notes :

1. All GND (Ground) pins should be connected together to the LCD module’s metal frame.

2. All VLCD (Power input) pins should be connected together.

3. All Input levels of LVDS signals are based on the EIA 644 Standard.

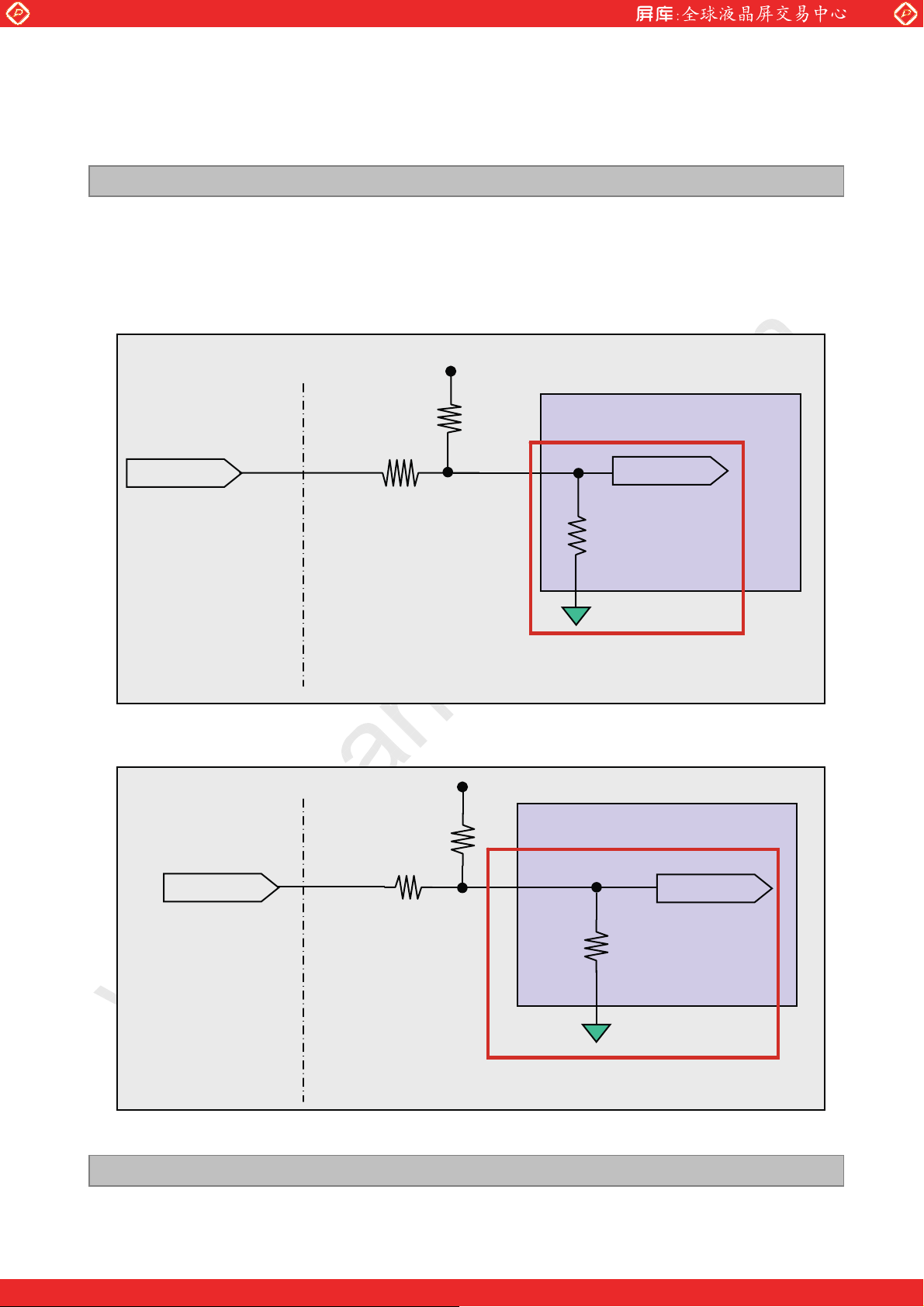

4. Specific pins (Pin No. #2) are used for Option of the LCD module.

If not used, these pins are no connection.

5. Specific pin No. #30 is used for “No signal detection” of system signal interface.

It should be GND for NSB (No Signal Black) during the system interface signal is not.

If this pin is “H”, LCD Module displays AGP (Auto Generation Pattern).

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

8/36

www.panelook.com

Global LCD Panel Exchange Center

◆

◆

3-2-2. Backlight Inverter

- LED Connector : SM14B-SRSS-TB (Manufactured by JST)

- Mating Connector : SHR-14V-S-B (With protrusions) or SHR-14V-S
(Without protrusions) ; (Manufactured by JST)

Table 5. INVERTER CONNECTOR PIN CONFIGULATION

Pin No Symbol Description Note

1 VBL Power Supply +24.0V

2 VBL Power Supply +24.0V

www.panelook.com

LC185EXN

Product Specification

3 VBL Power Supply +24.0V

4 VBL Power Supply +24.0V

5 VBL Power Supply +24.0V

6

7

8

9

10

11

12

13 NC No Connection

14 EXTVBR-B External PWM 3

Notes : 1. GND should be connected to the LCD module’s metal frame.

2. Normal : Low (under 0.7V) / Abnormal : High (upper 3.0V)

3. High : on duty / Low : off duty

4. Each impedance of pin #12 and 13 is over 50[K˟] and over 50[K˟].

GND

GND

GND

GND

GND

Status

VON/OFF

Backlight Ground

Backlight Ground

Backlight Ground

Backlight Ground

Backlight Ground

LED Status 2

Backlight ON/OFF control

1

Rear view of LCM

Rear view of LCM

PCB

PCB

14

Ver 0.1

14

…

…

1

1

…

…

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

9/36

www.panelook.com

Global LCD Panel Exchange Center

3-3. Signal Timing Specifications

Table 6 shows the signal timing required at the input of the LVDS transmitter. All of the interface signal
timings should be satisfied with the following specification for normal operation.

Table 6. TIMING TABLE (DE Only Mode)

www.panelook.com

LC185EXN

Product Specification

Horizontal

Vertical

Frequency

Display Period

Blank

Total

Display Period

Blank

Total

DCLK

Horizontal

Vertical

Symbol

t

HV

t

HB

t

HP

VV

t

VB

t

VP

CLK

H

f

V

20

(126)

786

(894)

57

(47)

22

(180)

790

(948)

60

(50)

240

(295)

1008

(1063)

63

(53)

NoteUnitMaxTypMinITEM

tclk-1366-

tclk41016290

tclk177615281456

tHP-768-t

tHP

tHP

NoteUnitMaxTypMinSymbolITEM

MHz80.072.463.0f

2KHz5547.445f

2

NTSC :

Hz

57~63Hz

(PAL :

47~53Hz)

Note :

1. The input of HSYNC & VSYNC signal does not have an effect on normal operation (DE Only Mode).
If you use spread spectrum of EMI, add some additional clock to minimum value for clock margin.

2. The performance of the electro-optical characteristics may be influenced by variance of the vertical
refresh rate and the horizontal frequency

3. Timing should be set based on clock frequency.

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

10/36

www.panelook.com

Global LCD Panel Exchange Center

3-4. Signal Timing Waveforms

3-4-1. LVDS Input Signal Timing Diagram

www.panelook.com

LC185EXN

Product Specification

DCLK

1366

tCLK

DE(Data Enable)

0.5 Vcc

Invalid data

DE, Data

tHT

Valid data

1

0.7VDD

tHV

0.3VDD

1366

Invalid data

DE(Data Enable)

Ver 0.1

768

1 768

tVV

tVT

11/36

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

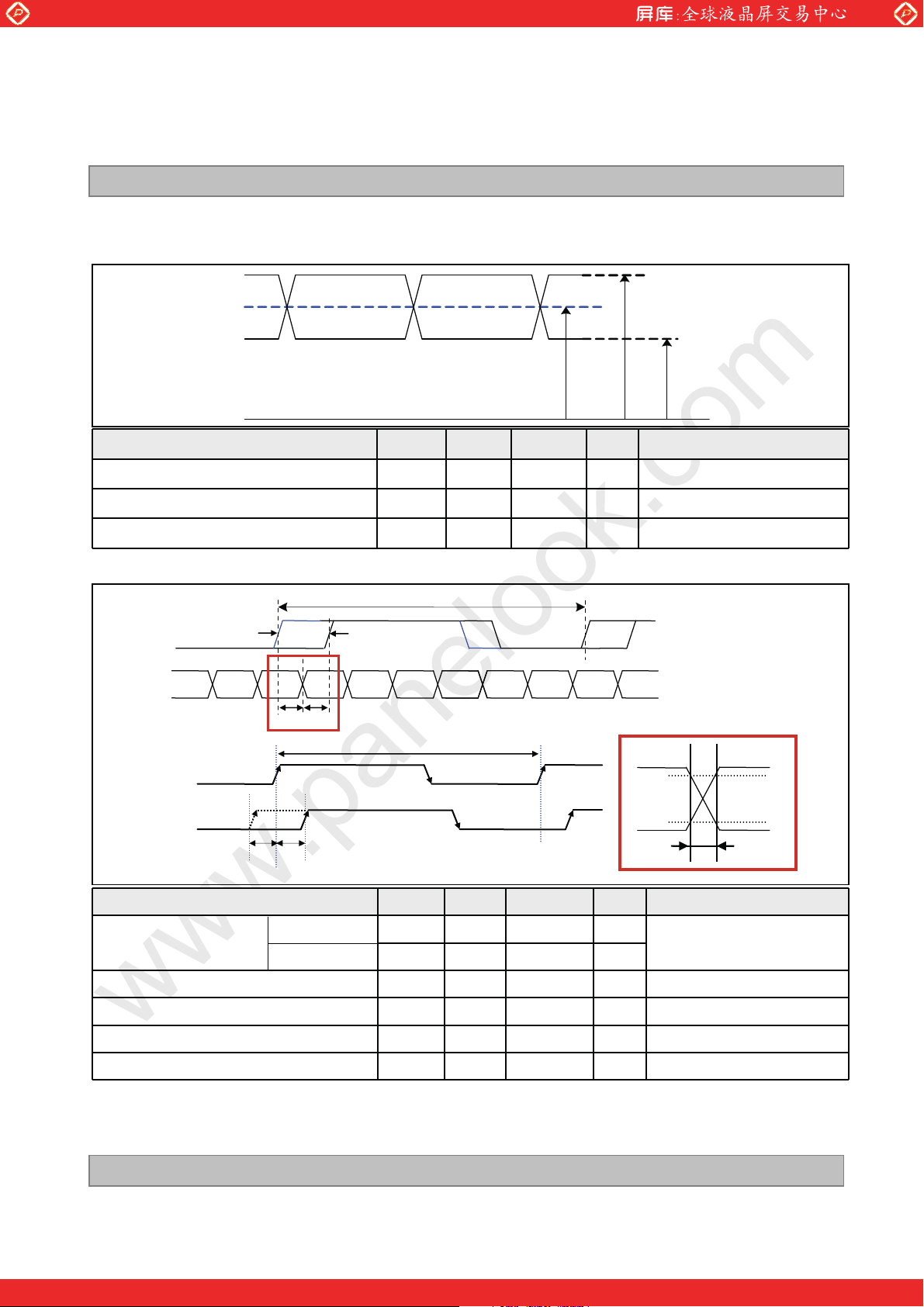

3-4-2. LVDS Input Signal Characteristics

1) DC Specification

LVDS -

LVDS +

www.panelook.com

LC185EXN

Product Specification

# VCM= {(LVDS +) + ( LVDS - )} /2

0V

V

CM

V

IN _MAXVIN _MIN

Description Symbol Min Max Unit Note

LVDS Common mode Voltage V

LVDS Input Voltage Range V

CM

IN

1.0 1.5 V -

0.7 1.8 V -

Change in common mode Voltage ȟVCM 250 mV -

2) AC Specification

T

clk

LVDS Clock

A

LVDS Data

(F

= 1/T

)

clk

A

LVDS 1’st Clock

LVDS 2nd/ 3rd/ 4thClock

tSKEW

t

SKEW_mintSKEW_max

tSKEW

clk

T

clk

80%

20%

t

RF

Description Symbol Min Max Unit Note

LVDS Differential Voltage

High Threshold

Low Threshold

LVDS Clock to Data Skew Margin t

LVDS Clock/DATA Rising/Falling time t

Effective time of LVDS t

LVDS Clock to Clock Skew Margin (Even to Odd) t

Note

1. All Input levels of LVDS signals are based on the EIA 644 Standard.

2. If t

isn’t enough, t

RF

should be meet the range.

eff

3. LVDS Differential Voltage is defined within t

Ver 0.1

V

TH

V

TL

SKEW

RF

eff

SKEW_EO

100 300 mV

-300 -100 mV

|(0.2*T

260 (0.3*T

)/7| ps -

clk

)/7 ps 2

clk

·360 ps -

1/7* T

clk

eff

T

clk

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

3

-

12/36

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC185EXN

Product Specification

360ps

V+
data

Vcm

V­data

V+
clk

Vcm

0.5tui

tui

VTH

VTL

360ps

teff

tui : Unit Interval

V­clk

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

13/36

www.panelook.com

Global LCD Panel Exchange Center

3-5. Color Data Reference

The brightness of each primary color (Red, Green, Blue) is based on the 8-bit gray scale data input for the color.
The higher binary input, the brighter the color. Table 7 provides a reference for color versus data input.

Table 7. COLOR DATA REFERENCE

www.panelook.com

LC185EXN

Product Specification

Input Color Data

Basic
Color

RED

Color

Black 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Red (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Green (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

Blue (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Cyan 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Magenta 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

Yellow 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

White 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

RED (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (001) 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

... ... ... ...

RED (254) 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

RED (255) 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

GREEN (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

MSB LSB

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

RED

MSB LSB

GREEN

BLUE

MSB LSB

GREEN (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0

GREEN

GREEN (254) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0

GREEN (255) 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0

BLUE (000) Dark 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

BLUE (001) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1

BLUE

BLUE (254) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0

BLUE (255) 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1

... ... ... ...

... ... ... ...

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

14/36

www.panelook.com

Global LCD Panel Exchange Center

3-6. Power Sequence

3-6-1. LCD Driving circuit

www.panelook.com

LC185EXN

Product Specification

Power Supply For LCD V

Interface Signal (Tx_clock)

LCD

0V

User Control Signal
(LVDS_select)

Power for LED

Table 8. POWER SEQUENCE

Parameter

90%

10%

0V

T

1

T2

30%

100%

T6

T7

Value

Min Typ Max

Valid Data

T3 T4

LED ON

90%

10%

T8

Vcm : LVDS Common mode Voltage

Unit Notes

10%

T5

T

1 0.5 - 20 ms

T

2 0--ms4

T

3 200 - - ms 3

T

4 200 - - ms 3

T

5 1.0 - - s 5

T

6 --T2ms4

s--0.5T7

T

8 100 - - ms 6

Note :

1. Please avoid floating state of interface signal at invalid period.

2. When the power supply for LCD (VLCD) is off, be sure to pull down the valid and invalid data to 0V.

3. The

T3 / T4 is recommended value, the case when failed to meet a minimum specification,

abnormal display would be shown. There is no reliability problem.

4. If the on time of signals(Interface signal and user control signals) precedes the on time of Power(V
it will be happened abnormal display. When

5.

T5 should be measured after the Module has been fully discharged between power off and on

T6 is NC status, T6 doesn’t need to be measured.

period.

6. It is recommendation specification that T8 has to be 100ms as a minimum value.

Ver 0.1

LCD

15/36

),

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

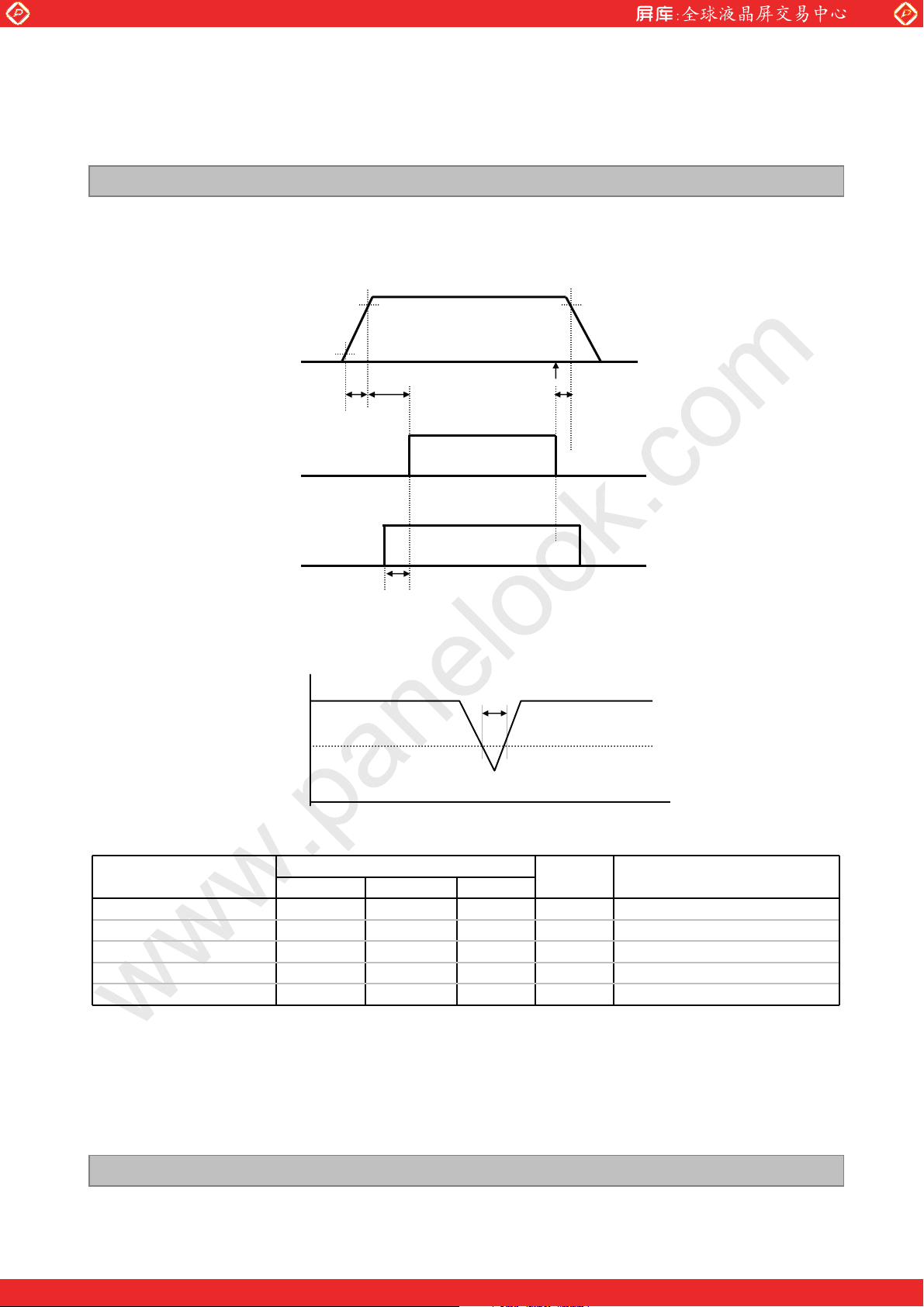

3-6-2. Sequence for LED Driver

Power Supply For LED Driver

VBL

10%

0V

90%

www.panelook.com

LC185EXN

Product Specification

24V (typ.)

90%

T1 T2

VON/OFF

EXTVBR-B

3-6-3. Dip condition for LED Driver

(Typ.) x 0.8

V

BL

Table 9. Power Sequence for Inverter

Parameter

T1 20 - - ms 1

T2 500 - - ms

T4 0 - ms

T5 10 - - ms

T6 - - 10 ms V

Min Typ Max

T4

Values

LED ON

T6

T5

VBL: 24V

0 V

Units Remarks

(Typ) x 0.8

BL

Notes : 1. T1 describes rising time of 0V to 24V and this parameter does not applied at restarting time.

Even though T1 is over the specified value, there is no problem if I

Ver 0.1

2

T spec of fuse is satisfied.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

16/36

www.panelook.com

Global LCD Panel Exchange Center

4. Optical Specification

Optical characteristics are determined after the unit has been ‘ON’ and stable in a dark environment at 25·2¶C.
The values are specified at distance 50cm from the LCD surface at a viewing angle of ) and T equal to 0 ¶.
FIG. 1 shows additional information concerning the measurement equipment and method.

www.panelook.com

LC185EXN

Product Specification

Optical Stage(x,y)

LCD Module

Pritchard 880 or
equivalent

50cm

FIG. 1 Optical Characteristic Measurement Equipment and Method

Table 10. OPTICAL CHARACTERISTICS

Parameter Symbol

Contrast Ratio CR 700 1000 - 1

Surface Luminance, white L

Luminance Variation G

Response Time

Color

Coordinates

[CIE1931]

Color Temperature 10,000 K

Color Gamut 68 %

Viewing Angle (CR>10)

x axis, right(I=0¶) Tr 89 - -
x axis, left (I=180¶) Tl 89 - -
y axis, up (I=90¶) Tu 89 - -
y axis, down (I=270¶) Td 89 - -

Gray Scale - - - 7

Variation G to G

Gray to Gray (BW) G to G BW 913 ms 4

RED

GREEN

BLUE

WHITE

WHITE

Ta= 25·2¶C, V

Min Typ Max

WH

5P - - 1.3 3

ɍ

Rx

Ry 0.339

Gx 0.320

Gy 0.608

Bx 0.155

By 0.050

Wx

Wy

200 250 - cd/m

Typ

-0.03

=5.0V, fV=60Hz, Dclk=72.4MHz, EXTVBR-B=100%

LCD

Value

69 ms 5

0.634

Typ

+0.03

0.279

0.292

Unit Note

2

degree 6

2

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

17/36

www.panelook.com

Global LCD Panel Exchange Center

Notes :1. Contrast Ratio (CR) is defined mathematically as :

CR =

It is measured at center 1-point.

2. Surface luminance is determined after the unit has been ‘ON’ and 1Hour after lighting the

backlight in a dark environment at 25·2¶C. Surface luminance is the luminance value at center
1-point across the LCD surface 50cm from the surface with all pixels displaying white.

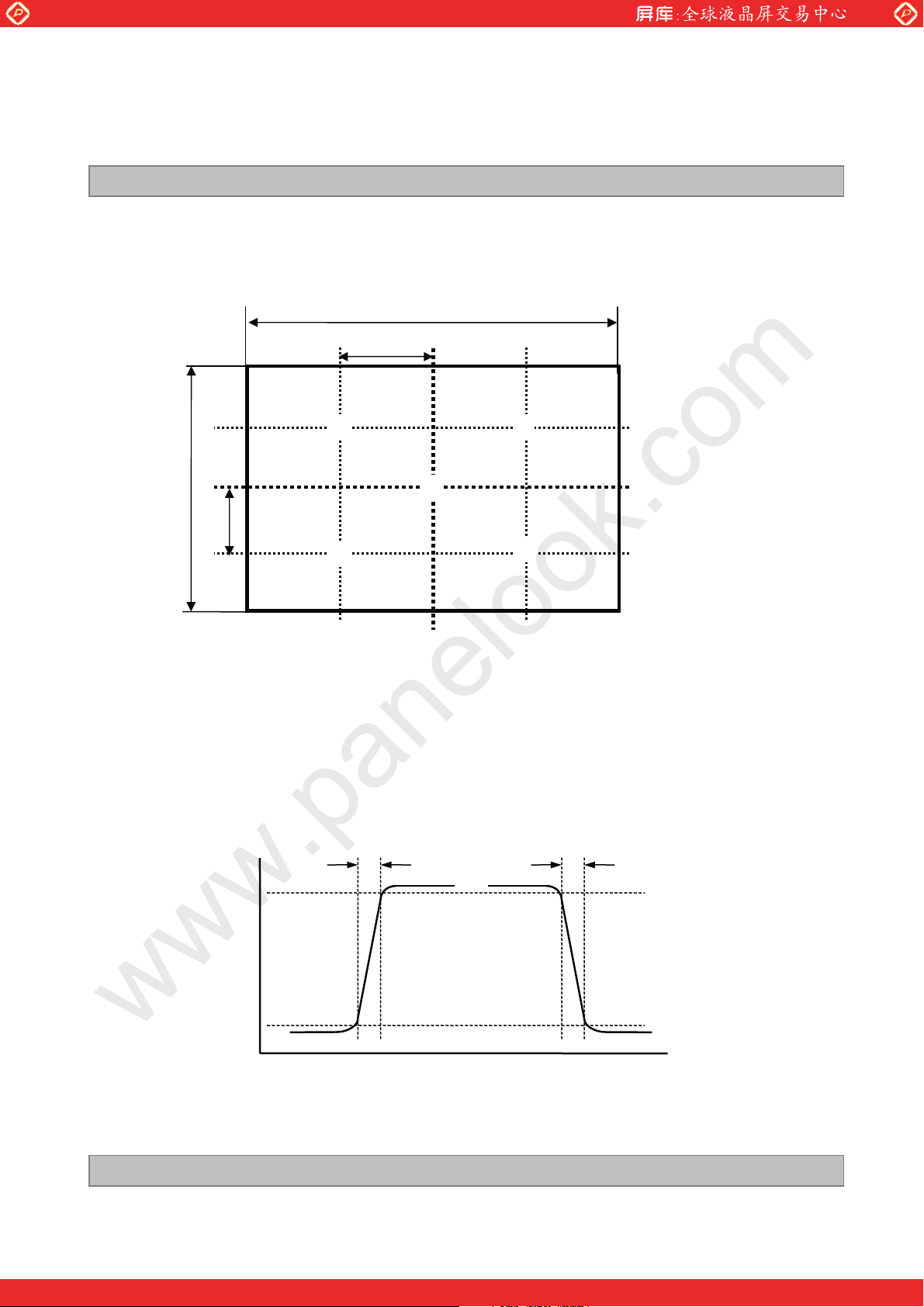

For more information see the FIG. 2.

3. The variation in surface luminance , G WHITE is defined as :

G WHITE(5P) = Maximum(L

Where L

For more information, see the FIG. 2.

Surface Luminance at all white pixels
Surface Luminance at all black pixels

on1

to L

are the luminance with all pixels displaying white at 5 locations .

on5

www.panelook.com

Product Specification

, L

on1,Lon2

on3

, L

on4

, L

) / Minimum(L

on5

on1,Lon2

, L

on3

, L

on4

, L

on5

)

LC185EXN

4. Response time is the time required for the display to transit from any gray to white (Rise Time, Tr
and from any gray to black (Decay time, Tr

୔ G to G

Spec stands for average value of all measured points.

BW

). For additional information see the FIG. 3.

D

Photo Detector : RD-80S / Field : 2 ¶

5. G to G

is Variation of Gray to Gray response time composing a picture

ɍ

G to G (ɍ) =

˲

ȭ(Xi- u)

N

2

Xi = Individual Data
u = Data average
N : The number of Data

6. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are

determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which

is normal to the LCD module surface. For more information, see the FIG. 4.

7. Gray scale specification

Gamma Value is approximately 2.2. For more information, see the Table 11.

Table 11. GRAY SCALE SPECIFICATION

Gray Level Luminance [%] (Typ.)

L0 0.10

L15 0.27

L31 1.04

L47 2.49

L63 4.68

L79 7.66

L95 11.5

L111 16.1

L127 21.6

L143 28.1

L159 35.4

L175 43.7

L191 53.0

L207 66.7

L223 79.0

L239 90.2

L255 100

)

R

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

18/36

www.panelook.com

Global LCD Panel Exchange Center

ྙ

ྛྚ

ྜྷ

ྜ

Measuring point for surface luminance & measuring point for luminance variation.

www.panelook.com

LC185EXN

Product Specification

H

A

V

B

A : H / 4 mm

FIG. 2 5 Points for Luminance Measure

Response time is defined as the following figure and shall be measured by switching the input signal for
“Gray(N)” and “Black or White”.

Tr

100

90

Tf

B : V / 4 mm
@ H,V : Active Area

Optical
Response

10

Black

Ver 0.1

0

Gray(N)

White

N = 0(Black)~255(White)

FIG. 3 Response Time

Gray(N)

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

19/36

www.panelook.com

Global LCD Panel Exchange Center

Dimension of viewing angle range

I

= 180q, Left

www.panelook.com

Product Specification

Normal

E

T

I

Y

I

= 90q, Up

LC185EXN

I

= 270q, Down

FIG. 4 Viewing Angle

I

= 0q, Right

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

20/36

www.panelook.com

Global LCD Panel Exchange Center

5. Mechanical Characteristics

Table 12 provides general mechanical characteristics.

Table 12. MECHANICAL CHARACTERISTICS

Item Value

www.panelook.com

LC185EXN

Product Specification

Horizontal 430.4 mm

Outline Dimension

Bezel Area

Active Display Area

Weight 1,040g (Typ.) , 1,100g (Max.) TBD

Vertical 254.6 mm

Depth 12.4 mm

Horizontal 413.4mm

Vertical 234.0mm

Horizontal 409.8 mm

Vertical 230.4 mm

Note : Please refer to a mechanical drawing in terms of tolerance at the next page.

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

21/36

www.panelook.com

Global LCD Panel Exchange Center

<FRONT VIEW>

www.panelook.com

LC185EXN

Product Specification

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

22/36

www.panelook.com

Global LCD Panel Exchange Center

<REAR VIEW>

www.panelook.com

LC185EXN

Product Specification

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

23/36

www.panelook.com

Global LCD Panel Exchange Center

6. Reliability

Table 13. ENVIRONMENT TEST CONDITION

No. Test Item Condition

1 High temperature storage test Ta= 60¶C 240h

2 Low temperature storage test Ta= -20¶C 240h

3 High temperature operation test Ta= 50¶C 50%RH 240h

4 Low temperature operation test Ta= 0¶C 240h

www.panelook.com

LC185EXN

Product Specification

Wave form : random

Vibration test

5

(non-operating)

Shock test

6

(non-operating)

7 Humidity condition Operation Ta= 40 ¶C ,90%RH

Altitude operating

8

storage / shipment

Vibration level : 1.0Grms
Bandwidth : 10-300Hz
Duration : X,Y,Z,

each direction per 20min

Shock level : 120G
Waveform : half sine wave, 2ms
Direction : ᇹX, ᇹY, ᇹZ

each direction

0 - 15,000 ft
0 - 40,000 ft

Note : Before and after Reliability test, LCM should be operated with normal function.

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

24/36

www.panelook.com

Global LCD Panel Exchange Center

7. International Standards

7-1. Safety

a) UL 60065, Seventh Edition, Underwriters Laboratories Inc.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

b) CAN/CSA C22.2 No.60065:03, Canadian Standards Association.

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

c) EN 60065:2002 + A11:2008, European Committee for Electrotechnical Standardization (CENELEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

d) IEC 60065:2005 + A1:2005, The International Electrotechnical Commission (IEC).

Audio, Video and Similar Electronic Apparatus - Safety Requirements.

(Including report of IEC60825-1:2001 clause 8 and clause 9)

Notes

1. Laser (LED Backlight) Information

www.panelook.com

LC185EXN

Product Specification

jGXtGslkGw

plj]W_Y\TXGaGYWWX

lGslkGwGOjGXtP

2. Caution
: LED inside.

Class 1M laser (LEDs) radiation when open.
Do not open while operating.

7-2. EMC

a) ANSI C63.4 “American National Standard for Methods of Measurement of Radio-Noise

Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.”
American National Standards Institute (ANSI), 2003.

b) CISPR 22 “Information technology equipment – Radio disturbance characteristics – Limit and

methods of measurement." International Special Committee on Radio Interference
(CISPR), 2005.

c) CISPR 13 “Sound and television broadcast receivers and associated equipment – Radio disturbance

characteristics – Limits and method of measurement." International Special Committee on Radio
Interference (CISPR), 2006.

7-3. Environment

a) RoHS, Directive 2002/95/EC of the European Parliament and of the council of 27 January 2003

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

25/36

www.panelook.com

Global LCD Panel Exchange Center

8. Packing

8-1. Information of LCM Label

a) Lot Mark

ABCDEFGHI JKLM

A,B,C : SIZE(INCH) D : YEAR
E : MONTH F ~ M : SERIAL NO.

www.panelook.com

LC185EXN

Product Specification

Note

1. YEAR

Year

Mark

210

201342014

3

201220112010

2015620167201782018

5

2. MONTH

Month

Mark

Apr5May

4

Jun7Jul8Aug9Sep

6

b) Location of Lot Mark

Serial No. is printed on the label. The label is attached to the backside of the LCD module.
This is subject to change without prior notice.

8-2. Packing Form

a) Package quantity in one Box : 12 pcs

b) Box Size : 550 mm X 322mm X 333 mm.

2019

9

Oct

A

Nov

B

DecMarFebJan

C321

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

26/36

www.panelook.com

Global LCD Panel Exchange Center

9. Precautions

Please pay attention to the followings when you use this TFT LCD module.

9-1. Mounting Precautions

(1)You must mount a module using specified mounting holes (Details refer to the drawings).
(2) You should consider the mounting structure so that uneven force (ex. Twisted stress) is not applied to the

module. And the case on which a module is mounted should have sufficient strength so that external
force is not transmitted directly to the module.

(3) Please attach the surface transparent protective plate to the surface in order to protect the polarizer.

Transparent protective plate should have sufficient strength in order to the resist external force.
(4) You should adopt radiation structure to satisfy the temperature specification.
(5) Acetic acid type and chlorine type materials for the cover case are not desirable because the former

generates corrosive gas of attacking the polarizer at high temperature and the latter causes circuit break
by electro-chemical reaction.

(6) Do not touch, push or rub the exposed polarizers with glass, tweezers or anything harder than HB

pencil lead. And please do not rub with dust clothes with chemical treatment.

Do not touch the surface of polarizer for bare hand or greasy cloth.(Some cosmetics are detrimental

to the polarizer.)
(7) When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like

chamois soaks with petroleum benzine. Normal-hexane is recommended for cleaning the adhesives
used to attach front / rear polarizers. Do not use acetone, toluene and alcohol because they cause
chemical damage to the polarizer. * There is no problem of Panel crack under 5kgf / ɐ10mm

(8) Wipe off saliva or water drops as soon as possible. Their long time contact with polarizer causes

deformations and color fading.

(9) Do not open the case because inside circuits do not have sufficient strength.

www.panelook.com

LC185EXN

Product Specification

9-2. Operating Precautions

(1) The spike noise causes the mis-operation of circuits. It should be lower than following voltage :

V=·200mV(Over and under shoot voltage)

(2) Response time depends on the temperature.(In lower temperature, it becomes longer.)
(3) Brightness depends on the temperature. (In lower temperature, it becomes lower.)

And in lower temperature, response time (required time that brightness is stable after turned on) becomes

longer.

(4) Be careful for condensation at sudden temperature change. Condensation makes damage to polarizer or

electrical contacted parts. And after fading condensation, smear or spot will occur.
(5) When fixed patterns are displayed for a long time, remnant image is likely to occur.
(6) Module has high frequency circuits. Sufficient suppression to the electromagnetic interference shall be

done by system manufacturers. Grounding and shielding methods may be important to minimized the

interference.
(7) Please do not give any mechanical and/or acoustical impact to LCM. Otherwise, LCM can’t be operated

its full characteristics perfectly.

(8) A screw which is fastened up the steels should be a machine screw.

(if not, it causes metallic foreign material and deal LCM a fatal blow)
(9) Please do not set LCD on its edge.
(10) It is recommended to avoid the signal cable and conductive material over the LED driver inductor

for it can cause the abnormal display and temperature rising.

Ver 0.1

27/36

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9-3. Electrostatic Discharge Control

Since a module is composed of electronic circuits, it is not strong to electrostatic discharge. Make certain that
treatment persons are connected to ground through wrist band etc. And don’t touch interface pin directly.

9-4. Precautions for Strong Light Exposure

Strong light exposure causes degradation of polarizer and color filter.

9-5. Storage

When storing modules as spares for a long time, the following precautions are necessary.

www.panelook.com

LC185EXN

Product Specification

(1) Store them in a dark place. Do not expose the module to sunlight or fluorescent light. Keep the temperature

between 5¶C and 35¶C at normal humidity.

(2) The polarizer surface should not come in contact with any other object.

It is recommended that they be stored in the container in which they were shipped.
(3) Storage condition is guaranteed under packing conditions.
(4) The phase transition of Liquid Crystal could be recovered if the LCM is released at the normal condition

after the low or over the storage temperature.

9-6. Handling Precautions for Protection Film

(1) The protection film is attached to the bezel with a small masking tape.

When the protection film is peeled off, static electricity is generated between the film and polarizer.

This should be peeled off slowly and carefully by people who are electrically grounded and with well ion-

blown equipment or in such a condition, etc.

(2) When the module with protection film attached is stored for a long time, sometimes there remains a very

small amount of glue still on the bezel after the protection film is peeled off.

(3) You can remove the glue easily. When the glue remains on the bezel surface or its vestige is recognized,

please wipe them off with absorbent cotton waste or other soft material like chamois soaked with normal-

hexane.

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

28/36

www.panelook.com

Global LCD Panel Exchange Center

# APPENDIX- I-1

 Packing Ass’y

www.panelook.com

LC185EXN

Product Specification

NO. DESCRIPTION MATERIAL

1 LCD Module

2 BAG Al

3 TAPE MASKING 20MMX50M

4 Packing EPS

5 Packing EPS

6 BOX PAPER_SWR4

7 TAPE OPP 70MMX300M

8 Label ART 100X70

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

29/36

www.panelook.com

Global LCD Panel Exchange Center

# APPENDIX- I-2

 Pallet Ass’y

www.panelook.com

LC185EXN

Product Specification

Ver 0.1

NO. DESCRIPTION MATERIAL

1 PACKING ASS’Y

2 PALLET Plywood

3 ANGLE, COVER PAPER (SWR4)

4 LABEL PAPER

5 BAND PP

6 CLIP, BAND STEEL

LLDPEWrap7

30/36

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC185EXN

# APPENDIX 2

# APPENDIX- II-1

غ LCM Label

Model

UL, TUV Mark

LGD Logo

US PATENT No.

LC185EXN
(SD)(A1)

RoHS Verified

Product Specification

XXXXXXXXXXX

L5EDD4Q00008

************* ***

LIGHT GUIDE : >PMMA<

MADE IN KOREA

Serial No.

Origin

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

31/36

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

LC185EXN

# APPENDIX 3

Product Specification

# APPENDIX- II-2

 Box Label  Pallet Label

LC185EXN SDA1

12 PCS

MADE IN KOREA

LOT/MM-DD

RoHS Verified

XXXXXXXXXXX

************* ***

LC185EXN SDA1

216 PCS

MADE IN KOREA

************* ***

LOT/MM-DD

RoHS Verified

XXXXXXXXXXX

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

32/36

www.panelook.com

Global LCD Panel Exchange Center

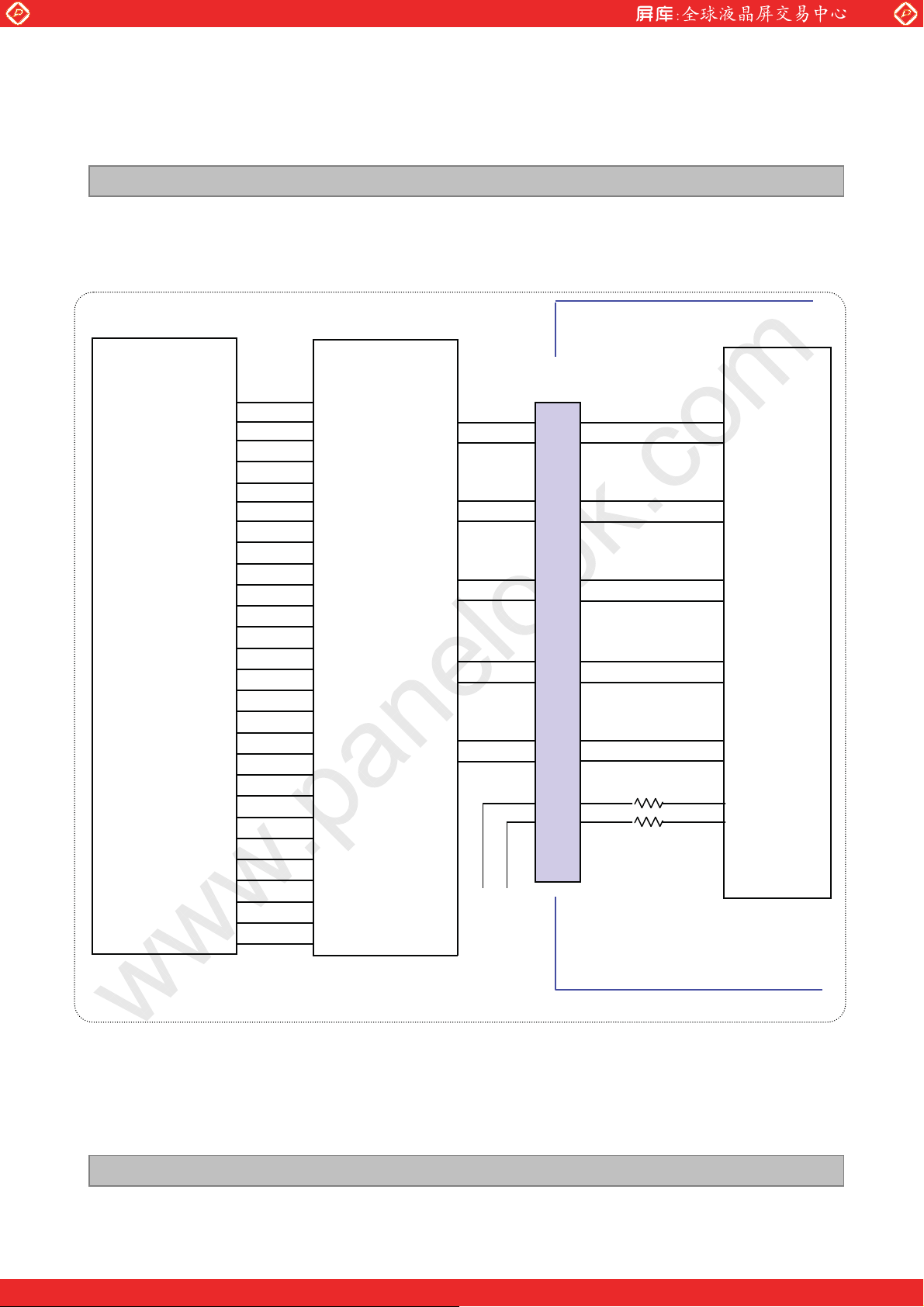

# APPENDIX- III-1

 Required signal assignment for Flat Link Transmitter (Pin 21 =“L or NC”)

www.panelook.com

LC185EXN

Product Specification

Host System

24 Bit

RED0
RED1
RED2
RED3
RED4
RED5
RED6

RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync
Vsync

Data Enable

CLOCK

DS90C385

or Compatible

51
52
54
55
56
3
50
2
4
6
7
11
12
14
8
10
15
19
20
22
23
24
16
18
27
28
30
31

TxOUT0­TxOUT0+

TxOUT1­TxOUT1+

TxOUT2­TxOUT2+

TxCLKOUT­TxCLKOUT+

TxOUT3­TxOUT3+

KDF71G-30S-1H

48

47

46

45

42

41

40

39

38

37

GND

GND

5
6

8
9

11
12

14
15

17
18

21

1

Timing

Controller

RxIN0­RxIN0+

RxIN1­RxIN1+

RxIN2­RxIN2+

RxCLKIN­RxCLKIN+

RxIN3­RxIN3+

1༮

VESA / JEIDA

LCD Test

1༮

LCD Module

Notes:

1. The LCD module uses a 100 ohm(ᆅ) resistor between positive and negative lines of T-con Internal.

2. Refer to LVDS transmitter data sheet for detail descriptions. (DS90C385 or Compatible)

3. ‘ 7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

33/36

www.panelook.com

Global LCD Panel Exchange Center

# APPENDIX- III-2

 Required signal assignment for Flat Link Transmitter (Pin 21 =“H”)

www.panelook.com

LC185EXN

Product Specification

Host System

24 Bit

RED0

RED1

RED2

RED3

RED4

RED5

RED6

RED7
GREEN0
GREEN1
GREEN2
GREEN3
GREEN4
GREEN5
GREEN6
GREEN7

BLUE0
BLUE1
BLUE2
BLUE3
BLUE4
BLUE5
BLUE6
BLUE7

Hsync
Vsync

Data Enable

CLOCK

DS90C385

or Compatible

50
2
51
52
54
55
56
3
8
10
4
6
7
11
12
14

16
18
15
19
20
22
23
24
27
28
30
31

TxOUT0­TxOUT0+

TxOUT1­TxOUT1+

TxOUT2­TxOUT2+

TxCLKOUT­TxCLKOUT+

TxOUT3­TxOUT3+

KDF71G-30S-1H

48

47

46

45

42

41

40

39

38

37

GND

VCC

5
6

8
9

11
12

14
15

17
18

21

1

Timing

Controller

RxIN0­RxIN0+

RxIN1­RxIN1+

RxIN2­RxIN2+

RxCLKIN­RxCLKIN+

RxIN3­RxIN3+

1༮

VESA / JEIDA

LCD Test

1༮

LCD Module

Notes:

1. The LCD module uses a 100 ohm(ᆅ) resistor between positive and negative lines of T-con Internal.

2. Refer to LVDS transmitter data sheet for detail descriptions. (DS90C385 or Compatible)

3. ‘ 7’ means MSB and ‘0’ means LSB at R,G,B pixel data.

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

34/36

www.panelook.com

Global LCD Panel Exchange Center

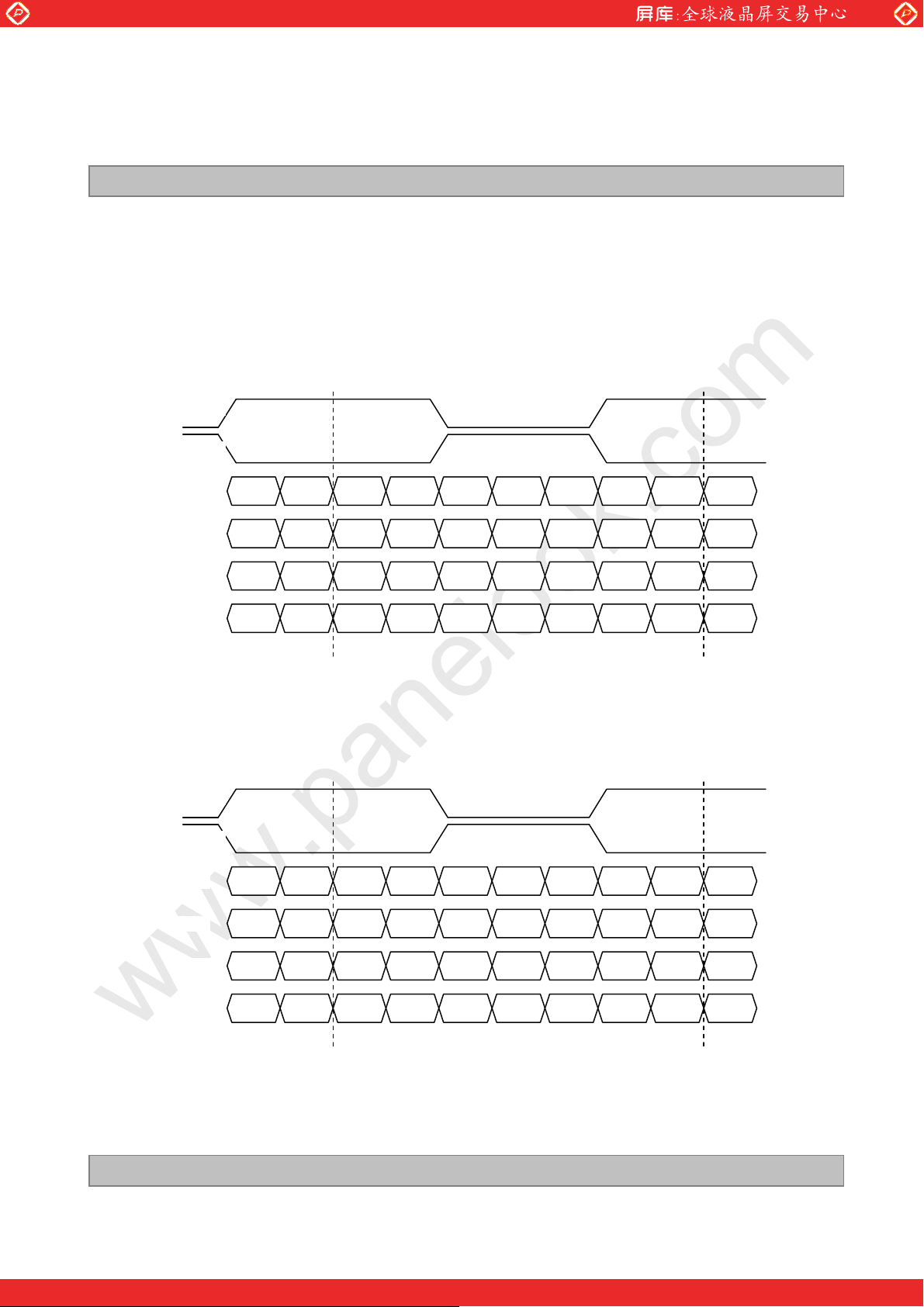

# APPENDIX- VI

LVDS Data-Mapping info. (8bit)

 LVDS Select : “H” Data-Mapping (JEIDA format)

RCLKP

RCLKM

www.panelook.com

LC185EXN

Product Specification

RAP

RBP

RCP

RDP

R17 R16 R15 R14G12 R13R12’ R12R13’ G12”

B12 G17 G16 G15B13 G14G13’ G13G14’ B13”

V

SYNCHSYNC

B11 B10 G11 G10X R11R10’ R10R11’ X”

B17 B16DE B15B14’ B14B15’ DE”

 LVDS Select : “L or NC” Data-Mapping (VESA format)

RCLKP

RCLKM

RAP

RBP

R15 R14 R13 R12G10 R11R10’ R10R11’ G10”

B10 G15 G14 G13B11 G12G11’ G11G12’ B15”

Ver 0.1

RCP

RDP

V

SYNCHSYNC

B17 B16 G17 G16X R17R16’ R16R17’ X”

B15 B14DE B13B12’ B12B13’ DE”

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

35/36

www.panelook.com

Global LCD Panel Exchange Center

˟

˟

˟

˟

# APPENDIX- V

Option Pin Circuit Block Diagram

Circuit Block Diagram of LVDS Format Selection pin

www.panelook.com

LC185EXN

Product Specification

VCC

OPEN

Selector (Pin 21)

1K

System Side LCM Side

Circuit Block Diagram of FGD_EN Selection pin

VCC

Open

Selector (Pin 2)

1K

66K

Selector

ASIC

(TCON)

Selector

66K

ASIC

(TCON)

System Side LCM Side

Ver 0.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

36/36

www.panelook.com
