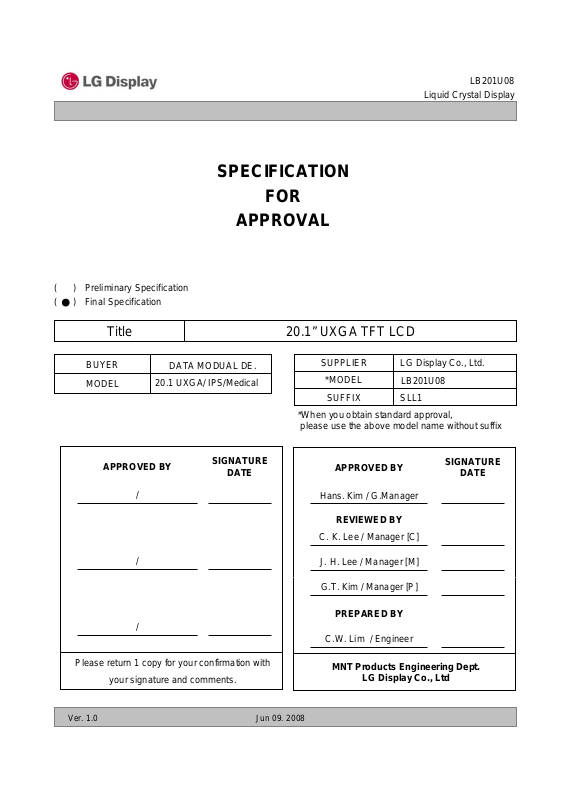

LG Display LB201U08-SLL1 Specification

LB201U08

LB201U08LB201U08LB201U08

Liquid Crystal Display

SPECIFICATION

FOR

APPROVAL

)

(
(

Preliminary Specification

)

Final Specification

●

Title 20.1” UXGA TFT LCD

BUYER
MODEL

APPROVED BY

DATA MODUAL.

DATA MODUAL DE.

DATA MODUAL.

20.1 UXGA/ IPS/Medical

20.1 UXGA/ IPS/Medical

SIGNATURE

/

/

/

DATE

LG Display Co., Ltd.SUPPLIER

*MODEL

*When you obtain standard approval,

please use the above model name without suffix

APPROVED BY

Hans. Kim / G.Manager

REVIEWED BY

C. K. Lee / Manager [C]

J. H. Lee / Manager [M]

G.T. Kim / Manager [P]

PREPARED BY

C.W. Lim / Engineer

LB201U08
SLL1SUFFIX

SIGNATURE

DATE

Please return 1 copy for your confirmation with

your signature and comments.

Ver. 1.0 Jun 09. 2008

MNT Products Engineering Dept.

LG Display Co., Ltd

LB201U08

Liquid Crystal Display

Product Specification

Contents

No ITEM Page

COVER
CONTENTS

RECORD OF REVISIONS 3

1 GENERAL DESCRIPTION
2 ABSOLUTE MAXIMUM RATINGS
3 ELECTRICAL SPECIFICATIONS

3-1 ELECTRICAL CHARACTREISTICS

3-2 INTERFACE CONNECTIONS
3-3 SIGNAL TIMING SPECIFICATIONS

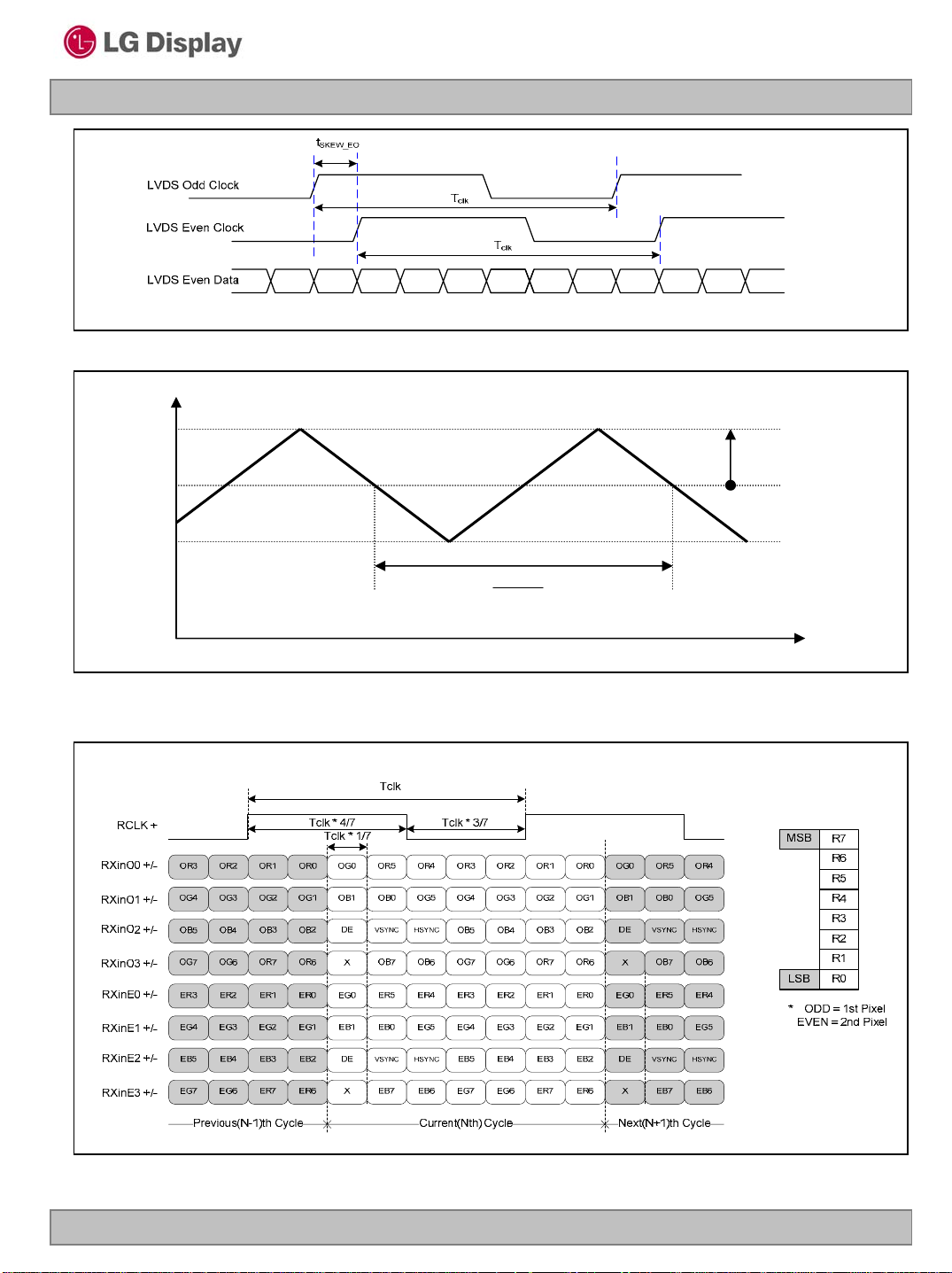

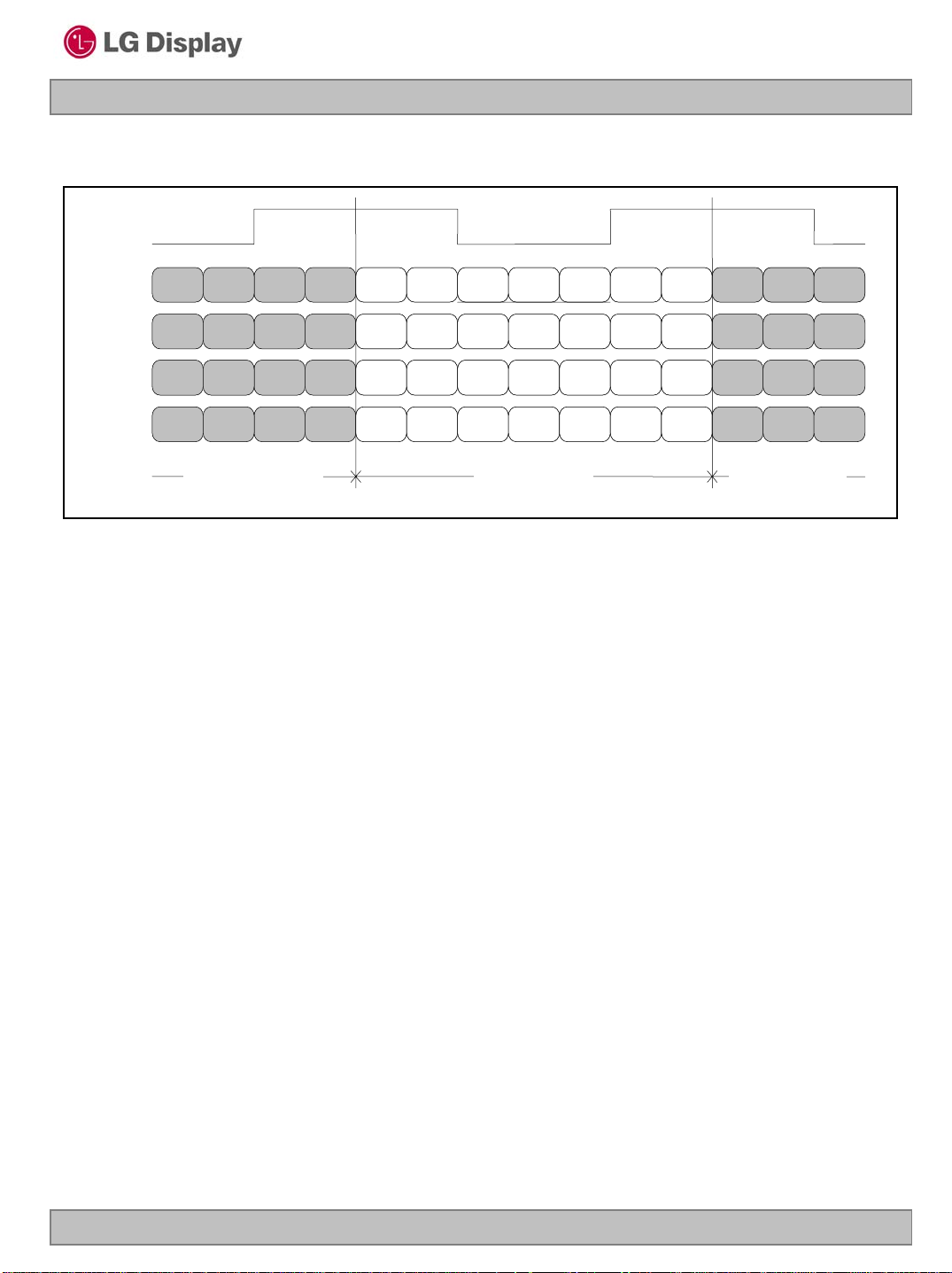

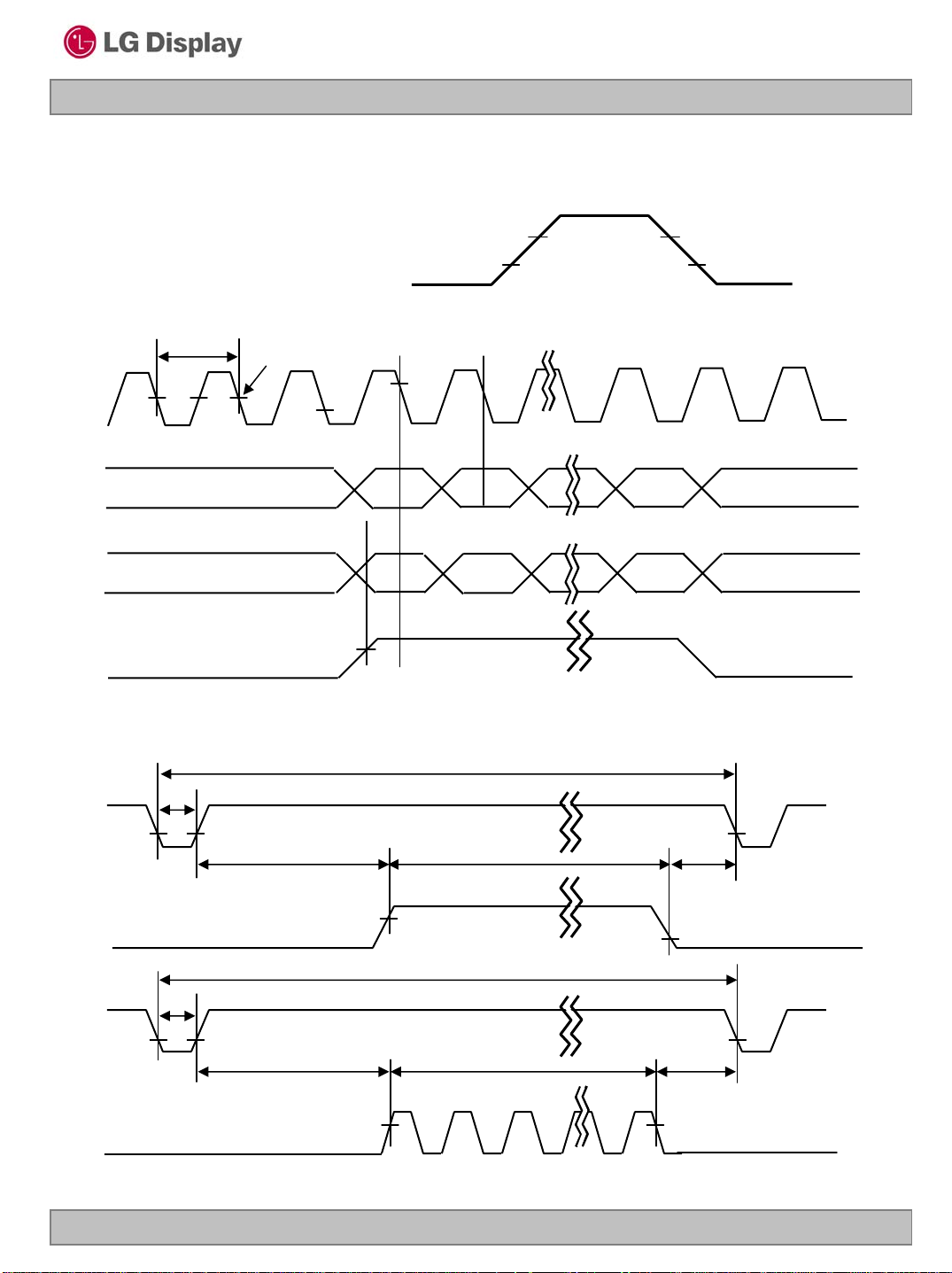

3-4 SIGNAL TIMING WAVEFORMS
3-5 COLOR INPUT DATA REFERNECE

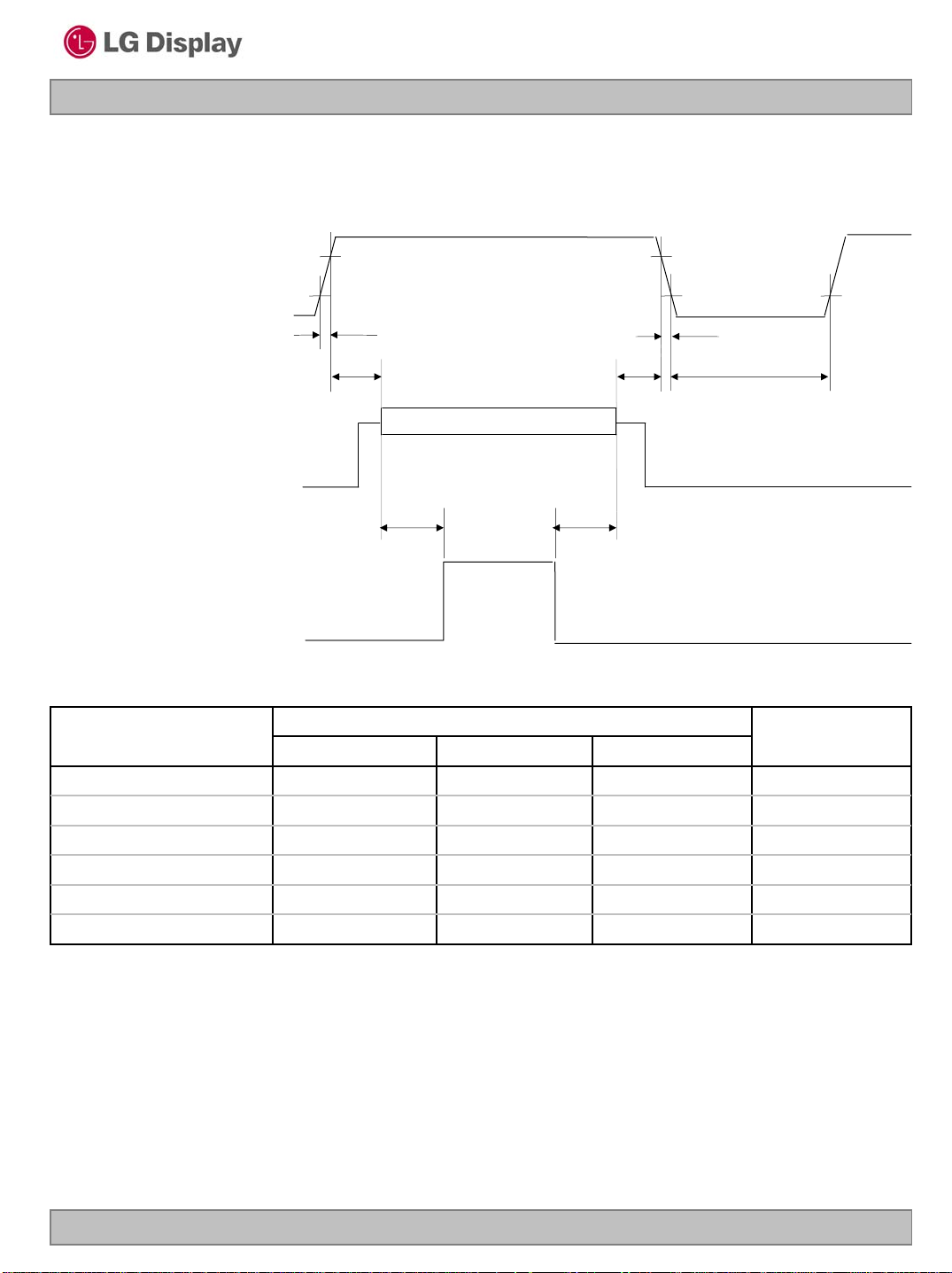

3-6 POWER SEQUENCE

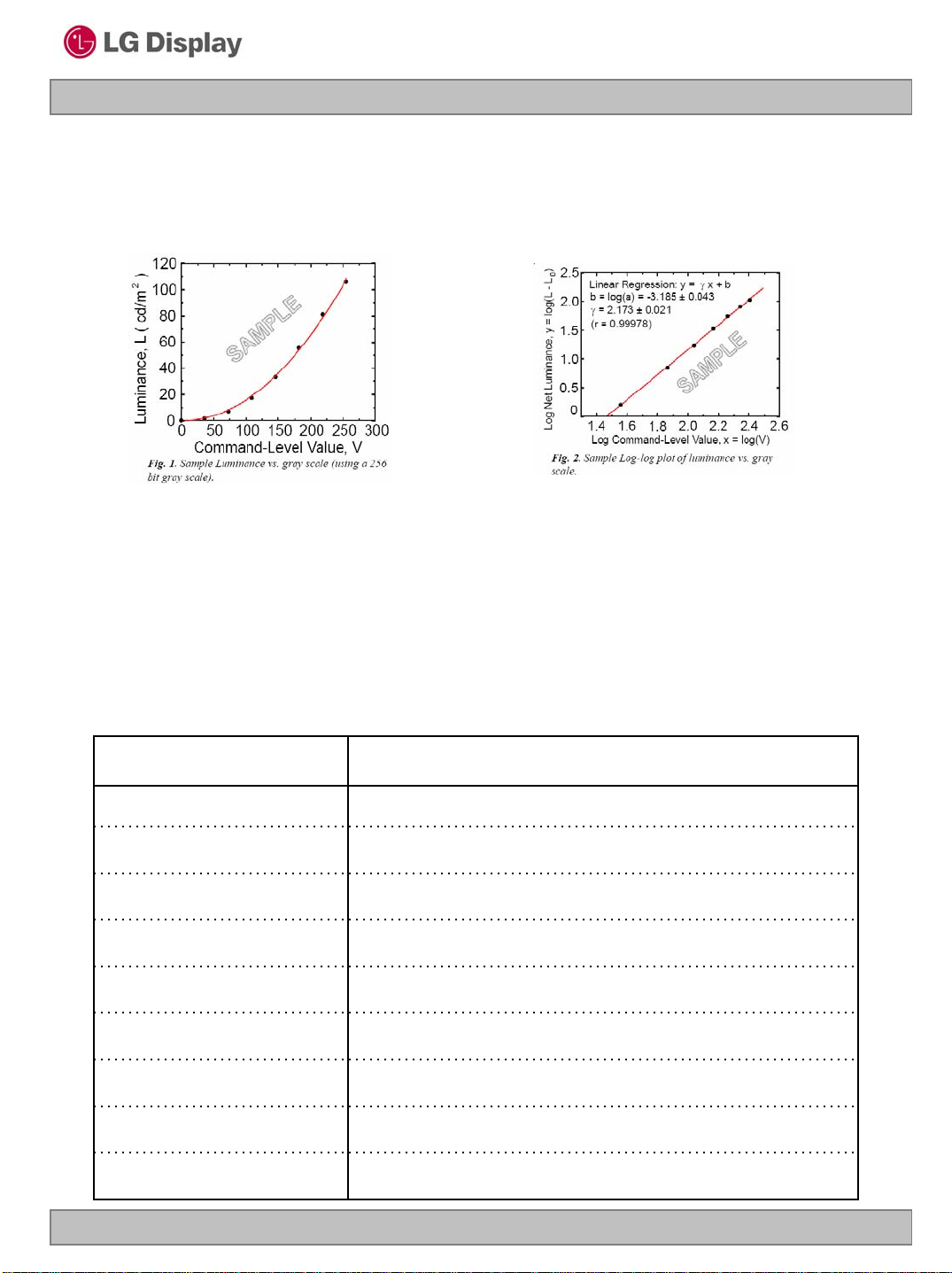

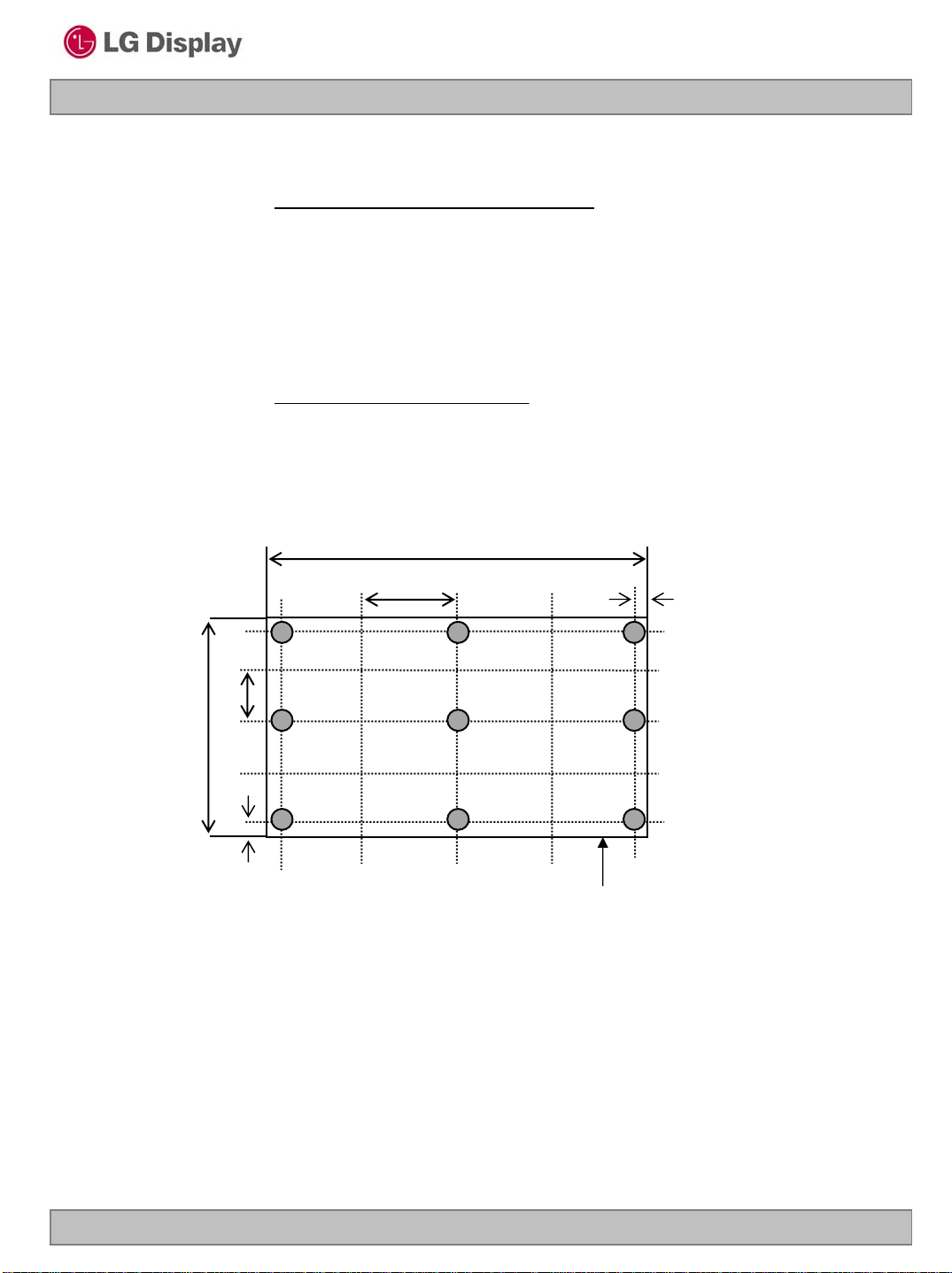

4 OPTICAL SFECIFICATIONS

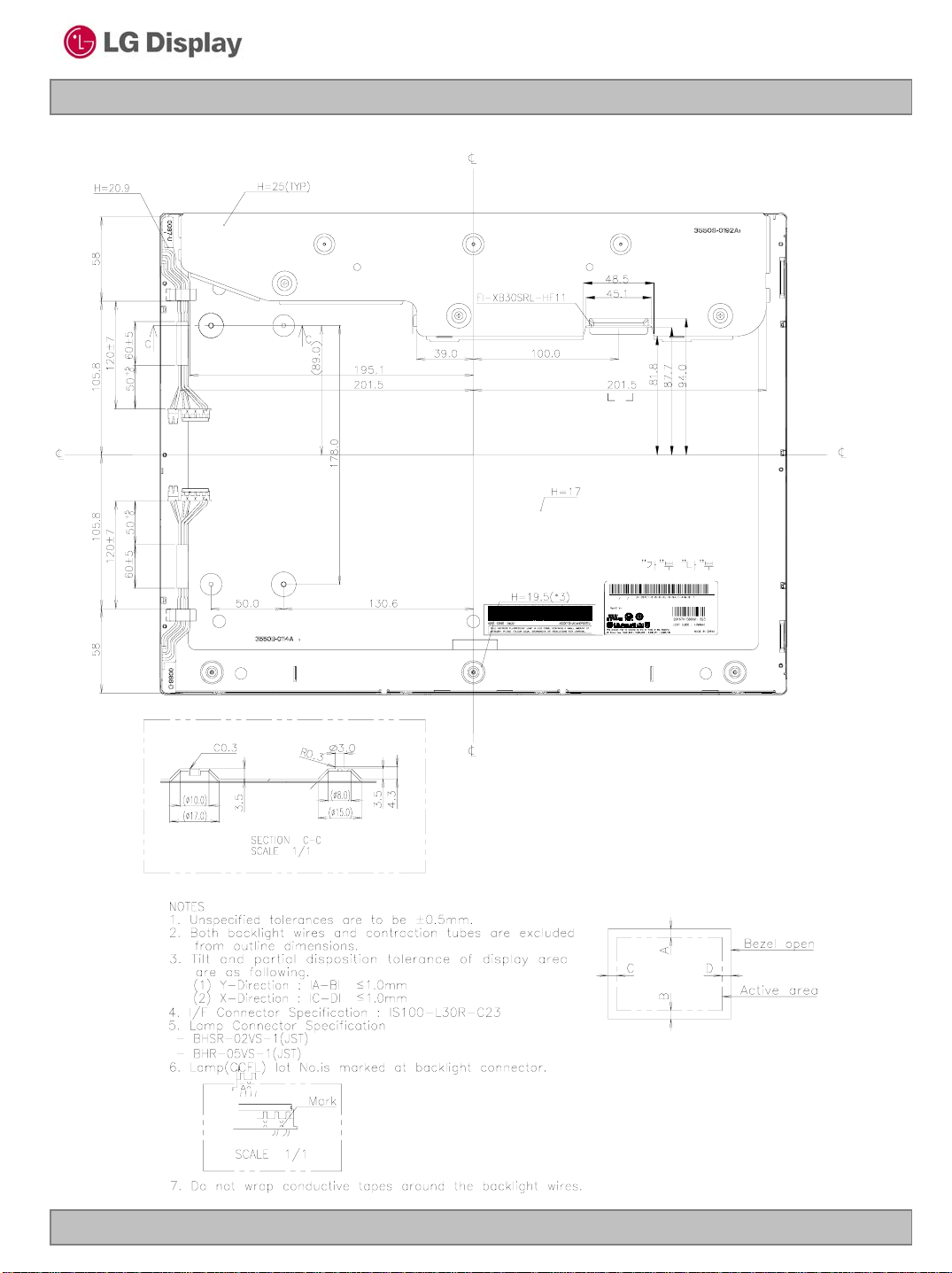

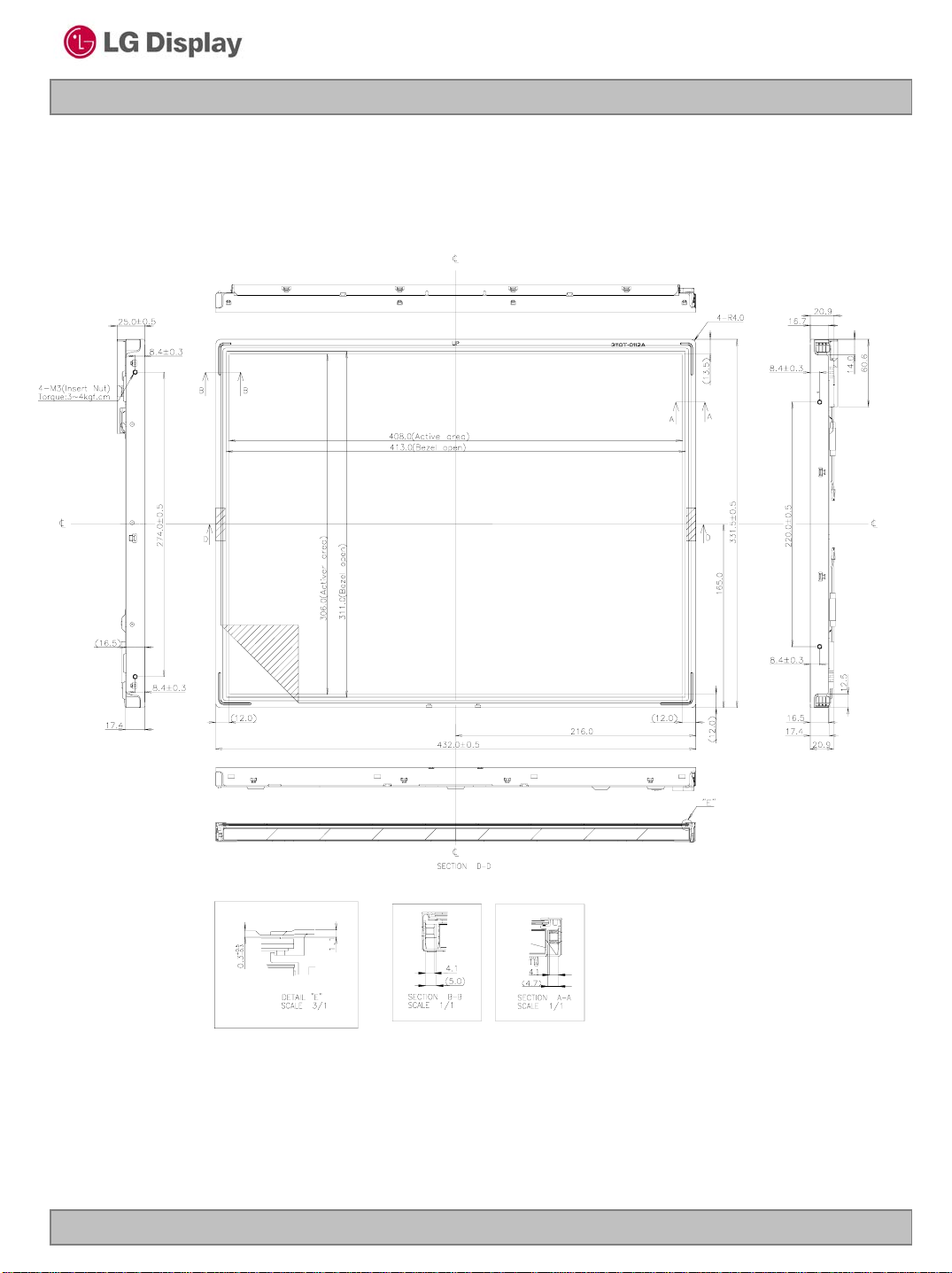

5 MECHANICAL CHARACTERISTICS
6 RELIABILITY

1
2

4
5
6
6
9

16
17

18
19
20
25
28

7 INTERNATIONAL STANDARDS

7-1 SAFETY

7-2 EMC 29

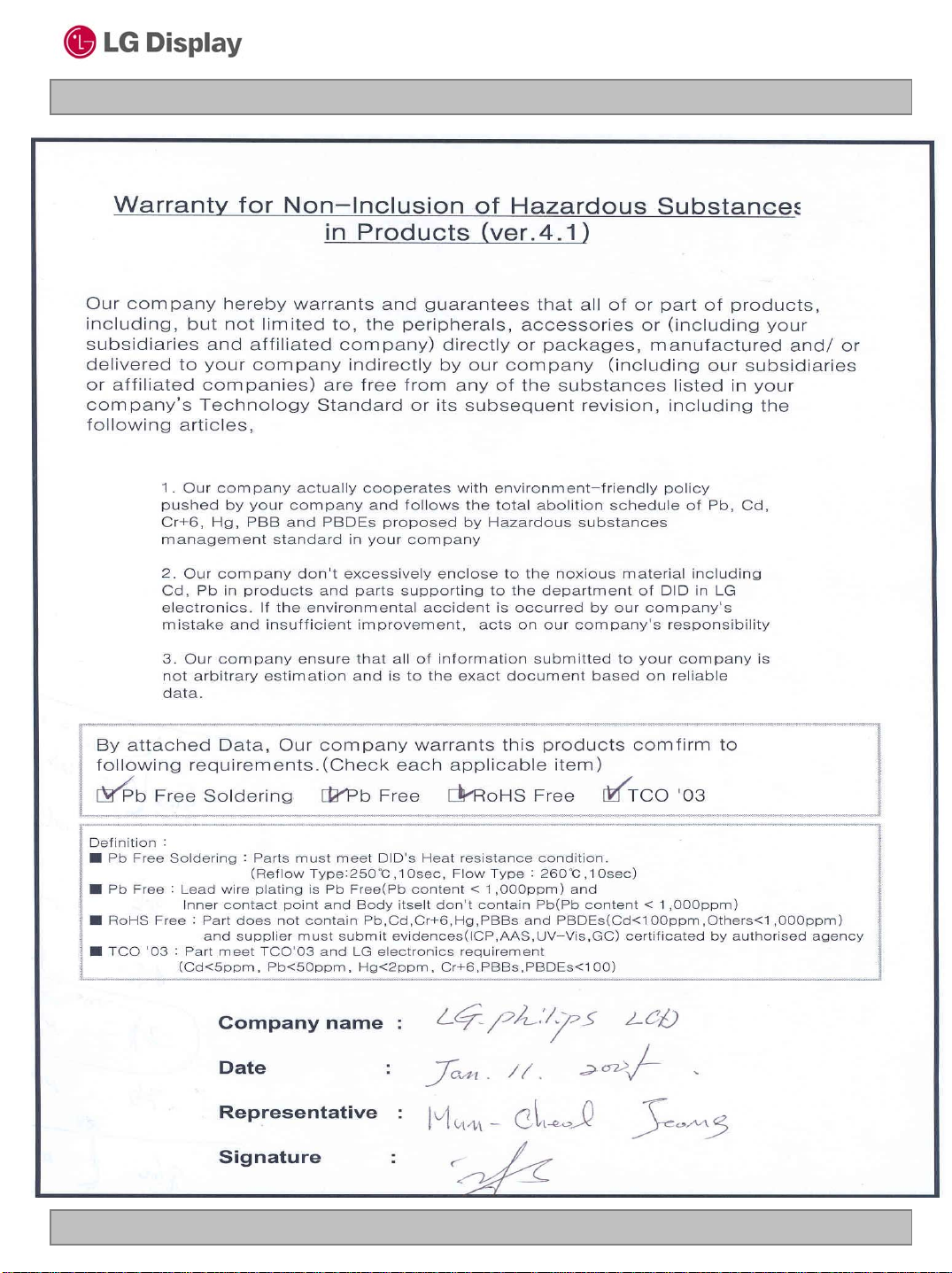

7-3 ENVIRONMENT 29

8 PACKING

8-1 DESIGNATION OF LOT MARK

8-2 PACKING FORM
9 PRECAUTIONS 31

Ver. 1.0 Jun 09. 2008

29
29

30
30
30

2/ 33

Product Specification

RECORD OF REVISIONS

Revision No Revision Date Page DESCRIPTION

0.0 Feb. 15. 2008 - Preliminary Specification

1.0 Jun. 09. 2008 - Final specification

15 Correction of the Lamp CNT No.
29 Changed the RoHS sentence

30 Updated the Packing form

LB201U08

Liquid Crystal Display

Ver. 1.0 Jun 09. 2008

3/ 33

LB201U08

Liquid Crystal Display

Product Specification

1. General Description

LB201U08 is a Color Active Matrix Liquid Crystal Display with an integra l Cold Cathode Fluorescent
Lamp(CCFL) backlight system. The matrix employs a-Si Thin Film Transistor as the active element.
It is a transmissive type display operating in the normally black mode. It has a 20.1 inch diagonally measured
active display area with UXGA resolution (1200 vertical by 1600 horizontal pixel array)
Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arranged in vertical stripes.
Gray scale or the brightness o f the sub-pixel color is determined w ith a 8-bit gray scale s ignal for each dot,
thus, presenting a palette of more than 16,7M(True) colors.
It has been designed to apply the 8Bit 2 port LVDS interface.
It is intended to support displays where high brightness, super wide viewing angle,
high color saturation, and high color are important, e.x. medical display &work station display.

RGB, Dclk, DE
Hsync, Vsync

(LVDS 2 port)

(+20V)

V

LCD

CN1

(30pin)

Timing Control

Block

Gate Driver circuit

G1

TFT-LCD Panel

Source Driver Circuit

(1600 × 1200 pixels)

V
V

Lamp

Lamp

Power Circuit Block

G1200

CN2(5PIN), 3(2PIN)

Backlight Assembly(6 CCFL)

CN4(2PIN), 5(5PIN)

General Features

Active Screen Size 20.1 inches(510.54mm) diagonal
Outline Dimension 432.0(H) x 331.5(V) x 25.0(D) mm(Typ.)
Pixel Pitch 0.255mm x 0.255mm
Pixel Format 1600 horizontal By 1200 vertical Pixels RGB stripe arrangement
Color Depth 8bit, 16,7 M colors
Luminance, White 300 cd/m2 (Center 1 point, Typ.)
Viewing Angle (CR>10) Viewing Angle Free ( R/L 178(Typ.), U/D 178(Typ) )
Power Consumption Total 35.38 Watt(Typ.) (5.98 Watt@V

Weight 3200 g (Typ.)
Display Operating Mode Transmissive mode, normally black

Surface Treatment Hard coating (3H), Anti-glare treatment of the front polarizer

, 29.4 Watt@300cd/[LAMP=7mA])

LCD

S1600S1

Ver. 1.0 Jun 09. 2008

4/ 33

LB201U08

Liquid Crystal Display

Product Specification

2. Absolute Maximum Ratings

The following are maximum values which, if exceeded, may cause faulty operation or damage to the unit.

Table 1. ABSOLUTE MAXIMUM RATINGS

Parameter

Units

Min Max

Values

Power Input Voltage
Operating Temperature
Storage Temperature
Operating Ambient Humidity
Storage Humidity

V

OP

T

ST

T

OP

H

ST

H

-0.3 23.0 Vdc at 25 ± 2 °C
0 50

-20 60

°C
°C

10 90 %RH 1
10 90 %RH 1

LCD

Note : 1. Temperature and relative humidity range are shown in the figure below.

Wet bulb temperature should be 39 °C Max, and no condensation of water.

90%

60

60%

NotesSymbol

1
1

Wet Bulb

50

Temperature [C]

40

30

20

10

0

10 20 30 40 50 60 70 800-20

Dry Bulb Temperature [C]

Ver. 1.0 Jun 09. 2008

40%

10%

Storage

Operation

Humidity [(%)RH]

5/ 33

LB201U08

Liquid Crystal Display

Product Specification

3. Electrical Specifications
3-1. Electrical Characteristics

It requires two power inputs. One is employed to power the LCD electronics and to drive the TFT array and
liquid crystal. The second input power for the CCFL, is typically generated by an inverter. The inverter is an
external unit to the LCDs.

Table 2_1. ELECTRICAL CHARACTERISTICS

Parameter Symbol

MODULE :

Power Supply Input Voltage V

Power Supply Input Current I

Power Consumption P
Rush current I

LCD

LCD

LCD

RUSH

Min Typ Max

17V 18V 19V Vdc

- 332 382 mA 1

- 419 481 mA 2

- 5.98 6.88 Watt 1

- - 3 A 3

Values

Note :

1. The specified current and power consumption are under the V

=18.0V, 25 ± 2°C,fV=60Hz condition

LCD

whereas mosaic pattern(8 x 6) is displayed and fVis the frame frequency.

2. The current is specified at the maximum current pattern.

3. The duration of rush current is about 2ms and rising time of power Input is 1ms(min.).

White : 255Gray

Maximum current pattern

Black : 0Gray

Unit Notes

Mosaic Pattern(8 x 6)

Ver. 1.0 Jun 09. 2008

White Pattern

6/ 33

Product Specification

Table 2_2. ELECTRICAL CHARACTERISTICS

LB201U08

Liquid Crystal Display

Parameter Symbol

LAMP :

Operating Voltage V
Operating Current I
Established Starting Voltage Vs 2, 4

BL

BL

Min Typ Max

670(8.0mA) 700 825(3mA) V

3.0 7.0 8.0 mA

at 25 °C
at 0 °C

BL

Operating Frequency
Discharge Stabilization Time
Power Consumption
Life Time

f

Ts - - 3 Min 2, 6

BL

P

40 50 80 kHz 5

45,000 Hrs 2, 8

Values

1150 V
1450 V

29.4 32.3 Watt 7

Unit Notes

RMS

RMS

RMS

RMS

Note : The design of the inverter must have specifications for the lamp in LCD Assembly.

The performance of the Lamp in LCM, for e xample life time or brightness, is e xtremely influenced by

the characteristics of the DC-AC inverter. So all the parameters of an inverter should be carefully

designed so as not to produce too much leakage current from high-voltage output of the inverter.

When you design or order the inverter, please make sure unwanted lighting caused by the mismatch
of the lamp and the inverter (no lighting, flicker, etc) ne ver occurs. When you confirm it, the LCD–
Assembly should be operated in the same condition as installed in you instrument.

※ Do not attach a conducting tape to lamp connecting wire.

If the lamp wire attach to a conducting tape, TFT-LCD Module has a low luminance and the inverter
has abnormal action. Because leakage current is occurred between lamp wire and conducting tape.

1, 3

2

1. It is only reference voltage in LCM.

2. Specified values are for a single lamp.

3. Operating voltage is measured at 25 ± 2°C.

4. The voltage above V

should be applied to the lamps for more than 1 second for start-up.

S

(Inverter open voltage must be more than lamp starting voltage.)

Otherwise, the lamps may not be turned on. The used lamp current is the lamp typical current.

5. Lamp frequency may produce interface with horizonta l synchronous frequency and as a result this may
cause beat on the display. Therefore lamp frequency shall be as away possible from the horizontal

synchronous frequency and from its harmonics in order to prevent interference.

6. Let’s define the brightness of the lamp after being lighted for 5 minutes as 100%.

TSis the time required for the brightness of the center of the lamp to be not less than 95%.

7. The lamp power consumption shown above does not include loss of external inverter.

The used lamp current is the lamp typical current. (PBL= VBLx IBLx N

Lamp

)

8. The life is determined as the time at which brightness of the lamp is 50% compared to that of initial

value at the typical lamp current on condition of continuous operating at 25 ± 2°C.

Ver. 1.0 Jun 09. 2008

7/ 33

LB201U08

Liquid Crystal Display

Product Specification

9. The output of the inverter must have symmetrical(negative and positive) voltage waveform and
symmetrical current waveform (Unsymmetrical ratio is less than 10%). Please do not use the inverter
which has unsymmetrical voltage and unsymmetrical current and spike wave.
Requirements for a system inverter design, which is intended to have a better display performance, a

better power efficiency and a more reliable lamp, are following.
It shall help increase the lamp lifetime and reduce leakage current.

a. The asymmetry rate of the inverter waveform should be less than 10%.
b. The distortion rate of the waveform should be within √2 ±10%.

* Inverter output waveform had better be more similar to ideal sine wave.

* Asymmetry rate:

p

I

| I p–I –p| / I

rms

x 100%

-p

I

I p(or I –p) / I

rms

10. The inverter which is combined with this LCM, is highly recommended to connect coupling(ballast)
condenser at the high voltage output side. When you use the inverter which has not coupling(ballast)
condenser, it may cause abnormal lamp lighting because of biased mercury as time goes.

11.In case of edgy type back light with over 4 parallel lamps, input current and voltage wave form should
be synchronized

* Distortion rate

Ver. 1.0 Jun 09. 2008

8/ 33

Liquid Crystal Display

Product Specification

3-2. Interface Connections

─LCD Connector(CN1) : AL230F-ALG1D-P (Manufactured by P-TWO) or IS100-L30R-C23

(Manufactured by UJU) or Equivalent

─Mating Connector : FI-X30M (Manufactured by JAE) or Equivalent

Table 3. MODULE CONNECTOR(CN1) PIN CONFIGURATION

Pin DescriptionSymbol

LB201U08

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

1
2
3
4
5
6
7
8
9

Vcc
Vcc
Vcc
Vcc
NC
NC
SR3P
SR3M
SCLKINP
SCLKINM
SR2P
SR2M
SR1P
SR1M
SR0P
SR0M
GND
GND
FR3P
FR3M
FCLKINP
FCLKINM
FR2P
FR2M
FR1P
FR1M
FR0P
FR0M
GND
GND

Supply voltage for LCD module
Supply voltage for LCD module
Supply voltage for LCD module
Supply voltage for LCD module
NC (No Connection)
NC (No Connection)
Plus signal of even channel 3 (LVDS)
Minus signal of even channel 3 (LVDS)
Plus signal of even clock channel (LVDS)
Minus signal of even clock channel (LVDS)
Plus signal of even channel 2 (LVDS)
Minus signal of even channel 2 (LVDS)
Plus signal of even channel 1 (LVDS)
Minus signal of even channel 1 (LVDS)
Plus signal of even channel 0 (LVDS)

Minus signal of even channel 0 (LVDS)
Ground
Ground
Plus signal of odd channel 3 (LVDS)

Minus signal of odd channel 3 (LVDS)

Plus signal of odd clock channel (LVDS)

Minus signal of odd clock channel (LVDS)

Plus signal of odd channel 2 (LVDS)

Minus signal of odd channel 2 (LVDS)

Plus signal of odd channel 1 (LVDS)

Minus signal of odd channel 1 (LVDS)

Plus signal of odd channel 0 (LVDS)

Minus signal of odd channel 0 (LVDS)
Ground
Ground

Second data

First data

Note: 1. NC: No Connection.

2. All GND(ground) pins should be connected together and to Vss which should also be connected to
the LCD’s metal frame.

3. All V

(power input) pins should be connected together.

LCD

4. Input Level of LVDS signal is based on the IEA 664 Standard.

Ver. 1.0 Jun 09. 2008

9/ 33

Product Specification

User Connector Diagram

LB201U08

Liquid Crystal Display

#30

IS100-L30R-C23 (UJU)

#1

PCB

#30

Input connector

Rear view of LCM

Components

#1

PCB

BackLight

Ver. 1.0 Jun 09. 2008

10 / 33
