LG V-CD281HT, V-CD281HTU User guide [he]
V-CD281N**
V-CD281H**
V-CD201N**
V-CD201H**
2
Table of contents
Information for Your Safety......................................................................................3
How to Use.................................................................................................................4
Assembling cleaner...............................................................................................................4
Using the cleaning head and Accessory Nozzles..................................................................6
Emptying the Dust Chamber .................................................................................................8
Cleaning the Filter ................................................................................................................9
Operating the cleaner..........................................................................................................10
Cleaning the Exhaust Filter .................................................................................................11
How to use elbow tube, turbine brush.................................................................................12
User's guide for sani punch vacuum nozzle ........................................................13
Features ..............................................................................................................................13

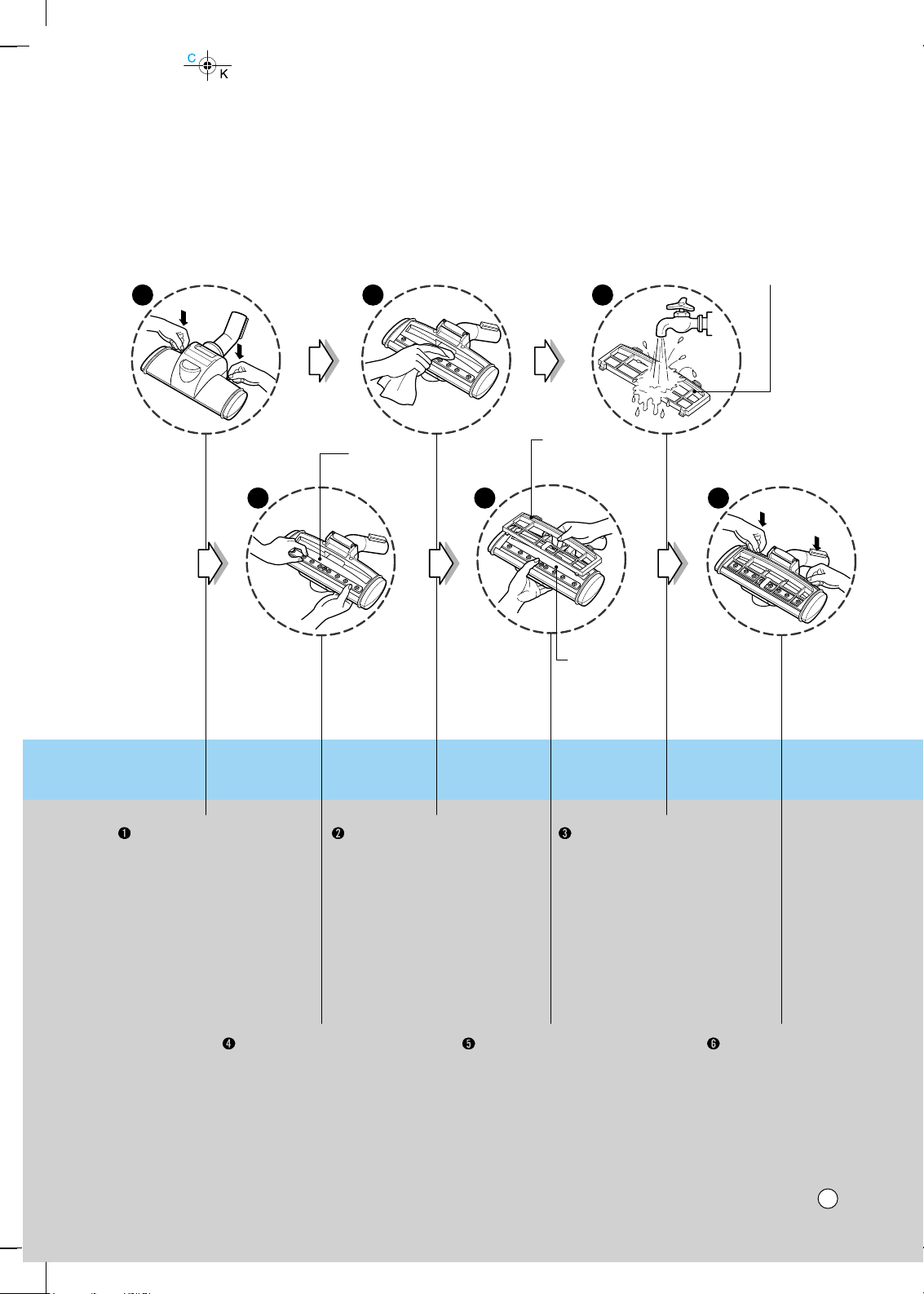

Cleaning Vacuum Nozzle for Bedding.................................................................................15
3
Information for Your Safety
Please read all the following information, which contains important instructions for the safety,
the use and the maintenance of the appliance.
This appliance complies with the following EC Directives: -73/23/EEC,
93/68/EEC-Low Voltage Directive-89/336EEC -EMC Directive.
❏ Never allow children to use the appliance unsupervised.
❏ Do not use the appliance If the power cord is damaged or faulty.
❏ If the power cord is damaged, it must be replaced by an approved LG Electronics Service Agent to avoid a hazard.
❏ Always switch the vacuum cleaner off before:
Emptying the dust chamber.
Cleaning or changing the filters.
❏ Do not vacuum flammable or explosive substances(liquids or gases).
❏ Do not vacuum hot ash, embers etc. nor sharp objects.
❏ Do not vacuum water or other liquids.
❏ Do not unplug by pulling on cord.
❏ Use only LG's recommended filters.
❏ When you vacuum with an attachment appliance that has a rotating brush roller:
Do not reach into the running brush roller.
Thermal protector: This vacuum cleaner has a special thermostat that protects the cleaner in
case of motor overheating. If the cleaner suddenly shuts off, turn off the switch and unplug the
cleaner. Check the cleaner for a possible source of overheating such as a full dust chamber, a blocked
hose or clogged filter. If these conditions are found, clean the dust chamber and filters (refer to 8~9 page) and wait at least 30
minutes before attempting to use the cleaner. After the 30 minutes period, plug the cleaner back in and
turn on the switch. If the cleaner still does not run, contact a qualified electrician.
1
2
Spring latch
Telescopic
tube
How to Use
Assembling Cleaner
4
Fit the large cleaning head into the end of the tube.
The 2 position head
Push telescopic tube into nozzle outlet.
Telescopic tube (depending on model)
• Press the spring latch to release.
• Pull out the tube to the desired length.
• Release spring latch to lock the tube in
position.
• Push telescopic tube into hose handle firmly.
NT**
NE**
HT**
HE**
5
Connecting the flexible hose
• Push the end of the head on the flexible hose
into the attachment point on the vacuum cleaner.
• To remove the flexible hose from the vacuum
cleaner, press on the button situated on the head,
then pull the head out of the vacuum cleaner.
CAUTION
• Suction power may be weakened when insignificant dusts
are sucked. In this case, clean the filter.
• Make the dust box empty if dusts are filled to the maximum
degree and then clean the filter when it becomes 5 times.
Button
3
Head
Flexible Hose
(depending on model)
(depending on model)
Attachment Point
3 4 5 6 71 2
(depending on model) (depending on model)
4 5
(depending on model) (depending on model)
Pedal
Sani punch nozzle (depending on model)
Refer to Page 13~16
The 2 position head (depending on model)
• The 2 position cleaning head equipped with
a pedal which allows you to alter its position
according to the type of floor to be cleaned.
• Hard floor position (tiles, parquets floor)
Press the pedal to lower brush.
• Carpet or rug position
Press the pedal to lift the brush up.
7
8
How to Use
Emptying the dust chamber
Suction power may be weakened when insignificant dusts
are sucked. In this case, clean the filter.
• Turn off the vacuum cleaner and unplug it.
• Your vacuum cleaner is equipped with both a dust chamber
and a motor filters.
Press the button and pull the dust chamber forward.
Remove the dust chamber cap.
Clean the pleat-shaped and the circle-shaped filters.
• To reinstall the dust chamber, replace the dust chamber cap
and push the dust chamber into the tank mount as far as it will
go.
• Open the dust chamber cap.
• Remove two plates from the dust chamber.
• Wash both parts with softcloth. Gently rinse both parts
under cold running water.
Button
Dust chamber cap
Pleat-shaped internal filter
Circle-shaped external filter
Dust chamber cap
Dust chamber
Dust chamber
Plate
How to Use
Cleaning the Filter
The reusable filters are situated under the dust chamber cap and
you can use it permanently.
• Press the button and pull the dust chamber forward.
• Open the dust chamber cap.
• Remove the filters by rotating it counter-clockwise.
• Clean the filters with the dusting brush under cold running
water.
• Allow the filters to dry in a shaded location for a day.
• Make the dust chamber empty if dusts are filled to the maximum
degree and then clean the filter.
Do not use the wet filter to avoid clogging.
WARNING!
Gently rinse both parts separately under a cold running water until the water
runs clear. Do not use detergent or a washing machine or dishwasher.
Shake off excess water from the filter.
Do not tumble/spindry, microwave or place in oven or on direct heat.
Ensure the filter is completely dry.
Re-assemble and place it back in your machine, filter frame.
If the filter is damaged, do not place them in the machine.
Please call the Helpline.
Do not use the net-shaped filter seperately.
9
10
How to Use
Operating the cleaner.
How to Plug in and Use
• Pull out the power cord to the desired
length and plug into the socket.
• Push the suction control switch of the
hose handle in the direction of the
position what you want. (depending on
model)
• To stop it, push down the suction control
switch in the direction of OFF.
(depending on model)
• Press switch button to start the vacuum
cleaner. (depending on model)
• To stop it, press the switch button again.
(depending on model)
• Press the cord reel button to retract the
power cord after use.
Park System
• To store after vacuuming and
pause while vacuuming.
• For deposit after vacuuming, for
example to move a small piece of
furniture or a rug, use the Park
system to support the flexible
hose and cleaning head.
- Slide the hook on the large
cleaning head into the slot on
the rear of the dust chamber.
Adjusting the Suction level(depending on model)
• Adjust suction with the suction
control switch in the hose handle.
(depending on model)
• The flexible hose handle has
a manual air flow regulator which
allows you to adjust the suction level
briefly. (depending on model)
11
• The exhaust filter is a washable and reusable HEPA filter.
• To change the exhaust filter, remove the filter cover on the body by release hook.
• Pull out the exhaust filter.
• Clean it with cold, running water.
Do Not use the brush
- Using the brush will cause permanent damage and allow dust to bypass the filter.
• Allow exhaust filter to dry in a shaded location for a dry.
• The exhaust filter should be cleaned at least once a year.
How to Use
Cleaning the Exhaust Filter
12
User's guide for sani punch vacuum nozzle
(depending on model)
Use
Set the suction power control switch to MAX POWER before vacuuming.
Depending on the type of bedding, handling may be awkward or it may cause a lot of noise.
If this is the case, adjust the suction power control switch to a lower setting.
If the punch bar does not move, lift the nozzle slightly off the surface.
If it does not move, even after doing this, check if the suction power is too low or if the nozzle base is clogged with a foreign
object.
Features
This nozzle picks up even dust inside through beating.
The bottom part can be separated to be cleaned.
Since the bottom does not stick to the surface, vacuuming is
easy.
How to use
Follow the directions below for proper use.
Assembly
Connect the nozzle to the telescopic tube.
