LG TD-V10155G, TD-V10150G, TD-V10159G User Manual

conserve su manual para futuras referencias. Uso y mantenimiento. Guarde el modelo y nùmero de serie y contiene informaciòn importante de una instalaciòn segura, manual correctamente, ya que Gracias por comprar una Secadora LG. Por favor lea su

TD-V10159G TD-V10155G TD-V10150G

Secadora de Gas

MANUAL DEL PROPIETARIO

Owner's Manual

Gas Dryer

TD-V10150G TD-V10155G TD-V10159G

Thank you for buying a LG Dryer. Please read your manual carefully, as it provides instructions on safe Installation, Use and Maintenance. Record the Model and Serial Numbers, and retain the manual for future reference.

P/No.: 3828EL3010S

PRODUCT FEATURES

OUTSTANDING PERFORMANCE

Not to mention unmatched big capacity, you can benefit from good

time efficiency, quiet operation and energy saving system.

STAINLESS STEEL DRUM

Stainless steel drum doesn’t generate any rust.

ARTISTIC DESIGN

Modern front panel look and big crystal-clear glass door make your dryer look stylish.

DIGITAL FABRIC CARE

Multi-Level temperature control takes better care of your clothes

EASY OF USE

An entire selection of user-friendly functions make operating the dryer easy.

DUAL SENSOR TECHNOLOGY

It makes it possible to sense even less than a 1 kg load size. So regardless of load weight, more

accurate sensing is ensured.

What are Sensor Dry and Time Dry?

Your dryer provides sensor drying and time drying programs. Sensor Dry : Dryer electronically sense laundry humidity and it automatically determines operation time based on the

dryness of the load and the selected program. At times, you can see sudden increase or decrease in operation time. It happens because a sensor will detect laundry humidity within a certain period. Sudden change in operation time is not a malfunction.

Time Dry : You can manualy set drying time to complete drying. Use dry performance if clothes are still damp after sensor dry cycle is finished. Time Dry is more effective for heavyweight and bulky items such as king-size bed sheets and thick work clothes.

TABLE OF CONTENTS

PART1. SPECIFICATIONS ................................................................................................................................................................................................................. 3

PART2. IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS ............................................................................................................................................. 4-6

PART3. INITIAL STEPS FOR INSTALLING YOUR DRYER ......................................................................................................................................................... 7-12

PART4. ACCESSORIES INSTALLATION ................................................................................................................................................................................... 13-14

PART5. GAS REQUIREMENTS AND INSTRUCTIONS .................................................................................................................................................................... 15

PART6. EXHAUST REQUIREMENTS AND MAINTENANCE...................................................................................................................................................... 16-17

PART7. OPERATING YOUR DRYER ........................................................................................................................................................................................... 18-23

PART8. TROUBLESHOOTING GUIDE ........................................................................................................................................................................................ 24-26

Part 1 SPECIFICATIONS

Type : Gas Dryer

Rating : Please refer to the rating label regarding detailed information.

Size : 68.6 x 76.1 x 98.3 (cm)

Capacity : Please refer to the rating label regarding detailed information.

Weight : 57 kg

Specifications are subject to change by manufacturer.

ACCESSORIES

Design of pedestals are subject to change without manafaturers notice.

Dryer rack (1 each)

See page 20 for how to use. See page 13 for how to use. See page 14 for how to use.

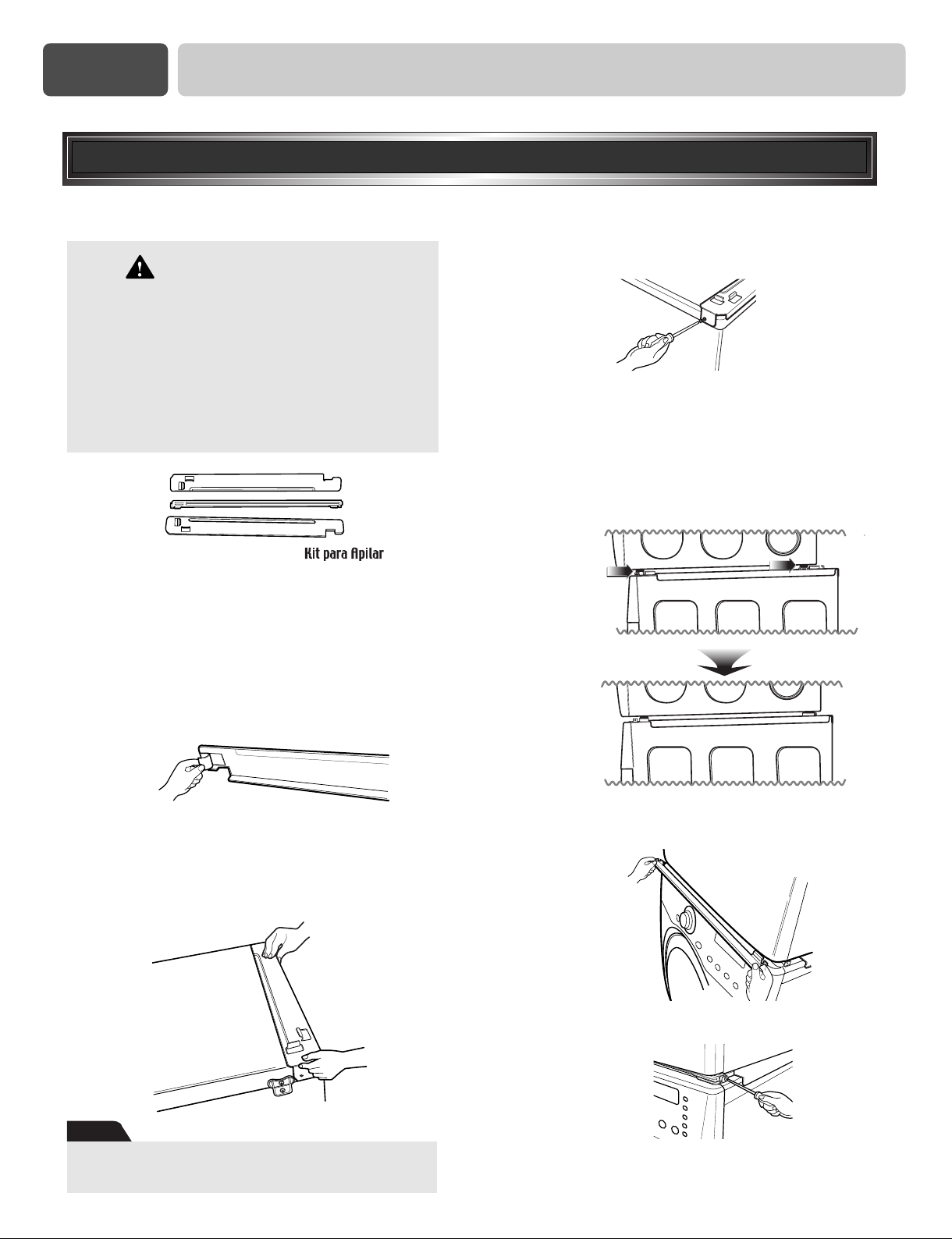

Stacking kit (1 each)

Purchased Separately

Pedestal (1 each)

Purchased Separately

Part 2

IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS

SEEKING WARRANTY ASSISTANCE

The Warranty for your Dryer is located at the end of this manual. Warranty Service is available by contacting your nearest LG Service Center. If this product is installed and operated per this manual, LG will repair or replace any parts defective in material or workmanship throughout the Warranty period, beginning the Date of Purchase.

WARNING!

For your safety, the recommendations in this manual must be followed. To reduce the risk of fire or explosion, electric shock or to prevent property damage, personal injury, or death when using your appliance follow basic precautions, including the following.

Warranty Restriction: If the dryer is subjected to other than private family use, all warranty

coverage is effective for only 90 days.

You will need the complete Model and Serial Number when requesting Warranty Service. Proof of purchase date is required.

Use the space below to record the model number and serial number of your new LG dryer.

Model No. Serial No. Date of Purchase

❈ Staple your receipt HERE.

Part 2 IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

WARNING!

To help reduce any risk of electric shock, fire, or other personal injury or property damage when using your dryer, please exercise care and follow basic safety precautions, including the following:

1) Read all instructions before using the appliance.

2) Do not dry articles that have come into contact with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.

3) Do not allow children to play on or in the appliance. Close supervision of children is necessary when using the appliance.

4) Before the appliance is removed from service or discarded, remove the door to the drying compartment.

5) Do not reach into the appliance if the drum is moving.

6) Do not install or store this appliance where it will be exposed to the weather.

7) Do not tamper with controls.

8) Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions.

9) Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

10) Clean lint screen before or after each load.

11) Keep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint, dust, and dirt.

12) The interior of the appliance and exhaust duct

should be cleaned periodically by qualified service personnel.

13) Do not place items exposed to cooking oils in your

dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

14) Do not use fabric softners or products to eliminate

static unless recommended by the manufacturer of the fabric softner or product.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING - Improper connection of the equipmentgrounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance must be connected to a grounded metal, permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Part 2

IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light a match or cigarette, or turn on any gas or electrical appliance.

WARNING!

• Do not touch any electrical switches. Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions carefully.

• If you cannot reach your gas supplier, call the fire department.

WARNING

To reduce the risk of fire or explosion, electric shock, property damage, personal injury or death when using this appliance, please follow all instructions and information, including those in this manual and instructions provided by your gas supplier.

• Keep flammable materials and vapors, such as gasoline, away from dryer.

• Place dryer at least 18 inches above the floor for a garage installation.

• Failure to do so can result in death, explosion or fire.

• Do not store or use any gasoline, dry-cleaning solvents any other flammable vapors or liquids in the area surrounding this appliance.

• Do not dry anything that has ever had anything flammable on it, even after washing.

• No washer can completely remove oil. Do not dry any articles that have ever had any kind of oil on them, including cooking oil.

• Articles containing foam, rubber, rubber-like materials, plastic or similar materials should be air dried.

• Failure to follow these instructions can result in fire, death or serious injury.

• A qualified service person or company must perform installation and service of this appliance.

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

The following instructions will help guide you through the initial steps of setting up your dryer for use. Please note that every section of this manual provides important information regarding the preparation and use of your dryer, and it is important that you review this entire manual before proceeding with any installation or use. More detailed instructions concerning electrical connections, gas connections, and exhaust requirements are provided in other parts of this manual.

STEP 1 Positioning the Dryer.

Choose a location with a solid floor for your dryer. Place the dryer at least eighteen inches above the floor for a garage installation. After placing the dryer in the desired location, please make sure that it has the required clearances shown below. If you are installing your dryer in a manufactured or mobile home, please refer to STEP 9 below for additional instructions.

49.8”

(126.4 cm)

38.7”

(98.3 cm)

Certain minimum clearances are required above, behind, and to the sides of the unit, as shown below. Those required minimum clearances

are set forth in the picture below. Please keep the following instructions in mind when installing in a closet or recessed area:

• Consider allowing additional clearance for installation and servicing.

•Wall, door and floor molding may force additional clearances.

• An additional inch of clearance is recommended to minimize noise transfer .

• Consider space needed for companion appliances.

• For closet installations, the picture below shows the minimum required ventilation openings for the door. A louvered door with comparable ventilation openings is also acceptable.

ventilation hole

27”

(68.6 cm)

29.9”

(76.1 cm)

Most installations require a minimum 5 1/2 in. (14 cm) clearance behind the dryer for the exhaust vent with elbow.

Note

Leveling legs should be secured. All four legs are stably placed on the solid and even floor. If dryer is not level, laundry may not tumble properly and sensor will not detect the accurate humidity information. When leveling, please be cautious not to injure your fingers and toes. If you install the dryer on the optional pedstal. It is nessary to level with the pedestal leveling legs.

ventilation hole

<Closet-Side view><Closet door>

<Closet-Front view>

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

Once in position, adjust the leveling legs of the dryer until it is level from left to right and front to back. The leveling legs must remain firmly on the floor and the dryer should not rock. The maximum slope of the dryer from left to right or front to back should not exceed 2.5 cm (1 inch). If the dryer is not level, and if the slope exceeds 2.5 cm (1 inch), a load may not tumble properly and internal sensors may malfunction. Note: Other sections of this manual also provide important information concerning the placement of and clearances for your dryer. Please review this entire manual before proceeding with any installation.

STEP 2:

STEP 2 Procedure for Reversing

the Door

The door on your dryer can be installed to open either to the left or the right. Follow these instructions to reverse the direction in which your door opens:

Note

Door and latch should be aligned at the center when closed.

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

■ ALTERNATE EXHAUST DIRECTIONS

STEP 3 Connecting the Exhaust

and Venting System.

WARNING!

• Use a heavy metal vent.

• Do not use plastic or thin foil duct.

• Failure to follow these instructions can result in death or fire.

• Clean old ducts before installing this dryer

Note

Vent end will face to the outside home and improper taping and unstable installation of vent will cause undesirable drying performance.

In addition to the following warnings, please refer to manual section on Exhaust Requirements and Maintenance. IMPORTANT: To reduce the risk of fire, combustion, and gas accumulation, the dryer must be vented to the outdoors. Please follow the instructions (and all others in this manual) very carefully.

Remove screw and exhaust duct.

2-1.

Detach and remove the knockout that matches the desired venting direction (Right side not available on Gas Dryers)

, , the order of work.

PORTION "A"

Knockout

2-2.

Reconnect the duct to the blower housing and attach the duct to the base.(Duct is a SVC part)

• Do not use Plastic or thin foil duct.

• Rigid or semi-rigid metal ducting is recommended for use as transition ducting between the dryer and and the wall. In special installations when it is impossible to make a connection with the above recommendations, then a UL-listed flexible metal transition duct may be used between the dryer and wall connection only. The use of this ducting will affect dry time.

• Position the Dryer such that the exhaust duct run is as short as possible.

• Clean old ducts before installing this dryer

• The male end of each section of exhaust duct must point away from the dryer

• Use as few elbow joints as possible.

• Use duct tape on all duct joints

• Insulate ductwork that runs through unheated areas in order to reduce condensation and lint build-up on pipe walls.

• PLEASE BE AWARE THAT FAILURE TO

EXHAUST THE DRYER CORRECTLY WILL VOID THE DRYER’S WARRANTY.

DUCT TAPE

3-1.

Pre-assemble 4" elbow with 4" duct. Wrap duct tape around joint.

3-2.

Insert elbow duct assembly first through the side opening and connect the elbow to the internal duct.

DUCT TAPE

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

STEP 4

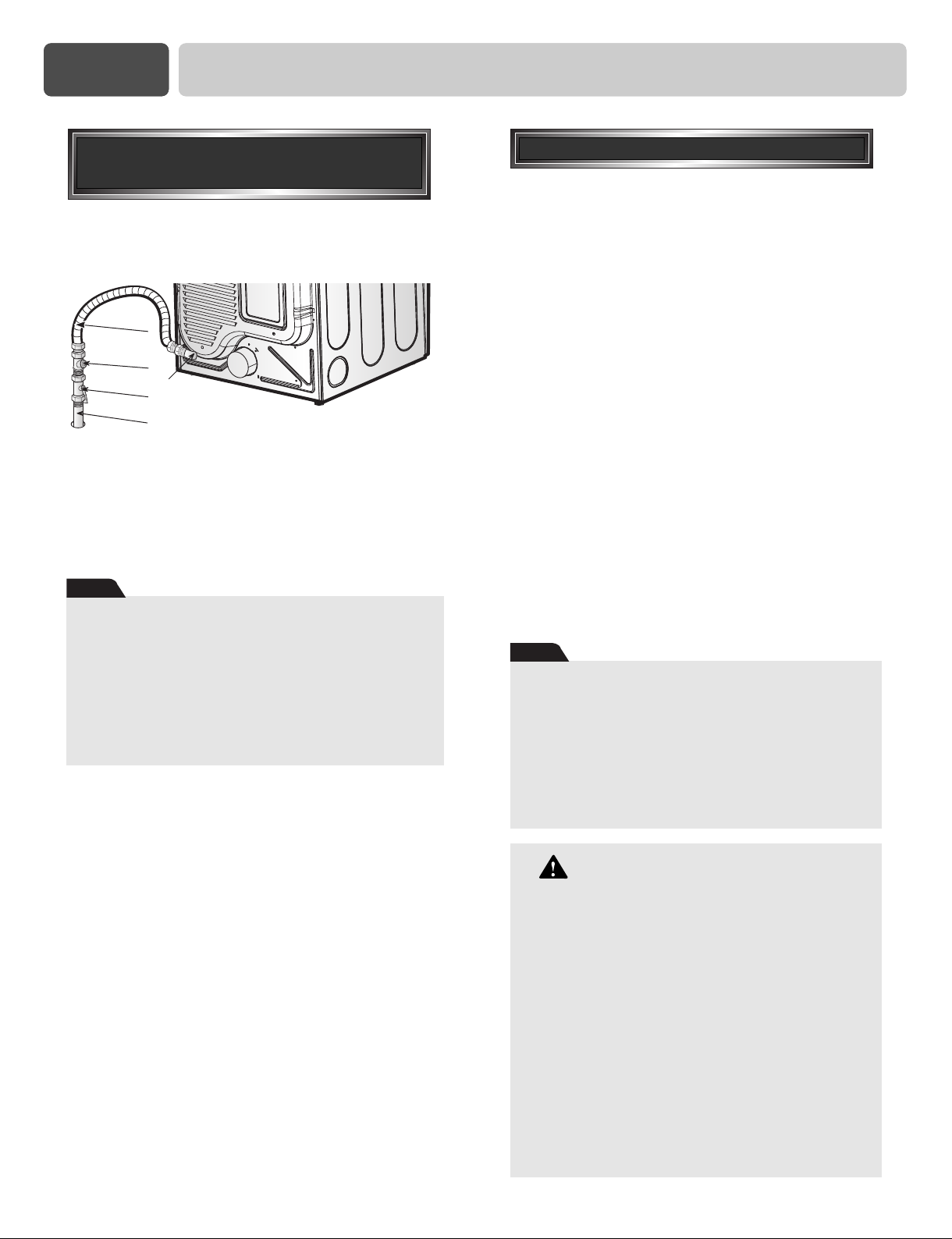

Connection of Gas Supply

(Gas dryer only). In addition to the following, please refer to manual section on Gas Requirements and Instructions.

1. New stainless steel flexible connector. Use this type of connector only if allowed by local codes. Use Design AGA Certified Connector.

2. 1/8" NPT Pipe Plug (for checking inlet gas pressure)

3. Equipment Shut-Off ValveInstalled within 6’ (1.8 m) of dryer

4. Iron Pipe. Shorter than 20’ (6.1 m) Use 3/8" pipe. Longer than 20’ (6.1 m) - Use 1/2" pipe.

5. 3/8" N.P.T. Gas Connection

Note

Make sure the burner nozzle is proper for the type of gas you are provided with. For instance, using LPG with LNG nozzle will result in death, fire or explosion. Or using LNG with LPG nozzle will not ignite burner. If needed, nozzle conversion should be done by a qualified service technician and mark or put the label of the current type of nozzle on the dryer.

1. Confirm that the type of gas available in your laundry room is appropriate for the dryer. The dryer is prepared for Natural Gas with a 3/8" NPT gas connection.

2. Remove the shipping cap from the gas connection at the back of the dryer. Make sure that you don’t damage the threads of the gas connection pipe when you remove the shipping cap.

3. Connect the dryer to your laundry room’s gas supply using a new flexible stainless steel connector (as noted below, only use a new stainless steel flexible connector if allowed by your local codes).

4. Securely tighten all connections between the dryer and your laundry room’s gas supply. Turn on your laundry room’s gas supply and check all pipe connections (both internal and external) for gas leaks with a non-corrosive leak detection fluid. Refer to Part 7(page 20)

5. For LP (Liquefied Petroleum) gas connection, refer to this manual’s section entitled Gas Requirements and Instructions.

STEP 5

Electrical Plug Connections

Following are several warnings and instructions concerning making the electrical connection for electric dryers. More detailed information concerning the electrical connection is provided in the manual section entitled Electrical Requirements for Electric Dryer. It is important that you thoroughly review that section and the remainder of this manual, before taking any steps to install or use this dryer.

1. Use only a new U.L. listed No. 10 (copper wire only) three conductor power supply cord kit rated 240 Volts (minimum) 30 Amperes and labeled as suitable for use in a clothes dryer.

2. Four-wire cord is required for manufactured (mobile) home installations and where local codes do not allow grounding of this appliance through neutral.

3. Electrical Plug Connections.

4. For additional instruction on connecting the dryer to an electrical power source, please refer to this manual’s section on Electrical Requirements and Electric Dryer.

Note

Burner input requirements

If your house is located at the elevation up to 10,000 feet. Adjusting burner input setting is not needed in this elevation because A.G.A certifies this dryer will not have any problem with the B.T.U rating at this altitude. If your house is above 10,000 feet, you are required to adjust a four percent(4%) reduction of the burner B.T.U rating indicated on the model/serial rating plate.

WARNING!

• Use a new UL approved 30 amp power supply cord or 10 gauge solid copper wire.

• Use a UL approved strain relief.

• Disconnect power before making electrical connections.

• Connect neutral wire(white or center wire) to center terminal.

• Ground wire(green or bare wire) must be connected to green ground connector.

• Securely tighten all electrical connections

• See installation instructions for complete instructions.

Failure to do so can result in fire or electrical

• shock.

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

STEP 6

Prior to the first use of this appliance, use allpurpose cleaning products or a solution of detergent and water, with damp cloth to remove from the inside of the dryer drum/drying compartment any dust or dirt that may have accumulated inside the dryer. Plug-in your dryer after reviewing the following parts on your dryer’s Electrical Requirements.

STEP 7

Preparation of the Dryer.

Confirming Heat Source Operation.

Confirming Heat Source in Gas Dryers

Close the door to the dryer drum/drying compartment and, after completing all steps in this manual for proper installation of this dryer, start the dryer on a heat setting. After the dryer starts, the igniter will glow red and the main burner will ignite.

STEP 8

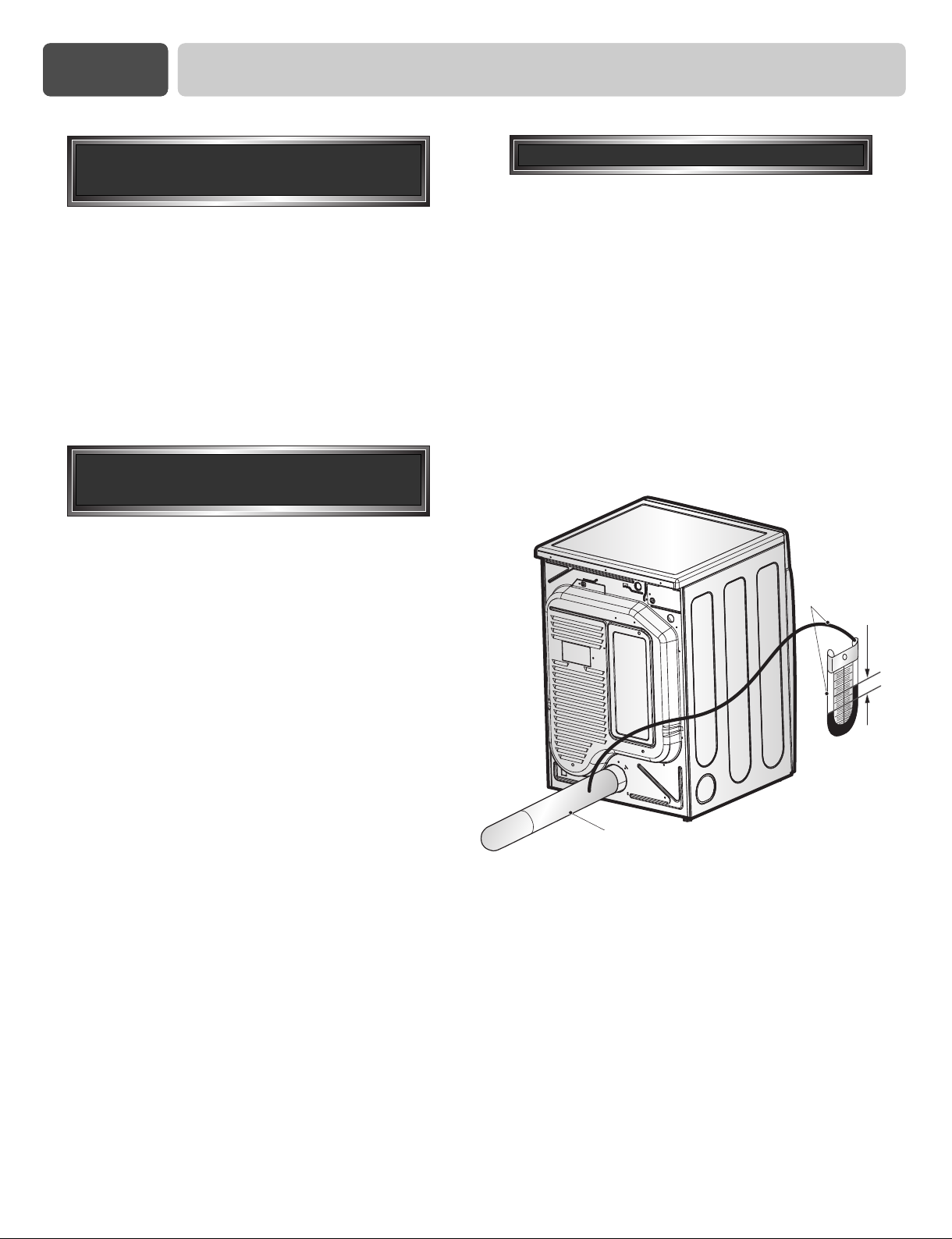

Effective dryer operation requires appropriate dryer airflow. The adequacy of the airflow can be measured by evaluating the static pressure. Static pressure in the exhaust duct can be measured with a manometer, placed on the exhaust duct approximately 2 ft. (60.9 cm) from the dryer. Static pressure in the exhaust duct should not exceed 0.6 inches (1.5 cm). The dryer should be checked while the dryer is running with no load.

Dryer Airflow.

Measuring Static pressure

Manometer

Warning: If all air is not purged from the gas line, the gas igniter may go off before the gas and the main burner have ignited. If this happens, the igniter will re-attempt gas ignition after approximately two minutes.

Confirming Heat Source in Electric Dryers

Close the door to the dryer drum/drying compartment and, after completing all steps in this manual for proper installation of this dryer, start the dryer on a heat setting. The exhaust air or the exhaust pipe should be warm after the dryer has been operating for three minutes.

Exhaust Duct

MAXIMUM STATIC

PRESSURE IN

WATER COLUMN

0.6 inche (1.5 cm)

Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER

4) Electric dryers may be vented to the outside

STEP 9

Additional Instructions for Installation of Your Dryer in a Manufactured or Mobile Home.

using the back, left, right, or bottom panel.

5) Gas dryers may be vented to the outside using the back, left, or bottom panel. Gas dryer may not be vented to the outside using the right side panel because of the burner housing.

The following instructions are applicable to installations of the dryer in a manufactured or mobile home. Any installation in a manufactured or mobile home must comply with the Manufactured Home Construction and Safety Standards Title 24 CFR, Part 32-80 or Standard CAN/CSA0Z240 MH and local codes and ordinances. If you are uncertain whether your proposed installation will comply with these standards, please contact a service and installation professional for assistance.

The following instructions apply to any installation of the dryer in a manufactured or mobile home:

1) The gas dryer must be permanently attached to the floor.

2) The electrical connection for an electric dryer must be a 4-wire connection. More detailed information concerning the electrical connection is provided at the manual section entitled Electrical Requirements for Electric Dryer

6) The dryer exhaust duct must be affixed securely to the manufactured or mobile home structure, and the exhaust duct must be made of a material that will resist fire and combustion, and it is recommended that you use a rigid or flexible metal pipe.

7) DO NOT connect the exhaust duct with any other duct, vent, chimney, or other exhaust duct.

8) Make sure the dryer has adequate access to outside fresh air to ensure proper operation. The opening for outside fresh air must be at least 25

(163 cm2).

9) It is important that the clearance of the duct from any combustible construction be at least 2 inches (5 cm), and, when venting the dryer to the outdoors, the dryer can be installed with a clearance of 1 inch at the sides and back of the dryer.

10) Please be aware that venting materials are not

supplied with the dryer. You should obtain the venting materials necessary for proper installation.

3) To reduce the risk of combustion and fire, the dryer must be vented to the outside.

WARNING!

DO NOT connect exhaust ducts with metal screws or fasteners that extend into the duct.

WARNING!

DO NOT vent the exhaust duct under the manufactured or mobile home.

Part 4 ACCESSORIES INSTALLATION

Stacking Kit Installation Instructions

To ensure safe and secure installation, please observe the instructions below.

WARNING!

Incorrect Installation can cause serious accidents.

The weight of the dryer and the height of installation makes the stacking procedure too risky for one person. This procedure should be performed by 2 or more experienced service personnel.

Secure stacking kit side bracket to the washer with a screw on the back of bracket. Repeat Steps 2, 3, 4 for the other side.

Place the dryer on top of the washer by fitting legs as shown in the picture. Avoid finger injuries - be careful not to pinch fingers between the washer and dryer. Slide dryer slowly backwards to the stopper of kit.

1 2

Place washer firmly on a stable, even and solid floor.

Peel protective paper off the tape from the stacking kit side bracket.

Fit the stacking kit side bracket firmly to the side of top plate by attaching the doublesided tape to top plate as picture shows.

Insert the front stacking kit. Push the front stacking kit back to the stoppers of side stacking kit.

Screw both sides of the front kit.

Note

If there are some foreign objects on the surface of top plate, it becomes difficult to apply doublesided tape on.

• Do not use stacking kit with a gas dryer in potentially unstable conditions like a mobile home.

Part 4

ACCESSORIES INSTALLATION

Pedestal Installation Instructions

The pedestal accessory includes:

Drawer divider (1)

•

Screws (18) †

•

† Dryer installation only uses 8 screws †† For dryer only

Tools Needed for Installation:

Phillips-head screwdriver

•

Wrench (supplied)

•

To ensure safe and secure installation, please thoroughly follow the instructions below.

To set the dryer to the same height as the washer, fully retract the leveling feet of the

dryer by turning them counterclockwise, then turn them clockwise 1-1/2 turns.

NOTE: The appliance and pedestal assembly must be placed on a solid, sturdy, level floor for proper operation.

Wrench (1)

•

Retainers (4) ††

•

Place the dryer on the pedestal. Make sure the front and back feet are in the correct positions. The dryer feet will fit into the innermost positions as shown.

Make sure the screws on the pedestal align with the holes in the retainers, then install 4 screws at each corner to securely attach the appliance to the pedestal.

NOTE: If the screws are not installed properly, noise and vibration may result.

Move the appliance to the desired location.

Loosen the locknuts on all 4 leveling feet of the pedestal until you can turn them with the wrench. Turn clockwise to raise or counterclockwise to lower until the pedestal is level and all 4 feet are solidly against the floor.

For dryer

For washer/combo

Retract fully

Insert the T-clip of the 4 retainers into the dryer base as shown. Press up on the back of the clip and pull outward to lock into place.

T-clip

Retainer

Then loosen 1-1/2 turns

Raise

Securely tighten all locknuts by hand. NOTE: Noise and vibration may result if locknuts are not

tightened. Be sure to connect the appliances to all water, power,

or gas lines and draining or venting connections before operation.

If there is excessive vibration during the first operation after installation, slightly adjust the leveling feet.

Locknut

Lower

Part 5 GAS REQUIREMENTS AND INSTRUCTIONS

Following are important instructions and information concerning the requirements for the gas supply and service for gas dryers. Important Warning: The gas supply and service for a gas dryer must comply with all local codes and ordinances. In the absence of any local codes or ordinances in your area, the gas supply and service for your gas dryer must comply with the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54.

1. Gas supply requirements: Liquefied Petroleum (L.P.) Gas (2,500 Btu/ft3 (93.1 MJ/m3)) service must be provided at 10 + 1.5 in. water column pressure.

2. Do not attempt to connect Dryer to Liquified Petroleum (LP Gas) Gas service without a qualified professional.

3. Isolate the dryer from the gas supply piping system by closing its individual manual shut-off valve, during any pressure testing of the gas supply system at test pressure equal to or less than 2/1 psi (3.45 kPa).

4. Supply Line Requirements. Your laundry room must have a rigid gas supply line to your dryer. In the United States, an individual manual shutoff valve MUST be installed within at least 6 feet (1.8m) of the dryer, in accordance with the National Fuel Gas Code ANSI Z223.1. A 1/8 in. N.P.T. pipe plug must be installed as shown.

5. If using a rigid pipe, the rigid pipe should be 1/2 inch IPS. If acceptable under local codes and ordinances and when acceptable to your gas supplier, 3/8 inch approved tubing may be used where lengths are less than 20 feet (6.1m). Larger tubing should be used for lengths in excess of 20 feet (6.1m). It is also important that you use pipe joint compound that is insoluble in LP gas.

6. To reduce the danger of gas leaks, explosion, and fire, please follow and observe the following

instructions and WARNINGS.

• Connect the dryer to the type of gas shown on the

nameplate.

• Use new flexible stainless steel connectors.

• Use Teflon tape and pipe joint compound

insoluble in LP gas on all pipe threads.

• Purge gas supply of air and sediment before

connecting the gas supply to the dryer; in order to prevent gas valve contamination. Before tightening connection between gas supply and dryer, purge remaining air until odor of gas is identified.

WARNING!

DO NOT attempt any disassembly of the dryer, any disassembly requires the attention and tools of an authorized and qualified service person or company.

• DO NOT use an open flame to inspect for gas

leaks, instead use a non-corrosive leak detection fluid.

WARNING!

• Use a new AGA or CSA approved gas supply line.

• Install a shut-off valve.

• Securely tighten all gas connections.

• If connected to LP, have a qualified person make sure gas pressure does not exceed 13 in. water column.

• Examples of a qualified person include licensed heating personnel, authorized gas company personnel, and authorized service personnel.

• Failure to do so can result in death, explosion, or fire.

+ 36 hidden pages
