2 TABLE OF CONTENTS

TABLE OF CONTENTS

	3	PRODUCT FEATURES		25 Checking the Water Tanks
				25	Loading the Styler
	4	IMPORTANT SAFETY INSTRUCTIONS
					Hangers
	4	Safety Instructions for Installation			Using the Moving Hanger
	5	Safety Instructions for Connecting Electricity			Pants Hanger or Pants Crease Care
	6	Basic Safety Precautions			Shelf
	7	Grounding Instructions		29	Control Panel
	8	PRODUCT OVERVIEW			Control Panel Features
				31	Cycle Guide
	8	Parts
					Cycle Processes
	9	Accessories
				32	Choosing a Cycle
	10	The Moving Hanger
				33 Cycle Settings and Options
	10	The Pants Crease Care
				34	EXTRA Functions
	11	The Shelf
					Locking the Controls
	11	Choosing Styler Features
					Setting a Delayed Start Time
	12
		INSTALLATION			Smart Diagnosis™
	12	Installation Overview			Night Care
	12	Product Specifications		36 SMART FUNCTIONS
	13	Unpacking the Styler
				36	SmartThinQ Application
	13	Choosing the Proper Location
				38	Smart Diagnosis™ Function
	14	Installation Location Requirements
				39 MAINTENANCE
	14	Clearances
	16	Leveling the Styler		39	Regular Cleaning
	17	Reversing the Door			Cleaning the Interior and Exterior
	17	Installing the Anti-Tip Device			Cleaning the Lint Filter
	18	Assembling the Drip Tray			Cleaning the Aroma Filter
	18	Installing Cap Covers			Cleaning the Water Tanks
	18	Installing Hinge Covers		41 TROUBLESHOOTING
	19	OPERATION
				41	FAQs
	19	Before Use		42	Before Calling for Service
	20	Using the Styler		46 SMART DIAGNOSISTM
	21	Sorting Loads
		Fabric Care Labels		47 WARRANTY
		Grouping Similar Items
		Choosing Styler-Safe Clothing

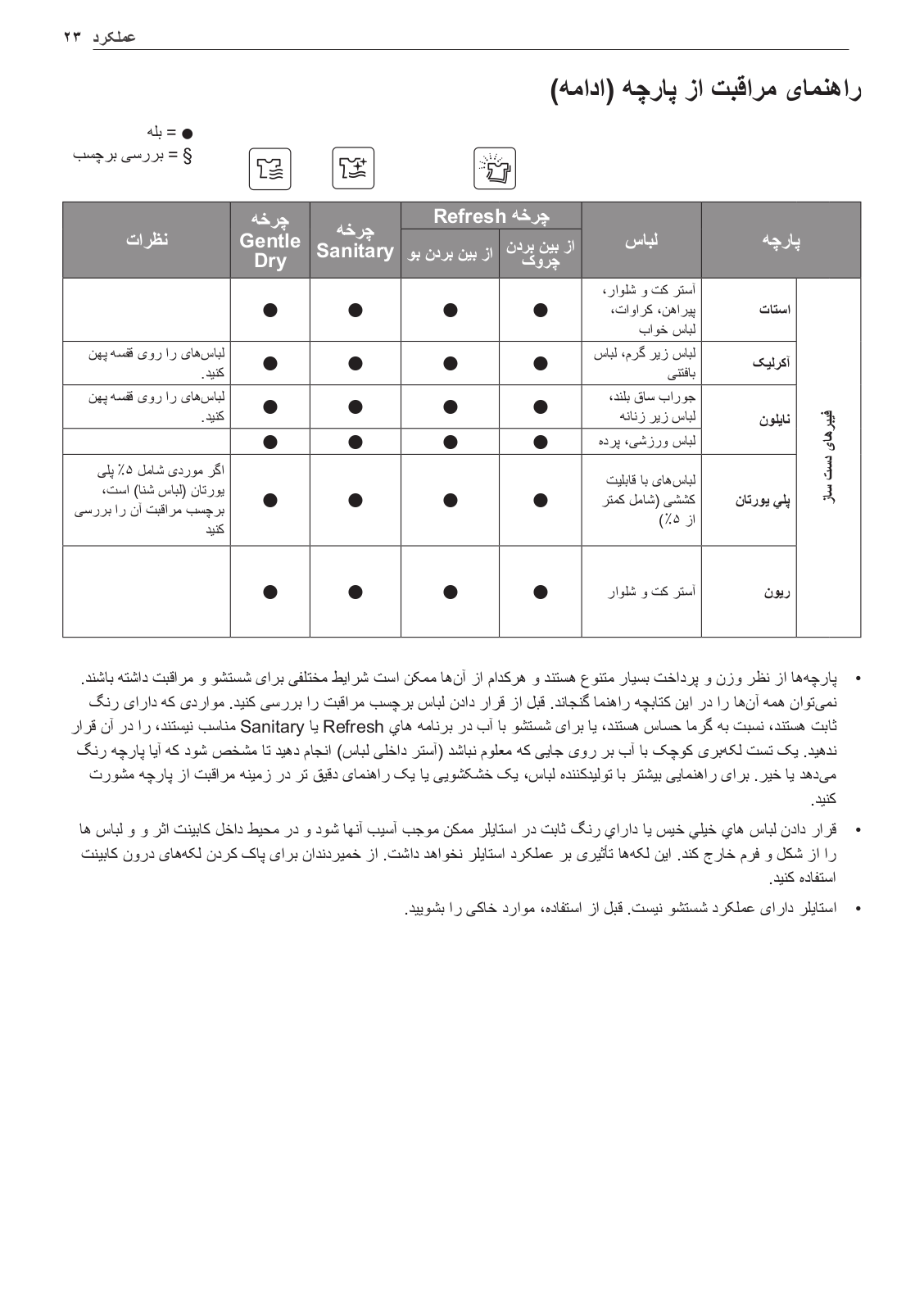

	22	Fabric Care Guide

24Checking the Filters Before Every Load

Checking the Lint Filter Changing the Aroma Sheet

PRODUCT FEATURES 3

PRODUCT FEATURES

REMOVE ODORS

the Styler's Refresh cycle to quickly and easily remove odors from clothes.

REFRESH CLOTHING OR ADD AN AROMA

Infuse items with the aroma from your favorite dryer fabric softener sheets to keep clothes and accessories looking, feeling, and smelling refreshed.

REDUCE WRINKLES

The Refresh cycle also uses steam and a moving hanger that vibrates approximately 180 times per minute to remove the wrinkles in clothing. Performance may vary depending on fabric type.

SHARPEN CREASES IN PANTS

Hang dress trousers flat in the Styler's Pants Crease Care feature. It will crease the pants legs and reduce wrinkles elsewhere.

GENTLY AND EFFECTIVELY DRY

heat pump drying technology of the Gentle Dry cycle provides low-heat drying which moisture from clothes without the shrinking or damage associated with hot-air

. Gently and safely dry alpaca, camelhair and other non-washable fabrics that have become damp from rain or snow, and wool sweaters, hand-washable knits, and other dryflat items after washing.

SANITIZE AND REMOVE ALLERGENS

Styler's Sanitary cycle uses TrueSteam™ to destroy bacteria and other microorganisms without damaging clothes. It maintains the optimal temperature necessary to sanitize each garment, destroying bacteria that persist even when clothes are dried in sunlight.

SMART DIAGNOSIS™

Should you experience any technical difficulty with the Styler, it has the capability of transmitting data by phone to the Customer Information Center. The call center agent records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis.

-Fi CYCLE DOWNLOAD

Download additional Styler cycles to meet individual needs. Download one new cycle at a

.

4 IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

There are many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can result in product damage, property damage, or serious bodily harm or death.

The safety alert symbol will be followed by either the hazard signal word WARNING or CAUTION. These words mean:

WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury, or product damage.

WARNING

To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or death when using this appliance, follow basic safety precautions, including the following:

Children in the household

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

For use in Europe:

This appliance can be used by children

aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

SAFETY INSTRUCTIONS FOR INSTALLATION

•Contact an authorized service center before installing or relocating the Styler to avoid injury or product damage when moving the product.

•When moving the Styler away from the wall, be careful not to roll over or damage the power cord.

•The appliance is heavy.Two or more people are necessary to move and install the appliance to prevent damage or injury.

•Prior to use, ensure that you are connecting this product to a dedicated grounded electrical outlet rated for use with this product. It is the user’s responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.

•Before use, the appliance must be properly installed as described in this manual. Electric shock can result if the appliance is not properly grounded.

•Do not install the Styler where there may be a danger of the unit falling.The product is not designed for use on ships or airplanes. Check with an authorized LG service center for use under other special circumstances.

•Do not tamper with controls.

•Install the product where the floor is firm and level. The product may vibrate excessively and eventually fall if installed on an unstable surface, causing damage or injury.

•Keep the front side protected when transporting the appliance. Do not truck from the front. The tempered glass panel on the front of the appliance may break, causing damage or injury.

•Properly ground the appliance to conform with all governing codes and ordinances.

Follow the details in the installation instructions. Electric shock can result if the appliance is not properly grounded.

IMPORTANT SAFETY INSTRUCTIONS 5

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or electric shock, or to prevent property damage, injury to persons, or death.

SAFETY INSTRUCTIONS FOR INSTALLATION

•Install and store the appliance where it will not be exposed to temperatures below

freezing or exposed to the weather. Allow the product to warm to room temperature before use if it was delivered in winter or at sub-sero temperature.

•Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the usermaintenance instructions or in published userrepair instructions that you understand and have the skills to carry out. Failure to follow this warning can cause serious injury, fire, electric shock, or death.

•To reduce the risk of electric shock, do not install the appliance in humid spaces such as a bathroom. Failure to follow this warning can cause death, serious injury, fire, electric shock, or product deformation or malfunction.

•Remove all packing items and dispose of all shipping materials properly. Failure to do so can result in burns, fire, explosion, or death.

•Connect to a properly rated, protected, and sized power circuit to avoid electrical overload. Improper power circuits can melt, creating electric shock and/or fire hazard.

•If the supply cord is damaged, it must be replaced by the

manufacturer or its service agents or similarly qualified person in order to avoid a hazard.

•Keep all packaging from children. Packaging

material can be dangerous for children. There is a risk of suffocation.

• Do not install near another heat source such as a stove, oven or heater. Failure to follow this warning can cause product deformation, smoke, or fire.

• Do not place candles, smoking materials, or other flammables on top of the product.

Dripping wax, smoke, or fire can result.

• Remove all protective vinyl film from the product. Failure to do so can cause product damage, smoke, or fire.

• The appliance shall be installed in accordance with national wiring regulations

SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY

•Do not, under any circumstances, cut or remove the ground prong from the power cord. To prevent personal injury or damage to the appliance, the electrical power cord must be plugged into a properly grounded outlet.

•This appliance must be plugged into a 220VAC, 50-Hz grounced outlet protected by a 8-ampere fuse or circuit breaker. Failure to follow these instructions can result in fire, explosion, or death.

•This appliance must be plugged into a properly grounded outlet. Electrical shock can result if the appliance is not properly grounded. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Failure to follow these instructions can create an electric shock hazard and/or a fire hazard.

•Install the appliance where the plug is easily accessible. Unplug the appliance when not in use to avoid risk of fire or electric shock.

•Unplug the appliance before disassembly or repair to avoid risk of electric shock.

•The appliance should always be plugged into its own individual electrical outlet

which has a voltage rating that matches the rating plate. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

•Do not use an extension cord to connect to an outlet. Doing so could result in a fire or electric shock.

•Never unplug your appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet. The power cord can be damaged, resulting in a risk of fire and electric shock.

•Contact LG or a qualified repair person immediately to repair or replace all power cords that have become frayed or

otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. The power cord can melt, creating electric shock and/or fire hazard.

•When installing or moving the appliance, be careful not to pinch, crush, or damage the power cord. This will prevent injury and damage to the appliance from fire and electric shock.

6 IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

WARNING

To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or death when using this appliance, follow basic safety precautions, including the following:

BASIC SAFETY PRECAUTIONS

USE

•Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

•Do not climb, stand, or hang on the Styler door or on the shelf or anywhere inside the appliance. The appliance could fall over or

be damaged, or other damage or injury could occur.

•Do not step on the doors to the water tanks. The Styler could fall and cause damage and injury.

•Do not place heavy or dangerous objects on top of the Styler.

•Do not put live animals inside the Styler.

•Do not allow children to climb into the product when it is in use.

•In the event of a gas leak (propane/LPG), ensure adequate ventilation and contact an authorized service center before resuming use. Do not touch or disassemble the electrical outlet of the Styler.

•Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the Styler or store them inside the Styler.

Do not place the Styler in the vicinity of flammable gas.

•Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke coming from the appliance.

•In the event of a flood: Do not go near the product when its base is submerged under water. Contact the service center. There is a risk of electric shock or fire.

•Do not use fabric softeners or products to

eliminate static unless recommended by the manufacturer of the fabric softener or product.

•Do not place hands or body near steam nozzle during operation. The steam is hot and could cause an injury.

•Do not insert objects into the steam nozzle. Excessive noise and fire could result.

•Do not drink the water from the water supply or drain tanks.

•Do not disassemble or modify the Styler.

•Do not put hands, feet, or metal objects below the Styler.

•Do not operate the Styler or touch the power cord with wet hands.

•Keep fingers out of pinch point areas; clearances between the door and cabinet are necessarily small. Be careful closing door when children are nearby.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning the use of the appliance by a person responsible for their safety.

•Do not place items exposed to cooking oils in the Styler. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

•Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.

IMPORTANT SAFETY INSTRUCTIONS 7

WARNING

To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or death when using this appliance, follow basic safety precautions, including the following:

•Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.

•Do not open door during operation. The performance of the product may be adversely affected.

•Do not use the product for other than the intended purposes. Damage incurred by using the product for purposes other than those specified in this user manual are not covered by the warranty.

MAINTENANCE AND DISPOSAL

•Wipe foreign objects (such as dust and water) off the prongs of the power plug and contact areas regularly. Do not use a wet or damp cloth when cleaning the plug.

•Do not use an appliance to dry the interior. Do not light a candle to remove interior odors.

•Do not spray water onto the product directly when cleaning. A fire or electric shock may occur.

•Wipe the interior with a dry cloth after use.

•Clean the lint screen before or after each load.

•Do not use a bleaching agent such as oxygen or chlorine-based bleaches on the exterior of the product. Clorox or OxiClean may cause discoloration when applied to the surface of the product.

•Do not use sharp objects when cleaning or operating the controls. An electric shock may occur.

•Avoid hitting the front glass panel with heavy objects. Although it is made of tempered glass, the panel may break in the event of a strong impact and cause injury.

•Keep product free from rodents, insects, and other foreign objects. They may damage wires, causing fire or electric shock.

•Before the appliance is removed from service or discarded, remove the door to the drying compartment. Cut off the power plug and destroy the button section to prevent reuse.

GROUNDING INSTRUCTIONS

yy This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric

shock by providing a path of least resistance for electric current.

yy This appliance must be equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate

outlet that is properly installed and grounded in accordance with all local codes and ordinances.

yy Do not modify the plug. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

yy This appliance must be connected to a grounded metal, permanent wiring system or an equipment-grounding conductor must be run with the circuit conductors and connected to the

equipment-grounding terminal or lead on the appliance. Electric shock can result if the appliance is not properly grounded.

WARNING

Improper connection of the equipmentgrounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are

in doubt that the appliance is properly grounded.

8 PRODUCT OVERVIEW

PRODUCT OVERVIEW

PARTS
interior light	hooks for
	Pants Crease Care
moving hanger
interior light	Pants Crease Care
shelf holder
	door*
shelf
aroma filter	clip
	steam nozzle
hot air
circulation vent
water	water
drain tank	supply tank
drip tray

* The door swing can be reversed by the installer to fit the installation location.

PRODUCT OVERVIEW 9

Accessories

Included Accessories

shelf

drip tray

2 hangers*

pants hanger*

2 non-skid pads	2 rear cap covers
	2 hinge covers
anti-tip kit	wrench

*An ordinary metal/plastic hanger can be used if the hook is less than 5/32 in. (4 mm) thick. The hook must fit in the indentation in the moving hanger snugly. If the fit is too loose, it may result in vibration, noise, and damage to clothing.

Note

yy Contact the store where the product was purchased or Goldiran Customer Information Center at 021-84733 if any accessories are damaged or missing. Accessories can be purchased separately online at WWW.Goldirancs.ir

yy For your safety and for extended product life, use only authorized components. The manufacturer is not responsible for product malfunction or accidents caused by the use of separately purchased unauthorized components or parts.

yy The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes.

10 PRODUCT OVERVIEW

THE MOVING HANGER

Hang clothes on the moving hanger using the hangers provided with the Styler, or use any plastic or metal hanger that hooks snugly into the indentations in the moving hanger.

•Use the moving hanger for suits, coats, jackets, blouses, dresses, skirts, and pants that don’t require a crease. Use the Pants Crease Care to crease pants.

•Anything that can be securely placed on a hanger and steamed or dried without retaining hanger marks or other damage can be placed on the moving hanger.

•Dry sweaters or knits on the shelf to avoid hanger marks.

•Clothing should be securely fastened, with zippers and buttons closed, so that it does not fall off the moving hanger during the cycle.

•Arrange clothing so it does not touch the sides or rear of the cabinet, if possible. Condensation may form on the interior surface of the cabinet, and items in contact with the surface may remain damp at the end of the cycle. Hang larger items on the diagonal indentations on the moving hanger.

caution

yy Do not lean or pull on the moving hanger. Do not allow children play with or hang onto the moving hanger. The unit could tip, resulting in damage or injury.

THE PANTS CREASE CARE

Hang clothes in the Pants Crease Care using the pants hanger provided with the Styler or any pants hanger that fits into the hooks above the door to the Pants Crease Care.

•Open the door to the Pants Crease Care by pressing the icon on the front.

•The Pants Crease Care keeps pants legs creased while removing wrinkles elsewhere.

•Pants can be pressed while refreshing other items in the same cycle.

•For optimum results, use the Trouser Wrinkle Care cycle which is designed for use with the Pants Crease Care feature. This cycle can be downloaded using the LG SmartThinQ app and used as the Downloaded cycle.

Note

To avoid double creases, run the strong course with the moving hanger to remove any existing knife pleats, and then use the pants press.

caution

yy Do not lean on or hang heavy items on the door of the Pants Crease Care. The unit may tip, resulting in damage or injury.

yy Do not allow children to play with or hang onto the door of the Pants Crease Care. The unit may tip, resulting in damage or injury.

yy Keep fingers out of pinch point areas when closing the door of the Pants Crease Care. Supervise nearby children to prevent injuries.

PRODUCT OVERVIEW 11

THE SHELF

Use the shelf when styling clothes or other items that are difficult to hang or that may be damaged by hang drying.

•Use the shelf for stuffed toys, pillows, hats, and other accessories.

•Use the shelf for sweaters, knits, lingerie, or delicate blouses that can show hanger marks, stretching, or other damage if dried on a hanger.

•For best drying performance, do not stack items on the shelf. Dry single items or place items side by side with space between.

•When not in use, store the shelf on the shelf holder knobs in the back of the cabinet.

•Do not use the shelf for storing heavy items.

•Arrange items on the shelf so they do not touch the sides or rear of the cabinet, if possible. Condensation may form on the interior surface of the cabinet, and items in contact with the surface may remain damp at the end of the cycle.

CHOOSING STYLER FEATURES

	item	how to style it
	suit coat, blazer	moving hanger
	coat, jacket (short)
	coat (long)	moving hanger
		(remove shelf)
	dress (short)	moving hanger
	dress (long)	moving hanger
		(remove shelf)
	skirt
	lightweight blanket, throw
	baby blanket	moving hanger
	pants (not creased)
	shorts
	children’s clothes
	scarf	moving hanger
	tie
		or shelf
	shawl
	lingerie	moving hanger or
	shirt, blouse	shelf (if delicate)
	pants (creased)	Pants Crease
		Care
	cap, hat
	stuffed toys
	pillow	shelf
	sweater
	knitwear
	infant clothes

caution

yy Do not use the shelf to store heavy items. The shelf may fall, resulting in damage or injury.

yy Do not step or sit on the shelf. The shelf may fall or the unit may tip, resulting in damage or injury.

12 INSTALLATION

INSTALLATION

INSTALLATION OVERVIEW

Please read the following installation instructions first after purchasing this product or transporting it to another location.

	7 3/4 in.
	20 cm over
	2 in.	2 in.
	5 cm over
		5 cm over
Remove material from
inside and outside of cabinet
Unpackandremove	Check and choose the		Level the Styler
shippingmaterial	proper location

Reversethedoorswing	Connect to grounded outlet
(ifneeded)

PRODUCT SPECIFICATIONS

The appearance and specifications listed in this manual may vary due to constant product improvements.

steam clothing care	S3*F*
description		electric machine for maintaining clothing
electrical requirements		please refer to the rating label regarding detailed information
		17 ½ in. (W) X 23 in. (D) X 72 13/16 in. (H), 39 ¾ in. (D with door open)
dimensions		445 mm (W) X 585 mm (D) X 1850 mm (H), 1010 mm (D with door
		open)
net weight		183 lbs (83 kg)
maximum capacity		4 items
power consumption		1850 W
maximum and minimum water		5~35ºC(41~95 )
or brine operating temperatures
maximum and minimum water		Atmospheric pressure
or brine operating pressures

			INSTALLATION 13
	UNPACKING THE Styler		• Remove tape and any temporary labels
			from the Styler before using.
		Warning	Do not remove any warning labels, the model
	yyUse two or more people to move and		and serial number label, or the Tech Sheet
			that is located under the front of the Styler.
		install the Styler. Failure to do so can result
			• To remove any remaining tape or glue, rub
		in back injury or other injury.
	yyThe Styler is heavy. Use the wheels at the		the area briskly with your thumb.
		bottom of the product to move it. Push the	Tape or glue residue can also be easily
		Styler slowly from about halfway down the	removed by rubbing a small amount of liquid
		front side.	dish soap over the adhesive with your fingers.
	yyKeep the Styler upright when moving it. If		Wipe with warm water and dry.
		you lay the Styler on its side, refrigerant may	• Do not use sharp instruments, rubbing
		leak and cause the appliance to malfunction.	alcohol, flammable fluids, or abrasive
	yyKeep flammable materials and vapors,		cleaners to remove tape or glue.
		such as gasoline, away from the Styler.	These products can damage the surface of
		Failure to do so can result in fire, explosion,	the Styler.
		or death.

CHOOSINGTHE PROPER LOCATION

Electricity

Floor

Ambient temperature

Clearances

Install where an outlet is easily accessible.

Use an individual, grounded outlet:220-240 Volts, 50 Hz, AC, 8 Amps minimum.

Warning: Do not plug in multiple appliances in the same outlet with the Styler. Overloading house wiring can cause a fire hazard.

To reduce the risk of electric shock, do not install the Styler in a wet or damp area.

Floor must be level and solid enough to support 183lbs (83 kg).

Adjust the leveling legs to compensate for any unevenness in the floor. Do not install on a platform or a weakly supported structure.

Temperature must be between 50°F (10°C) and 95°F (35°C).

If the ambient temperature is too low or high, performance may be affected. Do not install in direct sunlight or where the temperature may fall below 32°F (0°C).

Allow at least 18 in. (46 cm) in front to open the door.

Allow at least 2 in. (5 cm) on both sides and between the back of the Styler and the wall. Allow at least 7 3/4 in. (20 cm) between the top of the Styler and any overhanging shelves or cabinets.

If the Styler is too close to adjacent items, performance may decrease and electricity consumption may increase.

14 INSTALLATION

INSTALLATION LOCATION REQUIREMENTS

Warning Read all installation instructions completely before installing and operating the Styler. It is important to review this entire manual before installing and using the Styler.

The installation requires:

yy A grounded electrical outlet located within 2 ft. (61 cm) of either side of the appliance.

yy A sturdy floor to support the total appliance weight of 183 lbs (83 kg). The combined weight of any other laundry appliances should also be considered.

WARNING

•Do not install or store the Styler in an area where it will be exposed to water and/or weather. Failure to follow this warning could result in risk of electric shock, injury, or product damage or malfunction.

Clearances

CAUTION

•The floor must be level, with a maximum slope of 1 inch (2.5 cm) under the Styler. If the slope is greater than 1 inch (2.5 cm), the appliance cannot be leveled properly.

•Do not install the Styler on a hollow or flexible platform. Doing so may cause excessive noise and vibration and result in damage or injury if the product tips over.

56½ in. (1435 mm)

16 5/16 in.

(415 mm)

15 5/32 in. (385 mm)
	72 13/16 in.
	(1850 mm)
23 in.	17 1/2 in.
(585 mm)	(445 mm)

INSTALLATION 15

Recommended Installation Spacing

The following clearances are recommended for the Styler. Although the Styler has been tested for clearances of 13/16 inch (3 cm) on the sides and rear, recommended clearances should be considered for the following reasons:

Additional space should be considered for ease of installation and servicing.

Additional space might be required for wall, door and floor moldings.

Additional space should be considered on all sides of the Styler to reduce noise transfer.

Additional laundry appliance spacing should also be considered.

7 3/4 in.

(20 cm)

2 in.

(5 cm) 2 in. (5 cm)

18 in. (46 cm) in front

Installation Spacing for Recessed Area or Closet Installation

There should be at least a little space around the Styler (or any other appliance) to avoid contact with walls, furniture, or other appliances during operation. Allow a minimum of 1 3/16 inch (3 cm) on all sides of the Styler to avoid increased noise or damage.

For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required.

Louvered doors with equivalent ventilation openings are acceptable.

Minimum vent opening for built-in installation is 31 ½ sq. in. (200 cm2).

Built-In Installation

Wall

										<![if ! IE]> <![endif]>25 (650mm)
Closet Ventilation Requirements										<![if ! IE]> <![endif]>in.½
Closets with doors must have both an upper and											18 in. (455mm)
lower vent to prevent heat and moisture buildup
in the closet. One upper vent opening with a
minimum opening of 48 sq. in. (310 cm2) must
be installed no lower than 6 feet above the floor.
One lower vent opening with a minimum opening
of 24 sq. in. (155 cm2) must be installed no more
than one foot above the floor. One example
shown uses vent grilles in the door.
				3"in.
				(7.6 cm)
				Vent						73.8 in. (1,875 mm)
				48 sq. in.
				(310 sq. cm)
											18 in. (455 mm)

Vent

24 sq. in.

(155 sq. cm)

3"in. (7.6 cm)

19 in. (485 mm)

closet door vent requirements

10 in. (250mm)

<![if ! IE]>

<![endif]>Wall

15.75 in. (400 mm)

2 in. (50 mm)

74.4 in.

(1,889)

24.8 in. (630 mm)

Ceiling

2 in. (50 mm)

1 in. (25 mm)

1 3/16 in. (30 mm)

<![if ! IE]>

<![endif]>Wall

13/16in. (30 mm)

16 INSTALLATION

leveling the styler

Warning

yy To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the use of long-sleeved gloves and safety glasses.

Failure to follow this warning can cause serious injury or death.

yy The appliance is heavy. Two or more people are required when installing the Styler. Failure to follow this warning can cause serious injury or death.

yy To ensure that the Styler provides optimal performance, it must be level. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

Note

Adjust the leveling feet only as far as necessary to level the Styler. Extending the leveling feet more than necessary can cause the Styler to vibrate.

1Position the Styler in the final location.

Check to make sure it is level.

yy All leveling feet must rest solidly on the floor. Gently push on the corners of the Styler to make sure that it does not rock from corner to corner. Make sure there are no gaps between the front leveling feet and the floor.

Warning

yyThe Styler is heavy. Use two or more people if installing the rear leveling feet.

Failure to do so can result in back injury or other injury.

yyKeep the Styler upright when moving and installing it. If you lay the Styler on its side, refrigerant may leak and cause the appliance to malfunction.

2Use the wrench (packaged with the manual) to turn the leveling feet.

Unscrew the front feet to raise the Styler or screw in the feet to lower it. If unable to level the unit using only the front feet, install the two rear leveling feet by tipping the unit. Do not lay the unit down to install the leveling feet.

Raise or lower the unit using the leveling feet until the Styler is level from side to side and front to back.

CAUTION

Make sure that all leveling feet are in firm contact with the floor. If the Styler is used without leveling, it may fall, causing injury, damage, or product malfunction.

3When the Styler is completely stable and all leveling feet are resting solidly on the floor, tighten the locking nuts.

locking nut

INSTALLATION 17

Reversing the Door

It is possible to reverse the direction of the door swing. This should be done by the installer at the time of installation, if desired.

Warning

Do not attempt to reverse the door swing yourself. If the direction of the door swing needs to be changed after installation, contact the Goldiran Customer Information Center at 021-84733.

Using Non-Skid Pads (optional)

Non-skid pads prevent the product from shaking or shifting when opening or closing the door.

1Clean the floor to attach the non-skid pads. Use a dry rag to remove and clean foreign objects or moisture. If moisture remains, the non-skid pads may slip.

2Adjust the level after placing the Styler in the installation area.

3Place the adhesive side of the non-skid pad on the floor.

This side up

			Adhesive
			side						B
Remove
backing

4Recheck the Styler's levelness.

Push or rock the edges of the appliance gently to make sure that the Styler does not rock. If the Styler rocks, level the appliance again.

•The pads may leave a sticky residue when they are removed. The residue can be removed with alcohol.

installing the anti-tip device

•Appliances can tip, resulting in damage or injuries. Do not operate the unit without the anti-tip device in place and engaged.

If an anti-tip device is not properly installed, the appliance could be unexpectedly tipped by a child or adult standing, sitting, leaning, or placing excessive weight on an open door or the interior parts.

•Install the anti-tip device packed with the Styler to reduce the risk of tipping.

Refer to the instructions provided with the antitip kit for proper anti-tip device installation.

•Check that the anti-tip device is properly installed.

With the appliance in its final location, make sure that the slide adjuster on the cord is adjusted until there is about one inch of slack in the cord.

•The use of the anti-tip device does not preclude tipping of the appliance when it is not properly installed.

18 INSTALLATION

ASSEMBLING the DRIP Tray

Before using the Styler, insert the drip tray onto the bottom of the cabinet.

1Hold the tray so the arrow and letter on the front of the tray face up.

2Insert one side of the tray first, then the other. Push the tray until it slides completely in.

3To detach, pull one side out then the other.

If the tray collects water, detach it and empty the water. After emptying it, re-assemble the tray.

•Do not operate the Styler without installing the drip tray. Doing so could lead to water damage caused by leaking.

INSTALLING CAP COVERS

1 Line up the nubs on the cap cover with the holes in the top corner of the cabinet.

2 Snap the cap cover into place. Repeat with the remaining cap cover on the other corner.

INSTALLING HINGE COVERS

1Open the Styler door.

2Snap the hinge cover onto the lower hinge assembly with the bent edge on the far side from the hinge.

3Repeat with the remaining hinge cover on the upper hinge assembly.

OPERATION 19

OPERATION

BEFORE USE

Clean the Styler.

Clean the Styler thoroughly and wipe off all dust that accumulated during

shipping. Do not plug in or operate the appliance until the interior and exterior have thoroughly dried.

Caution

yy Do not scratch the Styler with a sharp object or use a detergent that contains alcohol, bleach, a flammable liquid or an abrasive when removing any tape or adhesive from the Styler,.

yy Do not peel off the model or serial number label or the technical information on the rear surface of the Styler.

Note

Remove adhesive residue by wiping it off with your thumb or dish detergent.

Unpack accessories.

Unpack the shelf and hangers. Accessories can be purchased separately from the Goldiran Customer Information Center. 021-84733.

Assemble the drip tray.

Insert the drip tray at the bottom of the cabinet.

Connect the power supply.

Check if the power supply is connected before use.

Wash dirty clothes if necessary before putting them in the Styler.

The Styler does not have a washing function. Stains and loose dirt from one item may transfer to others during a cycle. Wash or brush off dust and dirt, or spot-clean items, to avoid setting stains or transferring dirt or odors.

20 OPERATION

using the styler

1 PREPARE ITEMS

• Wash clothes first, if needed.

• No heat-sensitive items or items that can be damaged by exposure to water.

• Place items on hangers or the shelf.

• Fasten buttons and close zippers to keep items on moving hangers and prevent damage.

2 CLEAN LINT FILTER, CHANGE SHEET IN AROMA FILTER

Lift out filter and remove lint from last load for faster and more efficient performance. Reinstall filter, checking alignment when closing grill. Do not operate the Styler without the lint filter in place. If using a fabric softener sheet in the aroma filter, change it after every use.

3 CHECK WATER TANKS

Fill water supply tank if needed. Empty water drain tank if needed. Use clean tap water in the supply tank for better product performance and lifespan. Do not use distilled water or reuse water from the drain tank.

4 LOAD STYLER

Pay attention to fabric care labels and cycle choice. If clothing is not appropriate for the cycle selected, it may shrink or be seriously damaged.

Remove all empty hangers to avoid noise, friction, and damage to clothing.

5 TURN ON STYLER

Touch Power to turn on the Styler.

6 SELECT CYCLE

Touch icons to select desired cycle and settings.

7 BEGIN CYCLE

Touch and hold Start/Pause to begin cycle. Pause cycle at any time by touching Start/Pause again. Restart cycle within four minutes of pausing it, or the Styler shuts off and settings are lost. Do not open door during cycle. If steam or hot air escape from open door, condensation may collect on floor or walls, resulting in damage or mold.

8 END OF CYCLE

Remove items when cycle finishes. Leave door open to let hot air escape. Interior light shuts off after 60 minutes if door is left open.

OPERATION 21

SORTING LOADS

Fabric Care Labels

Most articles of clothing feature fabric care labels that include instructions for proper care. Below are some of the symbols that are relevant to choosing appropriate items for the Styler.

fabric care labels that can be used with the
category	label	meaning	Styler
		hand wash	
		machine wash,	
		normal cycle
		perm press/wrinkle	
washing		resistant
labels		gentle/delicate	
		do not wash	*
		normal	
		permanent press/	
		wrinkle resistant
		gentle/delicate	
		do not tumble dry	
drying		do not dry	NO
labels
		line/hang dry	
		drip dry	
		dry flat	
		high	
		medium	
dryer			
heat setting		low
labels			NO
		no heat/air dry

*Some items such as fur and leather which are labeled as do not wash can be used with the Styler.

Grouping Similar Items

•For best fabric care results, always treat fabrics with similar care requirements together.

•Different fabrics have different care requirements, and some fabrics cannot be treated in certain Styler cycles or should be treated separately.

Choosing Styler-Safe Clothing

Some items are not appropriate for use with this product.

•Do not put the following items in the Styler.

category	non-Stylable items
clothes	starched clothes, vinyl
bedding/	electric blankets, heavy blankets
blankets	(double layer or over 3.3 lbs [1.5
	kg])
other	shoes, items made with sponge
	rubber, items with adhesives

•Follow fabric care labels.

•Don’t put items that are sensitive to heat or are not suitable for washing with water in Styler cycles that use steam. Use the Gentle Dry cycle only.

•Fur, leather(only 100% natural leather), and silk items should only be treated with the Air Fresh cycle. This cycle is a downloadable cycle.

•Using the wrong cycle for items can result in damage to fabrics.

•Wash heavily soiled or stained clothes before putting them in the Styler. The Styler does not have a washing function. Loose

soil or stains can be transferred between garments during cycles.

•Treat items with an unpleasant odor in a separate load. Odors can be transferred between items during cycles.

•Some odors can be difficult to remove.

Odors from oily substances may be difficult for the steam to penetrate. Odors from extended storage may also be difficult to remove.

•Wrinkles may remain in some items.

Wrinkles caused by extended storage may be difficult to remove. Wrinkles in cotton or linen may not be removed completely.

22 OPERATION

Fabric Care Guide

= yes

§ = check label

<![if ! IE]>

<![endif]>natural fibers

	fabric
		cotton
<![if ! IE]> <![endif]>fibers
<![if ! IE]> <![endif]>vegetable		hemp,
		linen,
		ramie
		alpaca,
		camel hair,
		cashmere
		fur,
		leather
<![if ! IE]> <![endif]>fibers
<![if ! IE]> <![endif]>animal		silk
		wool

		Refresh cycle		Sanitary	Gentle
	clothes	removing	removing	cycle	Dry	comments
					cycle
		wrinkles	odors
	towels, socks,					Wrinkles may
	underwear,					remain in 100%
	jeans,					cotton fabrics.
	sportswear,					Iron after cycle, if
	t-shirts, blankets					desired.
						Some wrinkles
						may remain. Make
						sure fabrics are
						washable/hand
	summer clothes,					washable if using
	tablecloths					Refresh/Sanitary
						cycles. Lay clothes
						on shelf if delicate.
						Do not style
						starched clothes.
	coats, suits	§	§	§		Lay knits on the
						shelf. Alpaca and
	scarves,		§			camel hair shrink in
	knitwear					hot water.
						* Only use
						downloaded Fur/
						Leather Care cycle
	coats, scarves					(low temperature
						drying).But, leather
						is only 100%
						Natural leather(No
						artificial leather)
	silk neckties,
	ribbons, scarves,					Do not use silk
	blouses, silk					clothes.
	velvet/plush
	sweaters,		§			Lay knits on shelf.
						Some wool shrinks
	knitwear
						when washed in
						hot water. Make
						sure fabrics are
	winter					washable/hand
	coats, suits,					washable if using
	sportswear,					Refresh/Sanitary
	uniforms					cycles. Gentle Dry
						cycle is safe for most.

OPERATION 23

Fabric Care Guide (continued)

								= yes
								§ = check label
				Refresh cycle		Sanitary	Gentle
	fabric		clothes	removing	removing	cycle	Dry	comments
							cycle
				wrinkles	odors
			suit lining,
		acetate	blouses, neckties,
			pajamas
			thermal
		acrylic	underwear,					Lay clothes on shelf
			knitwear
<![if ! IE]> <![endif]>fibers		nylon	stockings,					Lay clothes on shelf
			lingerie
<![if ! IE]> <![endif]>made-			sportswear,
			curtains
<![if ! IE]> <![endif]>man			stretchable					If the item contains
								more than 5%
		polyure-	clothing
								polyurethane
		thane	(containing less
								(swimwear), check
			than 5%)
								label for care
		rayon	suit lining

• Fabrics come in a wide variety of weights and finishes and can have different care requirements for each variety. It is difficult to cover them adequately in this manual. Before using the Styler with any item, check the care label before proceeding. Do not put items that are not colorfast, are heat-

sensitive, or are not suitable for washing with water in the Refresh or Sanitary cycles. Do a water blot test on a small, inconspicuous spot (an inside seam) to determine if the fabric is colorfast. For further assistance, consult the clothing manufacturer, a dry cleaning professional, or a more detailed fabric care guide.

• Using the Styler with items that are very wet or are not colorfast may result in damage to the items and staining from fabric dyes on the interior of the cabinet. These stains will not affect the operation of the Styler. Use toothpaste to remove stains from interior of cabinet.

• The Styler does not have a washing function. Wash soiled items before use.

24 OPERATION

CheckING the filters before every load

Checking the Lint Filter

Always make sure the lint filter is clean before starting a new load; a clogged lint filter will increase drying times.

1Open the front grill and take out the lint filter.

Changing the Aroma Sheet

Use a dryer fabric softener sheet to add a refreshing aroma to items. Replace the fabric softener sheet after every use.

1Remove the aroma filter from the Styler.

2Open the aroma filter and insert a dryer fabric softener sheet into it.

2Brush the filter with a soft brush or clean it with a vacuum cleaner.

If the lint filter is torn or damaged, replace it with a new filter.

3Reinstall the filter.

CAUTION

•Check that the sides are aligned correctly when inserting the grill.

3Close the aroma filter and insert it back in the Styler.

Insert the aroma filter in the direction of the arrow. You can adjust the opening of the perfume filter using the adjustment lever. The more open the aroma filter is, the richer the aroma gets.

Left

Right

Closed

Open

4When the cycle is complete, remove the aroma filter and discard the fabric softener sheet.

Tip : To use your favorite perfume, spray it 4-5 times on a cotton pad and place the pad in the aroma filter. The strength of the resulting fragrance may vary depending on the scent used.

OPERATION 25

checking the water tanks

Check the water in the water tanks before use. The water supply tank must be filled with water before using the Styler. The Styler does not work without water. The water drain tank should be emptied before each use.

1Pull the handle of each tank forward to remove the tank and check the level of water.

water supply tank water drain tank

2Make sure the water supply tank is filled with water.

The full water supply tank can be used approximately four times, depending on the cycles used. Use clean tap water or bottled water for best performance and longer product life. Do not use distilled water or reuse the water from the drain tank.

The first time the Styler is used, 2/3 of the water in the fully filled water supply tank is used. Less water is used in following cycles.

Loading the styler

CAUTION

yy Check all pockets to make sure that they are empty. Items such as clips, pens, coins, and keys can damage both the Styler and your clothes. Flammable objects such as lighters or matches could ignite, causing a fire. Failure to do so can result in fire, explosion, or death.

yy Never dry clothes that have been exposed to oil, gasoline, or other flammable substances. Washing clothes will not completely remove oil residues. Failure to obey this warning can result in fire, explosion, or death.

yy Remove empty hangers from the moving hanger and place them on the shelf before starting the cycle. Empty hangers may cause unnecessary noise, friction, and damage to fabrics.

yy Hang hangers in the same direction on the moving hanger to prevent collisions.

CAUTION

•Only use water when filling the water supply tank. Any other substance, such as detergent or fabric softener, may damage the Styler.

•Use only clean tap water or bottled water. Foreign materials in the water may shorten the lifespan of the Styler.

•Do not use distilled water. The water sensor may not work.

•Do not reuse the water in the drain tank to fill the water supply tank.

3Make sure the water drain tank is empty.

The drain tank will be filled after about three uses. The tank fills more quickly during drying cycles. The Styler does not work if the drain tank is full.

•Some discoloration of the water drain tank may occur over time. This is normal and will not affect product performance.

	accessory	items to use it with
		shirts, dresses, suits, coats,
	hangers	skirts, pants without creases
		or too large for pants press, or
		any item that can use a hanger
	Pants Crease	pants when creases are desired
	Care
		sweaters, wool, knitwear,
	shelf	lingerie, shoes, hats, toys, and
		other clothing or items that
		cannot use hangers

26 OPERATION

Hangers

The hangers that come with the Styler are for use with the Styler only. Any plastic or metal hanger that has a hook less than 5/32 in. (4 mm) thick and hooks snugly into the indentations in the moving hanger can be used in the Styler.

•Do not use hangers with wool, knitwear, or delicate lingerie. The garments may stretch or be left with hanger marks.

•Wrinkles may appear at the back of the collar on some garments.

•Use the diagonal hanger grooves in the moving hanger for large or bulky items.

•Remove empty hangers or store them in the shelf during operation.

1Select an appropriate hanger.

Choose the Styler hanger that fits the item you are hanging up.

2Fasten the buttons and zippers on all garments and hang them on hangers.

Doing so helps keep the garments from falling or becoming more wrinkled during the cycle. If a garment has no buttons or zipper, fasten it with a cotton string around the collar area.

3Place the hangers into the slots of the moving hanger

Using the Moving Hanger

1Insert hangers into slots and pull down to secure the hook snugly.

Hooks should fit down in the slots snugly to prevent noise, vibration, or damage to items during operation.

2Use the diagonal slots (2 and 4) for bulky items.

Do not use diagonal slots and standard slots during the same cycle. The hangers may knock into each other and damage clothing.

3Do not overcrowd items.

The fewer items, the better the drying performance. Items that touch the sides of the cabinet may pick up condensation from the cabinet and fail to dry completely.

Pants Hanger or Pants Crease Care

Place pants either on the moving hanger or in the Pants Crease Care, depending on whether maintaining the creases on the pants legs is desired.

•Hanging pants on the moving hanger may remove the creases on pants legs.

•To maintain the creases on pants legs, use the Pants Crease Care.

•Pants should be no wider than 38 in. (96 cm) or longer than 43 5/16 in. (110 cm) to fit in the Pants Crease Care. Check the size of the pants before using the Pants Crease Care. If pants are too large, use the moving hanger.

•The fabric content of the garments affects how well wrinkles are reduced.

•Download the Extra Pants Care cycle for the most effective wrinkle removal for pants.

OPERATION 27

Opening and Closing the Pants Hanger

1To open, fold the hook down toward the hanger blades to unlock and separate the blades.

hook

hanger blades

2Once pants are inserted, bring the blades together and rotate the hook up and away from the blades to lock them in place.

Hanging Pants On the Pants Hanger

1Remove all objects from pants pockets and button the back pockets.

2 Fold pants along crease lines (or where crease lines would be), and attach the pants hanger at the ends of the pants legs.

3Tug gently on the sides of the pants legs. Make sure pants are stretched tight within the hanger, with no wrinkles, and will not fall out of the hanger during the cycle.

4Place the pants hanger on the moving hanger or in the Pants Crease Care.

Using the Pants Crease Care

1Open the Pants Crease Care by pressing on the icon on the side.

2Hang the pants hanger on the hook above the Pants Crease Care that best fits the length of the pants being pressed.

If the pants are longer, use the higher hooks to keep the pants from hitting the floor of the cabinet.

Pants should be no wider than 38 in. (96 cm) or longer than 43.3 in. (110 cm). Check the size of the pants before using the Pants Crease Care. If pants are too large, use the moving hanger.

3 Make sure the pants are hanging straight.

Check the creases on the legs to make sure they are lined up. Fix the pants with 2 clips before closing the Pants Crease Care. If the pants legs are not aligned properly or the pants are

not hanging straight, double lines may appear at the pants' edges, or the pants may be wrinkled.

4 Close the Pants Crease

Care, then straighten the pants once more.

Gently tug the edges of the pants to smooth out any wrinkles. Make sure the pants are hanging straight in the Pants Crease Care.

28 OPERATION

Shelf	• Hang the shelf on the shelf holder when
Use the shelf for clothes and items that cannot be	treating long clothes such as coats or dresses.
placed on hangers. Do not stack items on the shelf.
For best drying performance, use the shelf for a
single item or smaller items with space between.

Assembling the Shelf

1 Hold the shelf so that the gray trim is toward the front.

Front

	41.3 in.	51.2 in.
Bottom	105 cm	130 cm

2Insert the left shelf groove into the left shelf support, then lower the right shelf groove onto the right shelf support.

Storing Hangers

Remove unused hangers from the moving hanger and store them in the shelf during operation. This prevents noise and damage to clothing.

1Insert the hangers between the rails of the shelf.

Left

Right

3To disassemble, lift up the right side of the shelf, then pull out the left side of the shelf from the shelf support.

CAUTION

•The shelf cannot be assembled by sliding it into the cabinet. It will fall if not assembled properly.

•Do not place heavy objects on the shelf or use it to store objects. Doing so can cause the product to malfunction.

•Do not allow children to climb on or hang on the shelf. They could be injured.

2When styling long clothes, if the shelf is stored on the shelf holder, store the

hangers outside the unit during operation.

3 Do not use the shelf to store heavy items.

OPERATION 29

CONTROL PANEL

The control panel responds to touch using static electricity. A light touch is enough to operate it. Use a cloth when cleaning the controls to avoid contacting and activating the keys. Foreign substances on the control, wearing gloves, or touching the keys through cloth may prevent the keys from activating.

Control Panel Features

Depending on the model, some of the following functions may not be available.

SMART DIAGNOSIS™ ICON

Place the phone over this icon when diagnosing problems with Smart Diagnosis.

POWER ON/OFF

Touch Power to turn the Styler ON/OFF. Once the cycle is complete, the Styler automatically turns off after a few seconds if no keys are touched.

NOTE: Touching Power during a cycle will cancel that cycle and the cycle settings will be lost.

CYCLE COMPLETION INDICATOR

This portion of the display shows which stage of the styling cycle is currently underway (Preparing, Steaming, Drying, Sanitizing, or Night Care).

OPTION AND ALERT INDICATORS

Delay On: lights when the Delay Start feature is set.

Fill Water: lights when the water supply tank is missing or empty.

Empty Water: lights when the water drain tank is missing or full.

Remote: lights when the Remote Start function is set.

Wi-Fi: lights when the Wi-Fi function is set.

TIME DISPLAY

The display shows the estimated time remaining and error messages for the Styler.

The cycle time may vary by usage conditions.

START/PAUSE

Touch and hold to Start the selected cycle. If the Styler is running, touch to PAUSE the cycle without losing the current settings.

NOTE: If you do not touch Start/Pause to resume a cycle within an hour of pausing it, the Styler turns off automatically.

SmartThinQ

Search for the LG SmartThinQ application from the Google Play Store or Apple App Store on a smart phone.

REFRESH CYCLE

Touch the icon to select a Refresh cycle, touch repeatedly to toggle through the settings.

SPECIAL CARE

Touch the icon to select a Special Care cycle. Touch repeatedly to toggle through the settings. Downloaded has 4 default cycles. Download a new cycle using the SmartThinQ application on a smart phone.

30 OPERATION

SANITARY / *Night Care

Touch the icon to select a Sanitary cycle. Touch repeatedly to toggle through the settings.

Touch and hold the icon for three seconds to activate/deactivate the Night Care function.

GENTLE DRY / *Remote Start

Touch the icon to select a Gentle Dry cycle. Touch repeatedly to toggle through the settings.

Press and hold three seconds to activate the Remote function.

DELAY START / *Wi-Fi

Set a delayed start time for the cycle. Delay Start cannot be selected with the Night Care cycle.

Press and hold for three seconds to activate the Wi-Fi function.
