OWNER’S MANUAL
MFL69940449
High Power
Speaker
System
Please read this manual carefully before operating
your set and retain it for future reference.
MODEL
RK1
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
Getting Started2
Safety Information
1
Getting Started
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
CAUTION: The apparatus should not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the
apparatus.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not use high voltage products around
this product. (ex. Electrical swatter) This product may
malfunction due to electrical shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This lightning ash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sufcient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of
the product and to protect it from over heating.
The openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a builtin installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
NOTICE: For safety marking information including
product identication and supply ratings, please refer
to the main label on the bottom or the other surface
of the product.
Getting Started 3
CAUTION concerning the Power Cord
The Power Plug is the disconnecting device. In case
of an emergency, the Power Plug must remain readily
accessible.
Check the specication page of this owner’s manual
to be certain of the current requirements.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could result
in electric shock or re. Periodically examine the
cord of your device, and if its appearance indicates
damage or deterioration, unplug it, discontinue use of
the device, and have the cord replaced with an exact
replacement part by an authorized service center.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits
the device.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the battery
from the equipment: Remove the old battery or
battery pack, follow the steps in reverse order than
the assembly. To prevent contamination of the
environment and bring on possible threat to human
and animal health, the old battery or the battery
put it in the appropriate container at designated
collection points. Do not dispose of batteries or
battery together with other waste. It is recommended
that you use local, free reimbursement systems
batteries and accumulators. The battery shall not be
exposed to excessive heat such as sunshine, re or
the like.
CAUTION: No naked ame sources, such as lighted
candles, should be placed on the apparatus.
Symbols
Refers to alternating current (AC).
~
Refers to direct current (DC).
0
Refers to class II equipment.
Refers to stand-by.
1
Refers to “ON” (power).
!
Refers to dangerous voltage.
1
Getting Started
Table of Contents4
Table of Contents
1 Getting Started
2 Safety Information
6 Unique Features
7 Playable file Requirement
7 – Music file requirement
7 – Compatible USB Devices
7 – USB device requirement
8 Remote control
10 Top / Front panel
11 Side / Rear panel
12 Assembling the speaker
2 Connecting
13 Optional Equipment Connection
13 – AUX IN Connection
13 – PORT. IN Connection
13 – Listening to music from your portable player
or external device
14 – USB Connection
3 Operating
15 Basic Operations
15 – USB Operations
15 – Selecting a folder
and an MP3/WMA file
16 Using BLUETOOTH® wireless technology
16 – Listening to music stored on the Bluetooth
devices
19 Radio Operations
19 – Listening to the radio
19 – Improving poor FM reception
19 – Presetting the Radio Stations
19 – Deleting all the saved stations
20 Sound adjustment
20 – Setting the sound mode
21 Other Operations
21 – Turn off the sound temporarily
21 – Sleep Timer Setting
21 – Dimmer
21 – Auto power down
21 – Displaying file information
(ID3 TAG)
22 – AUTO POWER On
22 – Auto function change
23 Setting the Clock
23 – Using your player as an alarm clock
Table of Contents 5
4 Troubleshooting
24 Troubleshooting
5 Appendix
25 General specifications
26 Trademarks and Licenses
26 Maintenance
26 – Handling the Unit
1
2
3
4
5
Getting Started6
Unique Features
BLUETOOTH®
1
Listens to music stored on your Bluetooth device.
Getting Started
Portable In
Listens to music from your portable device. (MP3,
Notebook, etc.)
Getting Started 7
Playable file Requirement
Music file requirement
MP3/WMA le compatibility with this unit is limited
as follows.
y Sampling frequency : within 32 to 48 kHz (MP3),
within 32 to 48 kHz (WMA)
y Bit rate : within 32 to 320 kbps (MP3),
40 to 192 kbps (WMA)
y Maximum les : USB : 999
y Maximum folders : USB : 99
y File extensions : “.mp3”/ “.wma”
y Certain MP3/WMA les may not be played
depending on the type or format of the le.
The DTS is not supported. In case of DTS audio
format, audio is not output.
Compatible USB Devices
y MP3 Player : Flash type MP3 player.
y USB Flash Drive :
Devices that support USB2.0 or USB1.1.
y The USB function of this unit does not support all
USB devices.
USB device requirement
y Devices which require additional program
installation when you have connected it to a
computer, are not supported.
y Do not extract the USB device while in operation.
y For a large capacity USB, it may take longer than a
few minute to be searched.
y To prevent data loss, back up all data.
y If you use a USB extension cable or USB hub, the
USB device is not recognized.
y Using NTFS le system is not supported. (Only
FAT(16/ 32) le system is supported.)
y This unit recognizes up to 999 les.
y External HDD, Card readers, Locked devices, or
hard type USB devices are not supported.
y USB port of the unit cannot be connected to PC.
The unit cannot be used as a storage device.
y Some USB may not work with this unit.
1
Getting Started
Getting Started8
Remote control
1
Getting Started
Replacement of battery
SLEEP
CLOCK ALARM
• • • • • • • • • • • • • • a • • • • • • • • • • • • •
(Standby) : Turns the power on or off.
1
F (Function) : Selects the function and input source.
Input source / Function Display
USB USB
AUX input AUX
Portable input PORT
Bluetooth BT
Radio FM
VOL (Volume) +/- : Adjusts speaker volume.
(Mute) : Mutes the sound.
MEMORY :
- Stores radio stations. (Page 19.)
- Deletes all the saved stations.
PRESET/FOLDER W/S :
- Chooses a preset number for a radio station.
- Searches for a folder of MP3/WMA les. When a
USB containing MP3/WMA les in several folders
is being played, press PRESET/FOLDER W/S to
select the folder you want to play.
Remove the battery cover on the rear of the remote
control, and insert the battery with 4 and 5
matched correctly.
Getting Started 9
• • • • • • • • • • • • • • b • • • • • • • • • • • • •
SOUND EFFECT : Chooses sound impressions.
REPEAT : Listens to your les repeatedly or
randomly.
BASS BLAST : Press to select BASS effect directly.
TUNING-/+ : Selects the radio stations.
C / V (Skip/Search)
- Skips backward or forward.
- Searches for a section within a le.
(Play/Pause)
N
- Starts or pauses playback.
- Selects stereo/mono.
• • • • • • • • • • • • • • c • • • • • • • • • • • • •
J(Information) :
- Sees information about your music. An MP3 le
often come with ID3 tag. The tag gives the Title,
Artist, Album or Time information.
- Sees Bluetooth device name of the unit in BT
READY.
- Sees the name of connected all Bluetooth device
in Bluetooth mode.
SLEEP : Sets the system to turn off automatically at
a specified time.
(Dimmer : The display window will be darkened by
half.)
SET : Conrms the setting.
CLOCK : Sets a clock and checks a time.
ALARM : With the ALARM function you can turn on
USB play and tuner reception at a desired time.
? :This button is not available.
1
Getting Started
Getting Started10
Top / Front panel
1
Getting Started
bdca
Display window
a
(Standby)
b 1
Turns the power on or off.
(Skip/Search)
C/V
c
- Skips backward or forward.
N (Play/Pause)
+/-
- Searches for a section within a file.
- Selects the radio stations.
- Starts or pauses playback.
- Selects stereo/mono.
- Adjusts speaker volume.
d F (Function)
Selects the function and input source.
Input source / Function Display
USB USB
AUX input AUX
Portable input PORT
Bluetooth BT
Radio FM
Side / Rear panel
Getting Started 11
a b
PORT. (Portable) IN jack
a
USB Port
b
You can play sound les by connecting the USB
device.
c FM ANTENNA
d AUX IN (L/R)
Connect an auxiliary device.
e POWER IN
d
c
POWER IN
POWER IN
e
1
Getting Started
Getting Started12
Assembling the speaker
Before connecting the speakers, assemble the
speakers. Please check the items for assembling the
1
speakers.
Getting Started
1. Put the speaker upside down to assemble the
base.
TOP
2. Place an arrow of the base toward the speaker.
TOP
3. Tighten up with supplied screws.
Caution
>
yBe careful to make sure children do not put
their hands or any objects into the *speaker
duct.
* speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure)
yThe speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
yBe careful that the speaker
does not fall down.
Otherwise it may result in
the speaker malfunction
and cause personal injury
and/ or property damage.
yPlease be careful not to
damage the top of unit
when place the speaker upside down.
Connecting 13

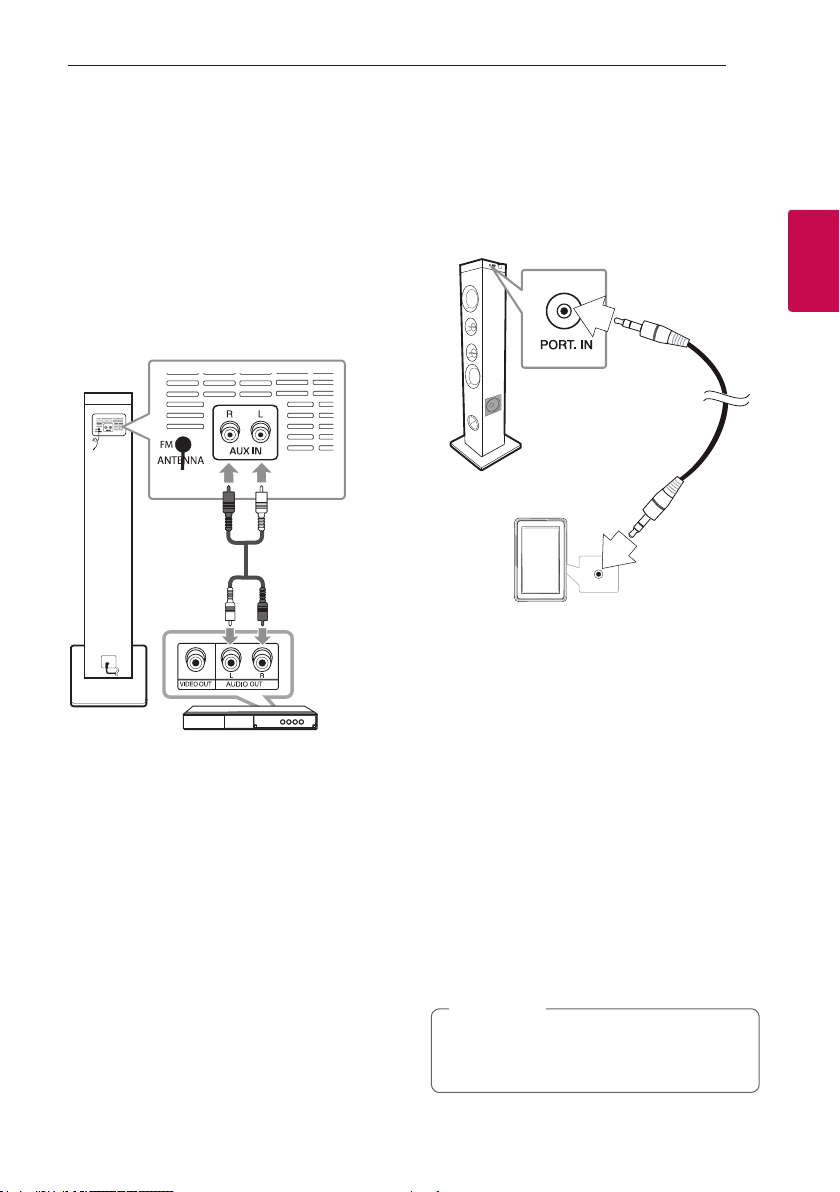

Optional Equipment Connection
AUX IN Connection
Connect an output of auxiliary device (Camcorder, TV,
Player, etc) to the AUX IN (L/R) connector.
If your device has only one output for audio(mono),
connect it to the left(white) audio jack on the unit.
WhiteRed
Audio cable
POWER IN
DVD, Blu-ray player etc.
PORT. IN Connection
Connect an output (earphone or line out) of portable
device (MP3 or PMP etc) to the PORT. IN (3.5 mm)
connector.
Portable cable
MP3 player etc.
Listening to music from your portable player or external device
The unit can be used to play the music from many
types of portable player or external device.
1. Connect the portable player to the PORT. IN
connector of the unit.
Or
Connect the external device to the AUX IN
connector of the unit.
2. Turn the power on by pressing 1.
3. Press F to select AUX or PORT function.
4. Turn on the portable player or external device and
start it playing.
Note
,
Automatically switches to the PORT function
when you connect the portable device to the
PORT. IN connector.
2
Connecting
Connecting14
USB Connection
Connect a USB device (or MP3 player, etc.) to the
USB port on the unit.
2
Connecting
Note
,
Removing the USB device from the unit :
1. Choose a different function/mode.
2. Remove the USB device from the unit.
USB device
Operating 15
Basic Operations
USB Operations
1. Connect the USB device to the USB port.
2. Select USB function by pressing F.
To Do this
Playback Press N.
Pause Press N during playback.
Searching
for a section
within a le
Skipping to
the next/
previous le
Playing
repeatedly or
randomly
yDo not extract the USB device during
operation. (play, etc.)
yRegular back up is recommended to prevent
data loss.
Press and hold C/V during
playback and release it at the point
you want to listen to.
- In stop status,
Press C/V to go to the next/
previous track/le.
- During playback,
press V to go to the next track/
le.
Playing in less than 3 seconds, press
to go to the previous track/le.
C
Playing after 3 seconds, press C
to go to the beginning of the track/
le.
Press REPEAT on the remote
control repeatedly, the display will
be changed in the following order.
ONE -> ALL -> SHUFFLE -> OFF
Caution
>
Selecting a folder and an MP3/WMA file
1. Press PRESET/FOLDER W/S repeatedly on the
remote control until a desired folder appears.
2. Press N.
The first file of folder will be played.
Note
,
yUSB Files are recognized as below.
*
yFolders will be presented as the following
order;
ROOT FOLDER 1 FOLDER 3
FOLDER 7 FOLDER 8 FOLDER 5
FOLDER 6
yFile will be played from $ le No.1 to $ le
No.14 one by one.
yFiles will be presented in order recorded and
may be presented differently according to the
record circumstances.
*ROOT : the rst screen you can see when a
computer recognize the USB is “ROOT”
3
Operating
Operating16
Using BLUETOOTH® wireless technology
About Bluetooth
Bluetooth is wireless communication technology for
short range connection.
The sound may be interrupted when the connection
interfered by the other electronic wave or you
connect the Bluetooth in the other rooms.
Connecting individual devices under Bluetooth
wireless technology does not incur any charges. A
mobile phone with Bluetooth wireless technology
3
can be operated via the Cascade if the connection
Operating
was made via Bluetooth wireless technology.
yAvailable Devices : Smart phone, MP3, Notebook,
etc.
yVersion : 4.0
yCodec : SBC
Bluetooth Profiles
In order to use Bluetooth wireless technology,
devices must be able to interpret certain proles.
This unit is compatible with following prole.
A2DP (Advanced Audio Distribution Prole)
Listening to music stored on the Bluetooth devices
Pairing your unit and Bluetooth device
Before you start the pairing procedure, make sure the
Bluetooth feature is activated on your Bluetooth
device. Refer to your Bluetooth device’s user guide.
Once a pairing operation is performed, it does not
need to be performed again.
1. Turn on the unit.
Note
,
When Bluetooth connection lock is activated,
you can search Bluetooth device in BT function.
2. Operate the Bluetooth device and perform the
pairing operation. When searching for this unit
with the Bluetooth device, a list of the devices
found may appear in the Bluetooth device display
depending on the type of Bluetooth device. Your
unit appears as “LG RK1(XX)”.
Note
,
yXX means the last two digits of
Bluetooth address. For example, if your
unit has a Bluetooth address such as
9C:02:98:4A:F7:08, you will see “LG RK1(08)”
on your Bluetooth device.
yDepending on the Bluetooth device type,
some devices may have a different pairing
process. Enter the PIN code (0000) as
needed.
yYou can connect this unit with up to 2
Bluetooth phones simultaneously using the
same method as described above, only in the
Bluetooth function.
yThe multi phone pairing connection is only
supported on Android phone. (Multi pairing
connection may not be supported depending
on the connected phone specications.)
yDuring multi phone pairing connection,
phones are muted.
Operating 17
3. When this unit is successfully connected with
your Bluetooth device, “PAIRED” appears on the
display window and change to Bluetooth device
name soon. Then “BT” will appear on the display
window.
Note
,
y"PAIRED" will momentarily appear on the
display when you connect other devices for
multi pairing.
yIf the device name is unavailable, “_” will be
displayed.
4. Listen to music.
To play a music stored on your Bluetooth device,
refer to your Bluetooth device’s user guide.
Note
,
yWhen using Bluetooth technology, you have
to make a connection between the unit and
the Bluetooth device as close as possible and
keep the distance.
However, it may not work well in certain
situations as described below :
- There is an obstacle between the unit and
the Bluetooth device.
- There is a device using same frequency
with Bluetooth technology such as a
medical equipment, a microwave or a
wireless LAN device.
yYou should connect your Bluetooth device to
this unit again when you restart it.
yEven if this unit connected up to 2 Bluetooth
devices in the Bluetooth mode, you can play
and control music by using only one of the
connected devices.
Bluetooth connection lock
(BT LOCK)
You can limit Bluetooth connection to only
BT (Bluetooth) function to prevent unintended
Bluetooth connection.
To turn on this function, press and hold N for about
5 seconds in BT (Bluetooth) function.
“BT LOCK” appears then you can limit Bluetooth
connection.
To turn off this function, press and hold N for about
5 seconds in BT (Bluetooth) function.
“BT UNLOCK” appears.
3
Operating
3
Operating
Operating18
Note
,
yThe sound may be interrupted when the
connection has interference from other
electronic devices.
yDepending on the type of the device, you may
not be able to use the Bluetooth function.
yYou can enjoy wireless system using phone,
MP3, Notebook, etc.
yThe more distance between the unit and the
Bluetooth device, the lower the sound quality
becomes.
yBluetooth connection will be disconnected
when the unit is turned off or the Bluetooth
device gets far from the unit.
yWhen Bluetooth connection is disconnected,
connect the Bluetooth device to the unit
again.
yWhen a Bluetooth device is not connected,
“READY” appears on the display window.
yWhen you use the Bluetooth function,
adjust the volume to a proper level on the
Bluetooth device.
yWhen you connect Bluetooth device (iOS
device etc.) to this unit or operate the device,
the volume level can be synchronized with
each other.
yWhen entering Bluetooth function, this unit
automatically connect to Bluetooth device which
is connected the last or playbacked the last.
(Auto connection may not be supported
depending on the connected device
specications.)
Operating 19
Radio Operations
Be sure to fully extend the FM wire antenna.
Listening to the radio
1. Press F until FM appears in the display window.
The last received station is tuned in.
2. Auto tuning :
Press and hold TUNING-/+ on the remote control
or C/V on the unit for about two seconds
until the frequency indication starts to change,
then release. Scanning stops when the unit tunes
in a station.
Or
Manual tuning :
Press TUNING-/+ on the remote control or
on the unit repeatedly.
C/V
3. Adjust the volume by pressing VOL +/- on
the remote control or pressing +/- on the unit
repeatedly.
Improving poor FM reception
Press N. This will change the tuner from stereo to
mono and usually improve the reception.
Presetting the Radio Stations
You can preset 50 stations for FM.
Before tuning, make sure to turn down the volume.
1. Press F until FM appears in the display window.
2. Select the desired frequency by pressing
TUNING -/+ on the remote control or C/V
on the unit.
3. Press MEMORY on the remote control. A preset
number will blink in the display window.
4. Press PRESET/FOLDER W/S on the remote
control to select the preset number you want.
5. Press MEMORY on the remote control. The
station is stored.
6. Repeat steps 2 to 5 to store other stations.
7. To listen a preset station, press
PRESET/FOLDER W/S on the remote control.
Deleting all the saved stations
1. Press and hold MEMORY on the remote control
for three seconds.
“DEL”, “ALL” will flash up alternately on the unit
display.
2. Press MEMORY on the remote control to erase
all the saved radio stations.
3
Operating
Operating20
Sound adjustment
Setting the sound mode
This system has a number of pre-set surround sound
elds. The displayed items for the equalizer may be
different depending on sound sources and effects.
You can select a desired sound mode by using
SOUND EFFECT on the remote control.
On Display Description
Reinforces the treble,
bass and surround
sound effect.
This program lends
an enthusiastic
atmosphere to the
sound, giving you the
feeling you are at an
actual rock, pop, jazz or
classic concert.
You can enjoy
optimized sound.
3
Operating
BASS (BASS BLAST)
POP
CLASSIC
ROCK
JAZZ
STANDARD
Note
,
You can directly select BASS (BASS BLAST)
effect by pressing BASS BLAST.
Operating 21
Other Operations
Turn off the sound temporarily
Press on the remote control to mute your sound.
You can mute your unit, for example, to answer the
telephone, the “q” will blink in the display window.
To cancel it, press
change the volume level.
Sleep Timer Setting
Press SLEEP on the remote control repeatedly to
select delay time between 10 and 180 minutes.
After the delay time, the unit will be turned off.
To cancel the sleep function, press SLEEP on the
remote control repeatedly until “10” appears, and
then press SLEEP on the remote control once again
while “10” is displayed.
Note
,
You can check the remaining time before the
unit is turned off. Press SLEEP on the remote
control to check or change the remaining time.
Dimmer
Press SLEEP on the remote control once.
The display window will be darkened by half.
To cancel it, press SLEEP on the remote control
repeatedly until dim off.
on the remote control again or
Auto power down
This unit will turn itself off to save electricity in the
case were the main unit is not connected to an
external device and is not used for 15 minutes.
The unit will also turn itself off after six hours if the
main unit has been connected to another device
using the analog inputs.
How to disconnect the wireless
network connection or the wireless
device
Turn off the unit by pressing the power button for
more than 5 seconds.
Displaying file information (ID3 TAG)
While playing an MP3 le containing le information,
you can display the information by pressing J on
the remote control.
3
Operating
Operating22
AUTO POWER On
This unit automatically turns on by an input source :
Bluetooth
If you try to connect your Bluetooth device, this unit
turns on and connects your Bluetooth device.
You can play your music.
Note
,
yDepending on the connected device, this
function may not operate.
yDepending on the connected device, the unit
turns on but Bluetooth function may not be
connected.
yIf you disconnect Bluetooth connection by
3
Operating
this unit, some Bluetooth devices try to
connect to the unit continually. Therefore it is
recommended to disconnect the connection
before turning off the unit.
yIf you turn on the unit using Bluetooth
function, proper function of this unit is turned
on.
yIf you have already paired with this unit,
automatically this unit can turn on by an input
source when this unit is turned off.
yIf you turn off the unit by pressing the power
button for more than 5 seconds, Auto Power
On function is disabled.
To activate it, turn on the unit.
Auto function change
This unit recognizes input signals such as Bluetooth
or connected portable device, and then changes
suitable function automatically.
When you try to connect Bluetooth
device
When you try to connect your Bluetooth device to
this unit, Bluetooth function is selected.
Play your music on the Bluetooth device.
When 3.5 mm stereo cable is
connected
When you connect the portable device to the PORT.
IN connector, PORTABLE function is selected.
Play your music on the portable device.
Note
,
yThis function only works with devices that
were previously connected.
yIf the Bluetooth connection lock function
is set, Bluetooth connection will be only
available on Bluetooth function.
Operating 23
Setting the Clock
1. Turn the unit on.
2. Press and hold CLOCK on the remote control.
3. Select time mode by pressing
remote control.
- AM 12:00 (for an A and P display) or 0:00
(for a 24 hour display).
4. Press SET on the remote control to confirm
your selection
5. Select the hours by pressing
remote control.
6. Press SET on the remote control.
7. Select the minutes by pressing
remote control.
8. Press SET on the remote control.
C/V
C/V
C/V
on the
on the
on the
Using your player as an alarm clock
1. Turn the unit on.
2. Press and hold ALARM on the remote control.
3. Press
the hours and minutes and Press SET on the
remote control to save.
4.
Press
function and Press SET on the remote control to save.
- Press
preset number when you select tuner and then,
press on the remote control.
If there is no preset number, this step is skipped.
5. Press
the volume and Press SET on the remote control
to save.
,
yIf you set the clock time, you can check the
time by pressing CLOCK on the remote
control even when the player is turned off.
yYou can set alarm after you set the clock
time.
yIf you set the clock time and alarm, you
can check the alarm setting information by
pressing ALARM on the remote control even
when the unit is turned off.
yYou can select ALARM ON/OFF mode by
pressing ALARM on the remote control.
on the remote control to change
C/V
on the remote control to select
C/V
on the remote control to select a
C/V
on the remote control to change
C/V
Note
3
Operating
Troubleshooting24
Troubleshooting
Problem Cause & Solution
yTurn off the power of this unit and the connected external device (TV, Woofer,
The unit does not work
properly
No Power
DVD-player, Amplier, etc.) and turn them on again.
yDisconnect the power cord of this unit and the connected external device (TV,
Woofer, DVD-player, Amplier, etc.) and then try connecting again.
yPrevious setting may not be saved when device power is shut off.
yThe power cord is not plugged in. Plug in the power cord.
yCheck whether electricity failed.
Check the condition by operating other electronic devices.
No sound
4
Troubleshooting
Radio stations cannot be
tuned in properly
The remote control does
not work properly
yCheck whether you select right function.
Press function button and check the selected function.
yThe signal strength of the radio station is too weak.
Tune to the station manually.
yNo stations have been preset or preset stations have been cleared (when tuning
by scanning preset channels).
Preset some radio stations, see page 19 for details.
yThe remote control is too far from the unit.
Operate the remote control within about 7 m (23 feet).
yThere is an obstacle in the path of the remote control and the unit.
Remove the obstacle.
yThe batteries in the remote control are exhausted.
Replace the batteries with new ones.
General specifications
General
Power requirements Refer to the main label on the unit.
Refer to the main label on the unit.
Power consumption
Dimensions (W x H x D) Approx. 136 mm x 962 mm x 164 mm
Operating temperature 15 °C to 35 °C
Operating humidity 60 %
Inputs
Analog audio in (AUX IN) 0.6 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) .
Portable in (PORT. IN) 0.4 Vrms (3.5 mm stereo jack) x 1
Tuner
FM Tuning Range 87.5 to 108.0 MHz or 87.50 to 108.00 MHz
System
Frequency Response 40 to 20,000 Hz
Signal-to-noise ratio More than 75 dB
Dynamic range More than 80 dB
Bus Power Supply (USB) 5 V 0 500 mA
Networked standby : 0.5 W
(If all network ports are activated.)
Appendix 25
5
Appendix
Amplier (RMS Output power)
Total output 100 W RMS
Front 25 W RMS X 2 (4 Ω at 1 kHz, 10 % THD)
Subwoofer 50 W RMS X 1 (6 Ω at 1 kHz, 10 % THD)
yDesign and specications are subject to change without notice.
Appendix26
Trademarks and Licenses
The Bluetooth® word mark and logos are owned by
the Bluetooth® SIG, Inc. and any use of such marks
by LG Electronics is under license.
Other trademarks and trade names are those of their
respective owners.
5
Appendix
Maintenance
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing
materials. If you need to ship the unit, for maximum
protection, re-pack the unit as it was originally
packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray
near the unit. Wiping with strong pressure may
damage the surface. Do not leave rubber or plastic
products in contact with the unit for a long period of
time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not use
strong solvents such as alcohol, benzine, or thinner,
as these might damage the surface of the unit.
Loading...
